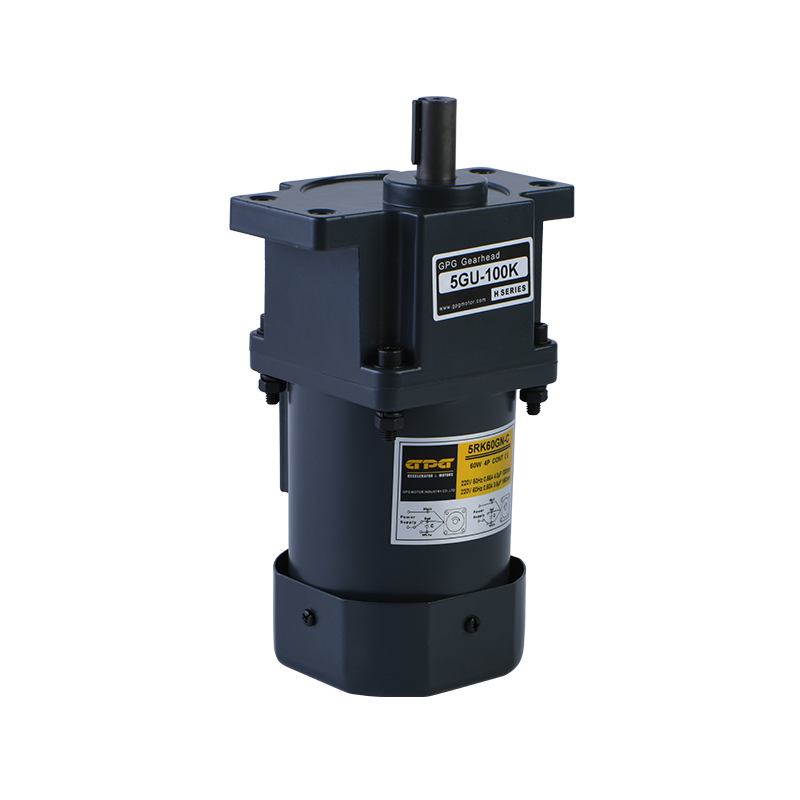

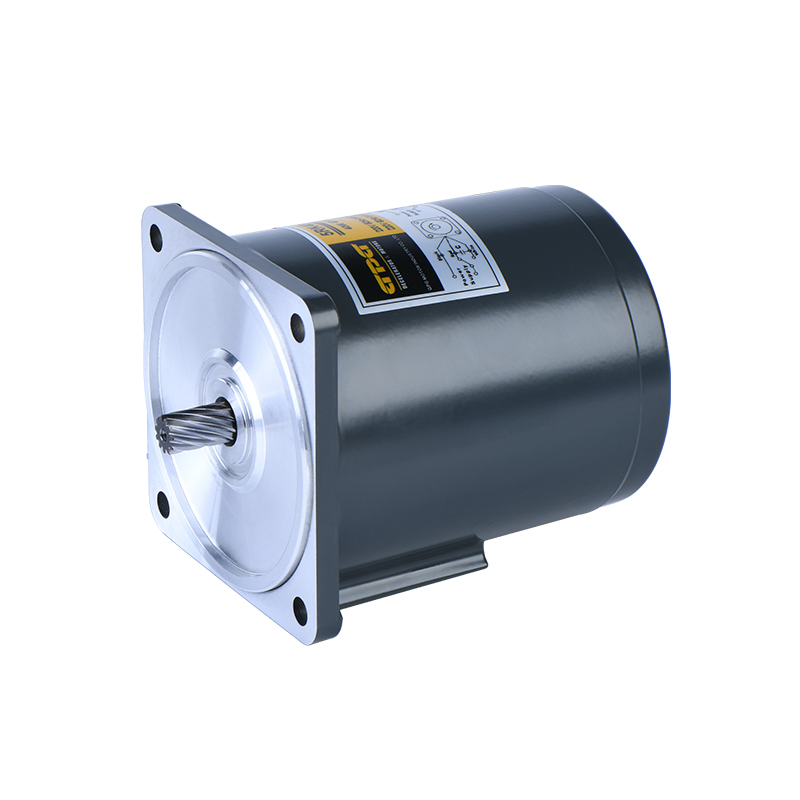

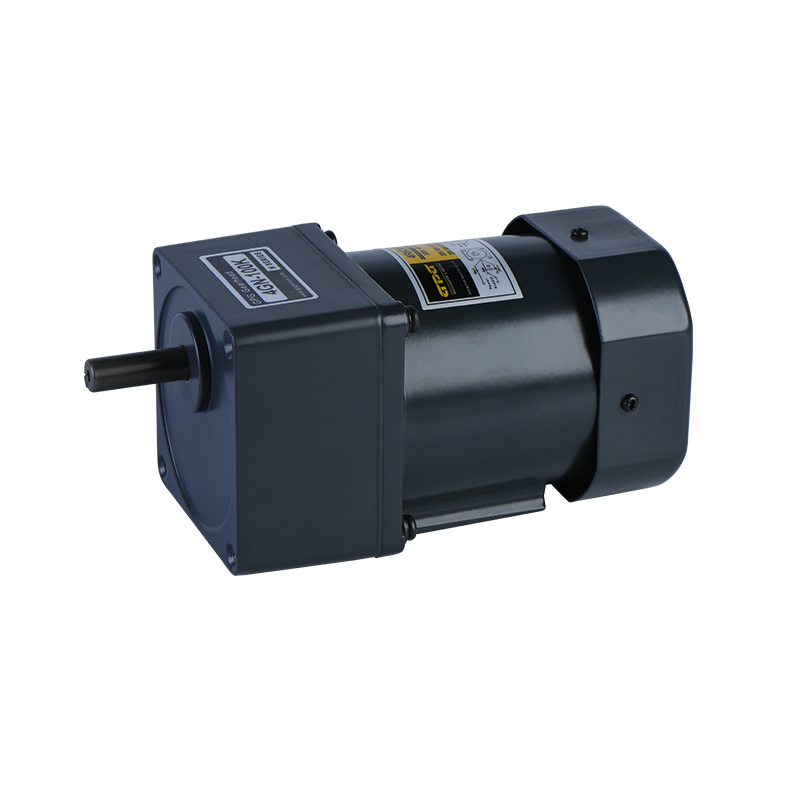

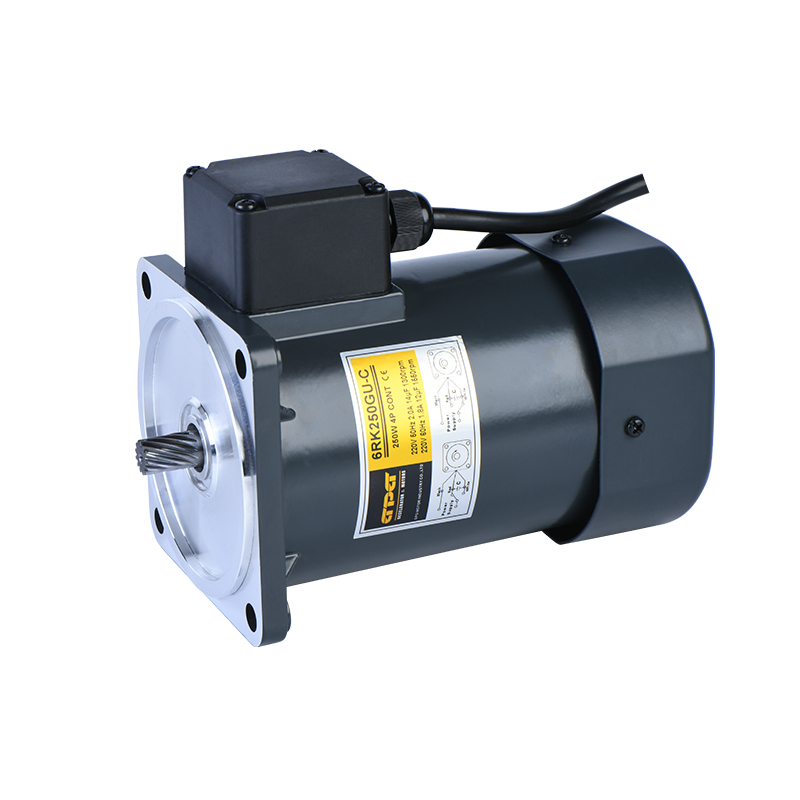

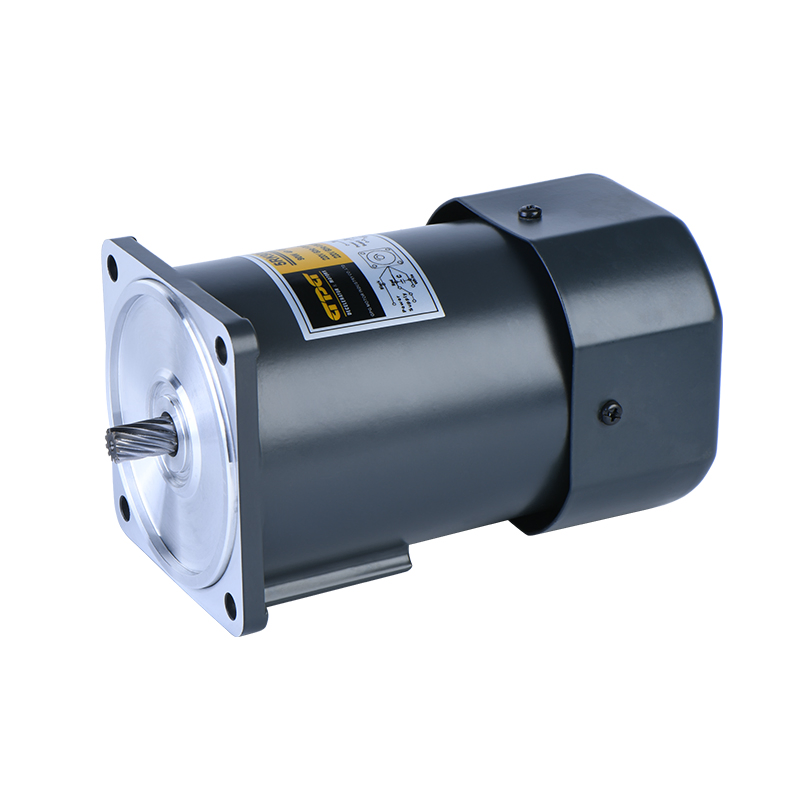

Three Phase Induction Micro AC Gear Motor with Junction Box
Three Phase Induction Micro AC Gear Motor with Junction Box
Three Phase Induction Micro AC Gear Motor with Junction Box
Three Phase Induction Micro AC Gear Motor with Junction Box
Three Phase Induction Micro AC Gear Motor with Junction Box
1 / 5
Three Phase Induction Micro AC Gear Motor with Junction Box
Three Phase Induction Micro AC Gear Motor with Junction Box
Three Phase Induction Micro AC Gear Motor with Junction Box
Three Phase Induction Micro AC Gear Motor with Junction Box
Three Phase Induction Micro AC Gear Motor with Junction Box

Three Phase Induction Micro AC Gear Motor with Junction Box

Send Inquiry

Product Description

Product Description

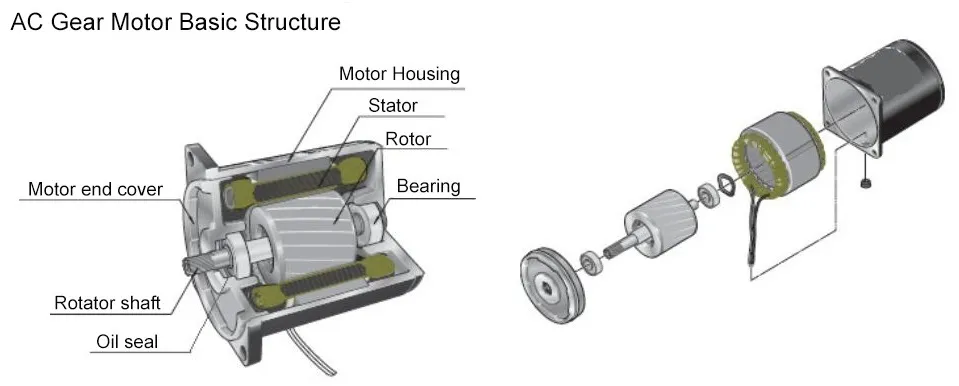

Three Phase Induction Micro AC Gear Motor
01
End cover and housing of motor is made of die-casting Aluminum, which is high precision, high strength and light weight.
02
The stator consists of silicon steel sheet stator core, copper coil, and insulating material, etc.
03
The rotor consists of laminated silicon steel sheet and aluminum cast conductor.
04
The rotor shaft is made of high-performance medium carbon alloy steel and processed by special technics. Available in round and gear shaft.
05
The bearing and oil seal is selected from well-known brand to ensure good running performance and sealing effect.
06
The wire is made from high temperature resistant and flame retardant material.
Motor Specification: 60W 90mm
TYPE Shaft Type Power (W) Freq (Hz) Voltage (V) Current (A) Start Torque (g.cm) Rated Capacitor Gearbox
Torque (g.cm) Speed (rpm) Value (μF) Res. Volt (V) Standard Middle
Reversible Motor 5RK60GN-C 60 50 220 0.55 4500 4500 1300 4.0 500 5GN/GU-K 5GN10X
60 60 220 0.50 3770 3770 1550 3.5 500 5GN/GU-K 5GN10X
Technical Drawings

Model: 5RK60GN-C/5GN3~20K

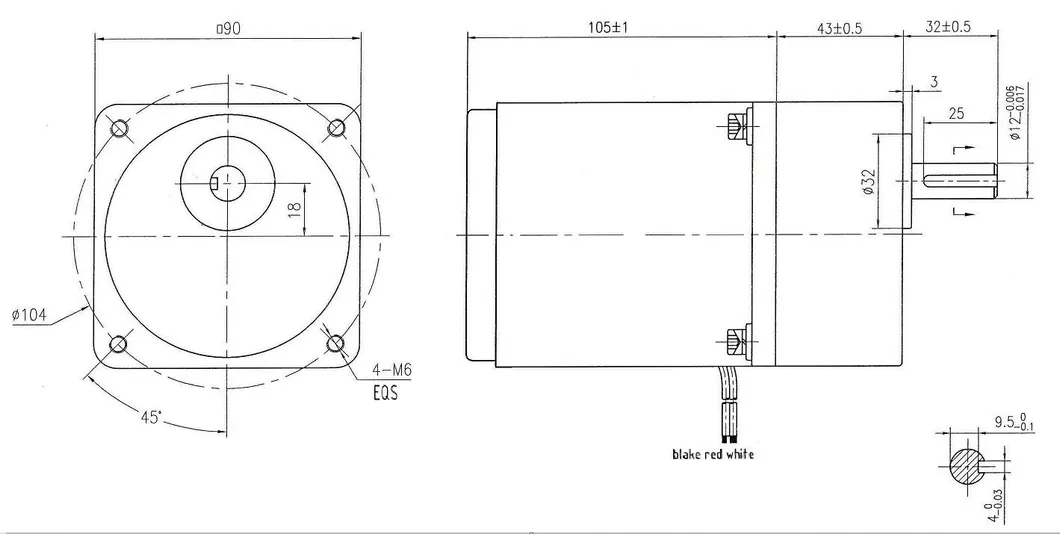

Drawing 3-20K

Model: 5RK60GN-C/5GN25~180K

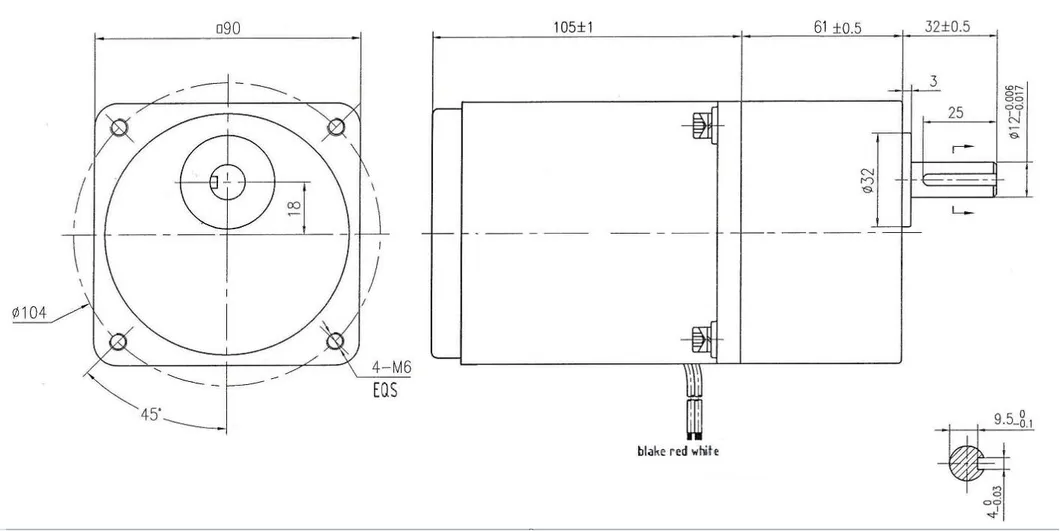

Drawing 25-180K
Gearbox Torque Table (Kg.cm)
Output Speed (RPM) 500300200150120100756050302015107.5653
Ratio 50Hz Ratio 357.51012.5152025305075100150200250300500
60Hz Ratio 3.669-1518-30366090120180-300360600
40W kg.cm 6.7111621.32833425465108150150150150150150150
60W kg.cm 101624324048647793150150150150150150150150
90W kg.cm 14233546586992110133200200200200200200200200
120W kg.cm 1930.746617792123147177200200200200200200200200
Note: Speed figures are based on synchronous speed. Actual output speed under rated torque is about 10-20% less. Shaded cells indicate rotation in the same direction as the motor shaft; white cells indicate opposite rotation.
Connection Diagrams

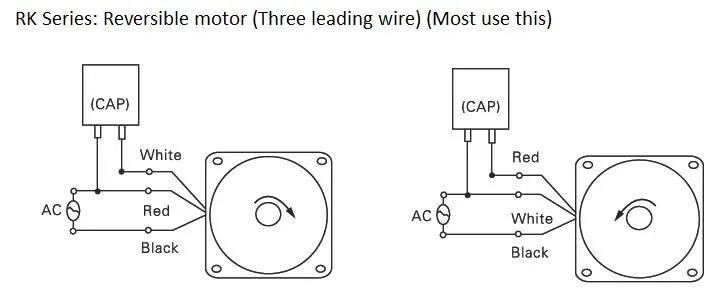

Connection Diagram 1

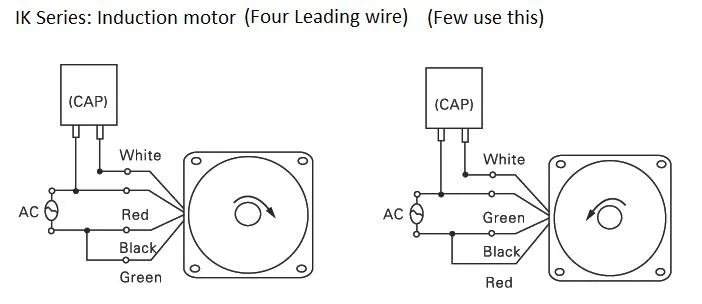

Connection Diagram 2
Professional Manufacturing Facility

A leading industrial group specializing in the professional manufacture of gear transmission products. Our operations combine design, manufacturing, and global sales promotion. The facility covers over 30,000 square meters and employs a dedicated workforce of over 800 professionals utilizing 200+ sets of advanced equipment.

Operating strictly under international quality management systems, our products have achieved numerous certifications for both system integrity and product quality, ensuring reliability for customers worldwide.

Production Facility 1
Production Facility 2
Production Facility 3

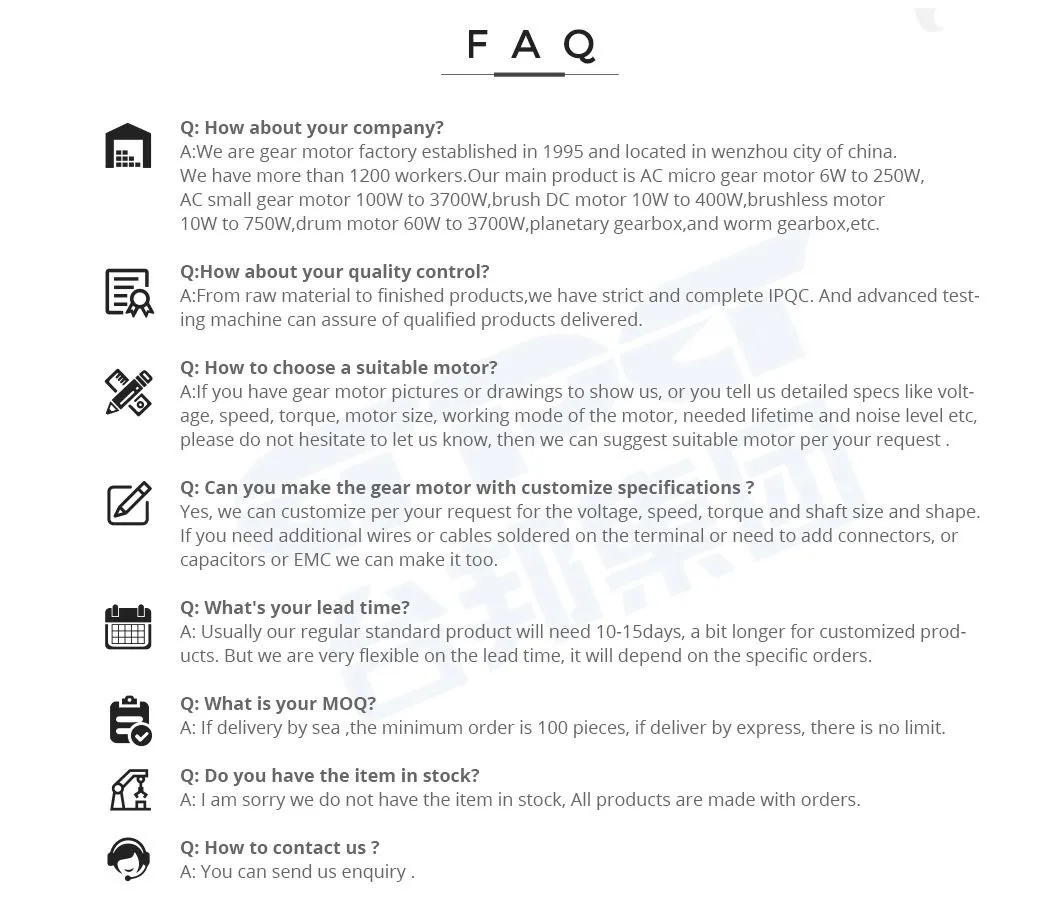

Production Facility 4
Frequently Asked Questions
What materials are used for the motor housing?
The housing and end covers are made from high-precision die-casting Aluminum, providing a balance of high strength, durability, and lightweight performance.
Is the motor suitable for high-temperature environments?
Yes, the wiring is constructed from high-temperature resistant and flame retardant materials to ensure safety and reliability in demanding conditions.
What is the difference between synchronous speed and actual output speed?
The actual output speed is typically 10-20% lower than the synchronous speed when operating under rated torque conditions due to slip and load.
Can I request specific hole configurations for the gear motor?
The standard drawings show screw holes, but through holes, terminal boxes, or electronic magnetic brakes can be provided upon request.
How is the sealing performance of these motors?
We use high-quality bearings and oil seals from well-known brands to ensure excellent running performance and a superior sealing effect against contaminants.
Are the motors compliant with international standards?
Yes, the manufacturing facility operates strictly according to the ISO9000 Quality Management System and holds various international product certifications.
