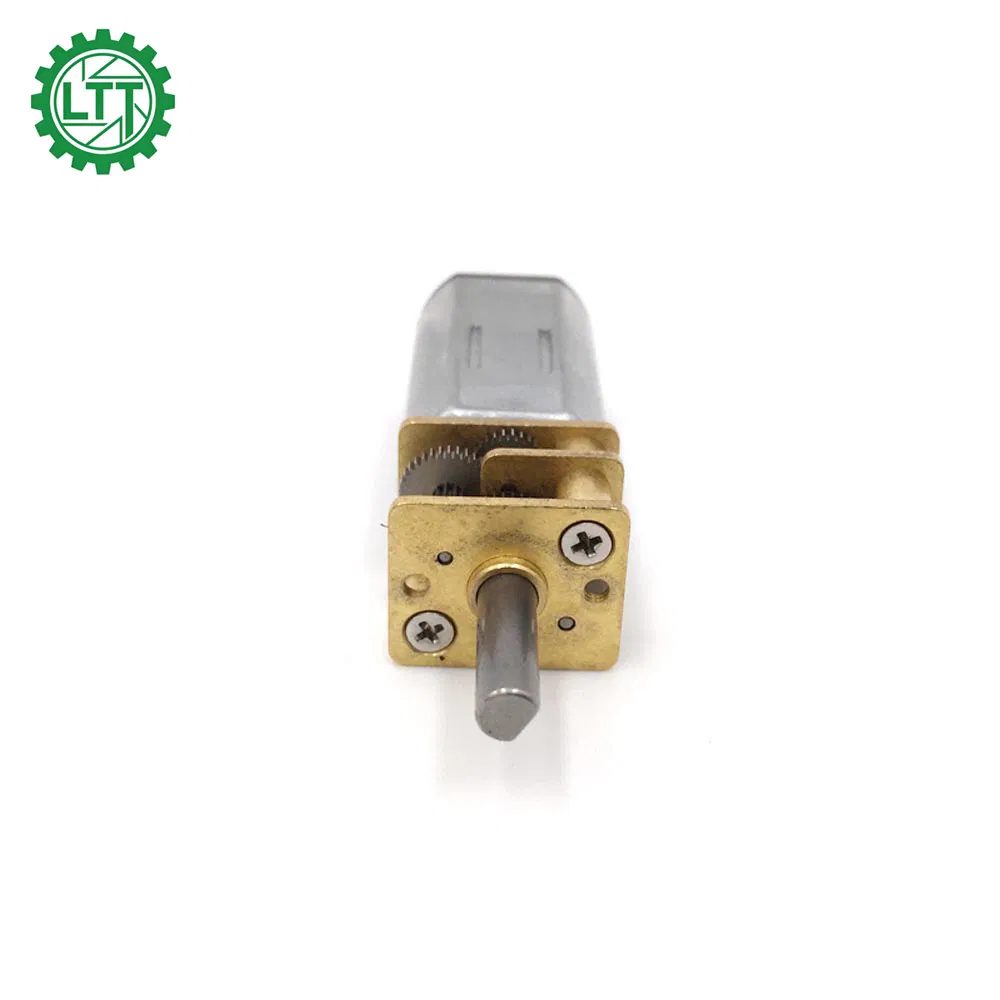

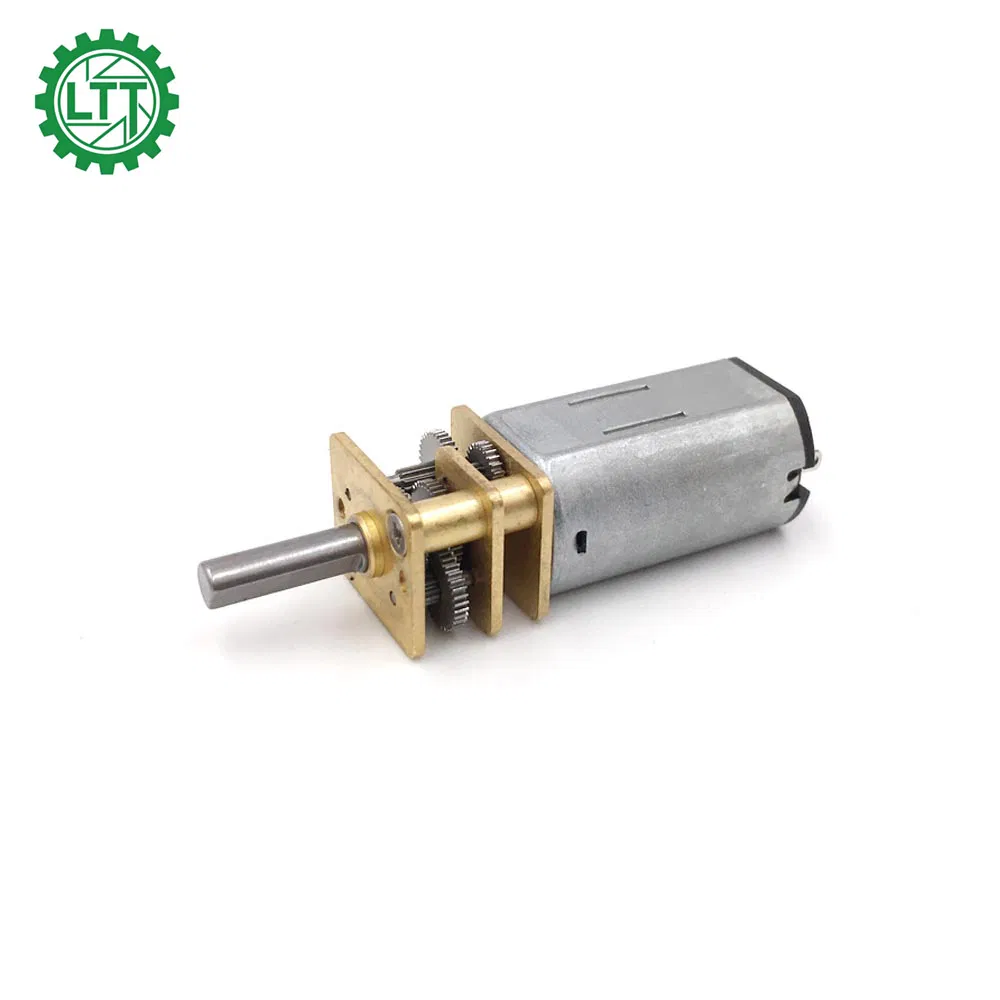

Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30
Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30
Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30
Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30
Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30
1 / 5
Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30
Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30
Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30
Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30
Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30

Micro 3V 6V 12V 12mm Brushed DC Gear Motor Reducing Metal Gearbox 12GM-N30

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LGM12-N30
Excitation Mode
Shunt
Function
Control, Driving
Number of Poles
2
Structure
Brush
Type
DC Gear Motor
Certification
ISO9001, CE, RoHS
Gearbox Size
12*10*L mm
Motor Size
φ12*10*20mm
Rated Voltage
3V 4.5V 6V 12V
Applications
Intelligent Robot, Smart Lock, Electric Lock
HS Code
8501101000
Product Description
12mm Micro DC Gear Motor Specifications
Model: LGM12-N30 Type: DC Geared Motor
Voltage: 1.5v-24v Speed: 5rpm-3000rpm
Continuous Current: ≤0.3A Stall Torque: ≤1kg.cm
Application: Balance scale, Commercial Products, Door lock, Educational robot, Industrial household machinery, Security and Locks, Toy robot, etc.
Shaft Type: Circular, D-shaft, Slotted, Knurled, Square, Hexagon, Threaded, Shaft with hole

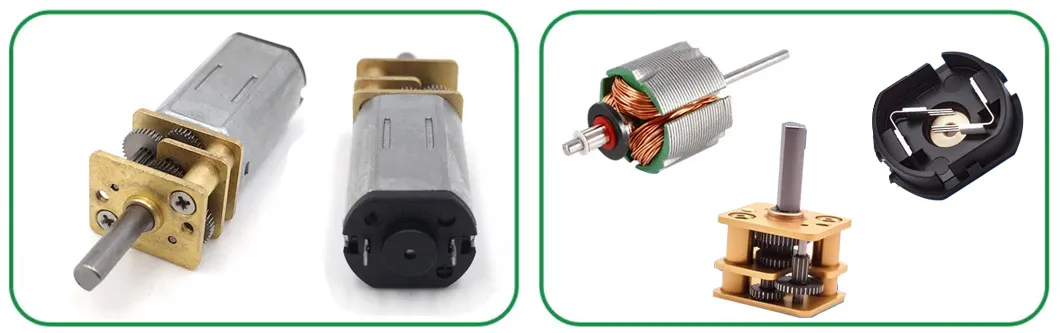

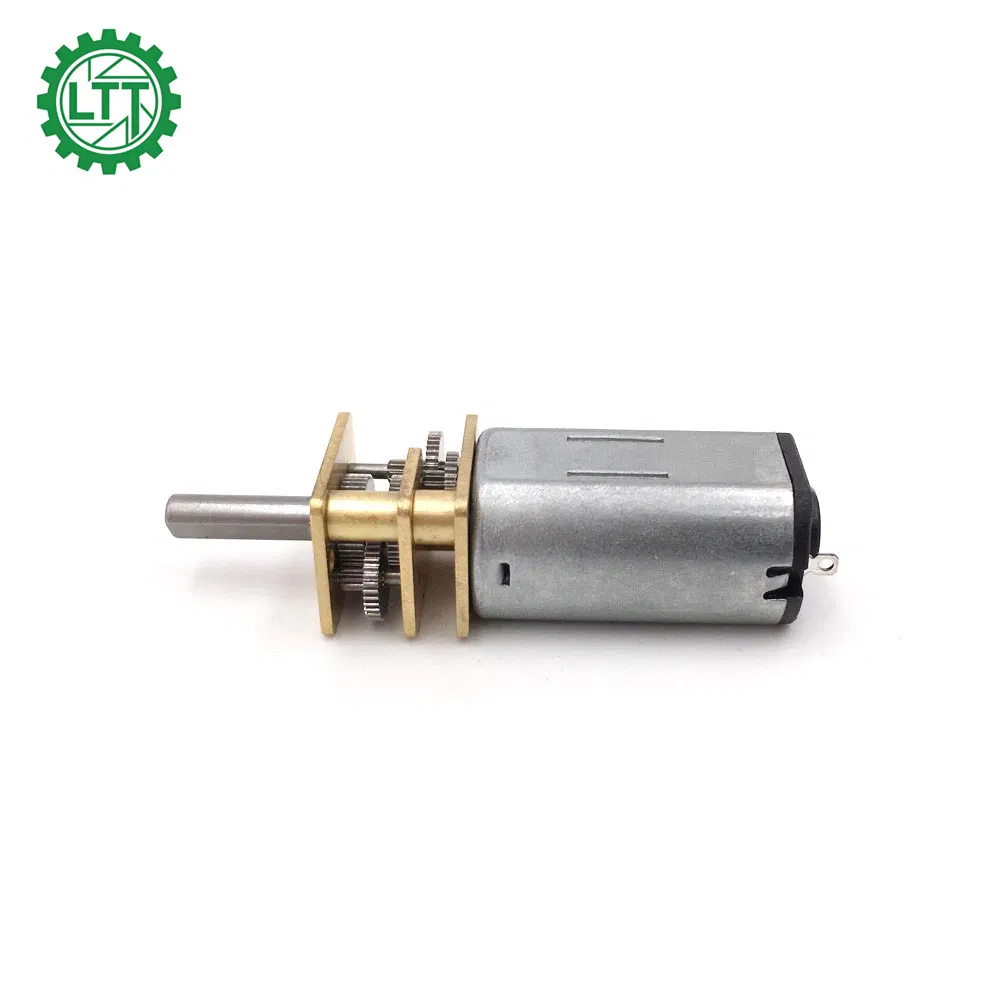

Micro DC Gear Motor View 1

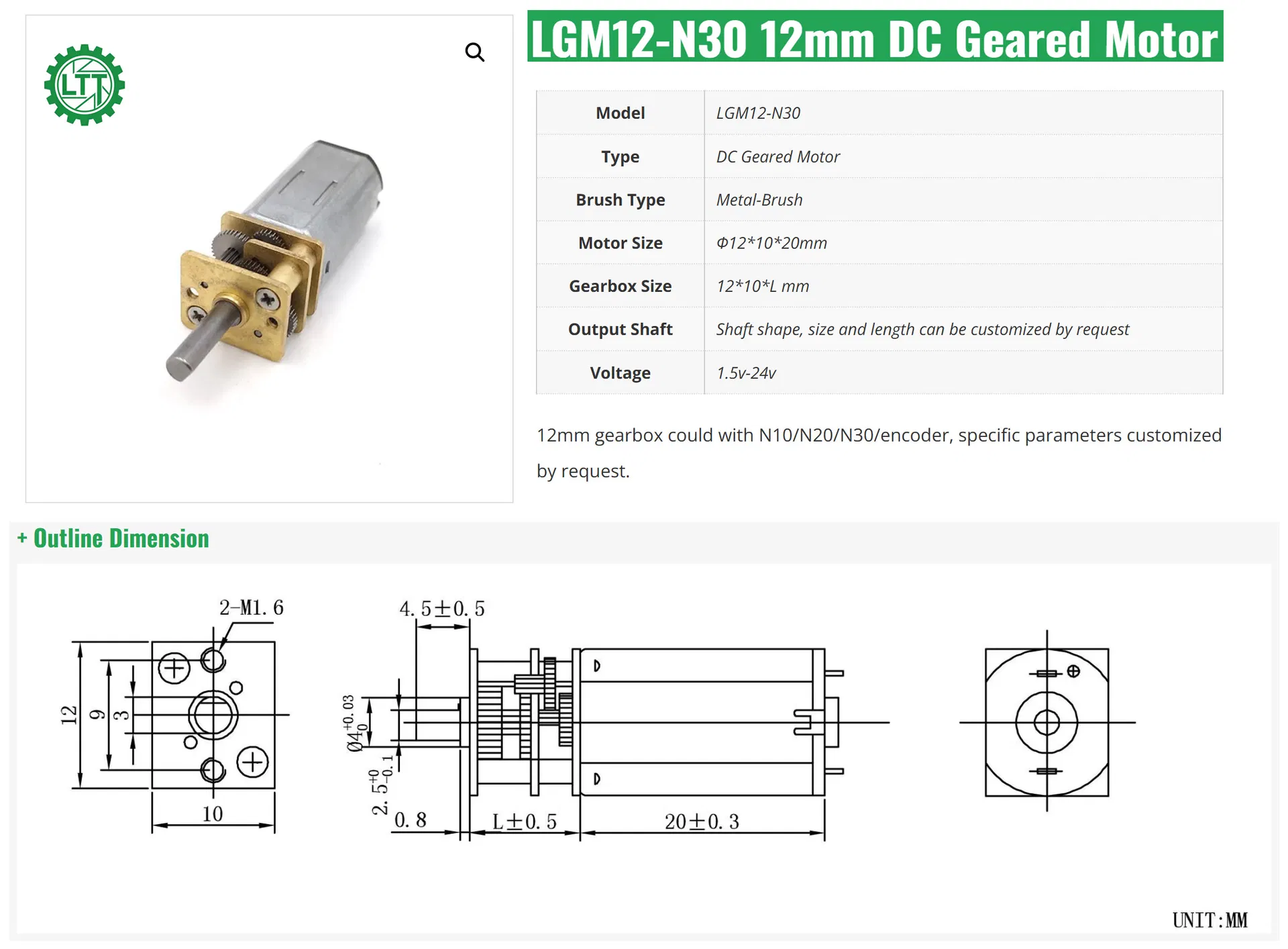

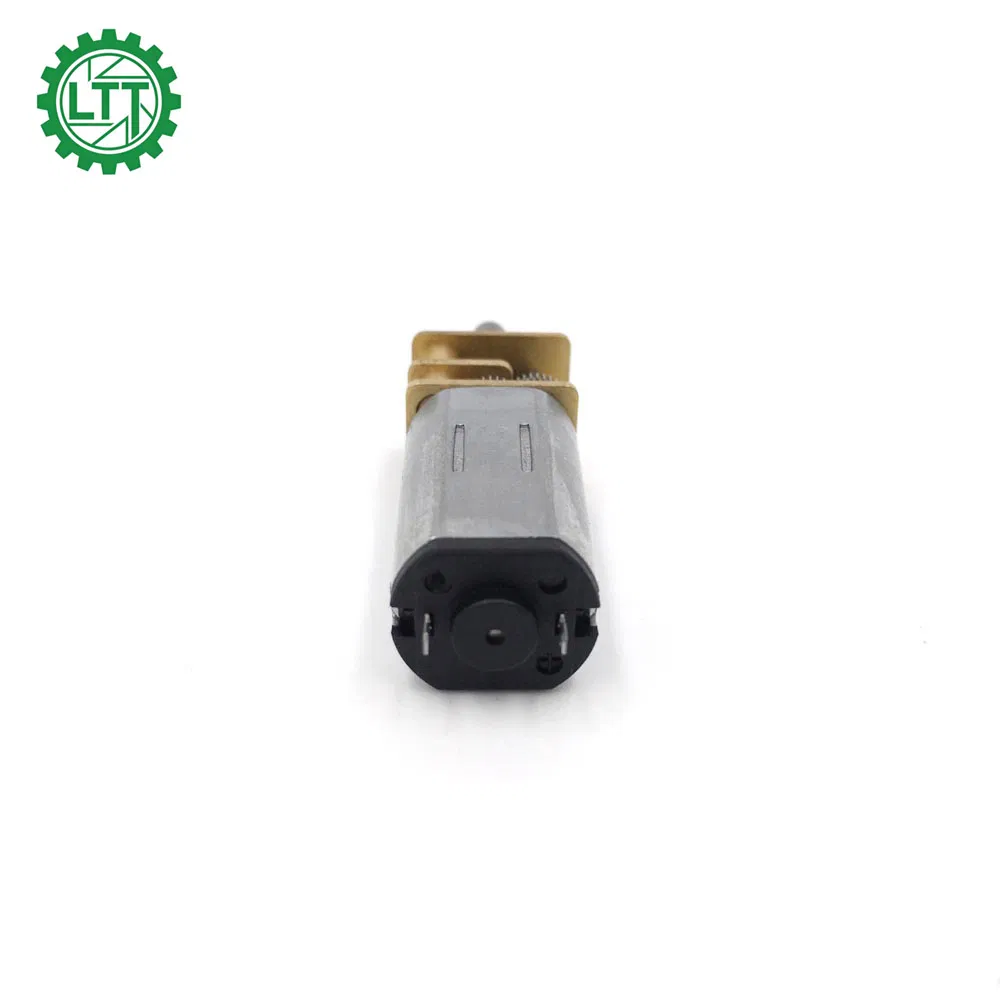

Micro DC Gear Motor View 2

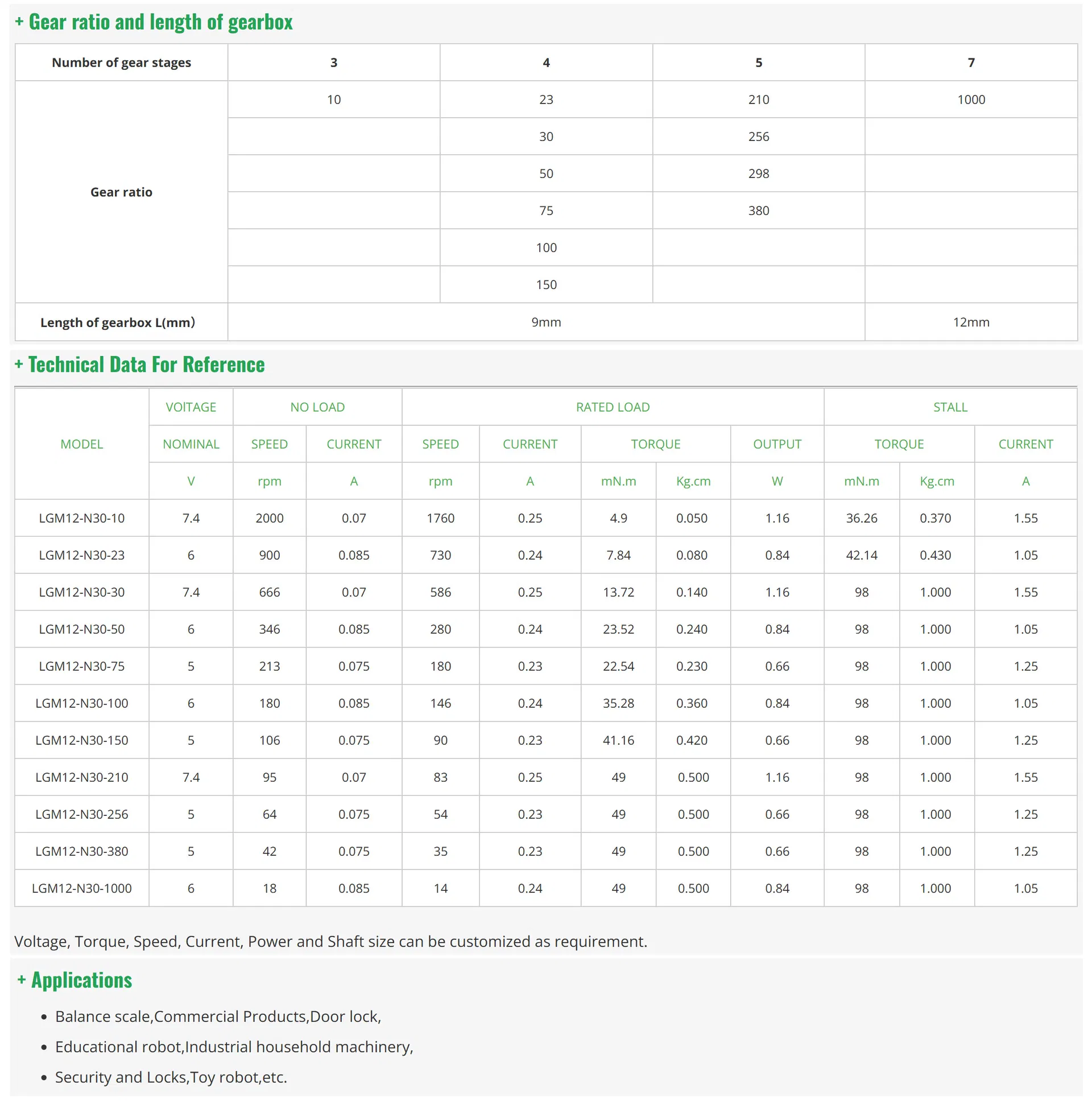

Technical Specifications
Technical Drawing 1
Technical Drawing 2

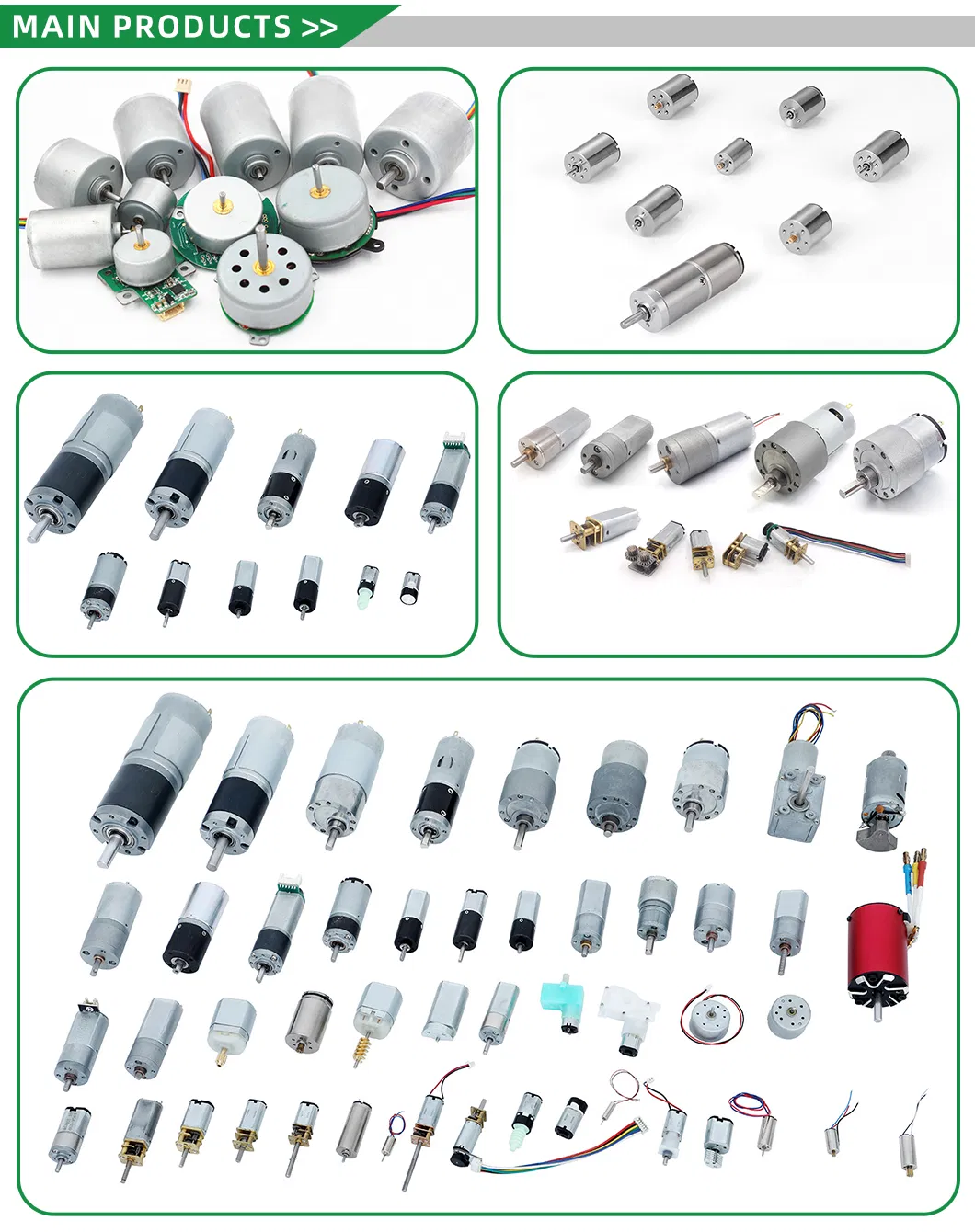

Main Product Series
Product Series 1
Product Series 2
Our Advantages
Focus on Micro DC Motor Expertise in modern high-tech manufacturing, integrating R&D and sales with over 10 years of professional experience.
Quick Customization Flexible solutions provided according to specific requirements with efficient 7-day sample production.
International Certification Operations following ISO9001:2008 quality systems with products passing CE, RoHS, and UL certifications.
High Quality Materials Precision processing using high-grade imported materials for critical motor components.
Durable Service Life Reliable performance designed to last 3-20 years under standard operating conditions.
Facility 1

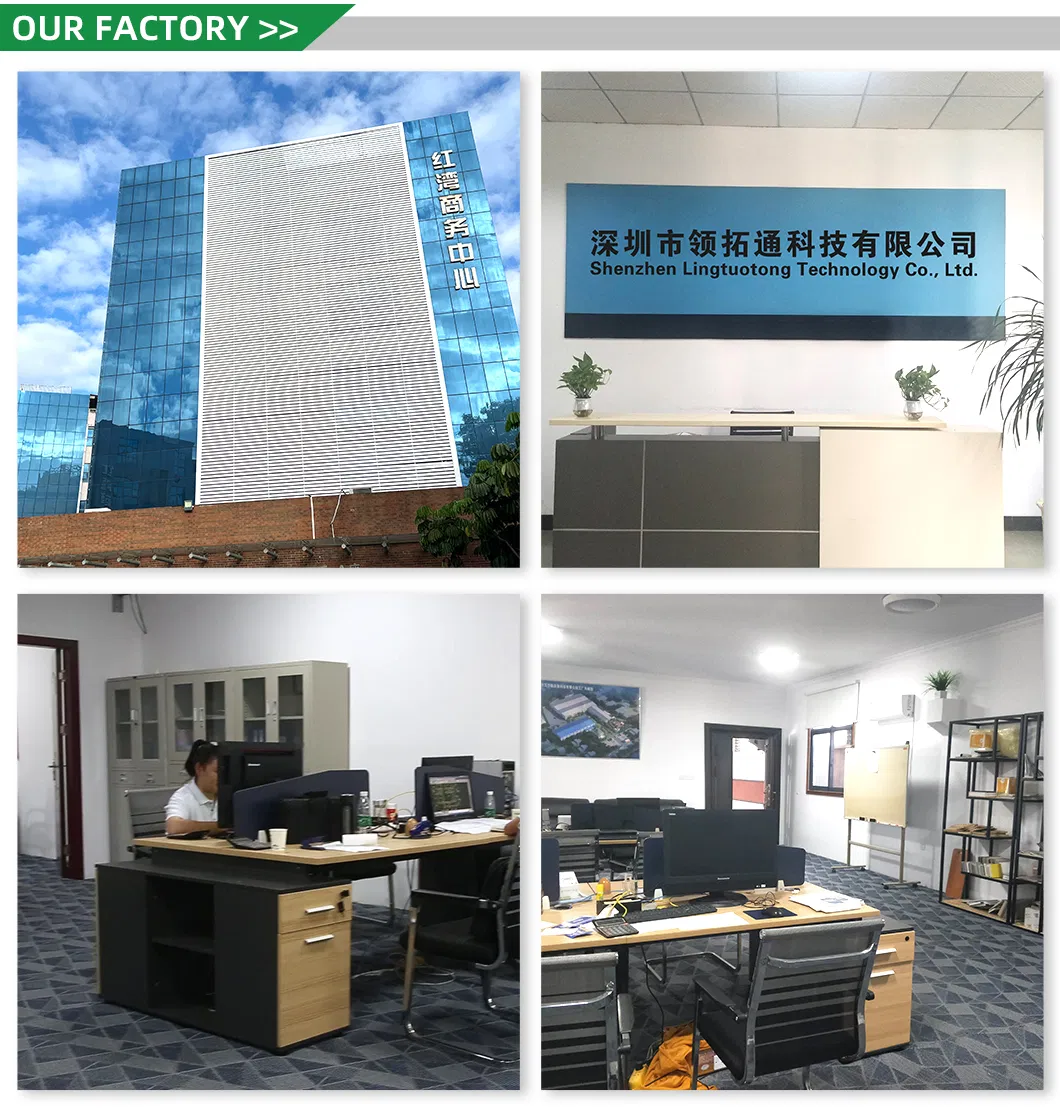

Facility 2

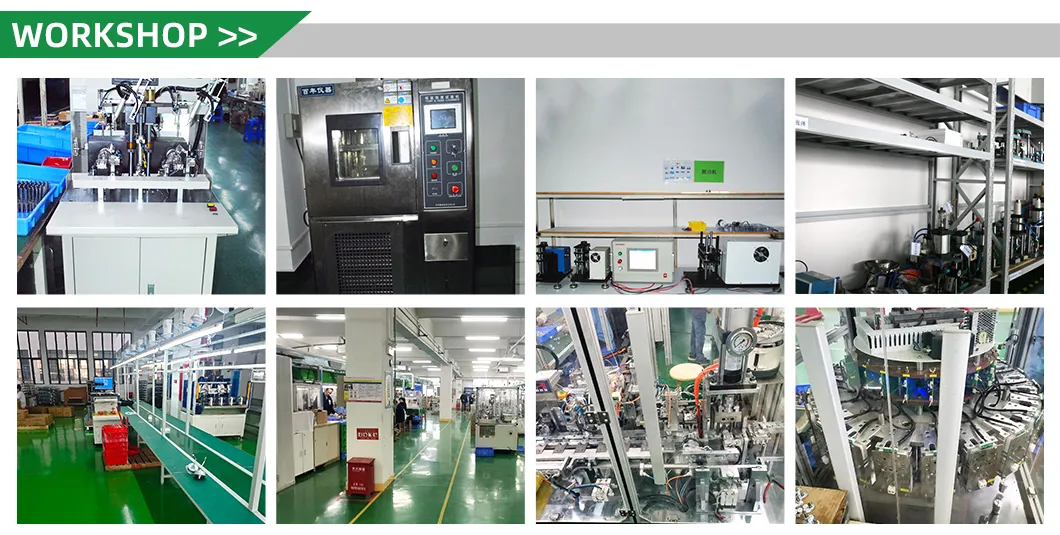

Facility 3
Certifications
Certification 1
Certification 2
Packaging & Shipping

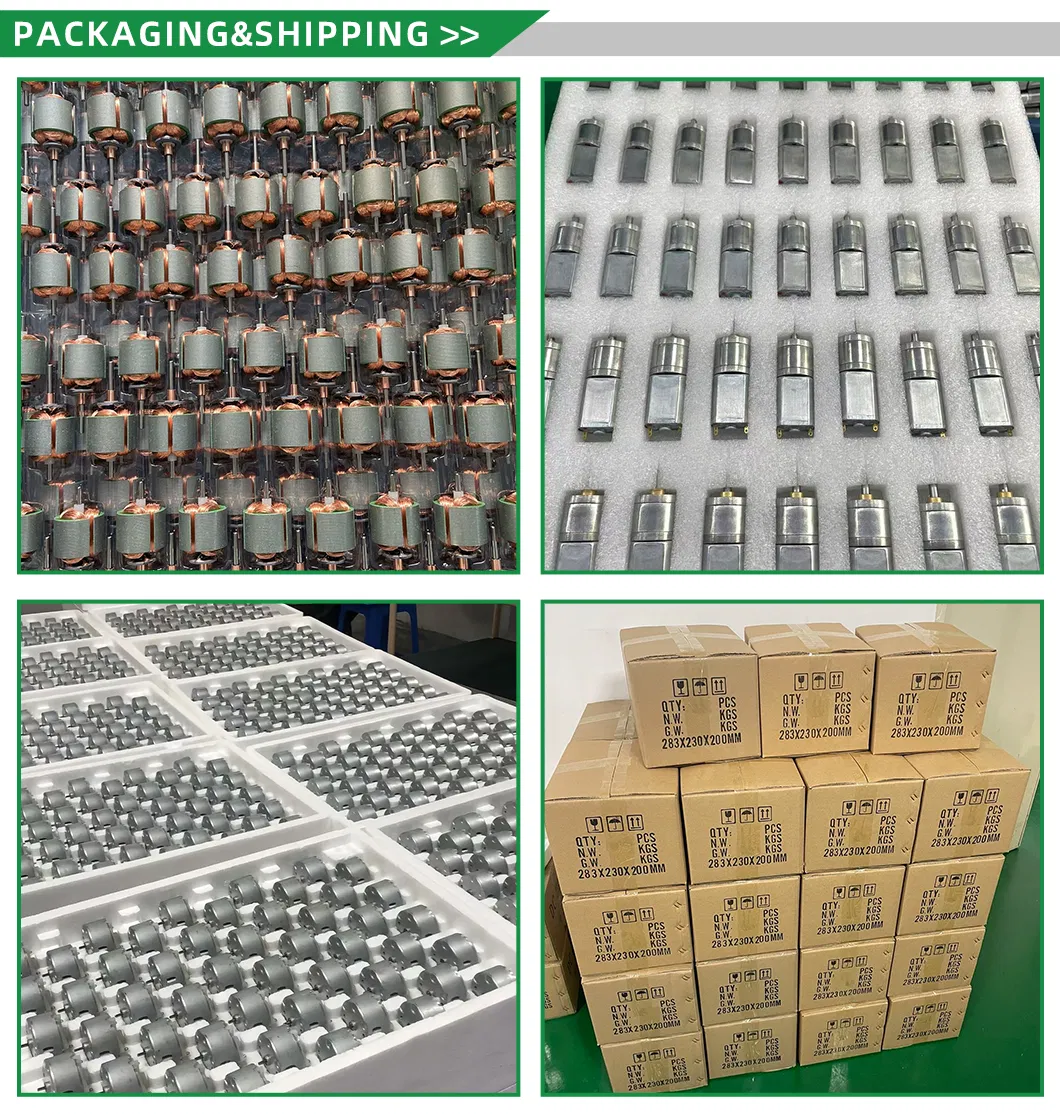

Packaging Detail

Shipping Methods: Packing by crate, carton, or pallet. Flexible shipping options available via air (DHL, FedEx, UPS, TNT), sea, or express delivery depending on customer requirements.

Frequently Asked Questions
Do you provide samples for testing?
Yes, we provide samples for all clients to test before mass production. The typical lead time for samples is 7-15 days.
How can I select a suitable DC Gear Motor?
Please provide your requirements regarding voltage, speed, torque, motor size, and application environment. Sharing drawings or pictures helps us recommend the most suitable geared motor for your needs.
Do you offer customized services?
Yes, we can customize voltage, speed, torque, and shaft specifications. We can also add specific wires, connectors, capacitors, or EMC components upon request.
What is the production status for orders?
We generally do not keep items in stock as products are manufactured based on specific orders to meet customer requirements.
What are your payment and shipping terms?
We accept T/T in advance, PayPal, and credit cards. Shipping is available by air and sea depending on the volume and urgency of the order.
Do you provide technical support?
Yes, our engineering team has strong R&D capabilities and can provide full technical support throughout your project development.
