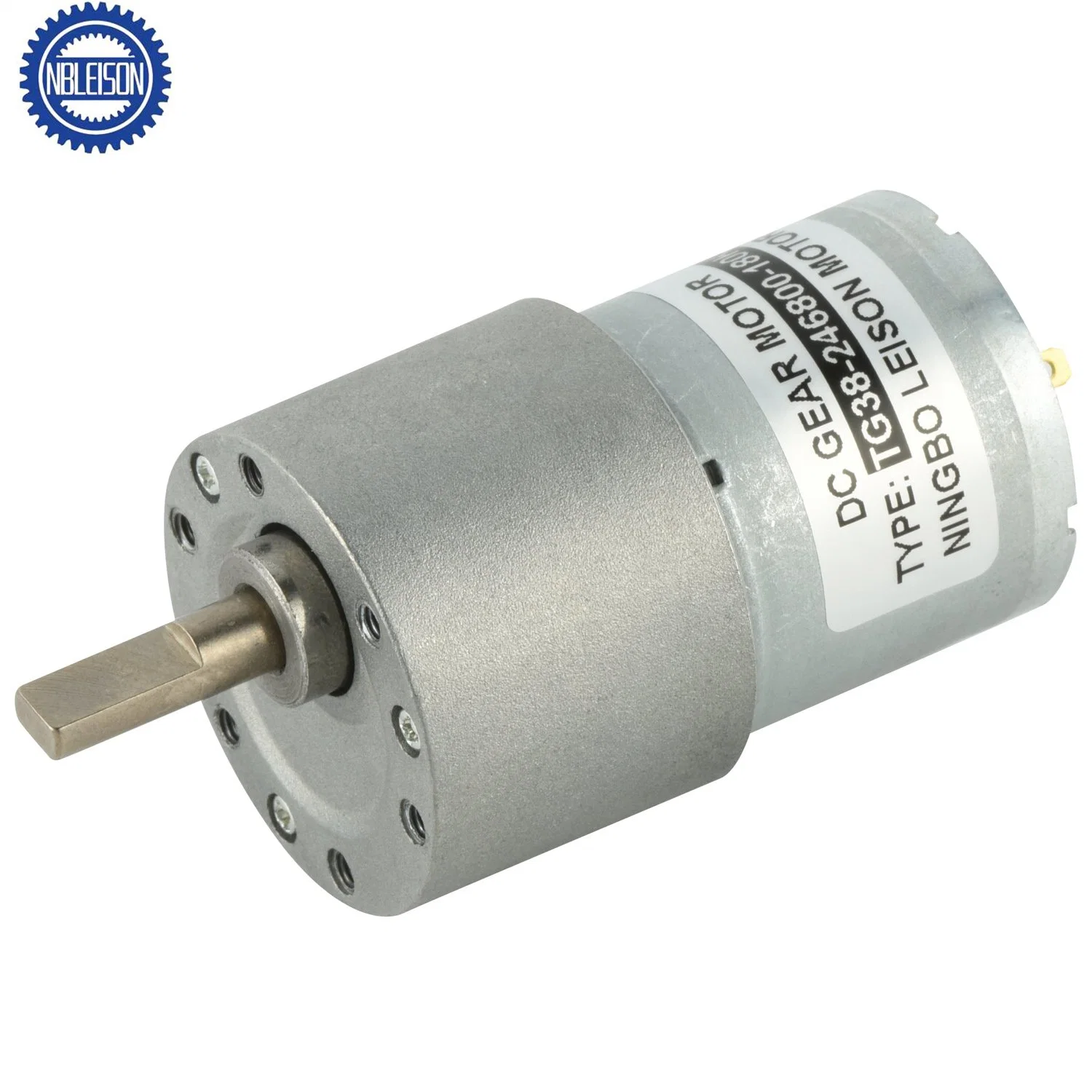

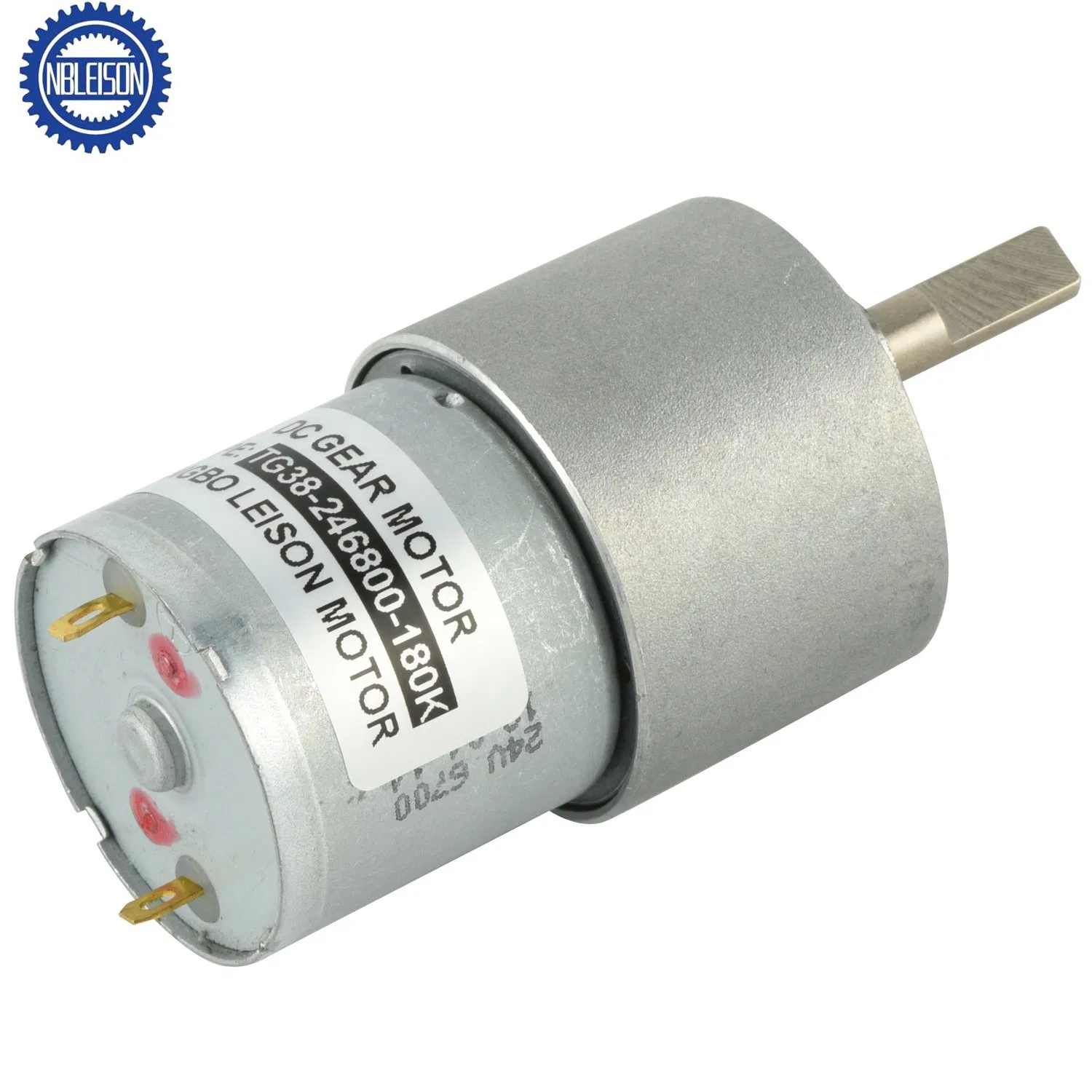

37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
1 / 5
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain
37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain

37mm 6V 12V 24 Low Rpm 1n. M High Torque Micro DC Gearbox Electric Metal Gear Motor for Robot and Electric curtain

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
LS-TG38
Function
Driving
Casing Protection
Open Type
Principle
Brush
Certification
ISO9001
Gear
Metal Gear
Construction
Permanent Magnet
Rotation
Reversible
Shaft
Round, D-Cut, Hole Thread
Gear Type
Spur Gear
Efficiency
Ie1
HS Code
8501109990
Product Description

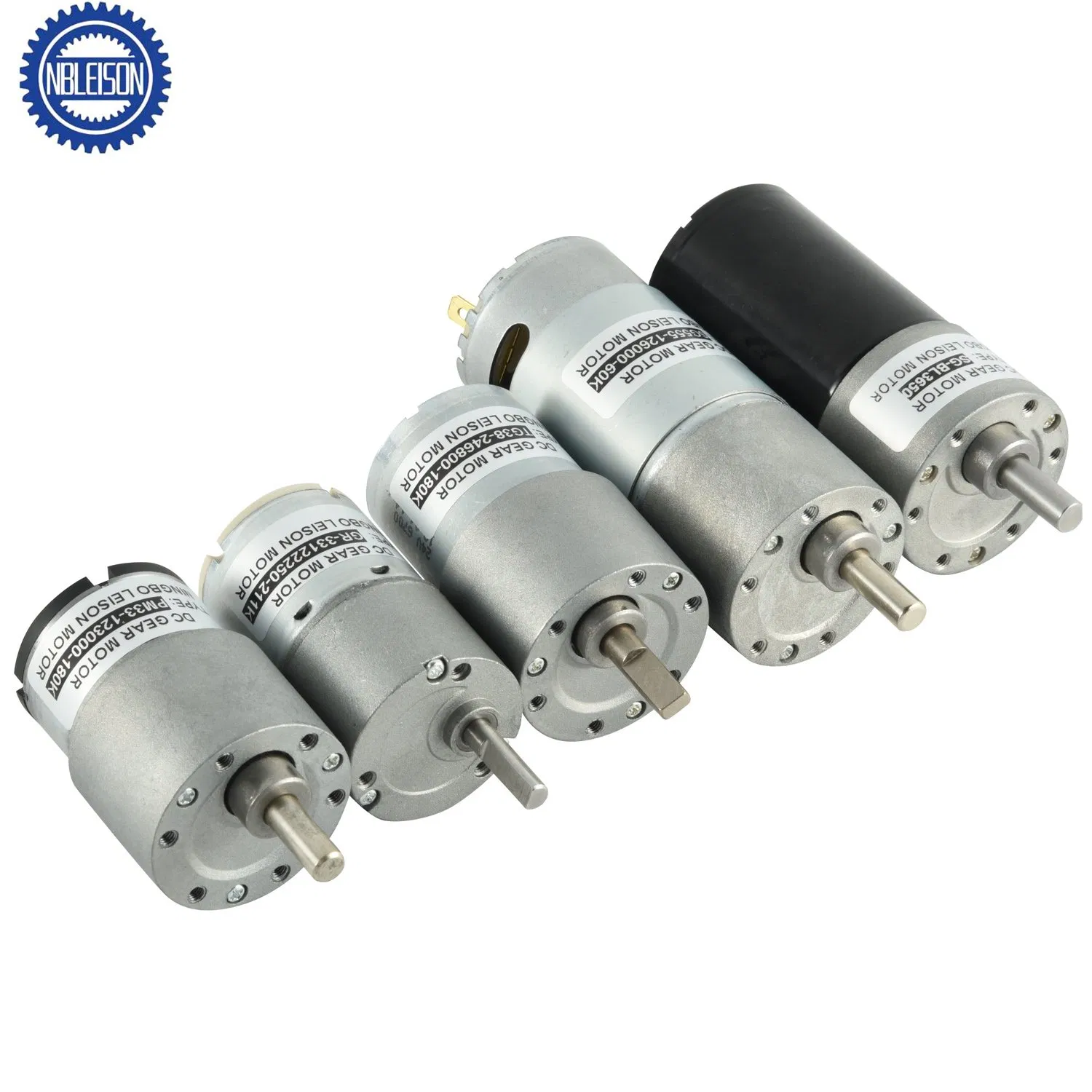

37mm 6V 12V 24 Low Rpm 1N.m High Torque Micro DC Gearbox Electric Metal Gear Motor

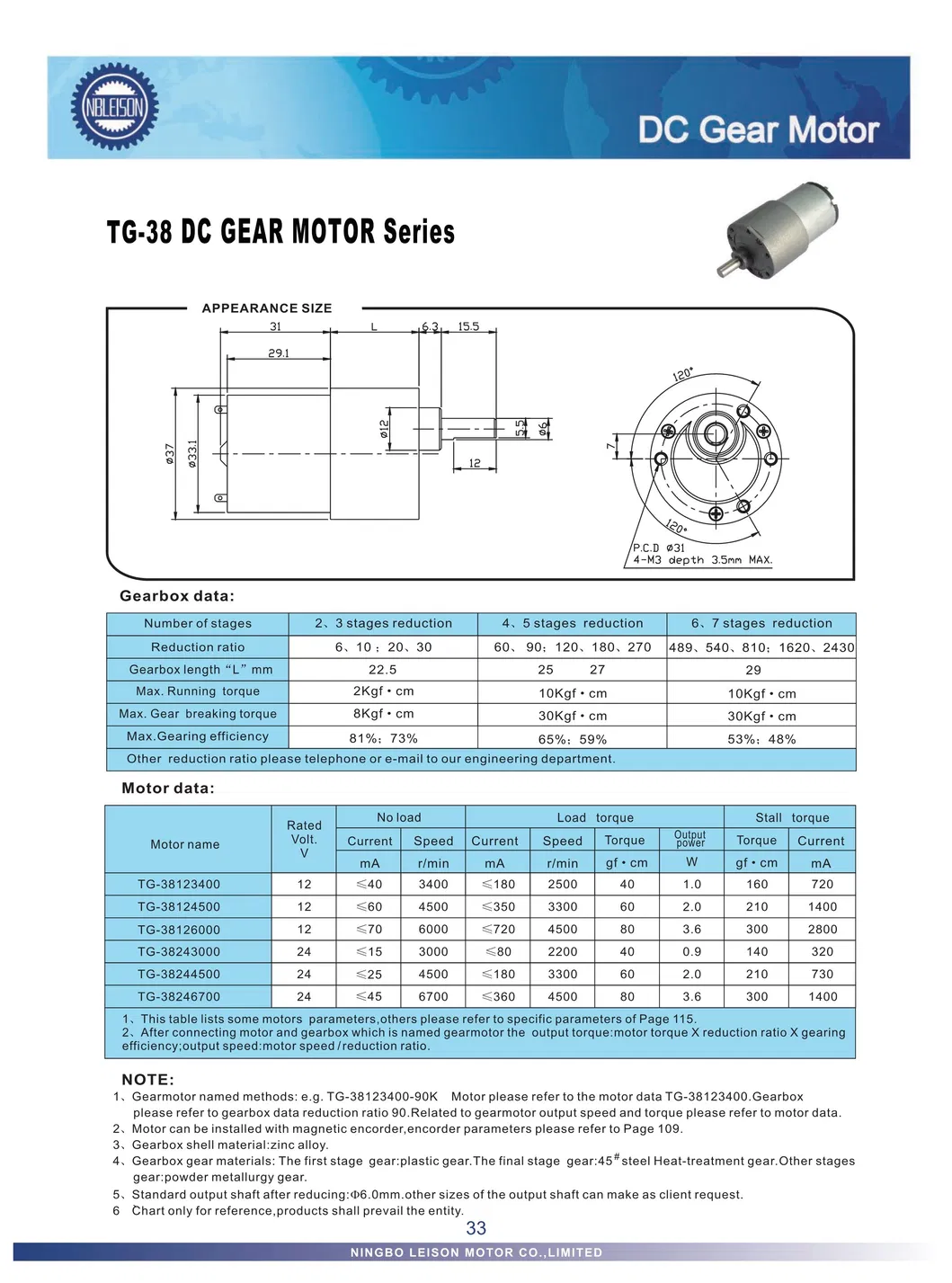

DC Gear Motor
  • Voltage: 3V, 6V, 9V, 12V, 24V options available
  • Reduction ratio: 1:6 up to 1:2430
  • Motor dimensions: 32 (dia.) x 30 (L) mm
  • Gearbox dimensions: 37(dia) x 22-29(H) mm
  • Shaft: 6mm, D-cut type, Customized shaft length or shaft type
  • Applications: Vending Machine, Grill, Curtain, Robot, Automatic Printer, Office equipment
  • Packing: 60 PCS / CTN, Net Weight 11kgs
Production Line & Equipment

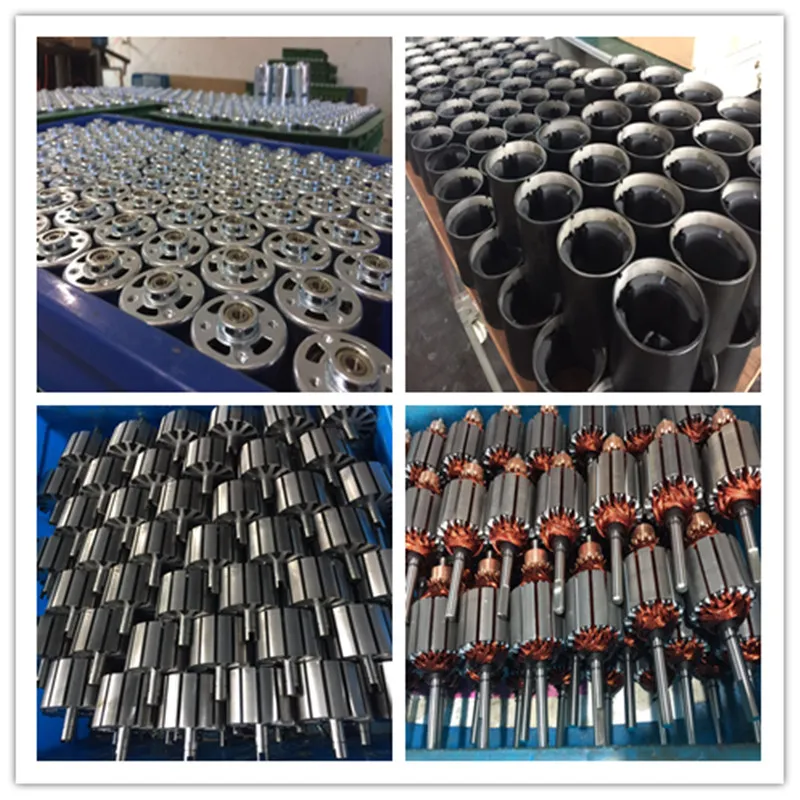

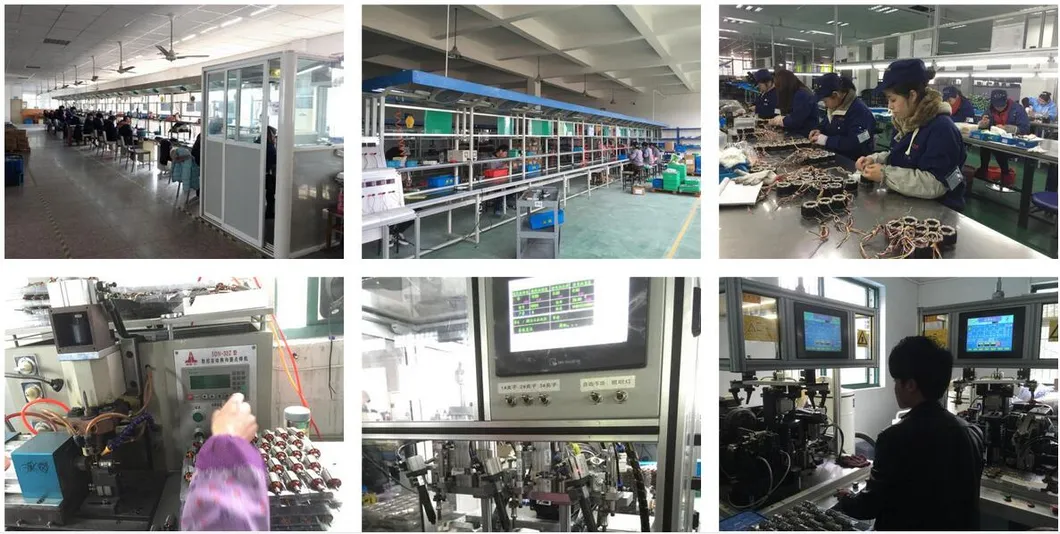

Production Line Manufacturing
Testing & Certification

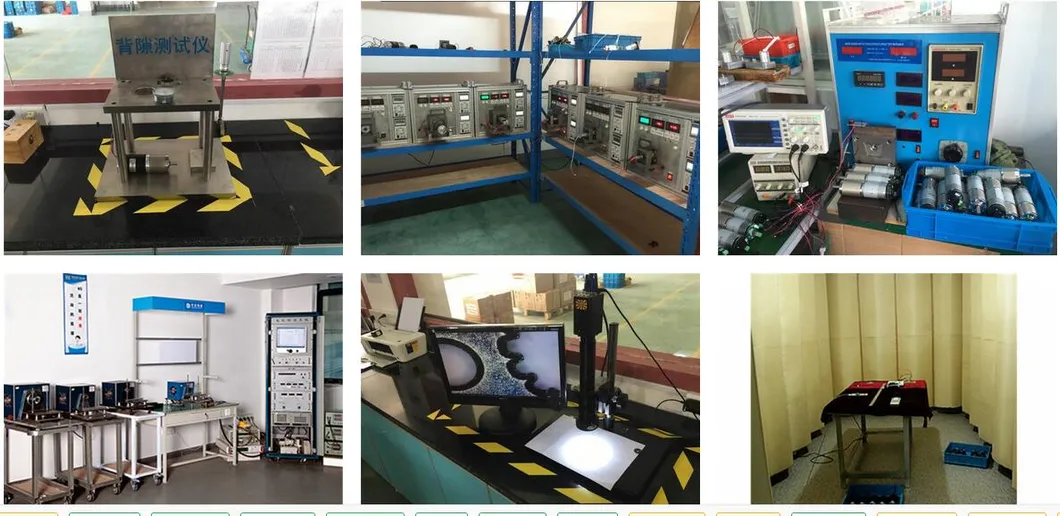

Test Equipments Certificates
Exhibitions & Visiting
Exhibition
Frequently Asked Questions
How to select a suitable motor?
If you have detailed specs like voltage, speed, torque, motor size, working mode, needed life time and noise level, please let us know, then we can recommend suitable motor accordingly.
Do you provide customized services?
Yes, we can customize voltage, speed, torque and shaft size/shape. We can also add connectors, capacitors or EMC as requested.
Can I have samples for testing first?
Yes, definitely. After confirming the motor specs, we will provide a proforma invoice for samples to proceed with testing.
How do you ensure motor quality?
We have strict inspection procedures for incoming materials and tour inspections during the production process, followed by a final inspection before shipping.
What is your typical lead time?
Generally, regular standard products take 25-30 days, while customized products may take slightly longer depending on the order specifics.
What certifications do you hold?
We currently hold CE and ROSH certifications for our motor products.
