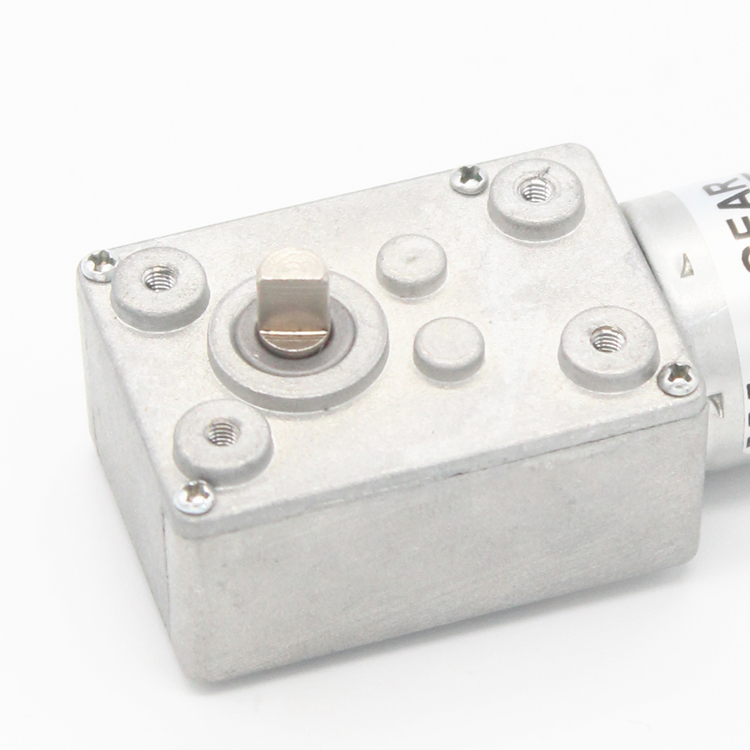

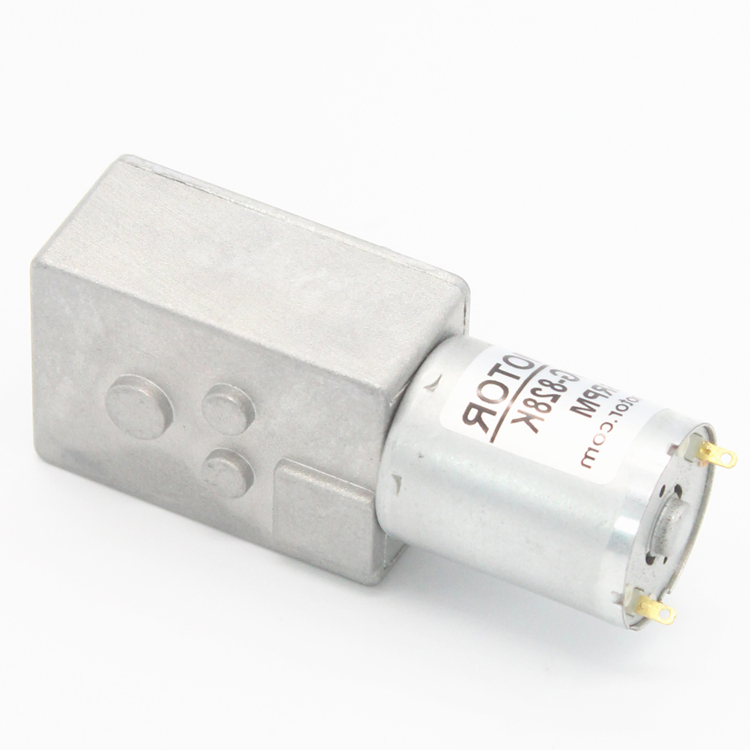

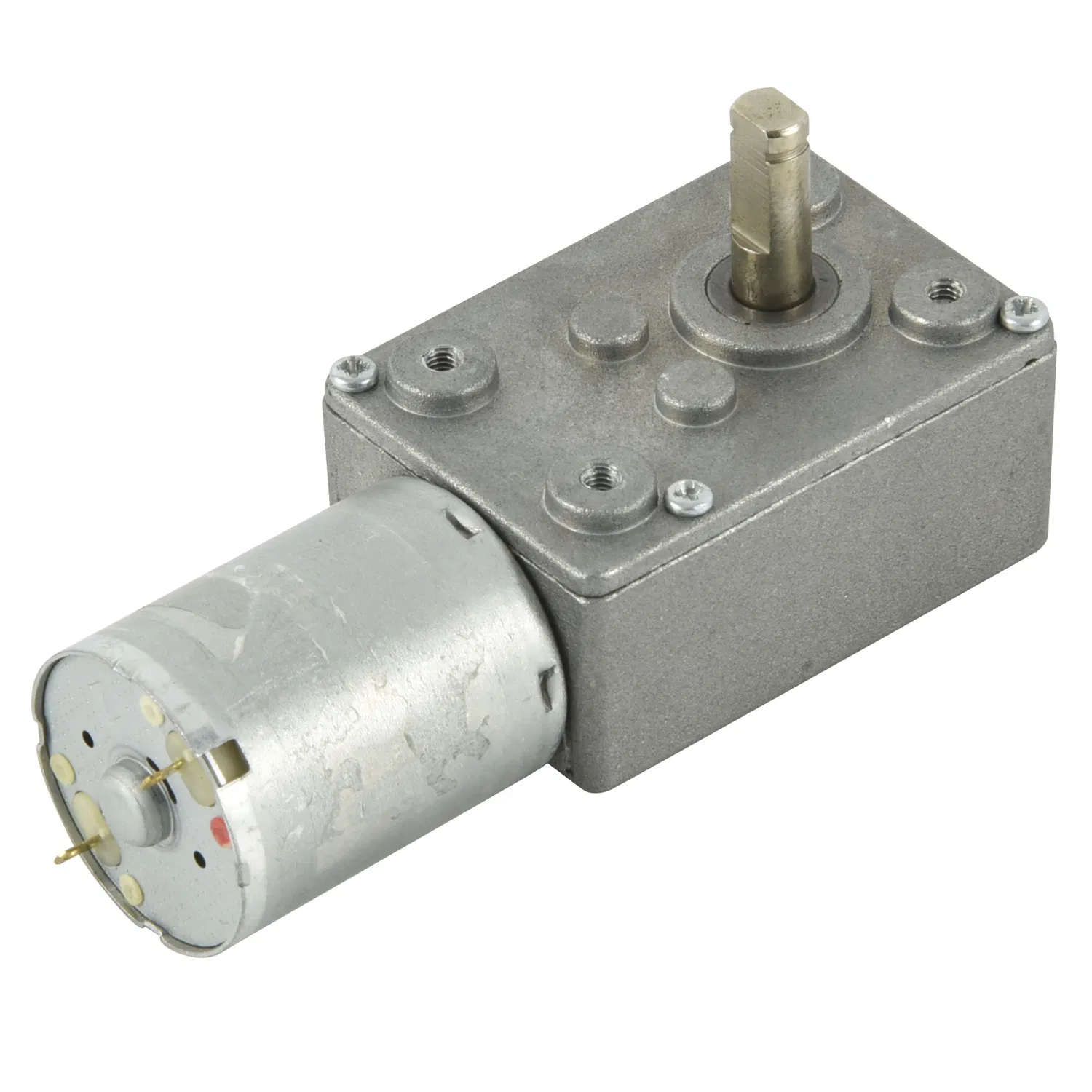

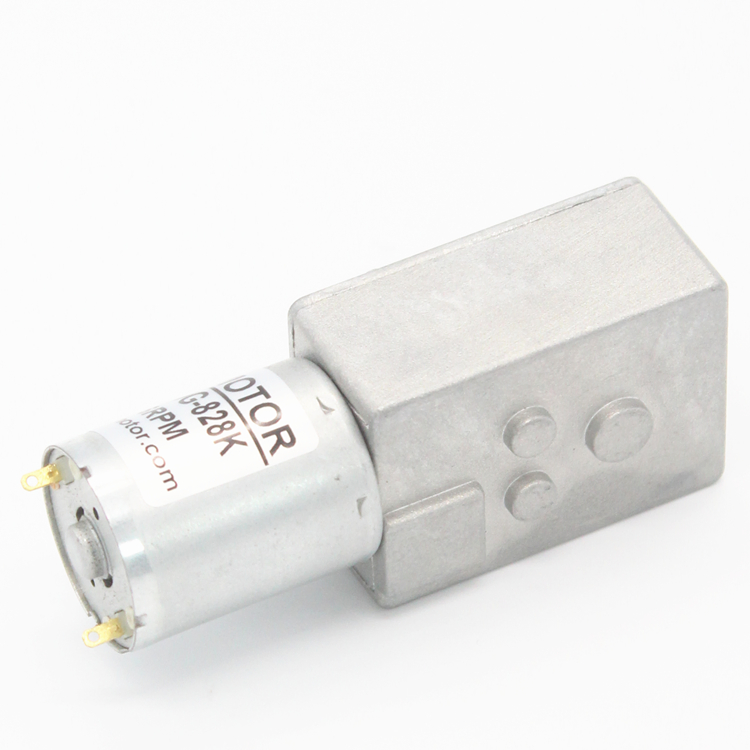

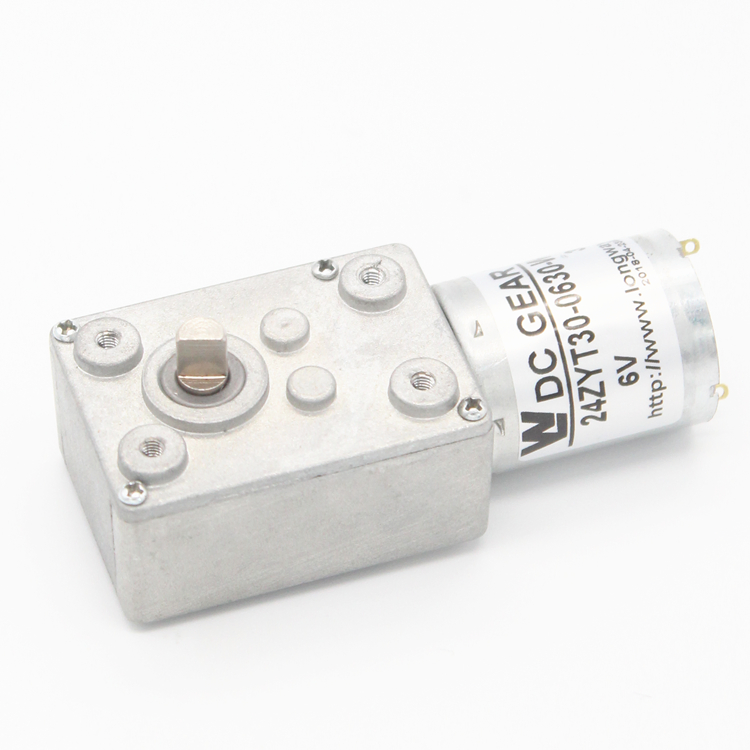

KPM Minimoto
1 / 5
Specification:
Main voltage: 3VDC, 6VDC, 9VDC, 12VDC, 24VDC, 36VDC
Typical Applications: Auto shutter, Money detector, Binding machine, Automatic TV rack, Packing bank note machine, Limelight, Tissue machine, Office equipment, Household appliances, Automatic actuator.
Gearbox Data:
| Number of stages | 3 stages reduction | 4 stages reduction | 5 stages reduction |
|---|---|---|---|
| Reduction ratio | 276 | 552, 828 | 649, 1656, 2484 |
| Max. Running torque | 2Kgf.cm | 5Kgf.cm | 10Kgf.cm |
| Max. Gear breaking torque | 6kgf.cm | 15kgf.cm | 30kgf.cm |
| Max. Gearing efficiency | 73% | 65% | 59% |
Motor Data:
| Model | Rated Voltage (V) | No Load Speed (rpm) | Load Torque (g.cm) | Output Power (W) |
|---|---|---|---|---|
| RF-370063000 | 6 | 3000 | 15 | 0.33 |
| RF-370064500 | 6 | 4500 | 24 | 0.8 |
| RF-370066000 | 6 | 6000 | 30 | 1.4 |
| RF-370123000 | 12 | 3000 | 15 | 0.33 |
| RF-370126000 | 12 | 6000 | 30 | 1.4 |
| RF-370246000 | 24 | 6000 | 30 | 1.4 |
We can adjust motor specifications and shaft size according to your special requirements.
In recent ten years, we have been dedicated to the manufacture of high-quality motor products. Our range includes DC motors, DC gear motors, AC motors, AC gear motors, Stepper motors, Servo motors, and Linear actuators.
These products are widely applied in aerospace, automotive, financial equipment, household appliances, industrial automation, robotics, medical equipment, office equipment, and packaging machinery.
| Quick Reply | All inquiries are responded to within 12 hours. |
| Professional Team | Product questions answered with expert technical advice. |
| Short Lead Time | Samples/small orders sent in 7-15 days; bulk orders in 30 days. |
| Customization | Specifications (speed, voltage, torque, diameter) and shaft length can be tailored. |
