⚙️ Product Description

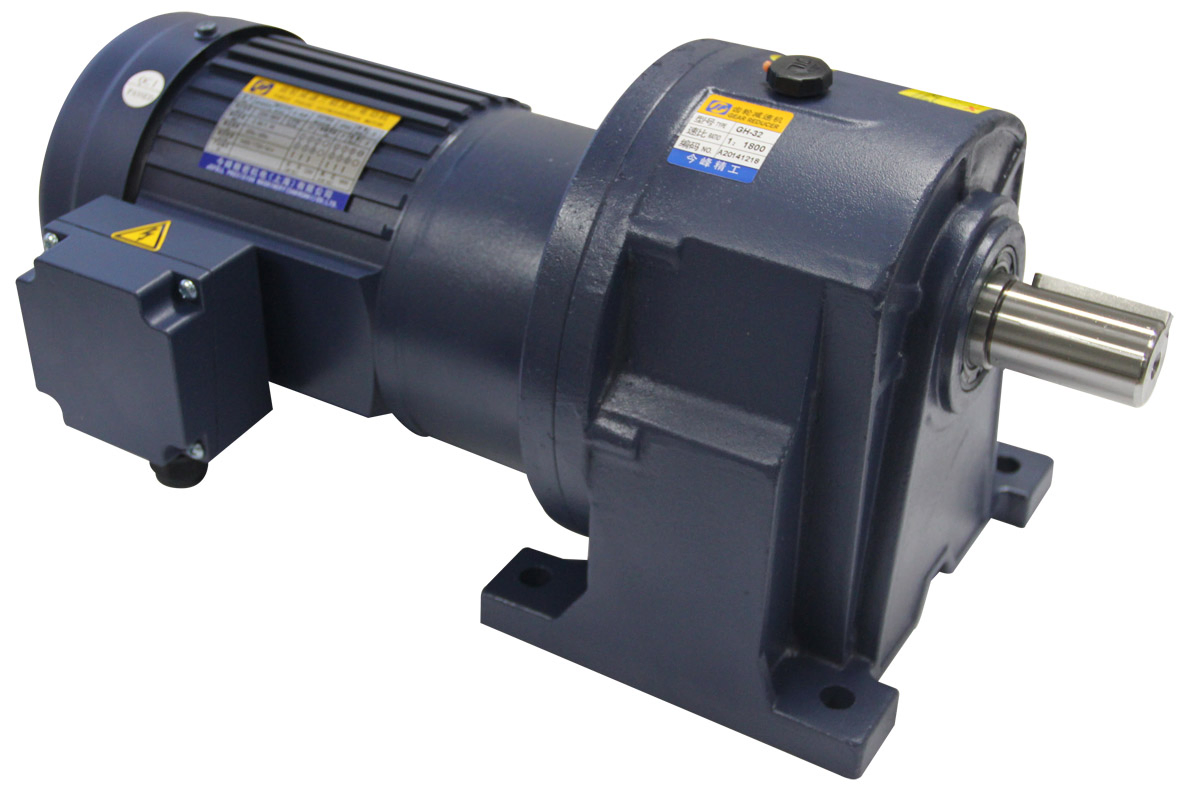

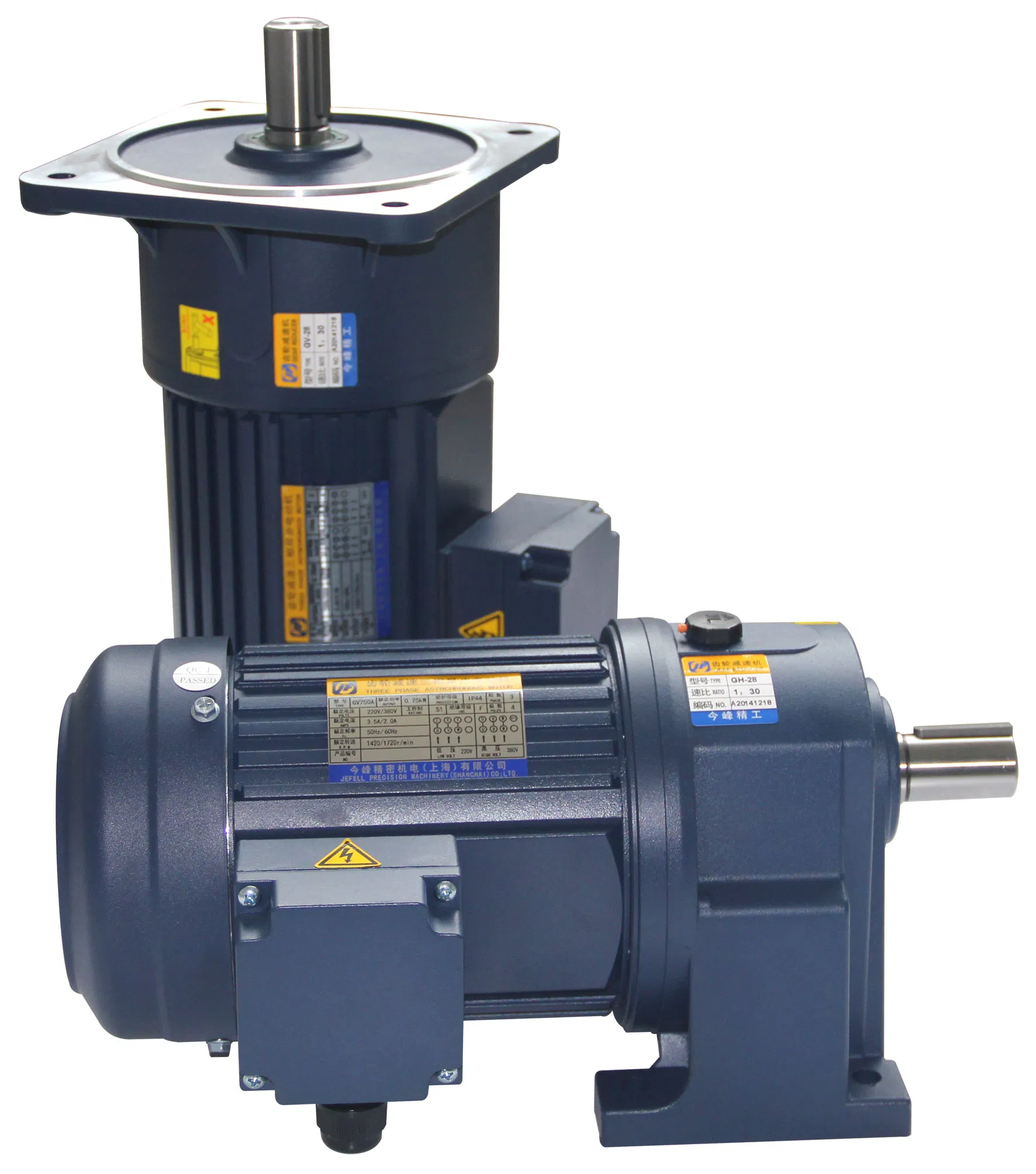

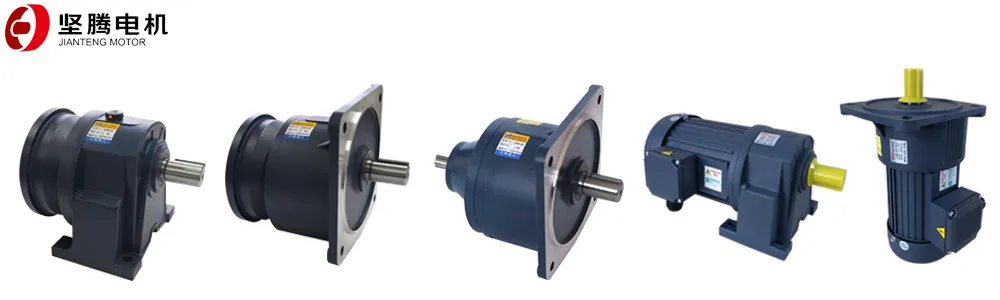

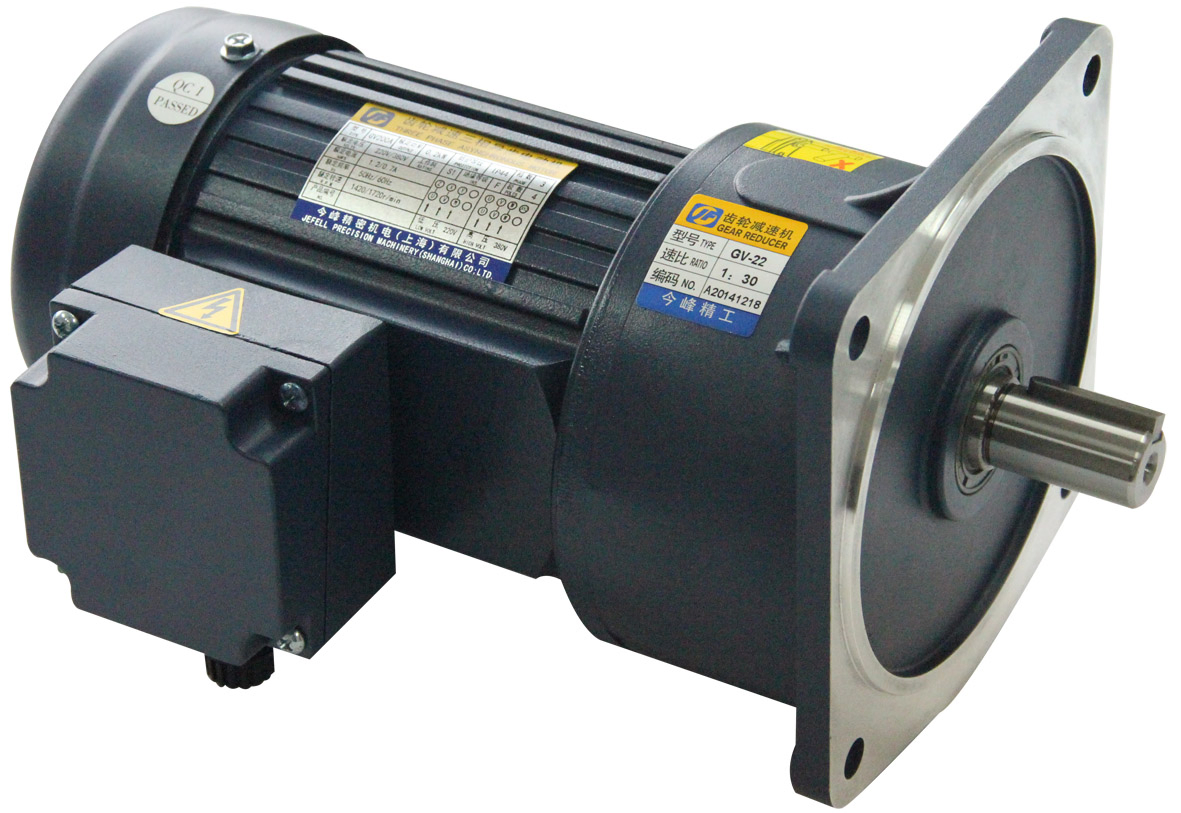

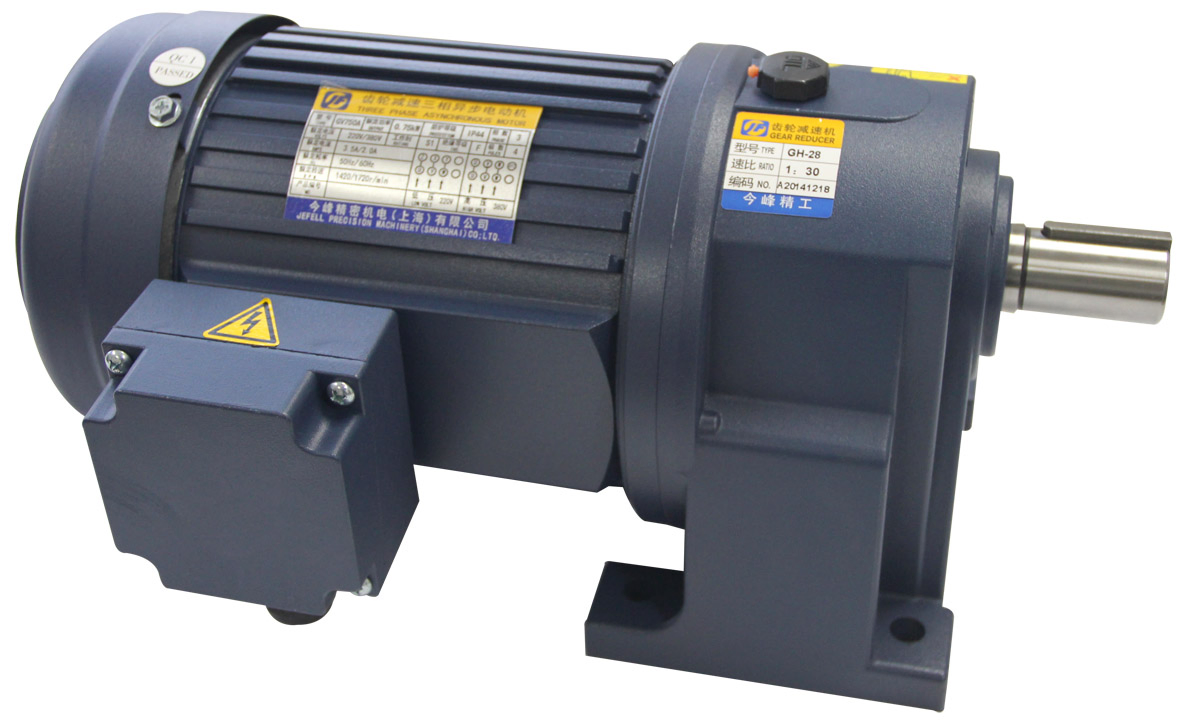

01 Basic structure: ZH (Horizontal), ZV (Vertical)
02 Output Range: 100W, 200W, 400W, 750W, 1500W, 2200W, 3700W
03 Gear ratio: 3, 5, 10...1800
04 Motor types: 3-phase (220-415V), 1-phase (110V/220V), Double Voltage, Light type duty
05 Brake unit: DC90V brake unit or With release brake unit
| Item |
3-phase motor |
1-phase motor |
| Protection | IP54 with alum alloy terminal box, others IP20 |
| Frame material | Alum alloy for 100-2200W; Cast iron for larger sizes |
| Duty | Continuous running |
| INS.Class | B/F |
| Environment | Temp: -10 to +40°C; Humidity: <90% |
| Voltage | 220V-240V/380-415V | 110V/220V, 50/60Hz |
| Pole | 4P(6P) | 4P(6P) |
| Standard | GB755 / IEC-60034 |
❓ Frequently Asked Questions
Q: How to select a suitable motor or gearbox?
A: Provide us with motor pictures, drawings, or detailed specifications such as voltage, speed, torque, motor size, working mode, needed lifetime, and noise level. We will recommend the most suitable motor based on your request.
Q: Do you offer customization for standard motors?
A: Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add specific cables, connectors, capacitors, or EMC components as required.
Q: Can you provide individual design services?
A: Yes, we design motors individually for our customers. Note that new mold development may require specific design and tooling costs.
Q: What is the typical lead time for orders?
A: Regular standard products typically require 15-30 days. Customized products may take longer. We remain flexible based on specific order requirements.
Q: What is the protection level of these motors?
A: Our motors feature IP54 protection with aluminum alloy terminal boxes, while other versions are rated at IP20, ensuring reliability in various environments.
Q: What quality standards are followed during production?
A: All products are manufactured according to GB755 and IEC-60034 standards, and are certified under ISO9001, CCC, and CE.
