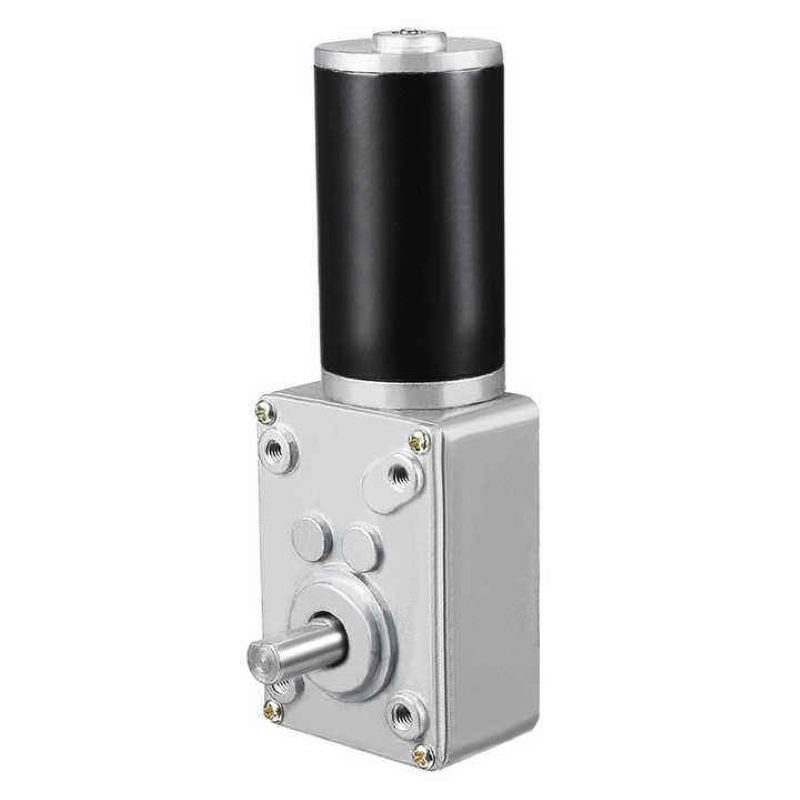

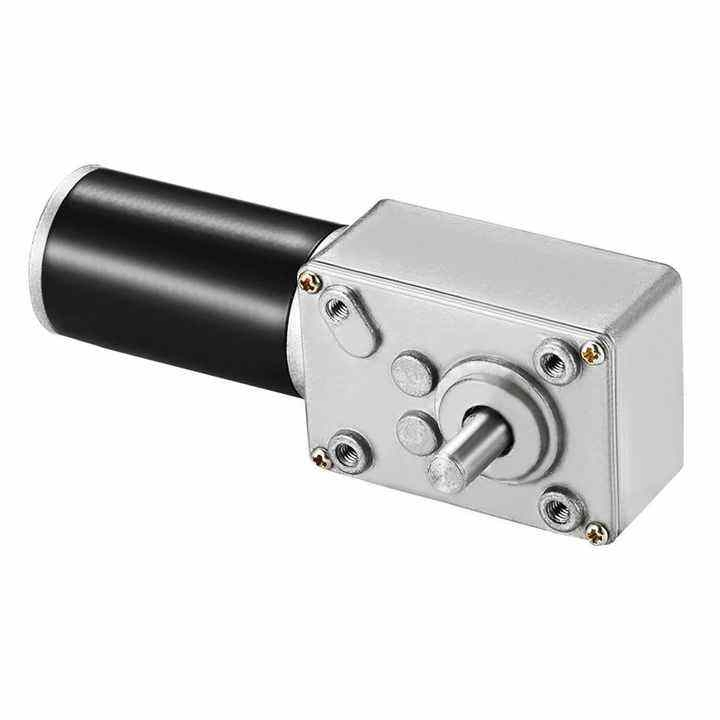

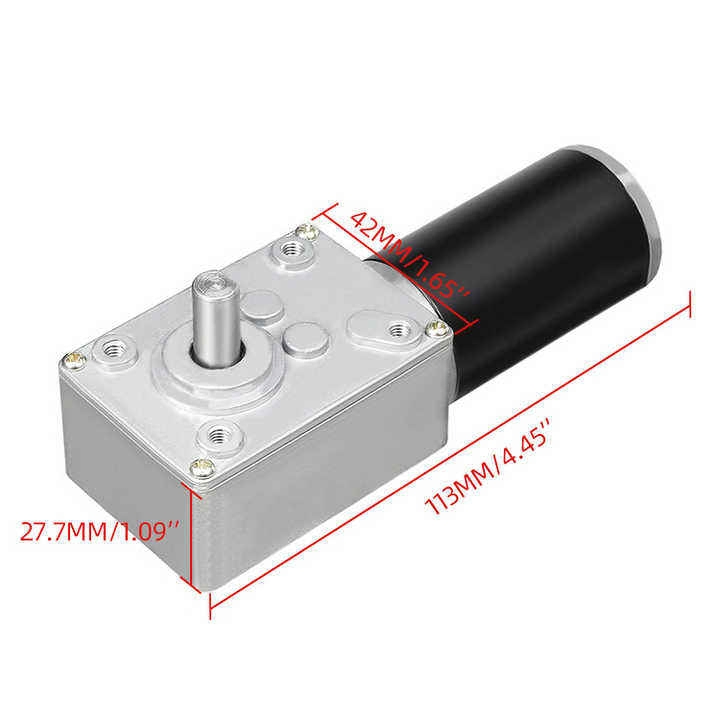

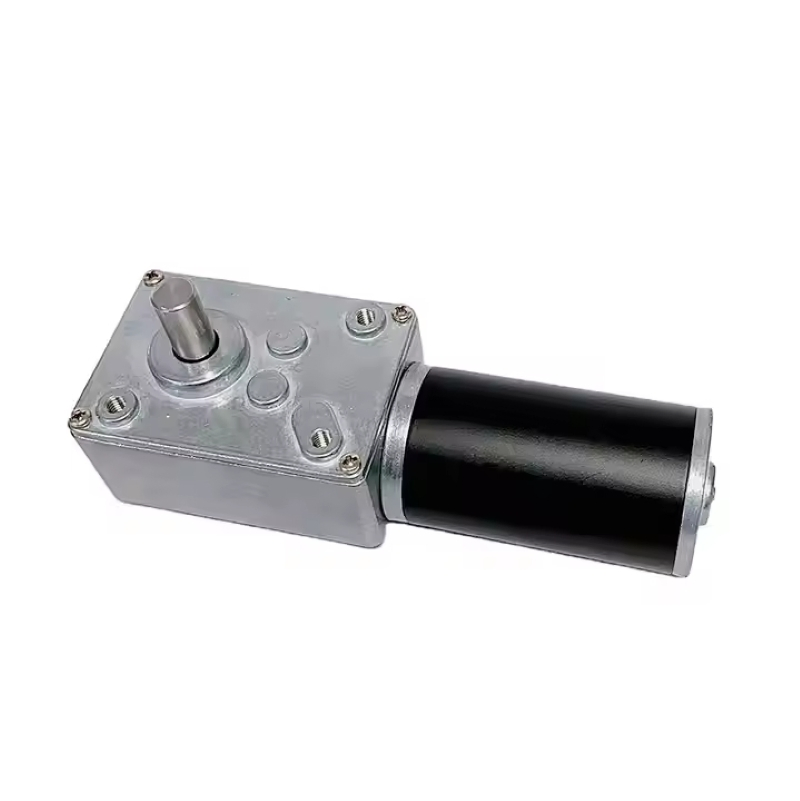

Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener
Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener
Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener
Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener
Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener
1 / 5
Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener
Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener
Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener
Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener
Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener

Jgy5840-31zy High Torque Worm Gear Motor DC 12V 24V 5-470rpm Self-Locking Micro Turbo Geared Motor for Home Automation and Window Opener

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

⚙️

Basic Specifications

Model NO.
5840-31ZY
Type
Brushed DC Gear Motor
Rated Voltage
12/24VDC
Rotation Speed
5-470rpm
Rated Power
9.6-28.8W
Torque
70kgf.Cm
Structure
Worm Gear / Brushed
Number of Poles
10
Certification
ISO9001, CCC, VDE, RoHS
Specification
80*32*26mm
📦

Packaging & Delivery

Package Size
40.50cm * 31.00cm * 23.00cm
Gross Weight
20.200kg
Transport Package
Carton Box
📐

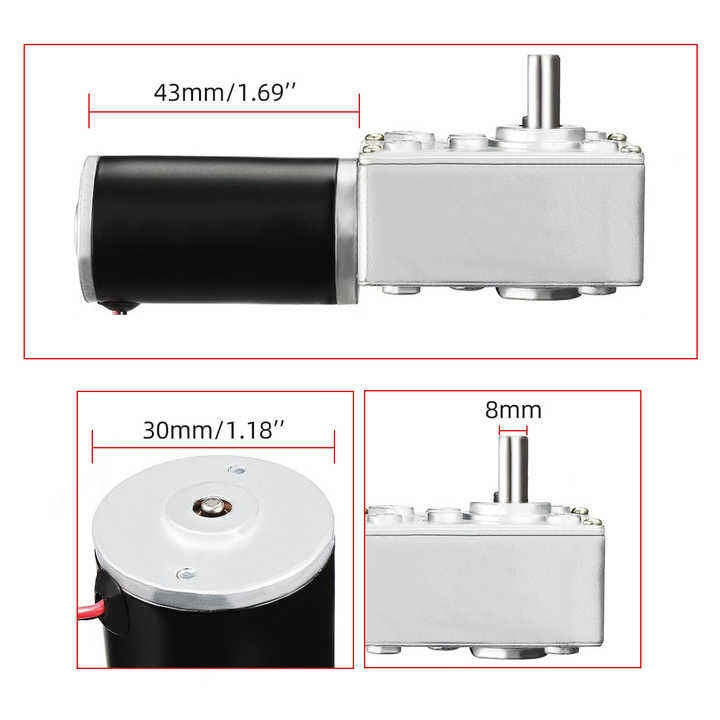

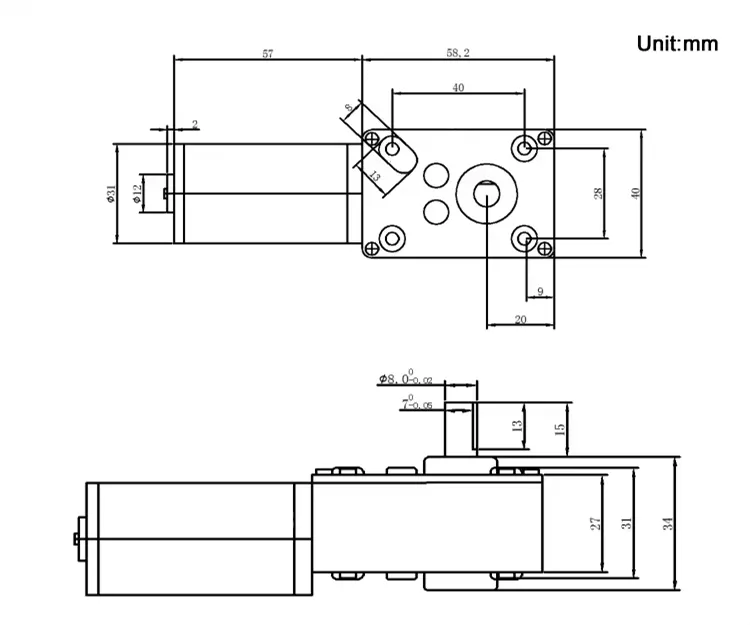

Product Drawing

Product Drawing

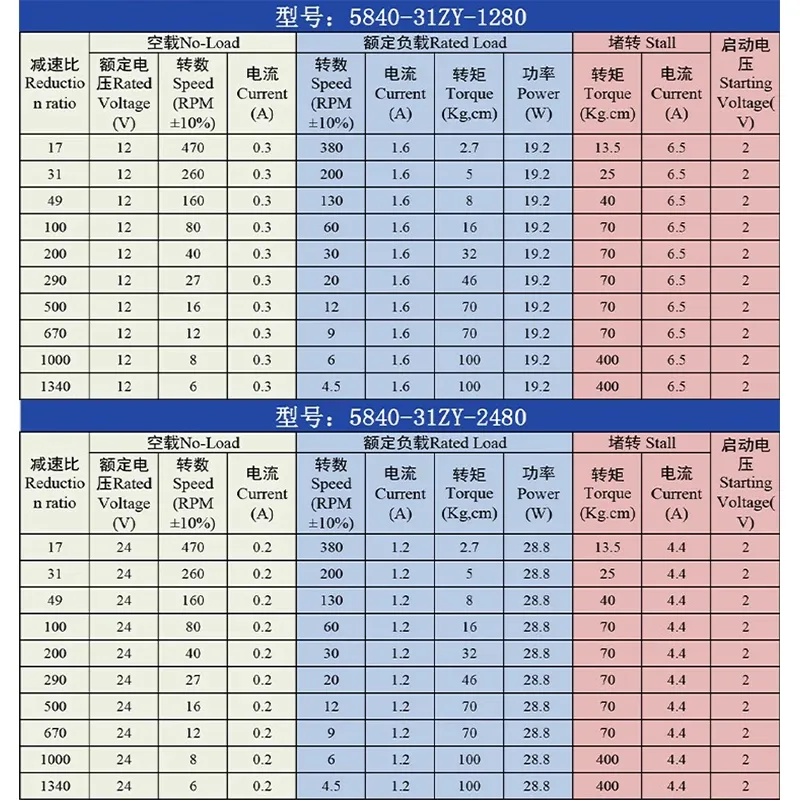

High Torque Worm Gear Motor

Customization Options: We can customize various shafts, speed, torque, wire, lead, etc. according to your requirements. Please provide your choice of voltage, rotation speed, and torque for a specific quotation.

🔍

Product Overview

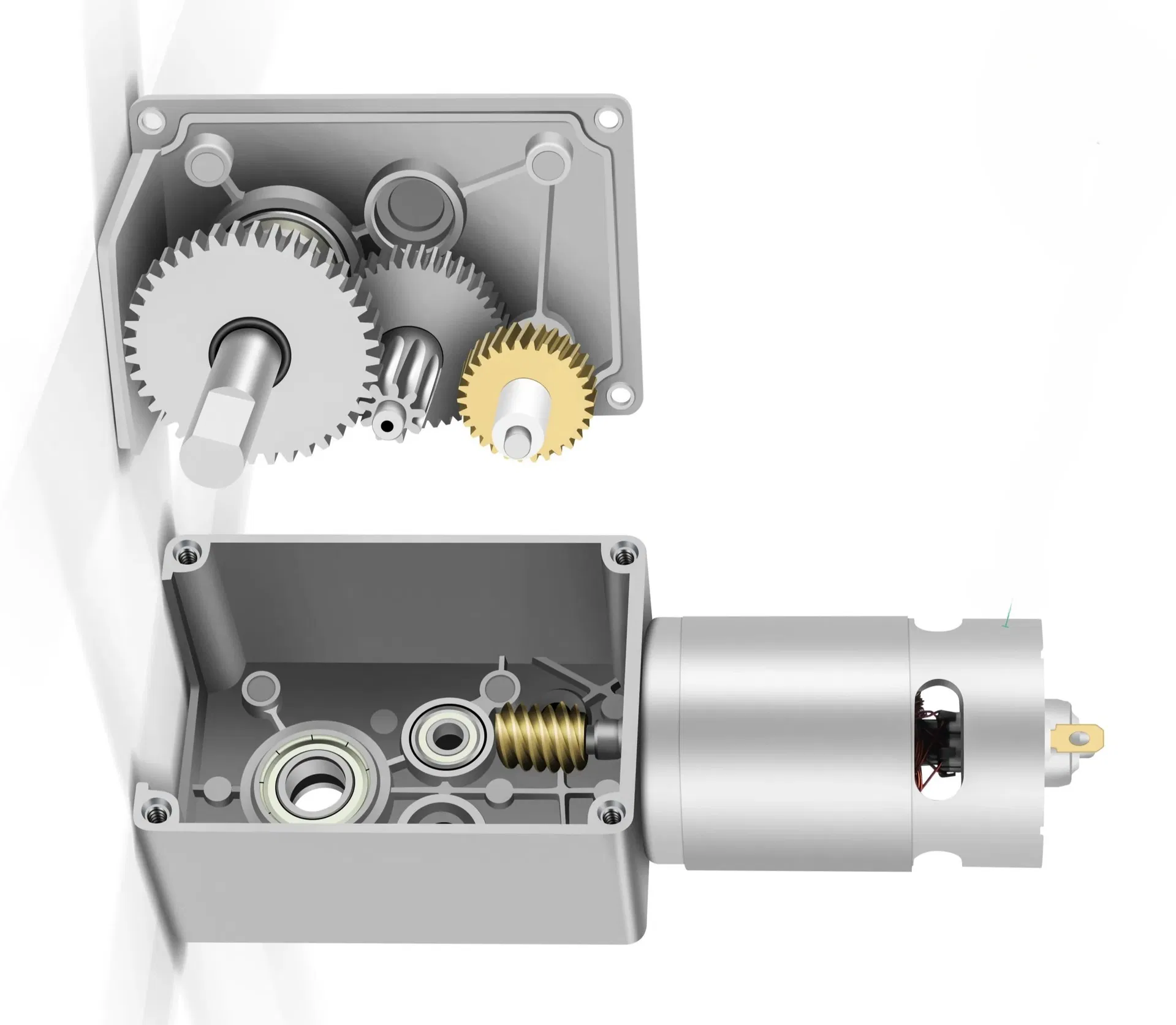

Worm Gear Box Overview

What is a Worm Gear Box?
A worm gearbox uses a combination of shafts, worm gears, bearings, and toothed wheels to produce movement. They can alter the input rotational motion by 90 degrees to the output, making them ideal for specific mechanical driving systems.

Key Advantages:

  • Compact in size: Ideal for limited space applications requiring high torque.
  • Increased Torque: High reduction ratios allow for significant torque output.
  • Low Noise: One of the quietest gearbox designs available.

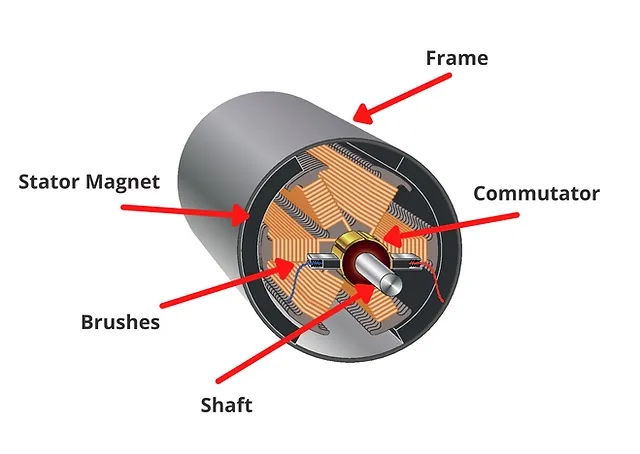

Brushed DC Motor
Brushed DC Motor Option

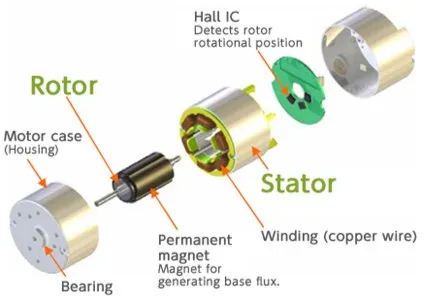

BLDC Motor
BLDC Motor Option
🛠️

Technical Details

Shell Material
Aluminum Shell

High strength and corrosion resistance.

D-shape shaft
D-shape Output Shaft

Increases friction for smoother rotation.

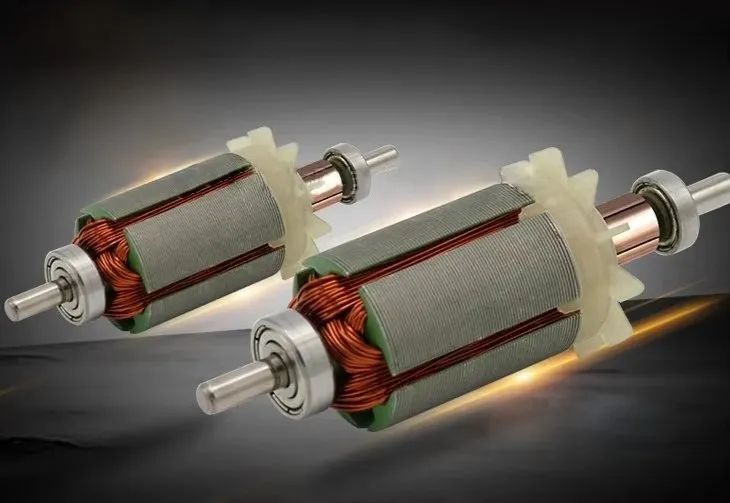

Pure Cu Coils
Pure Copper Coils

Stable performance and durable torque.

Metal gears
Metal Gears

Wear-resistant and impact-resistant.

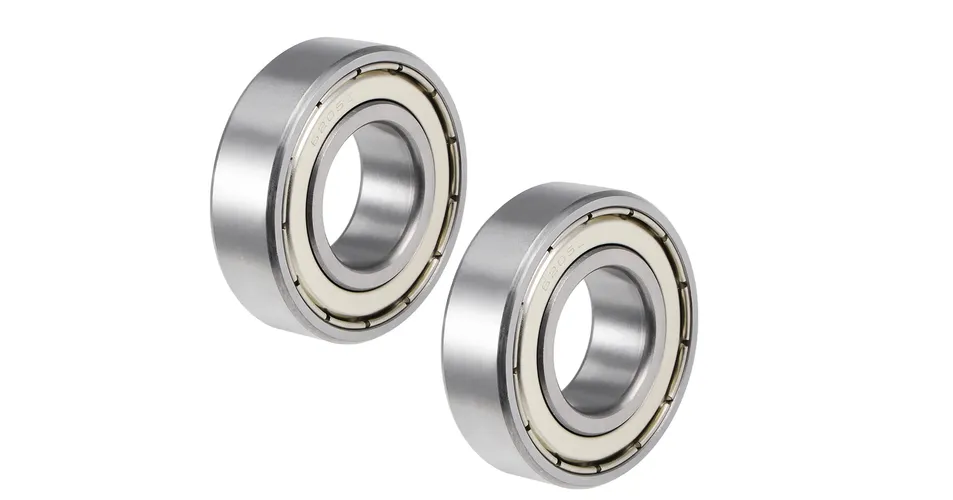

Ball Bearing
High Quality Ball Bearing
Magnetic Arc
Magnetic Arc

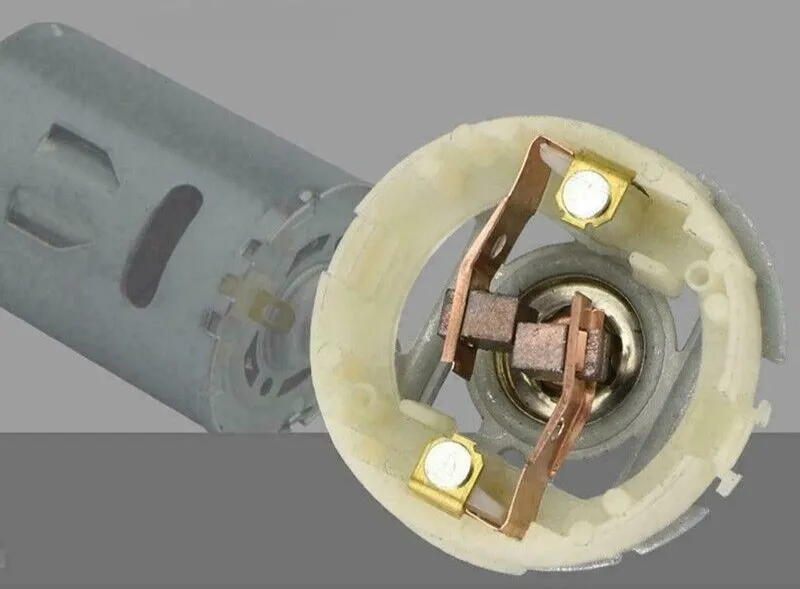

Carbon Brush
Super Quality Carbon Brush
Hall Effect Sensor
Hall Effect Sensor
📸

Product Showcase

Showcase 1
Showcase 2
Showcase 3
Showcase 4

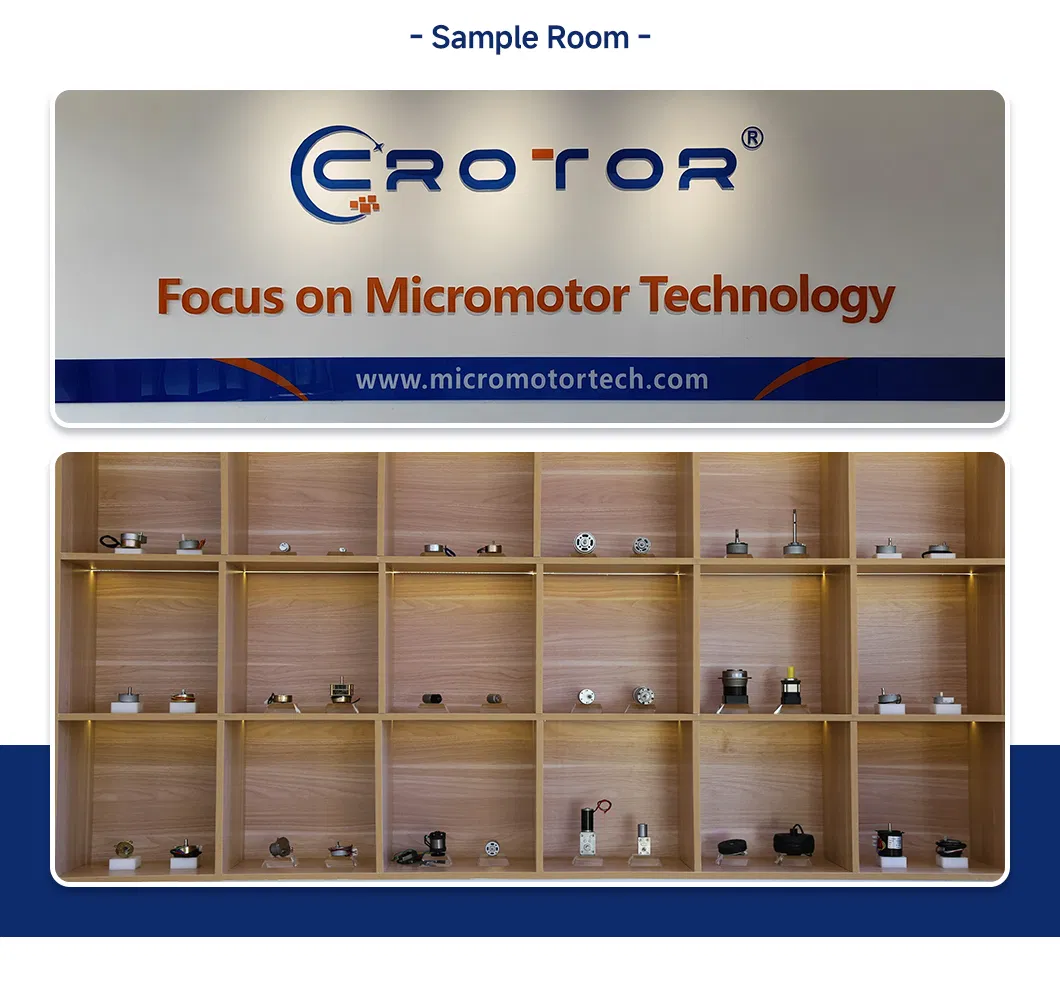

Showcase 5
Showcase 6
Showcase 7
Showcase 8
Showcase 9
Showcase 10
📋

Summary of Features

Main ProductsSynchronous Motor, DC Gear Motor, BLDC Motor and Water Pump
CertificationsCCC, VDE, CB, RoHS and ISO9001-2015
OEMAccepted
💡

Frequently Asked Questions

What is the self-locking feature of this worm gear motor?
The worm gear design inherently provides a self-locking function, meaning the output shaft cannot be rotated when the motor is powered off, providing safety and stability in applications like window openers.
Can the speed and torque be customized?
Yes, we can customize the shaft dimensions, rotation speed (within 5-470rpm), and torque ratings to meet your specific application requirements.
Is this motor compatible with 12V and 24V systems?
The 5840-31ZY model is available in both 12VDC and 24VDC versions to suit different power supply environments.
What are the typical applications for this motor?
This motor is widely used in home automation, smart window openers, medical equipment, and industrial driving systems where high torque and compact size are needed.
How does the worm gear contribute to noise reduction?
Worm gearboxes are designed to mesh more smoothly than standard spur gears, which significantly reduces vibration and mechanical noise during operation.
