6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
1 / 5
6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor

6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor

Customization: Available
Application: DC Gear Motor
Operating Speed: Low Speed
Send Inquiry

Product Description

ℹ️ Product Overview
Model NO.
n20
Excitation Mode
Excited
Function
Driving
Casing Protection
Open Type
Number of Poles
2
Working Principle
Brush
Certification
RoHS, CE
Diameter
12mm
Voltage
3V~12V
Speed
10~3000rpm
Noise
Less Than 35dB
Encoder
12PPR
📝 Product Description

High Power version with 1.6A stall current: 1.6A

  • Equipped with 12CPR (available with or without encoder)
  • Options for back shaft configuration
  • Choice between metal brush or carbon brush for durability
Model Voltage (VDC) No load speed (rpm) Noload current (mA) Stall torque (kg.cm) Gear ratio
N20H56V/12V6000120/600.15:1
N20H106V/12V3000120/600.210:1
N20H206V/12V1500120/600.420:1
N20H306V/12V1000120/600.630:1
N20H506V/12V625120/601.050:1
N20H756V/12V400120/601.575:1
N20H1006V/12V320120/602.0100:1
N20H1506V/12V200120/603.0150:1
N20H2106V/12V140120/603.6210:1
N20H2506V/12V120120/604.2250:1
N20H2986V/12V100120/605.0298:1
N20H3806V/12V78120/606.3380:1
N20H10006V/12V32120/609.01000:1
📷 Detailed Photos

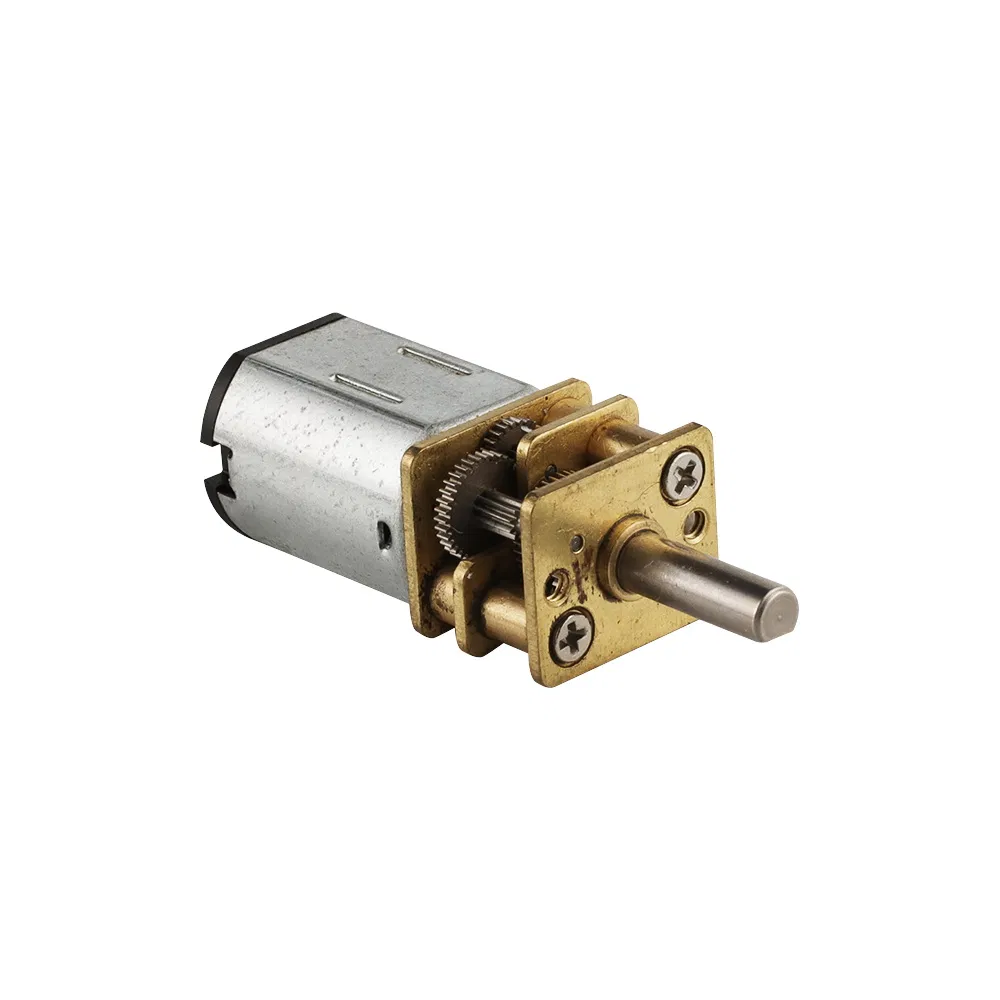

N20 Gear Motor View 1

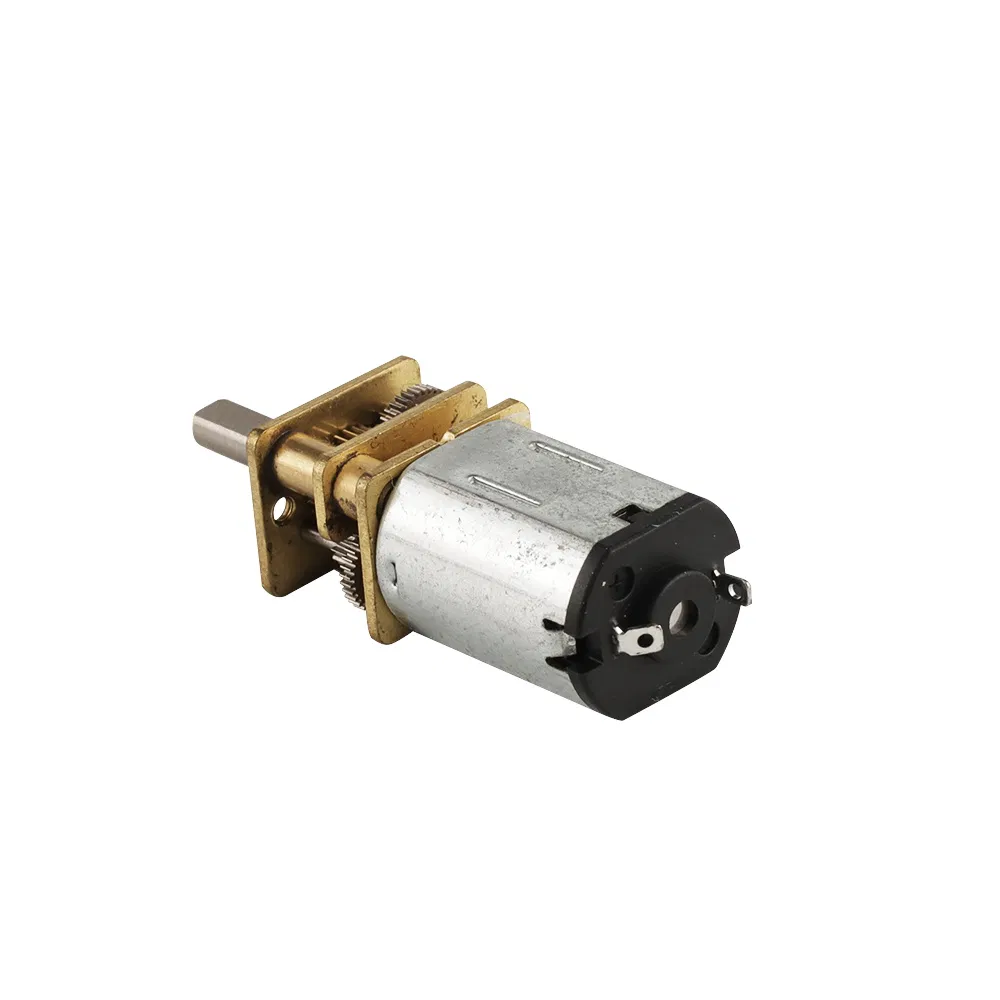

N20 Gear Motor View 2

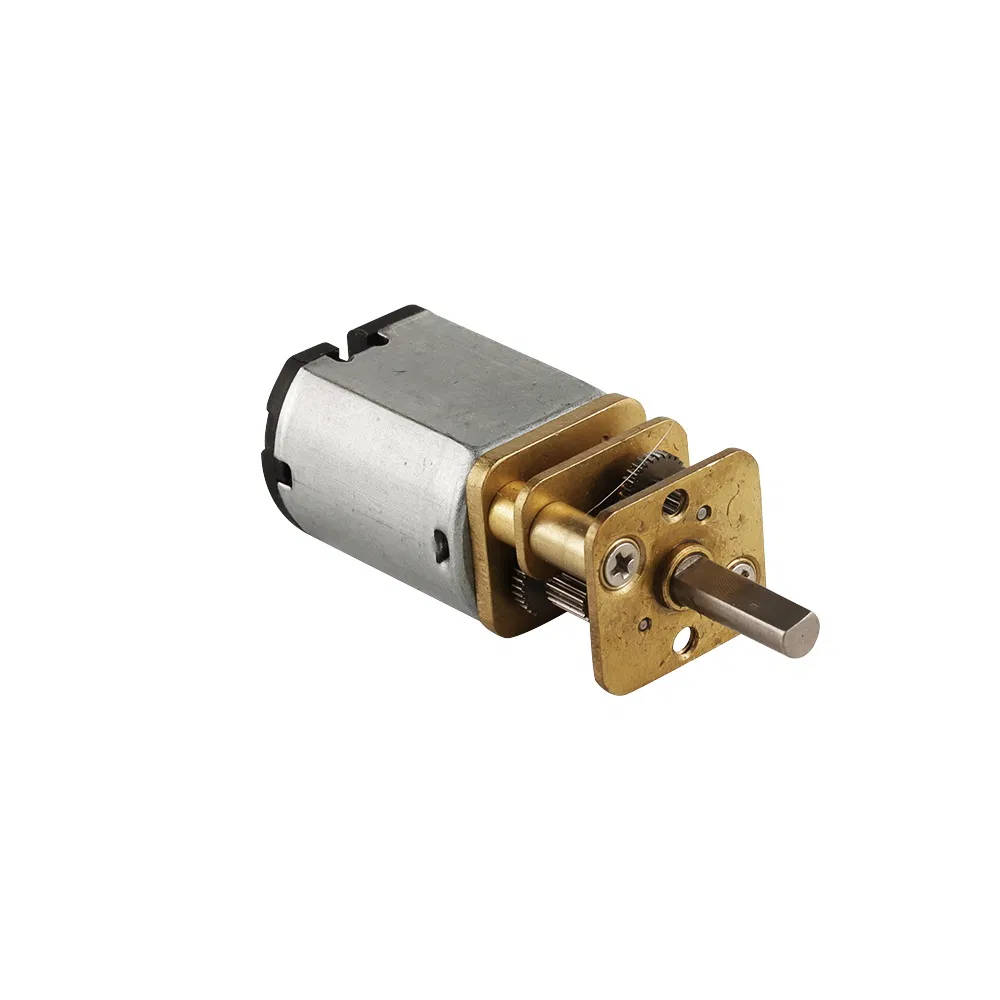

N20 Gear Motor View 3

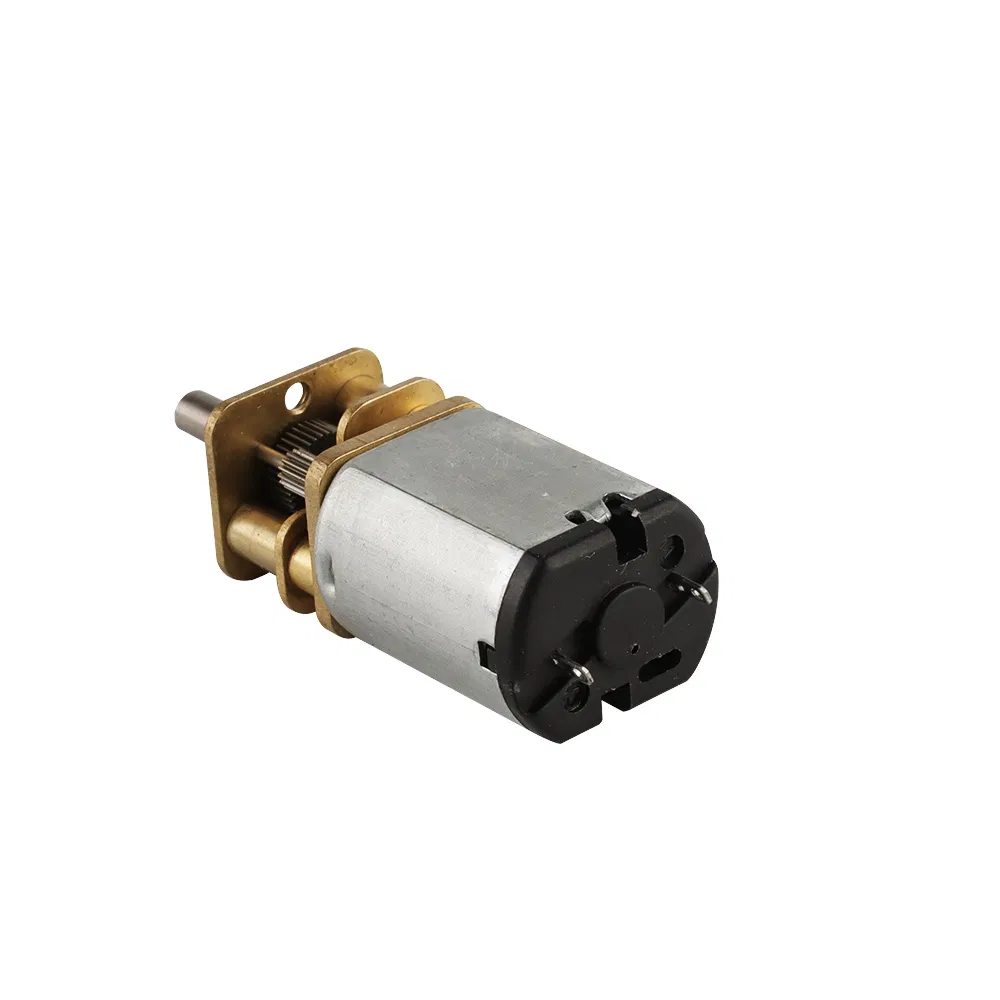

N20 Gear Motor View 4

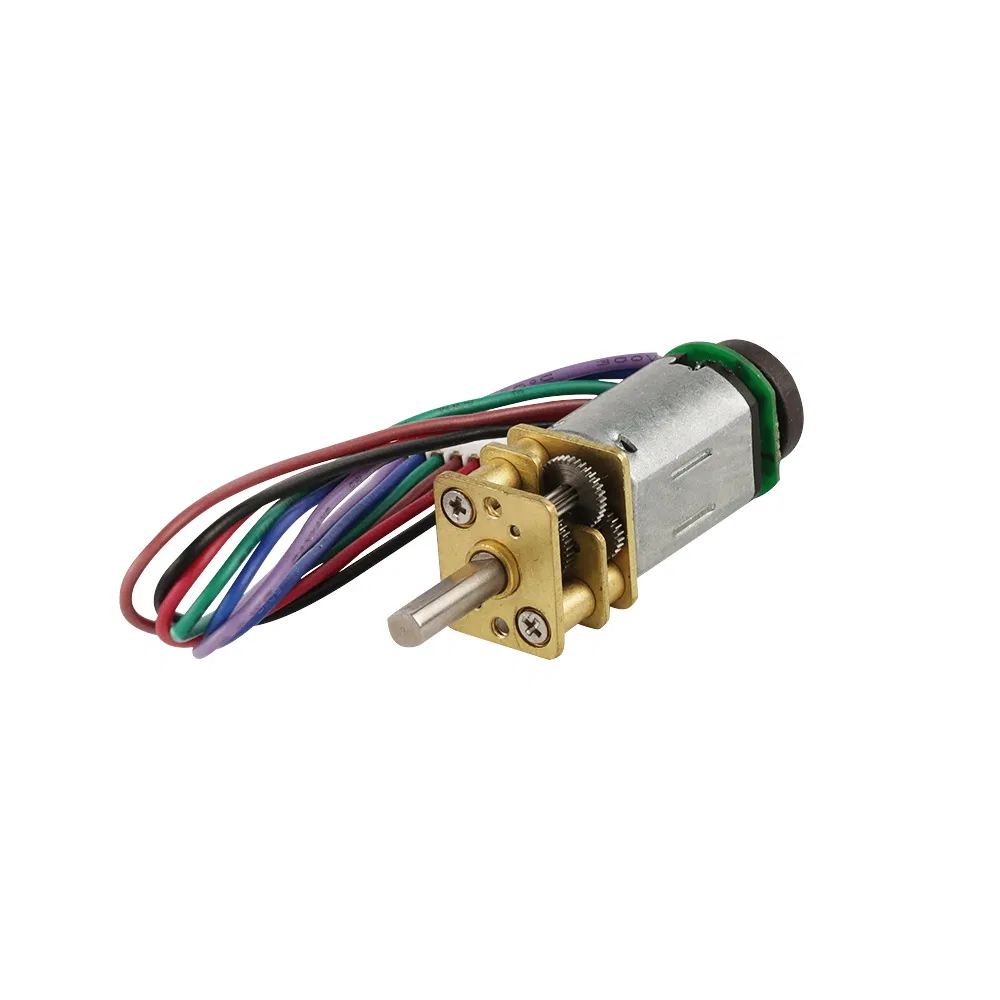

N20 Gear Motor View 5

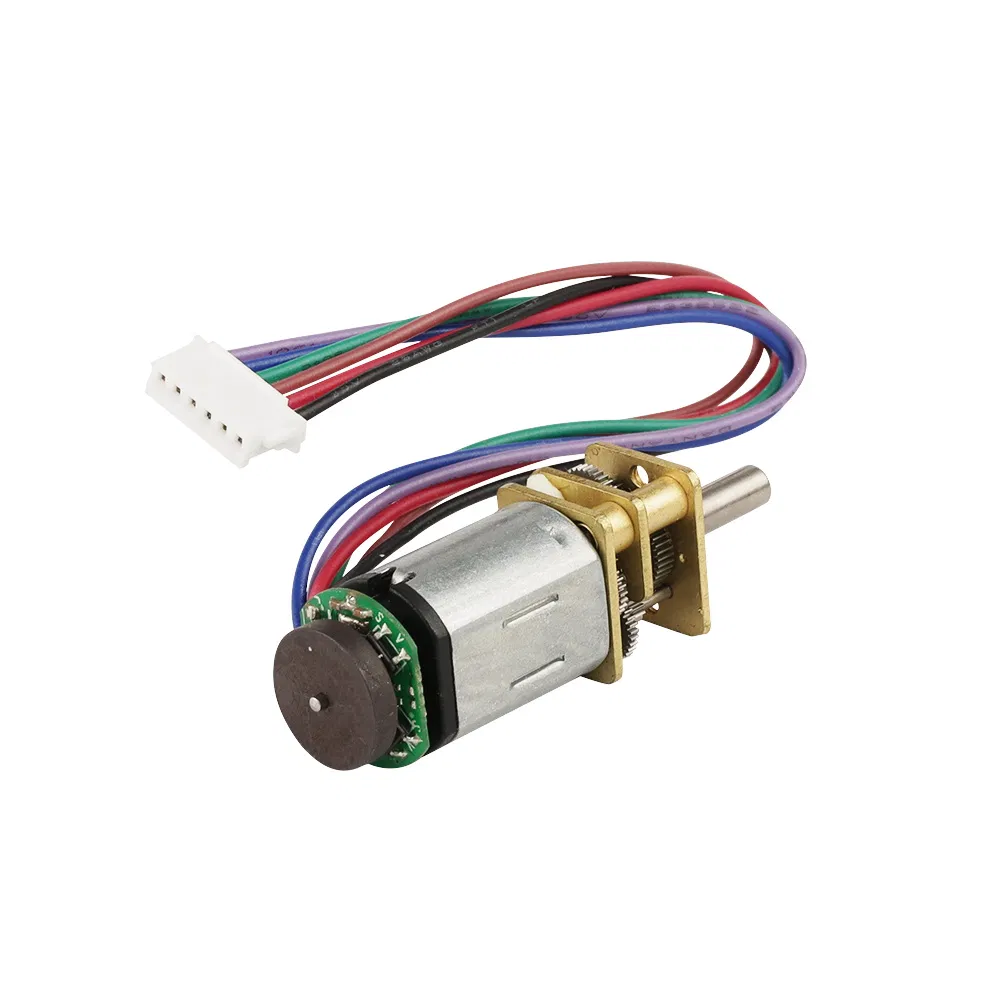

N20 Gear Motor View 6
📊 Product Parameters & Technical Drawings

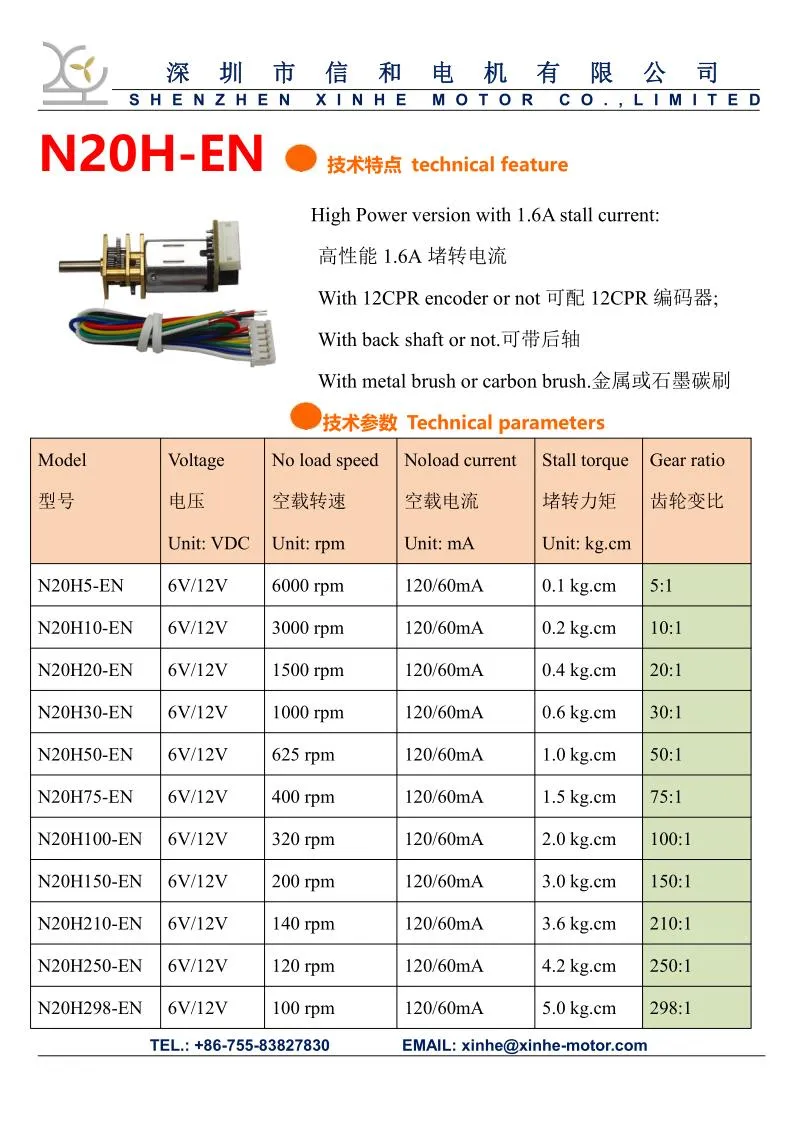

Parameter Drawing 1

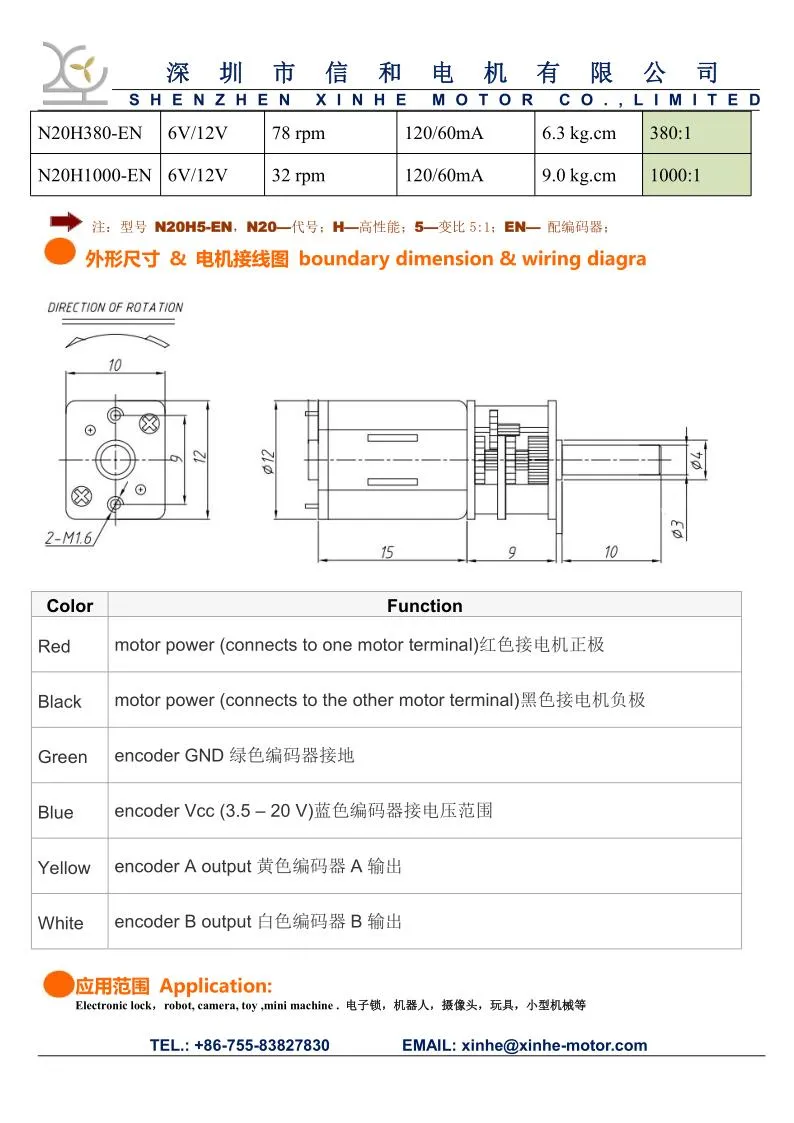

Parameter Drawing 2

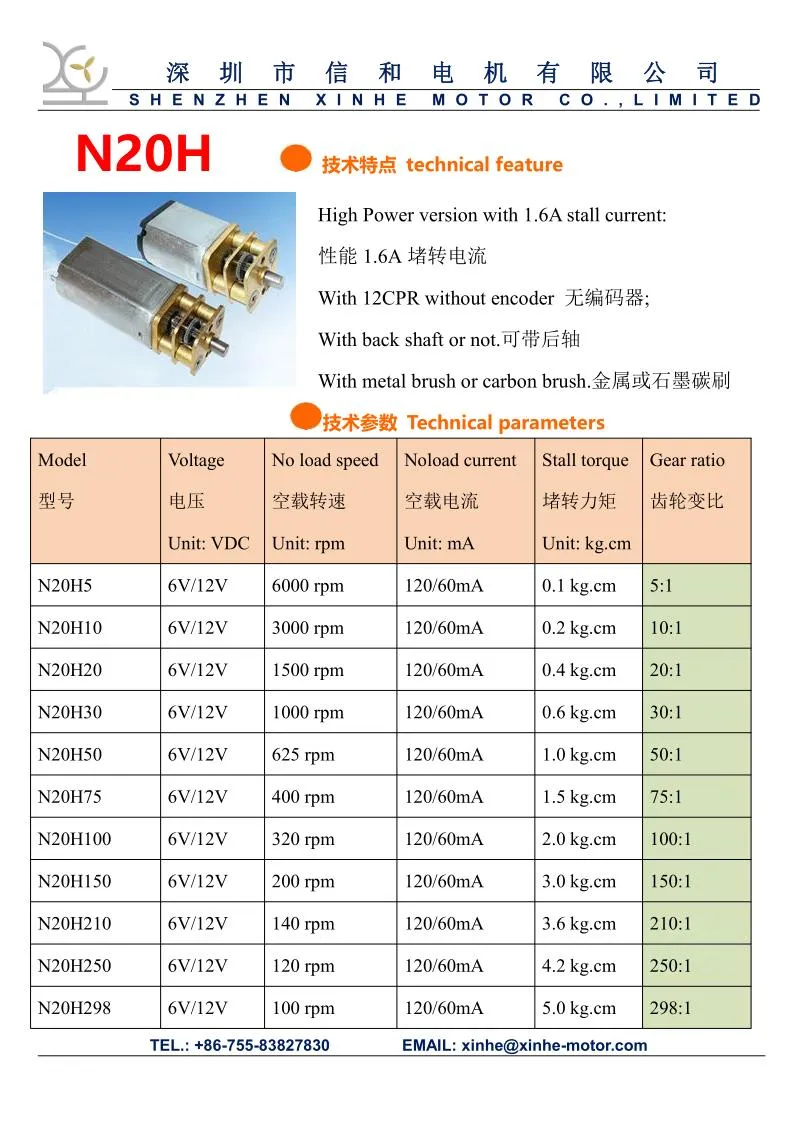

Parameter Drawing 3

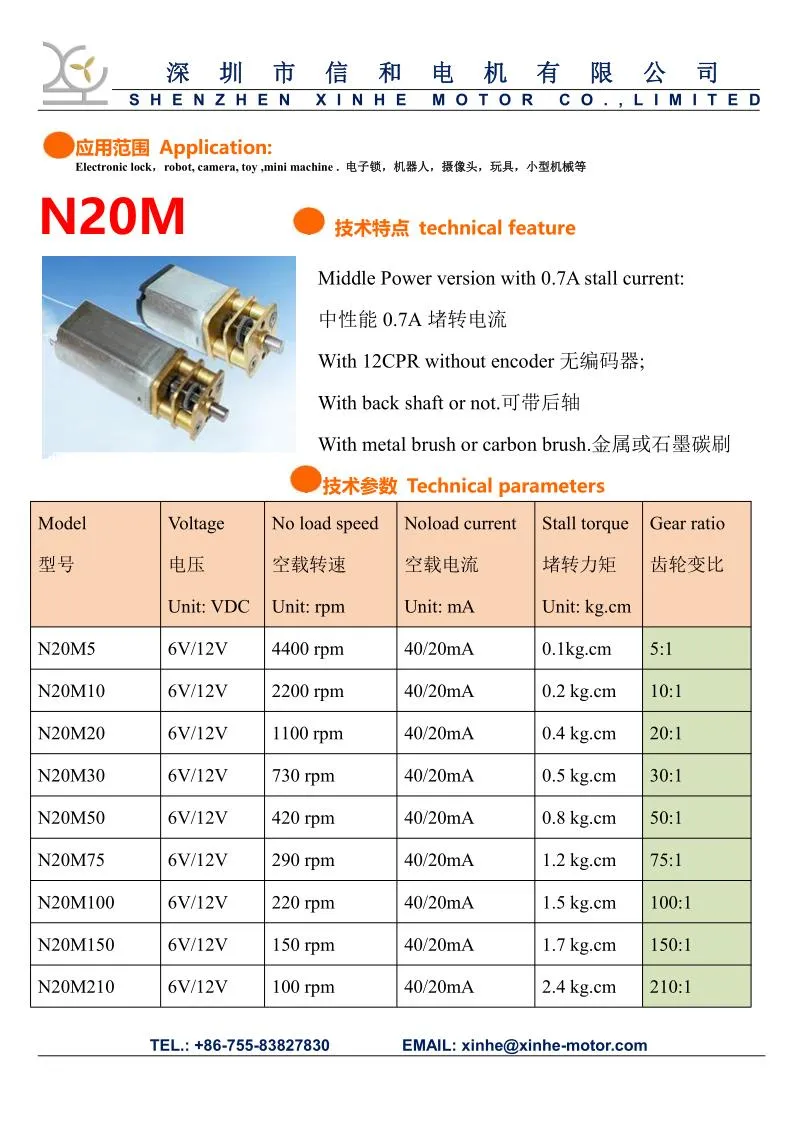

Parameter Drawing 4

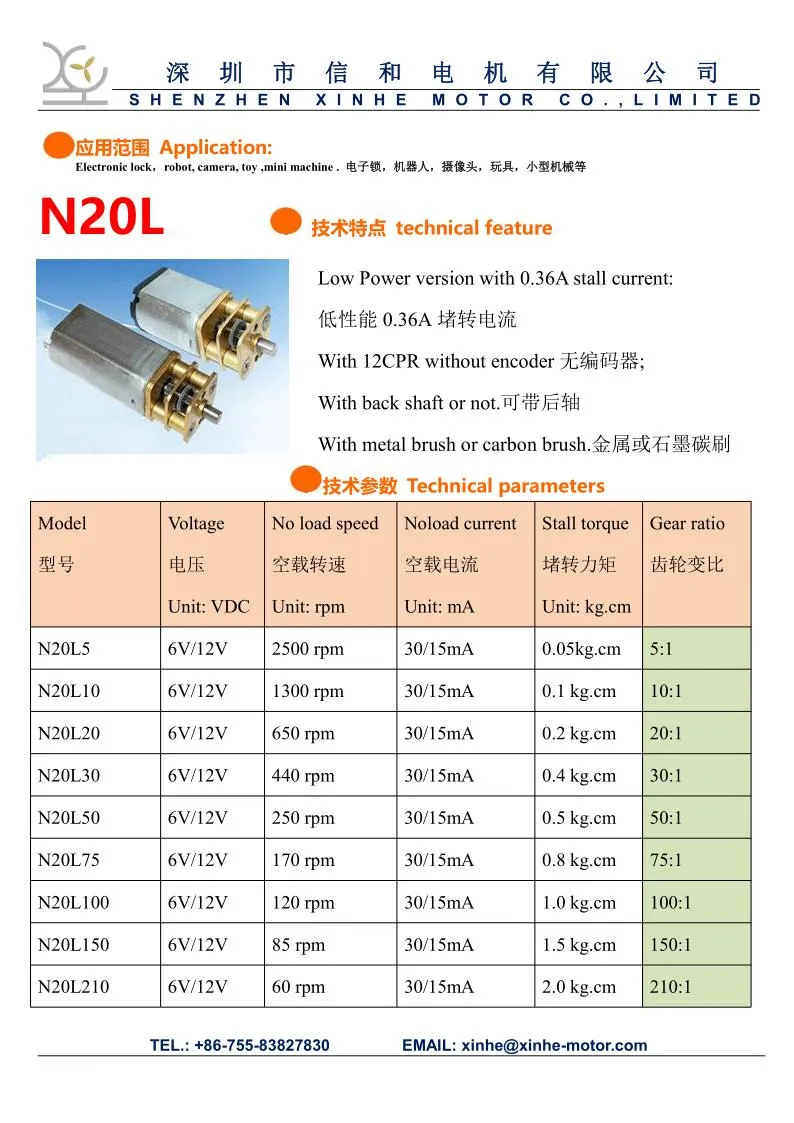

Parameter Drawing 5

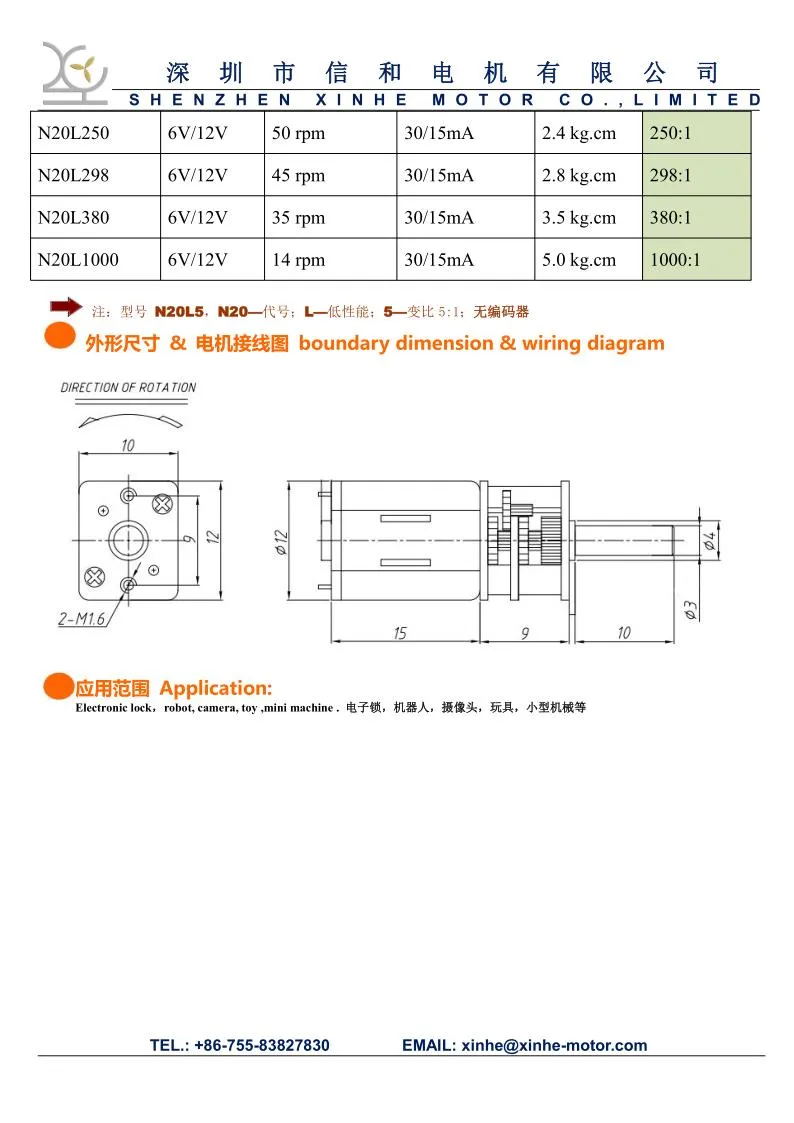

Parameter Drawing 6
📜 Certifications
Certification 1

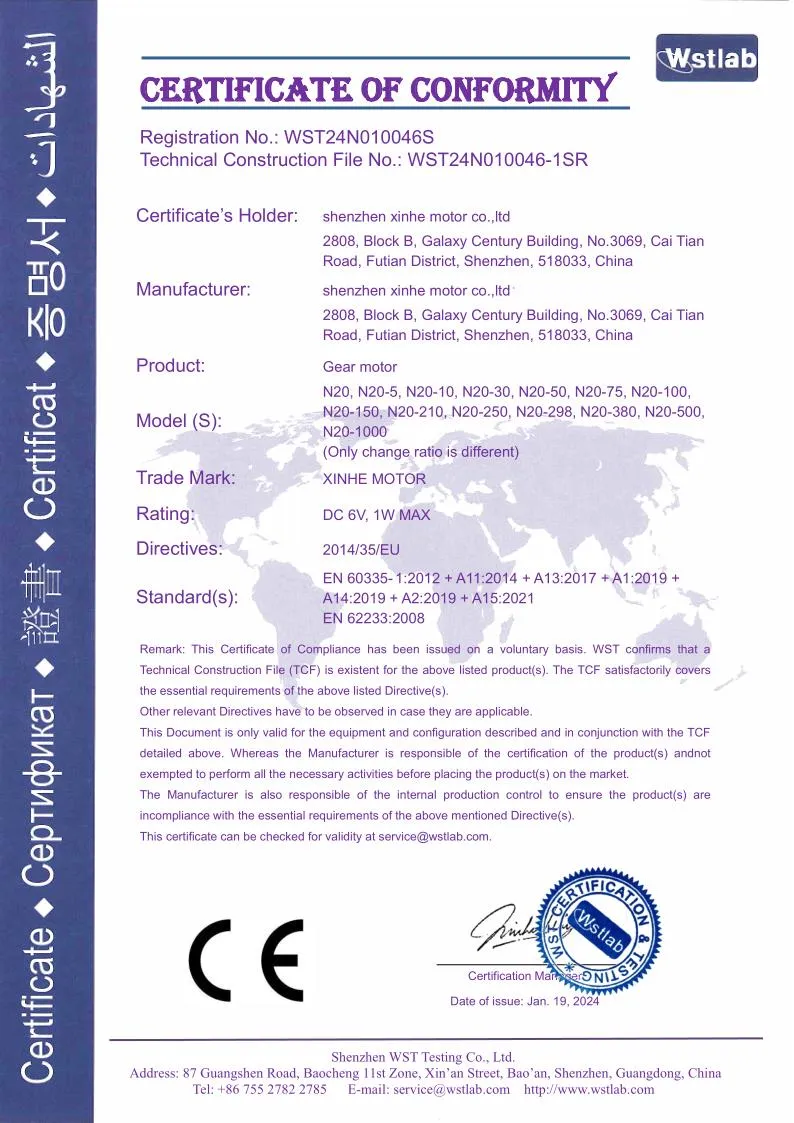

Certification 2

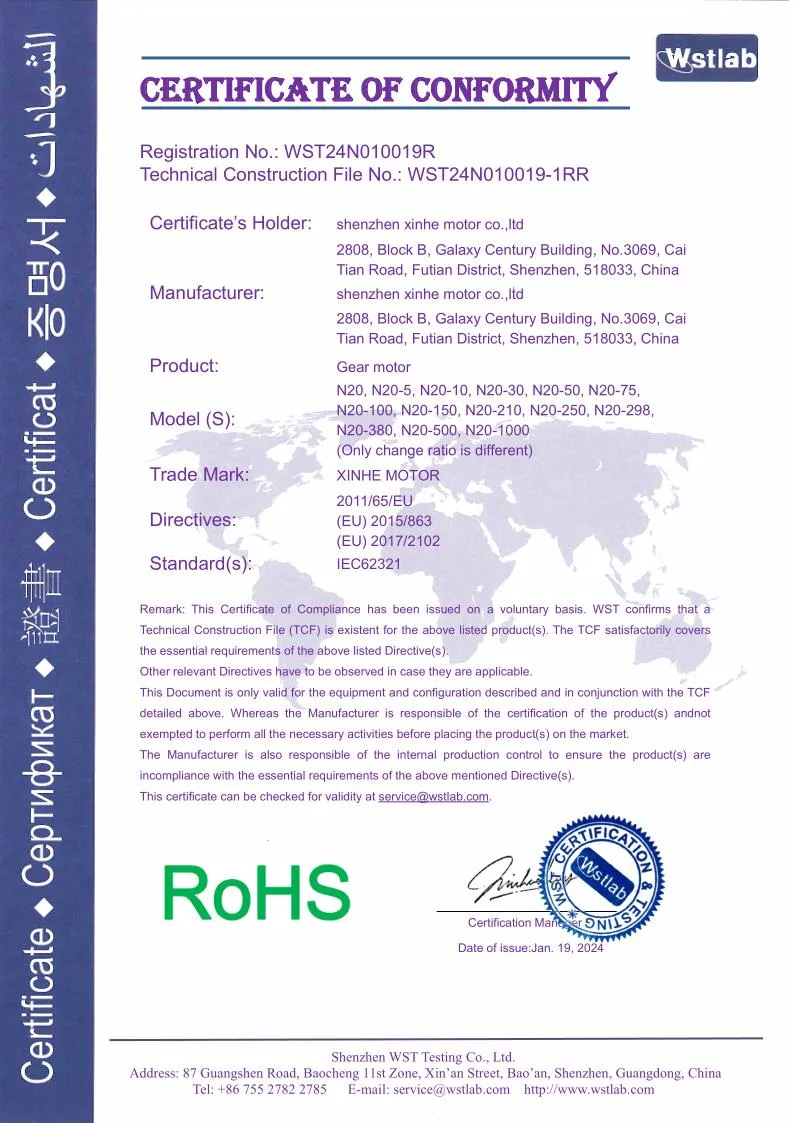

Certification 3
Global Standard Compliance

Product details assembly

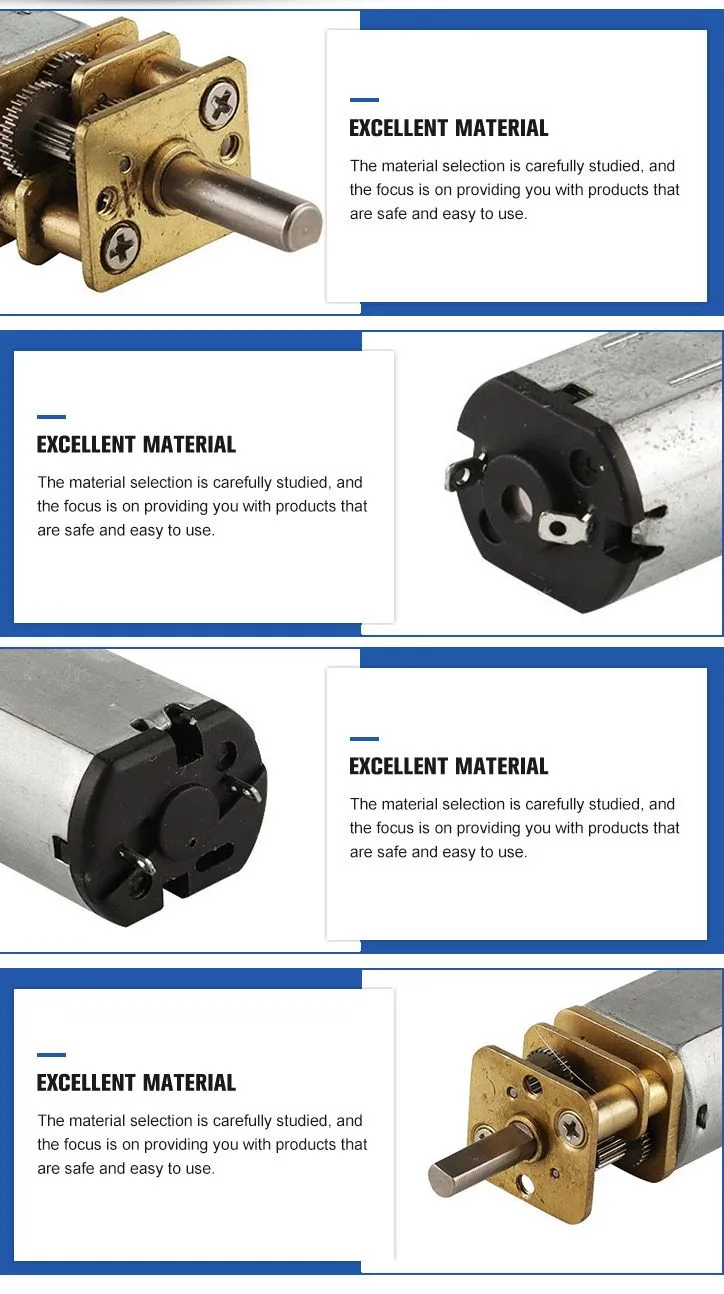

Assembly detail
🏢 Production Capabilities
Workshop and Production Line
❓ Frequently Asked Questions
What is the main application for the N20 gear motor?
The N20 mini DC gear motor is widely used in electronic locks, smart home devices, robotics, medical equipment, and precision instruments due to its compact size and high torque.
Can the motor speed and voltage be customized?
Yes, we offer customization for voltages ranging from 3V to 12V and speeds between 10rpm and 3000rpm to meet your specific application requirements.
What is the difference between carbon and metal brushes?
Carbon brushes generally offer a longer lifespan and better performance in high-power applications, while metal brushes are suitable for low-current and cost-sensitive projects.
Is the motor quiet during operation?
Yes, the N20 gear motor is designed for low-noise operation, maintaining noise levels at less than 35dB, making it ideal for quiet environments.
Do you provide encoders with the N20 motor?
We provide optional 12PPR encoders for precise speed and position control, which can be integrated with the back shaft of the motor.
What is the typical lead time for bulk orders?
The standard lead time for mass production is approximately 25 days, depending on the order volume and customization details.
