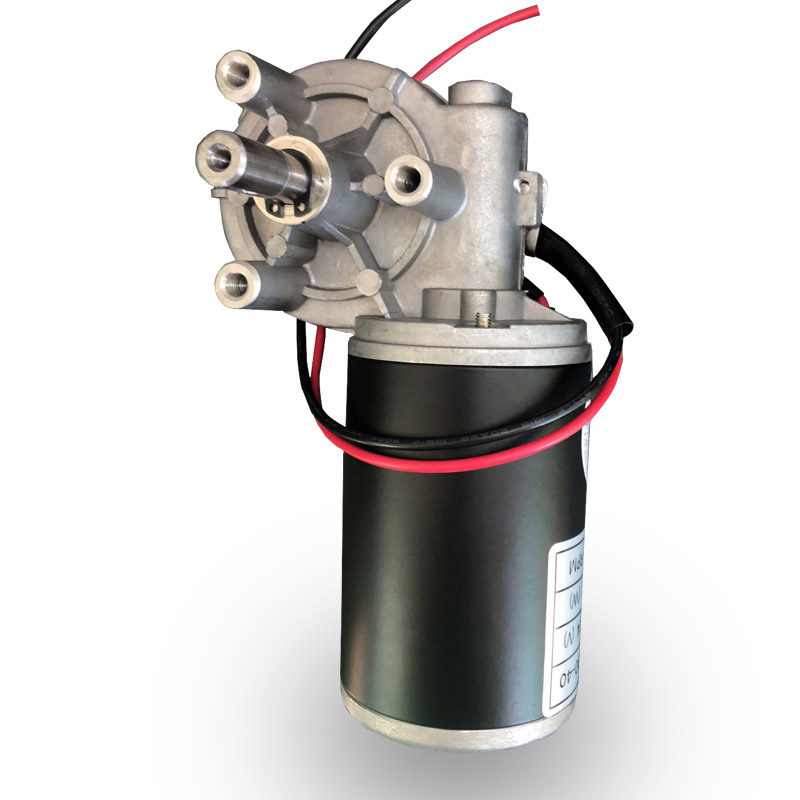

Custom Low Rpm High Torque Bronze Metal Worm Geared Motors Mini Electric DC Motor 12V 24V

Product Description

Custom Low Rpm High Torque Bronze Metal Worm Geared Motors Mini Electric DC Motor 12V 24V

Custom Low Rpm High Torque Bronze Metal Worm Geared Motors
NOTE:
1. Please inform the application of your brushed dc gear motors.
2. Please provide the load speed and load torque.
3. Please choose the mounting distance 50.80mm or 72mm.
Motor Specifications Guide
Technical Specifications
Product Model D49RL D59RL D63RL D76RL D88RL
Rated Voltage 12-110V 12-110V 12-110V 12-110V 12-110V
Rated Current 0.8A-1.5A 0.8A-1.5A 1.0A-1.5A 1.2A-1.5A 1.5A-1.8A
Power 10W-50W 20W-80W 30W-120W 45W-200W 100W-500W
No load speed 15-300RPM 15-250RPM 20-300RPM 15-300RPM 15-350RPM
Gear Ratio 70:1 56:1 56:2 75:1 60:1 60:3 60:4 82:1 82:2 64:1 53:1
Motor Torque 5N.m-8N.m 6N.m-10N.m 10N.m-15N.m 12N.m-18N.m 23N.m-30N.m

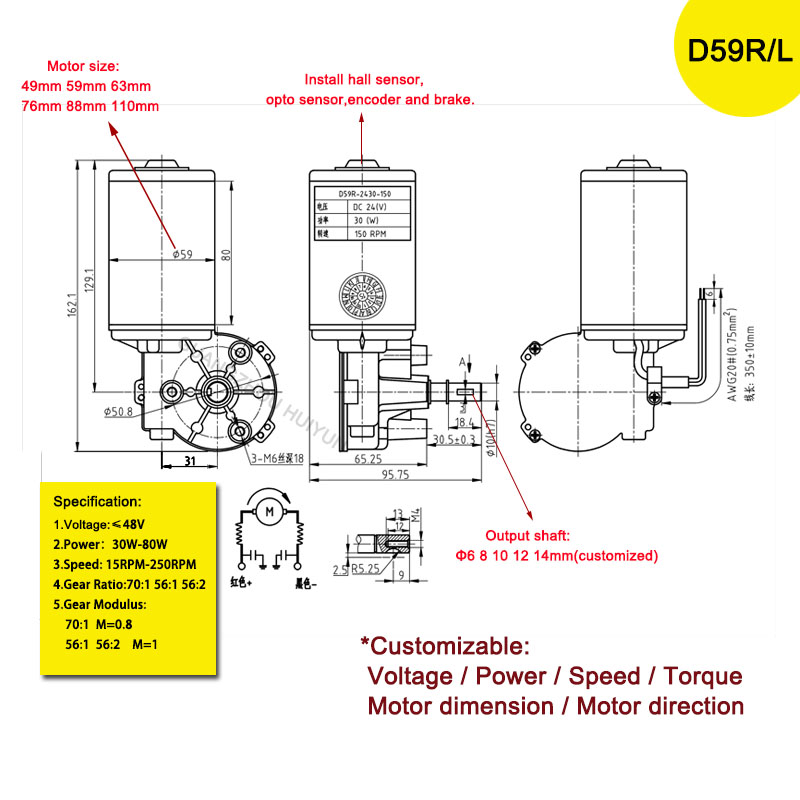

Model: D59R-24V30W-130RPM Detailed Specs
Type dc gear motor 12v 24v
Motor Diameter 49mm, 59mm, 63mm, 76mm, 88mm, 110mm
Voltage Options 12v, 24v, 36v, 40v, 48v, 60v, 72v, 90v, 110v
Motor Power 30W, 45W, 65W, 95W, 120W
Output Speed 20rpm, 60rpm, 80rpm, 150rpm to 220rpm
Torque Range 3nm - 35nm
Gear Material Plastic / Bronze Gear
Gearbox Type Left angle gearbox, right angle gear box
Product Advantages
  • Low noise operation (< 60db)
  • Long life span (> 4000hr continuously working)
  • Self-locking function with Forward & Reverse support
  • Professional OEM & ODM customization (Voltage, Power, Speed, Torque)
  • Strict quality control system for torque and noise testing
Detailed Product Photos

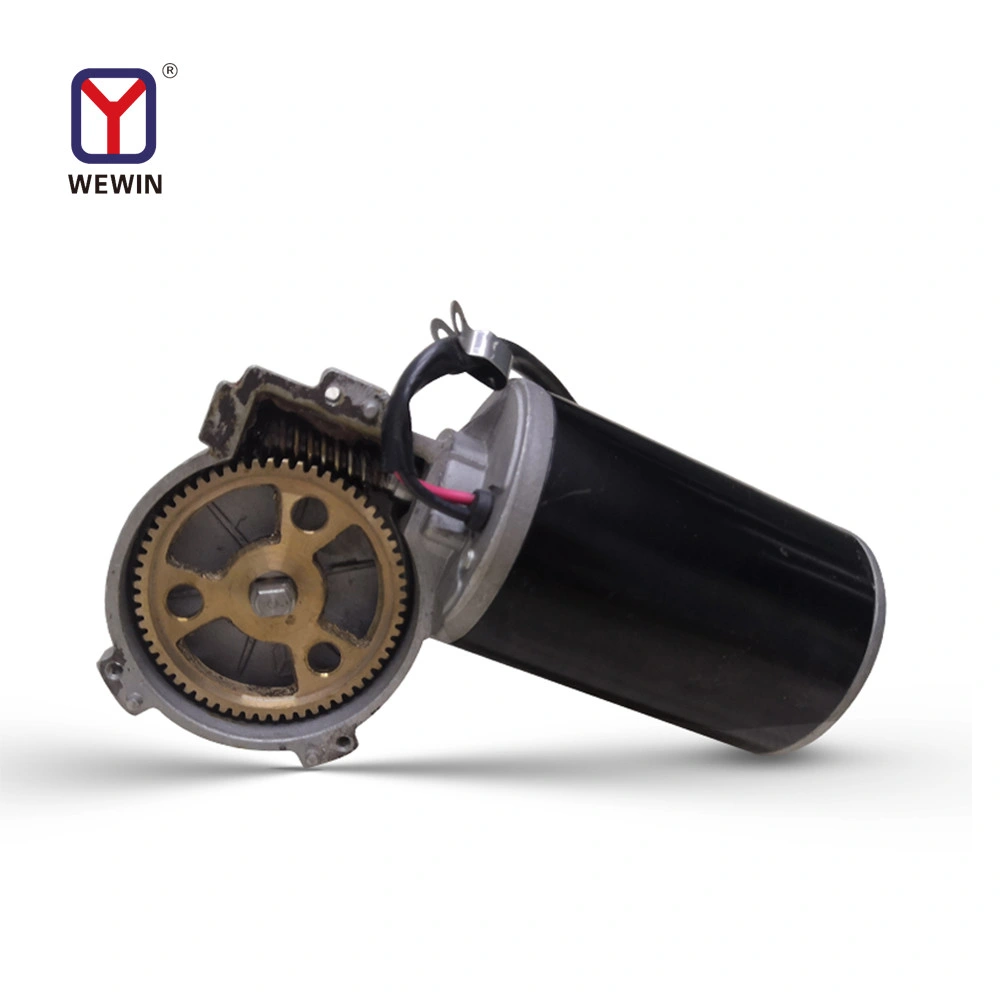

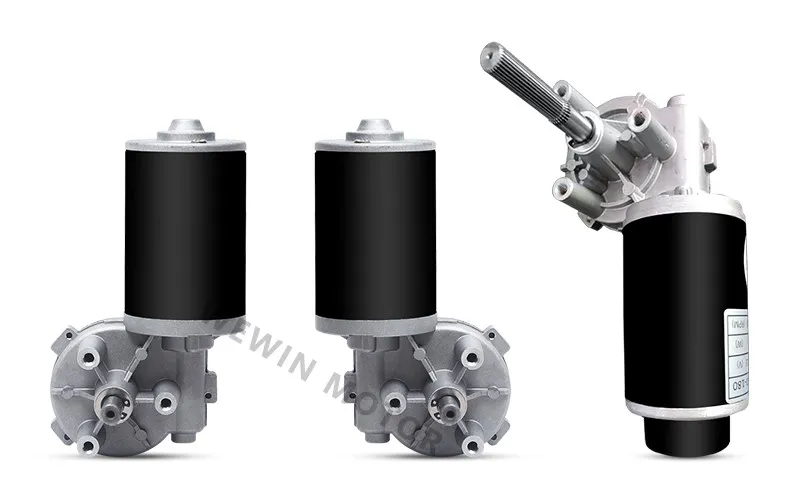

DC Gear Motor Side View

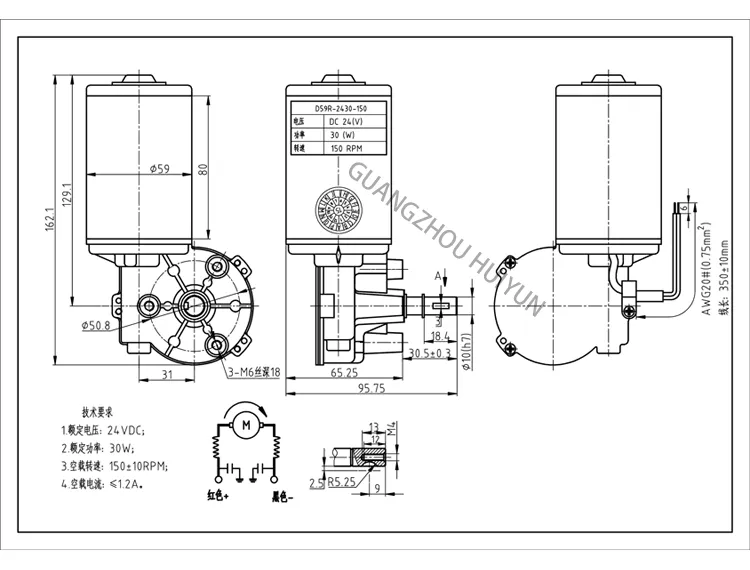

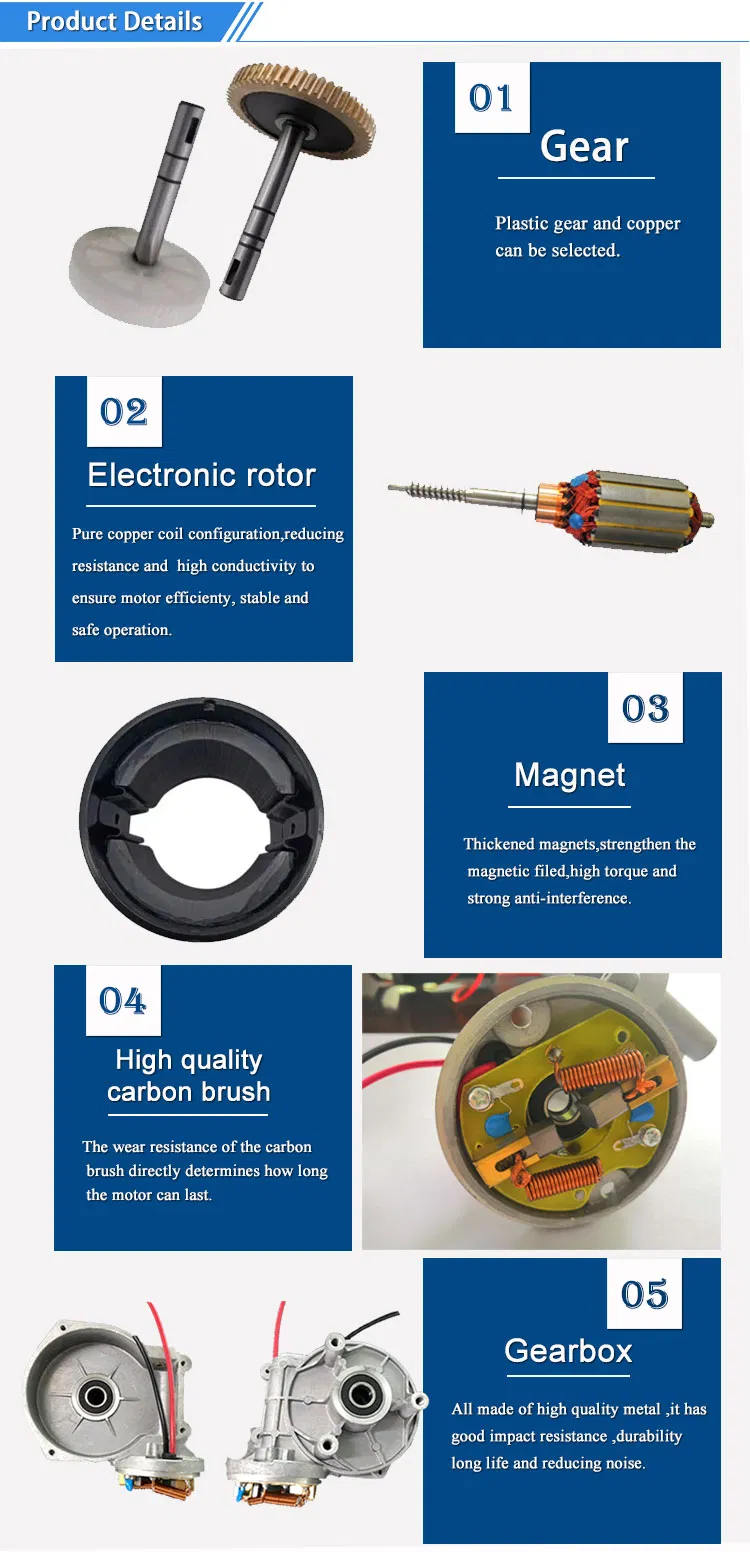

Motor Gearbox Detail

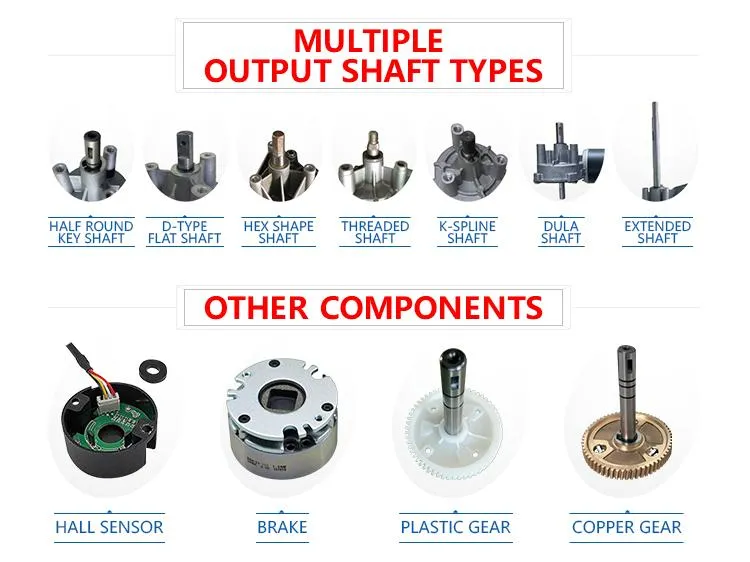

Motor selection parameters
Applications

Our motors are widely used in various industrial and home automation fields:

Garage Doors Standing Desks Tennis Ball Machines Garbage Disposal Food Processing Fitness Equipment Massage Chairs Medical Equipment Automatic Doors Welding Equipment Golf Carts Agricultural Machinery
Motor Application Examples
Factory Production View
Packaging & Shipping

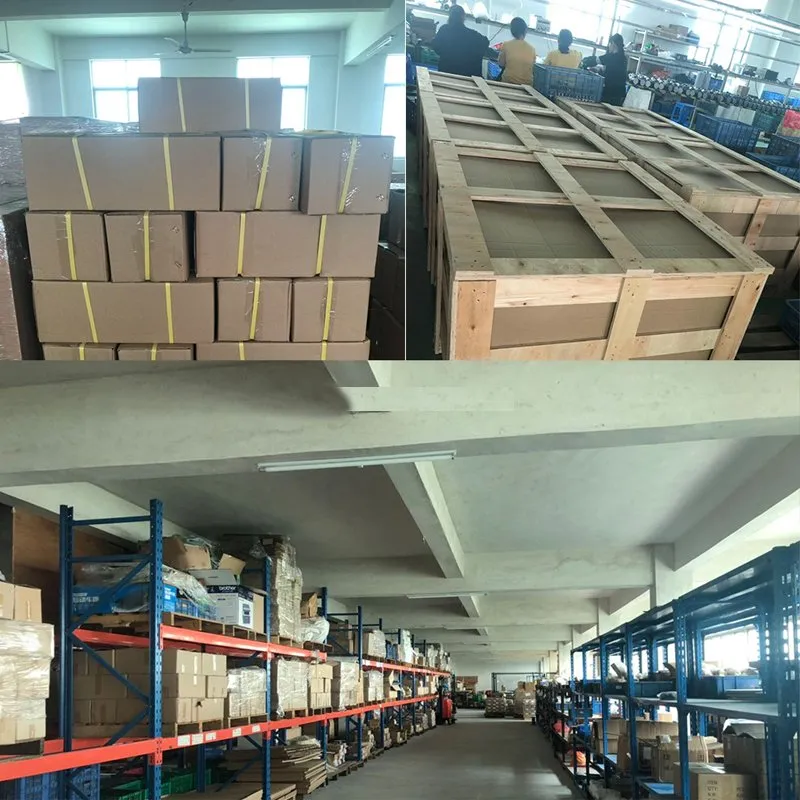

Safe Packaging for Gear Motors
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?

A: We are an integration of industry and trade, with over 20 years of experience in worm gear motors, featuring a skilled production line and powerful research support.

Q: What should I do if I don't know which DC motor I need?

A: Don't worry. If you can provide motor pictures, drawings, or detailed specs like voltage, speed, torque, and motor size, we can recommend a suitable motor for your request.

Q: Is there a MOQ (Minimum Order Quantity) for your motors?

A: Yes. The MOQ is generally between 1,000~10,000pcs for different models after sample approval, though we can accept smaller batches for initial official orders.

Q: Can I get samples for testing?

A: Since our motors are custom-made and not stocked, we provide samples primarily for testing before an official order, provided terms are acceptable.

Q: How do you ensure the motor quality?

A: We have strict inspection procedures for incoming materials and tour inspections during the production process, plus a final inspection before shipping.

Q: What is the typical delivery time for an order?

A: Usually, it takes about 35 days for standard output shafts. If the shaft is customized, the time depends on the specific design requirements.
