What are the applications for gear motors?
Electric gear motors are used in various applications that require high output torque and low output rotation speed.
What is a gear motor?
A gear motor combines an electric motor with a gear reducer box to provide efficient power transmission.
These gear motors are ideal drives for all kinds of industrial automation products for both industrial and commercial applications. We provide steady quality products with quiet and efficient performance gear motors and engineering solutions.
Main Product Categories

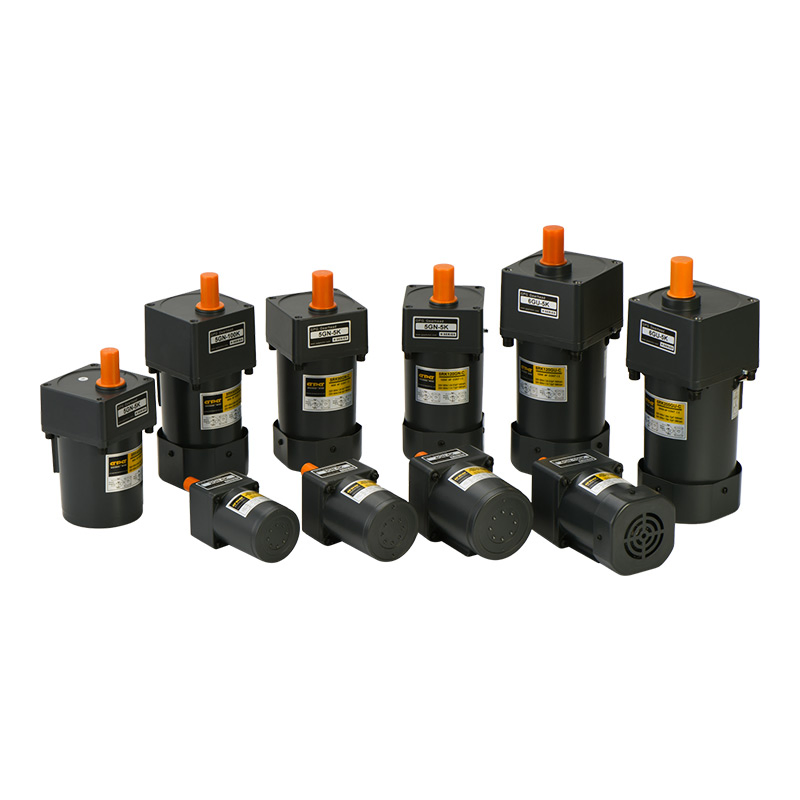

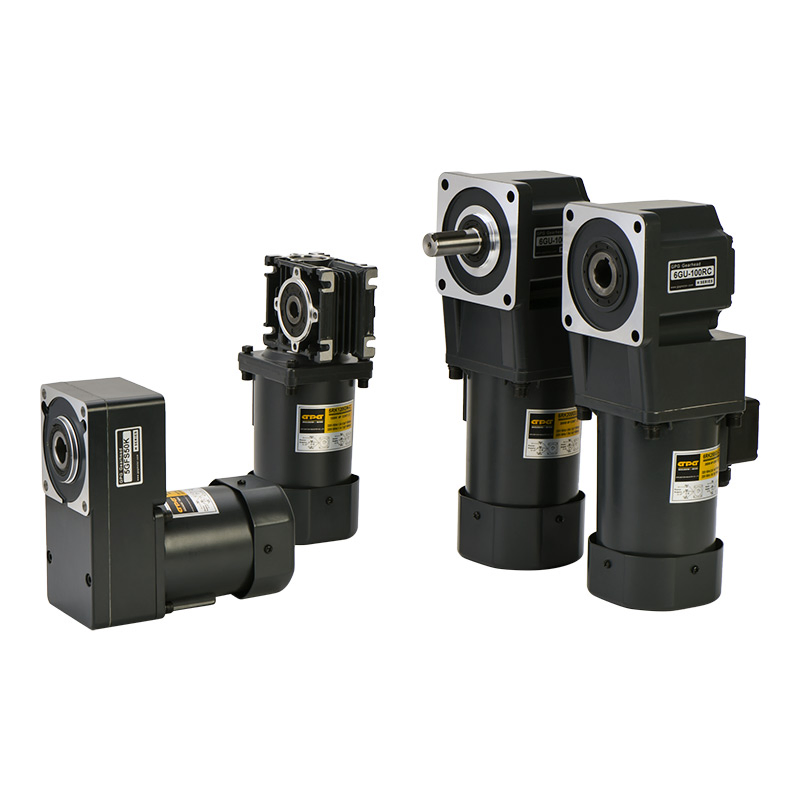

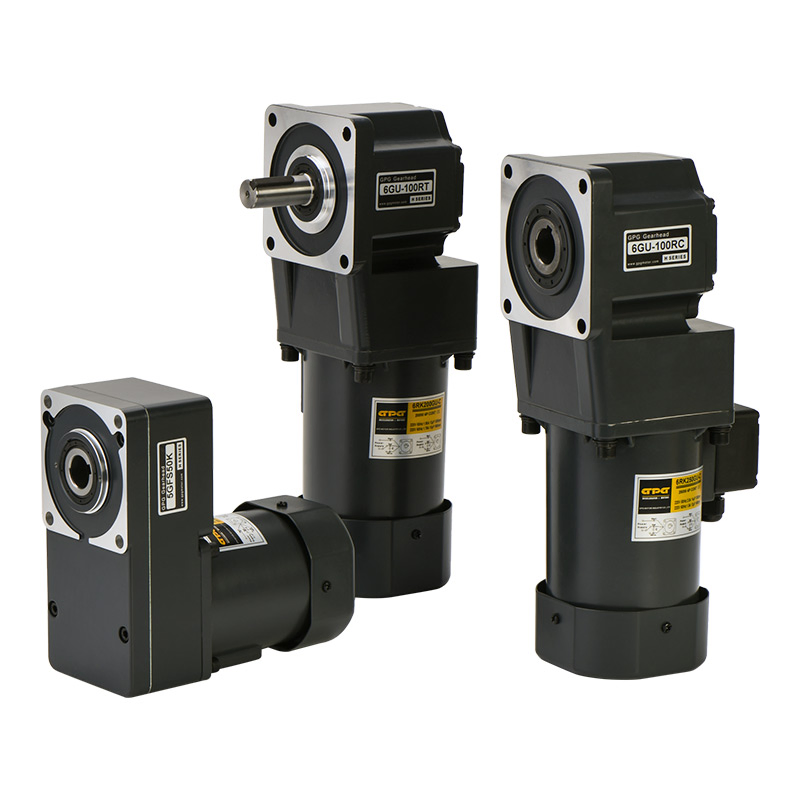

Our comprehensive range includes: induction motors, reversible motors, DC brush gear motors, DC brushless gear motors, CH/CV medium gear motors, Planetary gear motors, Worm gear motors, and Right angle solid and hollow shaft gear motors.
These are used widely in pipelining, transportation, food, medicine, printing, fabric, packing, office apparatus, and entertainment equipment.

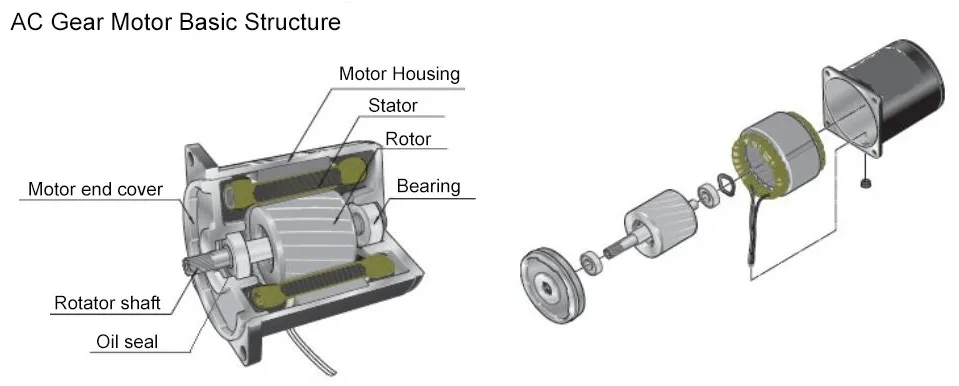

Key Technical Features
01
End cover and housing made of die-casting Aluminum for high precision, strength, and light weight.
02
Stator consists of silicon steel sheet core, copper coil, and high-grade insulating material.
03
Rotor consists of laminated silicon steel sheet and aluminum cast conductor.
04
Rotor shaft made of high-performance medium carbon alloy steel with special technical processing.
05
High-quality bearings and oil seals ensure excellent running performance and sealing effects.
06
Wiring made from high-temperature resistant and flame retardant material.
Model Selection Guide
Motor Model Instruction: 5RK60GN-CFM
| 5 |
R |
K |
60 |
R |
GN |
C |
FM |
| Frame Size |
Type |
Motor series |
Power |
Speed Control |
Shaft Type |
Voltage |
Accessory |
2:60mm
3:70mm
4:80mm
5:90mm
6:104mm |
I:Induction
R:Reversible
T:Torque |
K series |
6W - 200W |
Speed Control Motor |
A:Round Shaft
GN:Bevel Gear
GU:Bevel Gear |
A:110V
C:220V
S:3-Ph 220V
S3:3-Ph 380V |
T/P:Protected
F:Fan
M:Brake |
Gear Head Model Instruction: 5GN100RT
| 5 |
GN |
100 |
RT |
- |
| Frame Size |
Shaft Type |
Ratio |
Bearing Type |
Other Info |
| 2 to 6 (60mm-104mm) |
GN / GU / GM / GS |
Example 1:100 |
K:Standard
RT:Right Angle Axile
RC:Hollow Shaft |
Shaft dia/length |
Product Specifications

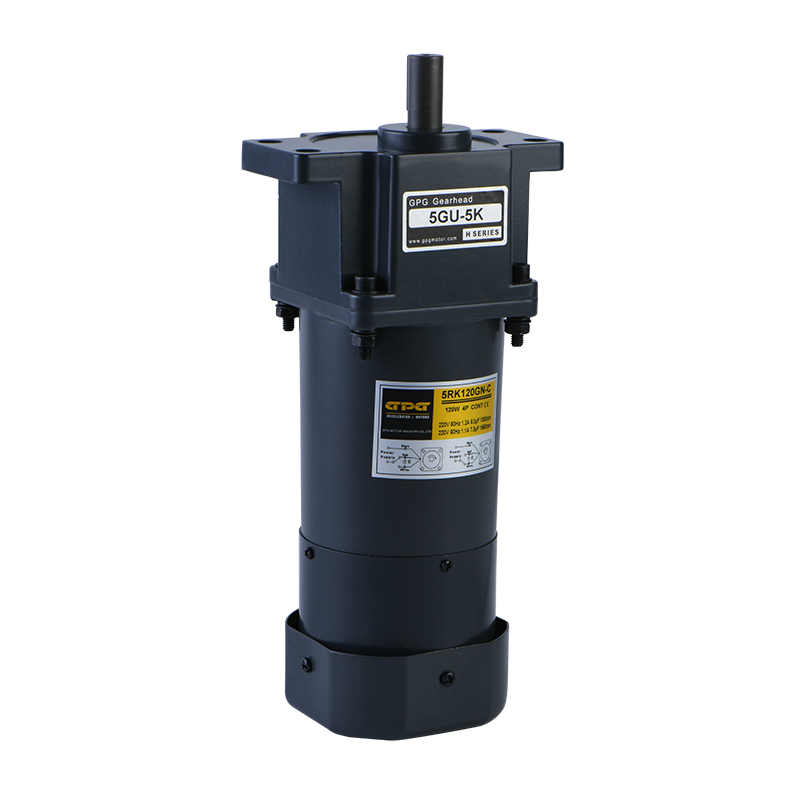

60W 90mm Fixed Speed AC Gear Motor
| Type |
Shaft |
Power(W) |
Hz |
Voltage(V) |
Current(A) |
Start Torque |
Rated Torque |
Speed(rpm) |
| Reversible Motor |
5RK60GN-C |
60 |
50 |
220 |
0.55 |
4500 |
4500 |
1300 |
| 60 |
60 |
220 |
0.50 |
3770 |
3770 |
1550 |

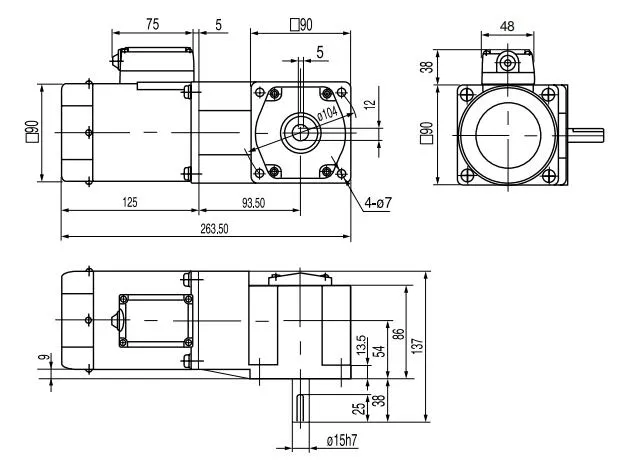

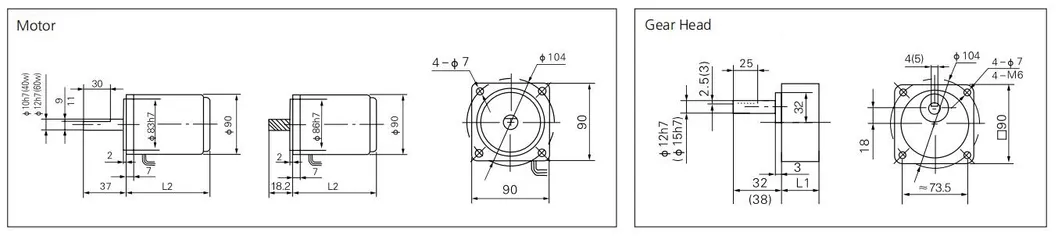

Dimensions & Wiring

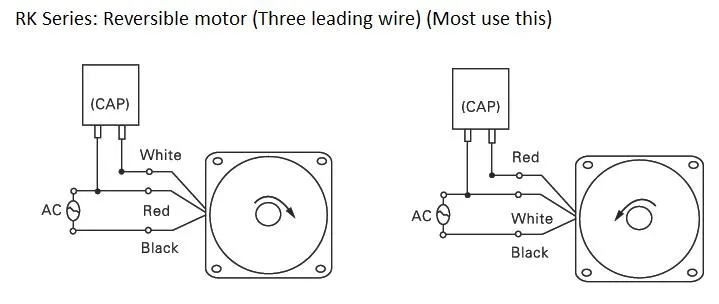

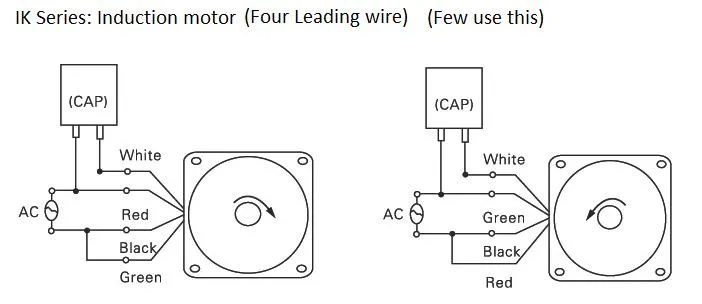

Connection Diagrams
Frequently Asked Questions (FAQ)
1. What is the main purpose of using a gear motor?
Gear motors are primarily used in applications that require high torque output at low speeds, which is achieved by integrating an electric motor with a gear reduction system.
2. Which industrial fields are these motors suitable for?
They are widely utilized in manufacturing pipelines, food processing, medical equipment, printing, textile machinery, packaging, and office automation.
3. What materials are used for the motor housing?
The end covers and housing are made from high-precision die-casting Aluminum, providing a balance of high strength and light weight.
4. How do I choose between a GN and GU shaft type?
The shaft type usually depends on the power rating: GN is typically used for 6W to 40W models, while GU is used for higher power models ranging from 60W to 200W.
5. Is the output speed constant under load?
The actual output speed under rated torque conditions is typically 10-20% less than the synchronous speed.
6. Can I get these motors with electromagnetic brakes?
Yes, specialized accessories like electronic magnet brakes, terminal boxes, or through-hole modifications are available based on specific requirements.
