⚙️ Basic Info. & Overview
Number of Stator
Three-Phase
Certification
ISO9001, CCC
Reduction Ratio
3/1 to 200/1
Production Capacity
8000PCS/Month
📋 Product Parameters

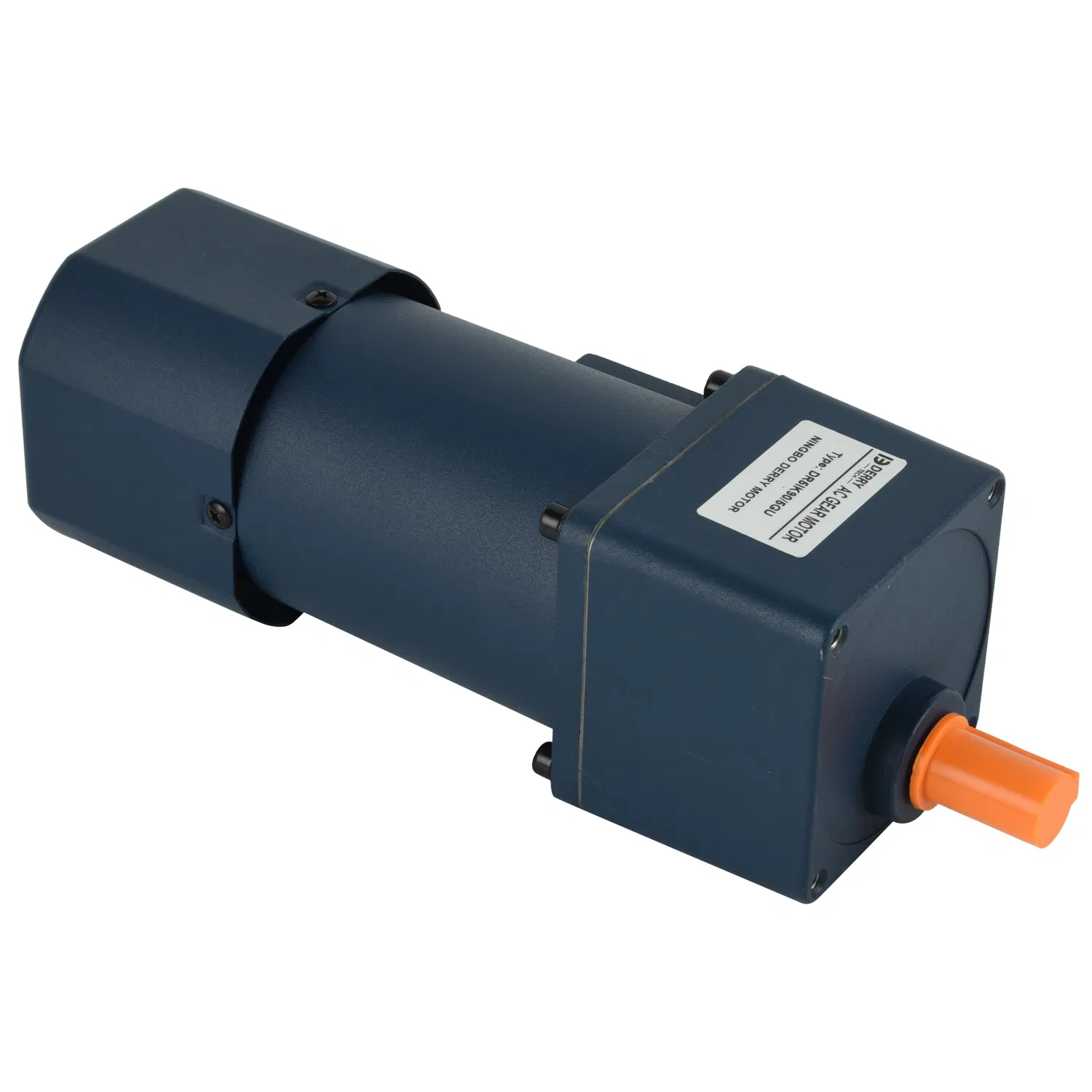

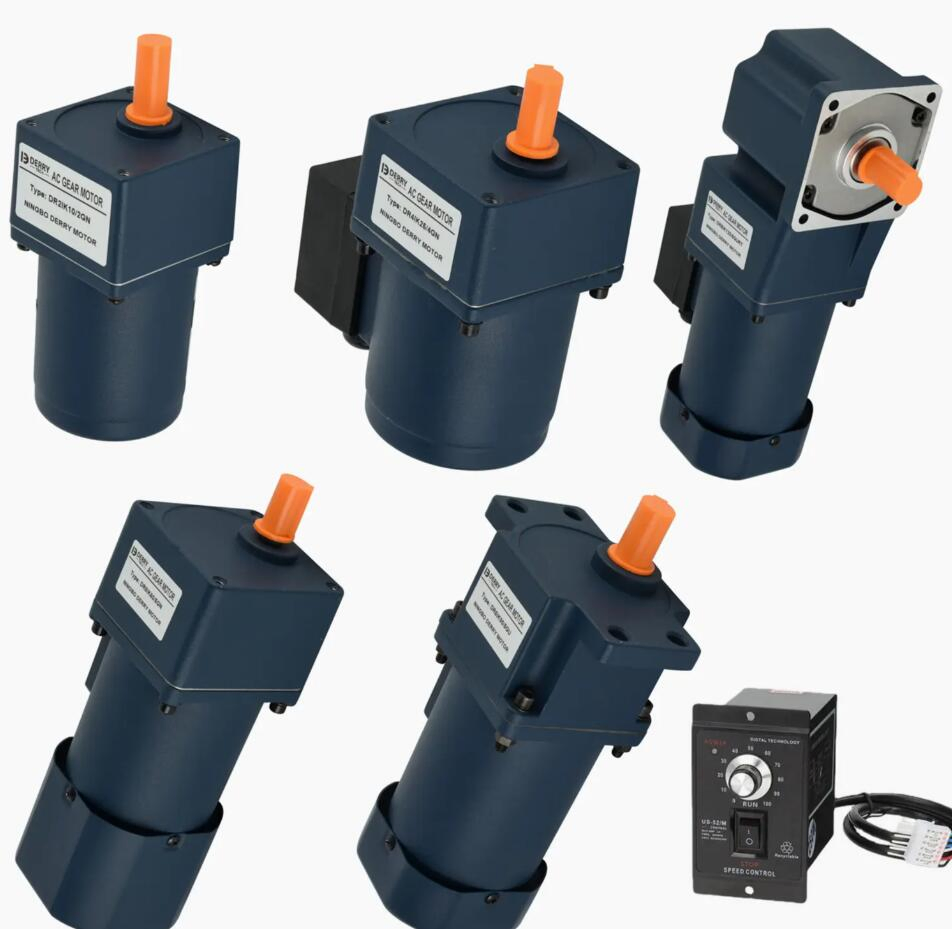

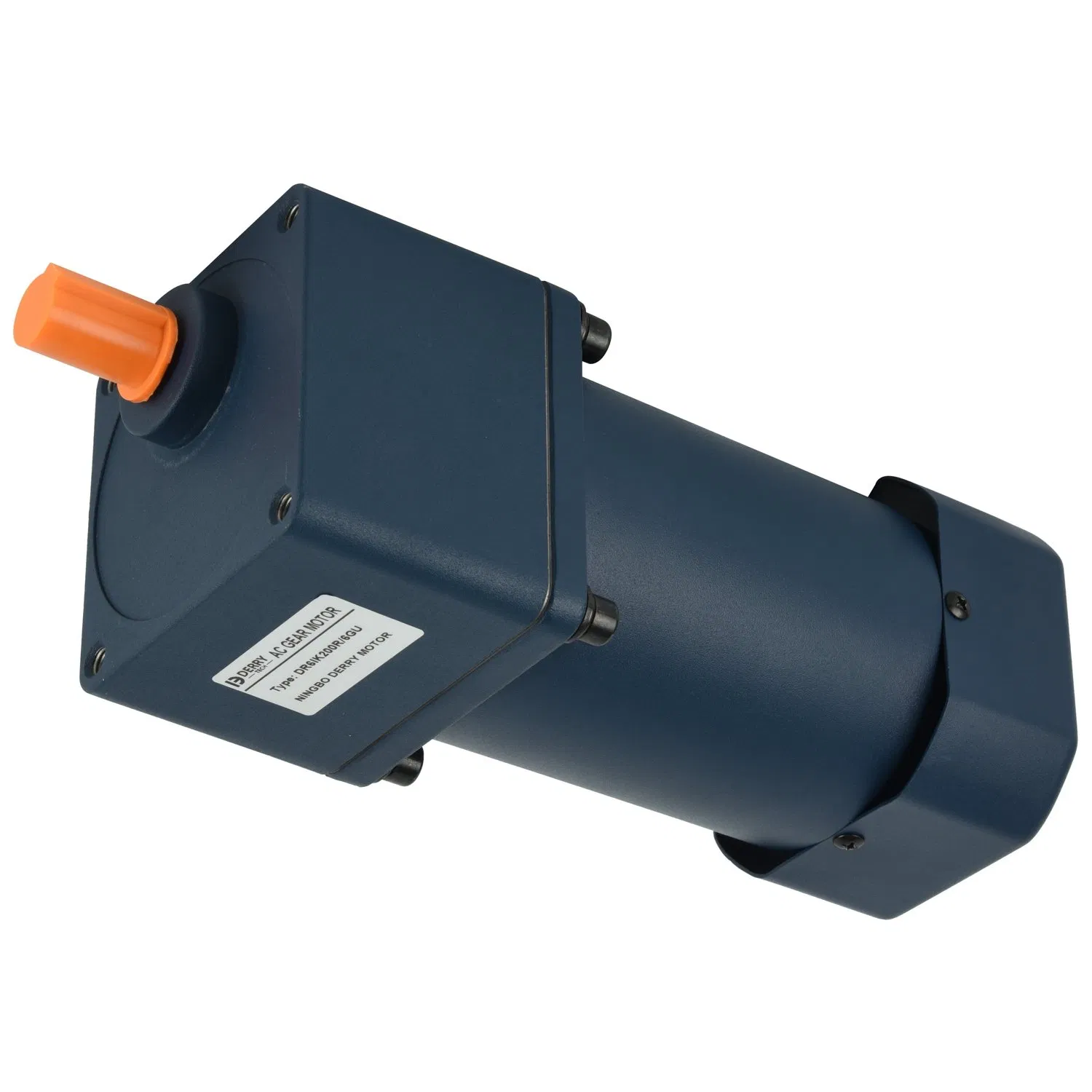

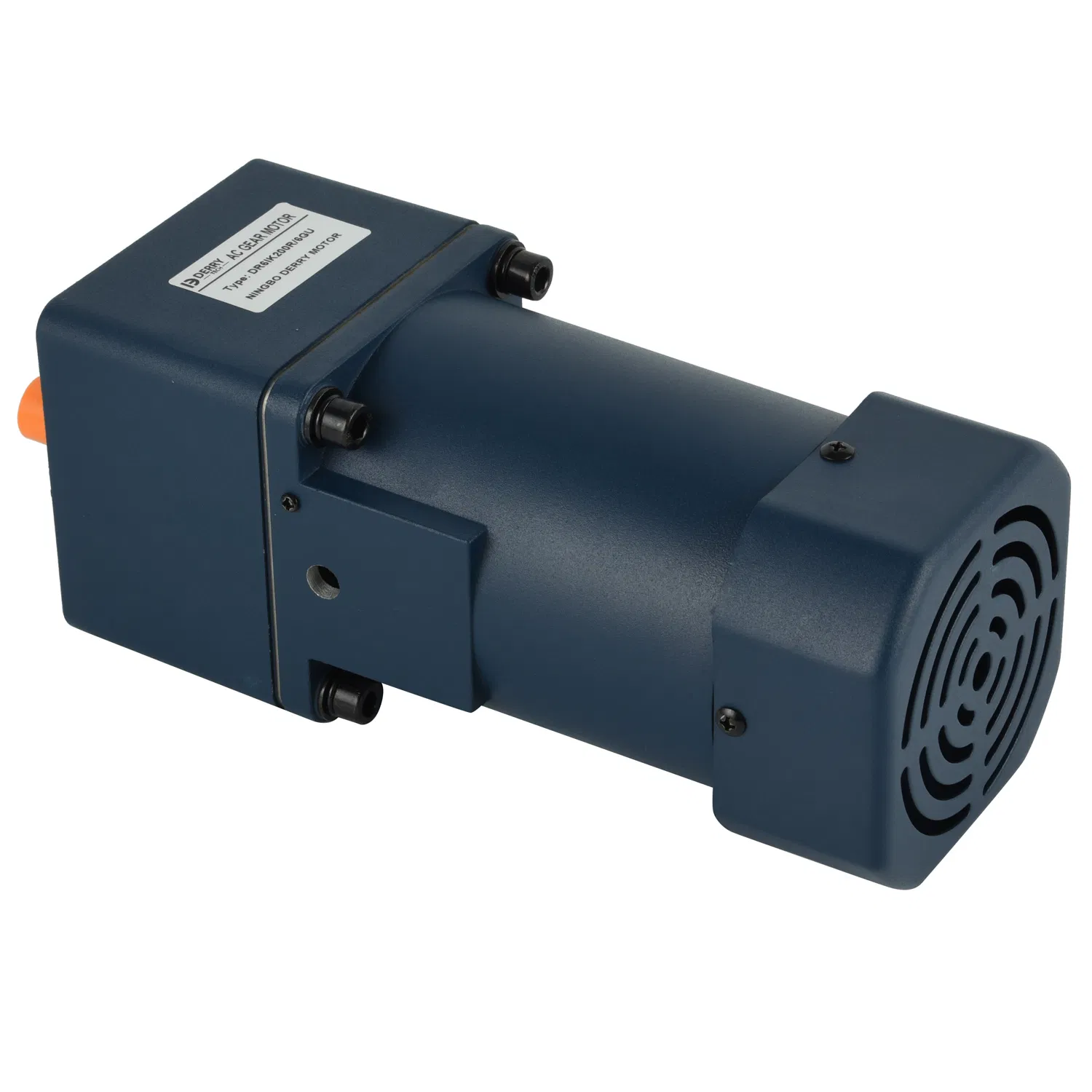

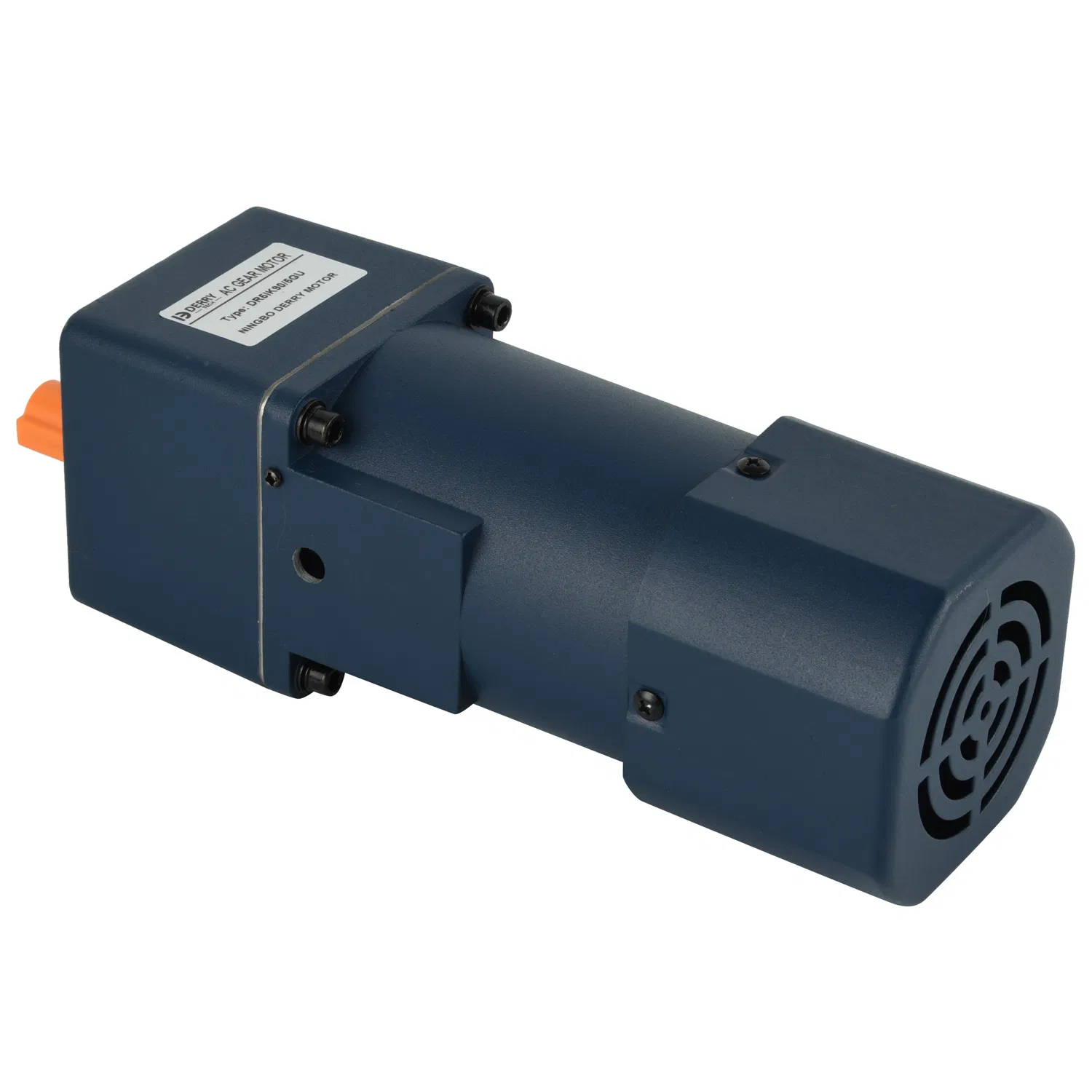

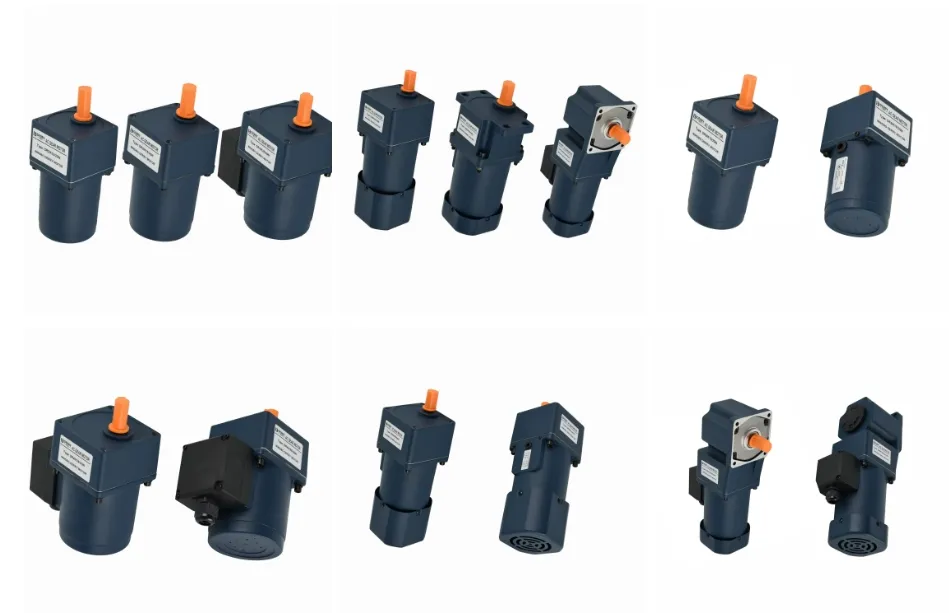

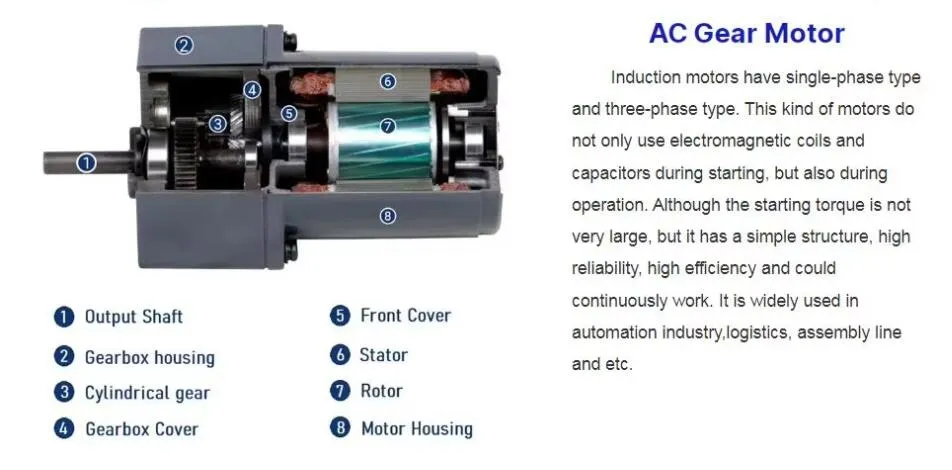

🔹 AC Gear Motor Details:
- Motor Type: Induction / Reversible / Break / Torque / Speed Control Motor
- Frame Size: 60mm, 70mm, 80mm, 90mm, 104mm
- Power Range: 6W - 200W+
- Voltage: 110V/200V/220V/380V/415V (Single/Three-Phase)
- Applications: Packing Machinery, Barrier Gate System, Conveyor ...
| Parameter Item |
Specifications |

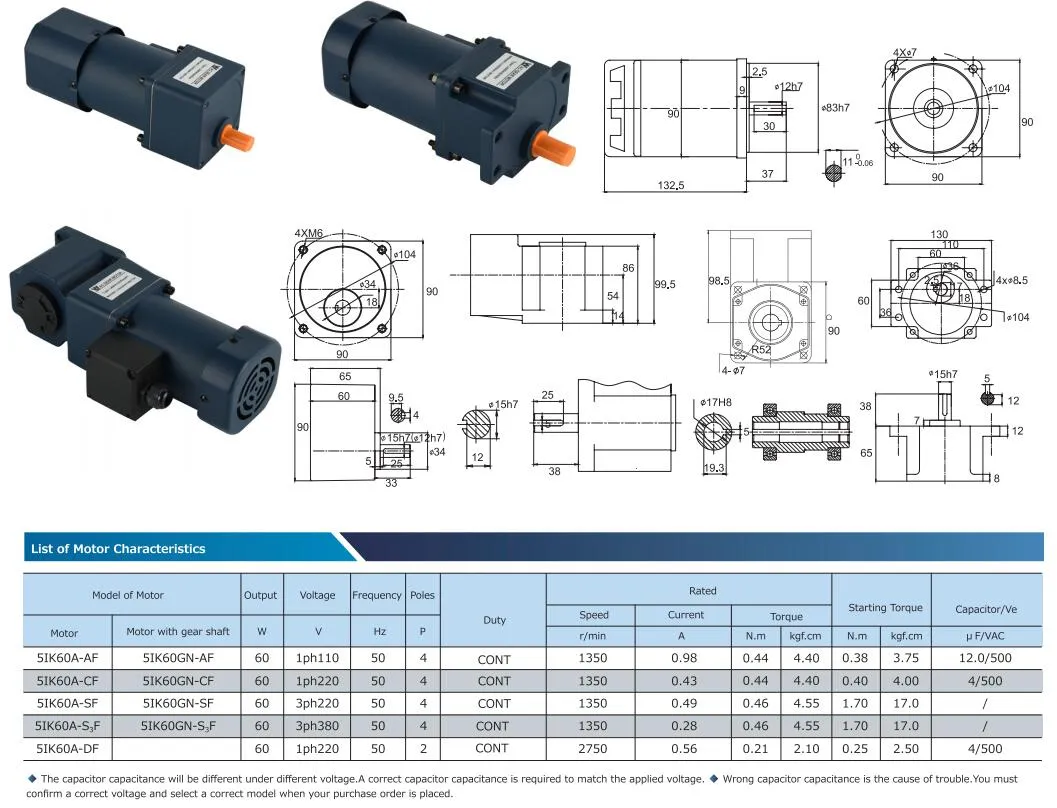

| MOTOR FRAME SIZE | 90 mm |
| MOTOR TYPE | INDUCTION MOTOR |
| OUTPUT POWER | 60W |
| OUTPUT SHAFT | 8mm / 10mm / 12mm / 15mm (Round, D-Cut, Key-Way) |
| Voltage type | 110V, 120V, 220V, 230V, 380V, 415V |
| Frequency | 50/60Hz |
| Accessories | Terminal Box / Fan / Thermal protector / Electric Brake / Controller |
| GEARBOX FRAME SIZE | 90 mm |

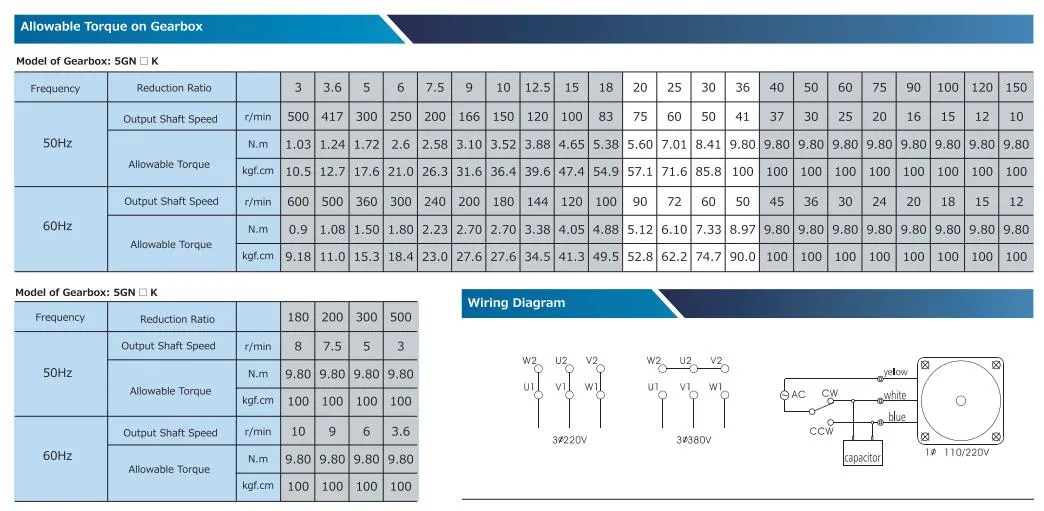

| Gear Ratio | 3K - 200K |
| Type Of Pinion | GN Type / GU Type |
❓ Frequently Asked Questions
Are you a trading company or a manufacturer?

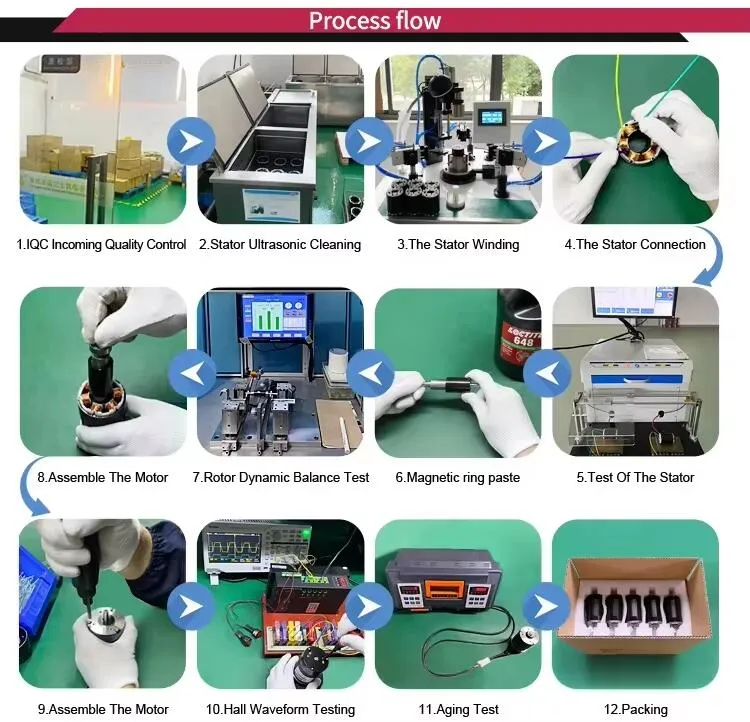

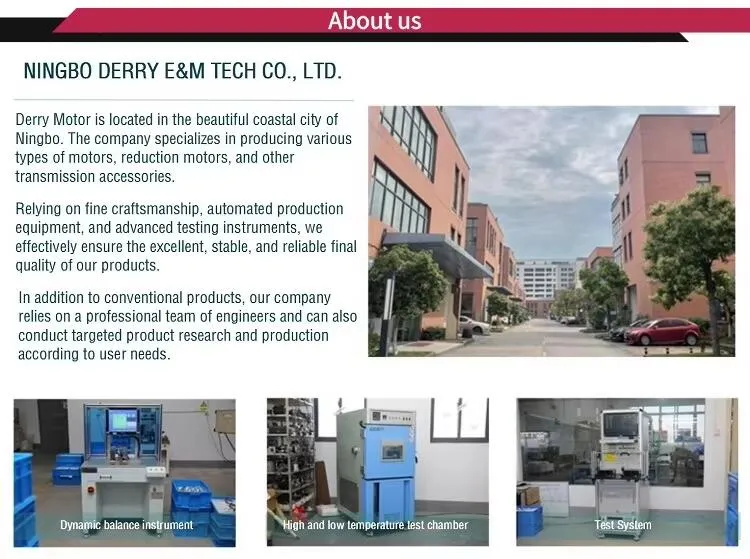

We are a manufacturer with 20 years of professional production experience. By relying on automated production lines, we can carry out large-scale production, ensuring high quality and consistency of our products.
Do you provide OEM or ODM service?
Yes, we warmly welcome OEM or ODM corporations and other companies to establish long-term cooperation with us.
What's the minimum order quantity (MOQ)?
Our minimum order quantity is 2 units. Of course, the more quantity you order, the greater the discount you can receive.
What is the warranty period for your motors?
Our standard guarantee is 12 months. For sea freight orders, we extend the warranty to 15 months.
Are your delivery dates on time?
Yes, absolutely. We have our own factory to ensure timely delivery. Please contact our sales representative for the most accurate delivery schedule based on your order size.
Can output shafts be customized?
Yes, we offer various output shaft types including 8mm, 10mm, 12mm, and 15mm. Options include Round Shaft, D-Cut Shaft, and Key-Way Shaft to meet your specific requirements.
