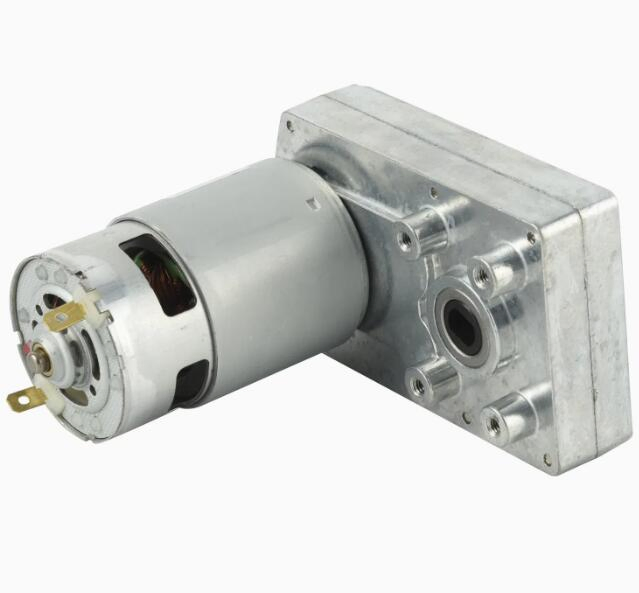

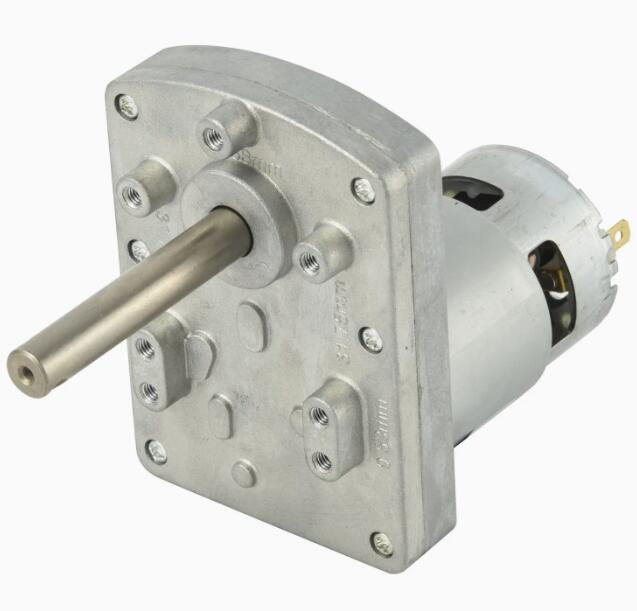

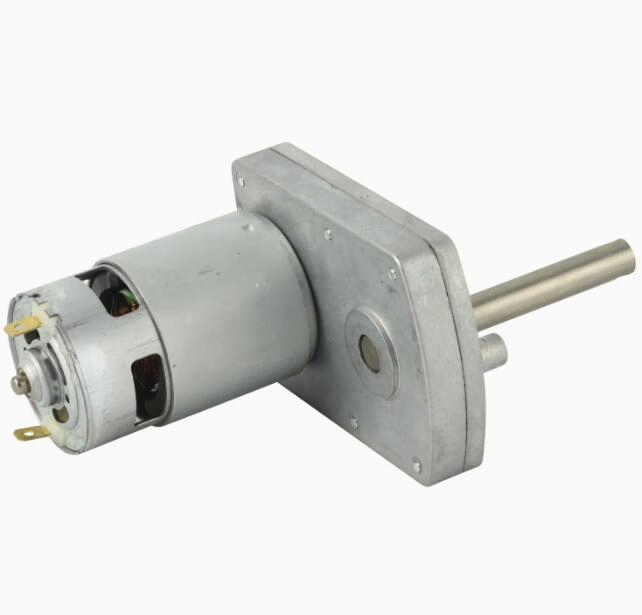

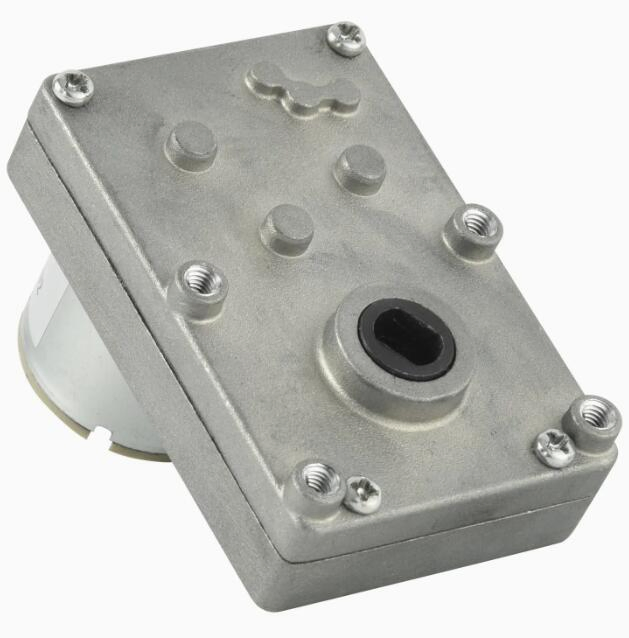

Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
1 / 5
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor
Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor

Micro 3V 6V 12V 24V Brush Motor Spur Gearbox Permanent Magnet 12mm 16mm 20mm 24mm 25mm 37mm Electric DC Gear Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info

Excitation ModeShunt
FunctionDriving
Casing ProtectionClosed Type
Number of Poles2
StructureBrush
TypeDC Gear Motor
CertificationCE
Voltage12/24V
UsageHome Appliance
Current140mA
No-Load Speed3000rpm

Product Description

Model: RS-555. We can design it according to your special requirements.

Gear box Data

Reduction ratio36, 66, 94129, 139, 155, 196, 219, 277232, 392, 456, 555, 833
Max. Running torque30kgf.cm40kgf.cm50kgf.cm
Max. Gear breaking torque90kgf.cm120kgf.cm150kgf.cm
Max. Gearing efficiency73%65%59%

Motor Data

TypeRated Voltage (V)No load (mA/rpm)Load Torque (gf.cm/W)Stall Torque (gf.cm/mA)
RS555-12300012140 / 3000150 / 3.3600 / 3000
RS555-12450012220 / 4500220 / 7.2880 / 4800
RS555-12600012350 / 6000300 / 13.51200 / 6000
RS555-2430002470 / 3000150 / 3.3600 / 1600
RS555-24450024110 / 4500220 / 7.2880 / 3000
RS555-24600024180 / 6000300 / 13.51200 / 4000

Product Gallery

DC Gear Motor
DC Gear Motor
DC Gear Motor
DC Gear Motor
DC Gear Motor

Frequently Asked Questions

1. What is the primary application for this RS-555 motor?
This motor is primarily designed for home appliance applications.
2. Are there different voltage options available?
Yes, the motor supports both 12V and 24V configurations to suit your power requirements.
3. Can the specifications be customized?
We are capable of designing the motor and gearbox according to your specific requirements and application needs.
4. Does this motor meet international quality standards?
Yes, this product is CE certified, ensuring it meets necessary safety and quality standards.
5. What is the maximum torque capability of the gearbox?
Depending on the reduction ratio, the gearbox can handle a maximum running torque of up to 50kgf.cm and a breaking torque up to 150kgf.cm.
