In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.

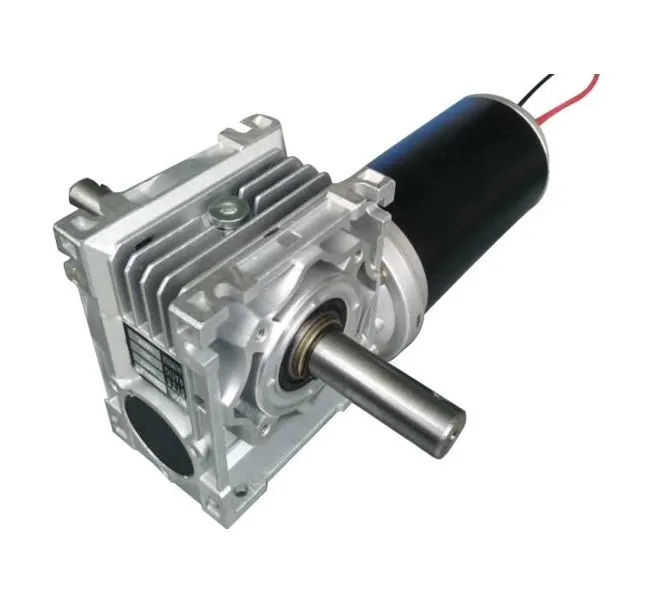

Advantages of PMDC motors: Cost-effective and with a high starting torque, these motors offer impressive output performance. They are often combined with gearboxes to reduce speed and increase torque for the ultimate geared motor solution.
| Parameter | Detail |
|---|---|

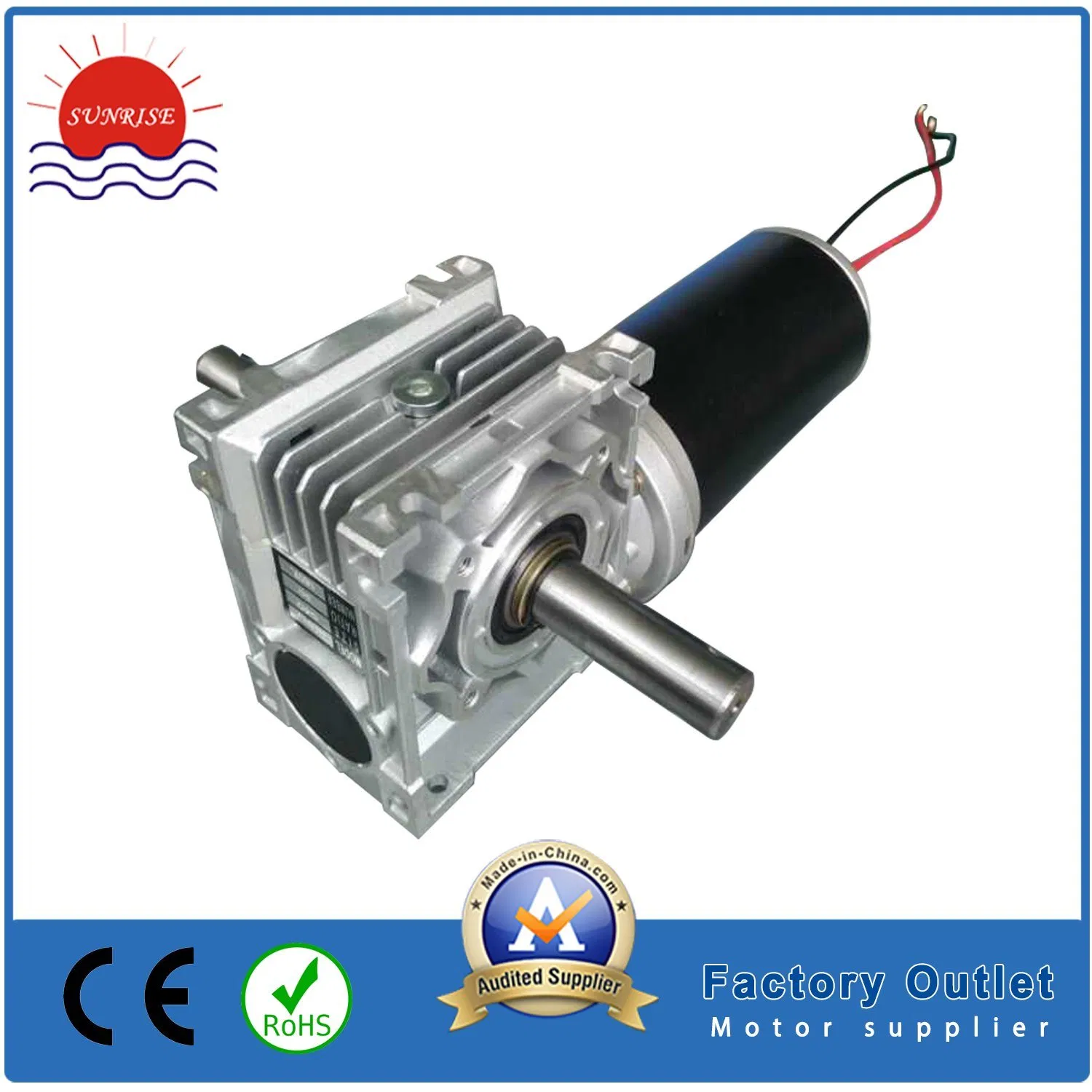

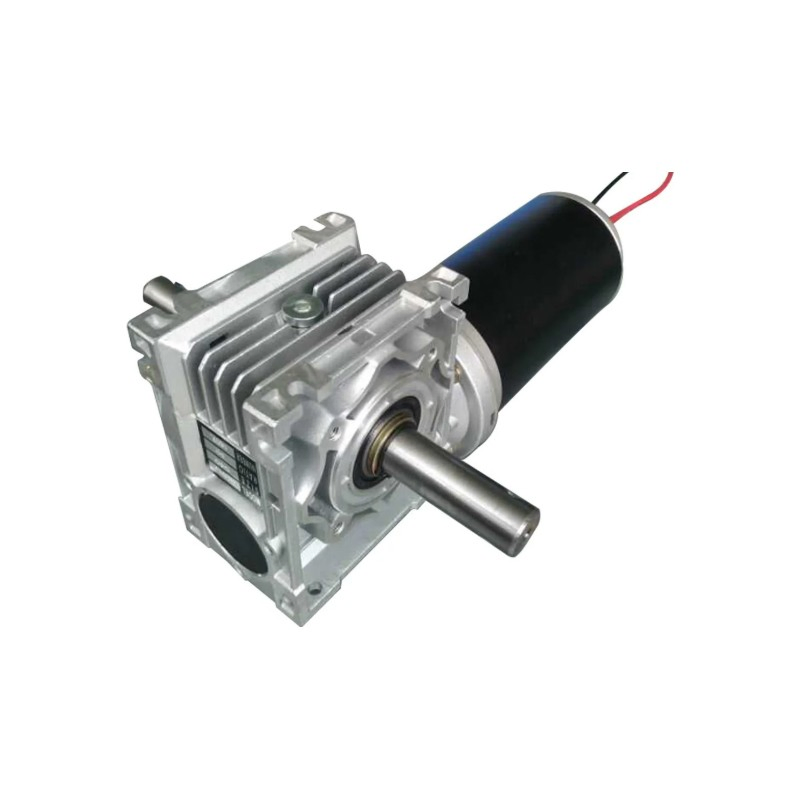

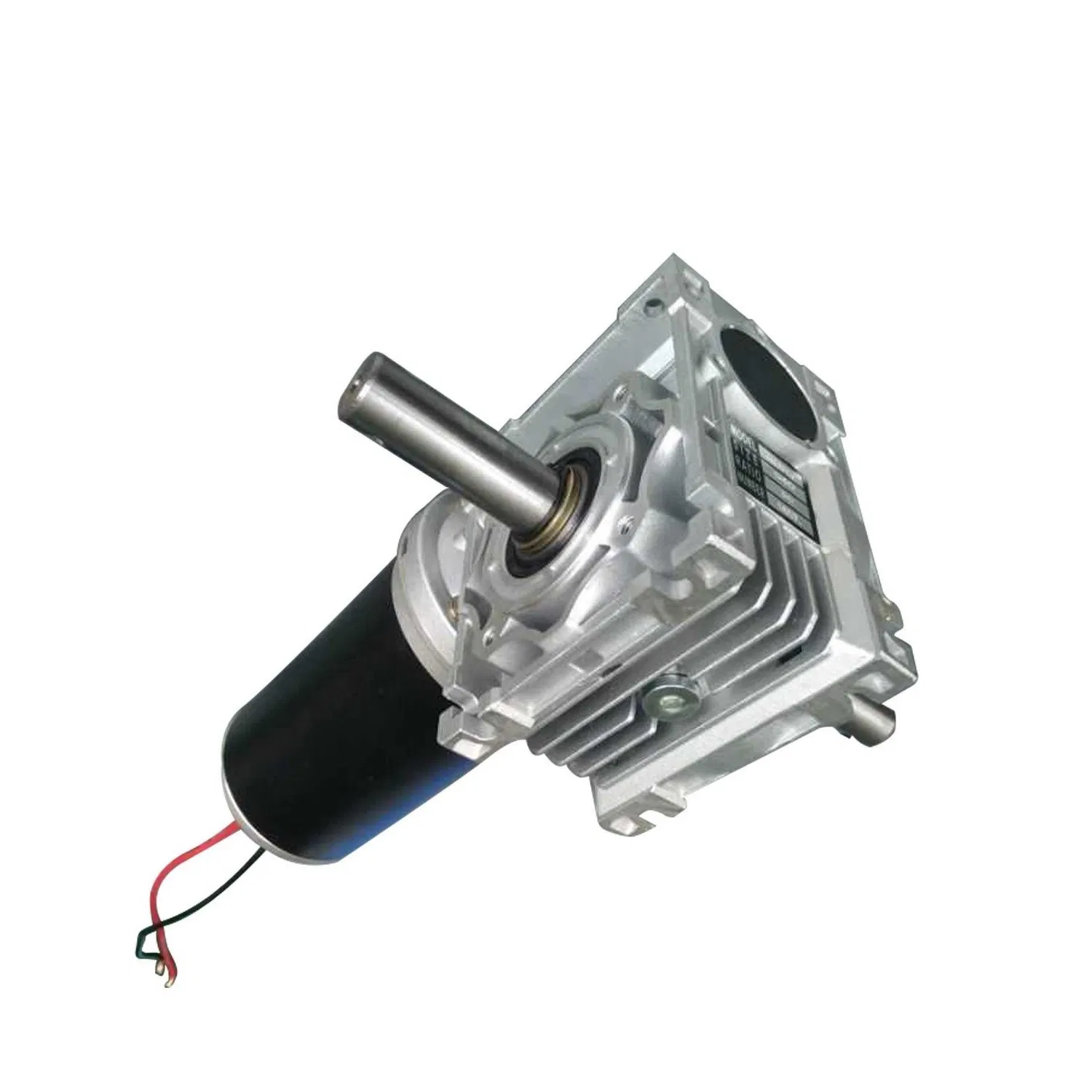

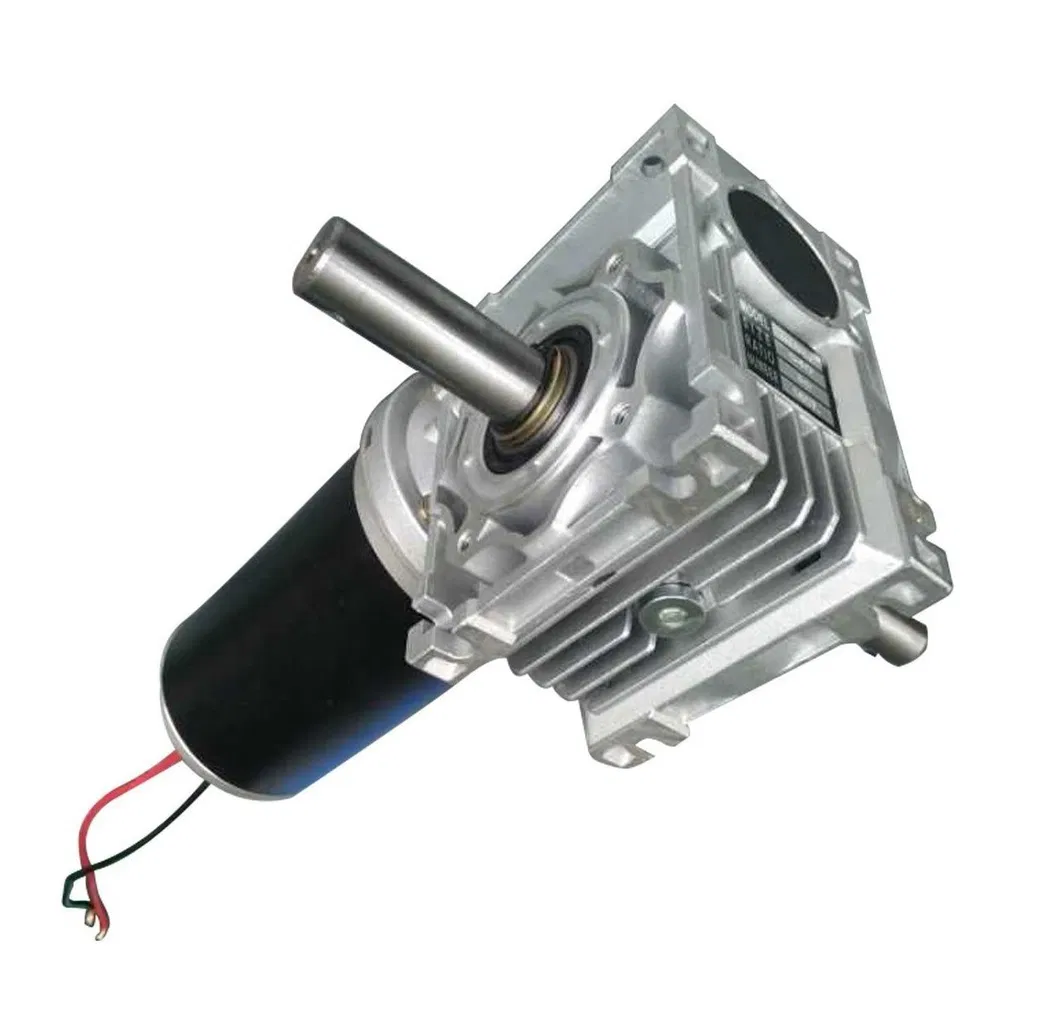

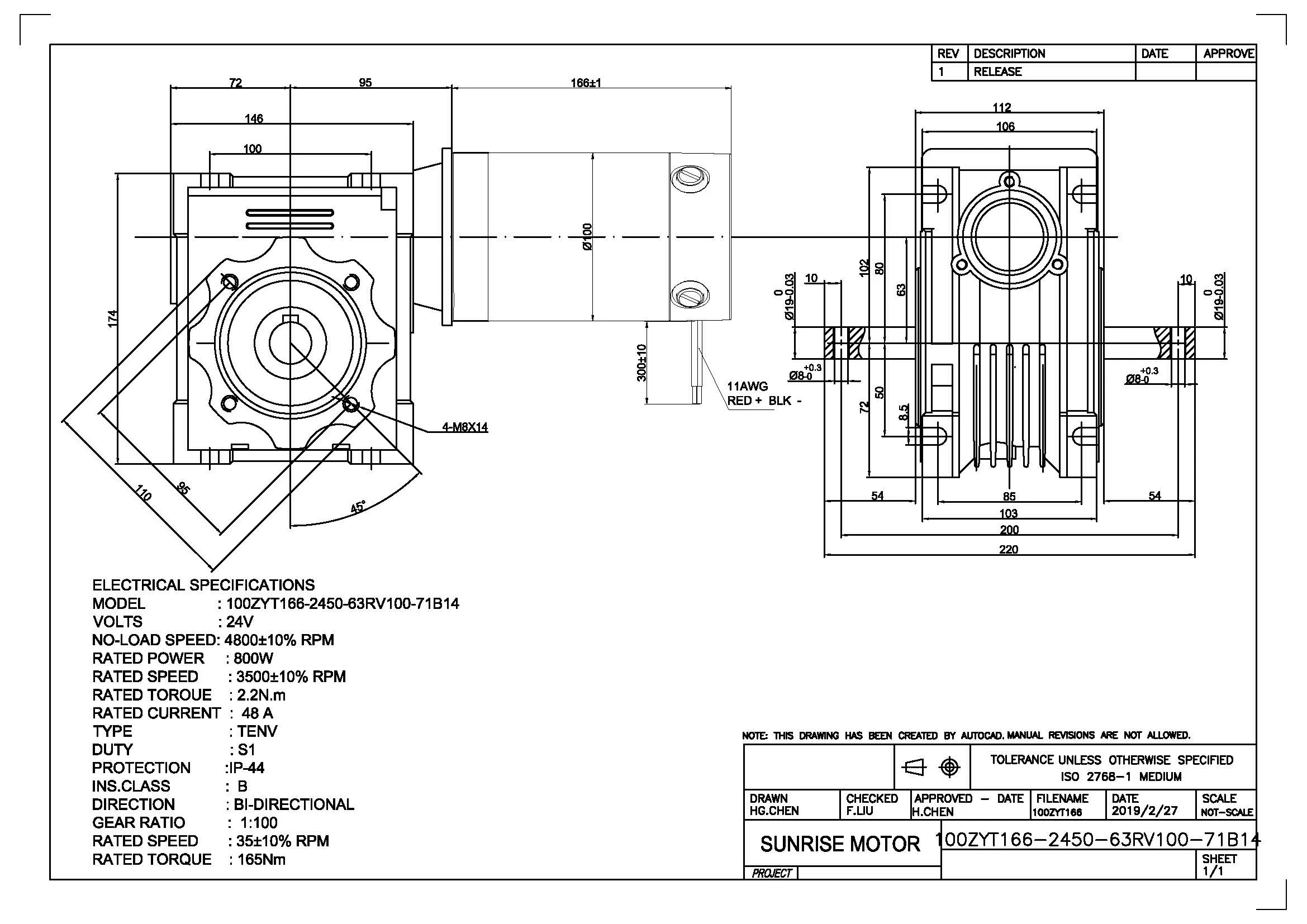

| MODEL | 100ZYT166-2450-63RV100-71B14 |
| VOLTS | 24V |
| NO-LOAD SPEED | 4800±10%RPM |
| RATED POWER | 800W |
| RATED SPEED | 3500±10%RPM |
| RATED TORQUE | 2.2 N.m |
| RATED CURRENT | 48A |
| PROTECTION | IP-44 |
| INS. CLASS | B |
| DIRECTION | BI-DIRECTIONAL |
| MODEL | VOLTAGE | No load Speed | Rated Torque | Rated Current | Output Power | Duty | Protection |
|---|---|---|---|---|---|---|---|
| 80ZYT165-2420-30RV25 | 24VDC | 3800 r/min | 2.2 N.M | 48A | 220W | S1 | IP44 |
We offer several levels of PMDC motor customization, including shaft variations, output flange options, various cable lengths, brakes, encoders, paint finishes, and terminal boxes. If you have a particular specification in mind, our engineering teams can produce a PMDC motor completely tailored to your individual needs.
