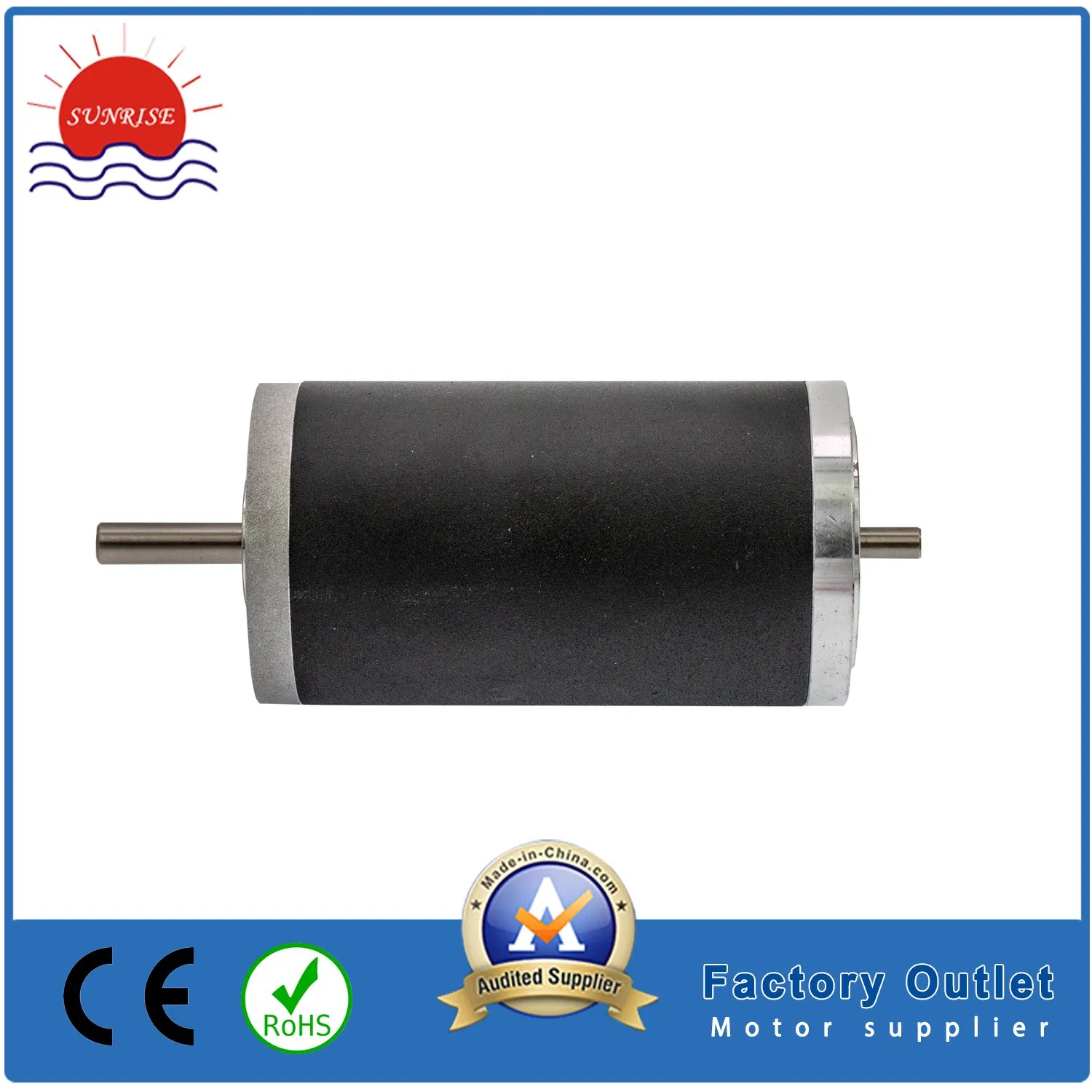

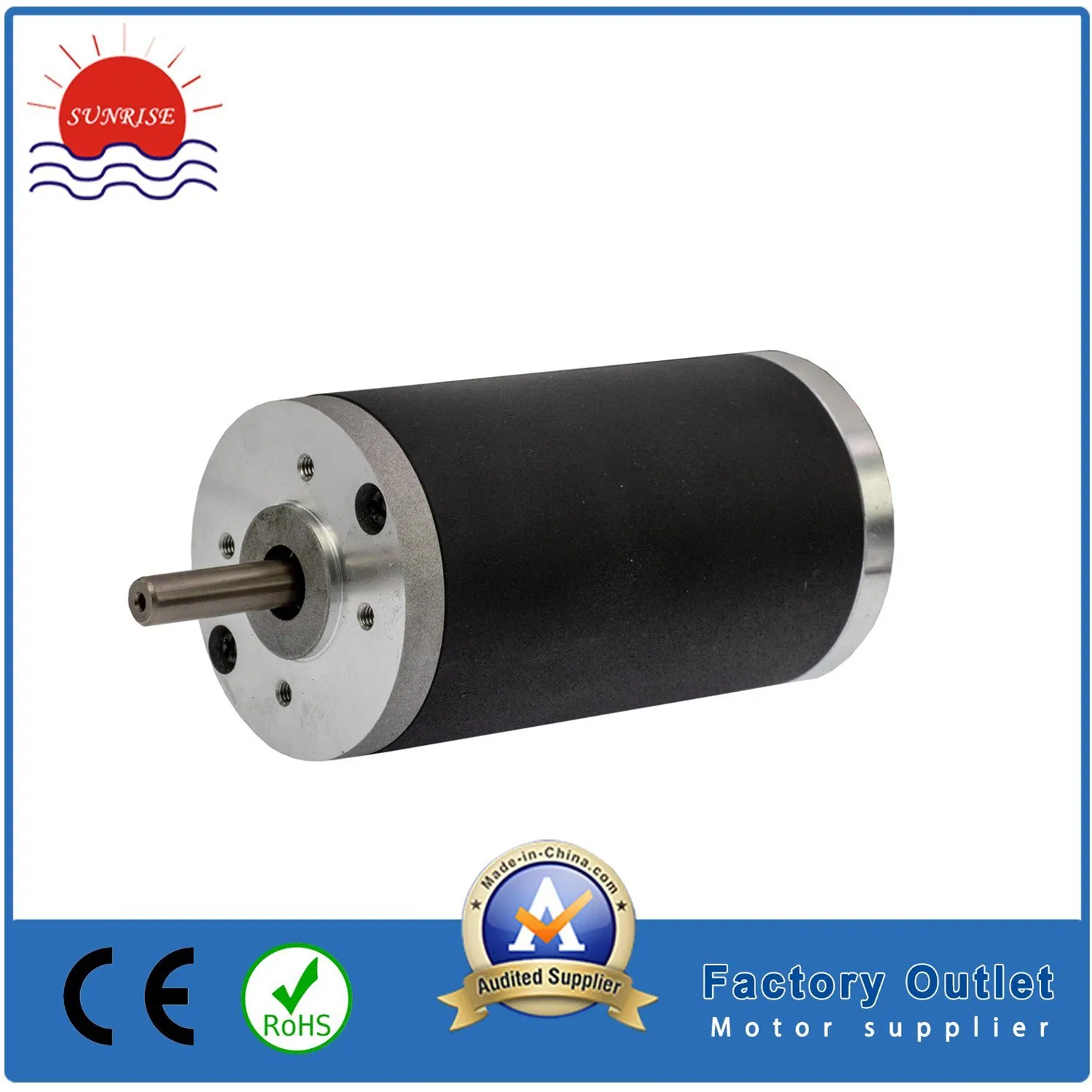

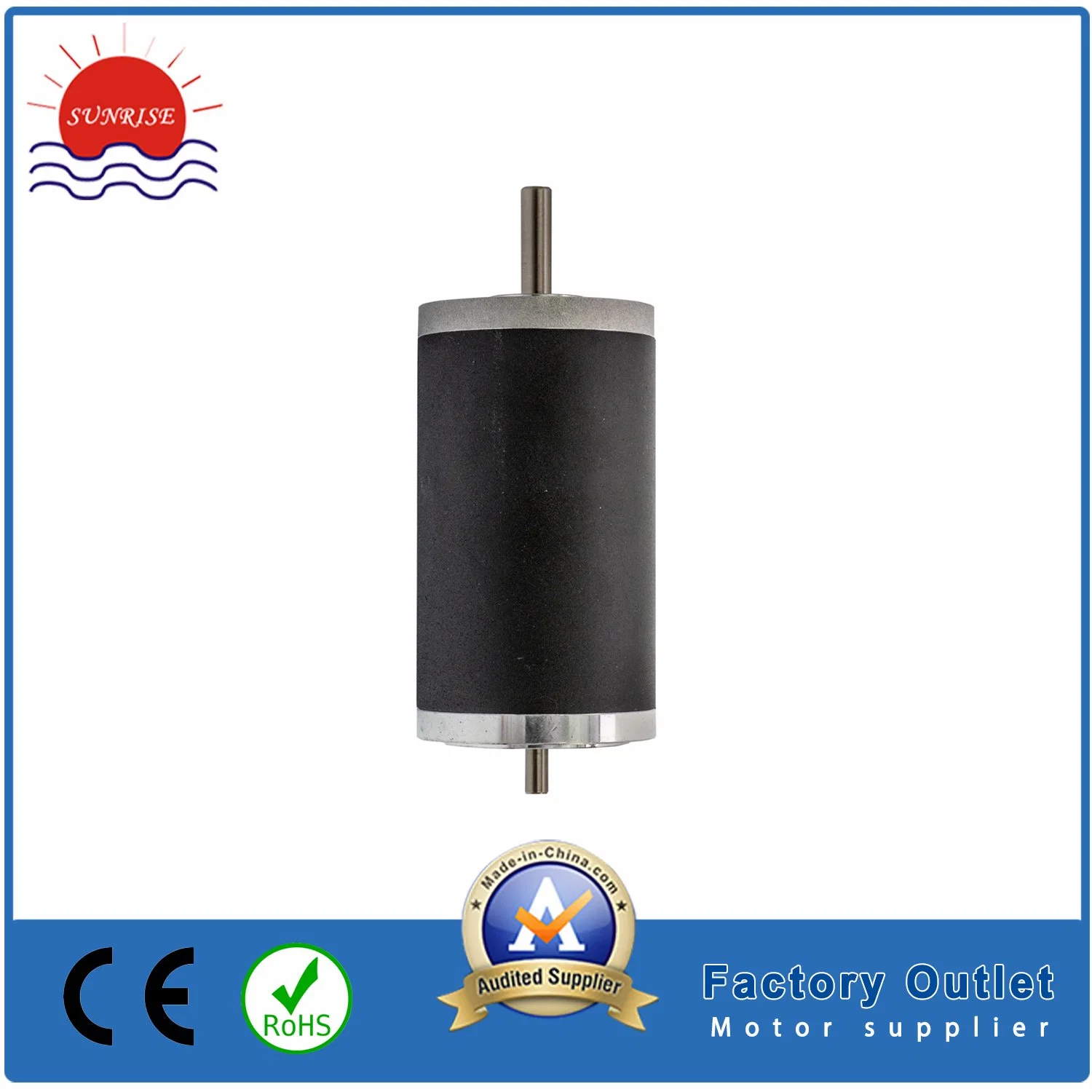

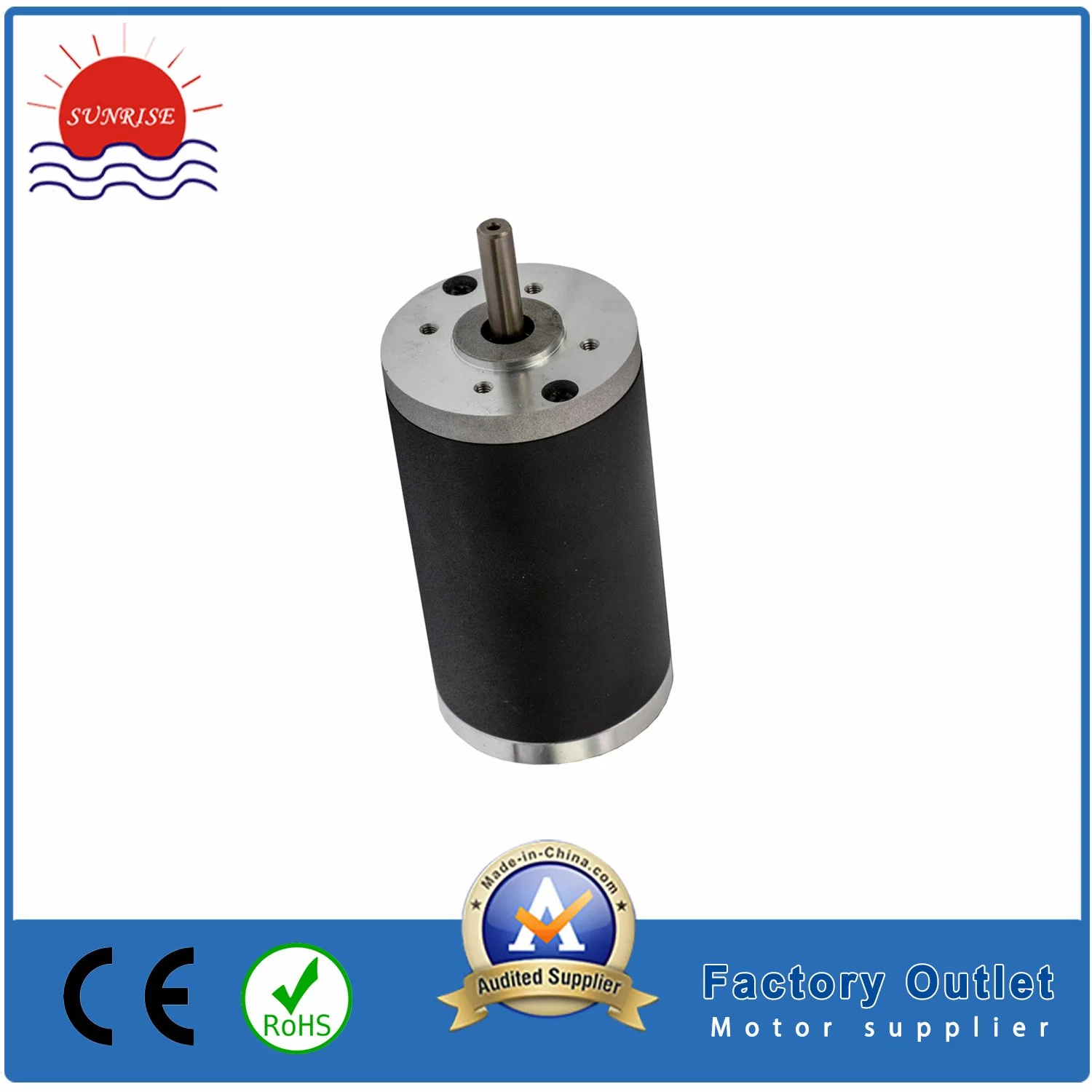

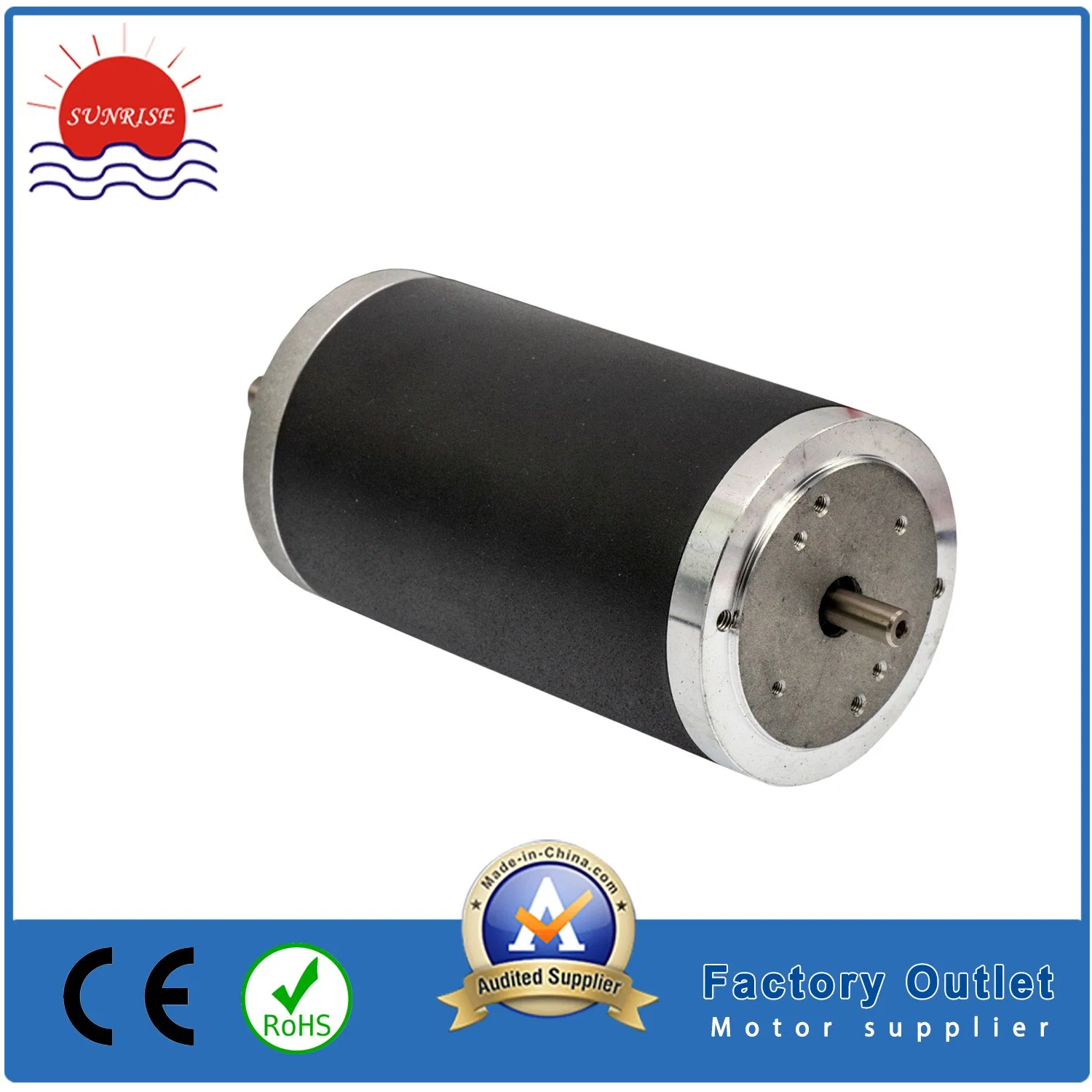

Permanent Magnet DC PMDC Brush Motor 64ZYT
In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
What is a PMDC motor?
In PMDC motors (Permanent Magnet Direct Current), permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings.
Advantages of PMDC motors
Cost-effective and with a high starting torque, PMDC motors are generally smaller but still offer an impressive output performance, which makes them a popular choice for use in many applications.
An extensive range of PMDC motors is manufactured, trusted by global manufacturers for more than 30 years. They are most often combined with our gearboxes to reduce speed and increase torque for the ultimate geared motor solution. Our PMDC motors are suitable for a wide range of applications in different industries such as mobility, patient care, industrial automation and leisure products.
Standard permanent magnet DC motor-only products covers the following performance range:
Standard right-angle and inline PMDC geared motor combinations are available in the following performance ranges:
| 64ZYT Permanent Magnet DC Motor | |||||||
|---|---|---|---|---|---|---|---|
| Model | Voltage | No Load | Rated Load | Winding class | |||
| Current | Speed | Torque | Current | Speed | |||
| (V DC) | (A) | (r/min) | (N.m) | (A) | (r/min) | ||
| 64ZYT100-2433 | 24 | 0.3 | 3300 | 0.18 | 2.8 | 2800 | 100 |
| 64ZYT105-2436 | 24 | 0.3 | 3600 | 0.23 | 4 | 3000 | 105 |
| 64ZYT116-2436 | 24 | 0.3 | 3600 | 0.32 | 5.4 | 3000 | 116 |
| 64ZYT125-2445 | 24 | 0.4 | 4500 | 0.4 | 8.5 | 3700 | 125 |
* Special motors can be customized per your requirements.
* Encoder and gear box can be fixed.
Specifications
| MODEL | 64ZYT Permanent Magnet DC Motor |
| VOLTAGE | 24VDC |
| NO-LOAD SPEED | 3300±10%RPM |
| NO-LOAD CURRENT | <0.5A |
| RATED SPEED | 3000rmp±10% |
| RATED TORQUE | 0.13 N.m/40W |
| RATED CURRENT | 2.8A |
| STALLED TORQUE | 0.7 N.m |
| STALLED CURRENT | 15A |
| PROTECTION | IP-44 |
We offer several levels of PMDC motor customization, including shaft variations, output flange options, various cable lengths, brakes, encoders, paint finishes, and terminal boxes.
If you have a particular specification in mind, we recommend a fully customized solution which includes the ability to incorporate other components of your drive system. Our engineering teams have extensive application specific knowledge, enabling us to produce a PMDC motor that is completely tailored to your individual needs.
