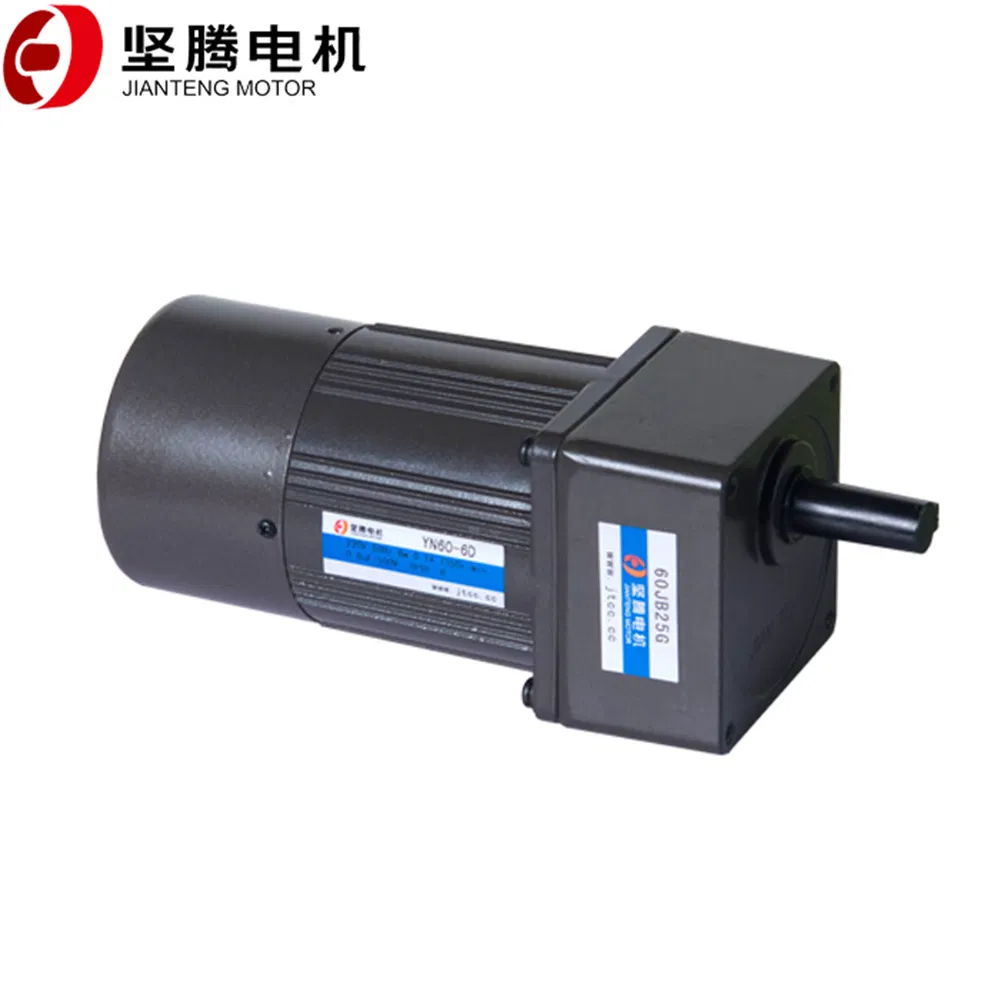

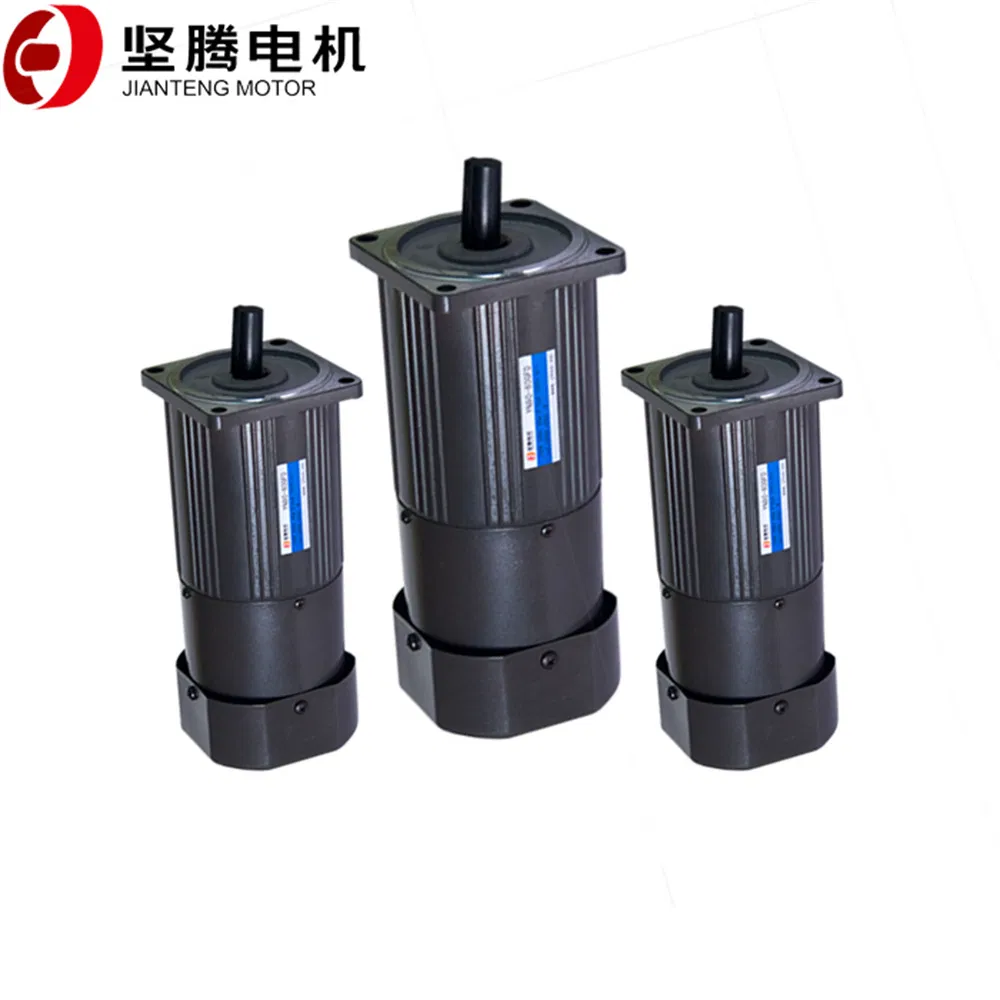

Micro AC Reversible Electric Brake Hollow Solid Shaft Right Angle Geared Reduction Synchronous Mini Motor

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Specifications

Model NO. YN60-6D
Number of Stator Single-Phase
Function Driving, Control
Number of Poles 4
Certification ISO9001, CCC, CE
Output Power 6-250W or Customized
Voltage 110V/220V/380V
Gear Ratio 3-200K
Production Capacity 100000 pieces/Month
⚙️

Product Description

Motor Frame Size 60mm / 70mm / 80mm / 90mm / 104mm
Motor Type Induction motor / reversible motor / torque motor / speed control motor / damping motor / brake motor
Output Shaft 6mm / 8mm / 10mm / 12mm / 15mm (Round, D-cut, Key-way or Customized)
Voltage Type Single Phase 110V-240V / Three Phase 220V-480V (50/60Hz)
Accessories Terminal box / Fan / Thermal protector / Electromagnetic brake
🖼️

Detailed Photos

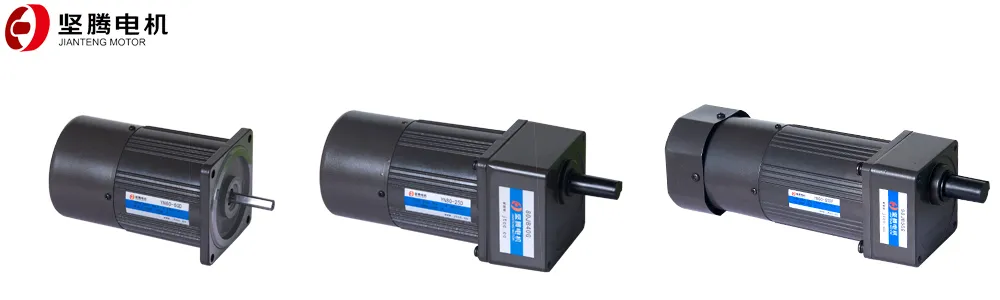

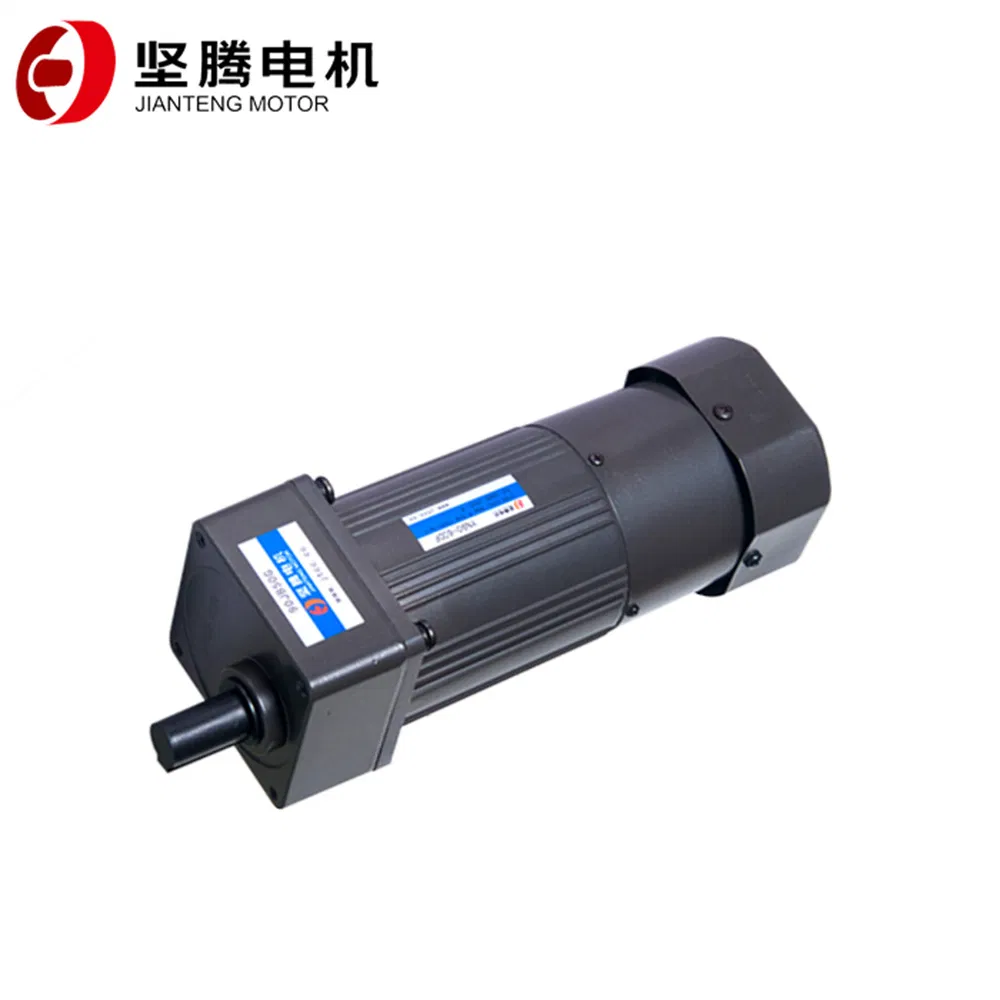

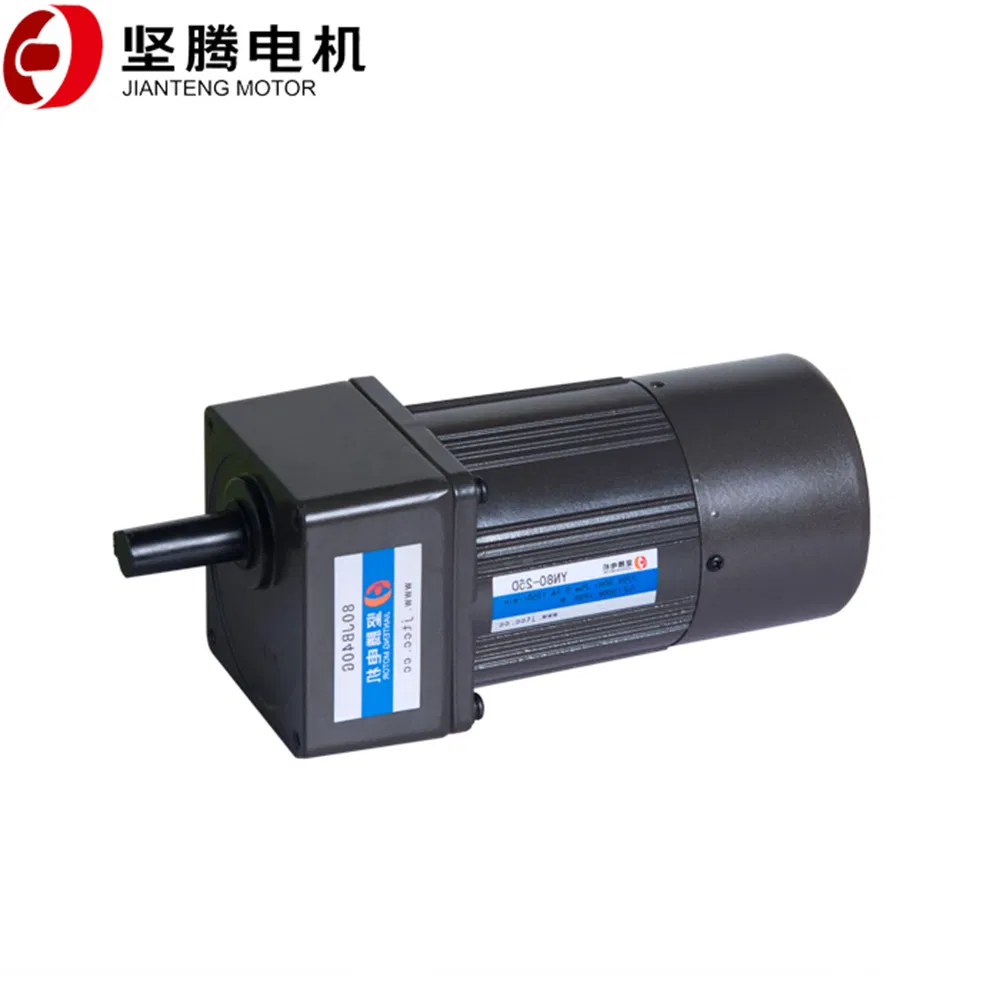

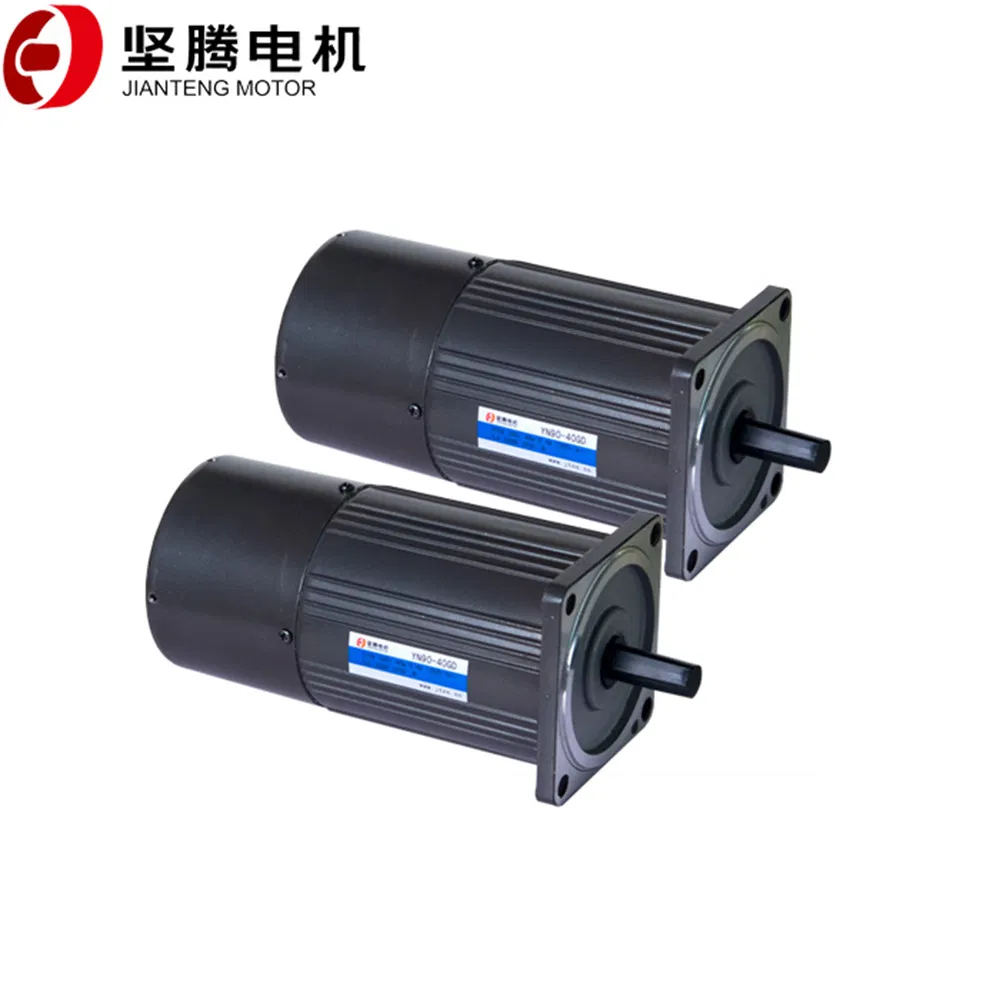

Micro AC Motor Details
📦

Related Product Series

AC Motor Series
Small Gear Motor
Stepping Motor
DC Brush Motor
DC Brushless Motor
RV Reducer
📜

Certifications & Shipping

Certificates Packaging and Shipping
🏢

Technical Overview

Technical Specifications Overview

Frequently Asked Questions

Q: How to select a suitable motor or gearbox?
A: If you can provide motor pictures, drawings, or detailed specifications such as voltage, speed, torque, size, working mode, and required noise level, we can recommend the most suitable model for your needs.
Q: Do you offer customized services?
A: Yes, we can customize voltage, speed, torque, and shaft dimensions. We can also add specific connectors, capacitors, EMC components, or soldered wires as requested.
Q: Is there an individual design service available?
A: Yes, we provide individual design services. Please note that developing new molds may involve specific design and production costs.
Q: What is the typical lead time for orders?
A: Standard products typically take 15-30 days. Customized orders may require more time. We maintain flexibility to meet specific project timelines.
Q: What certifications do these motors hold?
A: Our products are compliant with international standards and hold ISO9001, CCC, CE, and CQC certifications.
Q: What is the power range for your AC motors?
A: We offer a wide output power range from 6W to 250W, with customization options available beyond these standards.
