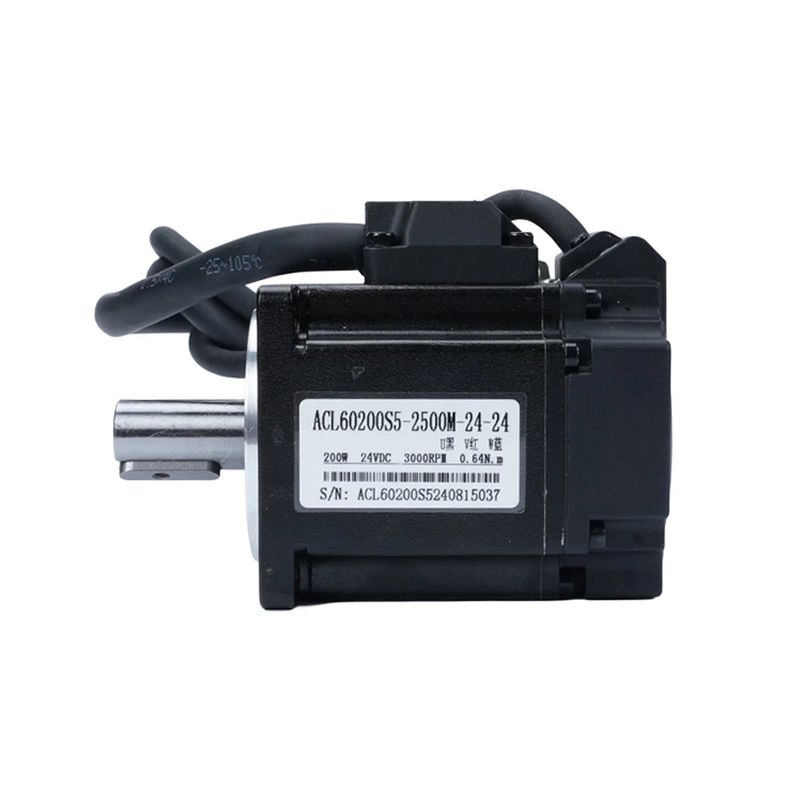

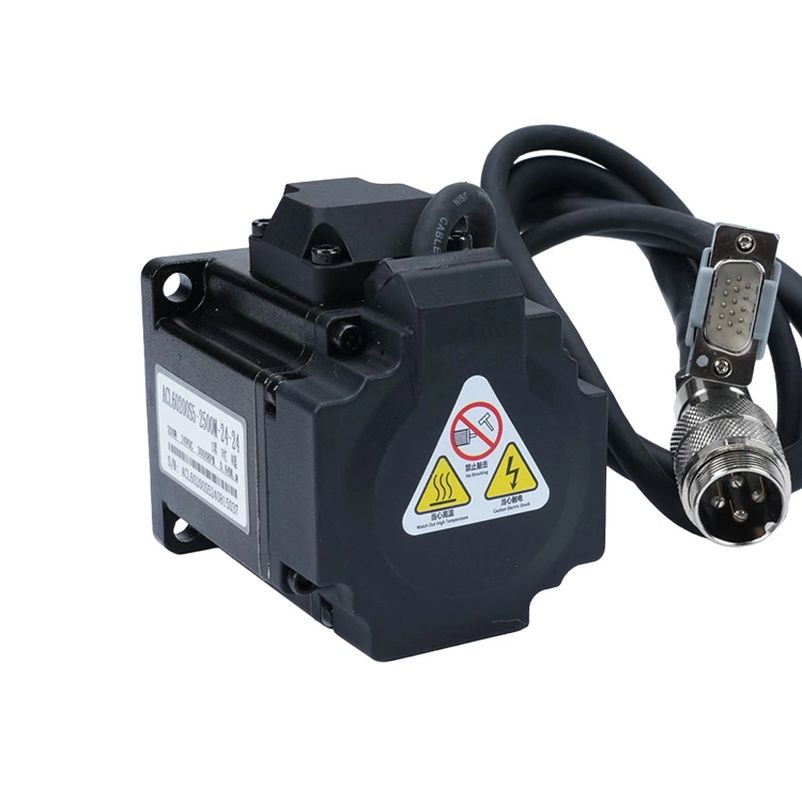

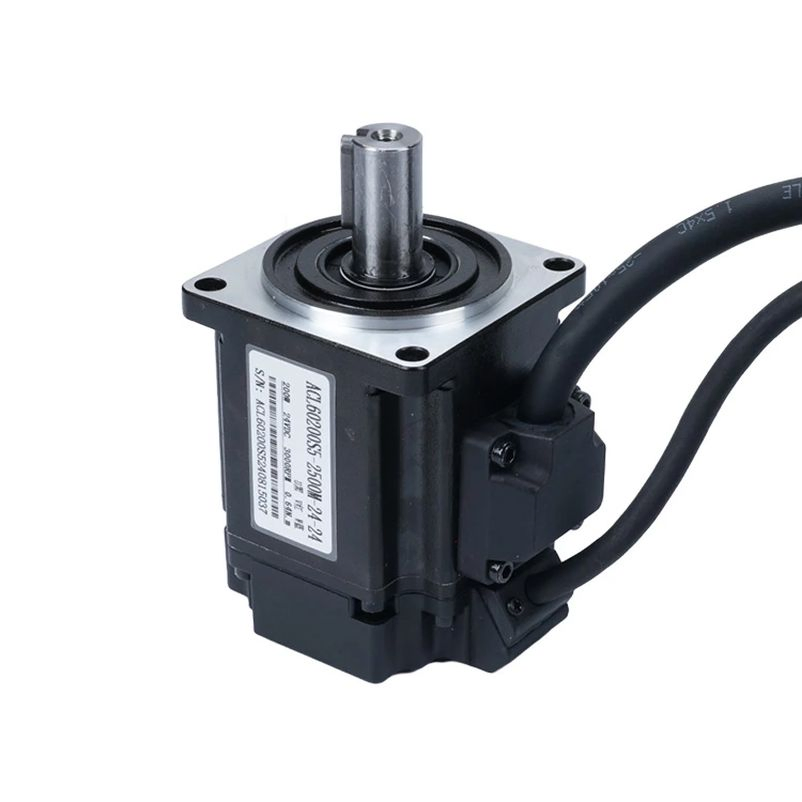

📋 Basic Specifications
| Model NO. |
IDS806+ACL60C200W4-2500M-24-14 |
| Function |
Driving |
| Casing Protection |
Protection Type |
| Structure |
Brushless |
| Certification |
CCC, CE |
| Origin |
China |
| Production Capacity |
50000PCS/Year |

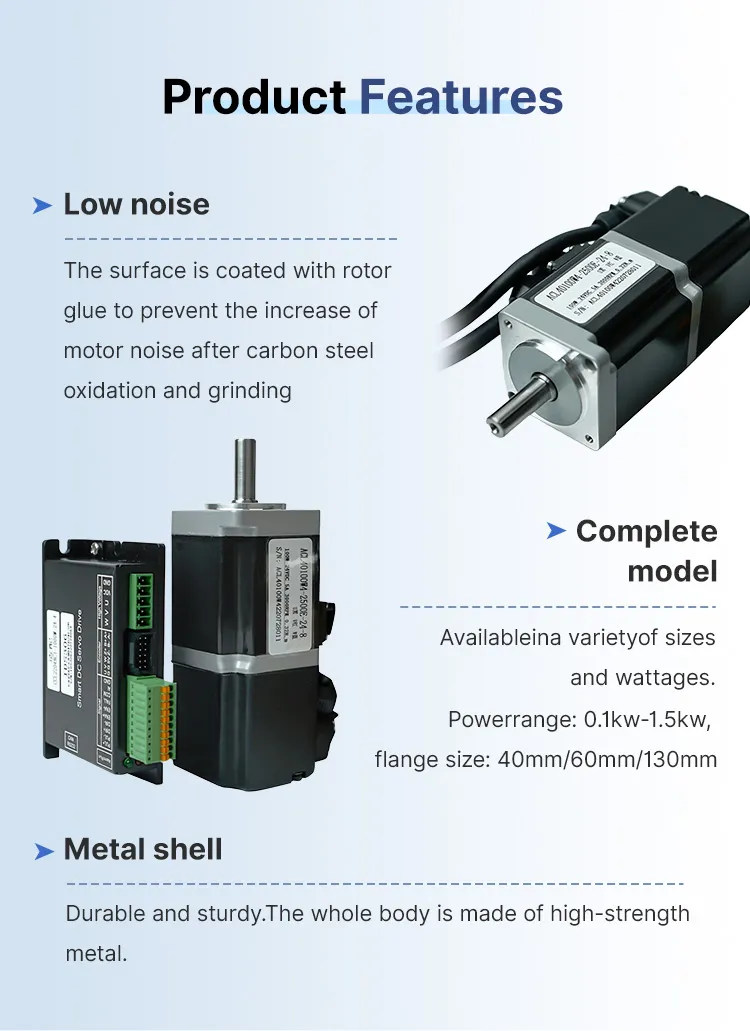

🚀 Key Characteristics
Control Precision: Low voltage DC servo motors provide high control accuracy, enabling precise rotor position control through brushes and commutators.
Response Speed: Fast response times, reaching required speeds and torque levels in milliseconds, ideal for rapid acceleration.
Torque Output: Delivers constant torque output even at speeds exceeding rated levels.
Overload Capacity: Handles overload conditions effectively, with maximum torque capabilities reaching three times the rated torque.
Smooth Operation: Operates smoothly without vibrations even at low speeds, including resonance suppression.
Wide Speed Regulation: Achieves smooth speed regulation across a broad range for precise control.
Low Noise: Quiet operation, ideal for noise-sensitive environments.

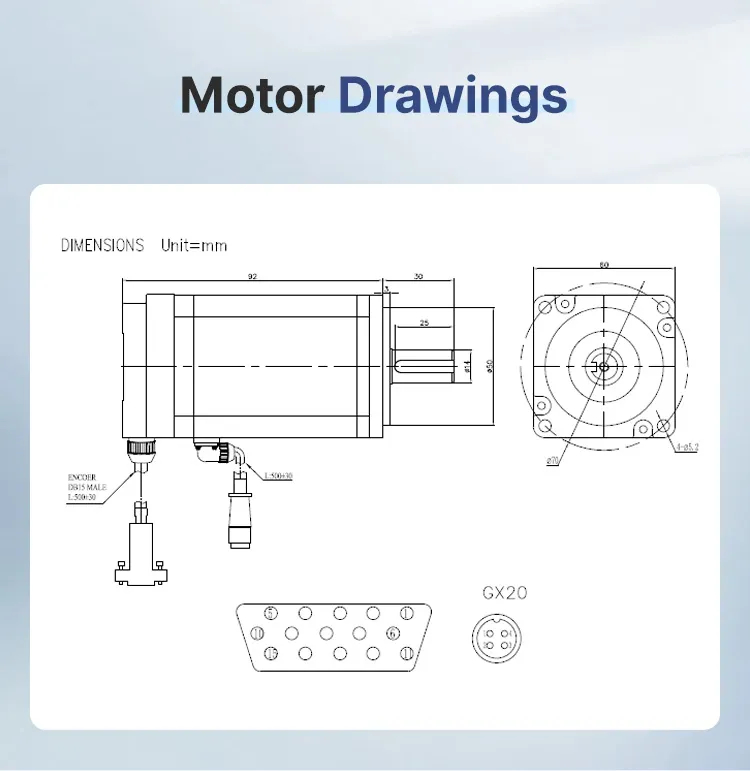

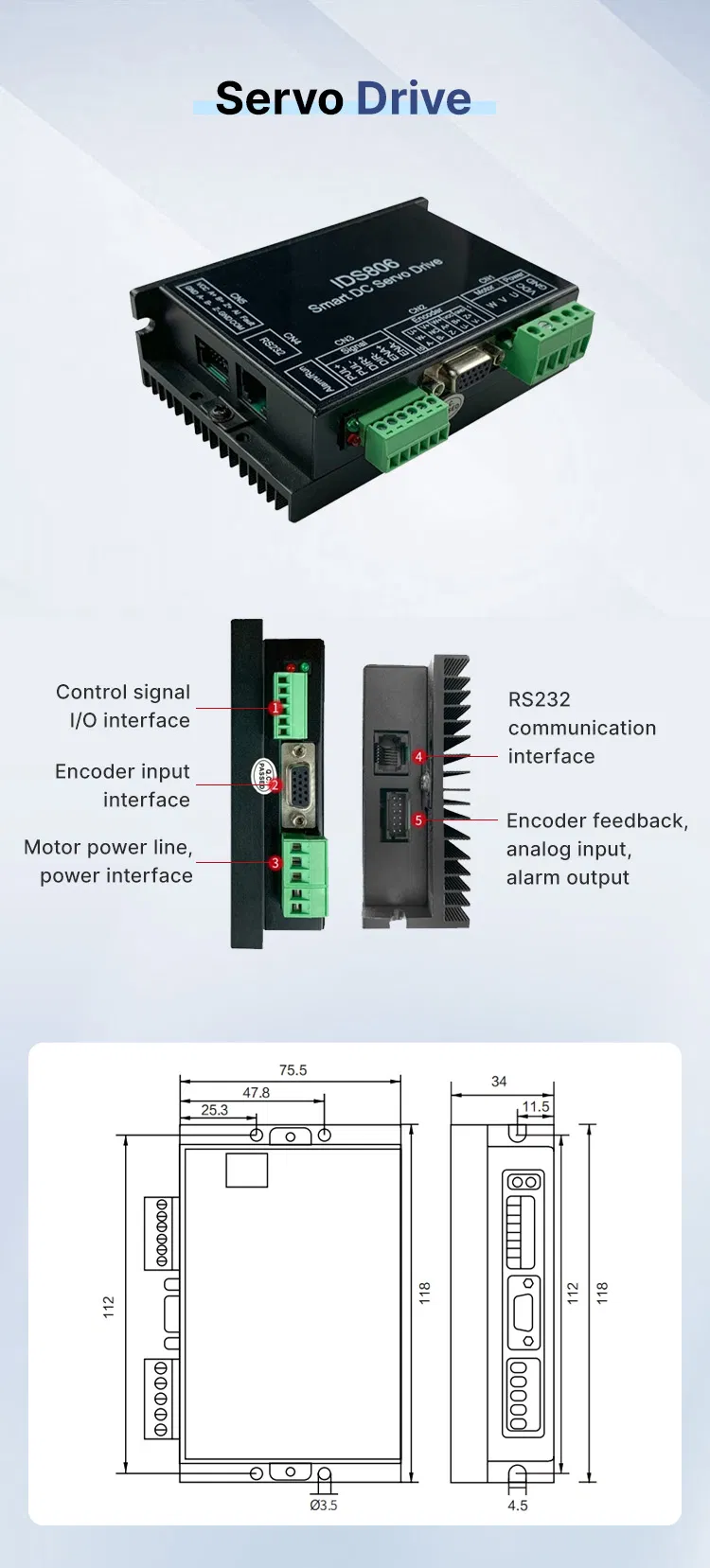

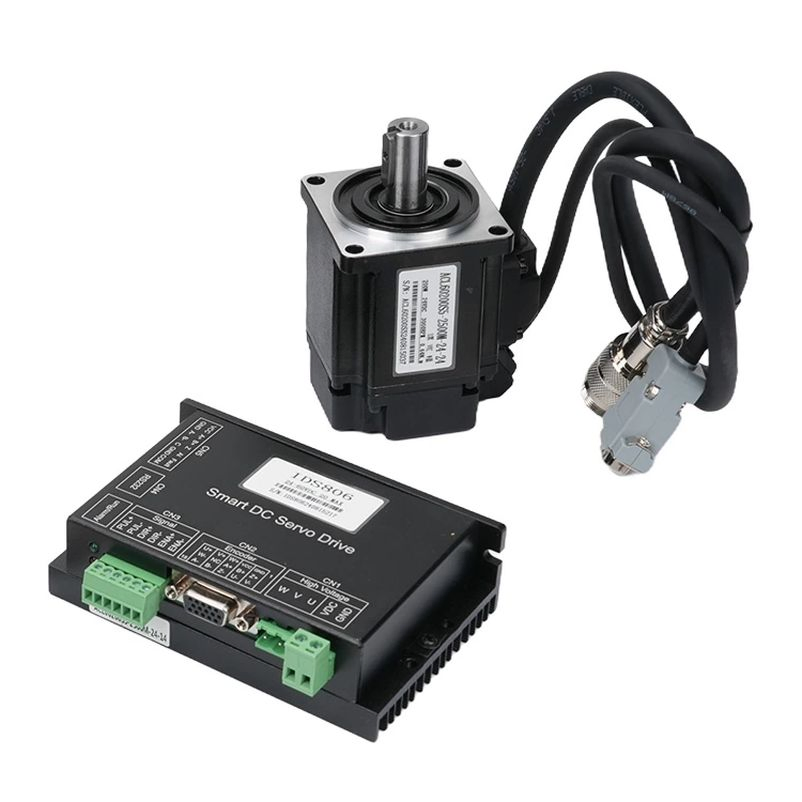

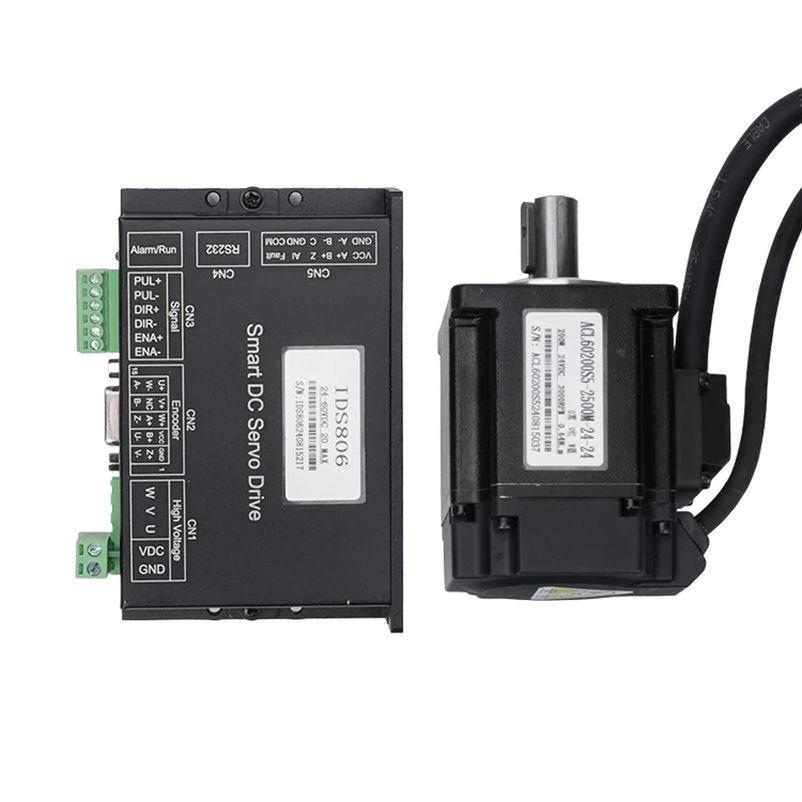

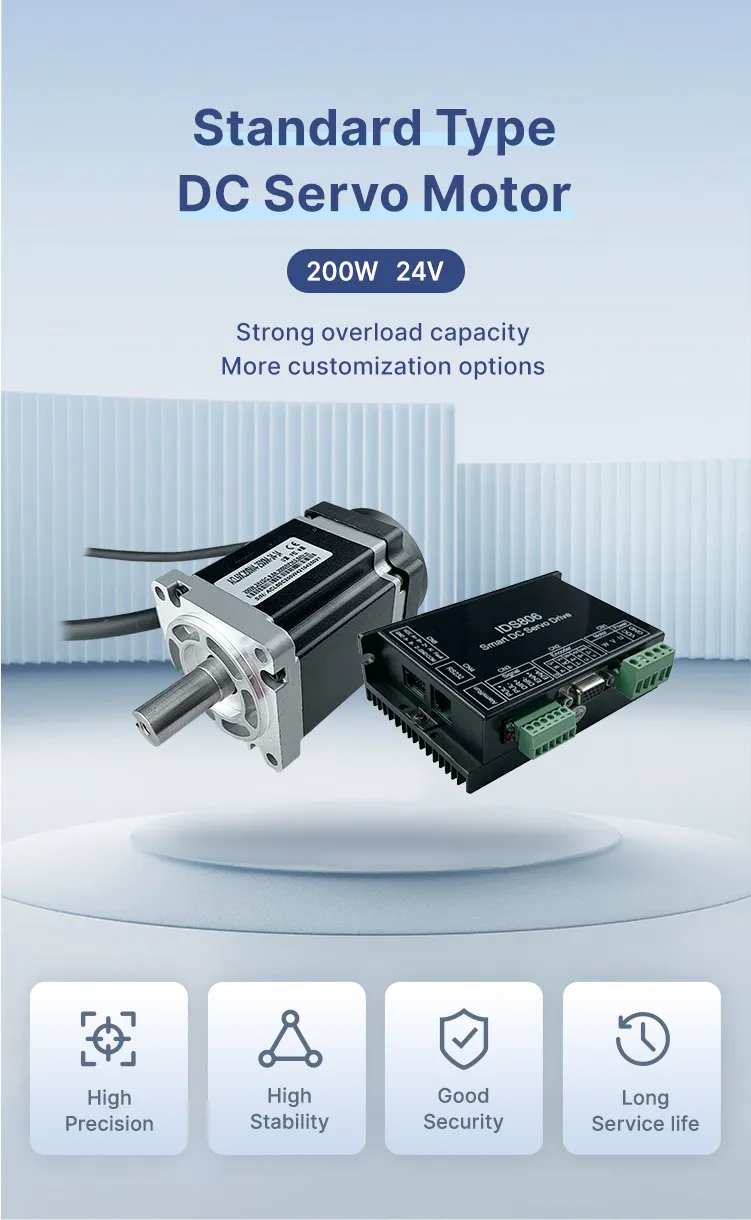

⚙️ Low Voltage DC Servo Drive IDS806
IDS806 low-voltage DC servo driver is developed with high-performance processors to provide a cost-effective servo control solution. It features low noise, low heat, high speed, and constant torque output without step loss. Compared to stepper products, it offers superior reliability and functions.

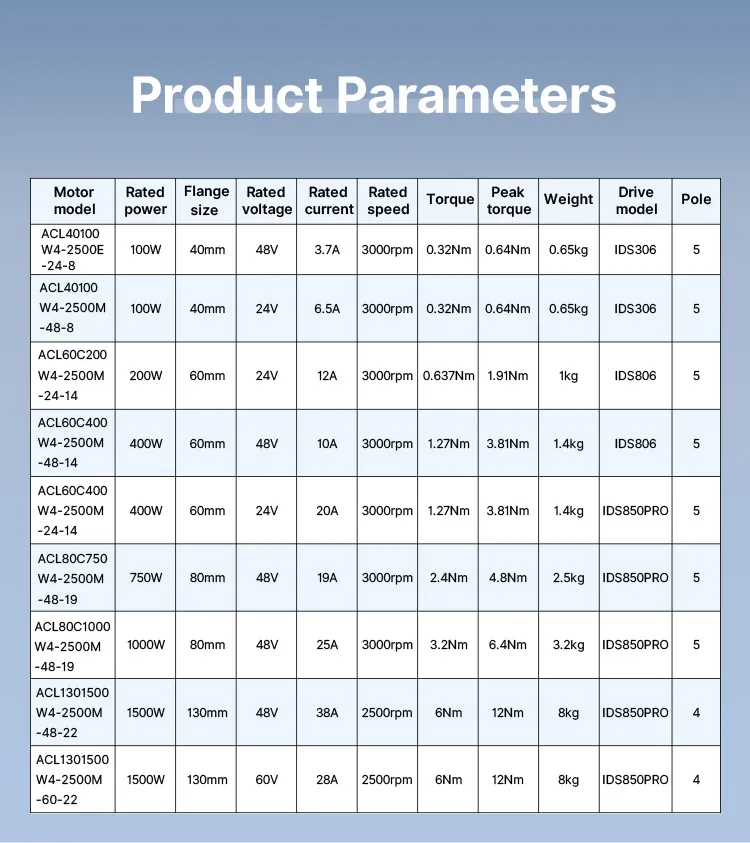

| Parameters | Specifications |
|---|
| Working voltage | 24VDC |
| Output current | Peak 10A |
| Adaptive motor | 5~100W low voltage DC servo motor, DC brushless motor with encoder |
| Control method | Pulse, Analog, RS232 communication, IO control |
| Abnormal protection | Undervoltage, overvoltage, overload, overcurrent, deviation, encoder abnormality |
| Tracking Error | ±1pulse |
| Speed control accuracy | ±1PRM |
| Maximum no-load acceleration | 200PRM/ms |
🛠️ Application Fields
Robotics: Robotic arms, mobile robots, and AGVs.
Industrial Automation: CNC machines, conveyor systems, and automated machinery.
Consumer Electronics: Cameras and printers.
Medical Equipment: Surgical robots and diagnostic machines.
Aerospace: Drones and missile guidance systems.
📦 Packaging & Delivery
| Package Size |
30.00cm * 20.00cm * 20.00cm |
| Package Gross Weight |
4.000kg |
❓ Frequently Asked Questions
Q1: What is the maximum overload capacity of this DC servo motor?
A: This motor can handle overload conditions where the maximum torque can reach up to three times the rated torque, which is essential for overcoming inertia during startup.
Q2: Is this motor suitable for use in quiet environments?
A: Yes, it is designed for low-noise operation, making it ideal for medical equipment, consumer electronics, and other noise-sensitive applications.
Q3: What are the main control methods supported by the IDS806 driver?
A: The driver supports external pulse (single-ended/differential), analog signals, RS232 communication control, and IO control.
Q4: Does the motor experience vibration at low speeds?
A: No, unlike stepper motors, this low voltage DC servo motor operates smoothly without vibrations even at low speeds, thanks to its resonance suppression capabilities.
Q5: What safety protections are built into the system?
A: The system includes abnormal protection for undervoltage, overvoltage, overload, overcurrent, excessive position deviation, and encoder abnormalities.
Q6: Can this motor be used for AGV (Automated Guided Vehicle) applications?
A: Yes, its precise control and fast response time make it highly suitable for AGVs and other battery-operated robotic systems.
