High-Efficiency 36mm Brushless DC Gear Motor for Robotics

Product Description

Product Overview

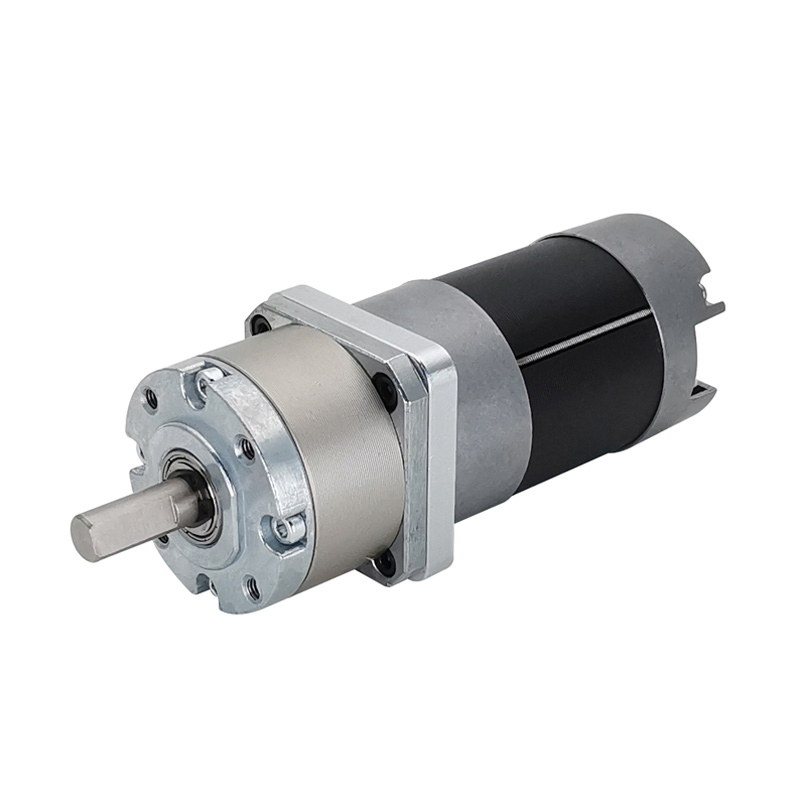

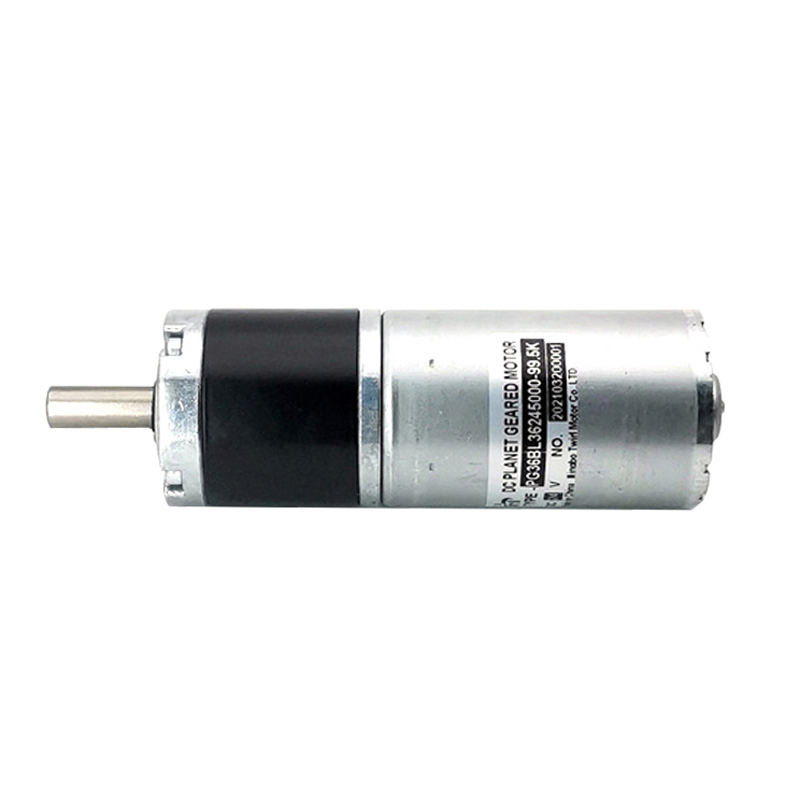

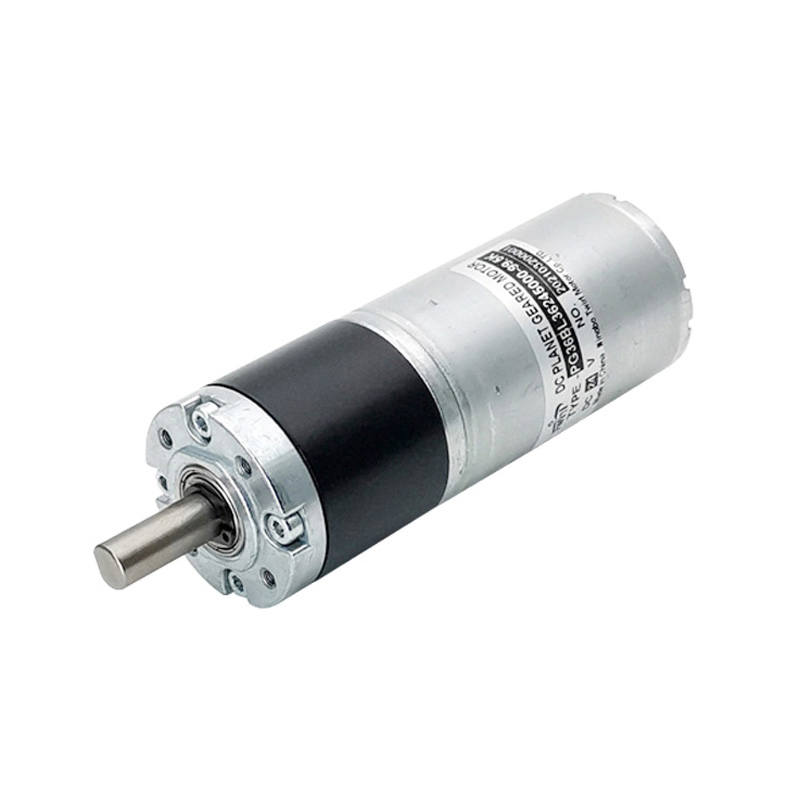

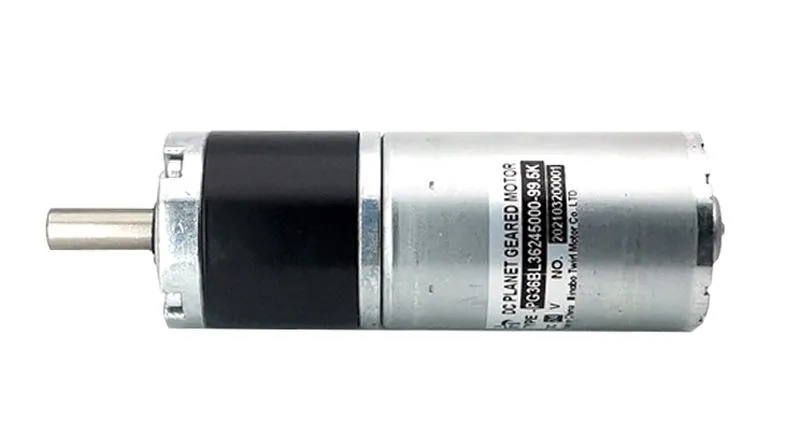

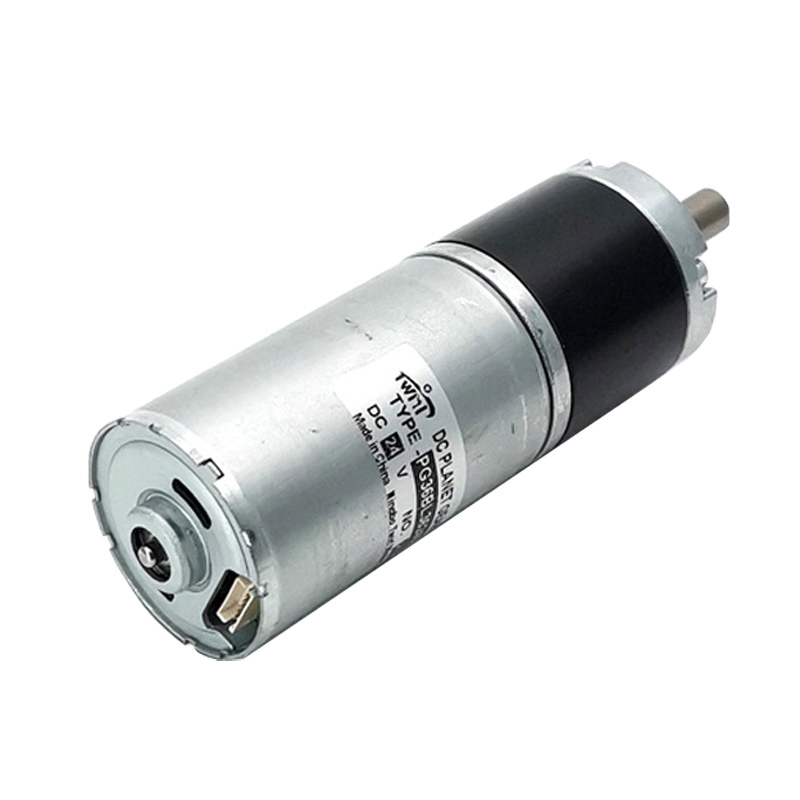

High-Efficiency 36mm Brushless DC Gear Motor for Robotics

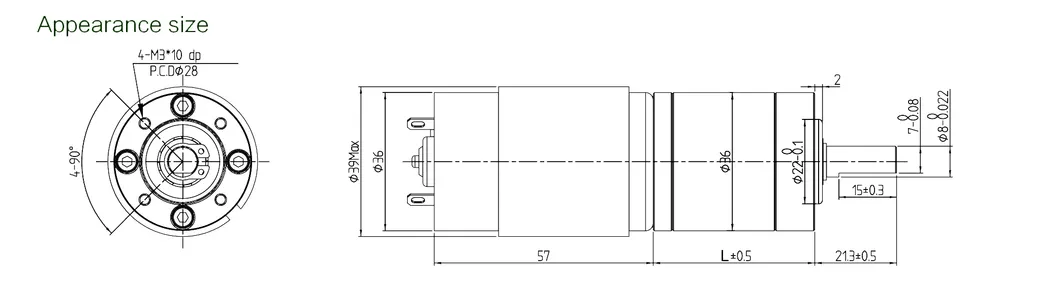

Technical Drawing 36mm Brushless DC Gear Motor
Gearbox Technical Data
Number of stages 1 2 3 4 5
Reduction ratio 3.7, 5.2 13.7, 19.2, 26.9 50.9, 71.2, 99.5, 139 188, 264, 369, 516, 721 699, 977, 1367, 1911, 2672, 3736
Gearbox length "L" (mm) 25.1 32.3 38.5 44.7 50.9
Max. Running torque 20.0kgf·cm 50.0kgf·cm 100.0kgf·cm 100.0kgf·cm 100.0kgf·cm
Gear breaking torque 60.0kgf·cm 150.0kgf·cm 300.0kgf·cm 300.0kgf·cm 300.0kgf·cm
Gearing efficiency 90% 81% 73% 65% 59%
Motor Performance Data
Motor Type Rated Volt (V) No Load Speed (rpm) No Load Current (mA) Rated Speed (rpm) Rated Current (mA) Rated Torque (gf·cm) Rated Output (W) Stall Torque (gf·cm) Stall Current (mA)
BL36126000 12 6000 ≤460 5160 ≤1580 257 13.6 1775 ≤1.8
BL36245000 24 5000 ≤220 4100 ≤1086 395 16.4 2317 ≤5.34
BL36246000 24 6000 ≤220 5100 ≤1204 385 20.1 2737 ≤7.1
BL36249000 24 9000 ≤380 7900 ≤2200 440 35.9 3396 ≤14.1
Calculation Guide:
• Output torque after deceleration = motor torque X reduction ratio X gearing efficiency;
• Output speed = motor speed / reduction ratio.
Production & Logistics

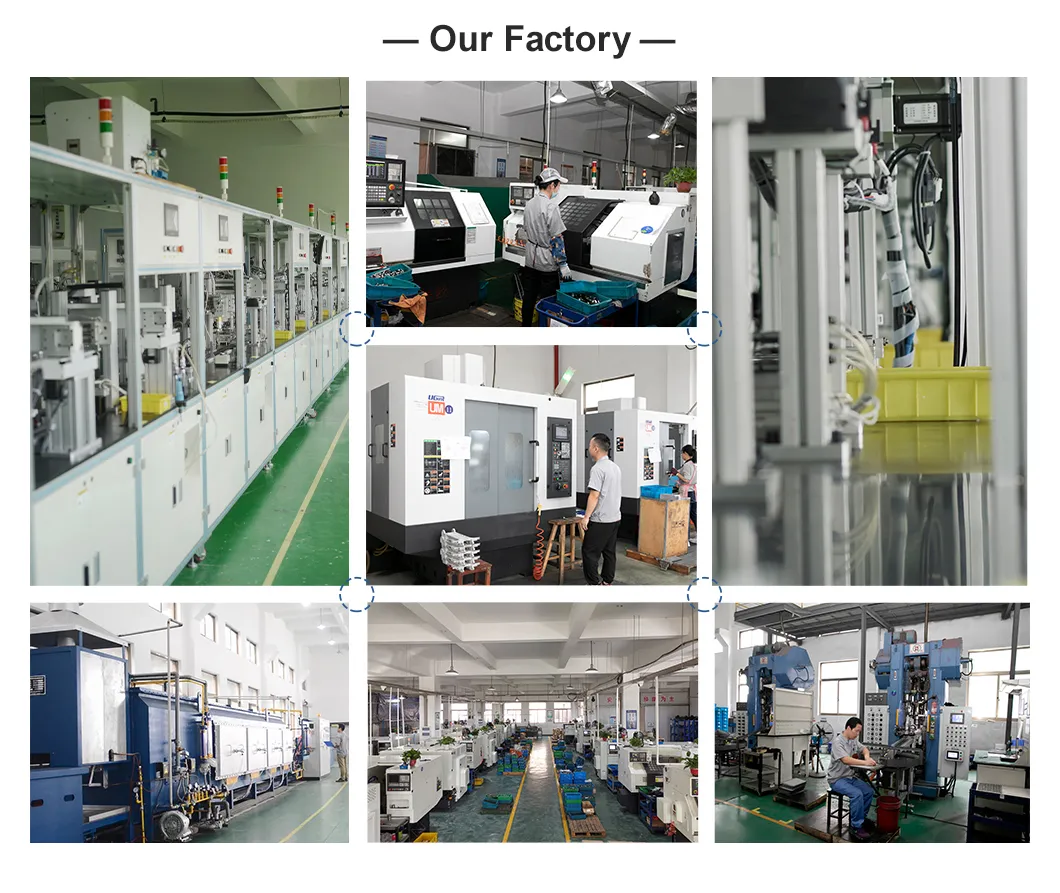

Production Facility

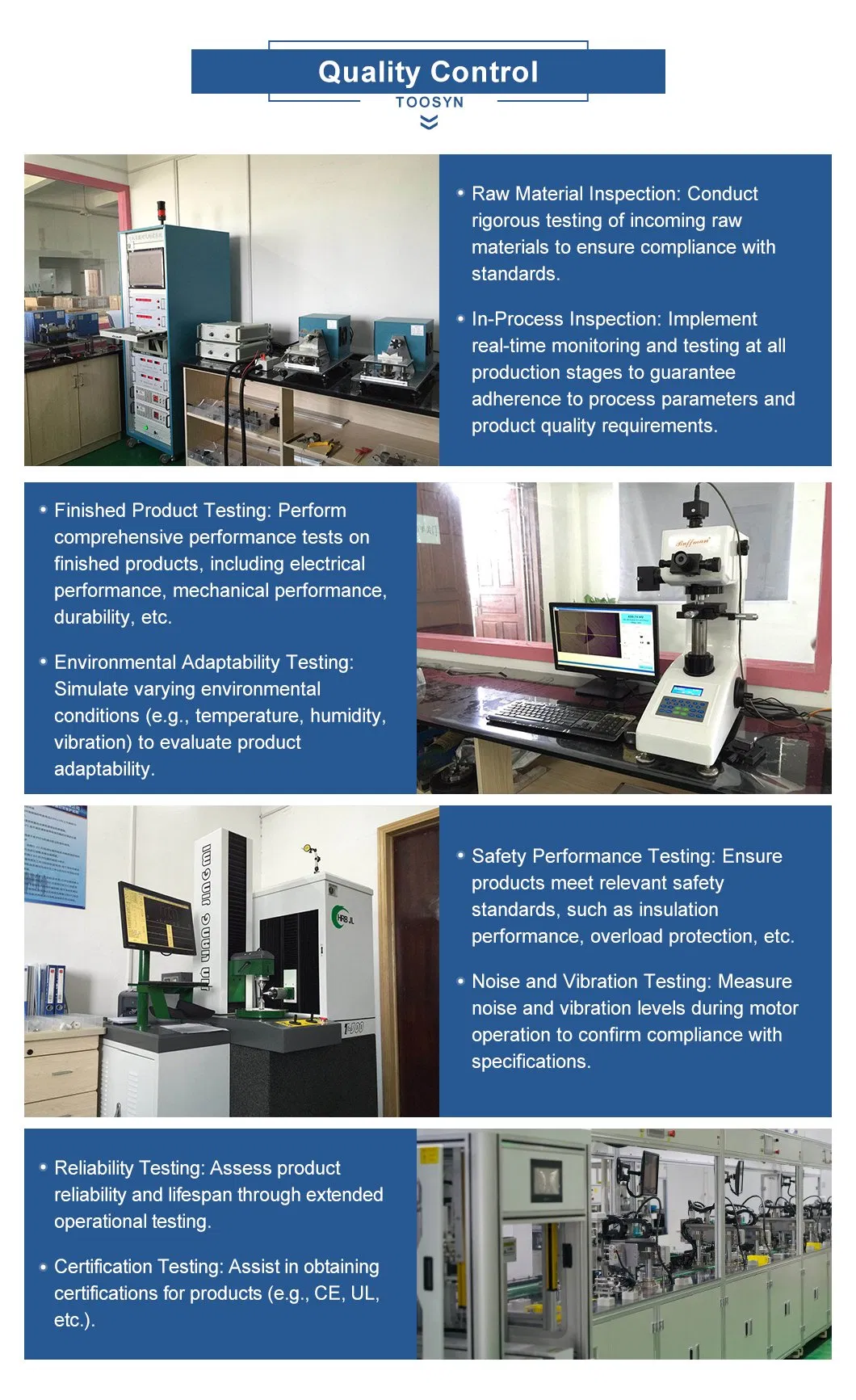

Quality Control Process
Packaging Standard
Shipping and Logistics
Frequently Asked Questions
Can you make the gearbox with custom specifications?
YES. We have a design and development team, along with a specialized team of engineers with many years of experience.
Do you provide samples?
YES. Samples can be provided, and the typical delivery time is about 10-15 days according to the required specifications.
What is the MOQ (minimum order quantity)?
1 pcs for sample orders, and 100 pcs for bulk orders.
How do I pay?
Paypal, Western Union, Money Gram, T/T, and L/C payments are all acceptable.
Do you provide technology support?
YES. Our design and development team can provide technology support if needed.
How can I know if the product is suitable for me?
First, provide us with detailed information about your requirements. We will recommend items according to your specification needs. After confirmation, we will prepare samples for you.
