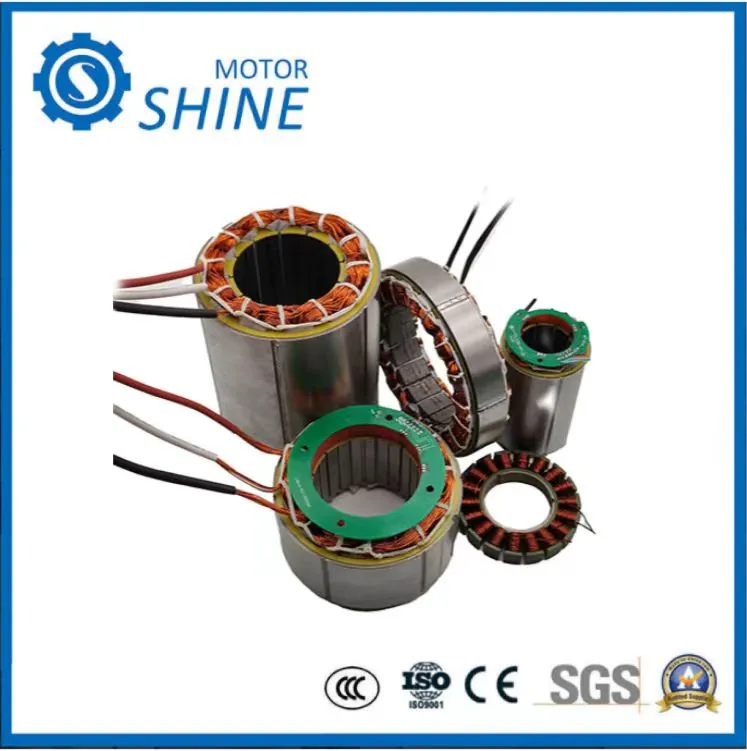

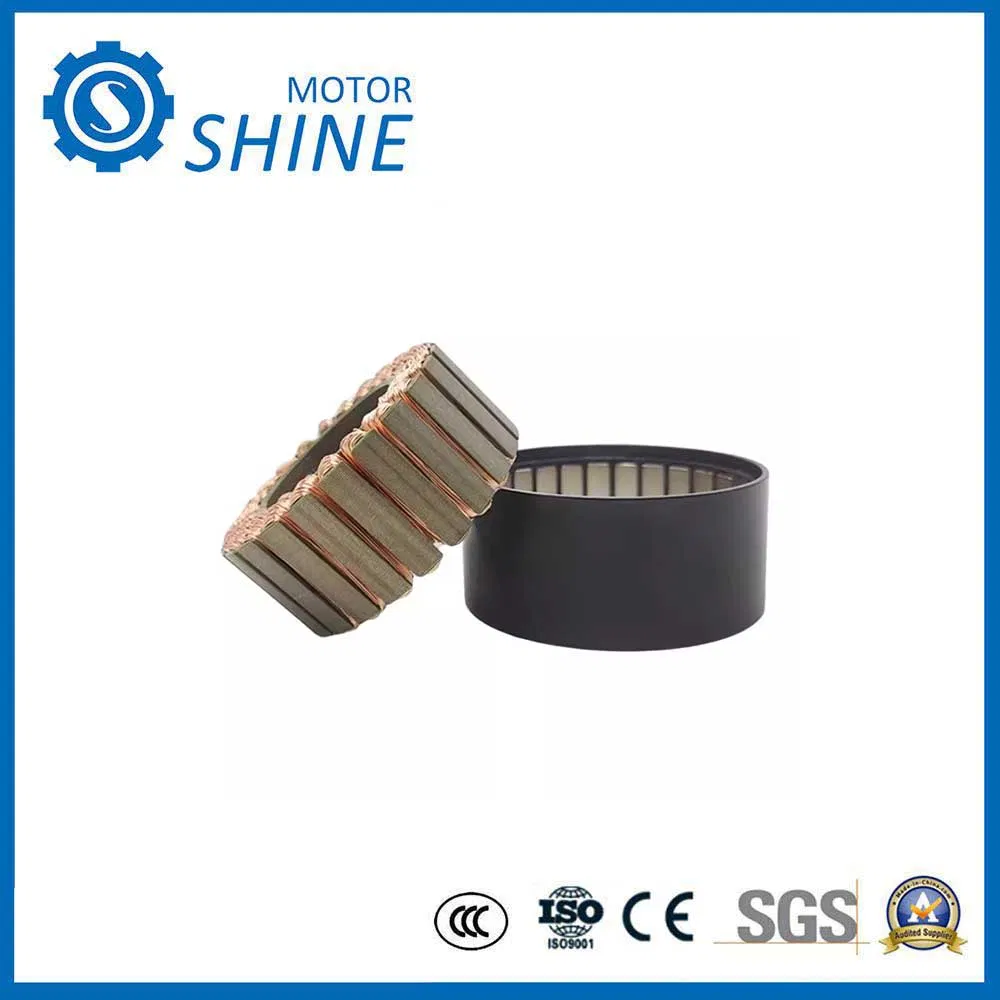

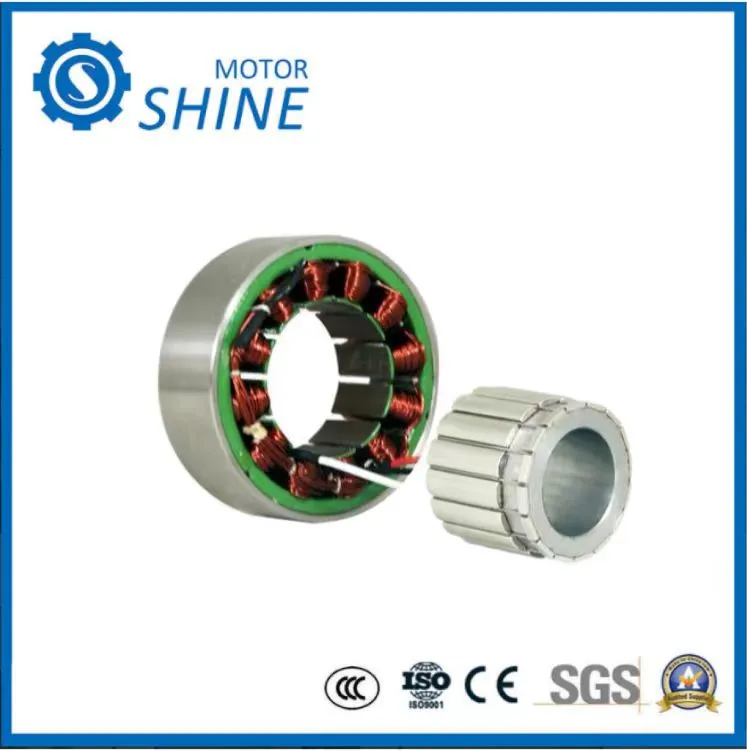

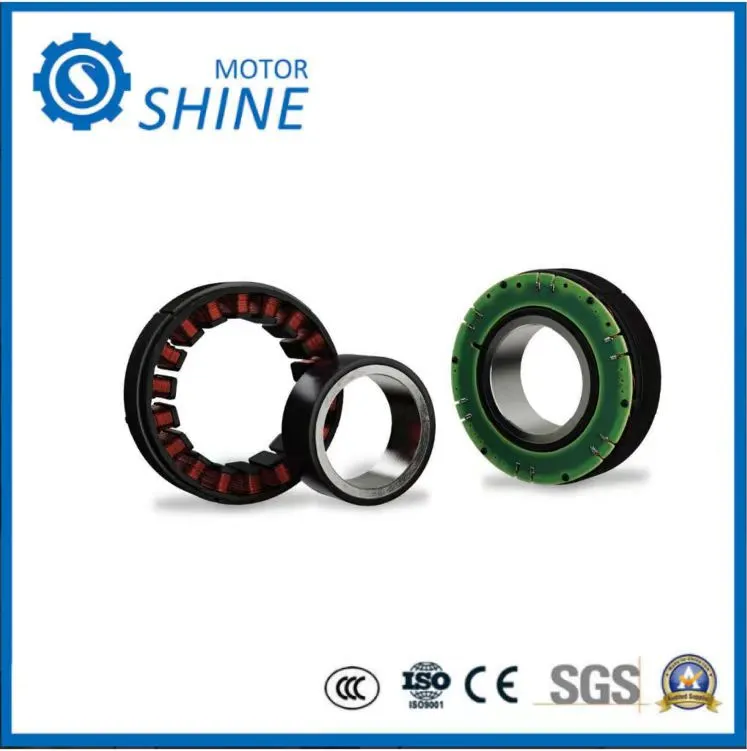

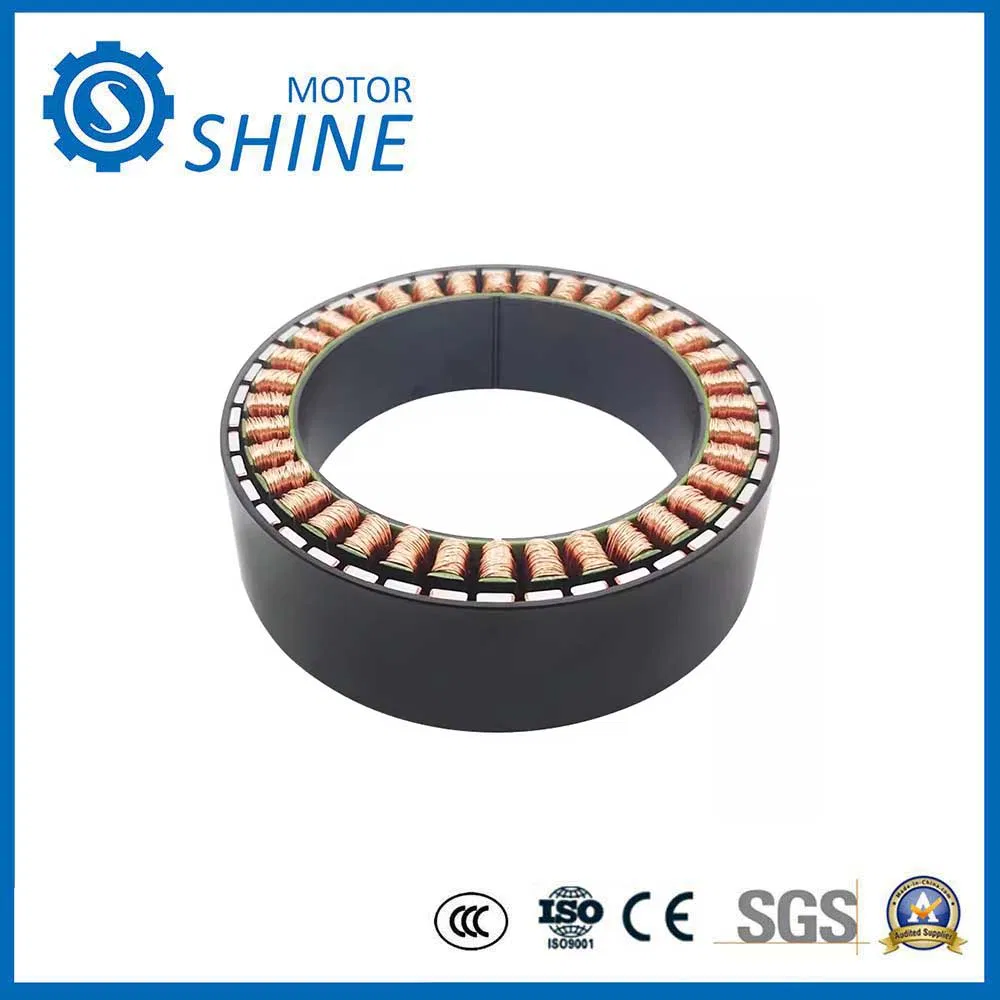

Frameless BLDC motors allow for maximum integration with your assembly. These motors reduce waste and redundancy by eliminating the need for additional mounting supports, plates or brackets. The range is available in various sizes and rated torque, designed for high-precision applications.
| Size | 50 mm | Length (L) | 20 mm |
| Rated Voltage | 48 Vdc | Rated Torque | 0.3 Nm |
| Rated Speed | 5000 rpm | n° of Pole | 20 |
| n° of Phase | 3 | Max. Peak Torque | 0.96 Nm |
| Torque Constant | 0.09 Nm/A | Rated Current | 3.6 A |
| Max. Peak Current | 11.6 A | No-Load Current | 400 mA |
| Line to Line Resistance | 0.93 Ohm | Line to Line Inductance | 0.45 mH |
| Weight | 0.096 Kg | Hall Effect Angle | 120 ° |
| Insulation Class | B | Operating Temperature | -20°C +50°C |
| Size | 50 mm | Length (L) | 26 mm |
| Rated Voltage | 48 Vdc | Rated Torque | 0.5 Nm |
| Rated Speed | 3500 rpm | n° of Pole | 20 |
| Max. Peak Torque | 1.5 Nm | Torque Constant | 0.12 Nm/A |
| Rated Current | 4.8 A | Max. Peak Current | 14.5 A |
| Rotor Inertia | 93 gcm² | Weight | 0.147 Kg |
