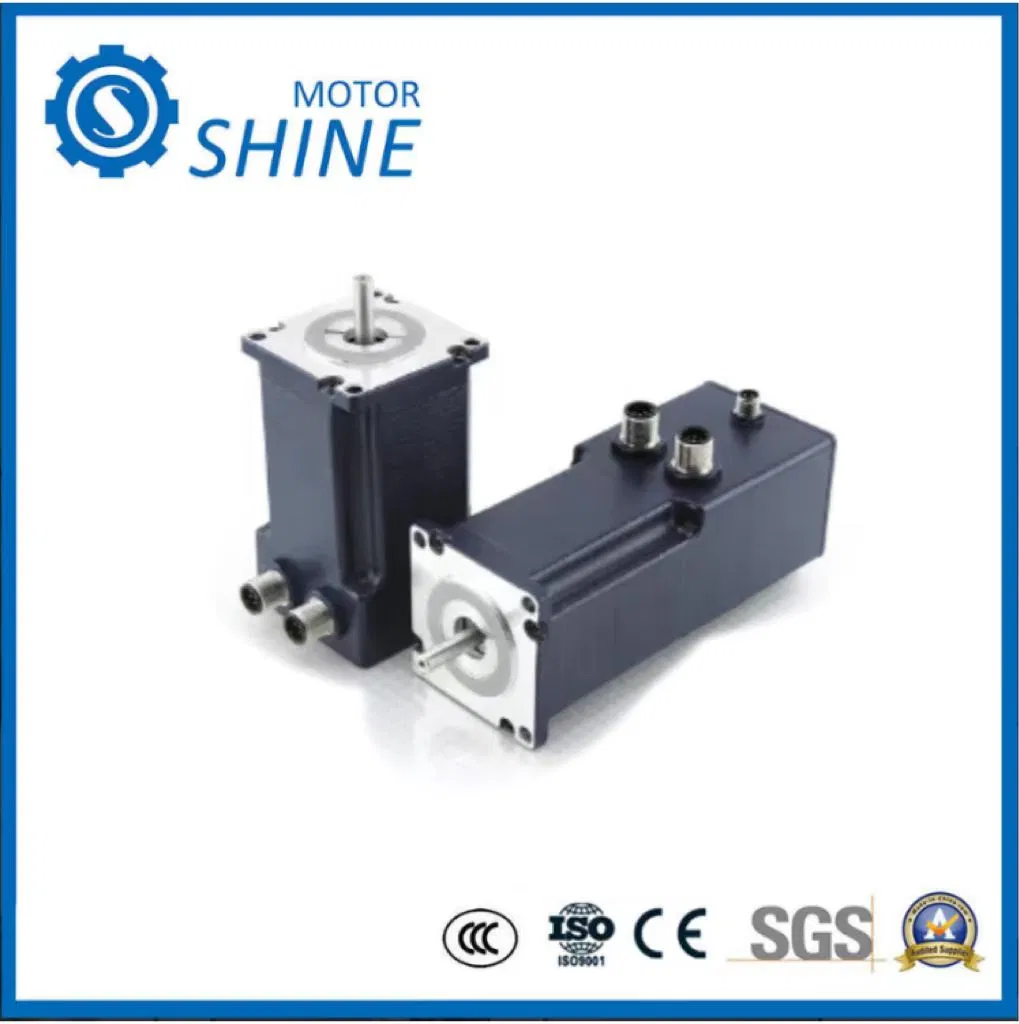

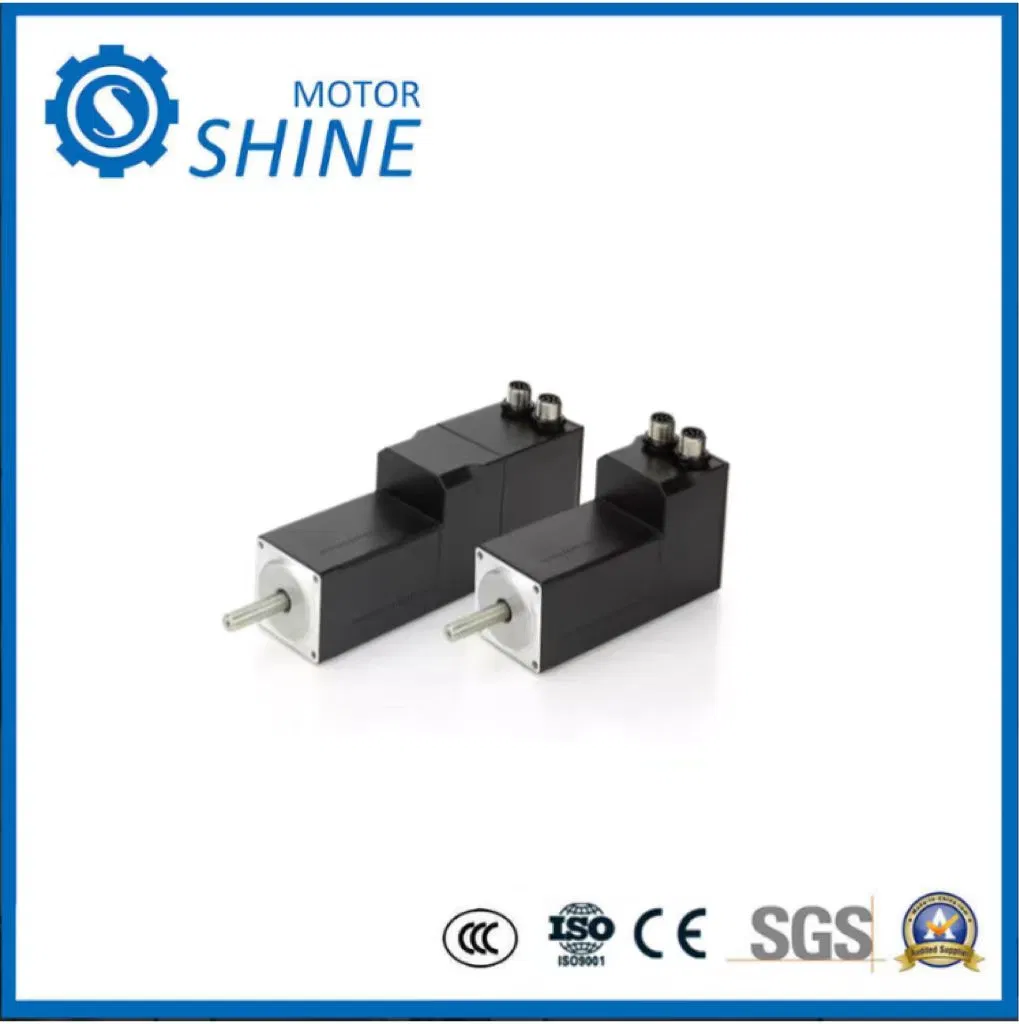

Stepper motors with protection class IP65 (except shaft output) are designed for harsh operating environments and have high electromagnetic compatibility (EMC). They are optionally available with integrated encoder or integrated brake. Pre-assembled cables permit quick and error-free wiring and commissioning.

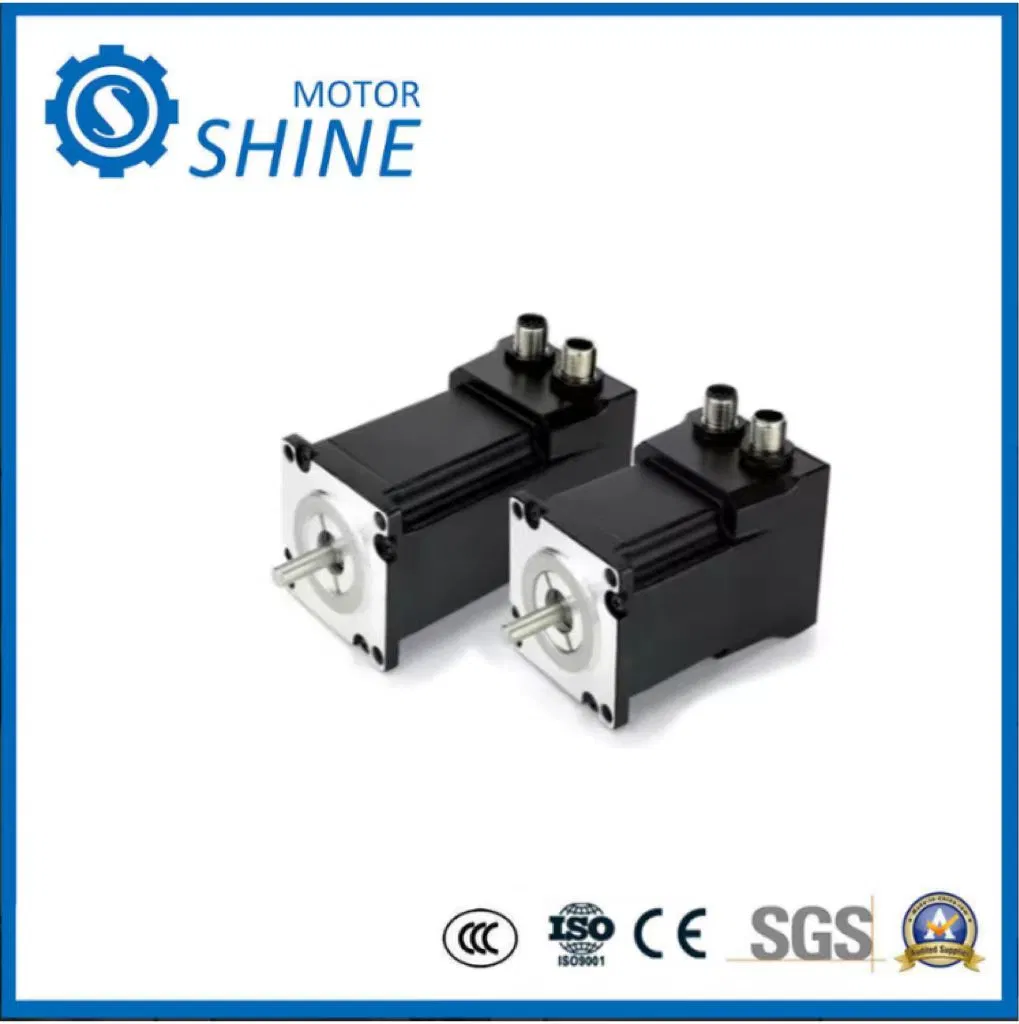

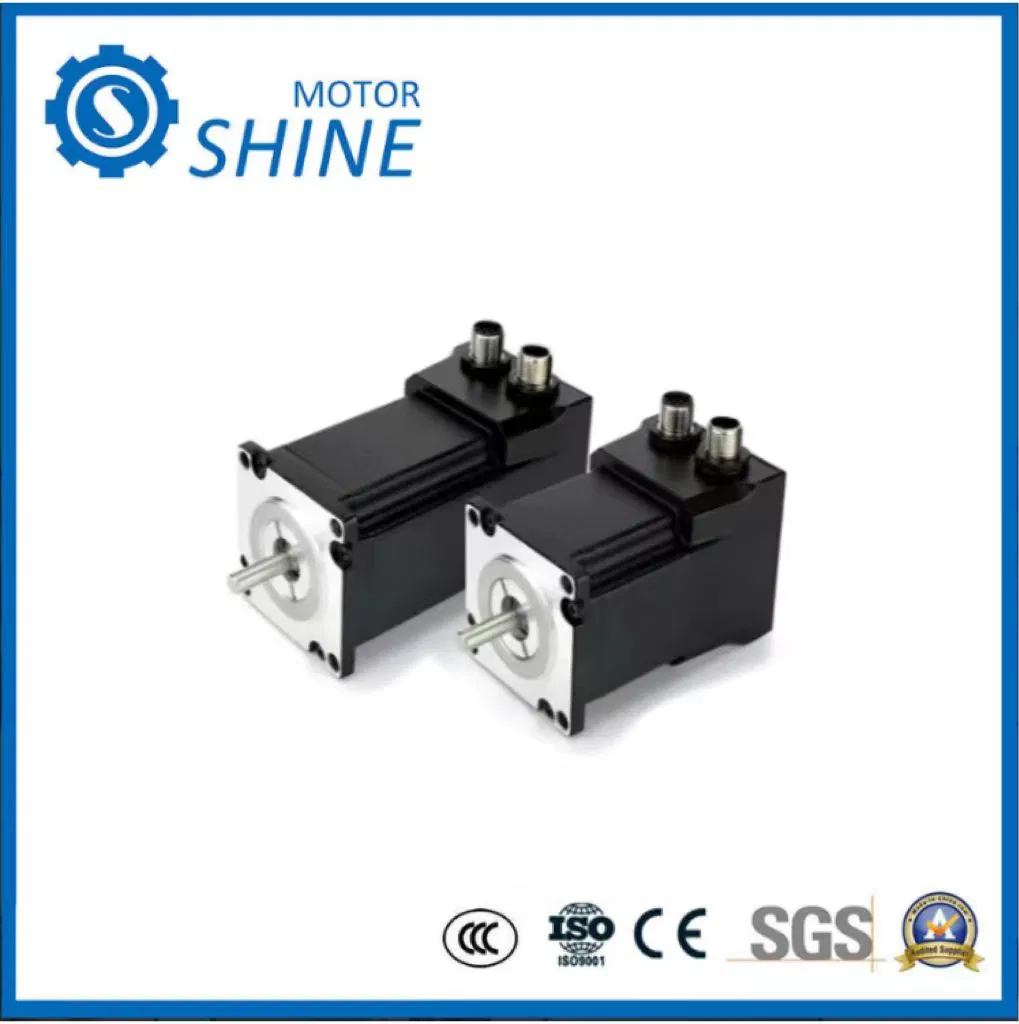

The ASA5618 high-torque stepper motor is rated IP65 (IP54 at the shaft output), accompanied by UL/CSA certification, and offers superior electromagnetic compatibility (EMC). The encoder is integrated - two types are available: multi-turn or incremental. Larger quantities of the ASA5618 can also be ordered with an integrated holding brake.

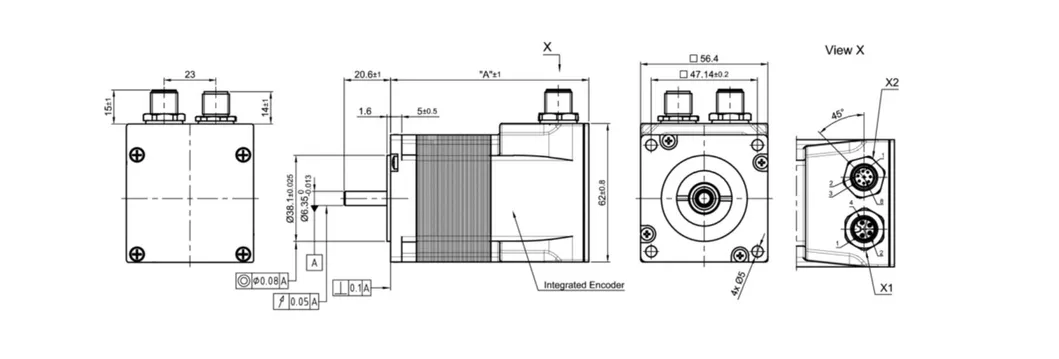

| Article | NEMA | Size | Holding Torque | Current | Length "A" | Encoder Type |
|---|---|---|---|---|---|---|
| ASA5618M42-E3 | 23 | 56 mm | 140 Ncm | 4.2 A | 88 mm | incremental |
| ASA5618M42-W1 | 23 | 56 mm | 140 Ncm | 4.2 A | 88 mm | SSI |
| ASA5618L42-E3 | 23 | 56 mm | 230 Ncm | 4.2 A | 109.5 mm | incremental |
| ASA5618L42-W1 | 23 | 56 mm | 230 Ncm | 4.2 A | 109.5 mm | SSI |
| IP-Protection Motor | IP65 (Except Shaft Output) |
| Inductance per Winding | 1.6 mH |
| Resistance per Winding | 0.5 Ohm |
| Operating Voltage (Encoder) | 5 V |
