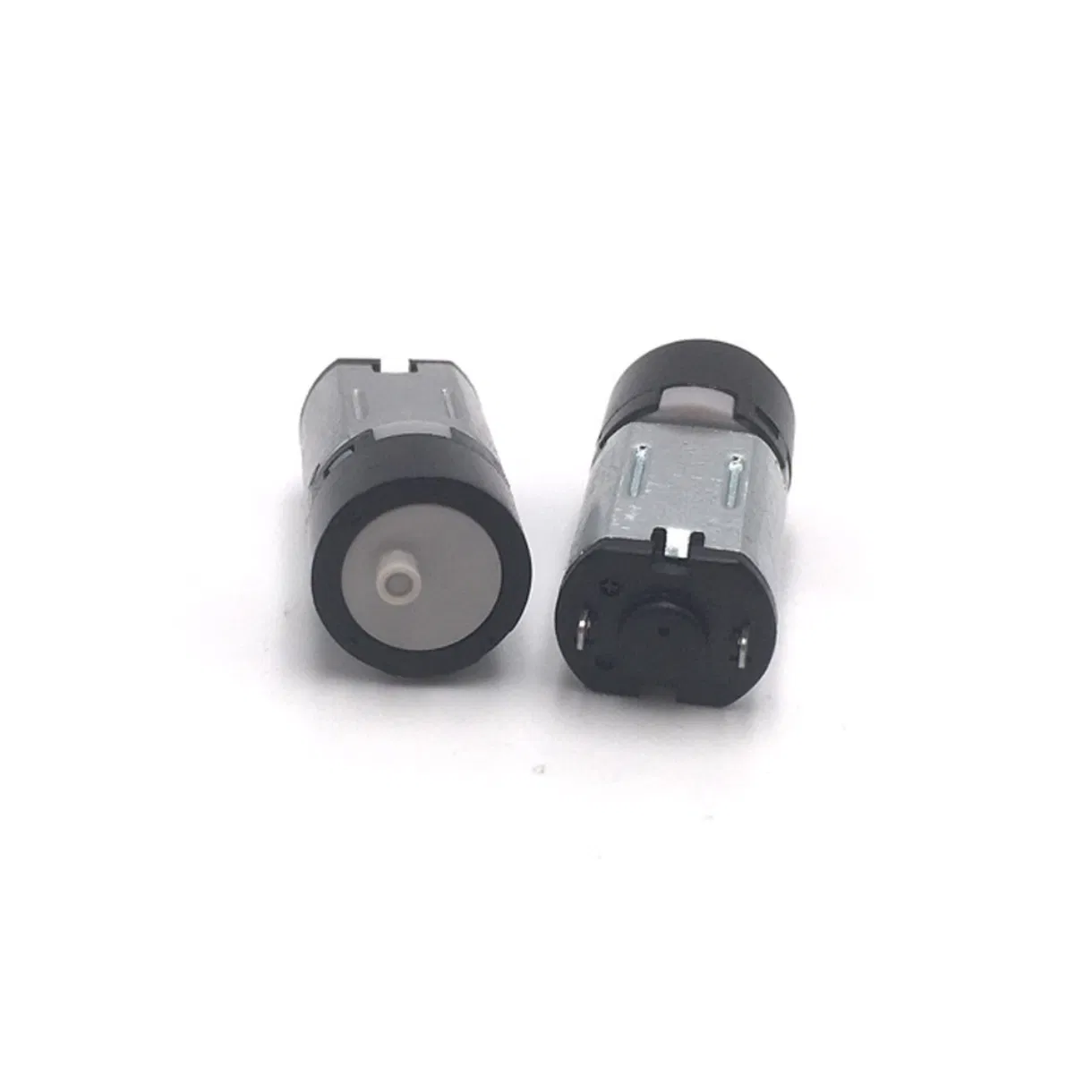

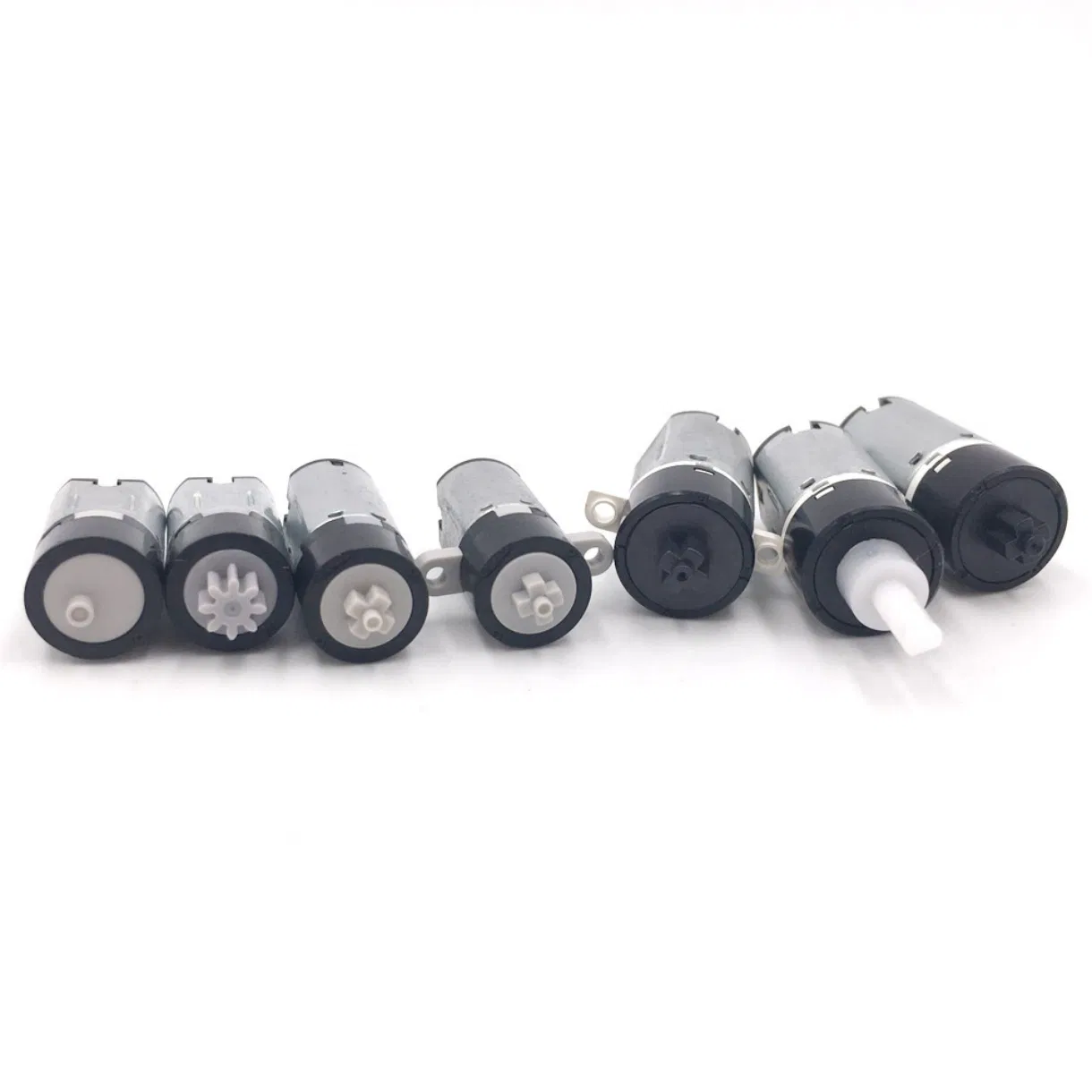

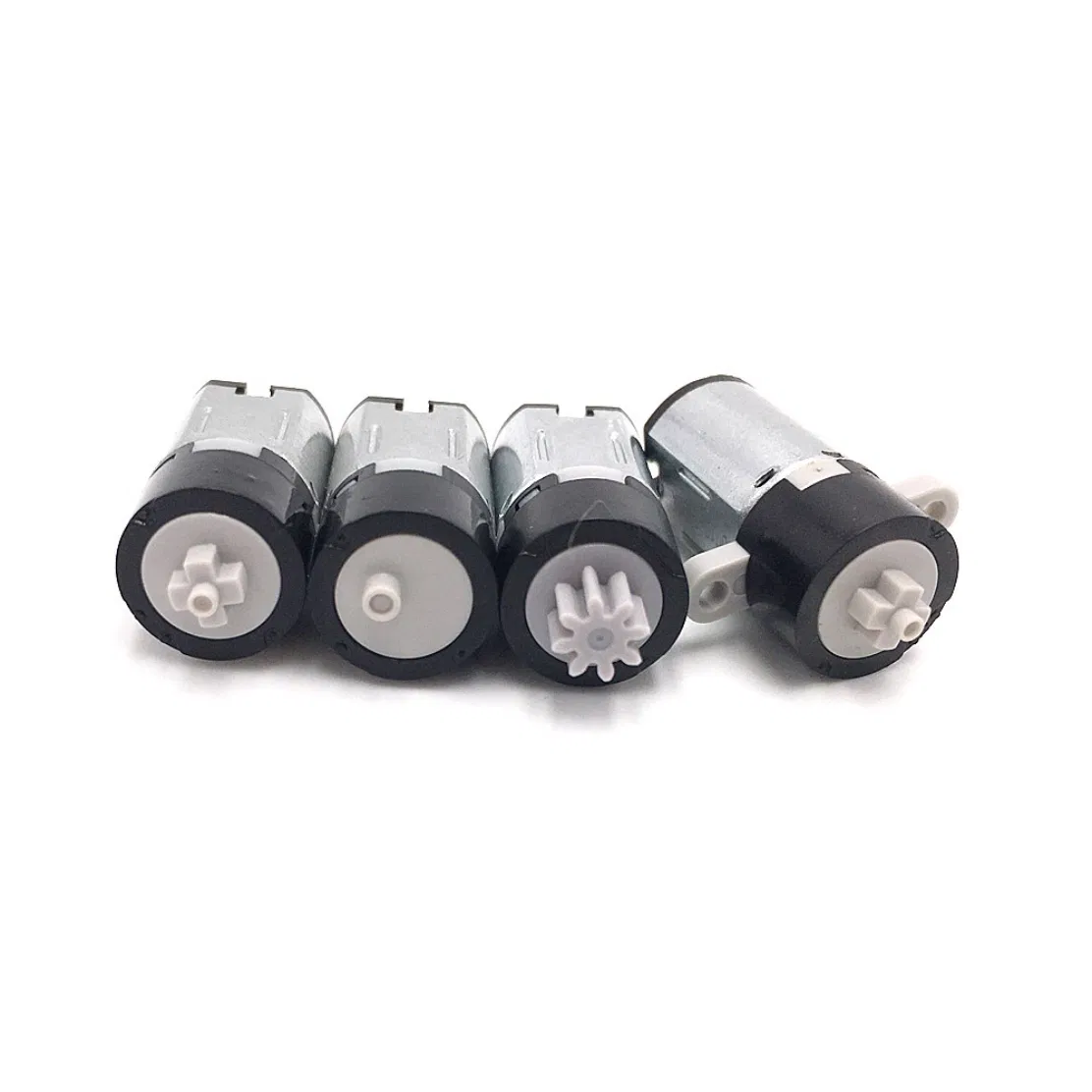

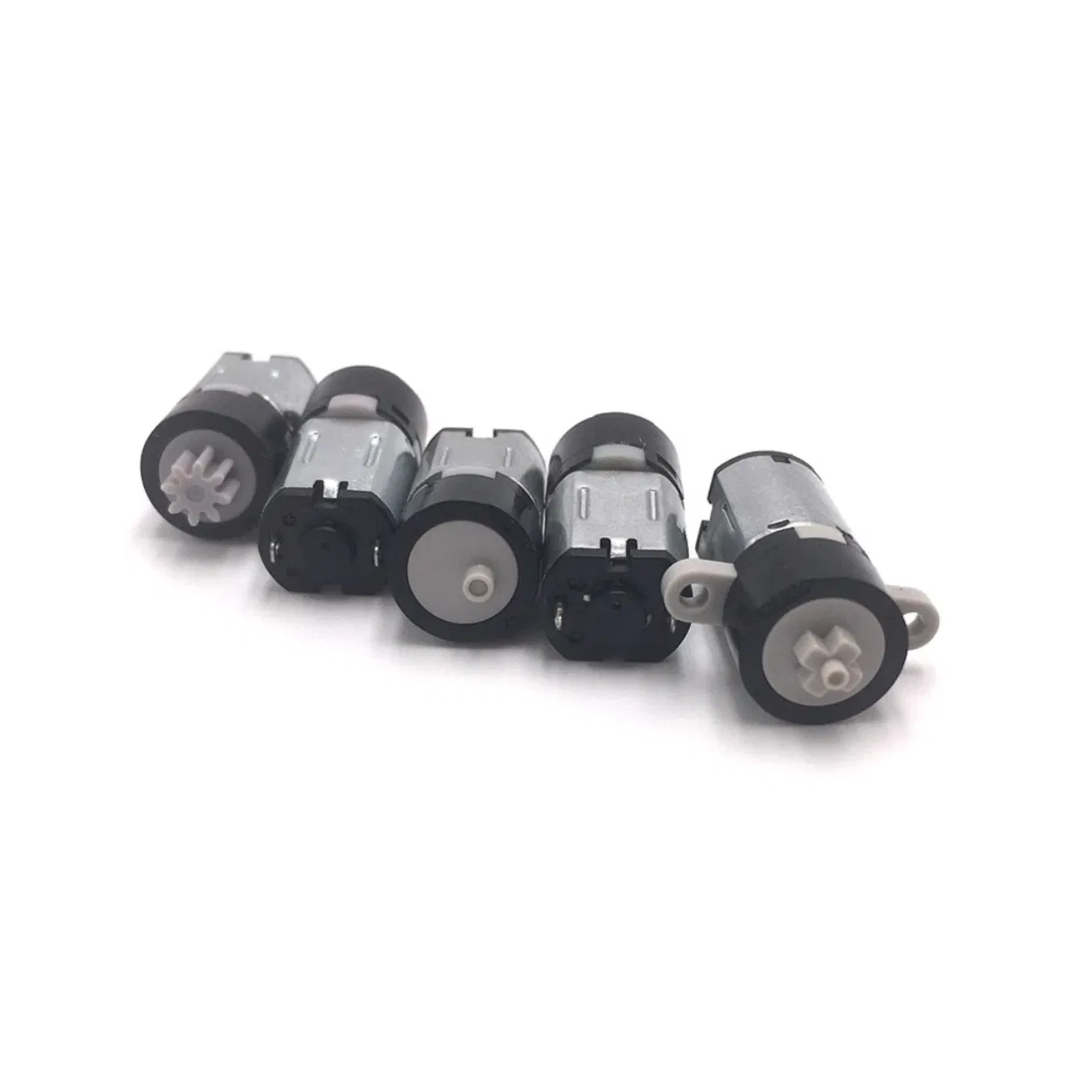

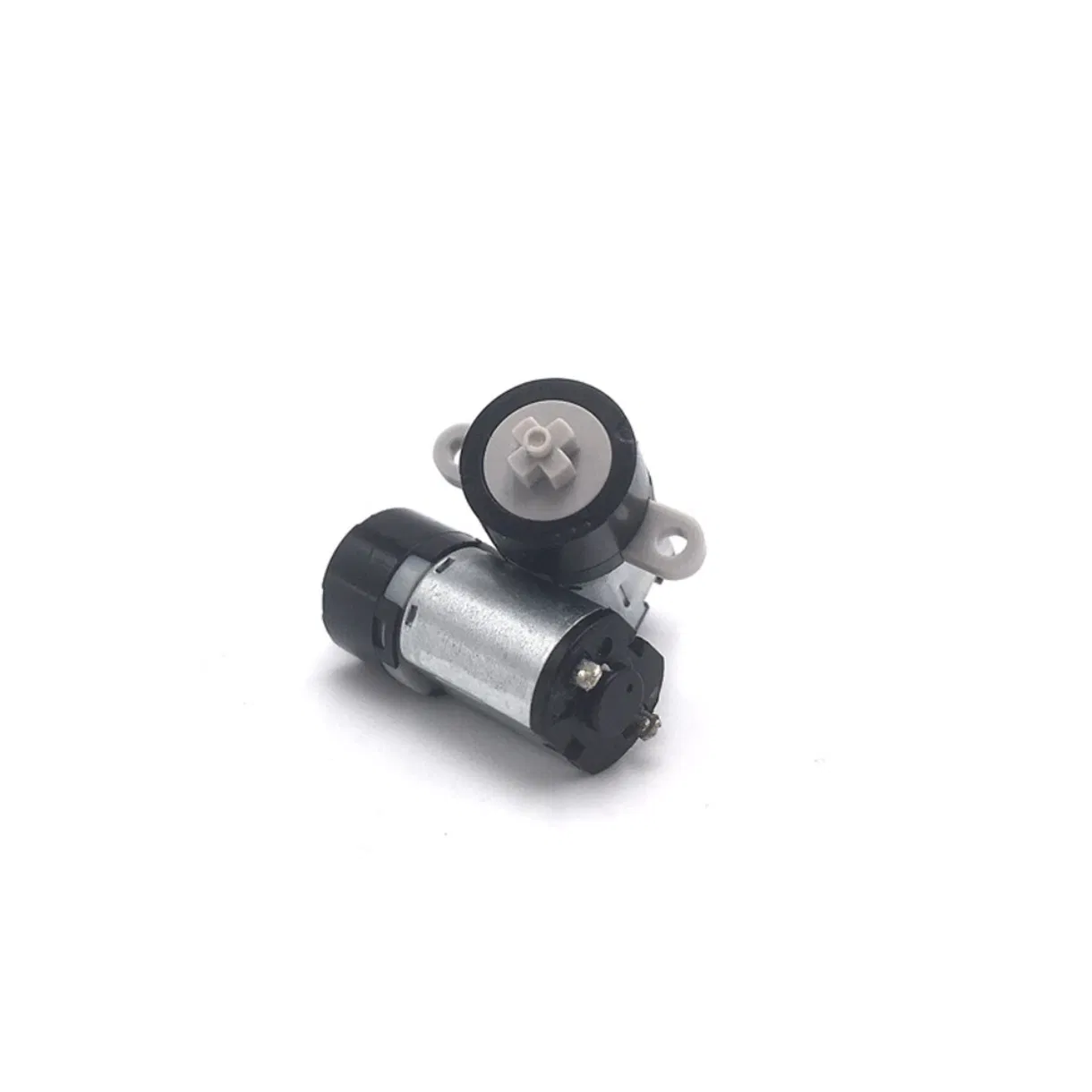

High Quality Mini 0.8V-12V DC Planetary Gear Motor

Product Description

Product Description

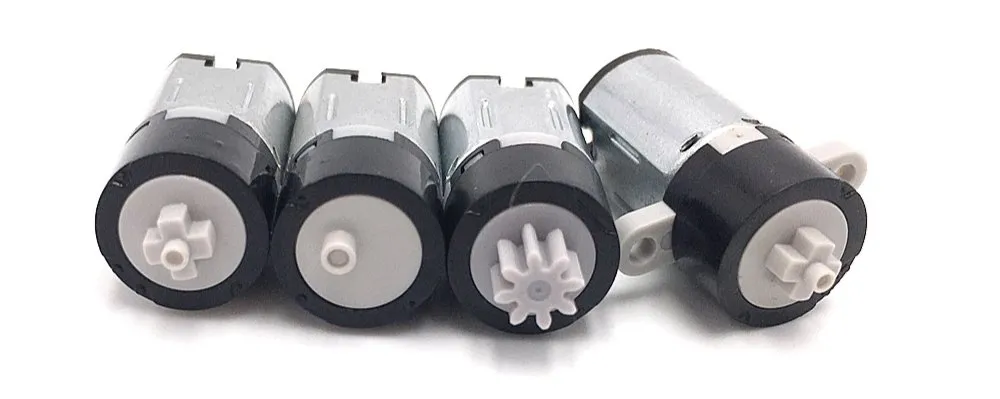

High Quality Micro DC Planetary Gear Motor
10mm plastic gearbox could be with M10/M20/M30 motor, specific parameters customized by request. High performance and compact design for various precision applications.
Applications
Application view 1 Application view 2
Smart Locks Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock
Intelligent Robot Mechanical Arm, UAV (Unmanned Aerial Vehicle), Service Robot
Appliances view Medical view Industrial view
Household Appliances Hair Curler, specialized personal care devices.
Financial & Medical 3Doodler, Projector, and precision medical equipment.
Industrial Equipment Air Switch and other automated industrial control components.
Specification
10mm Diameter Micro DC Planetary Gear Motor
Model LPM10-M10 Type DC Planetary Gear Motor
Voltage 0.8v-12v Speed 22rpm-170rpm
Continuous Current ≤1.6A Stall Torque ≤0.6kg.cm
Motor Size Φ10*8*12.5mm Gearbox Size Φ10*7mm
Gear Motor Technical Data (For Reference)
Voltage (V) Gear Ratio No Load Speed (rpm) Rated Speed (rpm) Rated Torque (mN.m) Rated Torque (g.cm) Stall Torque (mN.m) Stall Torque (g.cm)
3 1/171 64 47 8.33 85 33.32 340
3 1/171 100 78 10.78 110 49 500
6 1/171 125 93 15.68 160 58.8 600

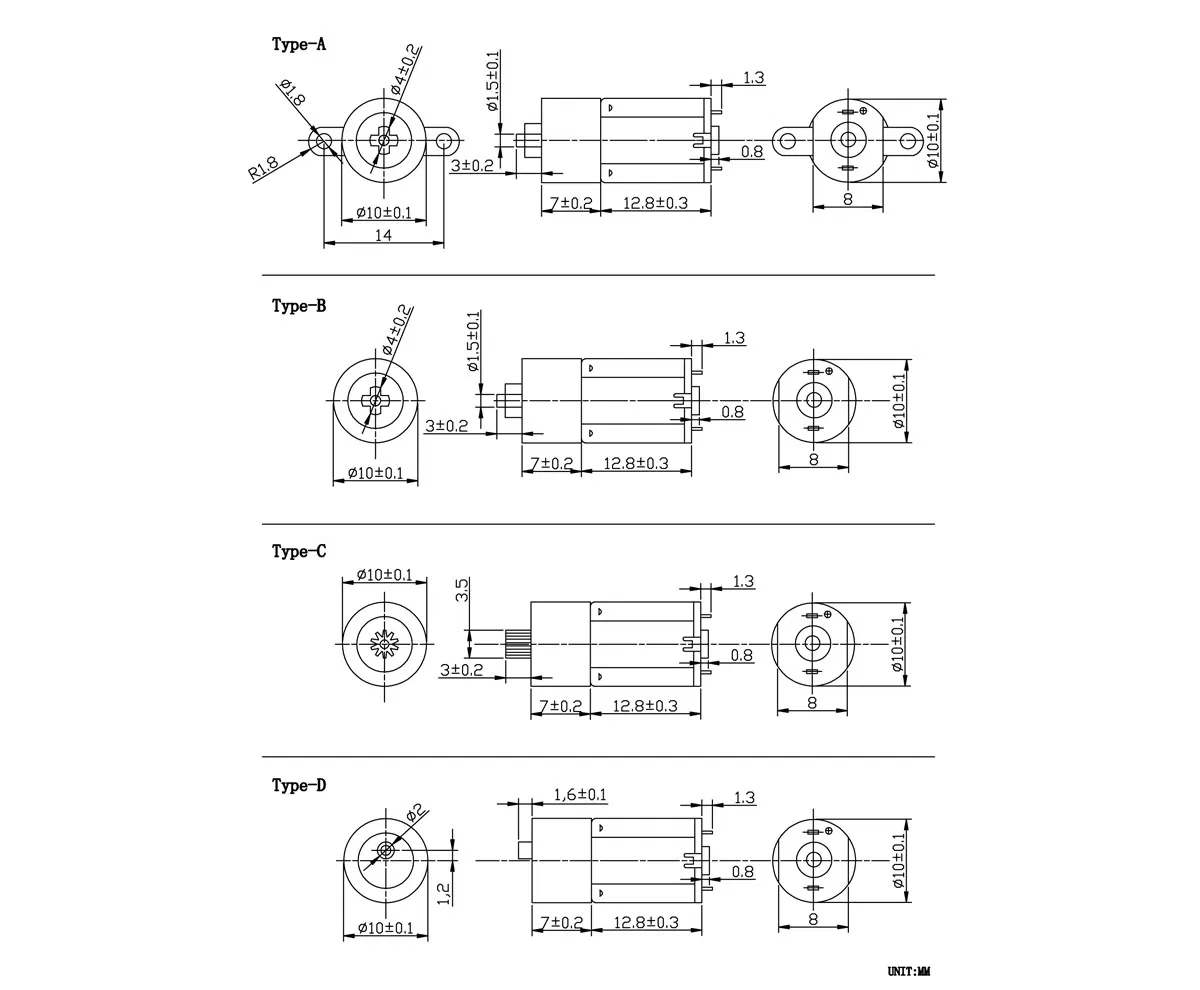

Outline Dimension
Technical Drawing

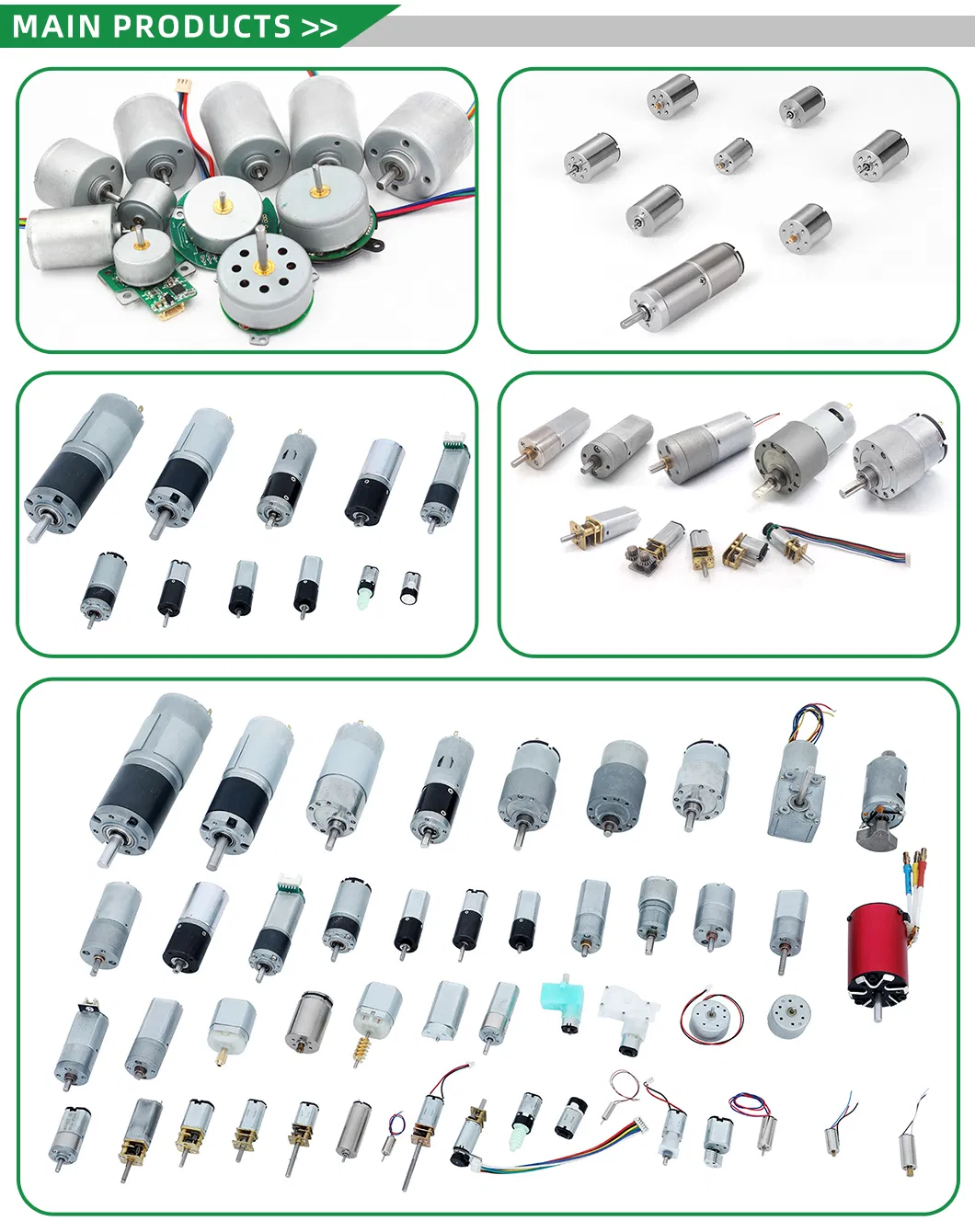

Main Products
Product Range 1 Product Range 2
Company Profile

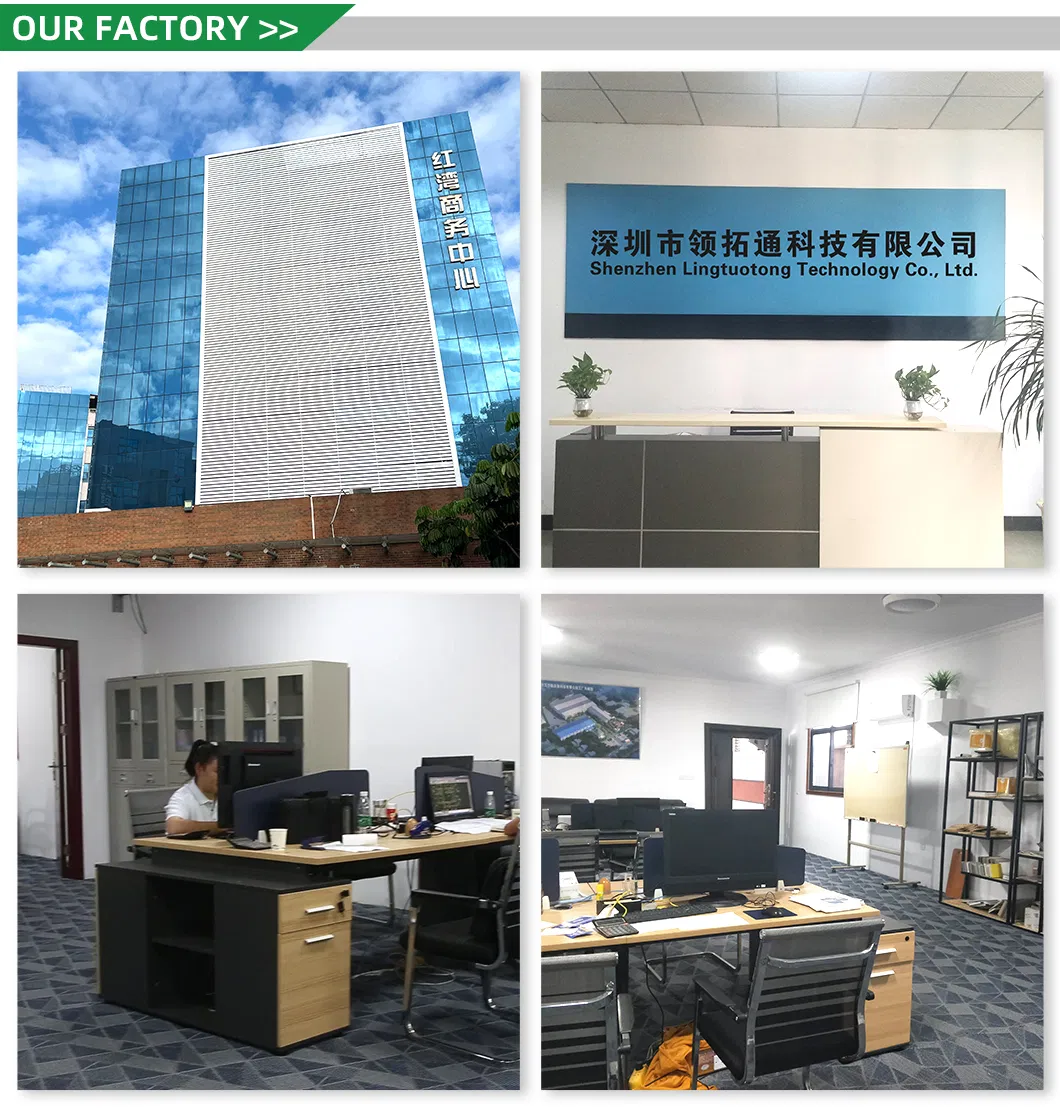

Factory Overview
Specializing in hardware modules, small gear modules, and miniature precision planetary gearboxes for many years. With a stable technical team and profound accumulation, we provide overall drive system solutions for industrial tools, personal care, security, automotive parts, and healthcare devices. We adhere to the business philosophy of "manufacturing products with heart and serving customers sincerely".

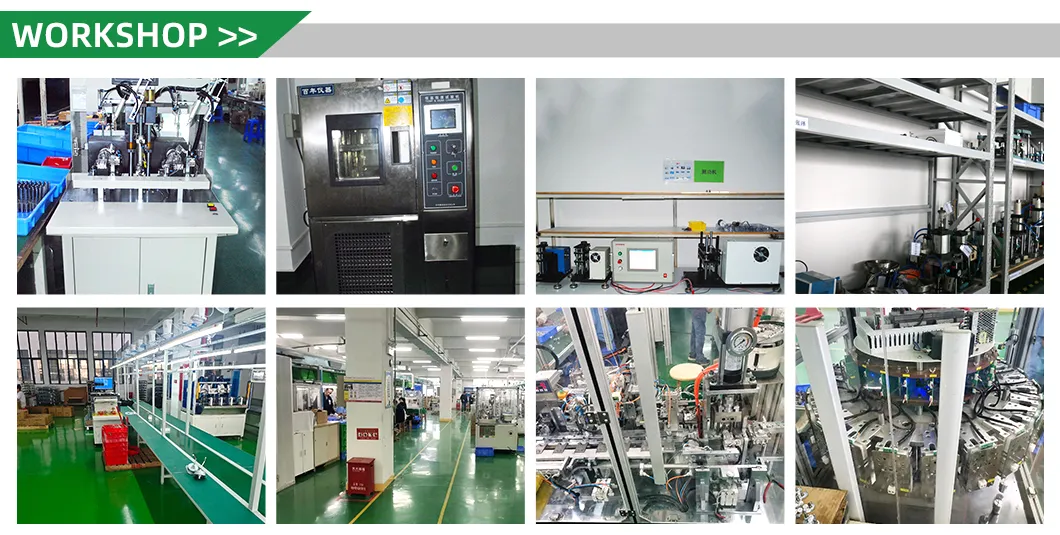

Manufacturing Process Equipment
Certifications
Quality Certificates
Packaging & Shipping
Packaging Logistics
FAQ
Do you provide samples?
Yes. We provide samples for all clients to test before mass production. The lead time usually is 7-15 days.
Do you provide technology support?
Yes. Our company has strong R&D capability, and we can provide technology support if you need.
How to select a suitable DC Gear Motor?
If you have pictures, drawings, or detailed specs like voltage, speed, torque, motor size, and working mode, please let us know, and we will recommend the suitable model accordingly.
Do you have customized service?
Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add wires, connectors, capacitors, or EMC components.
Do you have stock?
We do not keep items in stock. All products are manufactured based on specific orders.
How to ship goods?
We ship goods by air (DHL, FedEx, UPS, TNT) or by sea, depending on your preferred mode of transportation.
