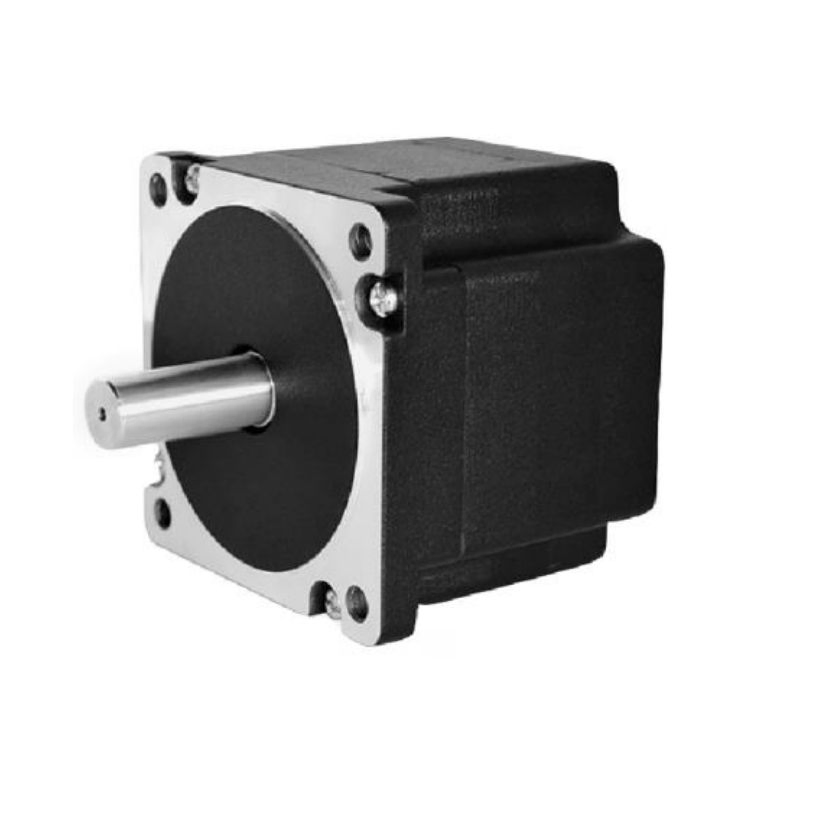

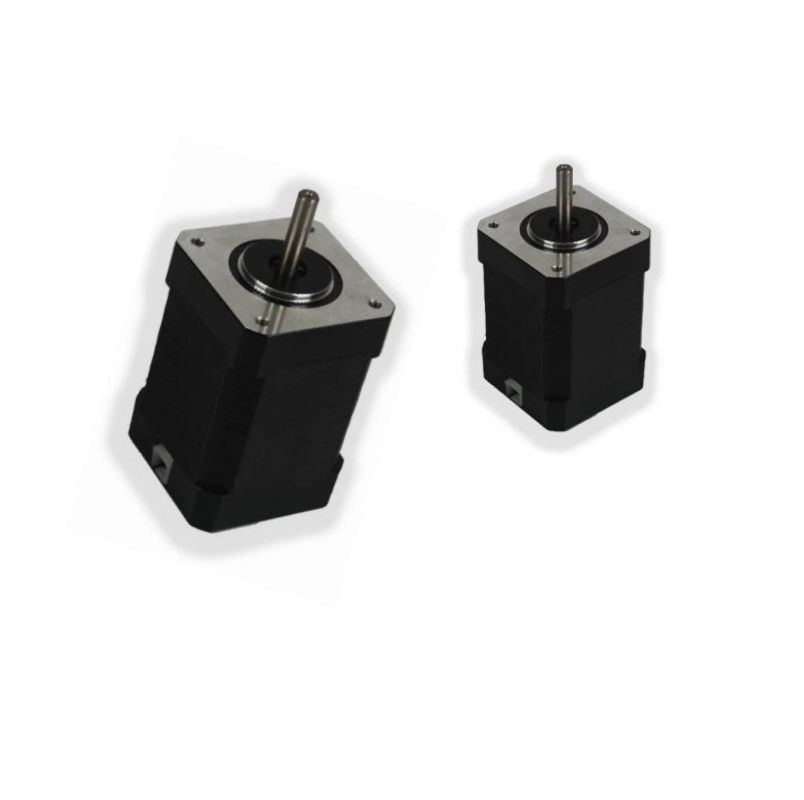

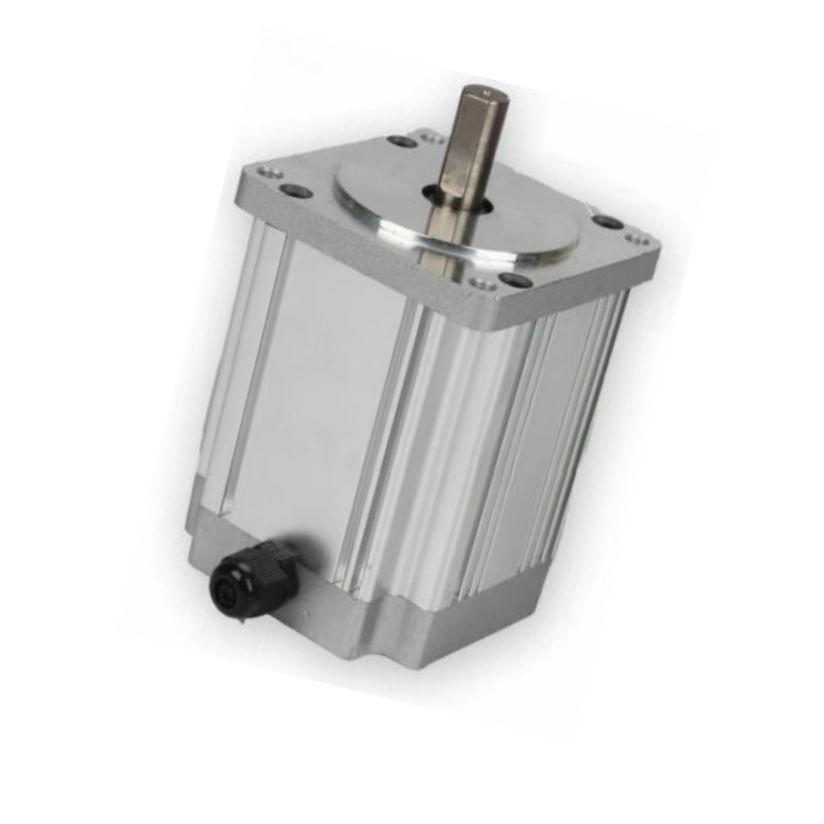

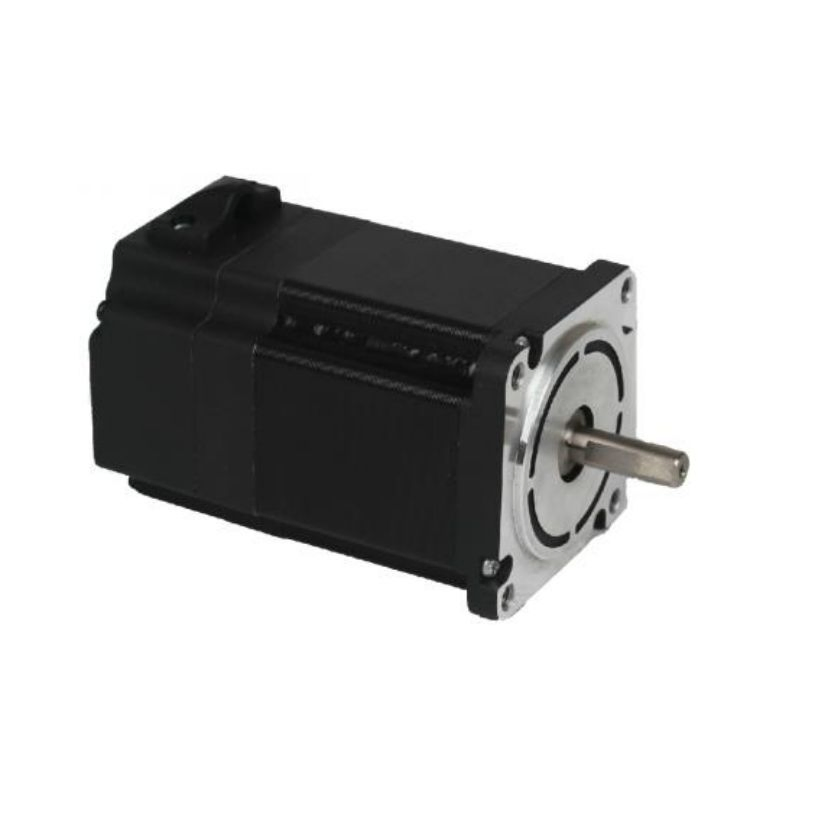

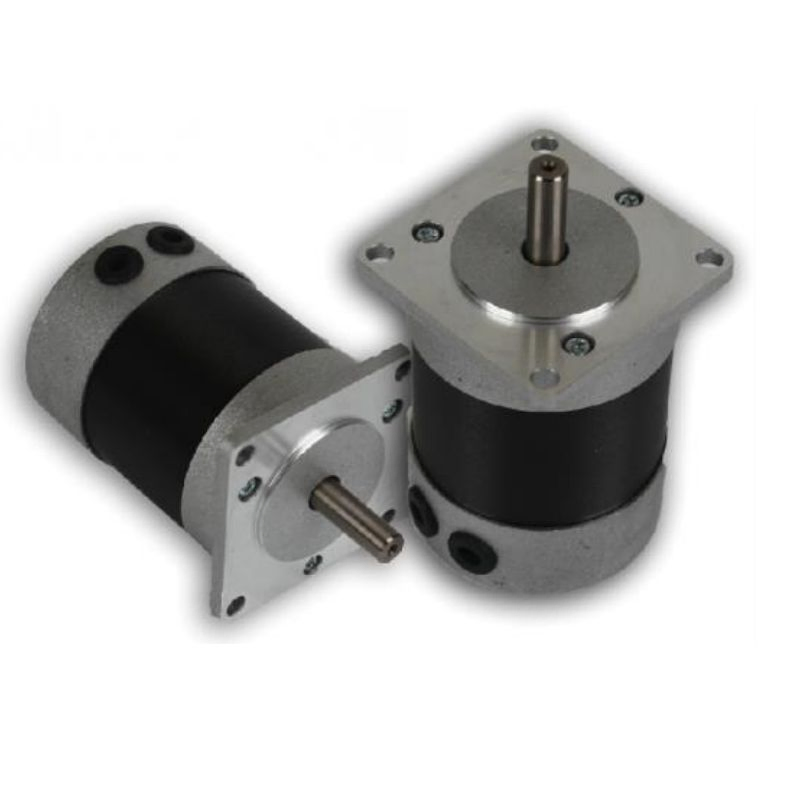

High-Performance Brushless DC Gear Motor for Robotics Applications

1 / 5

High-Performance Brushless DC Gear Motor for Robotics Applications

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.

DC400W(80)

Excitation Mode

Permanent Magnet

Function

Control, Driving

Casing Protection

Protection Type

Number of Poles

Structure

Brushless

Type

BLDC Motor

Certification

ISO9001, CCC

Rated Power

50W - 2000W

Rated Voltage

12V/24V/48V/72V/220V DC

Rated Speed

100-3000 Rpm

Efficiency Class

IE3 / IE4

Operating Temp

-20℃ to 50℃

Bearing Type

Double Sealed Ball Bearing

Origin

China

HS Code

8501510090

Product Description

Brushless DC Motors are high-performance, energy-efficient motors designed for a wide range of industrial and commercial applications. Utilizing advanced permanent magnet technology and electronic commutation, our BLDC motors deliver superior performance with precise speed control, high torque density, and exceptional reliability. Available in power ranges from 50W to 2000W with various voltage options, these motors are engineered to meet the demanding requirements of modern automation systems.

Application Scenarios

1. Industrial Automation

Ideal for CNC machines, robotics, conveyor systems, and assembly lines requiring precise positioning and repetitive motion control.

2. Material Handling

Perfect for AGVs, mobile robots, stackers, and automated packaging lines with smooth start/stop operation.

3. Machinery & Equipment

Used in textile machinery, food processing (mixers/pumps), and printing equipment with high cycle rates.

4. Special Applications

Energy-efficient solutions for compressors, tool changers, and precision test/measurement equipment.

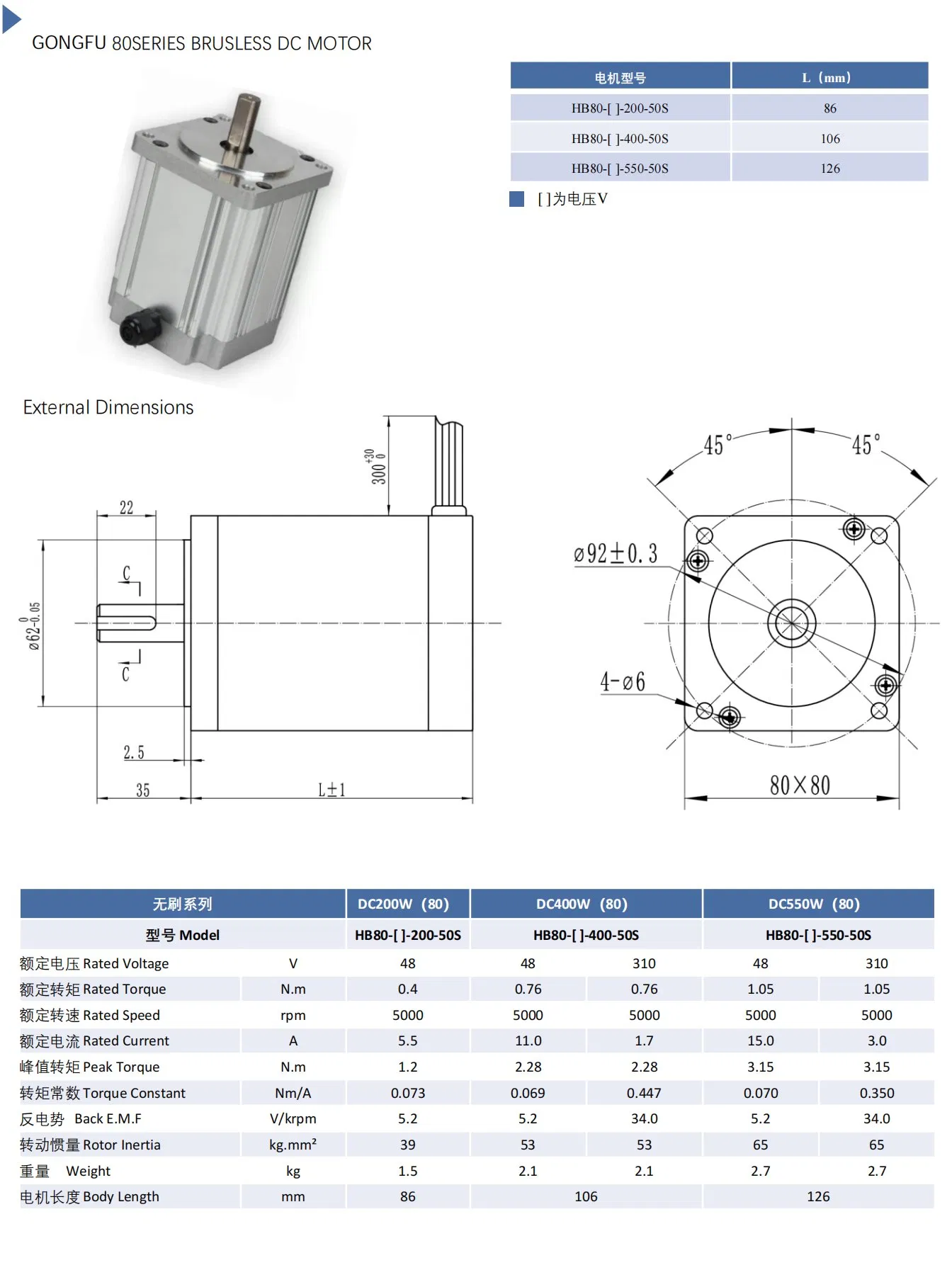

Technical Specifications

Manufacturing Excellence

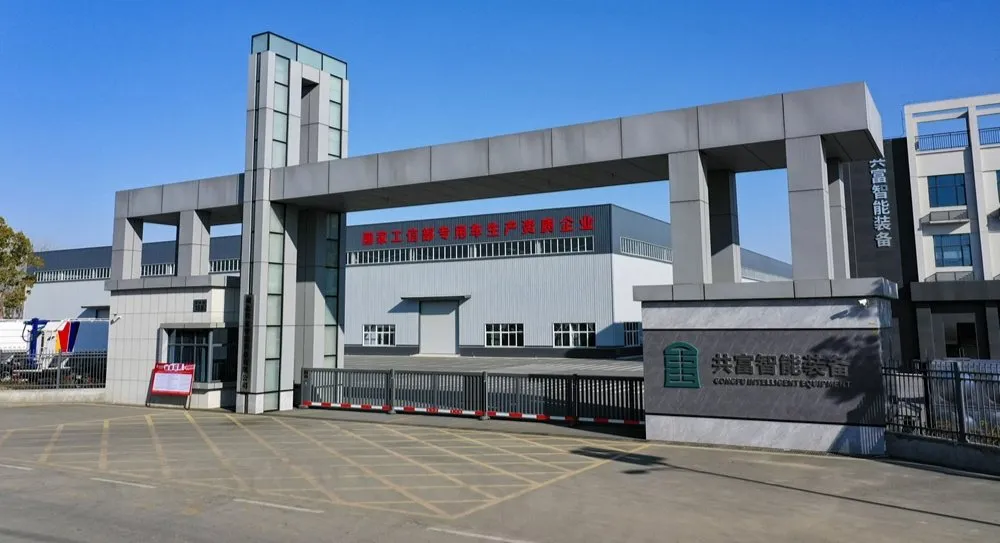

As a leading manufacturer with over 20 years of expertise, we provide reliable machinery backed by R&D innovation and strict quality control. Certified with ISO 9001 and CE, our products are exported to over 50 countries worldwide.

Frequently Asked Questions

What is the standard lead time for orders?

Standard models typically ship within 15–30 days, while customized units require approximately 30–45 days depending on the complexity.

Do you provide international after-sales support?

Yes, we maintain a network of partnered service centers in key regions to ensure reliable support for our international clients.

Can these motors be customized for specific applications?

Absolutely. We offer tailored solutions including specific voltage requirements, customized shaft dimensions, and specialized attachments.

What export documentation is included?

We provide a complete export package including Commercial Invoice, Packing List, Bill of Lading, COC, and any other required regional certifications.

What are the main advantages of your Brushless DC motors?

Our motors feature high efficiency (IE3/IE4), long service life due to double sealed bearings, and precise speed control across a wide range of operating temperatures.

How can I obtain a technical quote?

Please provide your required specifications (power, voltage, speed) through our formal inquiry channels, and our engineering team will provide a detailed proposal.
