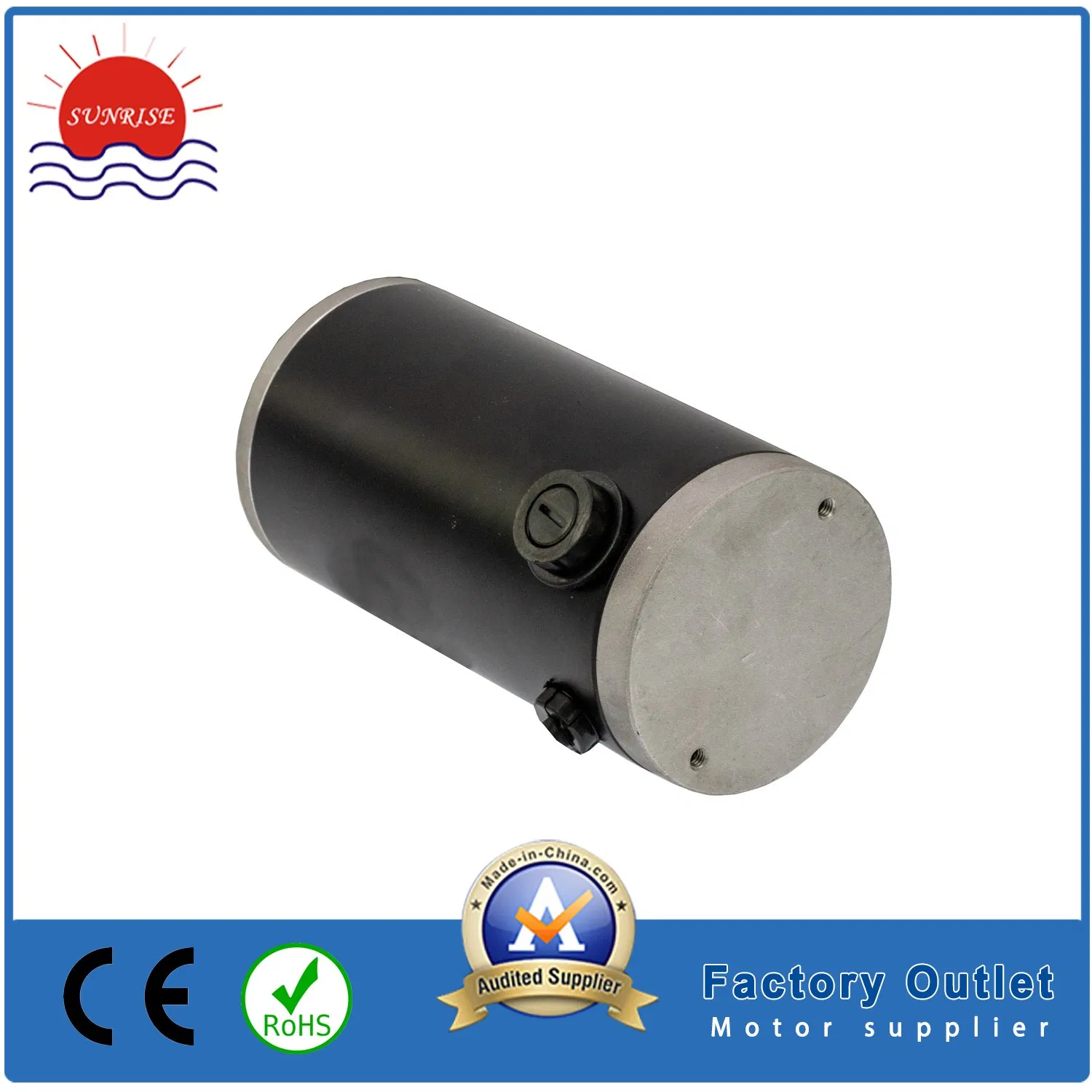

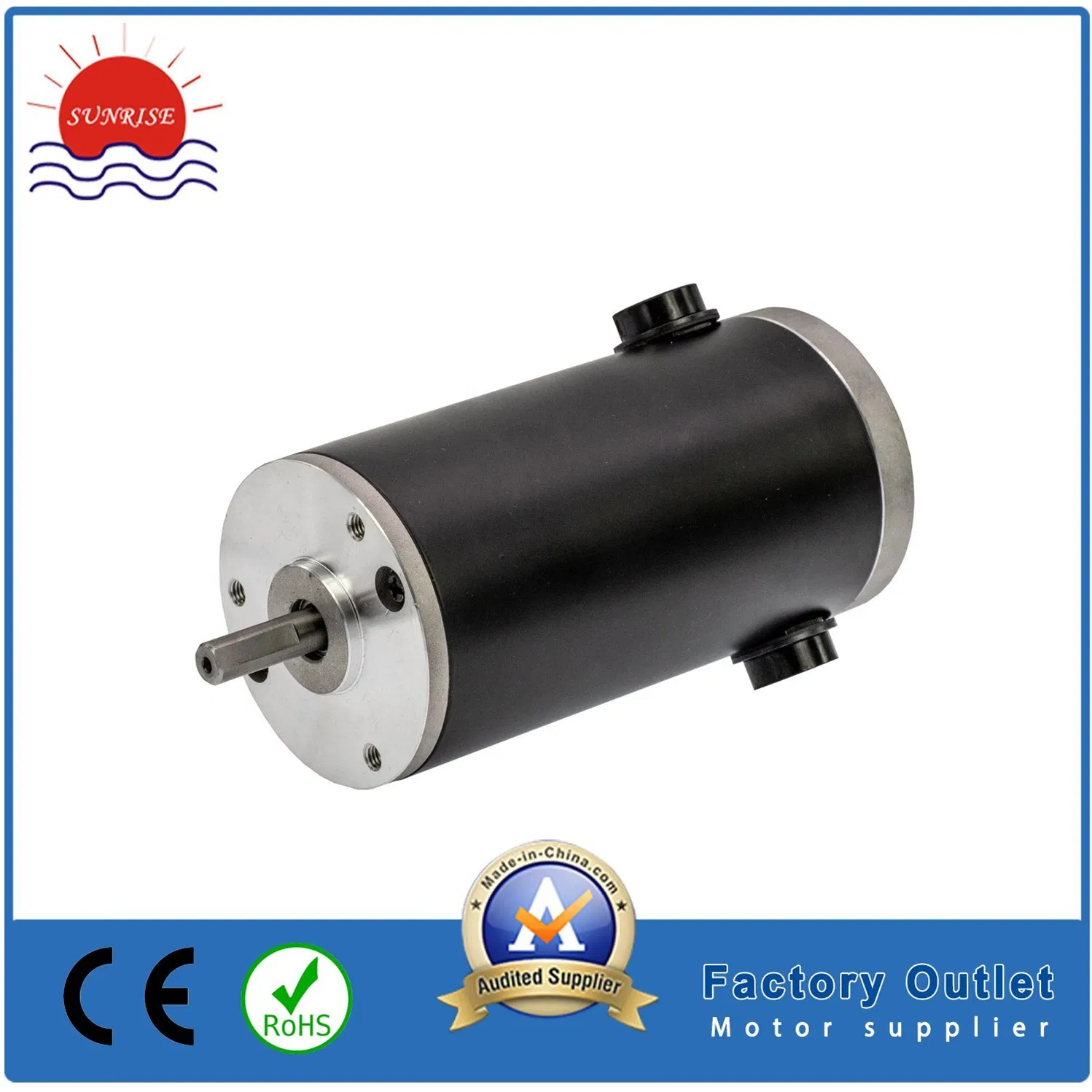

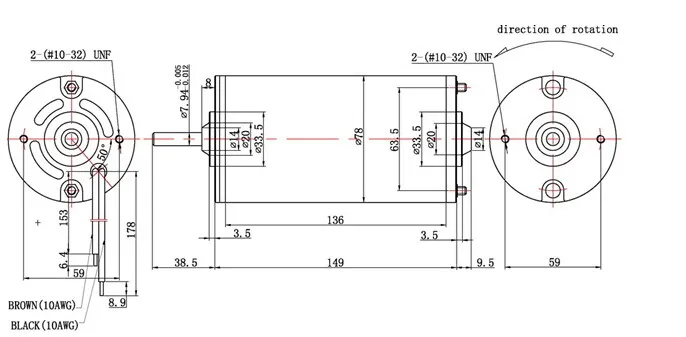

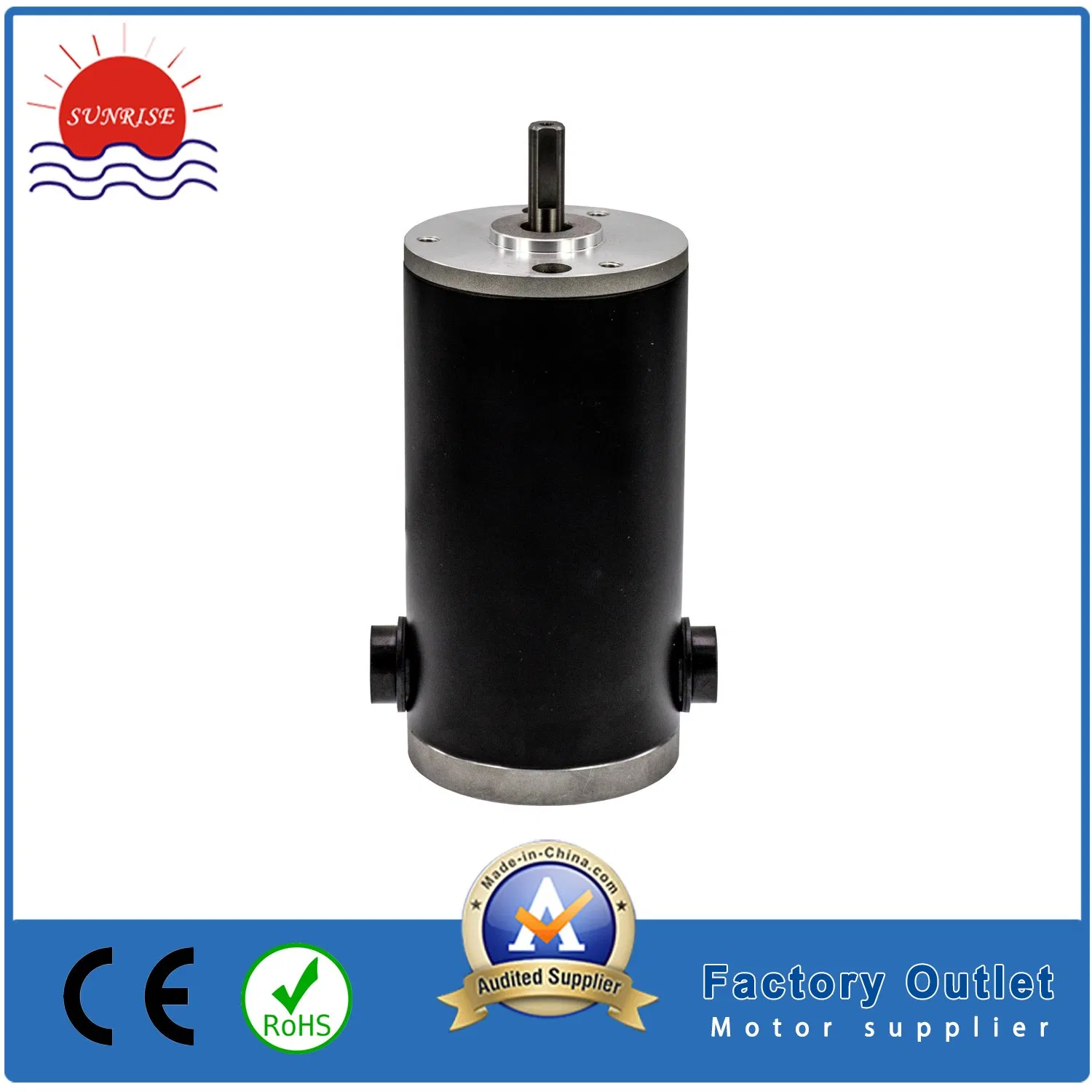

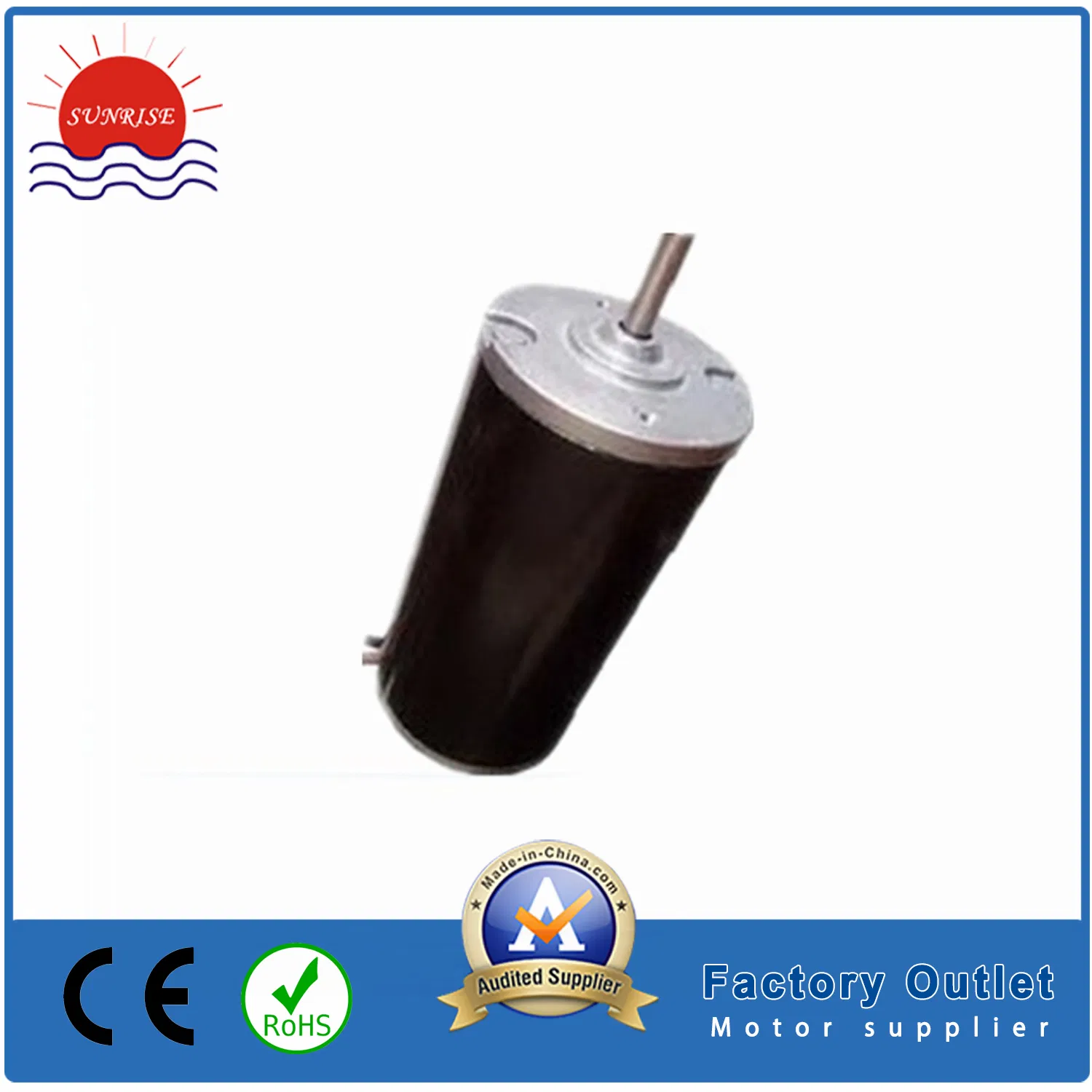

Permanent Magnet DC PMDC Brush Motor 78ZYT
In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
⚙️
High Torque
Optimized starting performance
📏
Compact Size
Space-saving design for industrial use
💡
Cost-Effective
Efficient performance for diverse applications
What is a PMDC motor?
In PMDC motors (Permanent Magnet Direct Current), permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings.
Advantages of PMDC motors
Cost-effective and with a high starting torque, PMDC motors are generally smaller but still offer an impressive output performance, which makes them a popular choice for use in many applications. An extensive range of PMDC motors has been trusted by global manufacturers for more than 30 years. They are most often combined with gearboxes to reduce speed and increase torque for the ultimate geared motor solution.
Performance Range & Parameters
Standard permanent magnet DC motor-only products cover the following performance range:
• Speed: 1000 - 5000 RPM
• Power: Up to 2030 Watts
• Torque: 0.1 - 4.9 Nm
| Model |
Voltage (V DC) |
No Load |
Rated Load |
Length (mm) |
| Current (A) |
Speed (r/min) |
Torque (N.m) |
Current (A) |
Speed (r/min) |
| 78ZYT149-1224 |
12 |
2 |
2400 |
0.4 |
9 |
2200 |
149 |
Customization & Specifications
Several levels of PMDC motor customization are available, including shaft variations, output flange options, various cable lengths, brakes, encoders, paint finishes, and terminal boxes. If you have a particular specification in mind, we recommend a fully customized solution tailored to your individual needs.

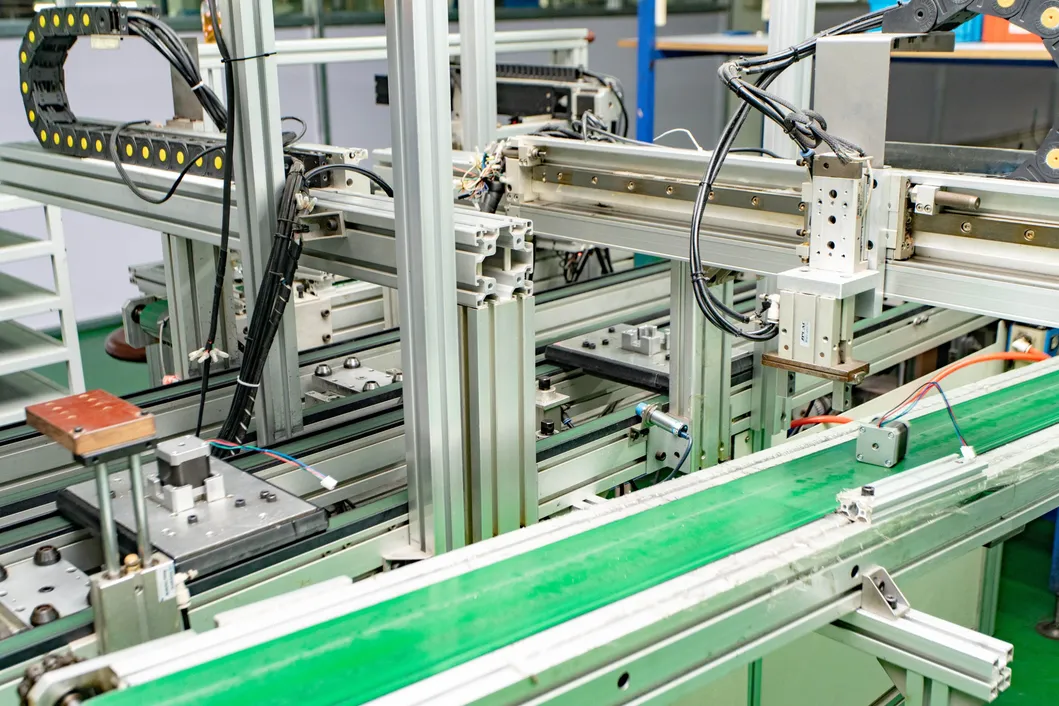

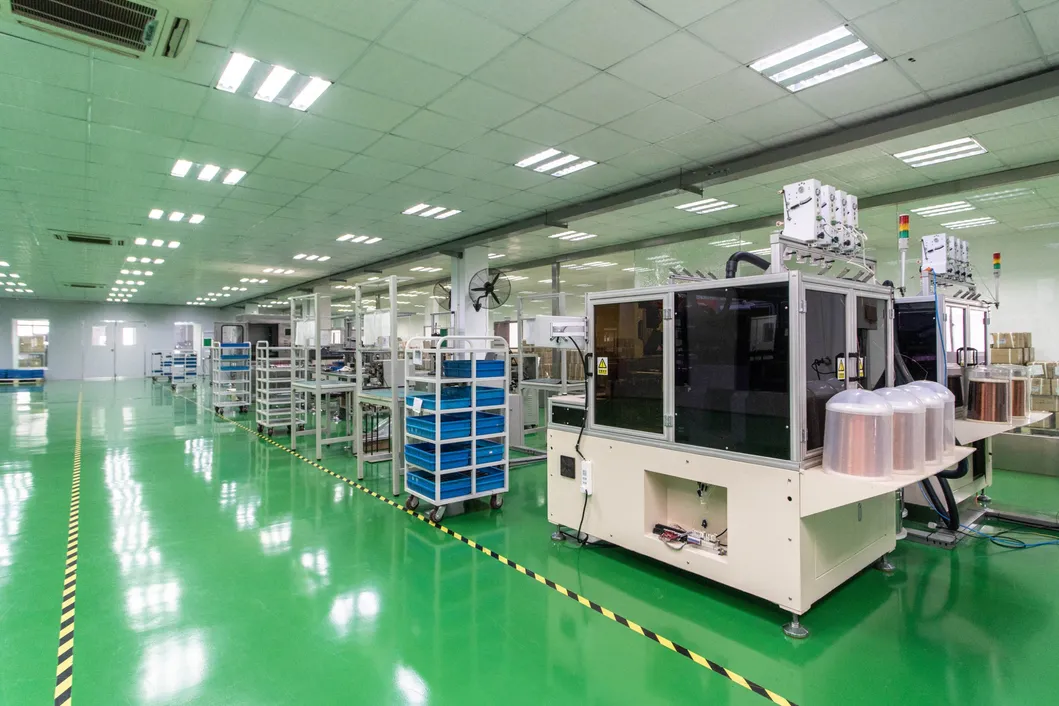

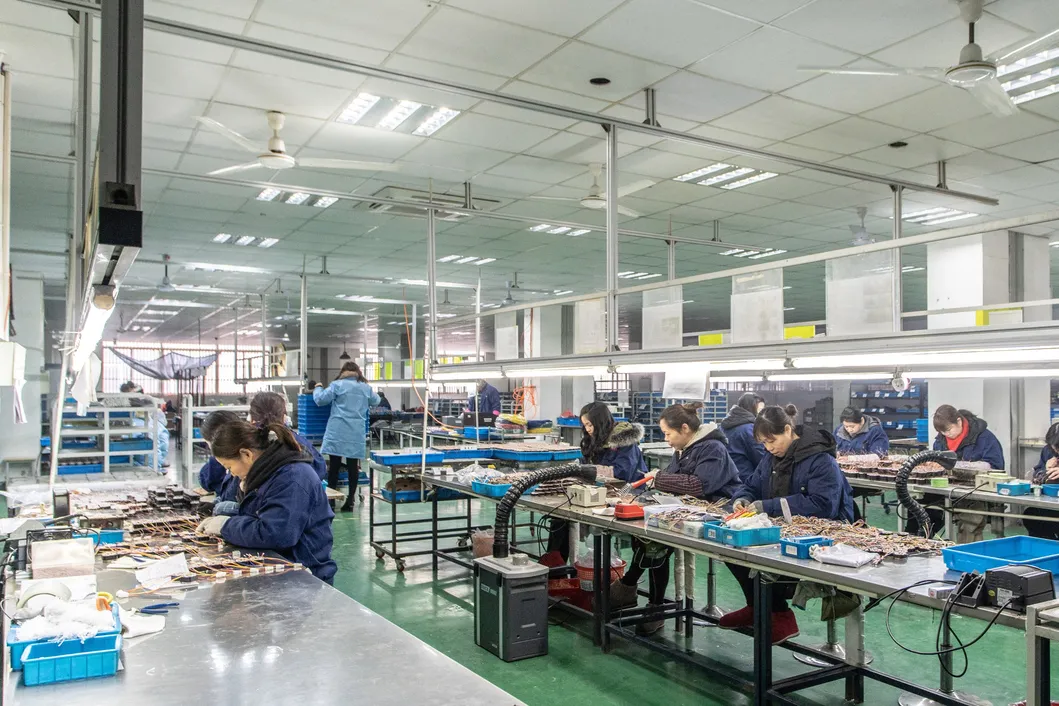

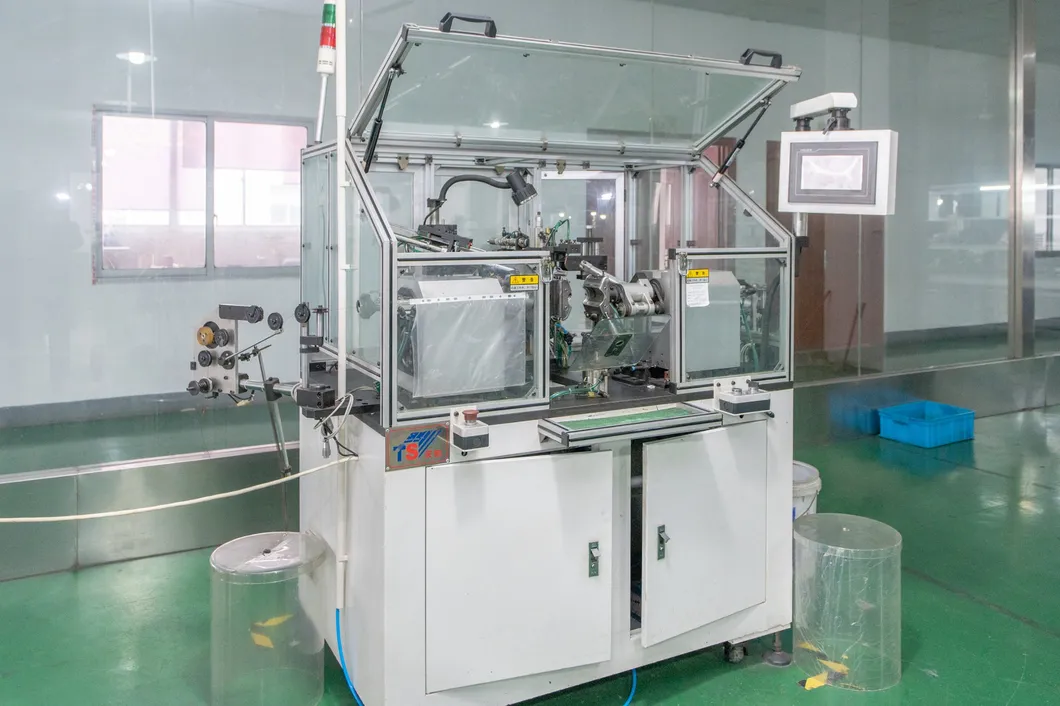

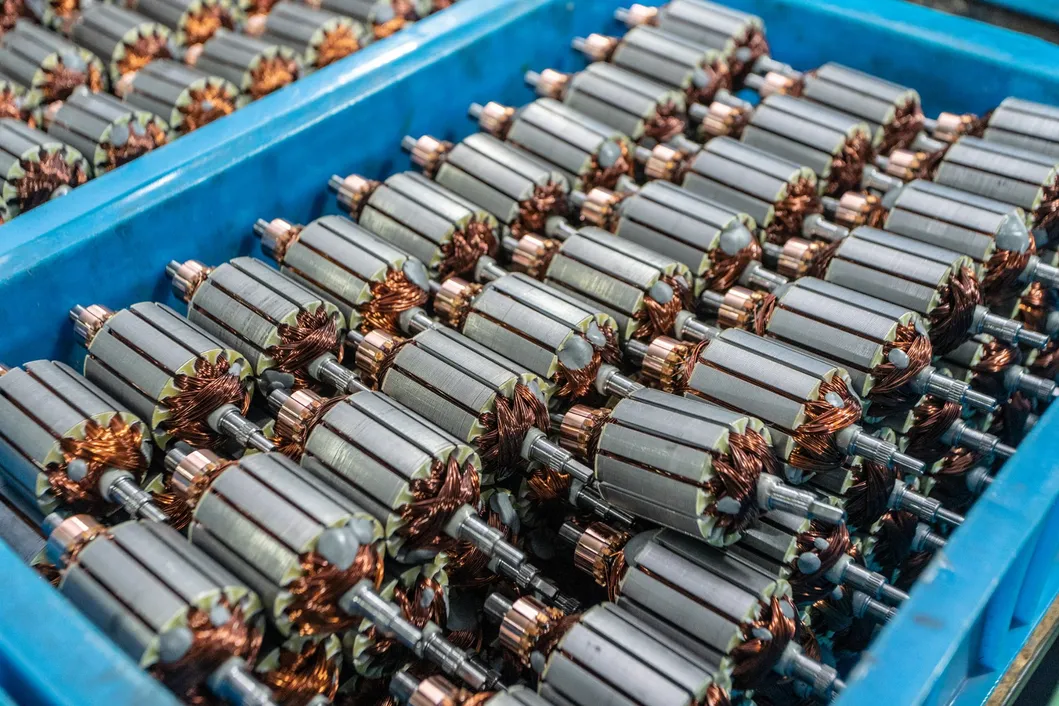

Professional Manufacturing & Facilities
Our Core Advantages

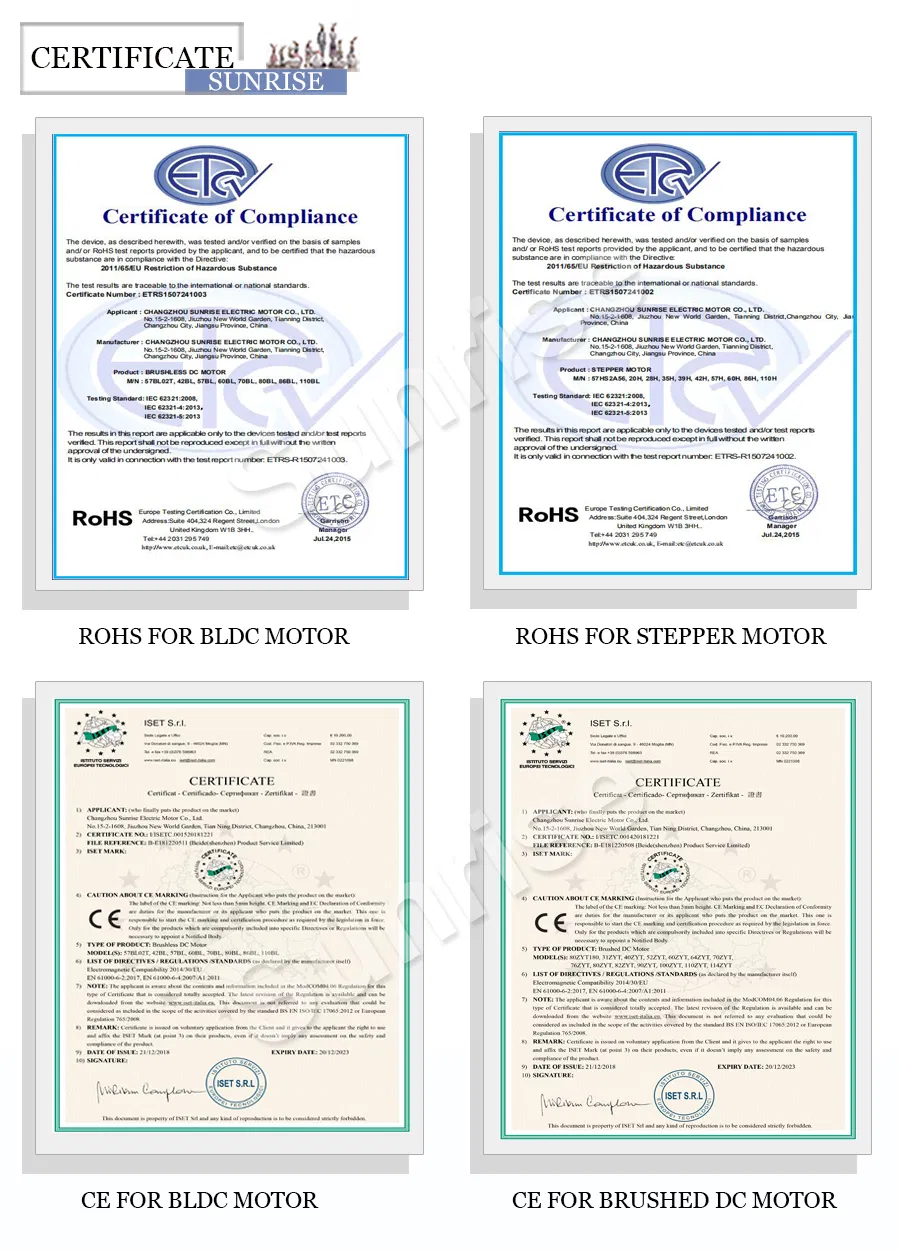

Quality Certifications
Frequently Asked Questions
How can I place an order for the PMDC motors?
The process involves sending an inquiry, receiving a quotation, negotiating technical details, confirming samples, signing the contract/deposit, followed by mass production and final delivery.
Are sample orders available for testing?
Yes, samples are available for quality evaluation. Please contact our support team to discuss specific requirements for your sample motor.
What shipping methods are available for international orders?
We support various shipping methods including DHL, UPS, FedEx, TNT, EMS, and sea freight to ensure flexible delivery options worldwide.
What is the standard lead time for production?
Delivery time typically ranges from 15 to 25 working days, depending on the specific order quantity and customization requirements.
What are the accepted payment methods?
We accept payment via T/T and PayPal. Generally, a 30-50% deposit is required, with the remaining balance to be settled before shipping.
Can the motors be customized for specific torque or speed?
Absolutely. Our engineering team specializes in tailored solutions, including specific shaft variations, encoders, and gearbox integrations to match your application needs.
