Model NO.
GE752/YZ08/YZ08A/YZ08F
Excitation Mode
Series, Shunt & Independent
Casing Protection
Explosion-Proof Type
Certification
ISO9001, CCC, CE

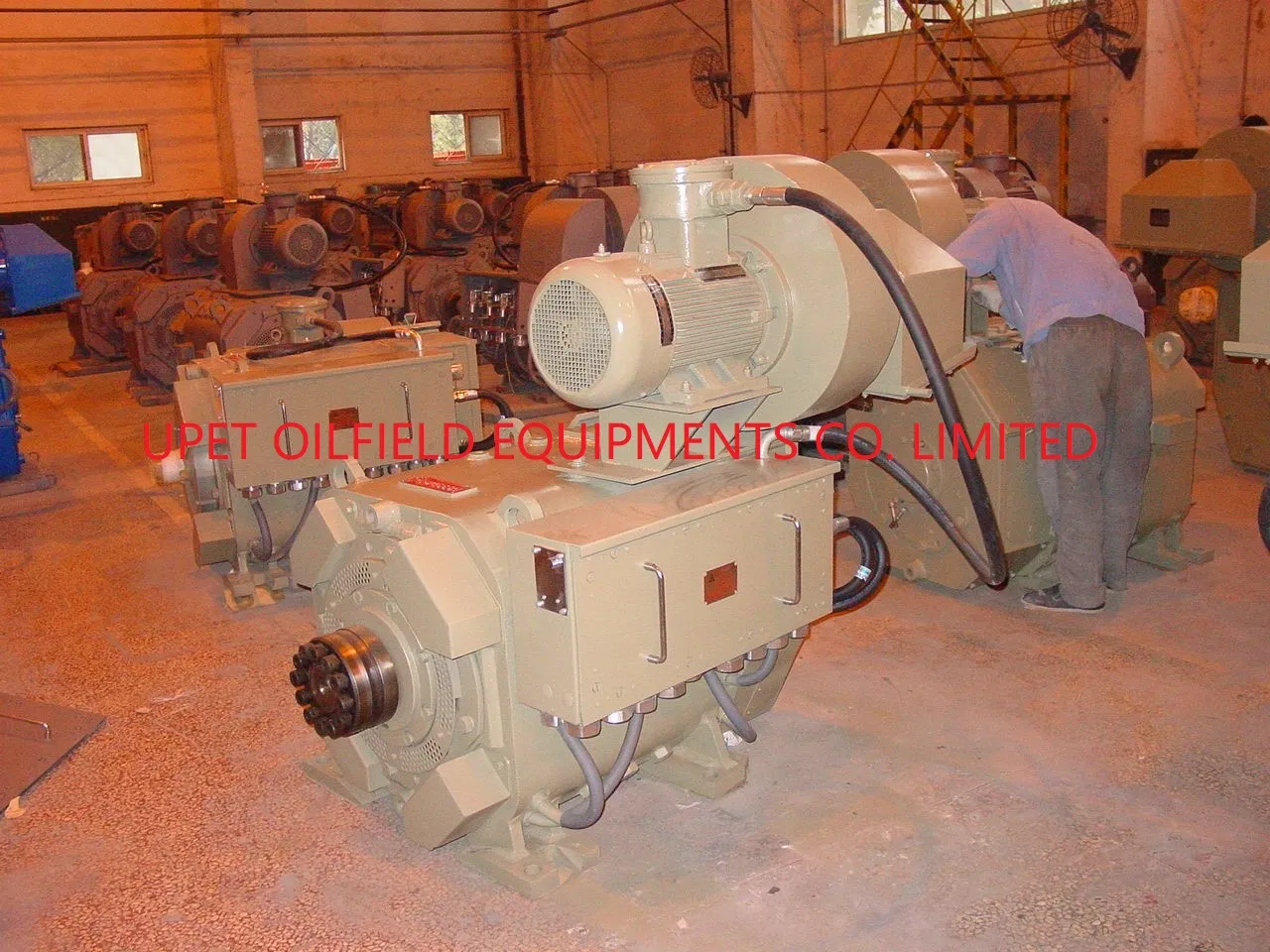

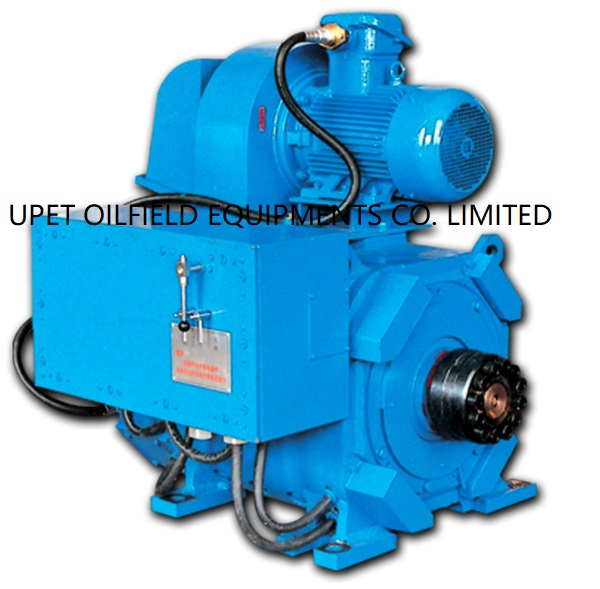

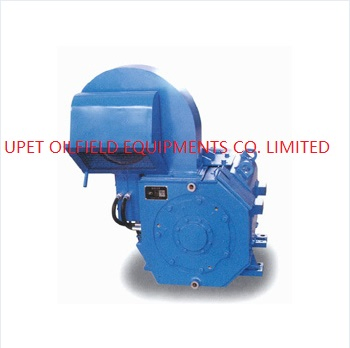

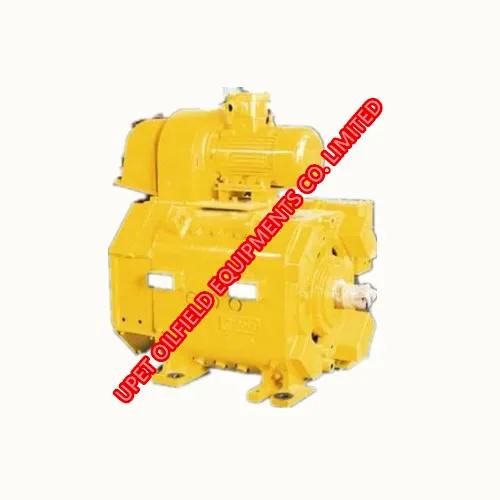

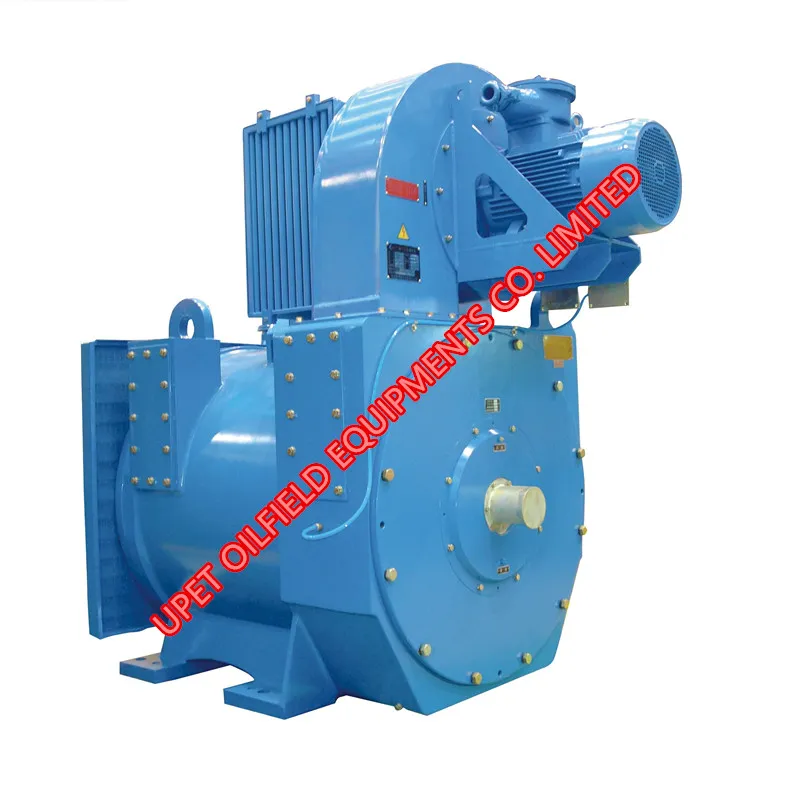

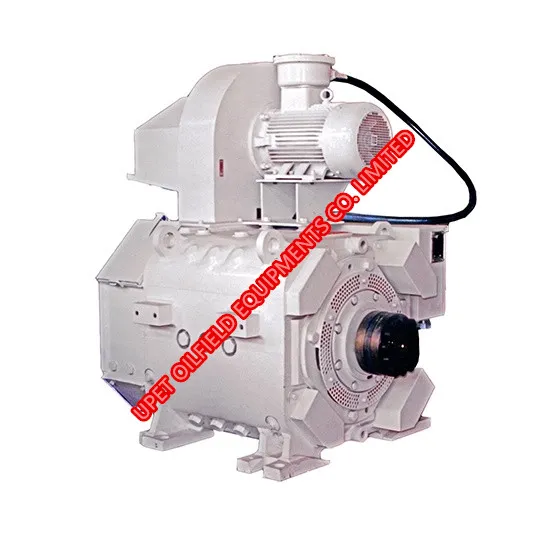

YZ08 and YZ08A DC motors are high power series excited DC motors developed for electric drive oil drilling machines. Advanced technologies have been adopted including Kapton insulation process, main pole coils formed by hot pressing, pressed and welded frame, spiral slot of commutator, reacting brush holder, and wire banding.
The main features include: plus pressure explosion-proof design, high current capacity, large torque, wide range constant power speed regulation, free maintenance, high universality, efficiency, and reliability. Their outline installation dimensions strictly accord with imported DC oil drilling motors, allowing for seamless replacement as slurry pump motors, rotary table motors, or winch motors.
Rated Power: 800Kw
Rated Voltage: 750V
Rated Current: 1150A
Rated Speed: 970r/min
Rated Efficiency: 93%
Rated Torque: 8033.7N.m
Max Current: 1600A
Max Torque: 12206.4N.m
Max Speed: 1500r/min
Exciting Type: Series
Insulation Class: H/H
Cooling: Forced Air
Protection: Plus pressure explosion-proof
Mass: 3200Kg
?
Frequently Asked Questions
Can you produce motors according to specific samples?
Yes, we can produce based on your samples or technical drawings, including the construction of molds and fixtures.
What is the testing protocol before delivery?
We conduct 100% testing on all goods before delivery to ensure quality and performance standards are met.
What are the main applications for the YZ08 DC motor?
These motors are primarily used for slurry pumps, rotary tables, and winches on DC electric drive drilling rigs.
Is the motor compatible with imported equipment?
Yes, the outline and installation dimensions are strictly in accordance with imported DC oil drilling motors for easy replacement.
What safety features are included for drilling environments?
The motor features a plus pressure explosion-proof design, making it suitable for hazardous oilfield environments.
How is the after-sales tracking handled?
We track products every two days after dispatch until delivery and provide technical solutions based on your testing feedback.
