22mm 32mm 42mm 57mm 60mm 86mm 110mm 12V 24V 36V 48V 310V 10W-3000W DC Brushless or Brush DC Planetary Gear Motor with Planetary Gearbox /Brake /Encoder /Driver

Customization:	Available
Application:	Universal, Industrial, Household Appliances, Car, Power Tools
Operating Speed:	Adjust Speed

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

JK42BLS01

Excitation Mode

Compound

Function

Control, Driving

Casing Protection

Protection Type

Number of Poles

Structure

Brushless

Certification

ISO9001, CCC, CE, RoHS, SGS, Reach

Voltage

12V-48V

Power Range

10W to 3000W

Size Range

22mm to 130mm

Related Parts

Planetary Gearbox / Encoder / Brake / Controller

HS Code

8501310000

⚙️

Product Description

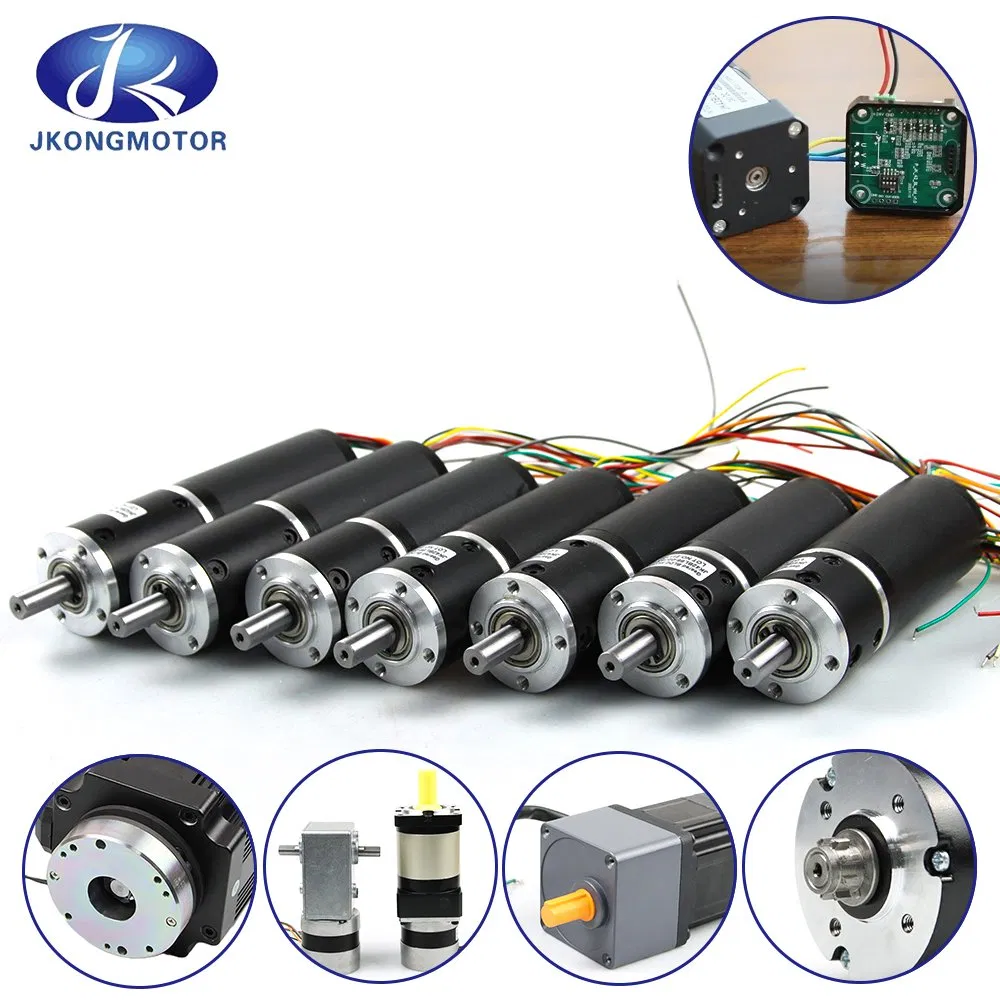

22mm to 110mm DC Planetary Gear Motor Series

Available in 12V, 24V, 36V, 48V, and 310V options with a power output ranging from 10W to 3000W. These DC motors can be configured as Brushless or Brush types and come equipped with optional Planetary Gearboxes, Brakes, Encoders, or Drivers.

Number of Phase: 3 Phase
Number of Poles: 4 Poles / 8 Poles / 10 Poles
Rated Speed: 3000rpm / 4000rpm (Customizable)
Applications: Industrial automation, medical equipment, CNC machinery, and 3D printing.

42mm 24V Brushless DC Motor Parameters

Specification	Unit	JK42BLS01	JK42BLS02	JK42BLS03	JK42BLS04
Rated Voltage	VDC	24	24	24	24
Rated Speed	Rpm	4000	4000	4000	4000
Rated Torque	N.m	0.0625	0.125	0.185	0.25
Rated Power	W	26	52.5	77.5	105
Degree of Protection	-	IP30

57mm 36V Brushless DC Motor Parameters

Specification	Unit	JK57BLS01	JK57BLS02	JK57BLS03	JK57BLS04
Rated Voltage	VDC	36	36	36	36
Rated Speed	Rpm	4000	4000	4000	4000
Rated Torque	N.m	0.11	0.22	0.33	0.44
Rated Power	W	46	92	138	184

🛠️

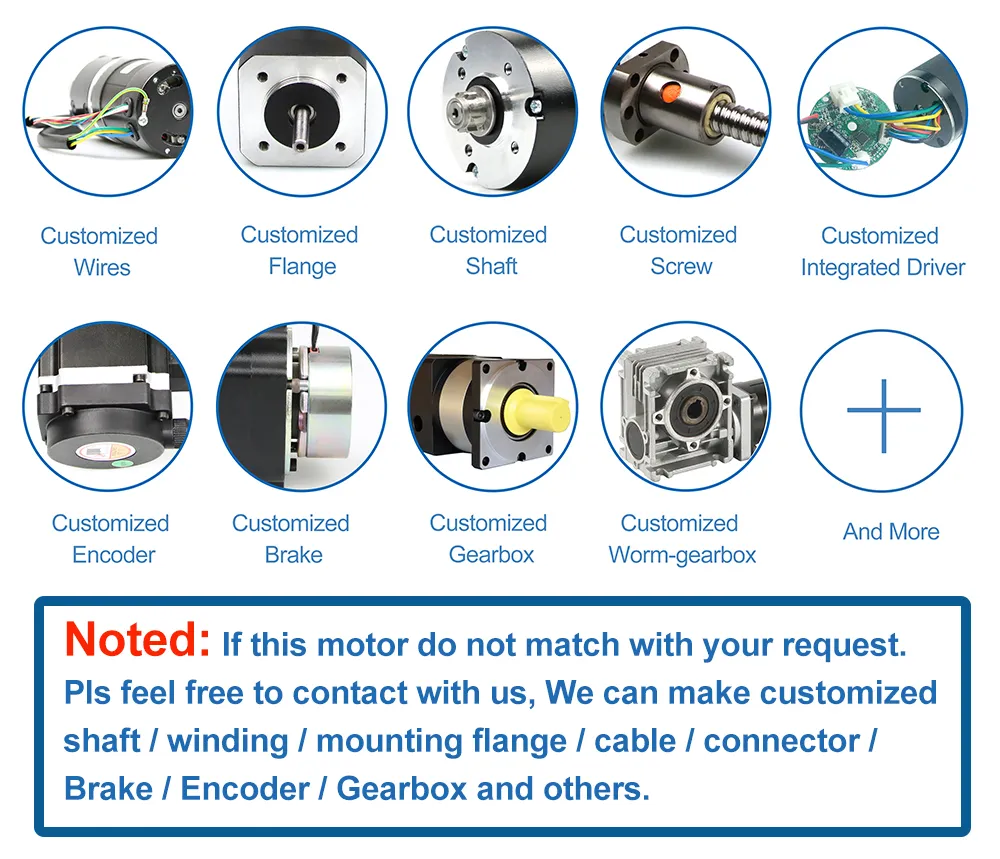

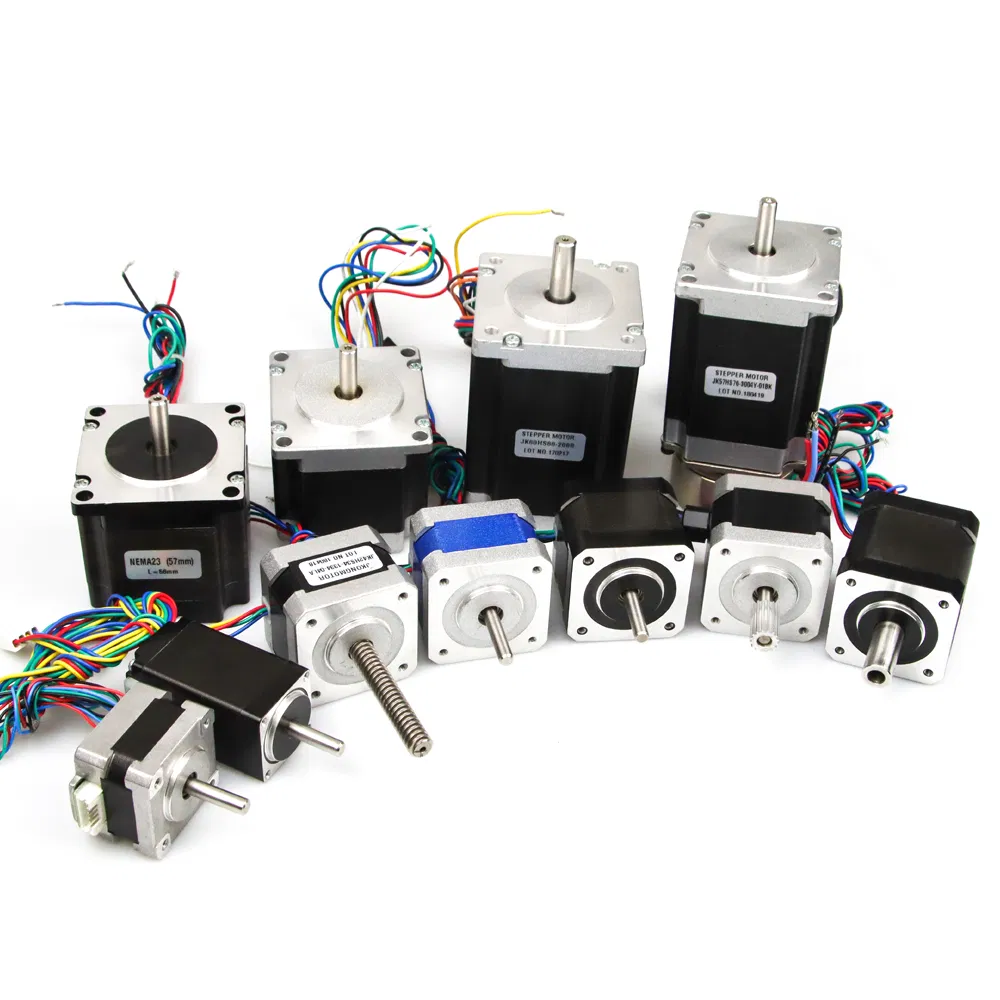

Stepping Motor & Gearbox Customization

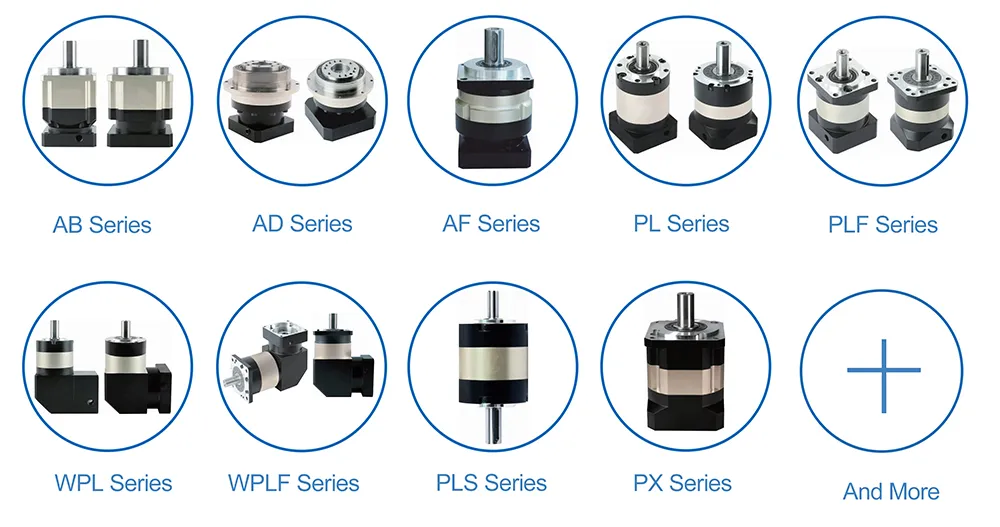

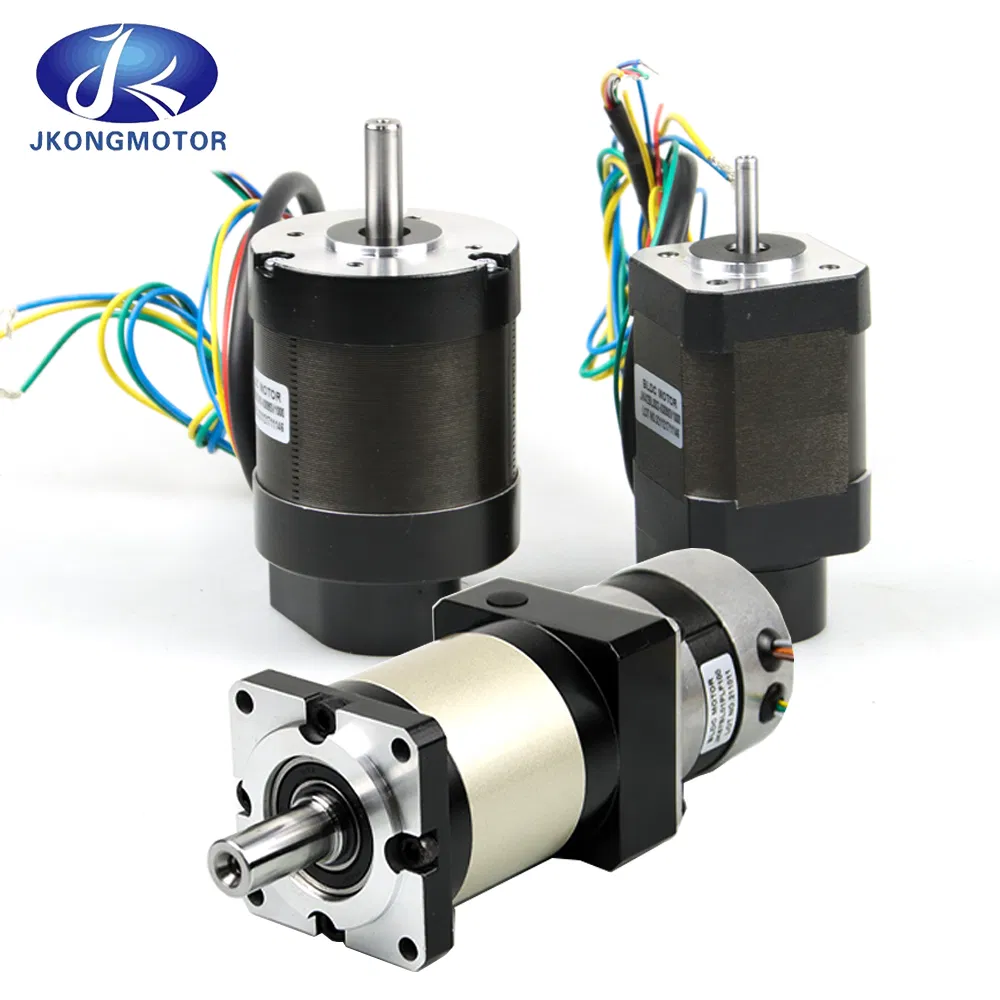

Planetary Gearbox Options

📸

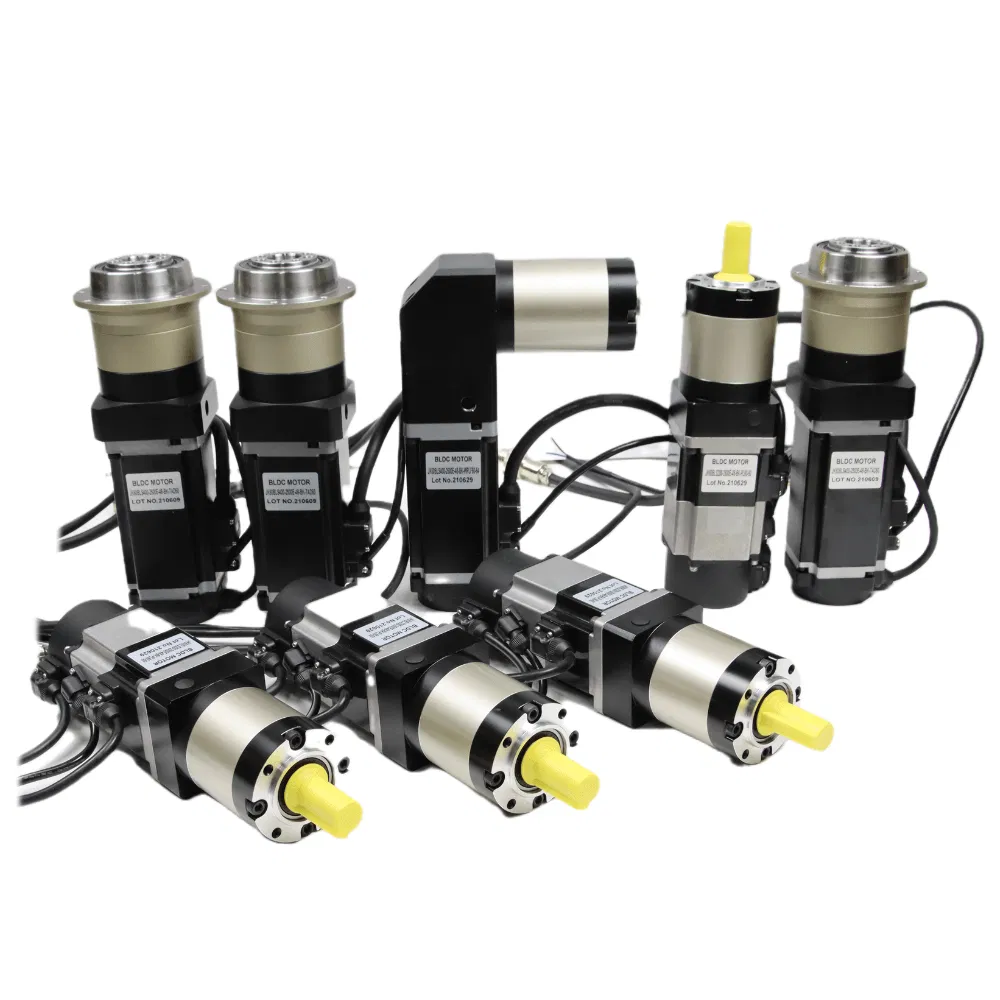

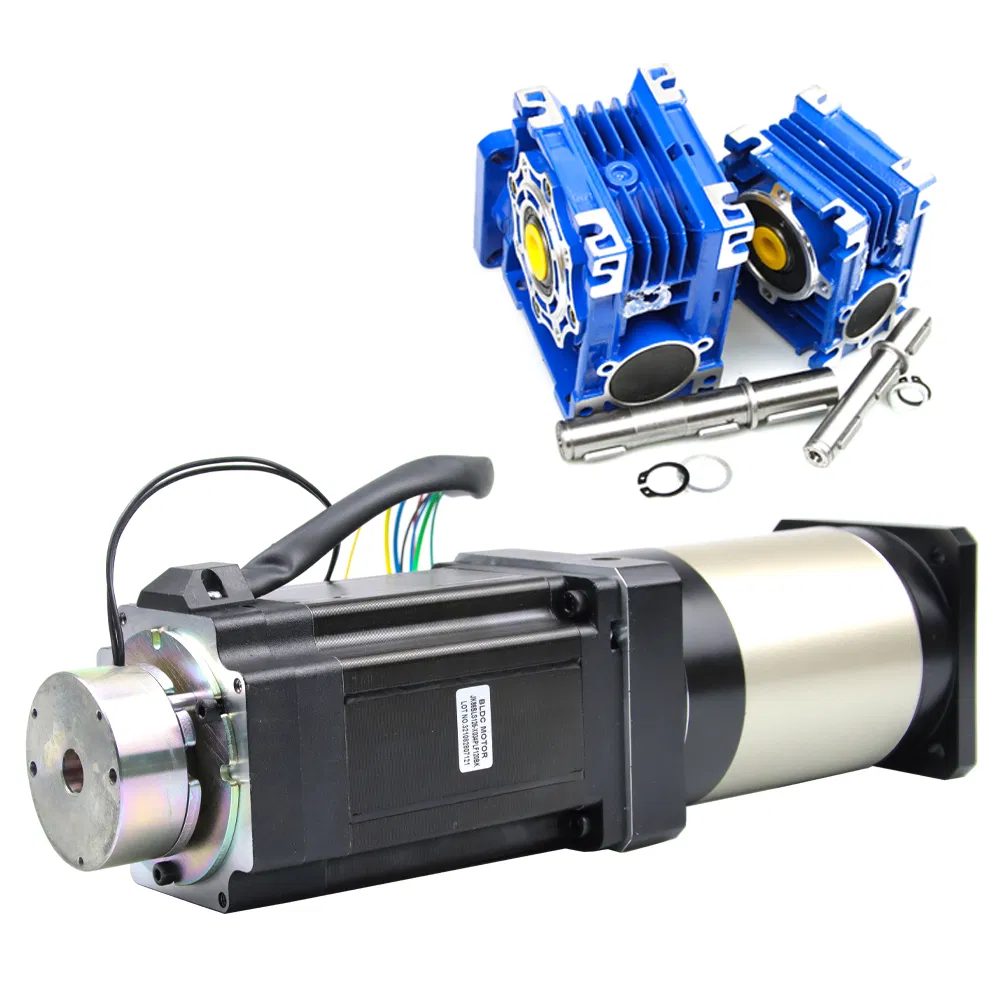

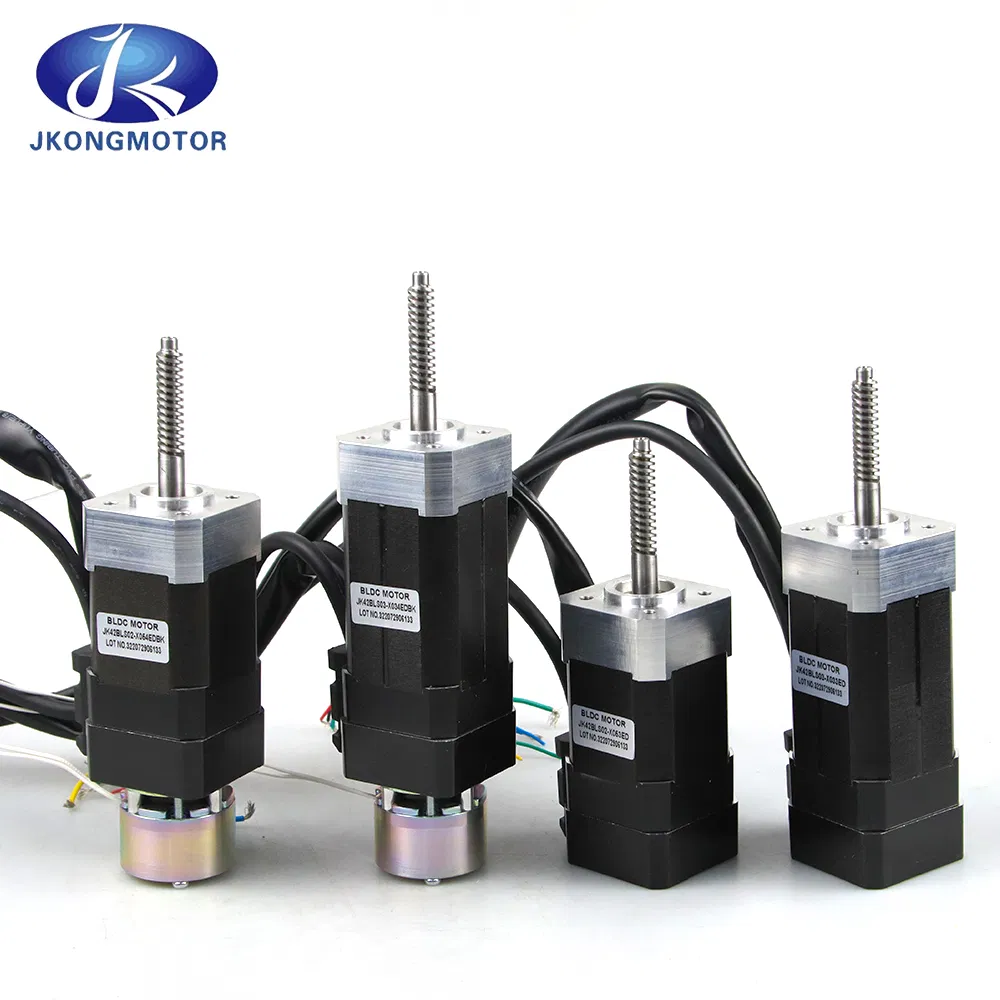

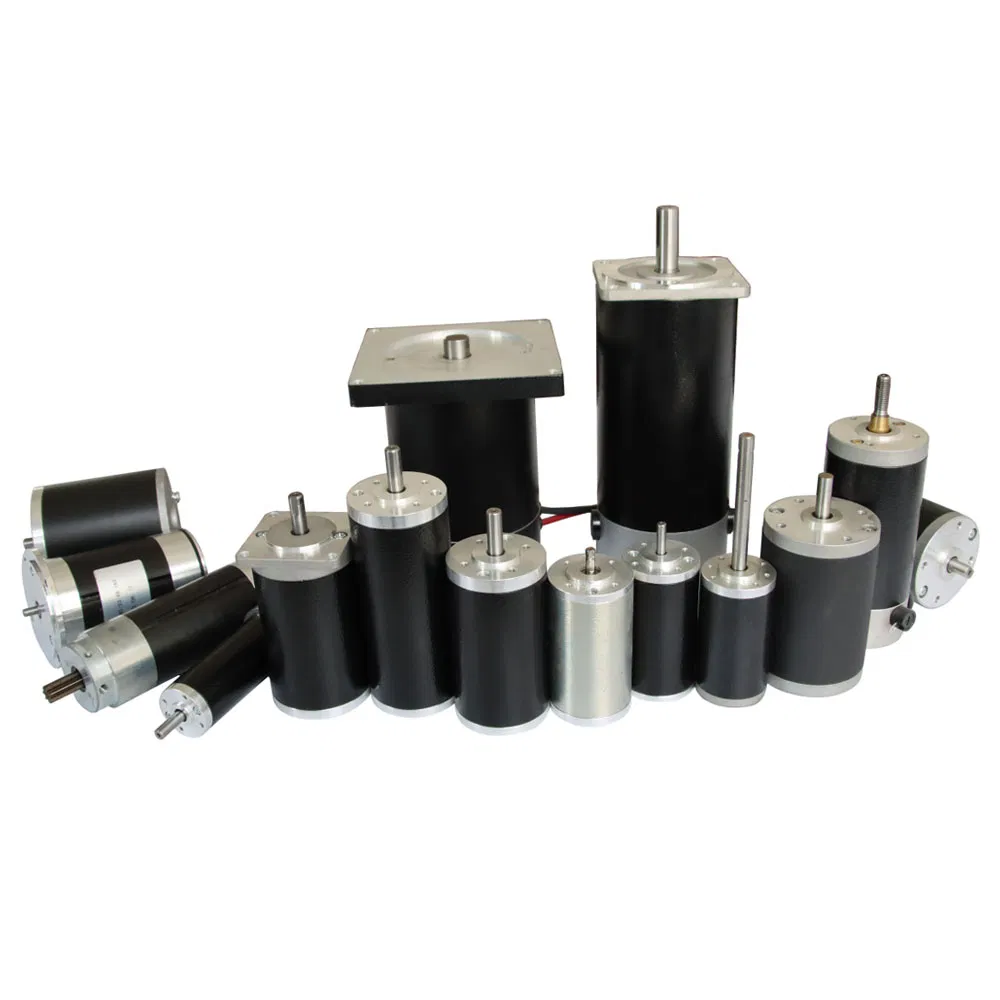

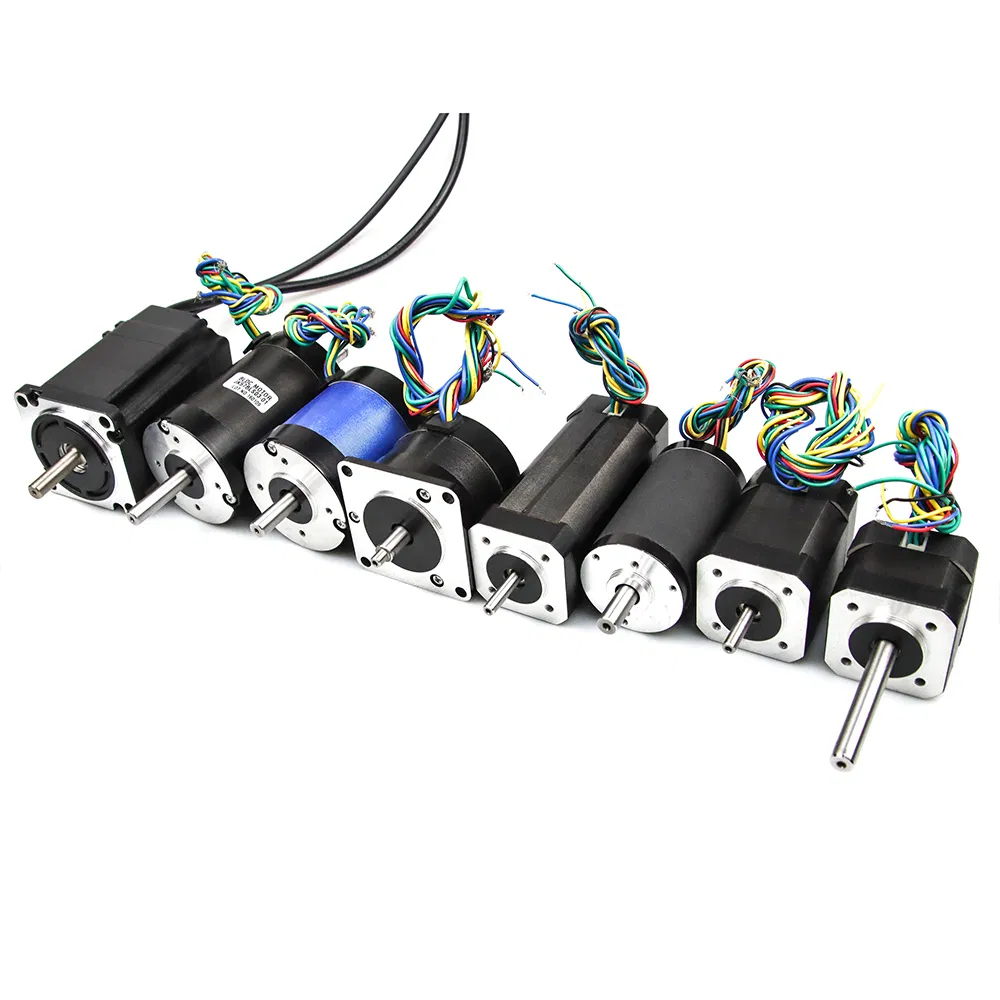

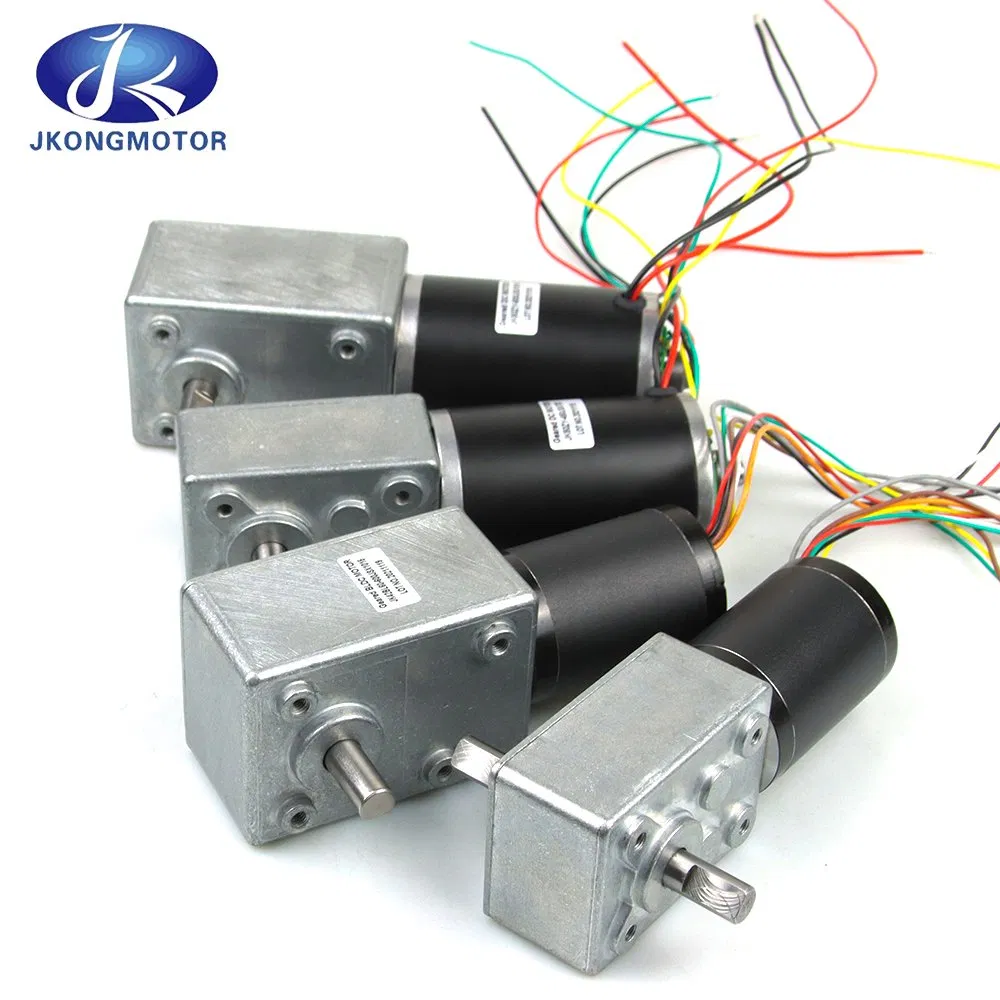

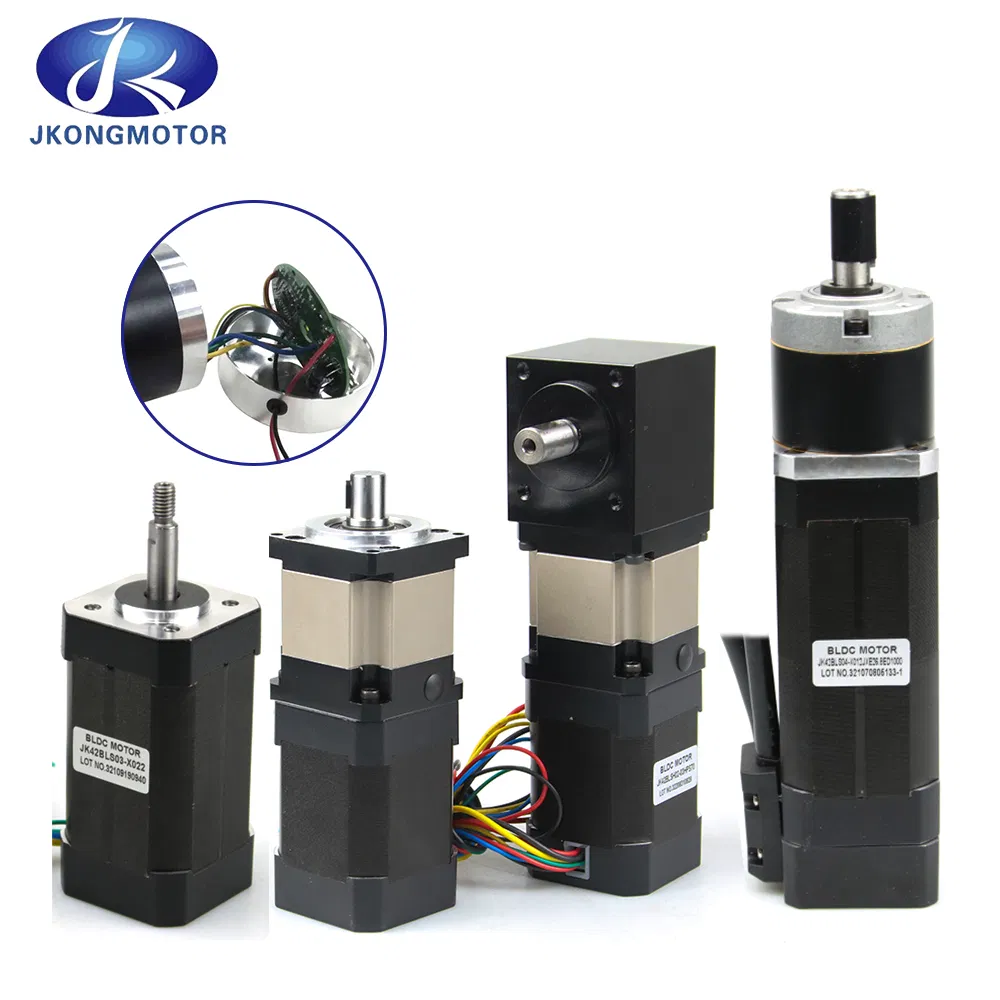

Detailed Product Photos

🏢

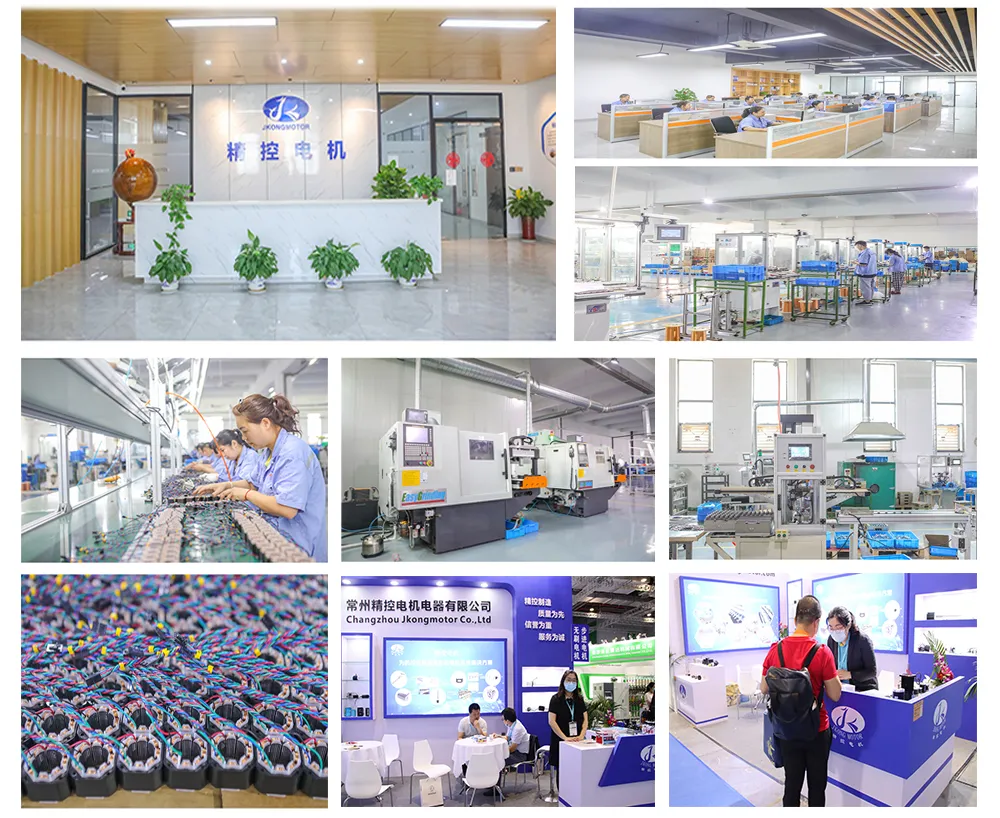

Facility & Production Flow

Advanced production lines support a wide range of micro motor manufacturing, including DC Servo, AC, Brushless, and Planetary Gear motors. We utilize technical innovation to provide flexible solutions for diverse industrial automation needs.

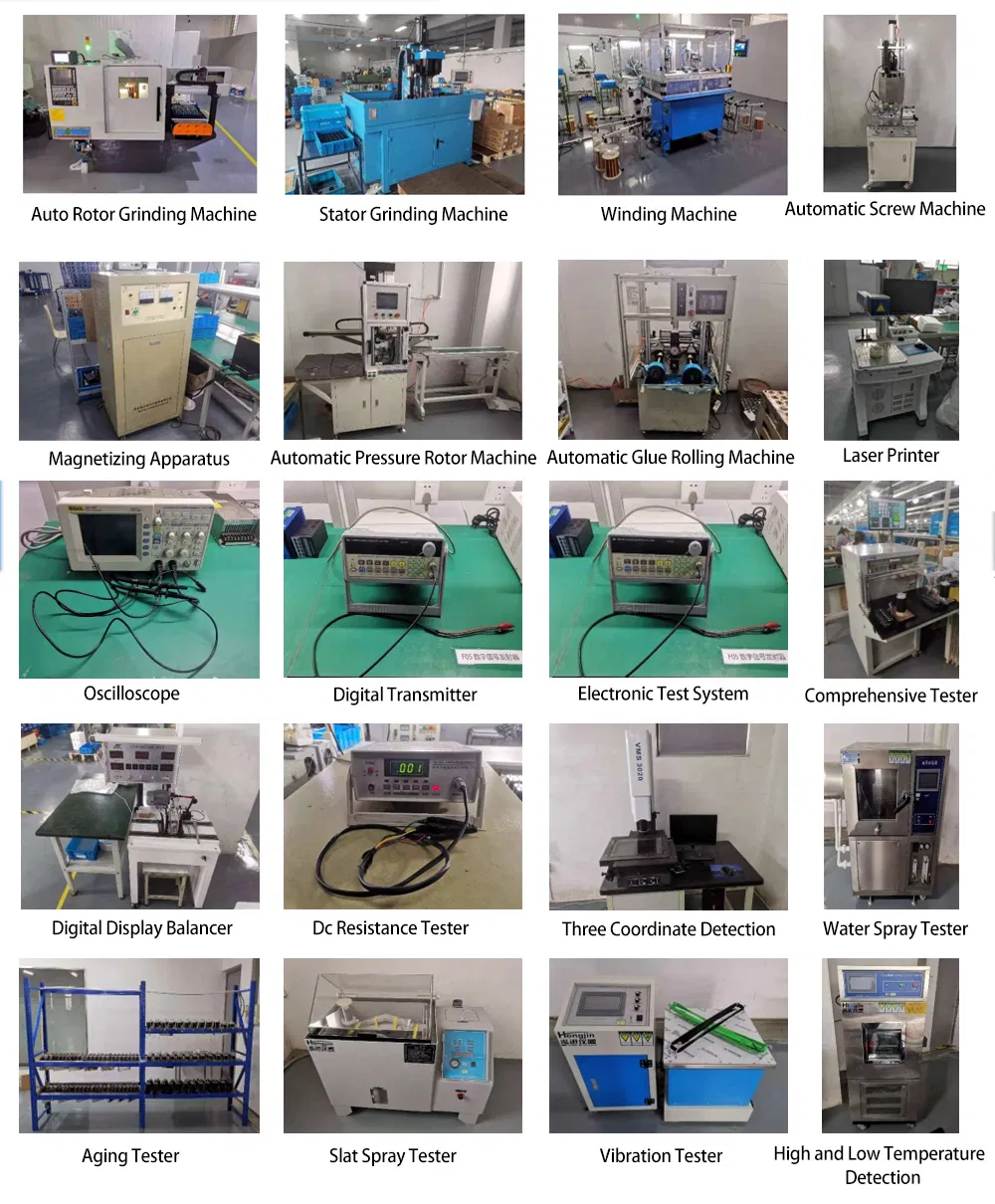

Equipment Show

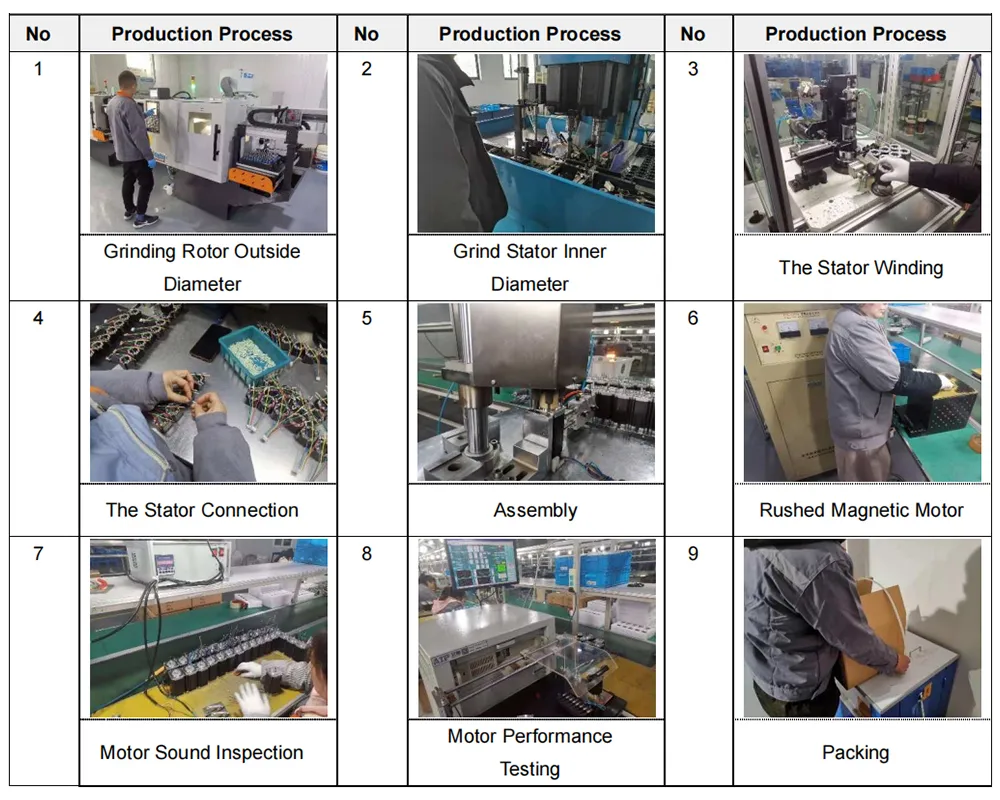

Production Flow

Certifications

Frequently Asked Questions

What is the voltage range for these motors?

Our DC motors support a wide range of voltages including 12V, 24V, 36V, 48V, and up to 310V for specialized applications.

Can the motor speed and torque be customized?

Yes, both rated speed and torque can be customized to meet your specific application requirements.

What is the typical power output range?

The power range is highly versatile, spanning from 10W for micro-applications up to 3000W for industrial driving tasks.

What environmental protections do these motors have?

Most models are rated at IP30. They are best suited for environments without direct sunlight, corrosive gases, or flammable vapors.

Are additional components like encoders or brakes available?

Yes, we provide integrated solutions including planetary gearboxes, encoders, electromagnetic brakes, and specialized controllers.

What is the standard insulation class for these motors?

The motors typically feature Class B or Class H insulation, depending on the specific model and power requirements.
