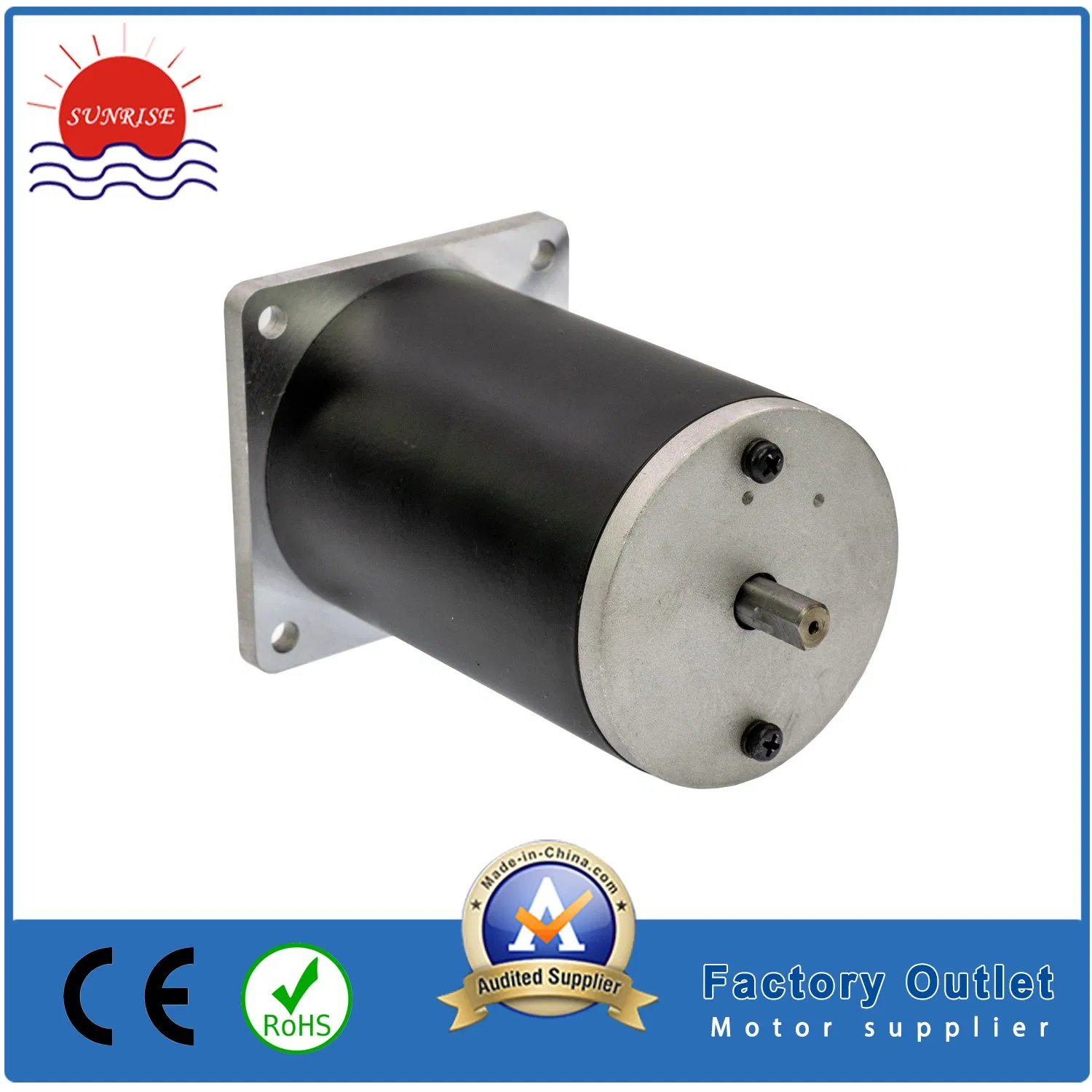

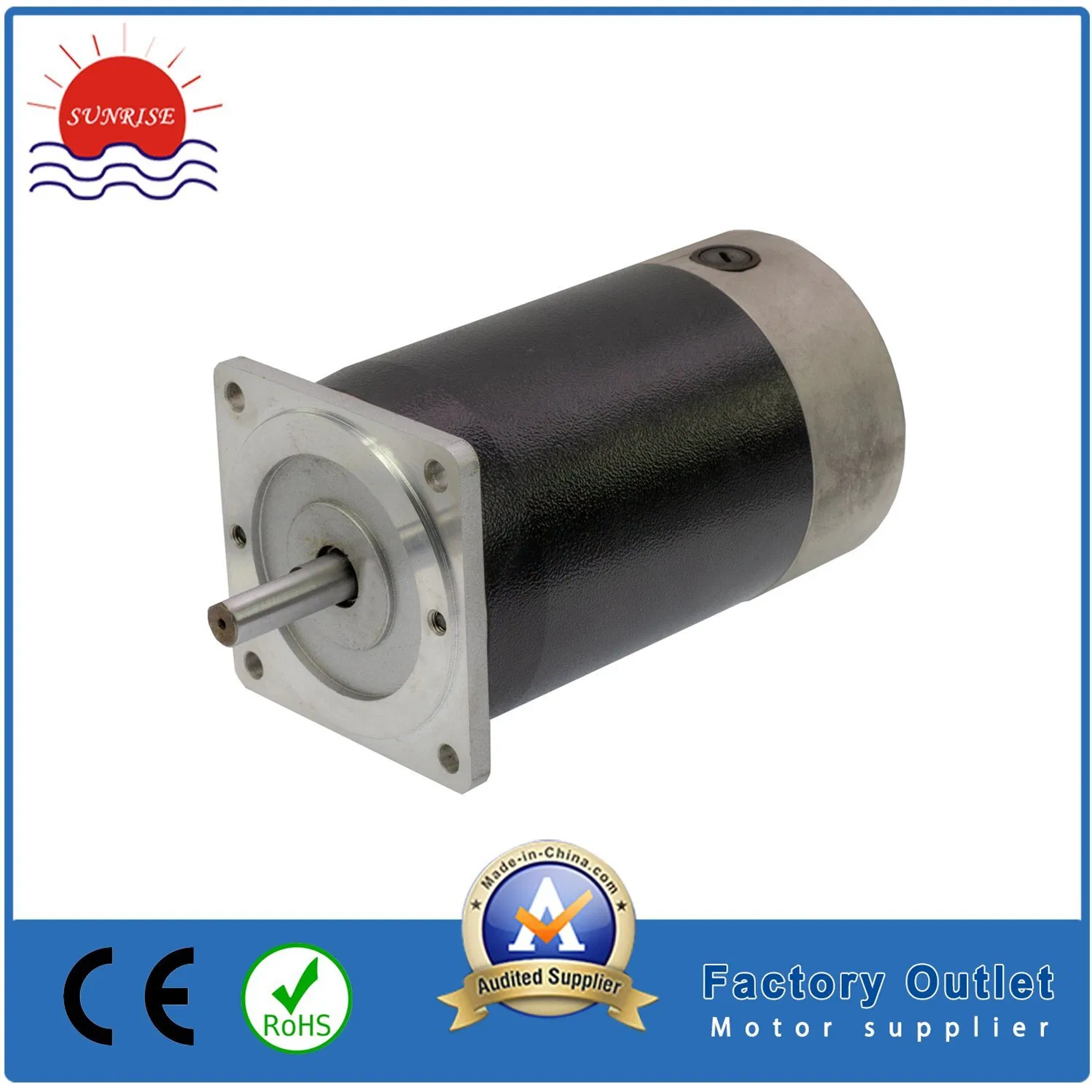

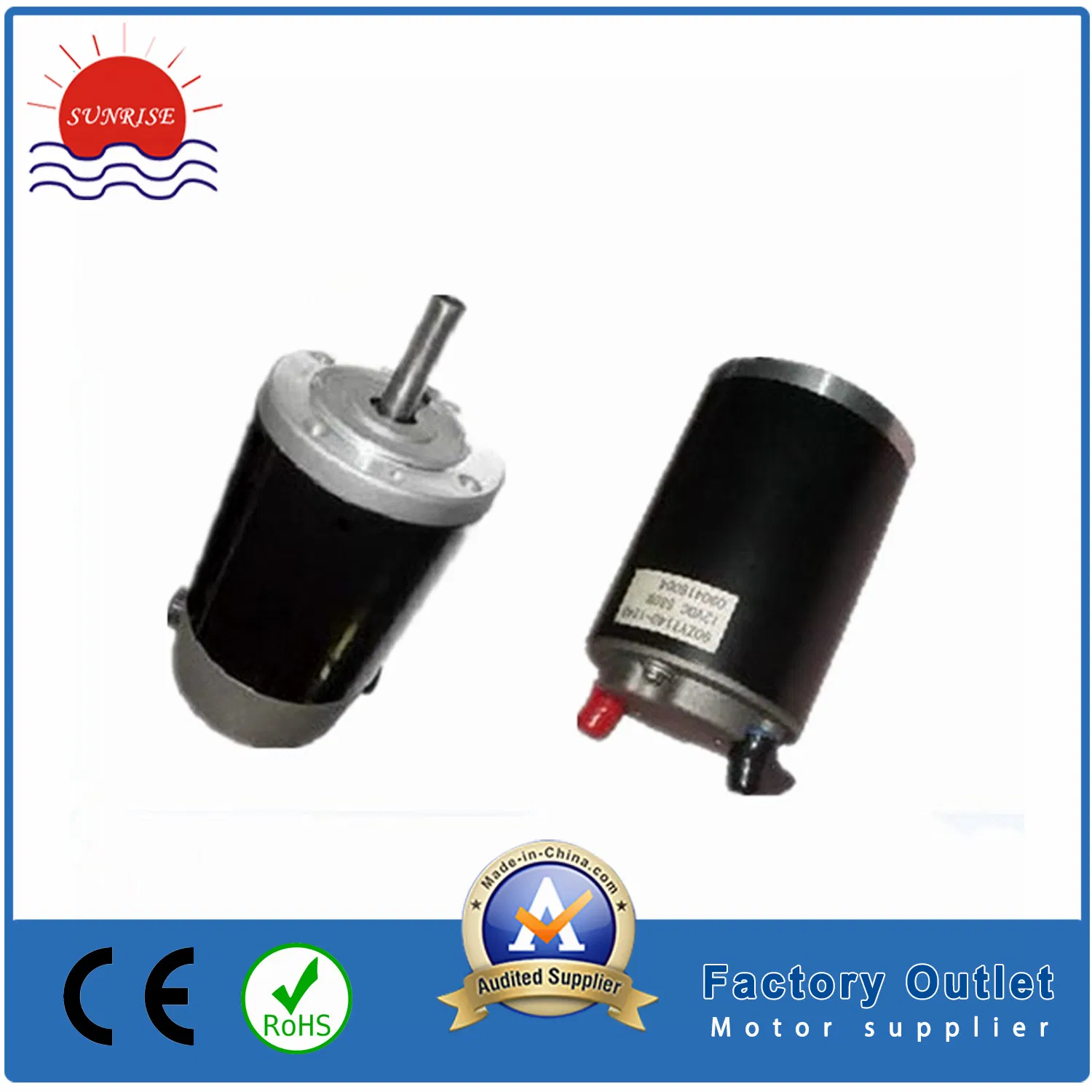

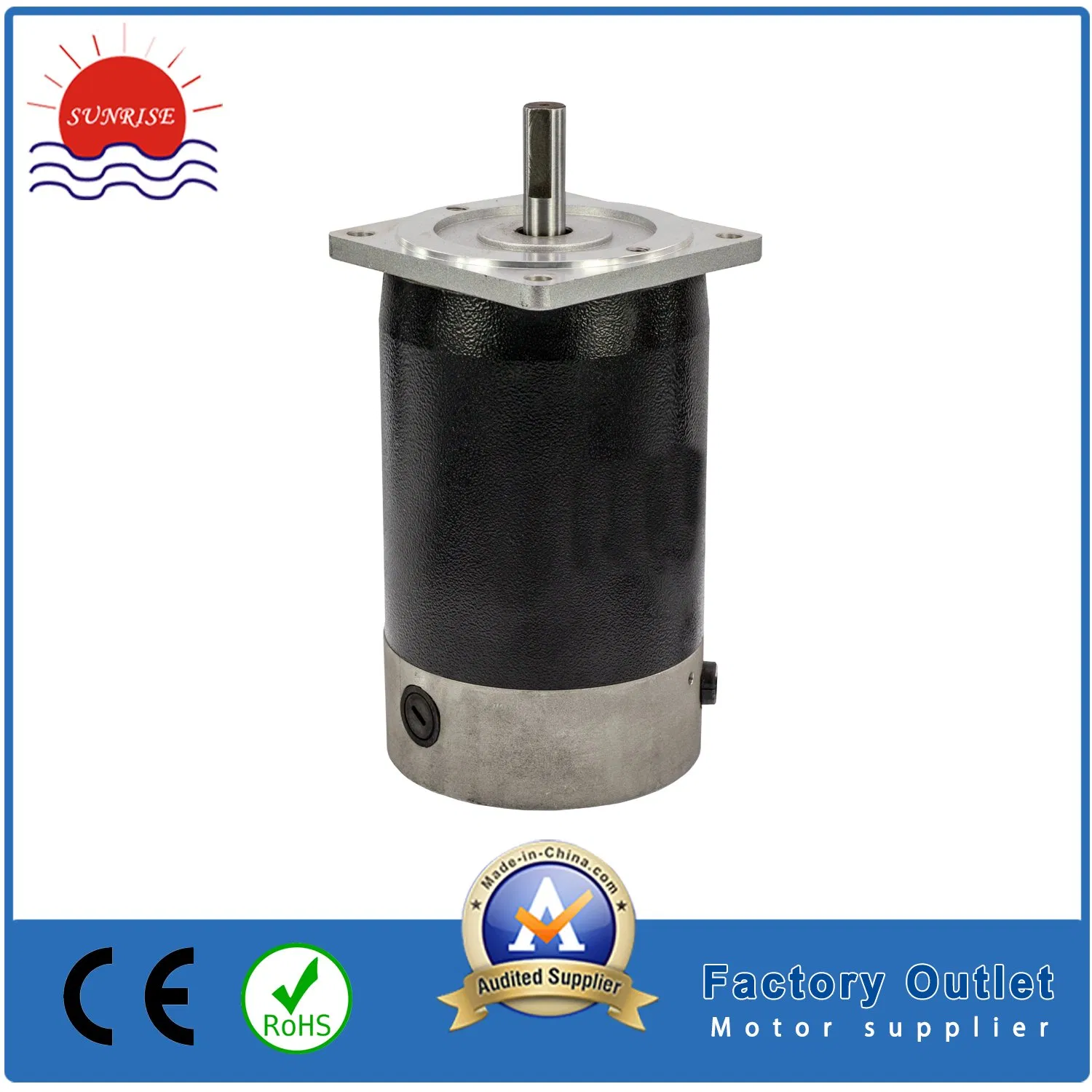

In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
Cost-effective with a high starting torque and impressive output performance in a compact size.
Permanent magnets eliminate the need for stator windings, reducing size and heat generation.
Widely used in industrial automation, patient care, and mobility equipment.

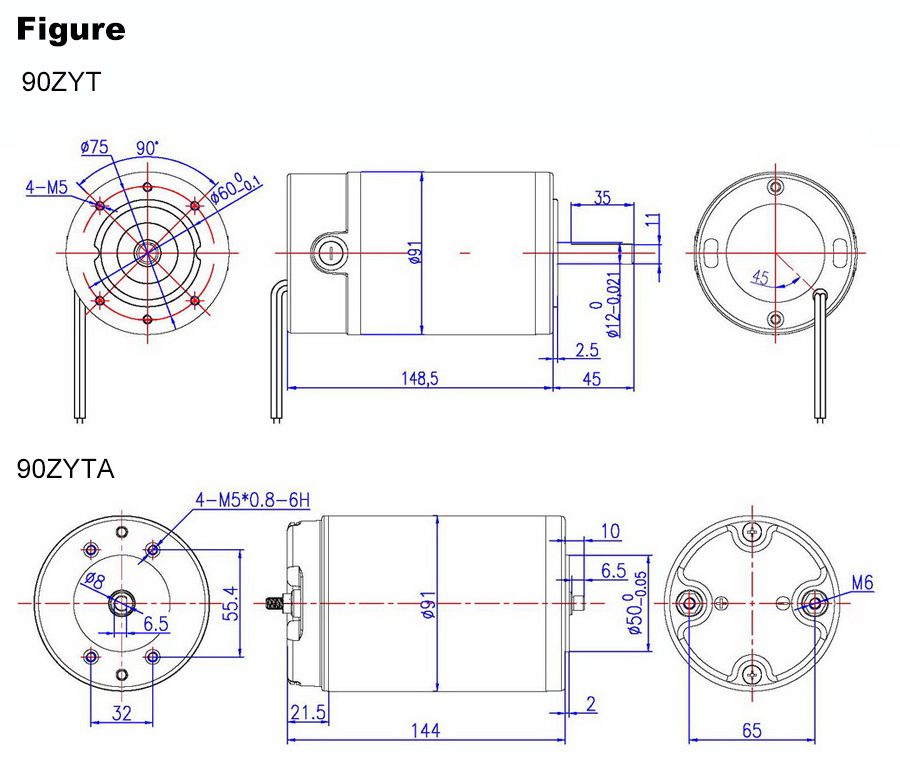

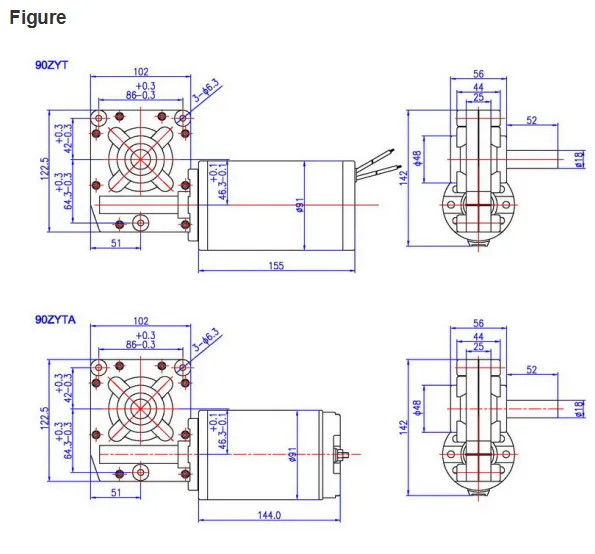

| Model | Voltage (V DC) | No Load | Rated Load | Length (mm) | |||
|---|---|---|---|---|---|---|---|
| Current (A) | Speed (r/min) | Torque (N.m) | Current (A) | Speed (r/min) | |||
| 90ZYT150-2433 | 24 | 1.1 | 3300 | 0.58 | 10 | 3000 | 150 |
| 90ZYT155-2453 | 24 | 2.5 | 5300 | 0.8 | 23 | 4700 | 155 |
| 90ZYT165-3623 | 36 | 1.2 | 2300 | 1.2 | 10 | 1600 | 165 |
| 90ZYT195-15025 | 150 | 0.2 | 2500 | 1.15 | 3 | 2000 | 195 |
| 90ZYTA144-1253 | 12 | 3 | 5300 | 0.9 | 50 | 4700 | 144 |
Customization Options: Standard performance ranges cover speed from 1000 - 5000 RPM, power up to 2030 Watts, and torque up to 4.9 Nm. We offer several levels of PMDC motor customization, including shaft variations, output flange options, various cable lengths, brakes, encoders, paint finishes, and terminal boxes.
| Model | Voltage (V DC) | No Load | Rated Load | Gear Ratio | |||
|---|---|---|---|---|---|---|---|
| Current (A) | Speed (r/min) | Torque (N.m) | Current (A) | Speed (r/min) | |||
| 90ZYT150-1250WG50 | 12 | 3.8 | 100 | 25 | 20 | 90 | 50:01:00 |
| 90ZYT155-1250WG50 | 12 | 3.8 | 100 | 45 | 38 | 90 | 50:01:00 |
| 90ZYTA144-1251WG50 | 12 | 5 | 102 | 45 | 26 | 94 | 50:01:00 |
| 90ZYTA144-1253WG30 | 12 | 5 | 175 | 30 | 26 | 155 | 30:01:00 |
