Big Torque Brush Motor for Lift BLDC DC High Speed Motor for Robotics

1 / 5

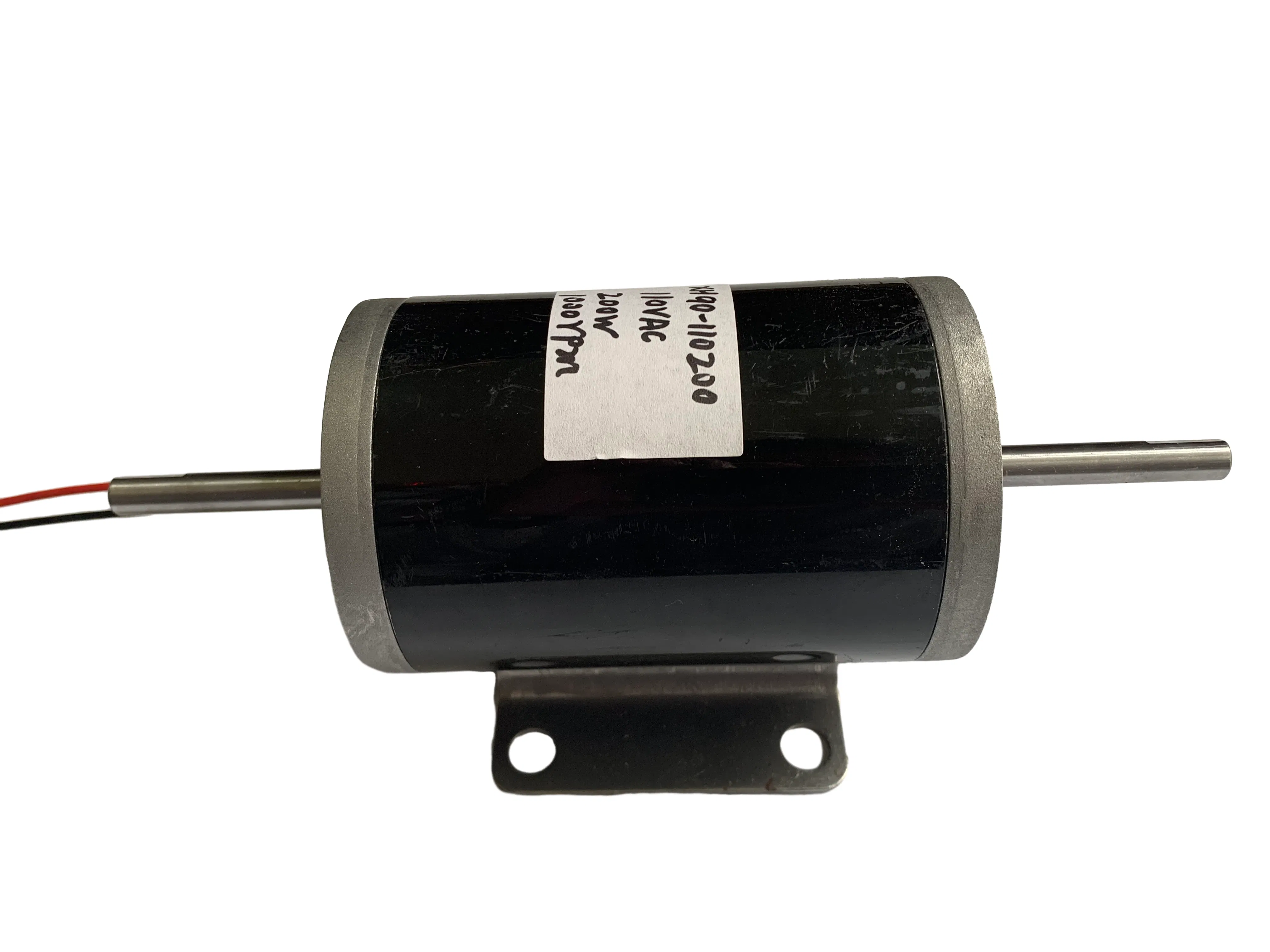

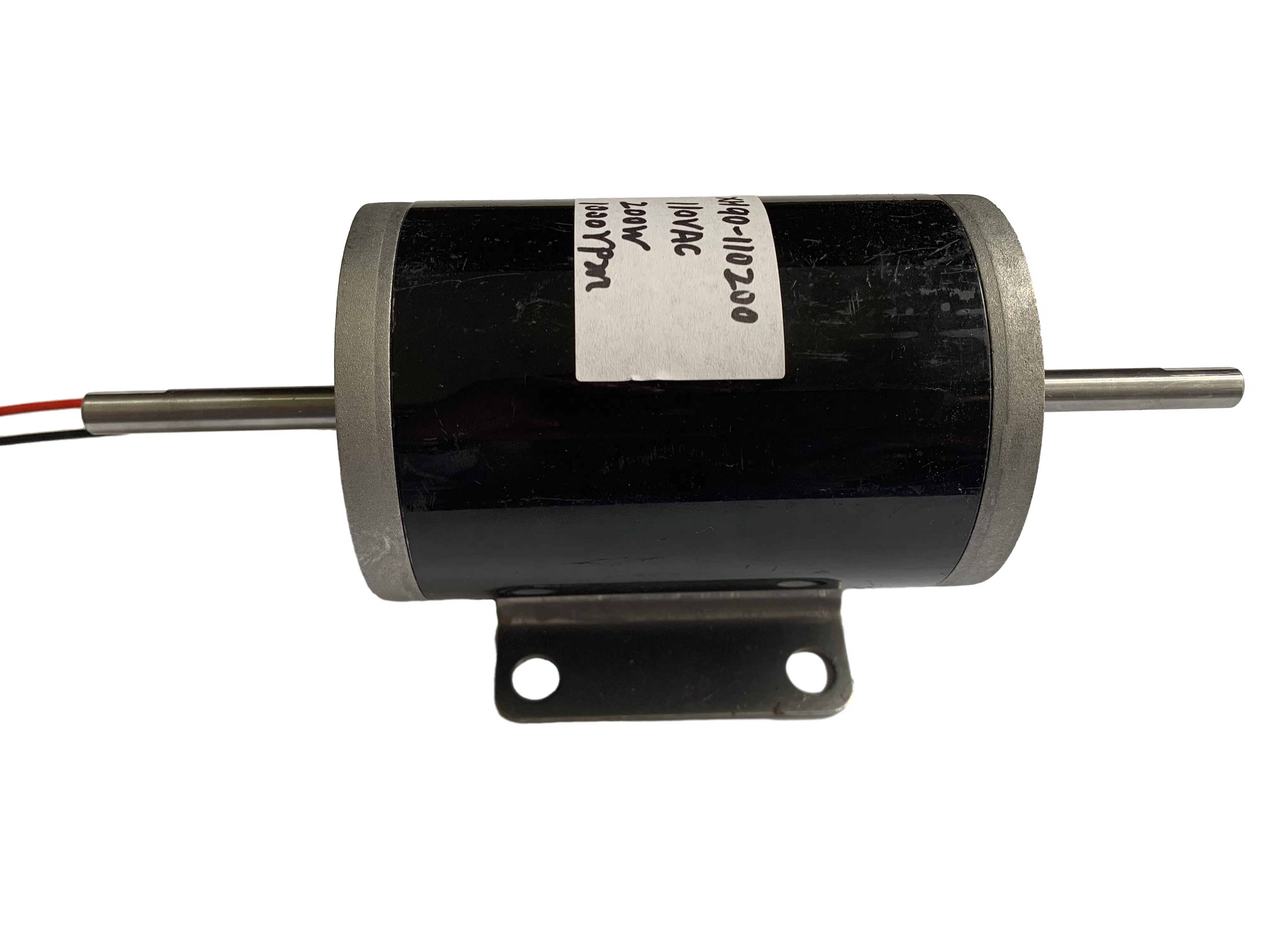

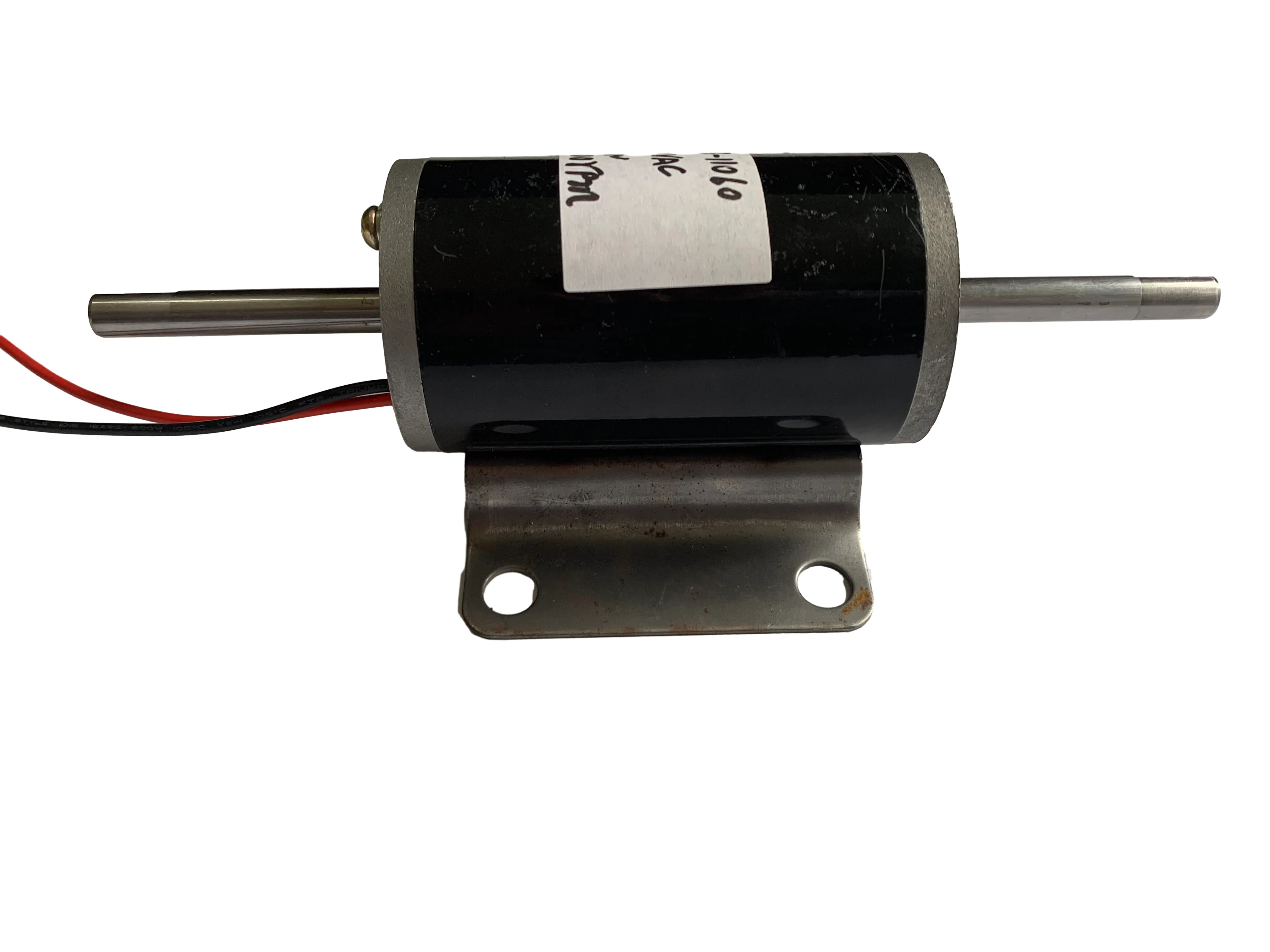

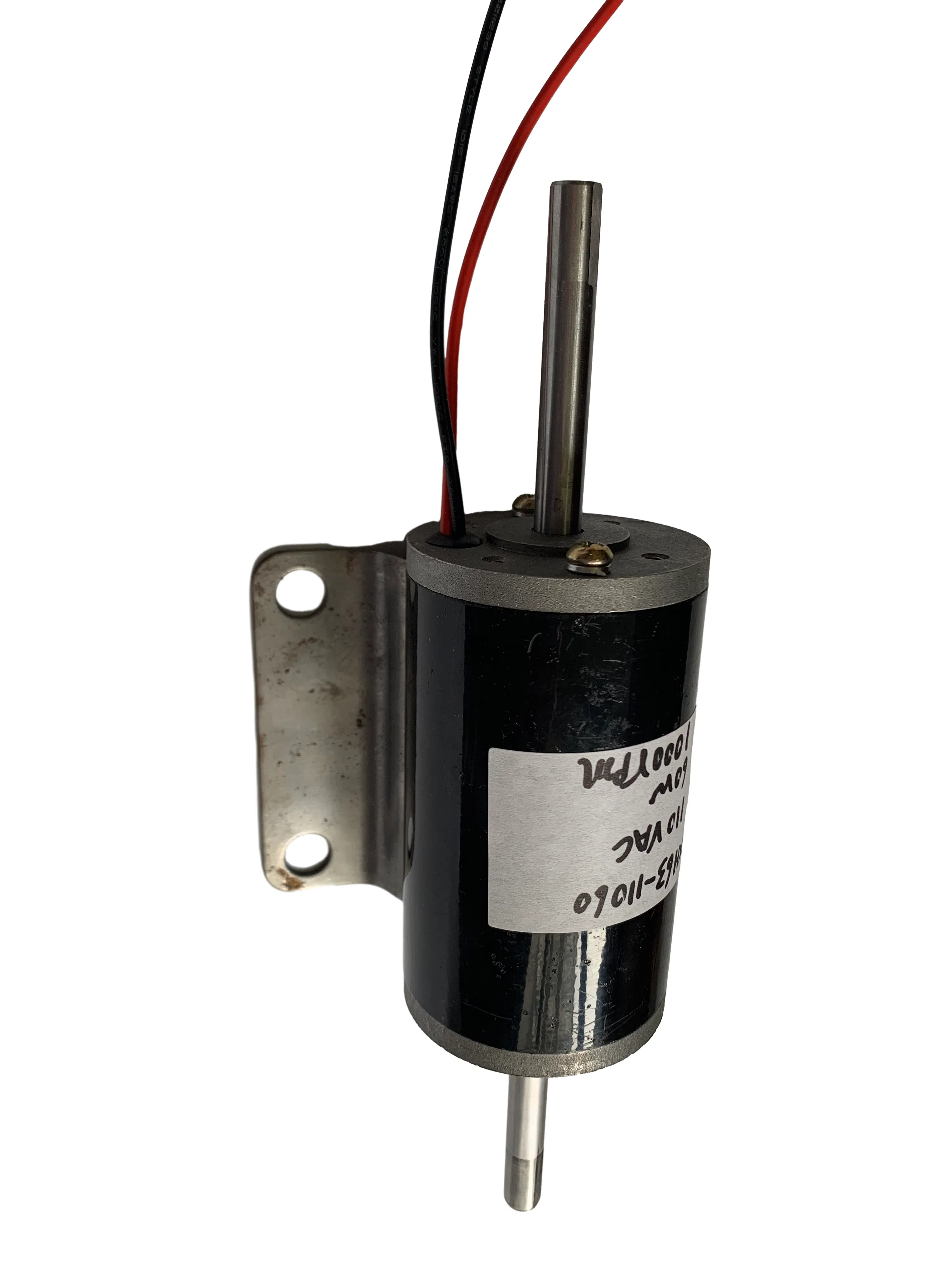

Big Torque Brush Motor for Lift BLDC DC High Speed Motor for Robotics

Customization:	Available
Application:	Universal, Industrial, Household Appliances, Car, Power Tools, Boat
Operating Speed:	High Speed

Send Inquiry

Product Description

Basic Specifications

Model NO.

XH-D76

Excitation Mode

Excited

Function

Driving

Number of Poles

Working Principle

Brush

Certification

RoHS, CE

Max Power

1200W

Voltage Options

12V - 120V

Speed Range

1200~6000rpm

Waterproof Rating

IP44~IP68

Max Torque

100N.M

Life Time

2000 hours

Permanent Magnet Brush DC Motor

This Permanent Magnet Brush DC Motor features a new structure and provides a maximum power of 1KW in the S1 working system. With a power range of 30W to 1KW, voltage options from 24VDC to 120VDC, and load torque from 0.1N.M to 100N.M, this motor is versatile and powerful, suitable for a variety of applications.

Key Features:

Power Range: 30W to 1KW
Voltage Options: 24VDC to 120VDC
Load Torque: 0.1N.M to 100N.M
Tail Designed for Fan Cooling (Water Cooling Option)
Multi-functional Controller for Customization

Installation Options:

Horizontal Installation (B3)
Vertical Flange Installation (B5)
Vertical Horizontal Installation (B35, B14, B3)

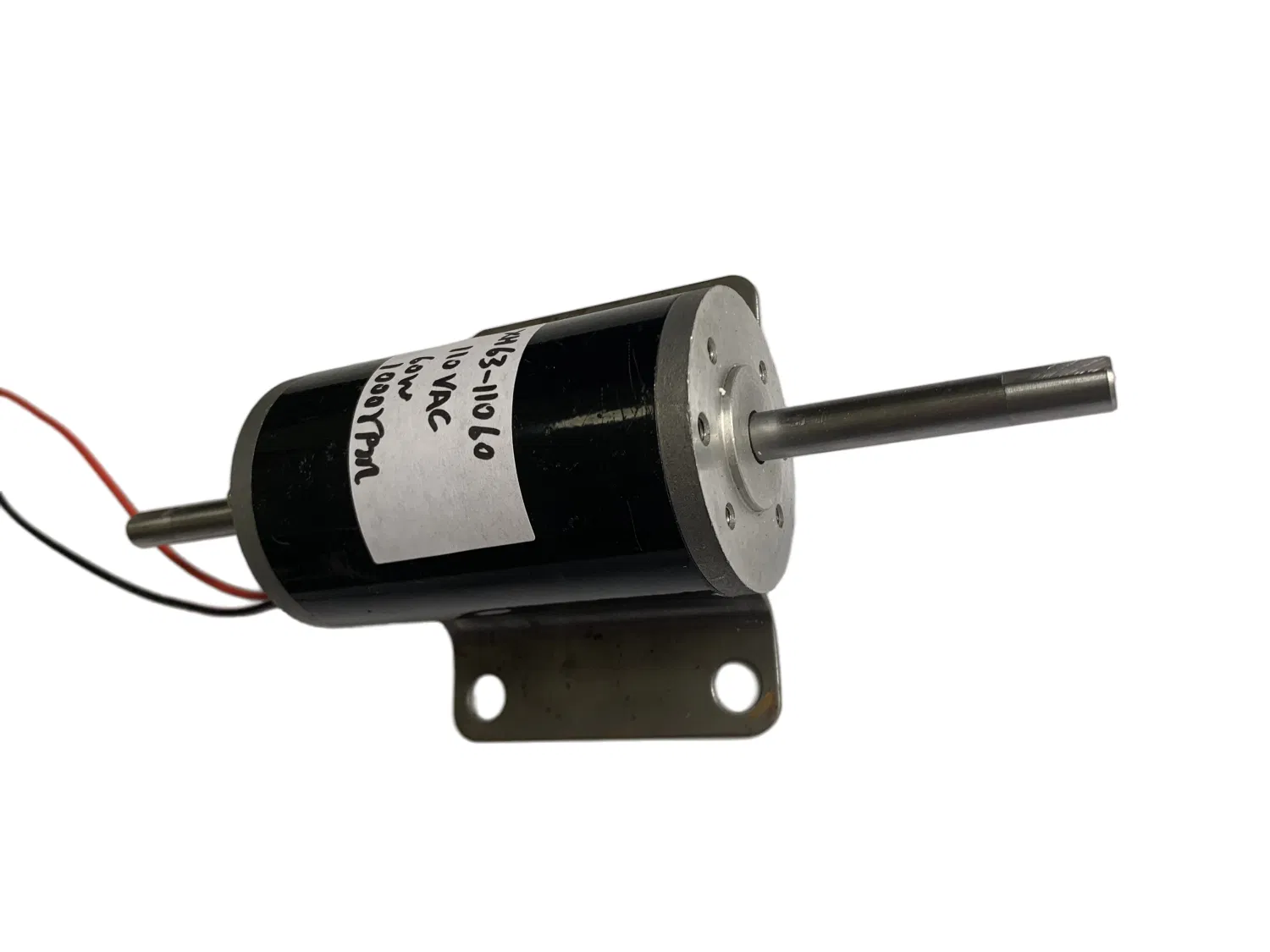

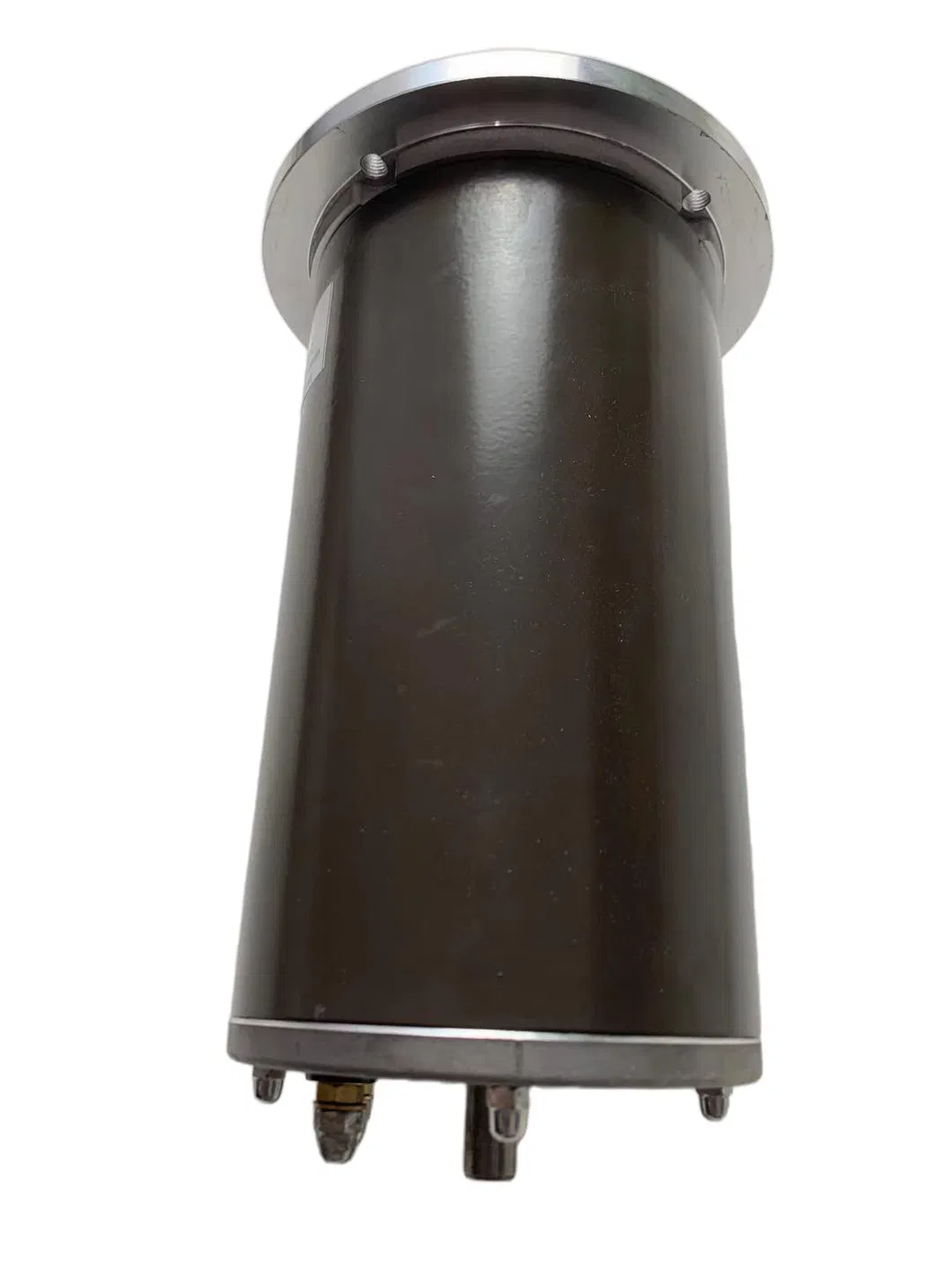

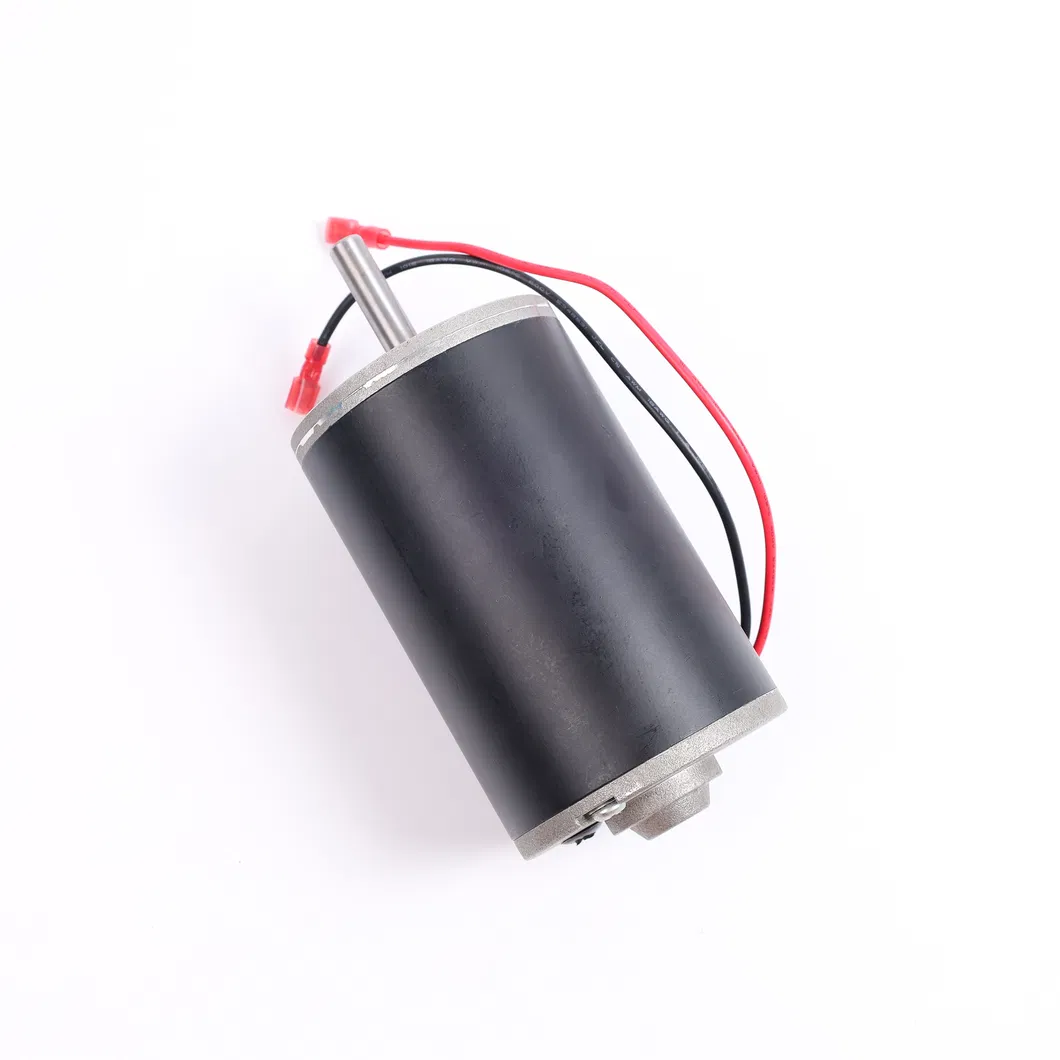

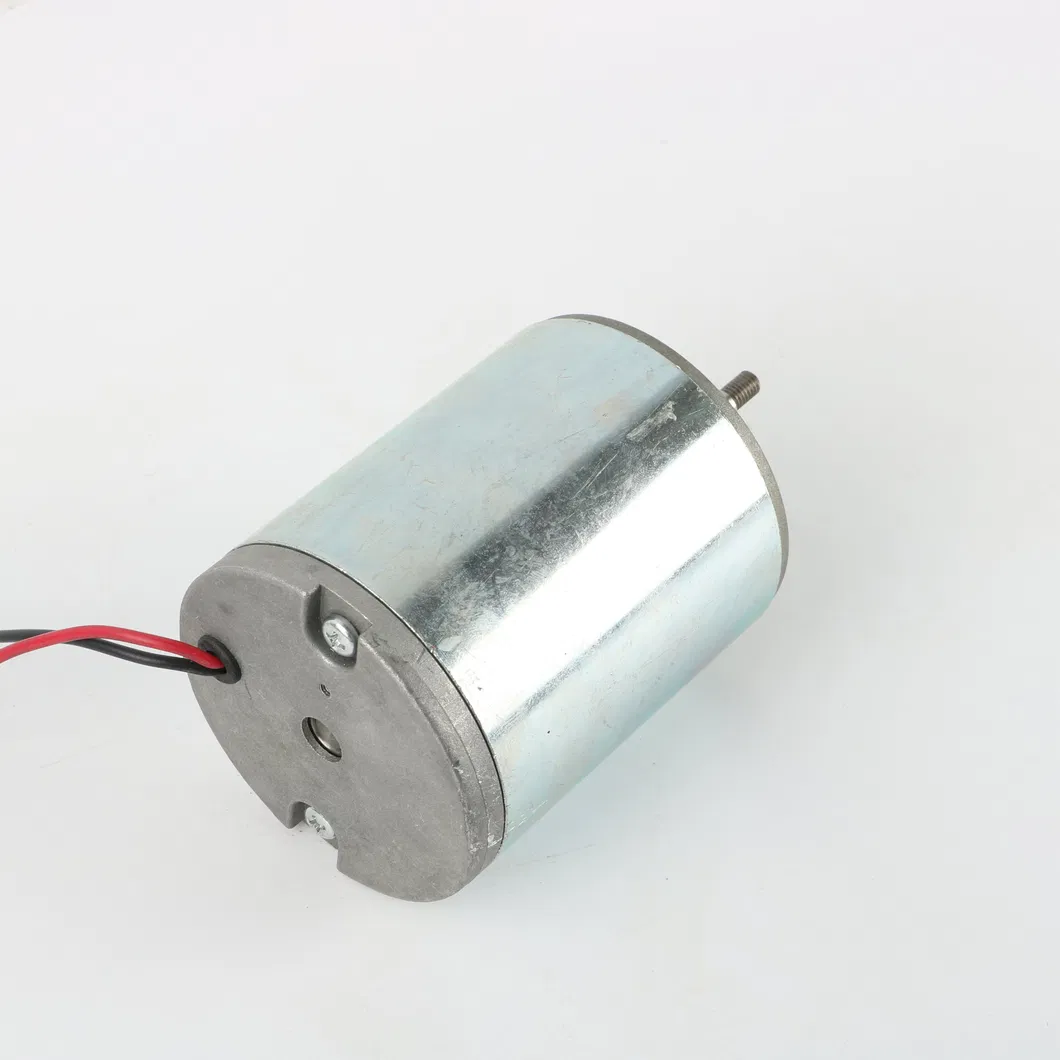

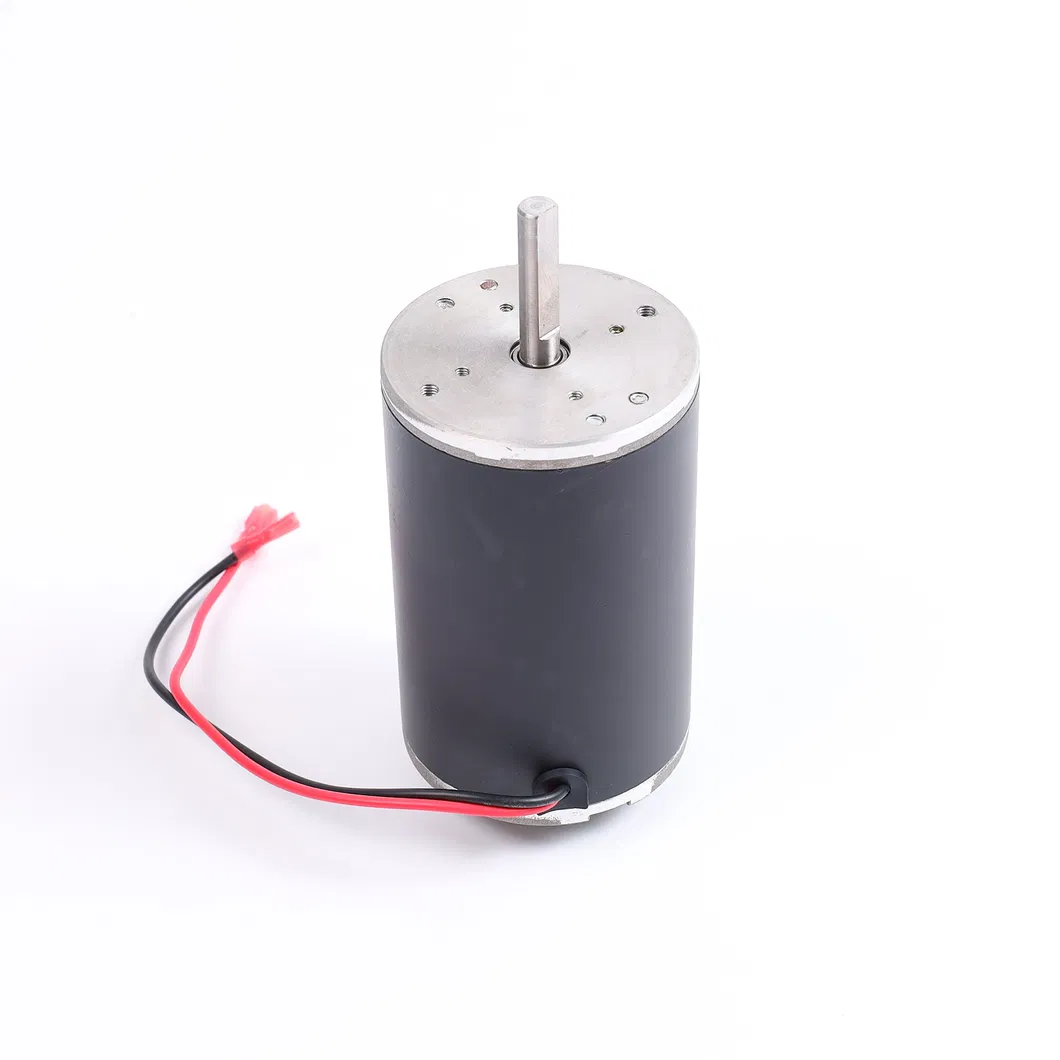

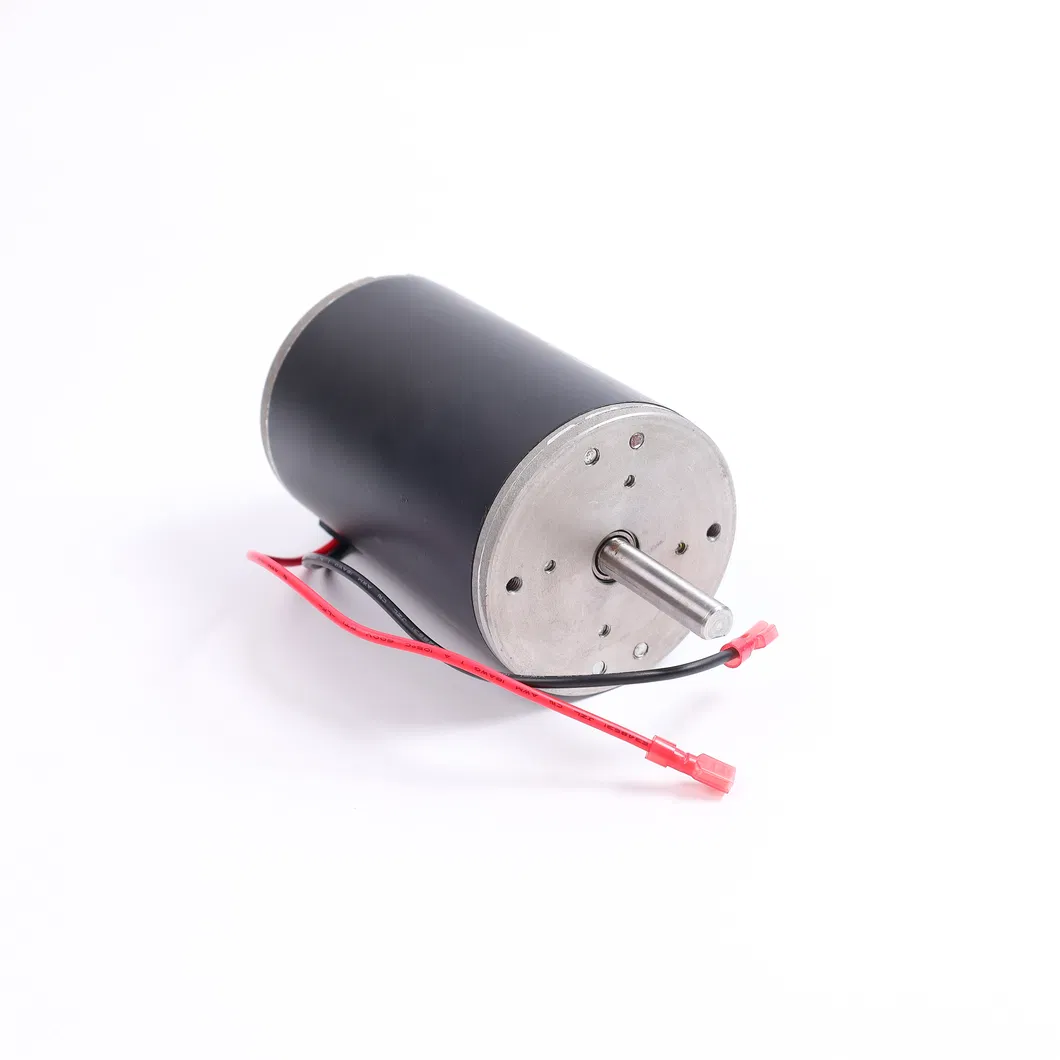

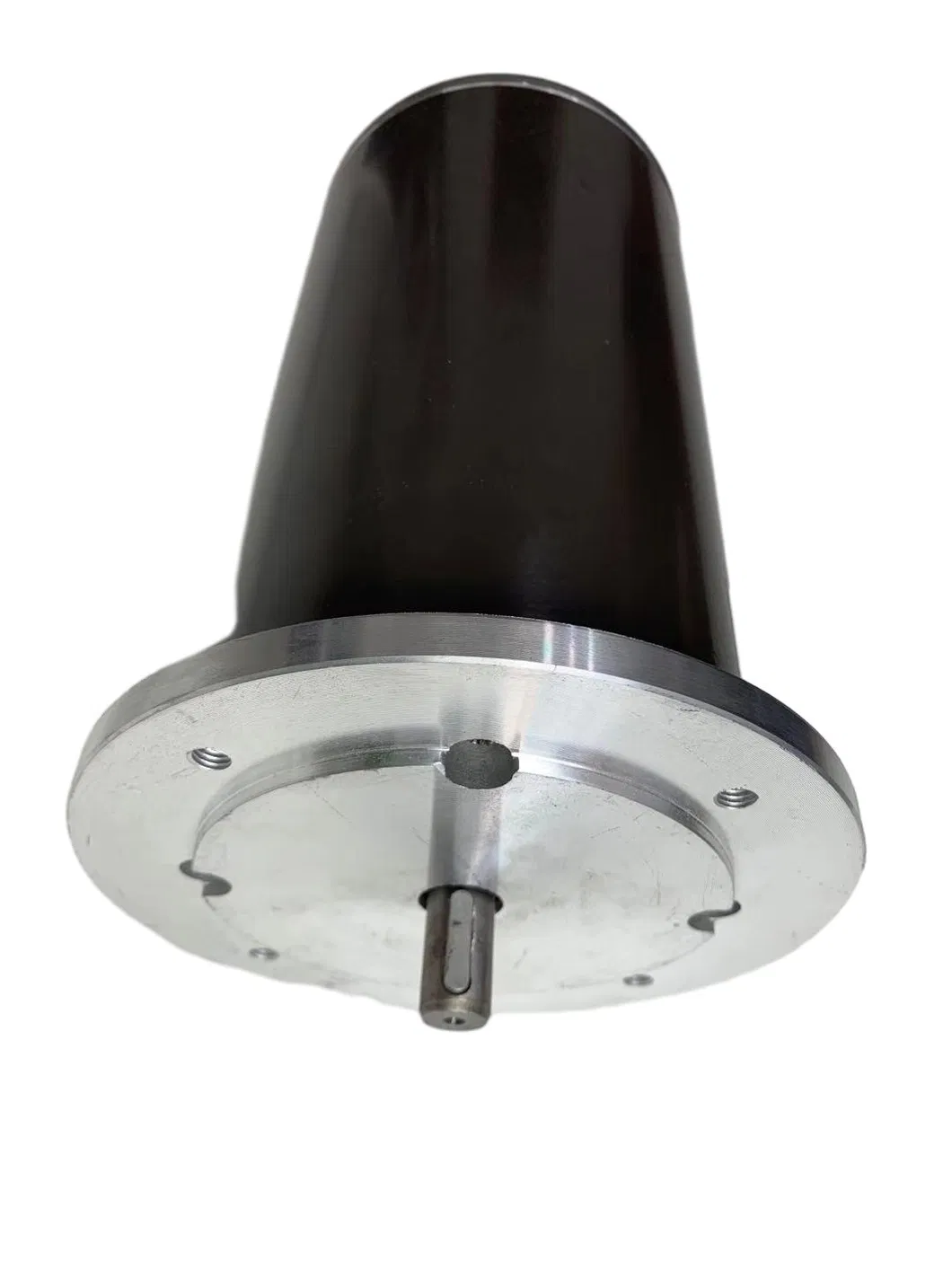

Detailed Product Gallery

Technical Advantages

Protection & Insulation: Grade IP44~IP68, Insulation Grade F

Optimized Design: Winding overhang structure optimization for small volume and high efficiency

Premium Materials: NdFe35 permanent magnetic materials for maximum energy product

Operation: Low noise, low vibration, and fast dynamic response

Performance: High torque with strong overload capacity across a wide speed range

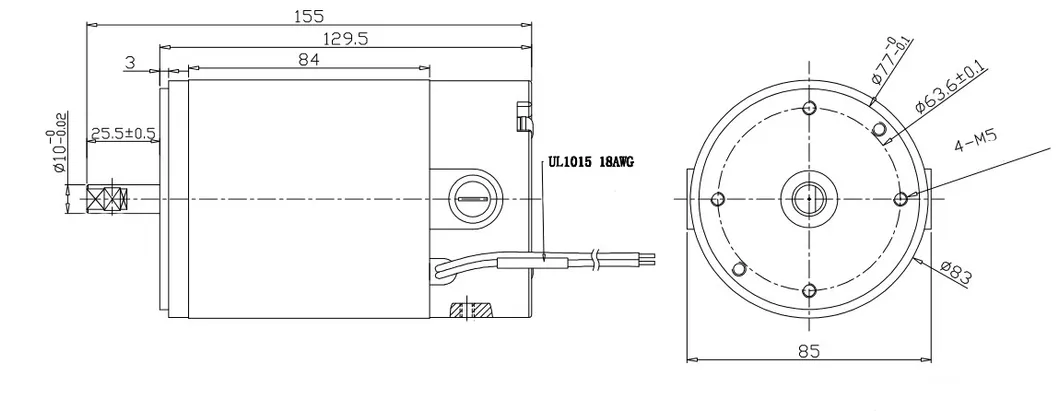

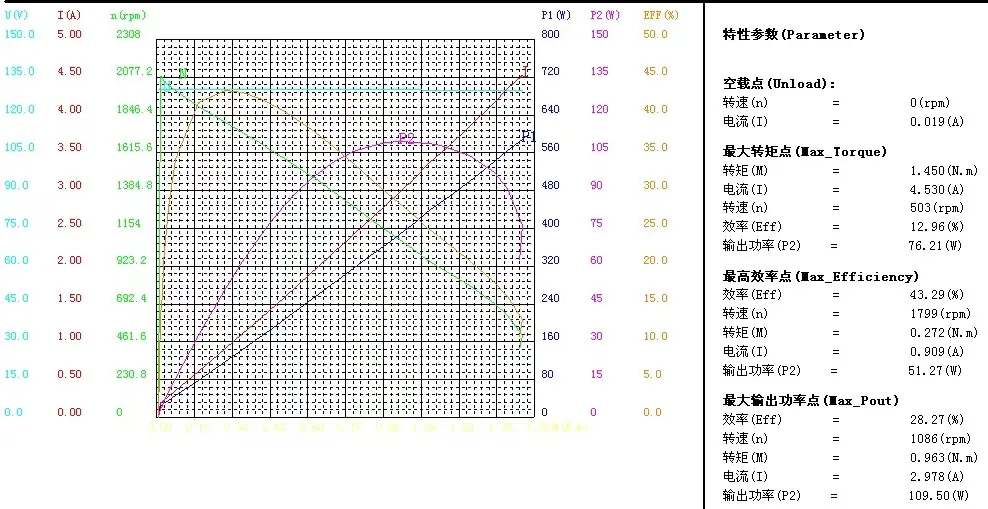

Technical Parameters & Diagrams

Manufacturing Excellence

Specializing in AC and DC motors for various sectors including kitchen appliances, medical products, smart wearables, and industrial robots. With over 16 years of engineering experience, our team ensures superior products tailored to custom motion solutions.

Frequently Asked Questions

What are the available payment methods?

We accept TT (Telegraphic Transfer) or trade assurance. Typically, a 30% down payment is required upon contract validation, with the remaining 70% balance due before shipment.

How long is the product guarantee?

We offer a 12-month guarantee on our high-quality motors. Our technical team is available to respond to inquiries within 5 hours.

How do you handle replacement parts?

If parts break within the warranty period (excluding standard wear-and-tear parts), we provide replacements free of charge. For parts outside warranty or easy-broken components, we only charge the cost fee.

What quality certifications do your products have?

Our products are CE certified, and our factory operates under ISO9001:2001 management systems. We have a dedicated QC department to ensure consistent quality.

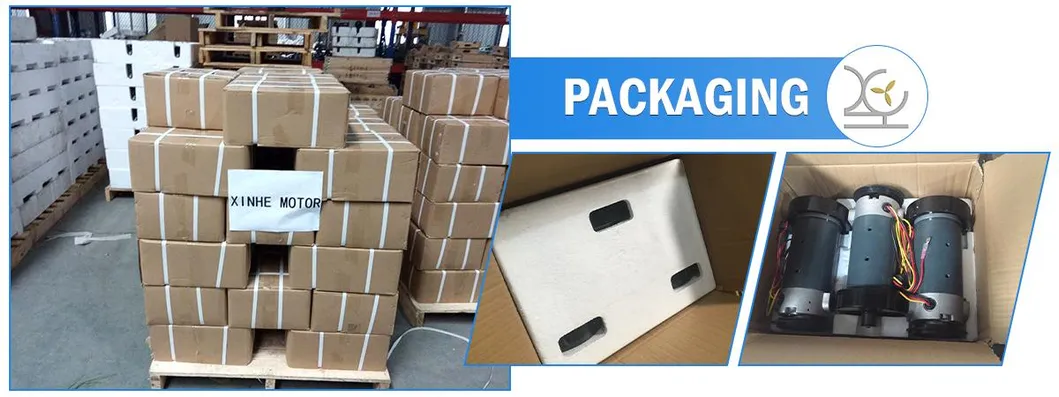

What is the standard packaging for shipping?

Motors undergo anti-rust treatment, are wrapped in plastic film, and then secured on wooden brackets or packed in reinforced cartons for safe transport.

Can we inspect the motors before delivery?

Yes, we support online inspections during testing and provide detailed testing videos and reports before delivery. Third-party testing is also accepted.
