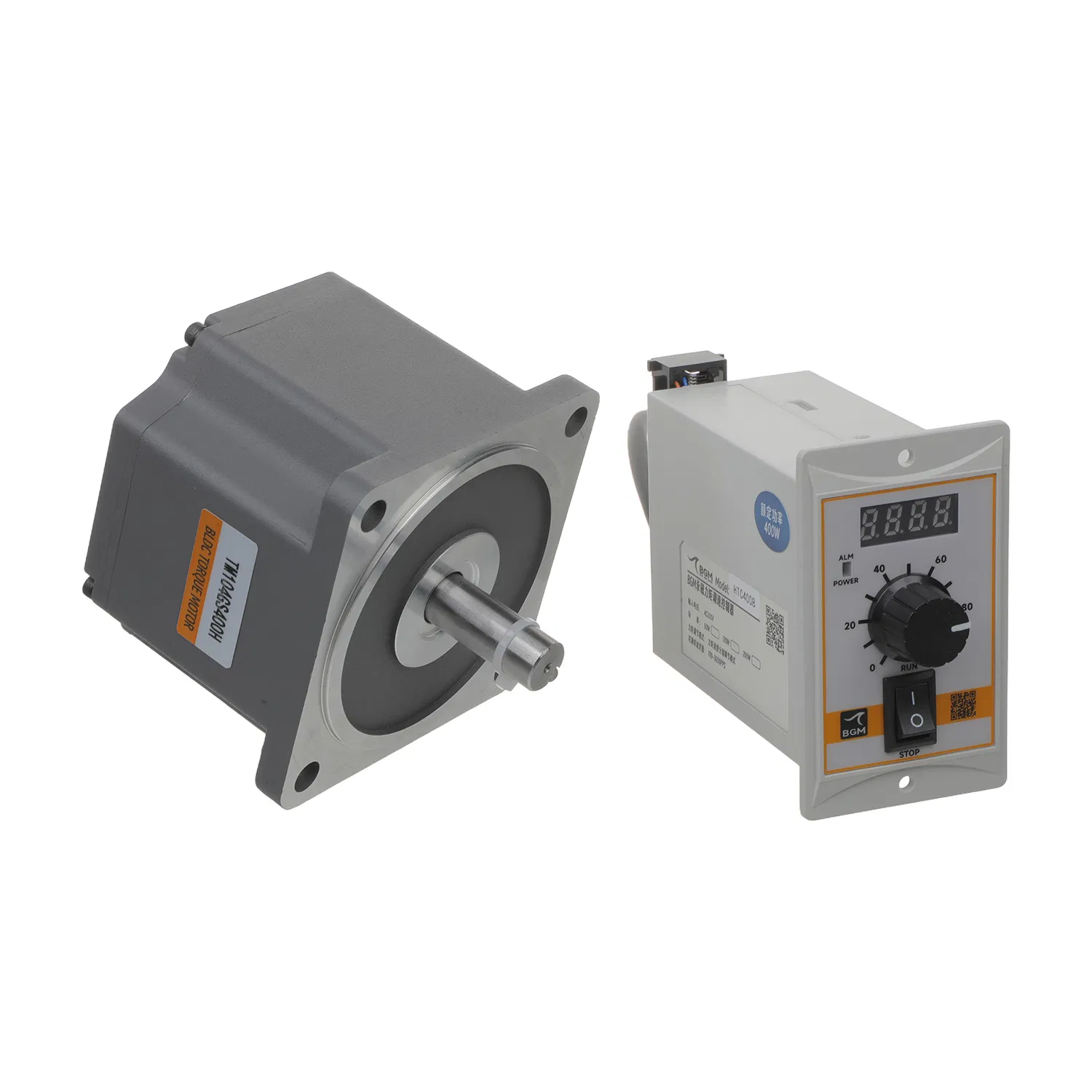

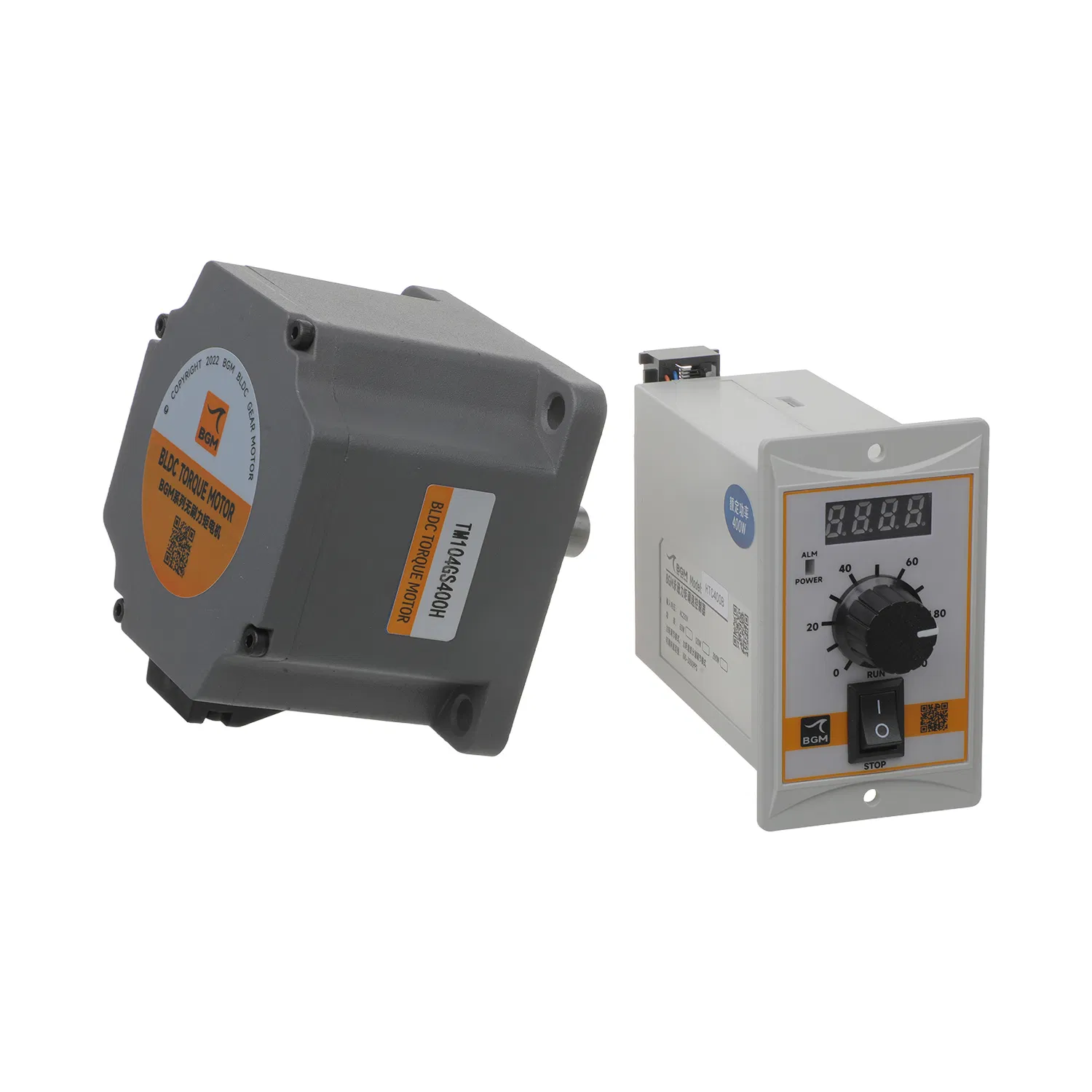

30W Mini Size Quiet 750W High Power Strong Torque Geared BLDC Motor

1 / 5

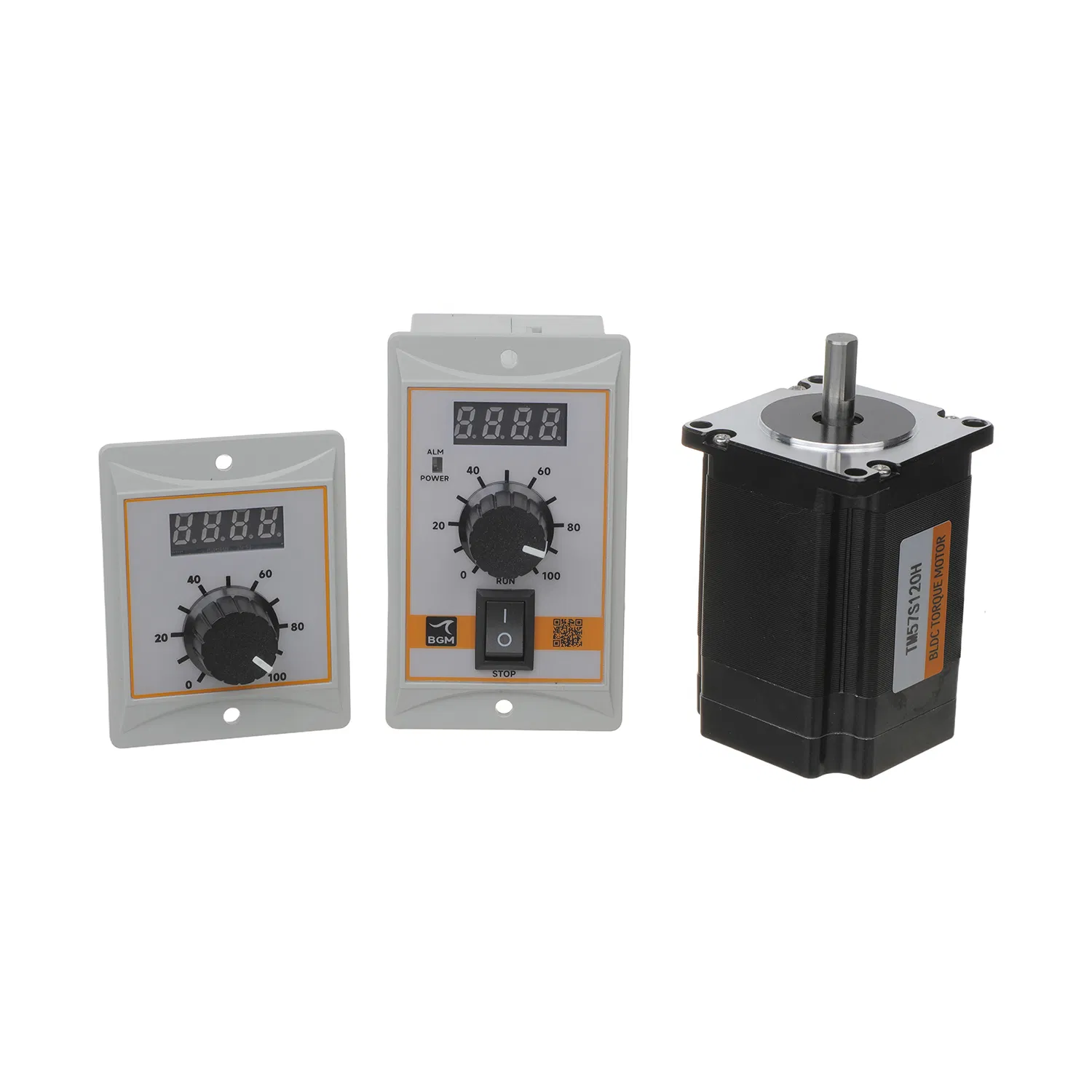

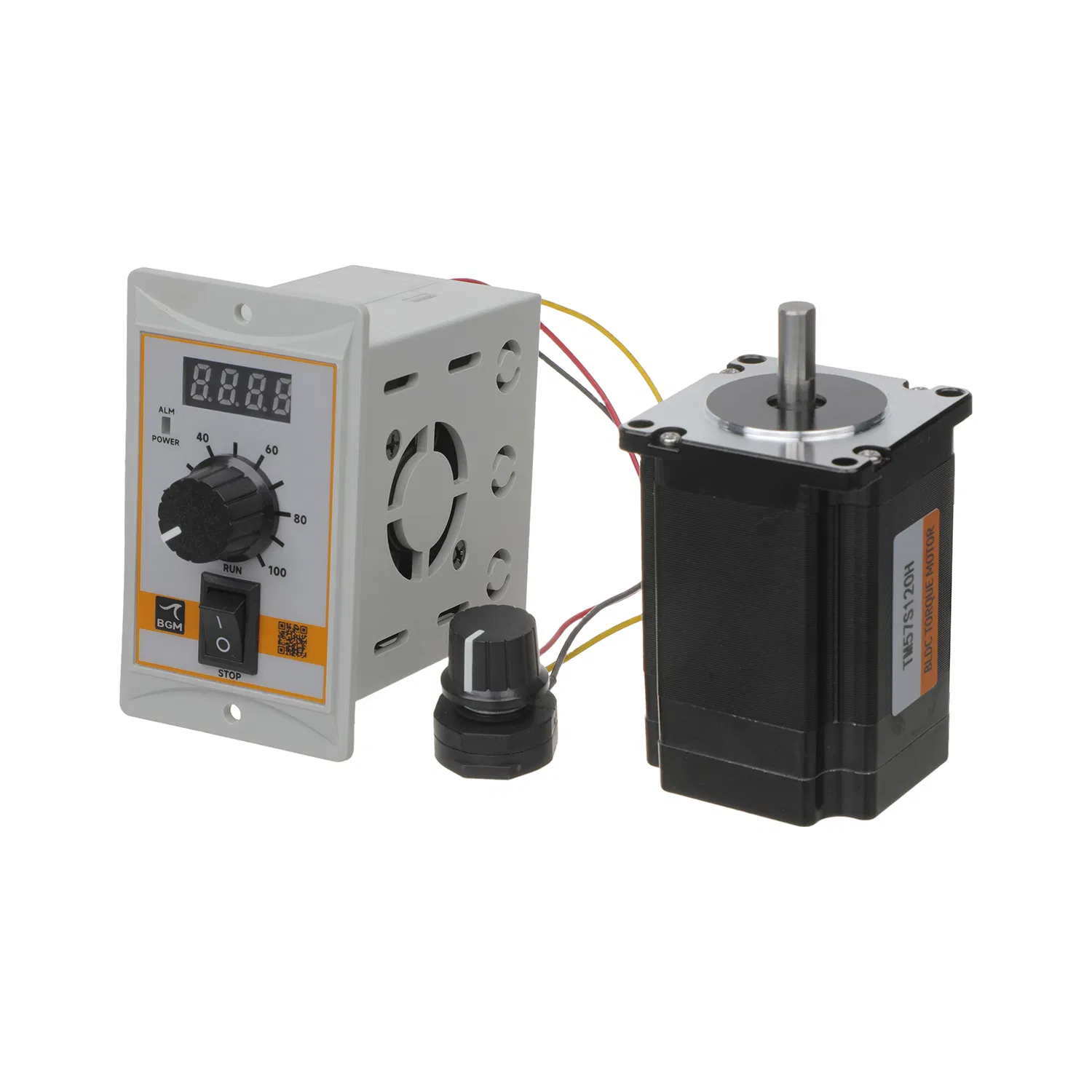

30W Mini Size Quiet 750W High Power Strong Torque Geared BLDC Motor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

2GNXK-60BLK0330-24-21AC

Product Name

Brushless Planetary Gear Motor

Power Range

30W - 2000W

Voltage Options

24V / 48V / 110V / 220V DC

Rated Speed

3000 Rpm (Customizable)

Efficiency Class

IE2

Structure

Brushless Permanent Magnet

Noise Level

≤55 Db

Service Life

20,000+ Hours

Certification

ISO9001

Product Description

High-Performance Brushless Gear Motor

Our brushless planetary gear motor combines high-efficiency BLDC technology with precision planetary gearbox design, delivering exceptional torque output in a compact package.

Available in a 30W-1500W power range with multiple voltage options (24V/36V/48V/110V/220V DC), this maintenance-free gearmotor offers superior energy savings and reliable performance for modern industrial needs.

⚙️ Industrial Automation

Perfect for CNC machines, robotics, and conveyor systems.

🚗 Electric Vehicles

Powers scooters, e-bikes, and small EVs with high efficiency.

🏥 Medical Equipment

Reliable drive for pumps and diagnostic devices.

Technical Parameters

Parameter	Specifications
Frame Size	42mm / 57mm / 60mm / 80mm / 86mm / 90mm / 104mm / 110mm
Gear Type	Optical axis / Planetary / Parallel Shaft / Right-Angle / Hollow Shaft
Controller	Integrated BLDC Driver with RS485 Communication
Speed Control	Built-in RV Potentiometer Adjustment
Input Compatibility	AC 110V/220V or DC 24V
Customization	Voltage, Shaft, Gear Ratio, Mounting Options Available

Core Advantages

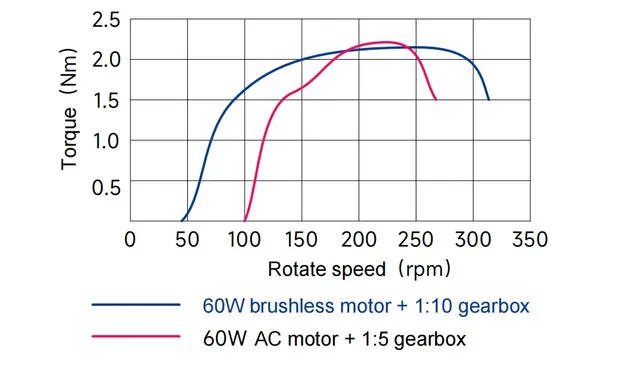

Low-speed, High-torque

Energy Saving (IE2)

Space-saving Design

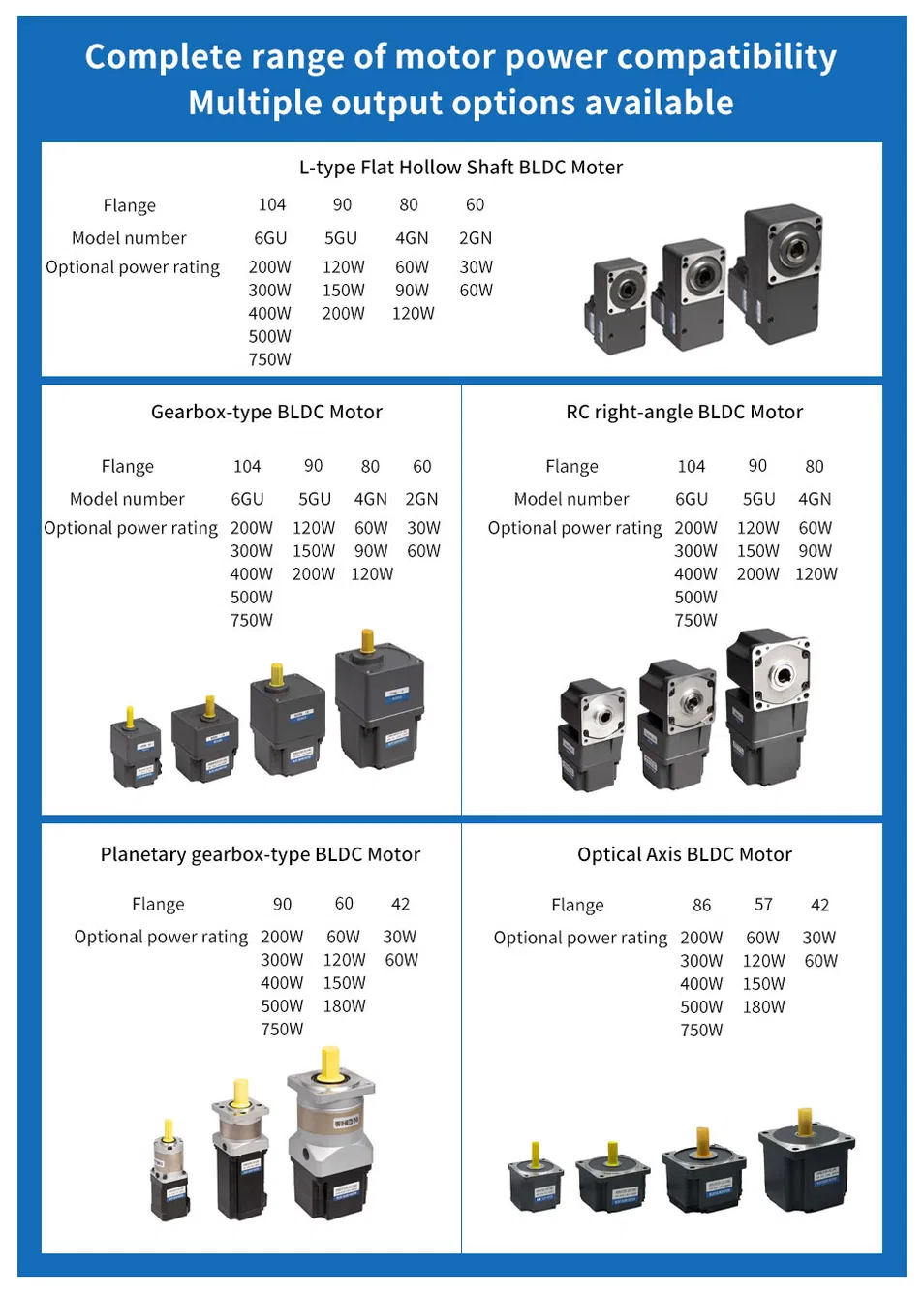

Product Variants

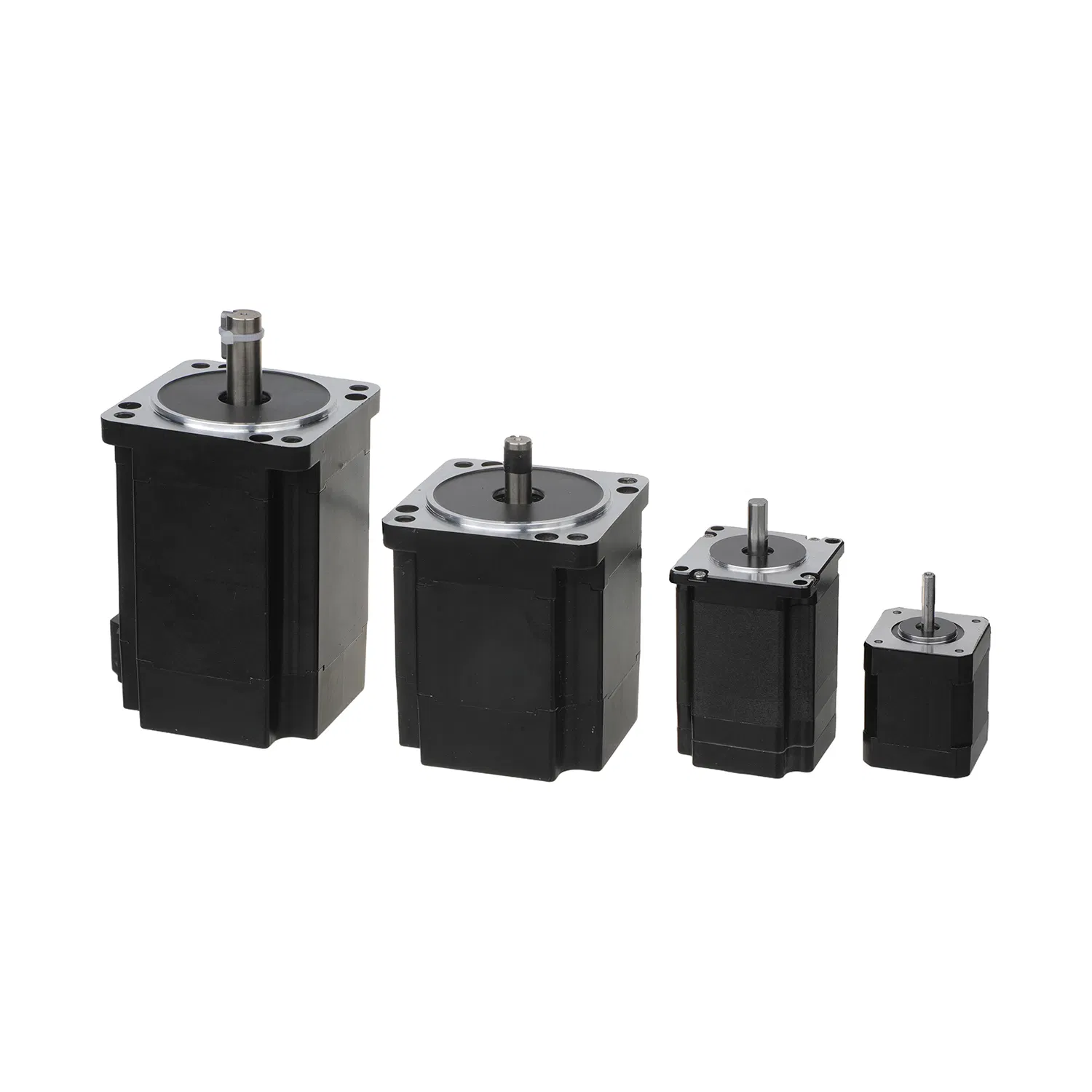

Optical Axis BLDC Motor

🔹 Power: 30W - 1500W
🔹 Voltage: 24V / 36V / 48V / 110V / 310V DC
🔹 Features: Compact size, High efficiency, Wide speed range

Parallel Shaft BLDC Gear Motor

🔹 Gear Ratio: 3 - 200
🔹 Usage: Simple wiring and setup
🔹 Benefit: Excellent speed and torque management

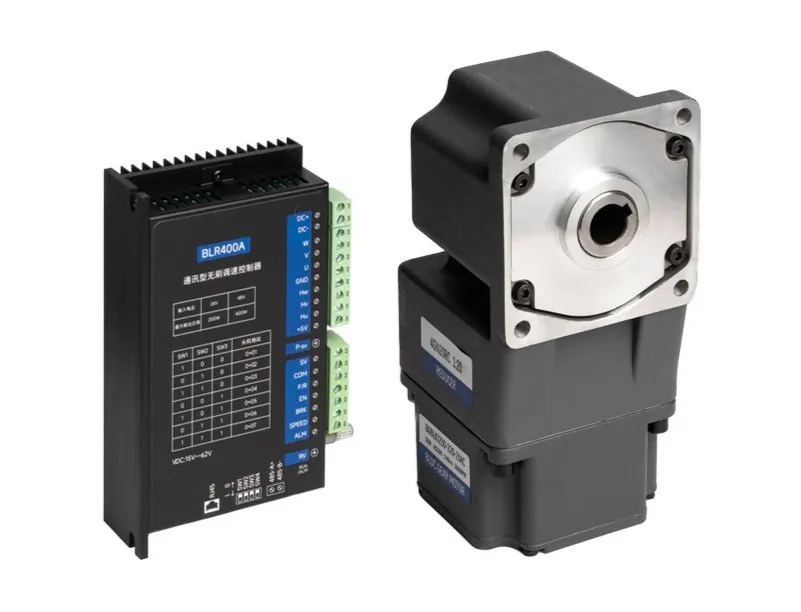

Right-Angle 90° Output

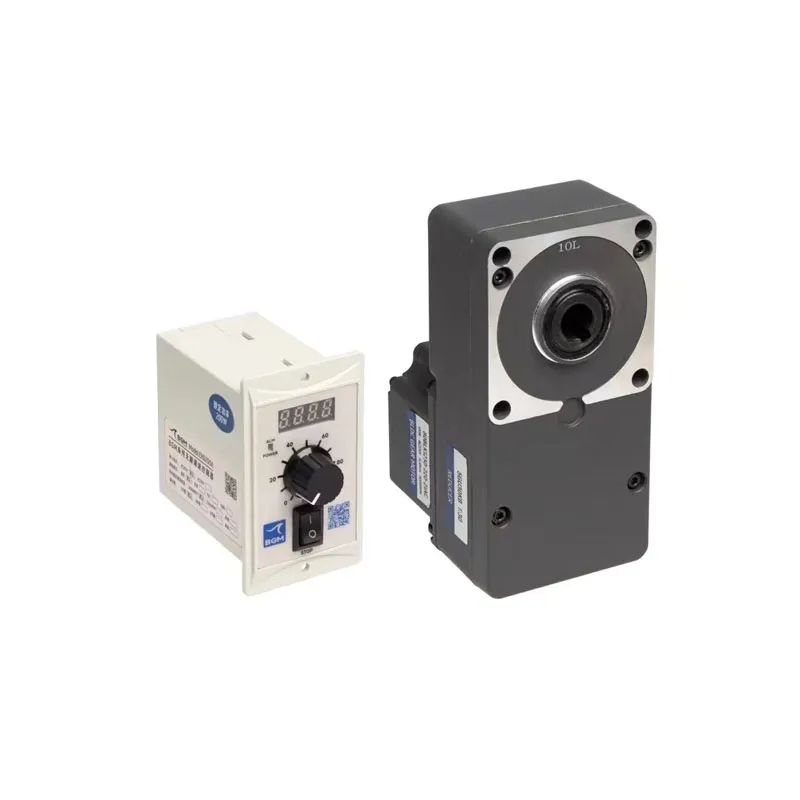

Hollow Shaft Design

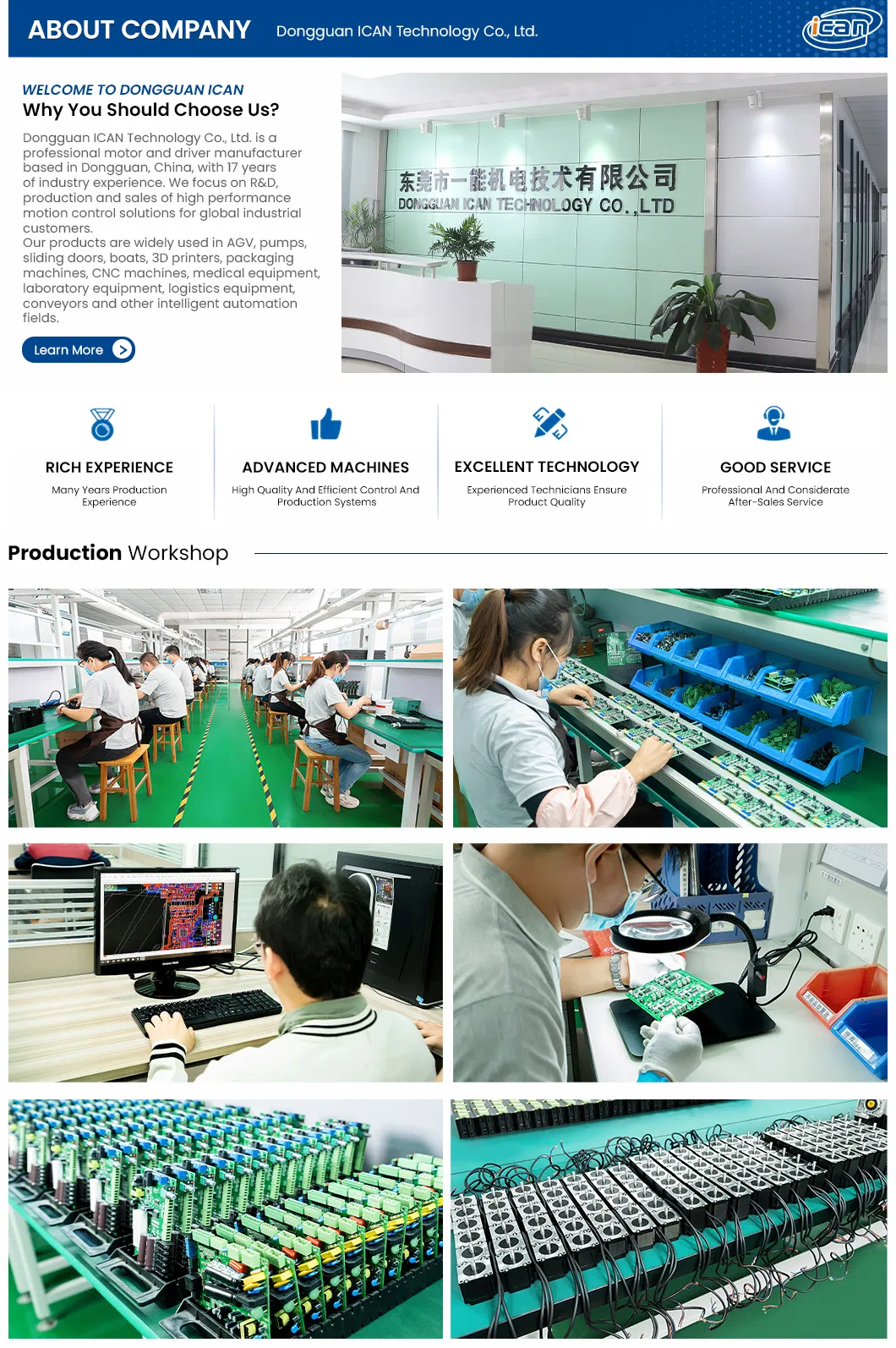

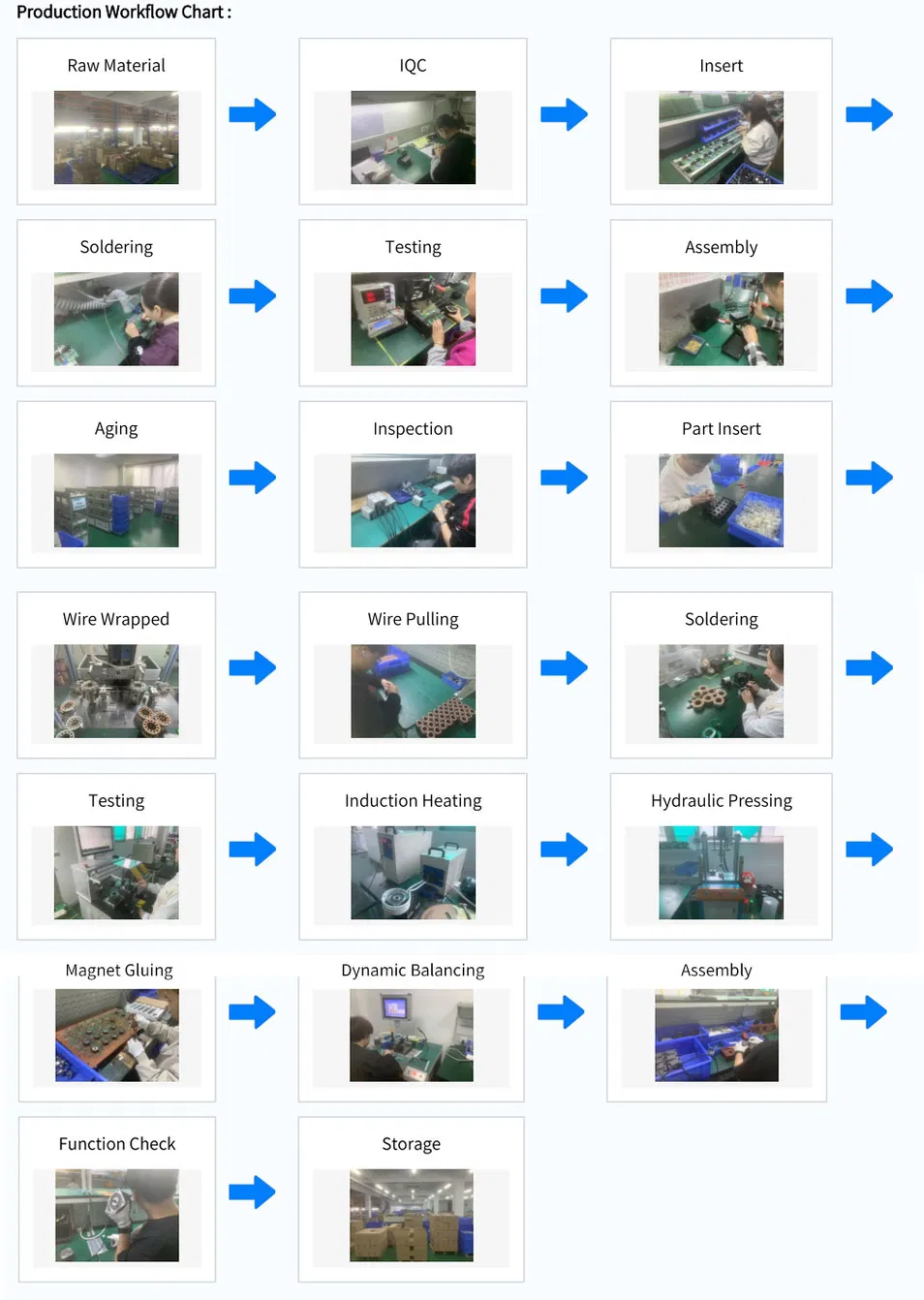

Manufacturing Capacity

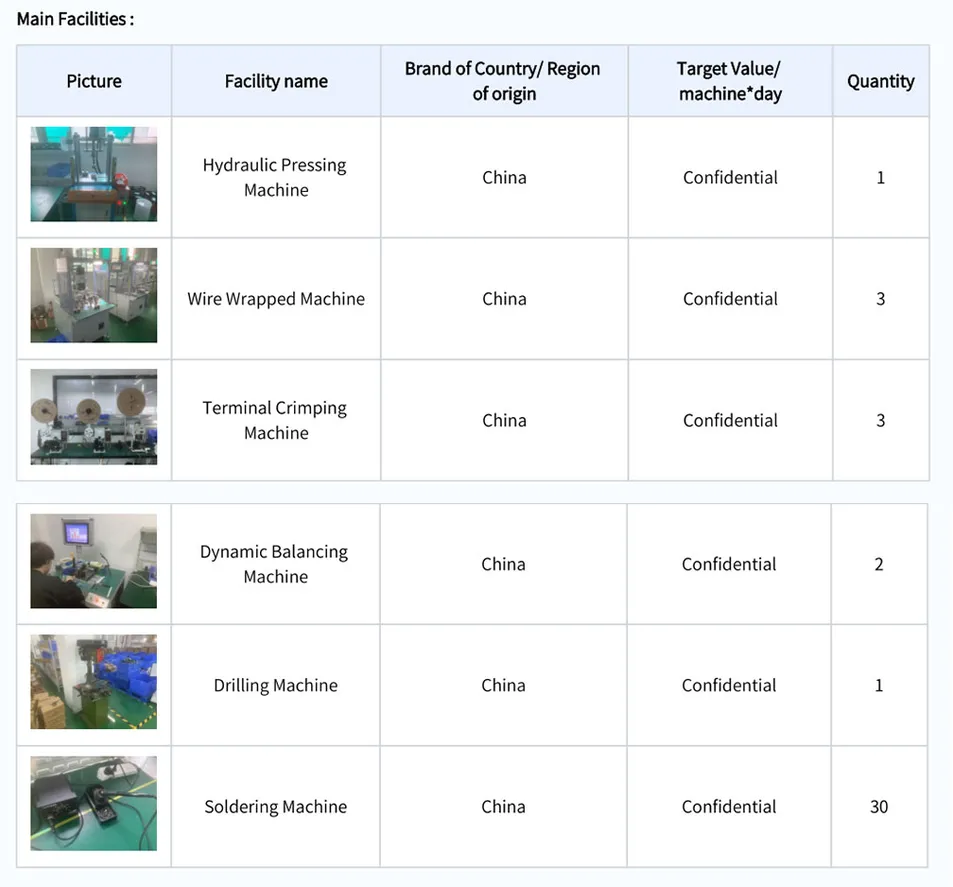

Facility Overview

Frequently Asked Questions

Can you make gear motors with custom specifications?

YES. We have strong R&D capability and a team of experienced engineers to handle custom requirements for gearboxes and motors.

Do you provide samples?

YES. Samples are typically ready within 7-15 days depending on the complexity of the specifications.

What is the warranty period and technical support?

We provide full technical support and offer an 18-month warranty period on our brushless motor products.

How is the sample-making process handled?

Contact our team to discuss specs and confirm drawings. Once confirmed and payment is processed, we begin manufacturing and ship the sample for your testing.

What is the standard delivery time?

Standard orders are normally shipped within 3-5 working days after payment. Specialized or bulk orders are negotiable based on current capacity.

What voltage options are available?

We support a wide range of DC voltages including 24V, 36V, 48V, 110V, and up to 310V DC to suit various application environments.
