In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
Advantages of PMDC motors:
Cost-effective and with a high starting torque, PMDC motors are smaller but offer impressive output performance. These motors are most often combined with gearboxes to reduce speed and increase torque for the ultimate geared motor solution.
Performance Range:
• Speed: 1000 - 5000 RPM
• Power: Up to 2030 Watts
• Torque: 0.1 - 4.9 Nm

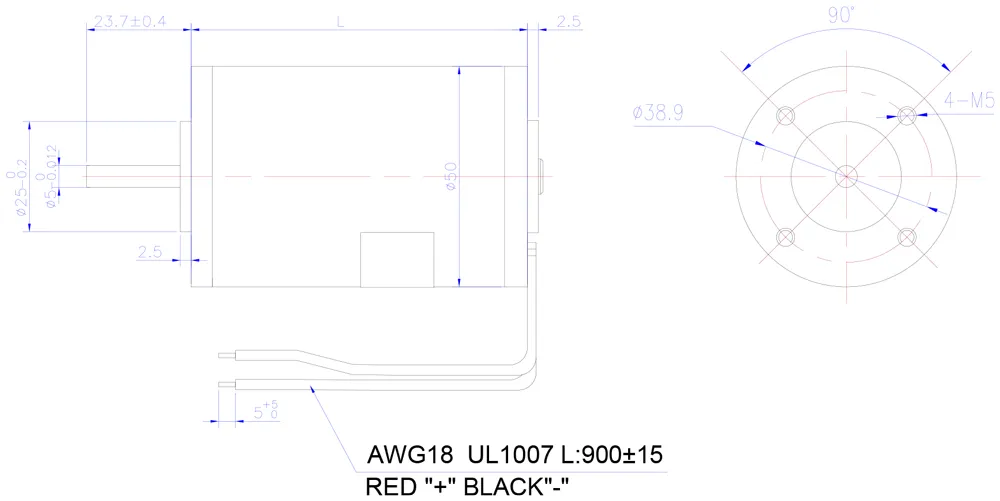

| Model | Rated Voltage (V) | No-load Current (A) | No-load Speed (rpm) | Rated Torque (N.m) | Rated Current (A) | Rated Speed (rpm) | Output Power (W) | Length (mm) |
|---|---|---|---|---|---|---|---|---|
| 50ZYT77-2470 | 24 | 0.6 | 7000 | 0.08 | 3 | 6000 | 50 | 77 |
| 52ZYT86-1227 | 12 | 0.3 | 3000 | 0.1 | 3 | 2200 | 23 | 86 |

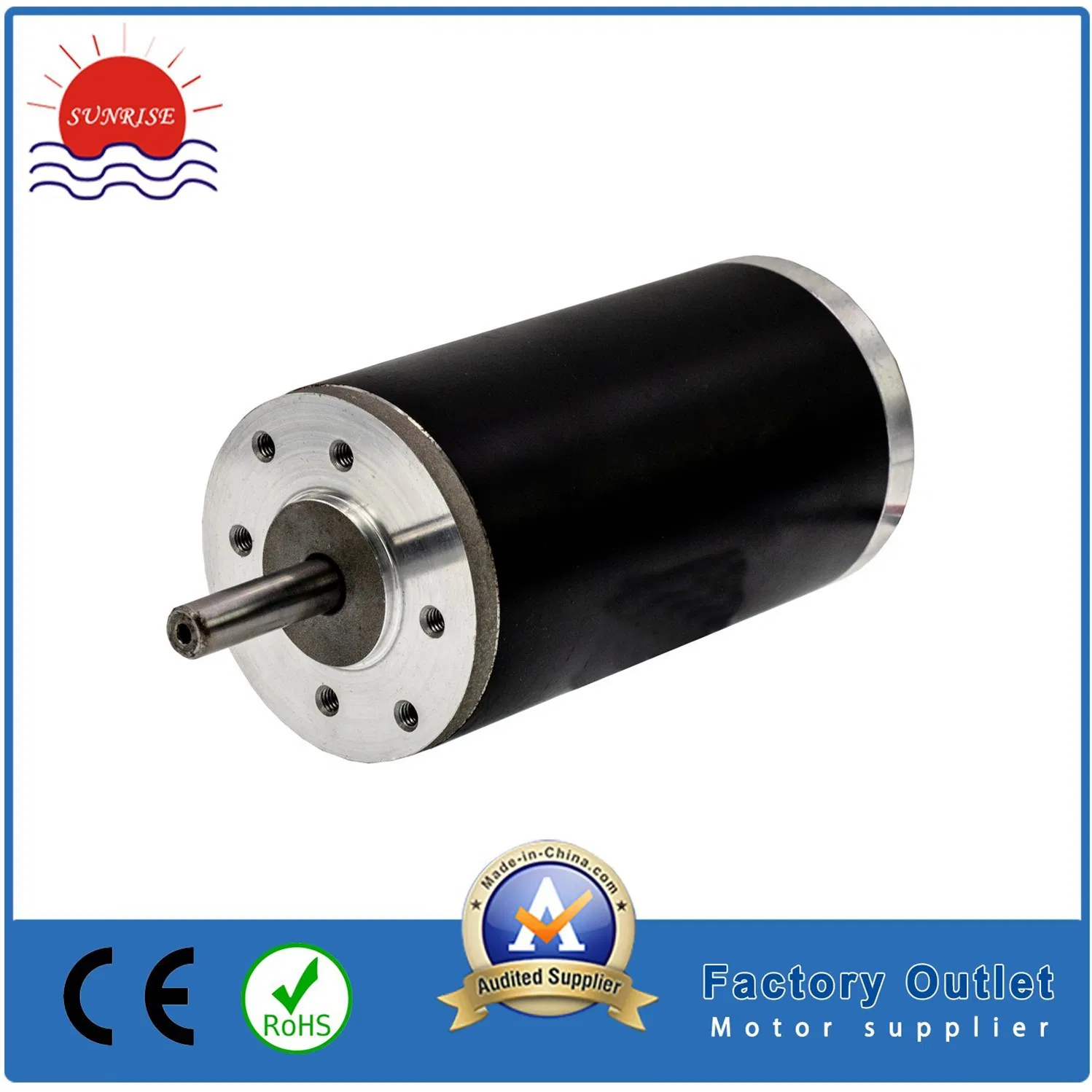

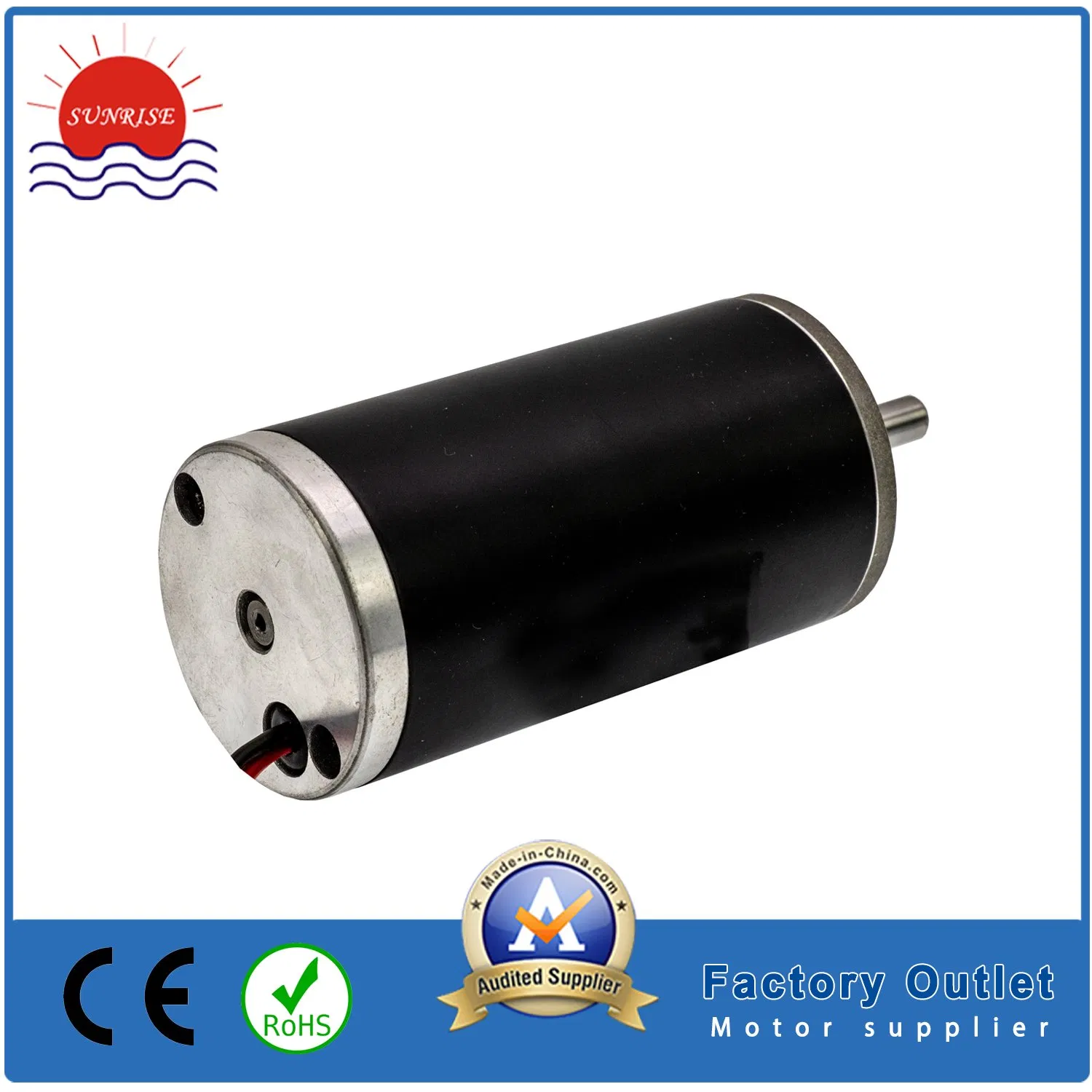

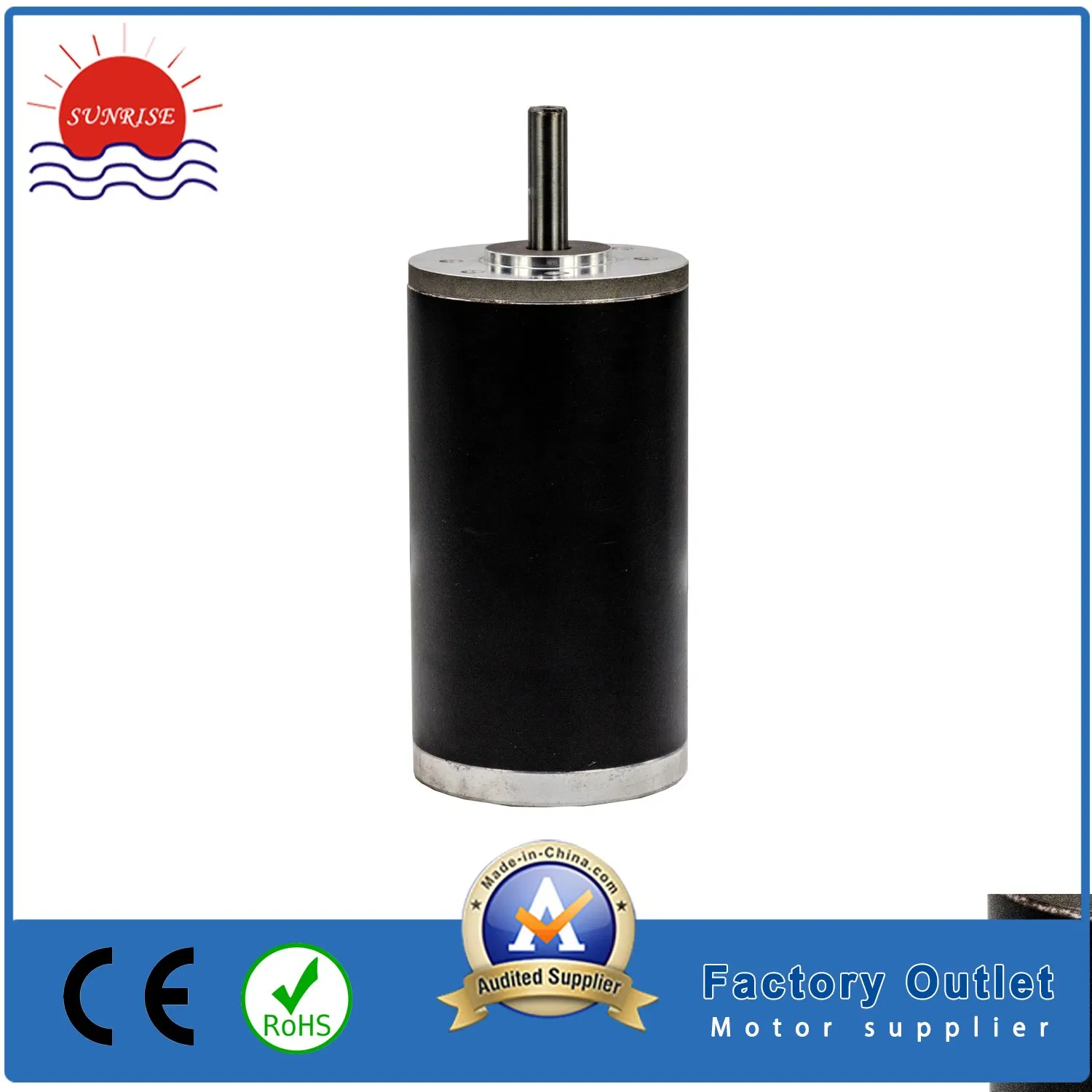

| 52ZYT95-2442 | 24 | 0.3 | 4200 | 0.12 | 2.7 | 3700 | 47 | 95 |
| 52ZYT105-22050 | 220 | 0.05 | 5000 | 0.1 | 0.35 | 4000 | 42 | 105 |
| 52ZYT115-2442 | 24 | 0.3 | 4200 | 0.2 | 4.2 | 3700 | 78 | 115 |
| 52ZYT125-2442 | 24 | 0.3 | 4200 | 0.3 | 7 | 3700 | 116 | 125 |
