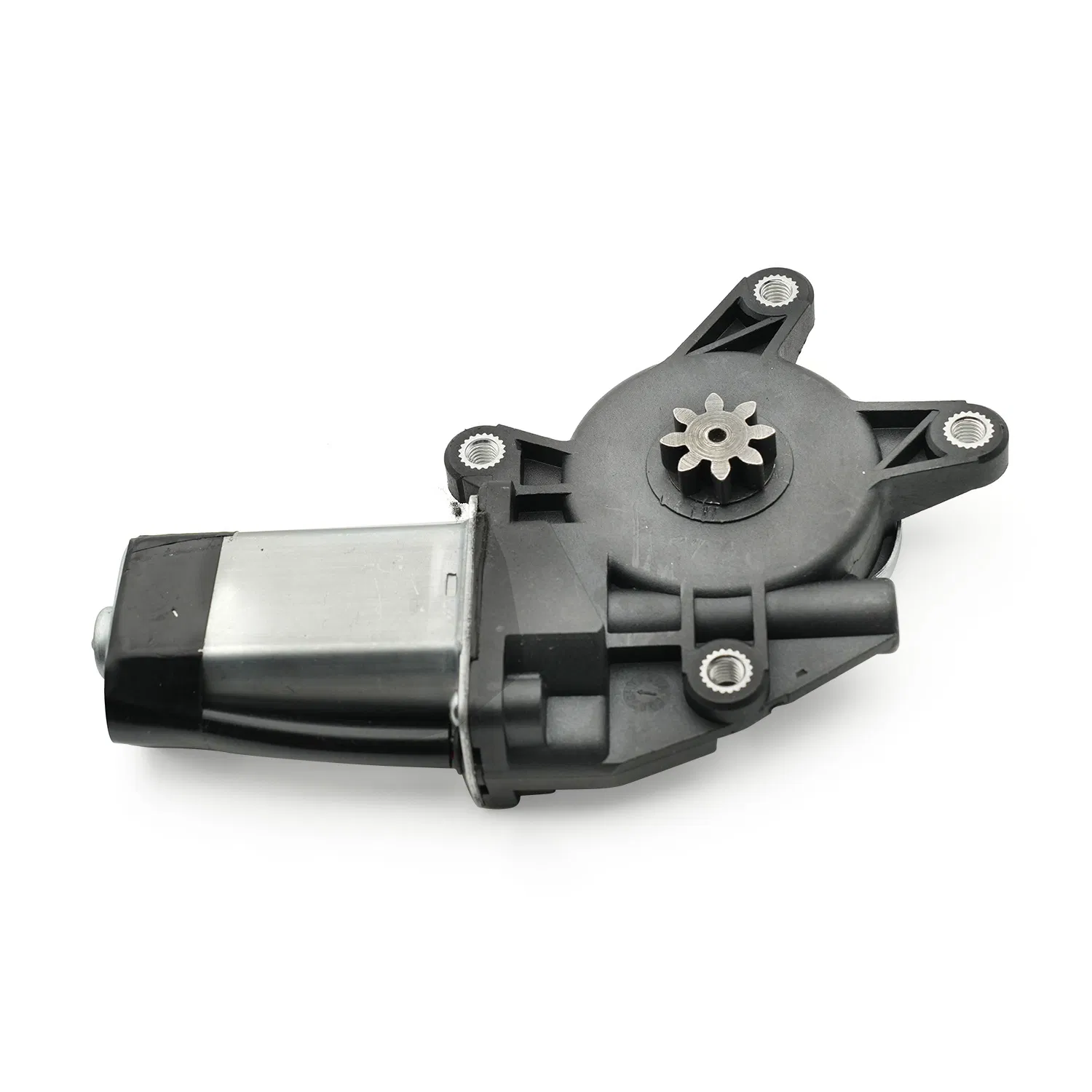

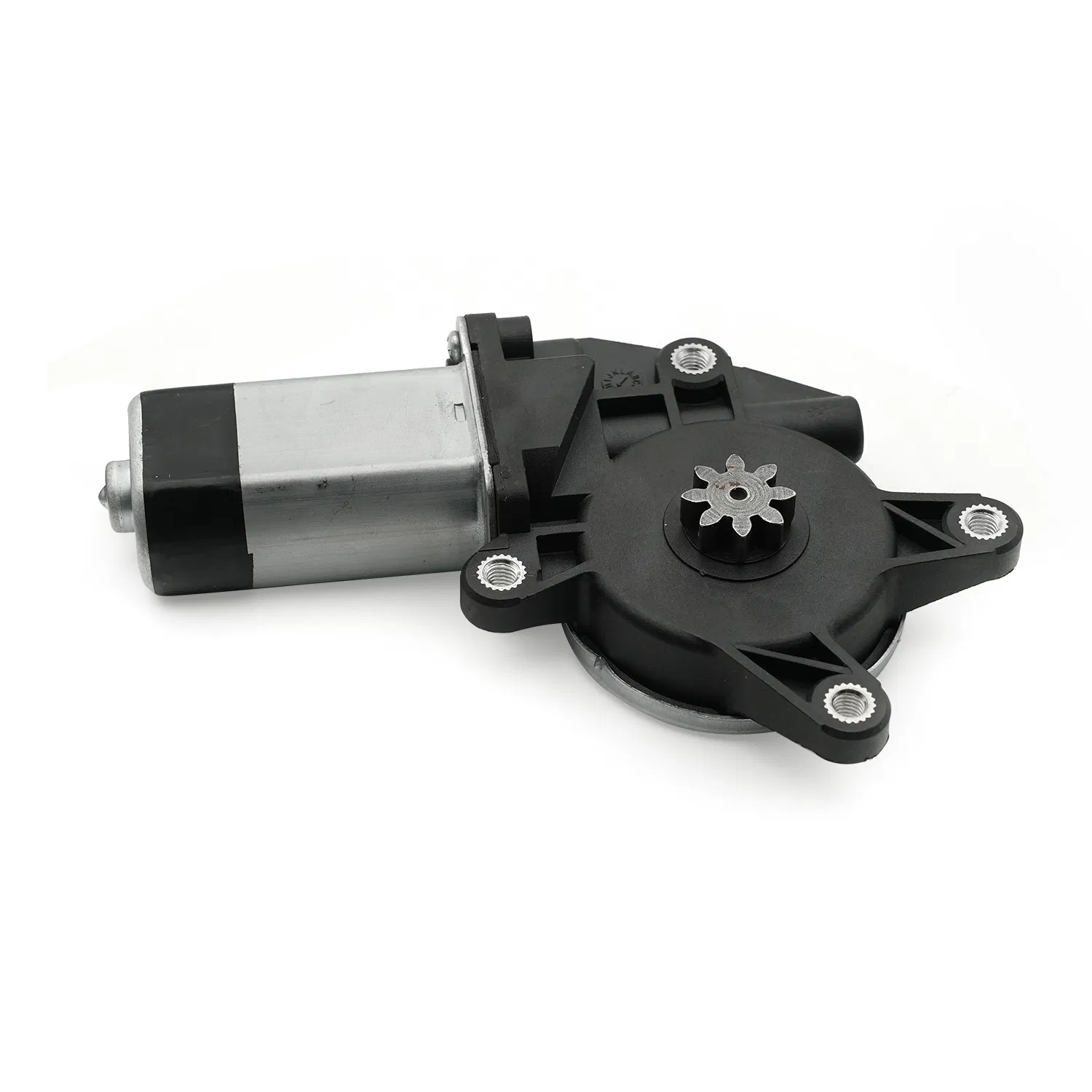

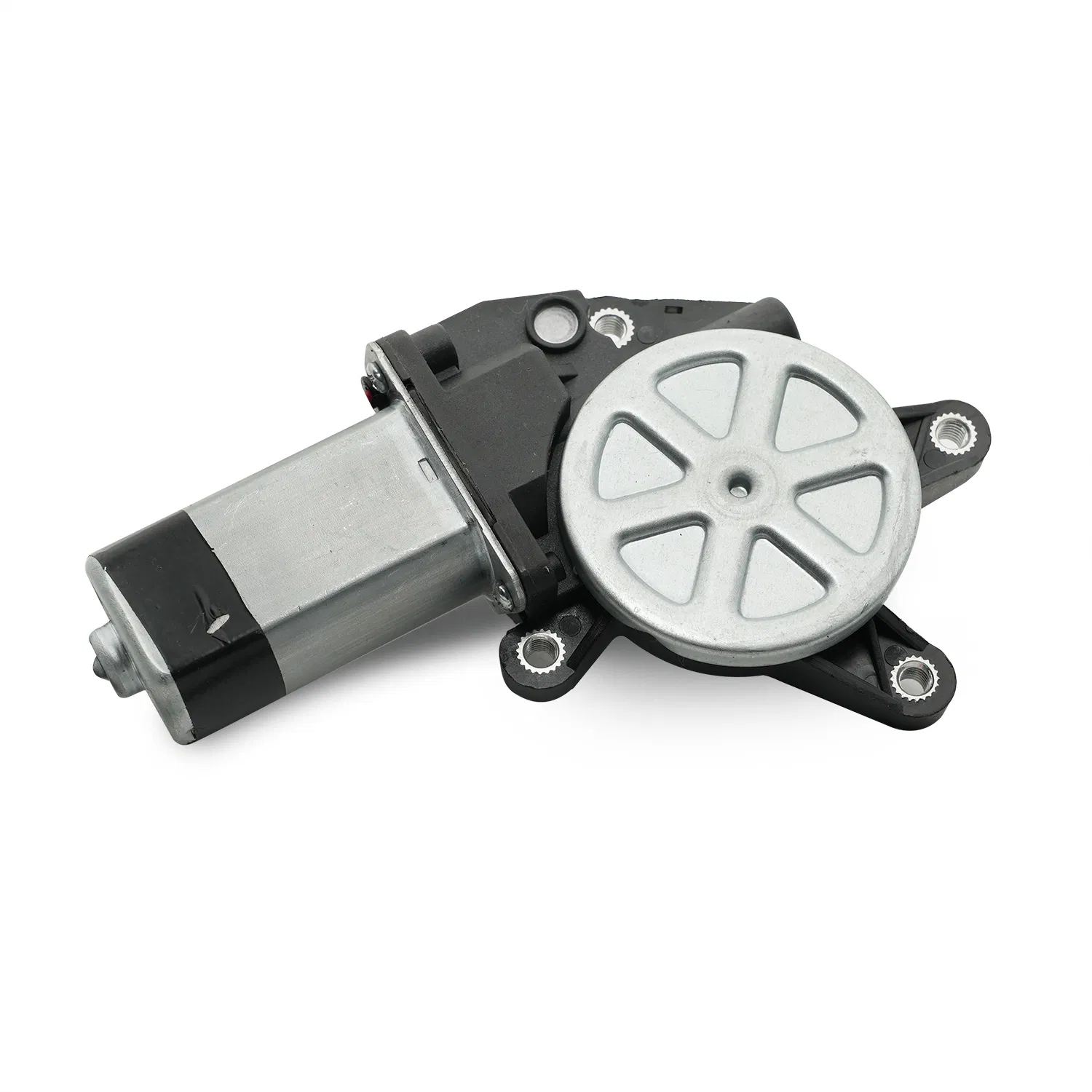

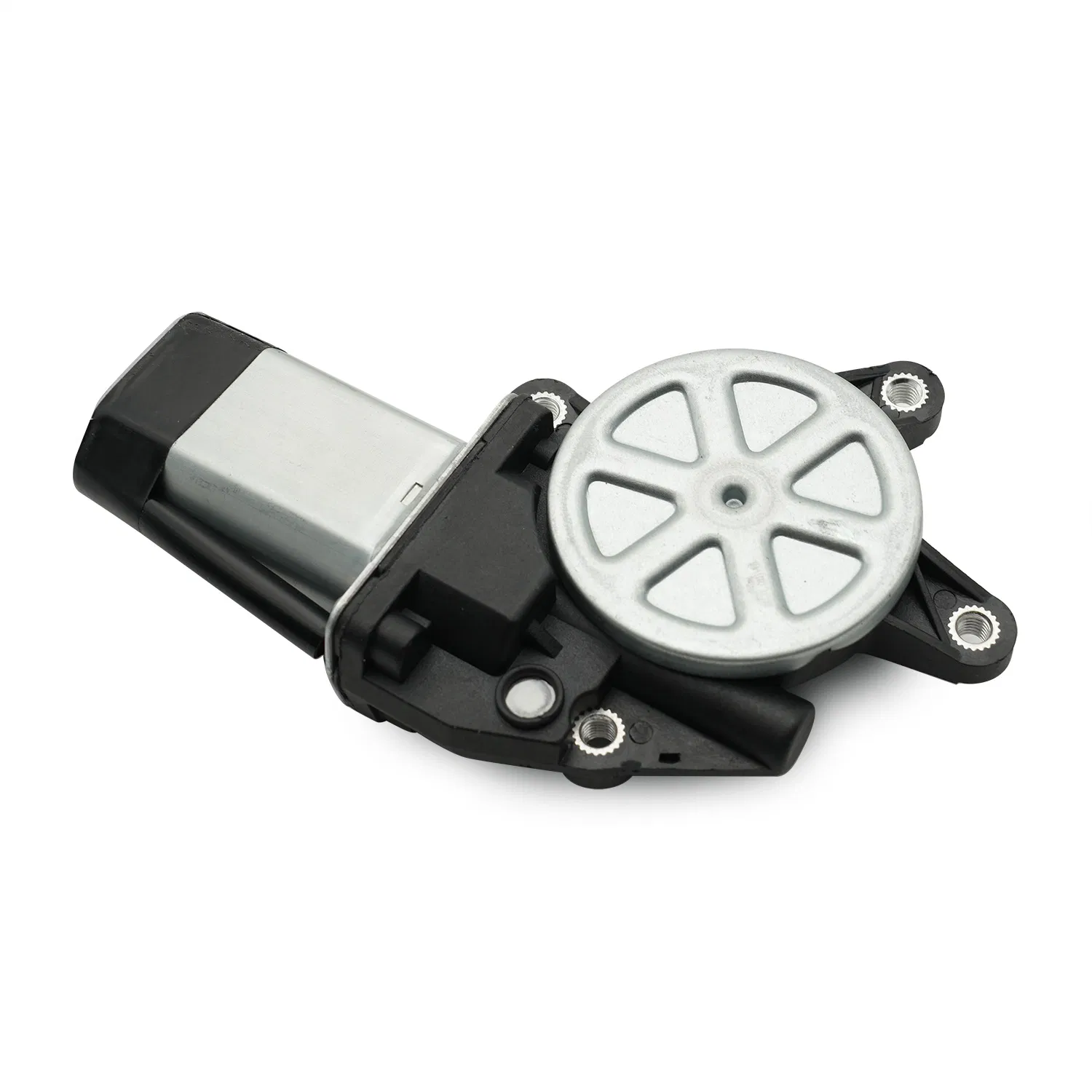

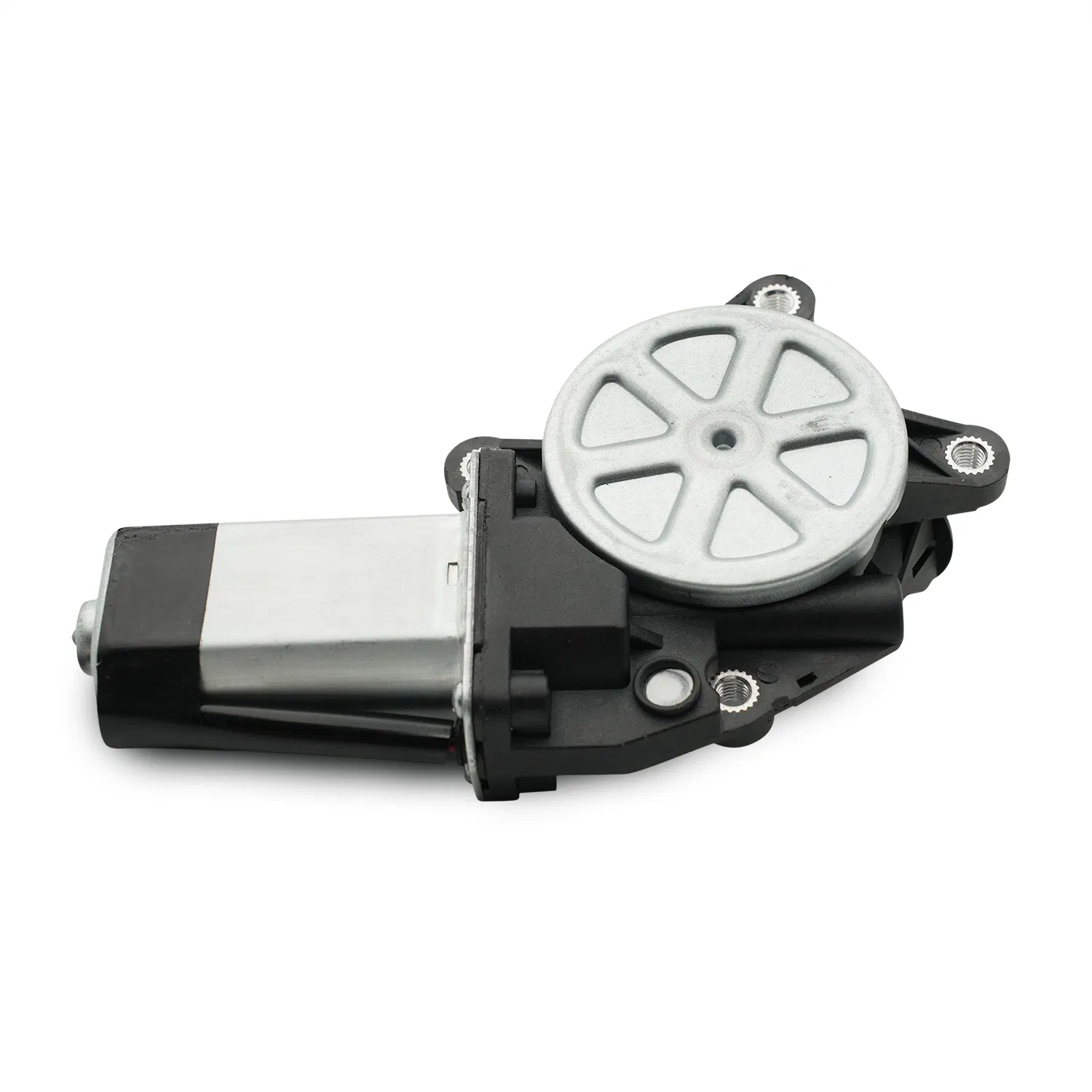

12V/24V Long-Life DC Brushed Gear Mini Motor for Car Wiper

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
ZD1510R/L
Excitation Mode
Excited
Function
Control, Driving
Number of Poles
2
Working Principle
Brush
Certification
ISO9001, CCC, CE, RoHS
Usage
Fan, Home Appliance
Voltage
12V
Rated Speed
10-300rpm
Rated Input Power
10-500W
Direction
Cw & Ccw
Noise Level
60dB
📦 Packaging & Delivery
Package Size
39.00cm * 24.00cm * 20.00cm
Gross Weight
11.000kg
Production Capacity
50,000 Pieces / Month
📊 Product Description
Typical Applications:
  • Car wiper systems
  • Car lifting windows
Technical Parameters

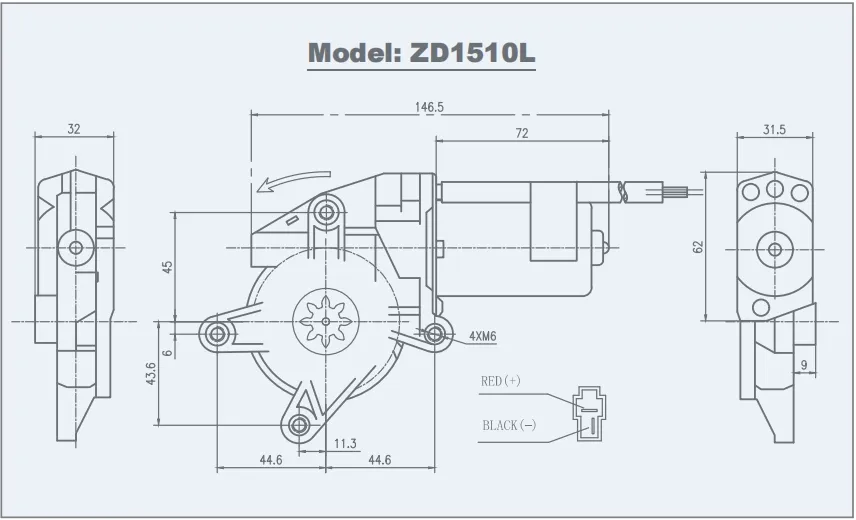

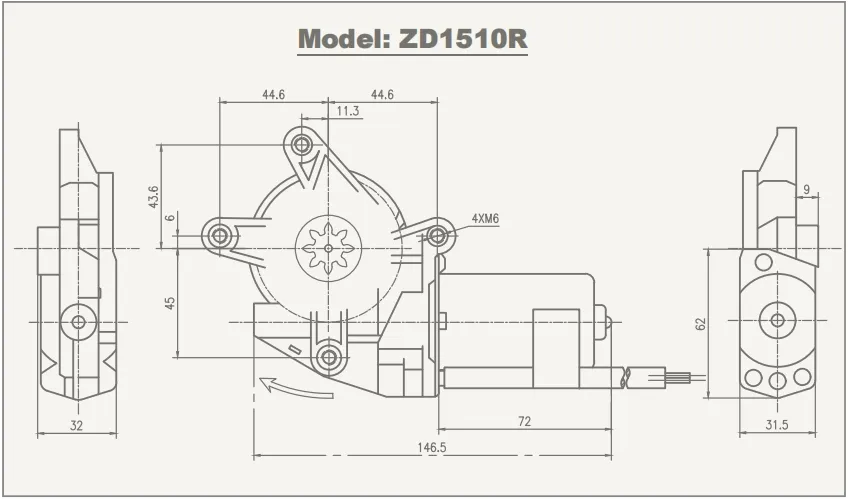

ModelZD1510R/L
Voltage12V
Nominal Torque2.5Nm
No-load Speed95+/-10RPM
No-load Current0.7A
Nominal Current3.8A
Stall Torque10Nm
Gear Parameters
Gear Number8
Module2
Pressure Angle20 Degree
Modification Coefficient0.25
Precision Grade7-6-6 class GB10095-88

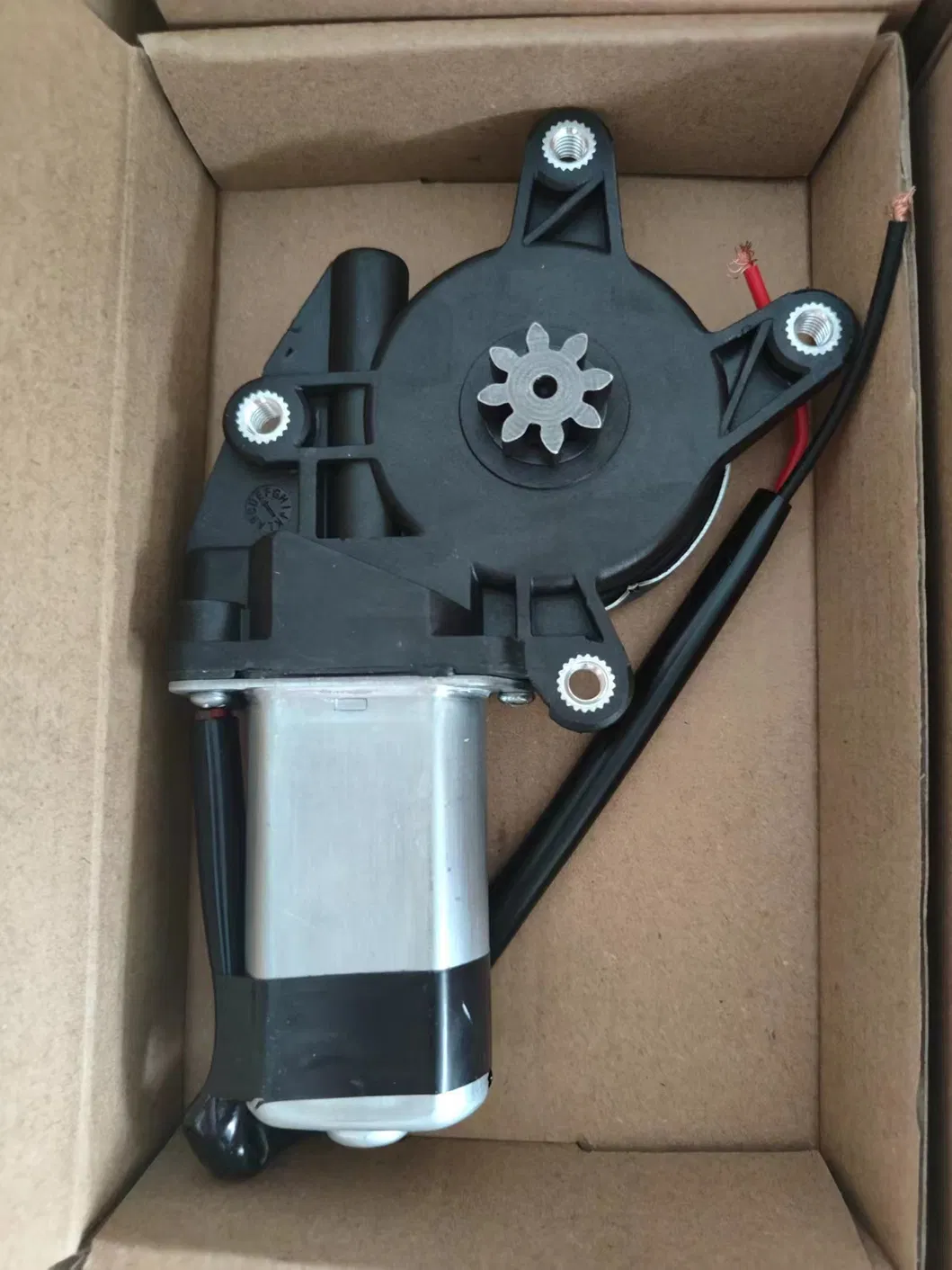

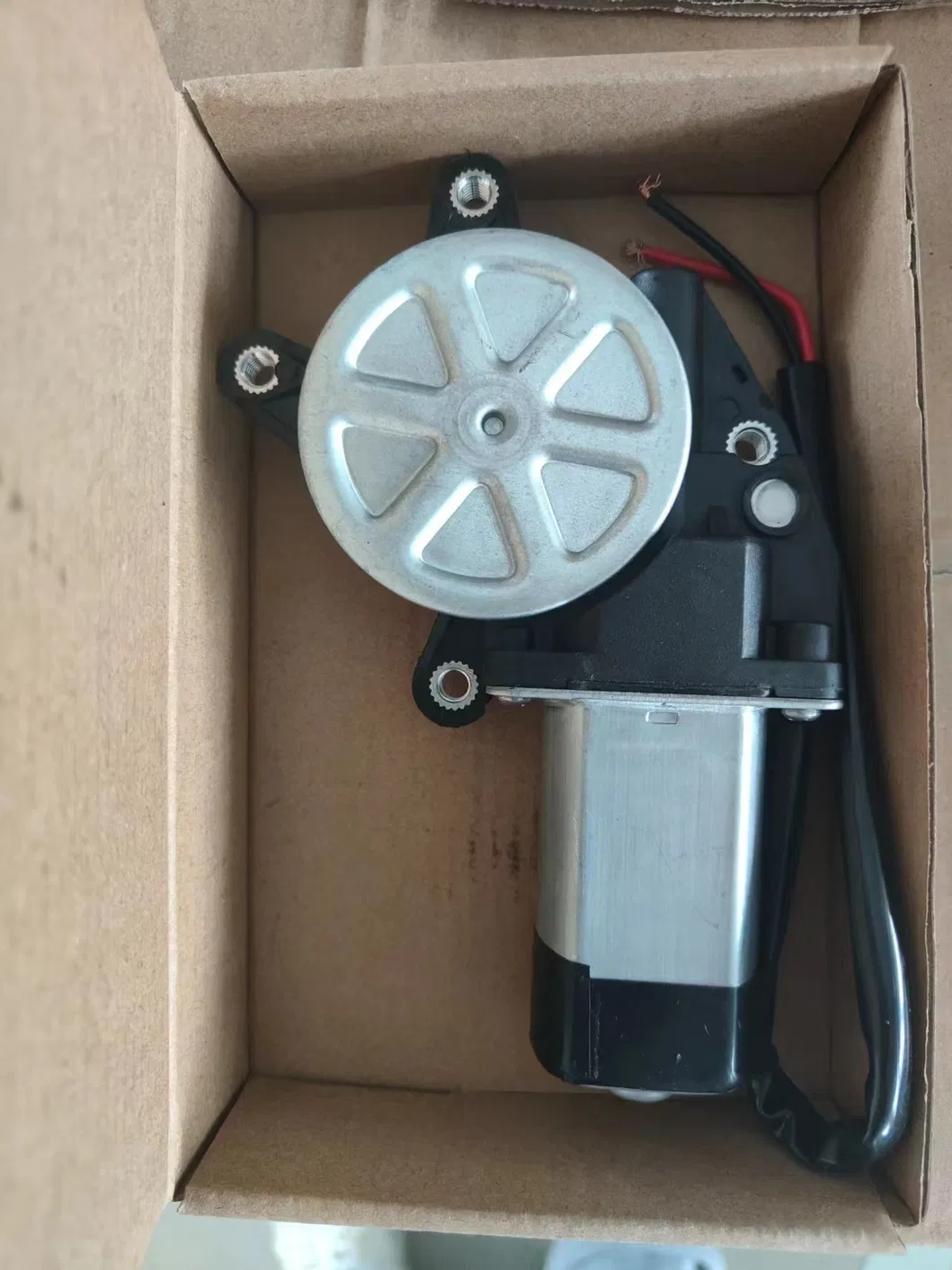

📷 Product Visuals
🏭 Manufacturing Excellence

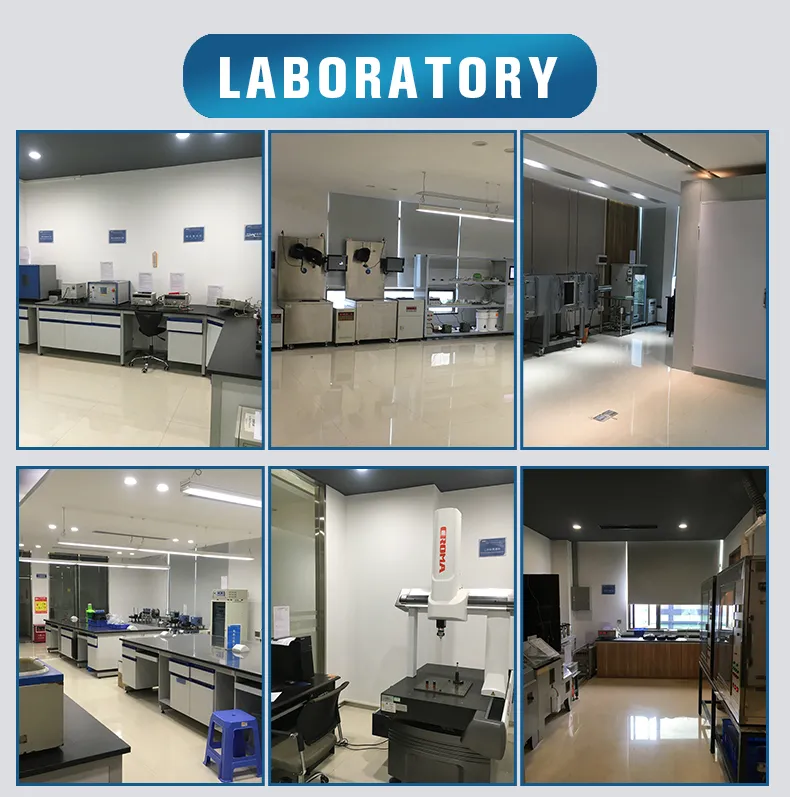

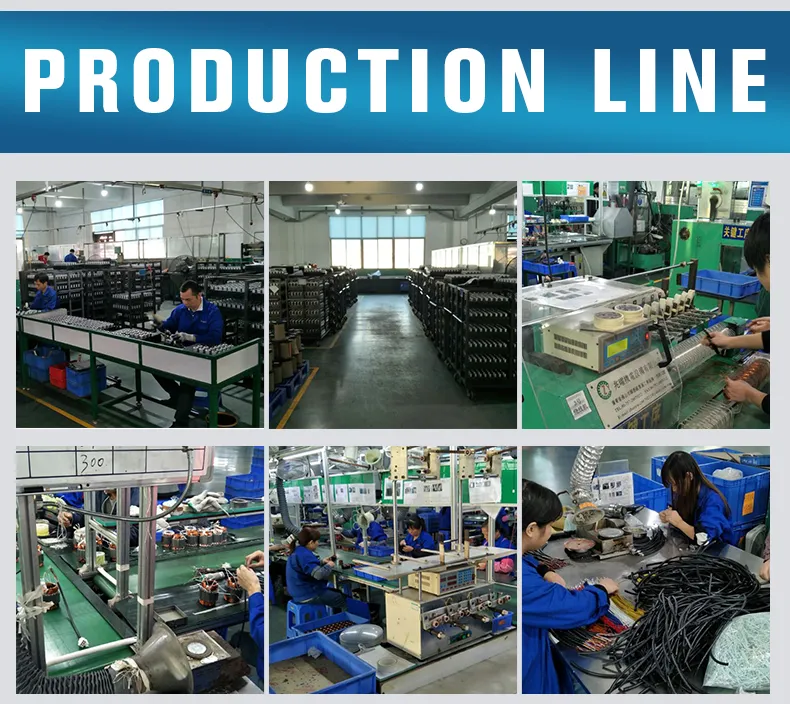

With a focus on micro-motors for household and industrial appliances since 2006, our production facilities cover 25,000 square meters. We maintain an annual output of 3 million units with a total capacity of 5 million pieces. Our specialized departments in R&D, QC, and production utilize advanced equipment for aluminum die-casting, sheet metal stamping, and plastic injection molding to ensure the highest quality standards.

Our product range has expanded to include shaded pole motors, synchronous motors, stepping motors, capacitor motors, BLDC motors, and DC compressors. These are widely integrated into refrigerators, micro-wave ovens, air filters, and various massage equipments globally.

Frequently Asked Questions
What types of motors are available in your product range?
We provide a wide variety of motors including DC Motors, Gear Motors, Fan Motors, Refrigerator Motors, Shaded Pole Motors, Capacitor Motors, BLDC Motors, and Synchronous Motors suited for various industrial and home appliances.
Can I request samples for testing before placing a bulk order?
Yes, we provide samples for testing if the price and MOQ terms are acceptable. Since most motors are custom-made, sample availability is typically reserved for official project evaluations.
What is the standard Minimum Order Quantity (MOQ)?
The standard MOQ is between 1,000 and 10,000 pieces depending on the model. However, we may accept smaller initial batches for the first few orders following sample approval.
Are the motors compatible with both CW and CCW directions?
Yes, the ZD1510R/L model is designed to support both Clockwise (CW) and Counter-Clockwise (CCW) rotation directions.
What quality certifications do your products carry?
Our manufacturing processes and products are certified by ISO9001, CCC, CE, and RoHS. We also comply with technical specifications such as TUV, UL, and VDE for specific requirements.
Is it possible to customize the motor specifications?
Absolutely. We specialize in OEM services where motor parameters like voltage, rated speed, and shaft dimensions can be adjusted to meet your specific application needs.
