Product Description

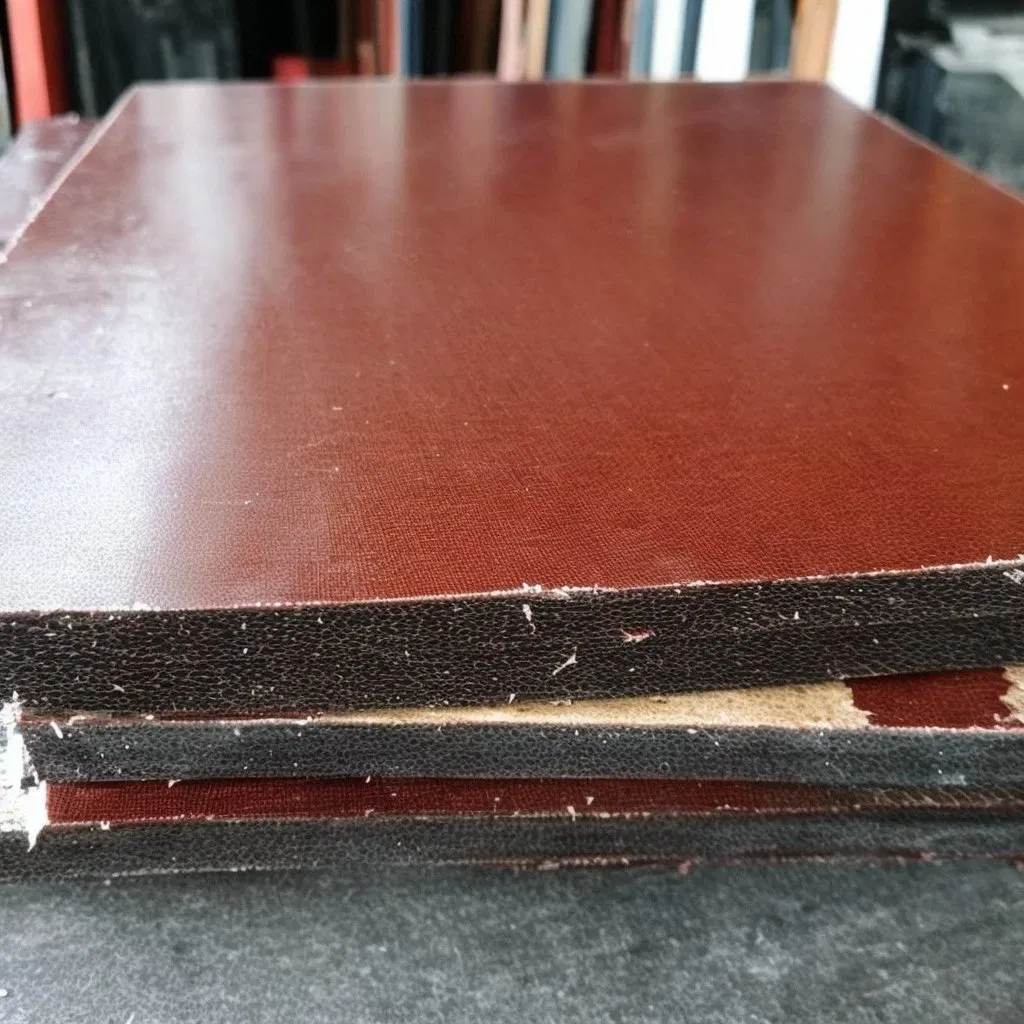

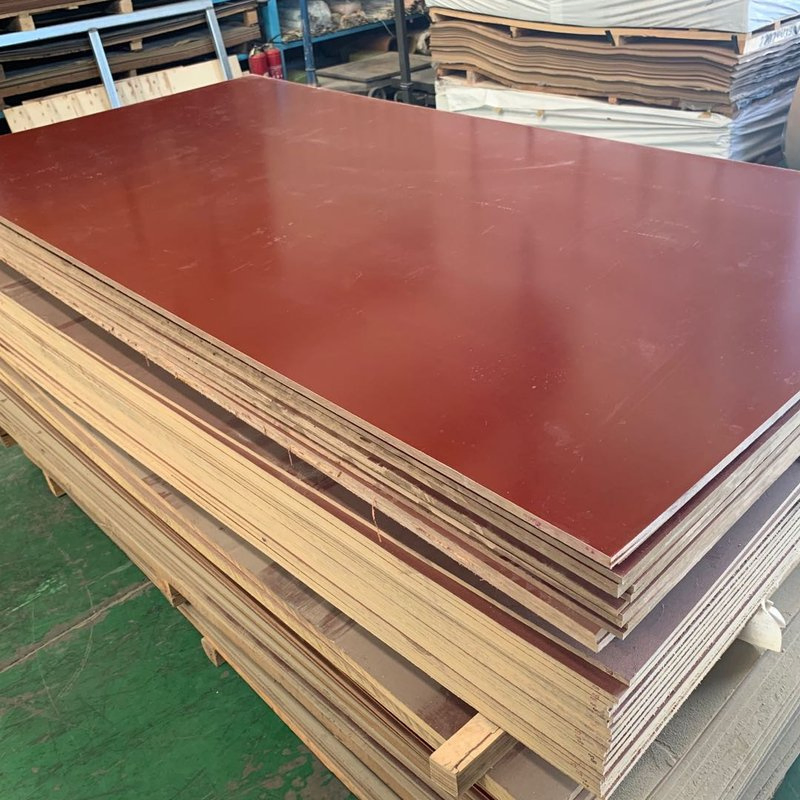

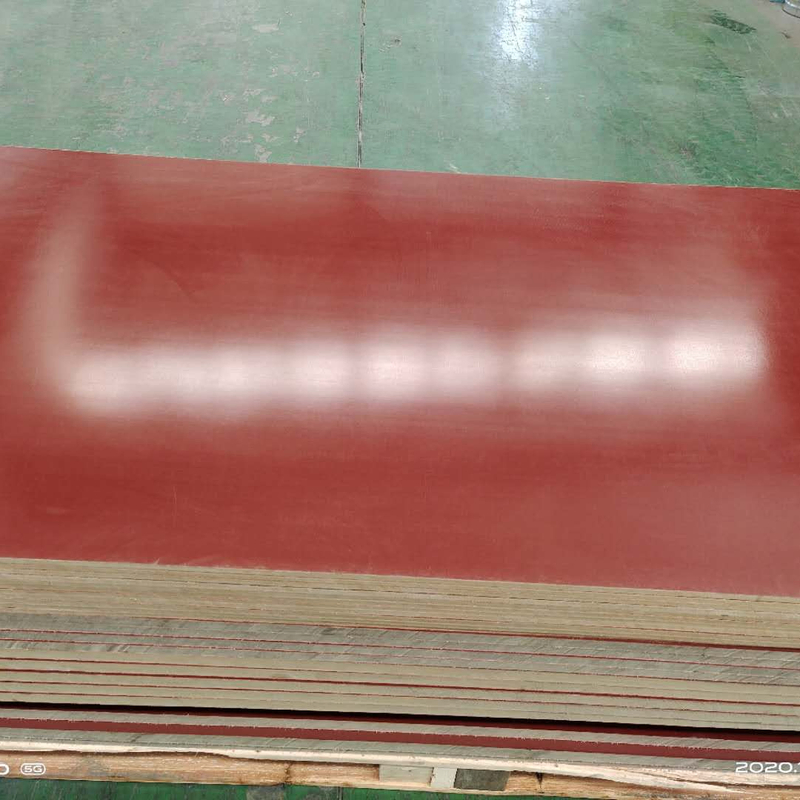

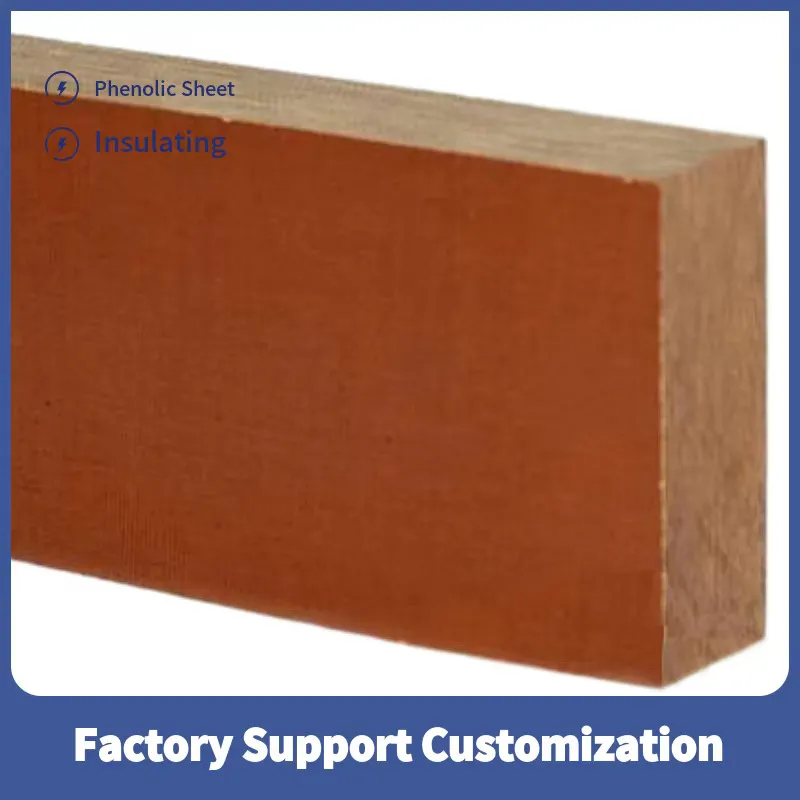

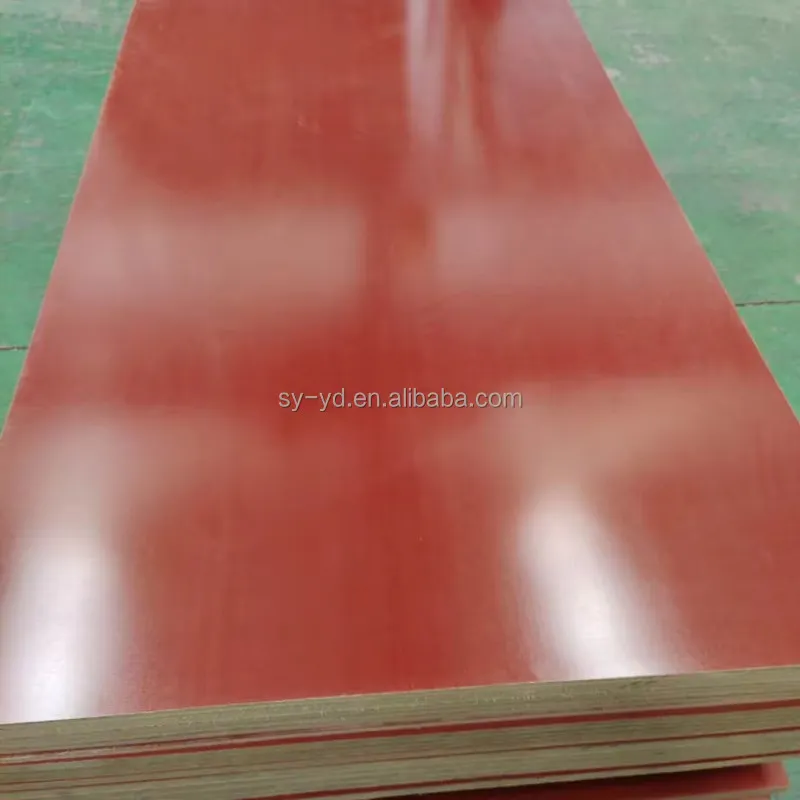

3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
Specification: thickness 3-60mm | Size: 1000mm x2000mm, customizable
| No. |
Index name |
Unit |
Index |
| 1 | Vertical bending strength | MPa | ≥100 |
| 2 | Parallel impact strength | KJ/M2 | - |
| 3 | Grain strength | N | ≥2800 |
| 4 | Vertical electrical strength | Kv/mm | 5.7-12.2 |
| 5 | Parallel layer breakdown voltage | KV | ≥15 |
| 6 | Dielectric loss factor 1MHz | Tg8 | - |
| 7 | Parallel layer insulation resistance (Normal) | - | ≥1.0x10⁹ |
| 8 | Parallel layer insulation resistance (After tide) | - | ≥1.0x10⁷ |
| 9 | Water suction column | mg | 190-480 |
| 10 | Heat resistance grade | - | B 130ºC |

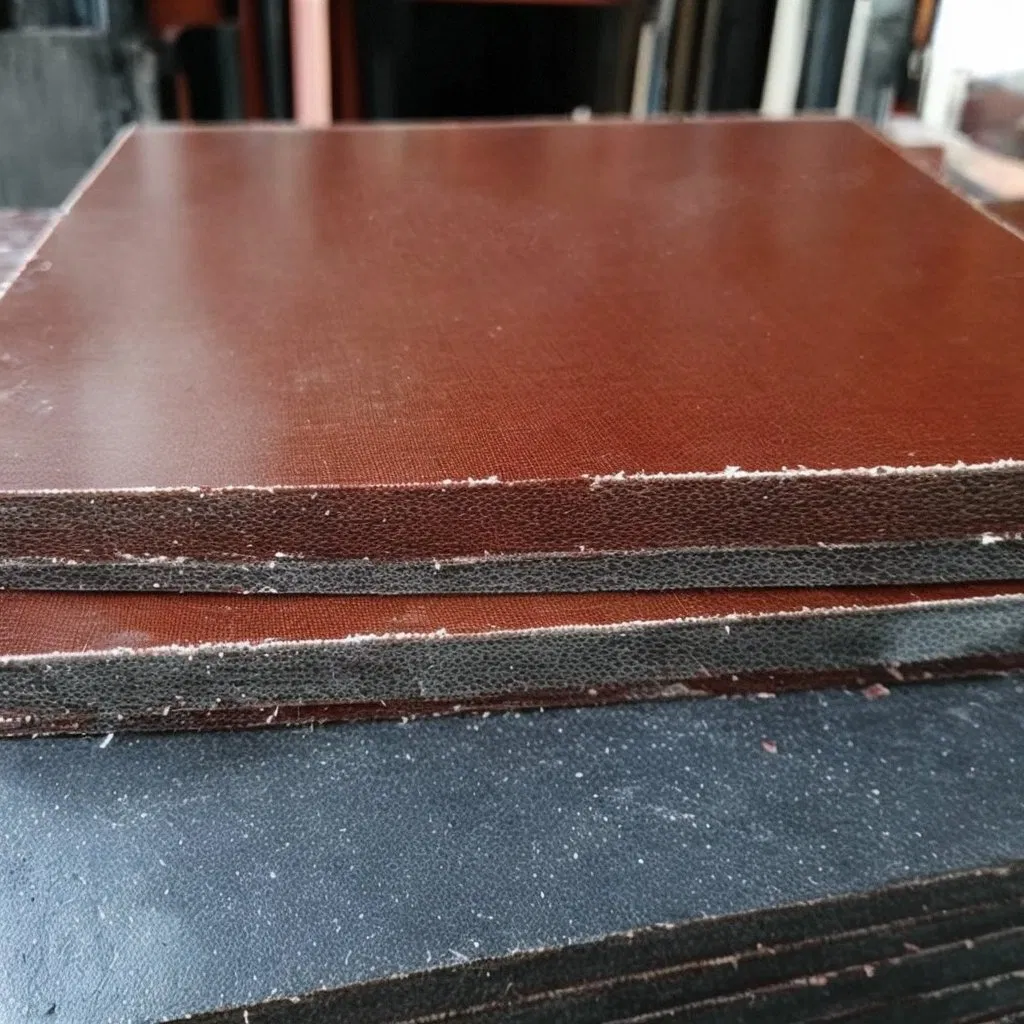

Phenolic Bakelite sheet is made by applying heat and pressure to phenolic resin impregnated bleached wood pulp paper or not bleached impregnated paper. This kind of industrial laminated is designed for insulating components for electric motor and electronic appliances requiring higher mechanical strength. It own excellent electrical, mechanical properties.

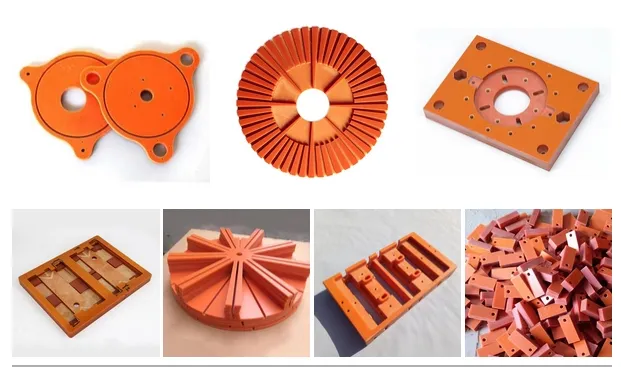

The production of CNC machined components as per drawings of our customers is our speciality. We utilize versatile modern CNC milling machines, special engraving machines and processing centers.
Application

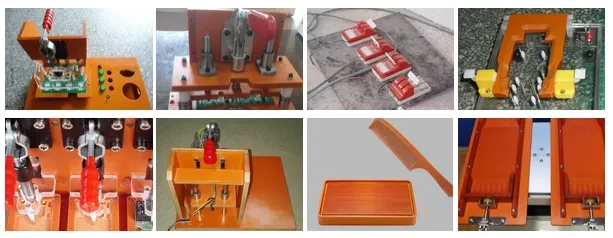

Phenolic Bakelite sheet is suitable for testing jig, tooling fixture, high and low voltage electrical panel, bearing brackets, rails in which high precision and insulation are important. Drilling micro-hole for this grade is allowed, and no chipping. No smelling in process of fabrication.
Manufacturing Capabilities

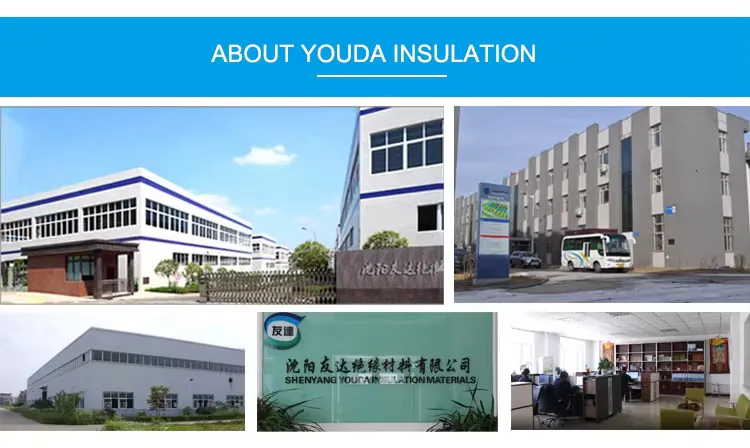

Our facility was founded in 1990. It is a private high-tech enterprise integrating R&D, production, processing, sales and export, and mainly produces, processes and sells various laminated sheets, bars, pipes and diverted products, moulded products, composite materials, pre prepreg materials, various types of insulating paper, ribbons, paint, mica products, engineering plastics and other insulating materials.

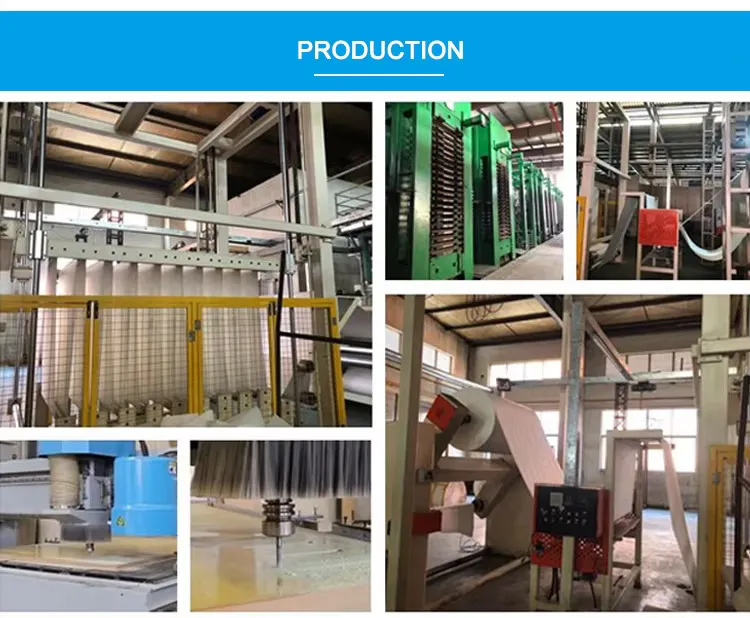

For keeping the products high precision, small tolerance and short processing cycle, we use professional equipment such as engraving machines, processing centers and CNC machine tools, which can customize products for turning, milling, drilling, engraving planer, grinding and die opening.
Our insulation materials are manufactured by drawings, and under ISO 9001 Quality Certified Program. That assures each one meets or exceeds your requirements. We cut and machine in consideration of the customer's specifications, producing high performance and offering cost-effective savings.
Frequently Asked Questions
How about providing samples?
Of course, we can sent you a sample for free. Customers just need to pay a little shipping charge.
How about the quality of mass production?
Our warehouse staff will retain a sample identical to yours. The production process will strictly adhere to your requirements.
How about the delivery time?
It depends on order quantity. Generally speaking, the delivery time will be within 3 to 7 days.
How about the packaging?

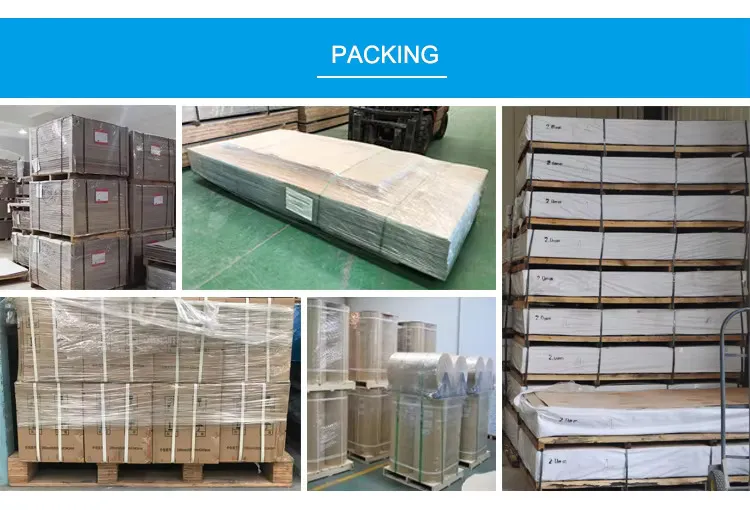

We use professional craft paper to package on plywood pallets. If you have special packaging requirements, we can pack according to your needs.
What are the payment terms?
For payments ≤ 1000 USD, 100% in advance. For payments ≥ 1000 USD, 30% T/T in advance, with the balance due before shipment.
Are custom sizes available for the Phenolic Board?
Yes, while standard sizes are 1000mm x 2000mm, we can provide custom thicknesses (3-60mm) and dimensions based on your specific technical drawings.
