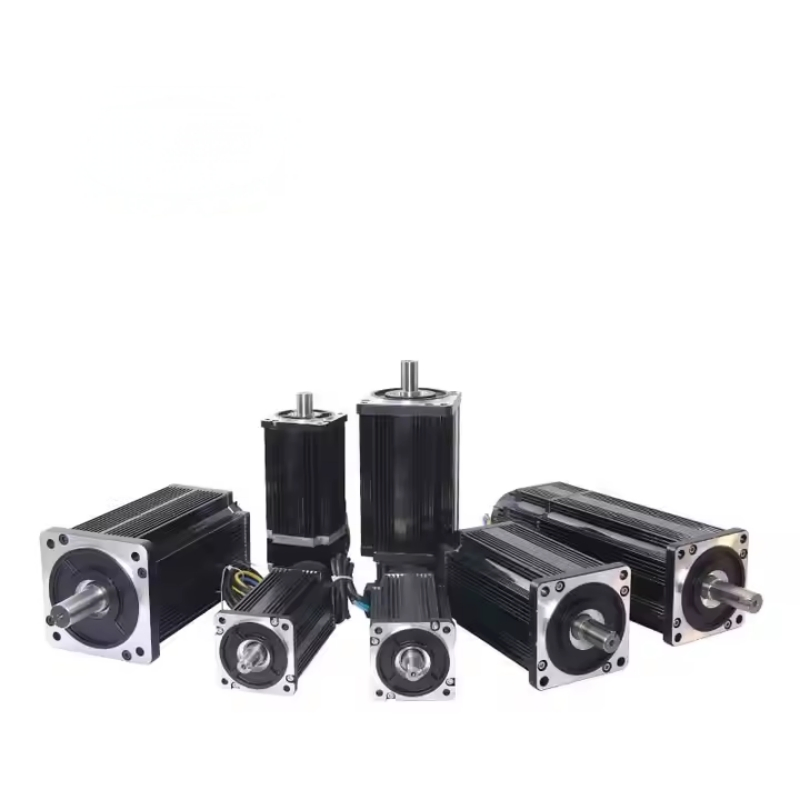

Factory Wholesale OEM 24V 48V High Torque 4.7n.M 1500rpm Micro Mini Vibrator Small Electric Gear Brushless DC Servo Motor with Encoder for Agv Ugv Tracked Robot

1 / 5

Factory Wholesale OEM 24V 48V High Torque 4.7n.M 1500rpm Micro Mini Vibrator Small Electric Gear Brushless DC Servo Motor with Encoder for Agv Ugv Tracked Robot

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

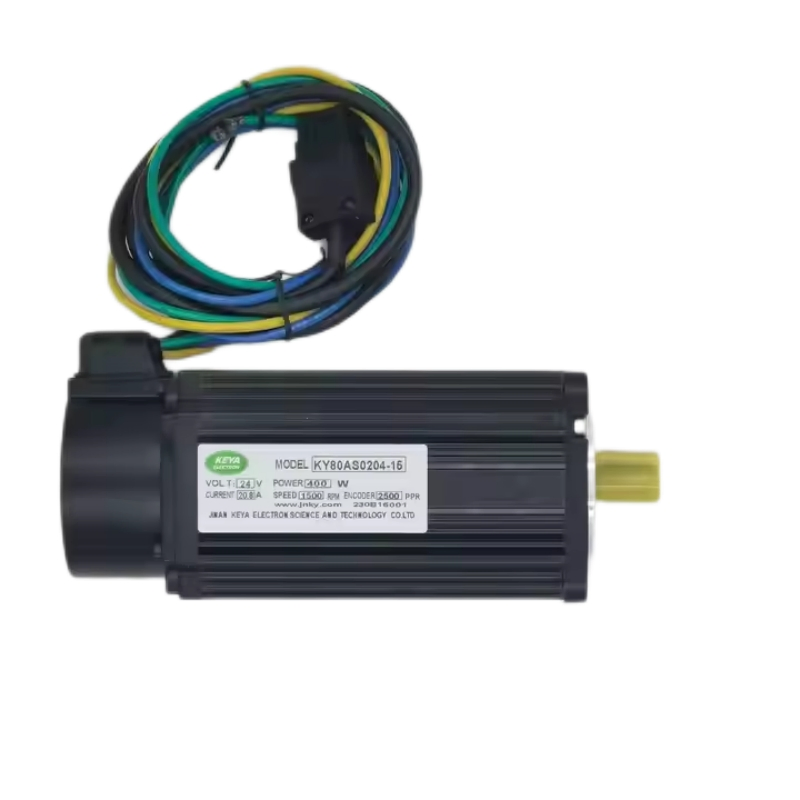

Model NO.:KY80AS0204-30

Excitation Mode:Excited

Function:Control

Number of Poles:10

Principle:Brushless

Type:Servo Motor

Certification:ISO9001, CE

Feedback:Encoder 2500PPR

Braking:Power Loss Brake

Weight:2.2kg

Product Description

Specifications:

Usage: Boat, Car, AGV, Rail car, Tracked car
Construction: Permanent Magnet
Protect Feature: Waterproof (IP65)
Speed: 3000rpm
Output Power: 400w / Voltage: 24v
Encoder included: Yes

Key Features

Protection grade: IP65, insulation grade: F
Winding overhang structure optimization for minimal copper and iron loss.
NdFe35 permanent magnetic materials for strong demagnetization resistance.
Low noise, low vibration, and low moment of inertia.
High torque, fast dynamic response, and strong overload capacity (up to four times).

Product Parameters

Volt	24v	Power	400w
Rated Torque	1.27Nm	Rated Speed	3000rpm
Rated Current	18.8A	Peak Torque	3.8Nm
Line Resistance	0.05Ω	Rotor Constant	0.56mH
Torque Constant	0.06Nm/A	Back EMF Constant	10v/kr/min
Rotor Inertia	281Kg.m²×10⁻⁶	Encoder	2500ppr

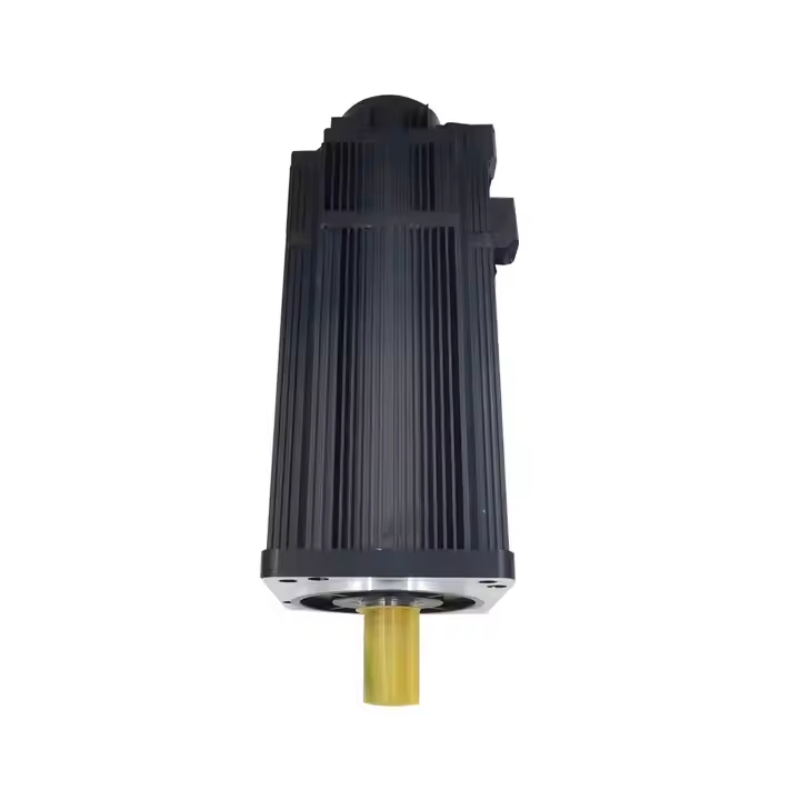

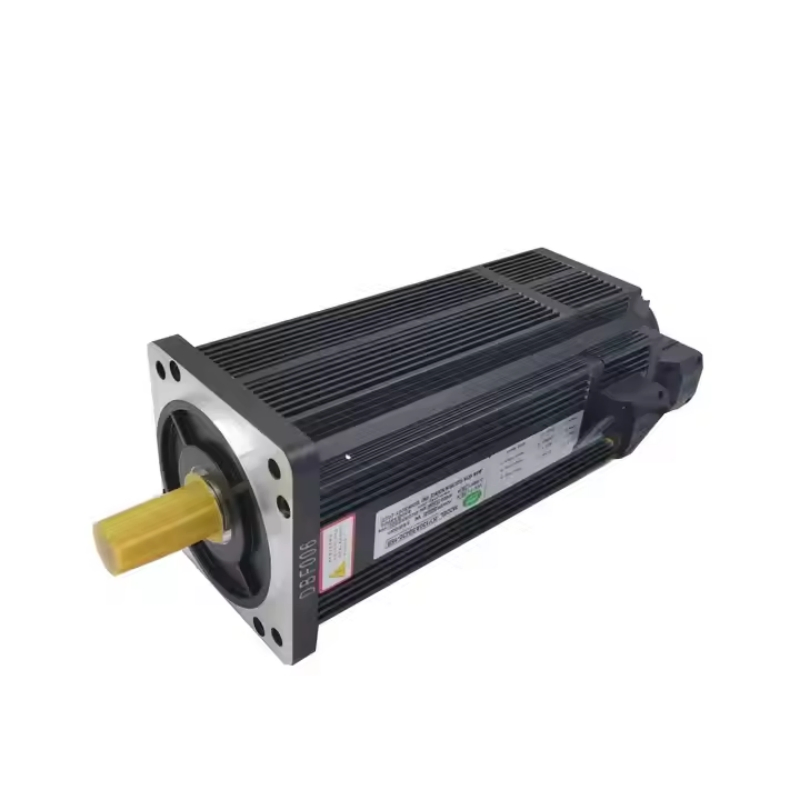

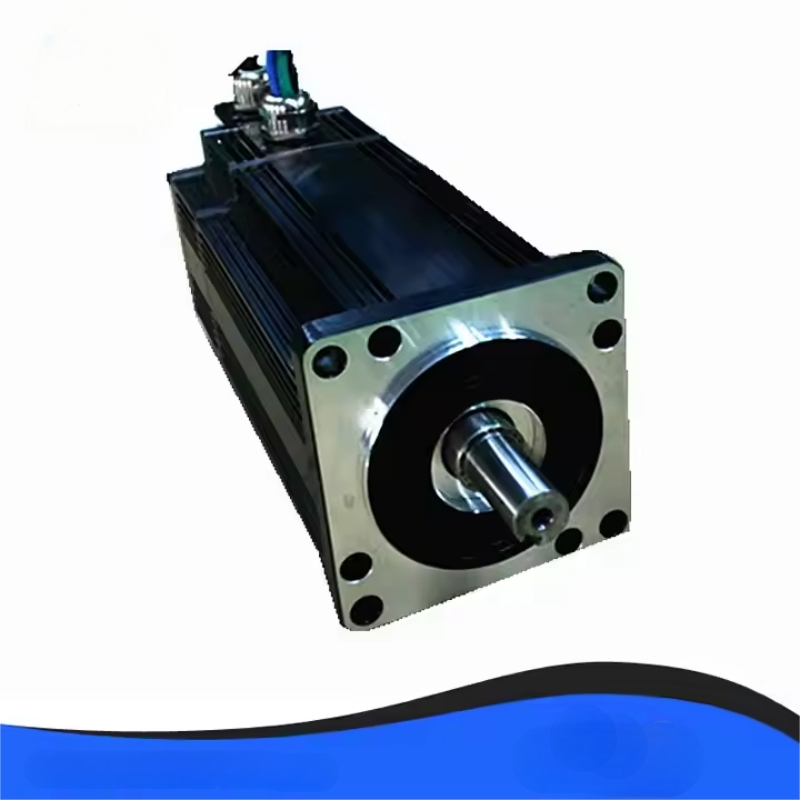

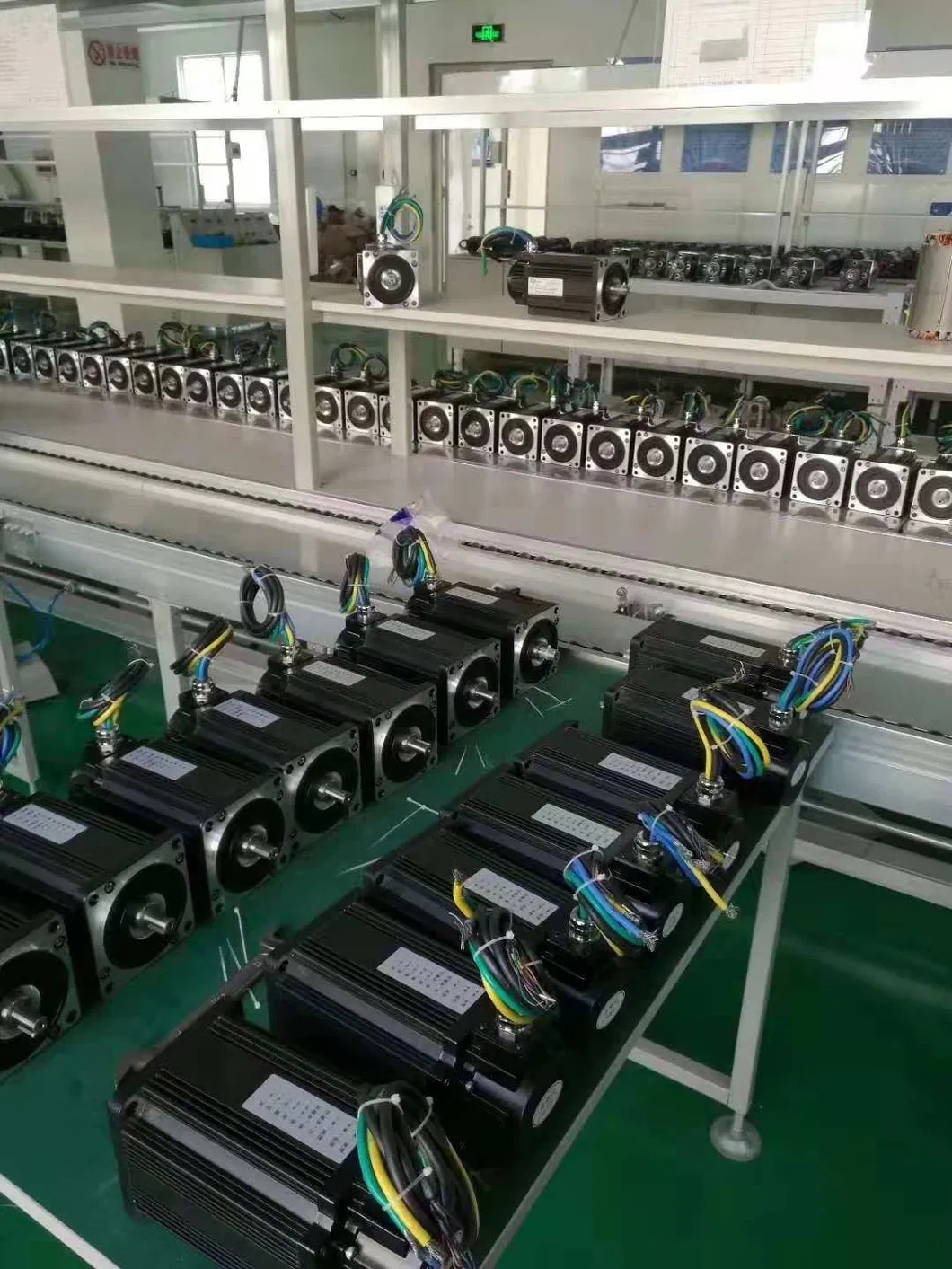

Detailed Photos

Certifications

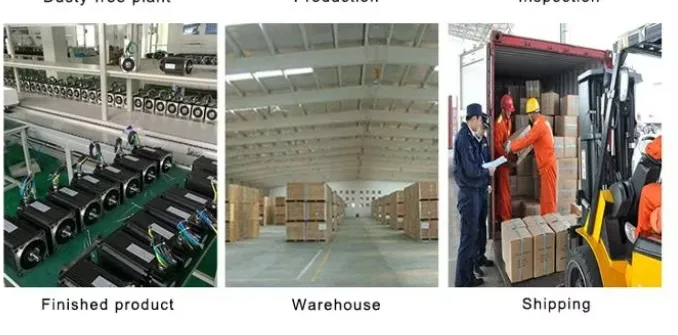

Packaging & Shipping

Standard export carton with protective sponge
Size: Based on order specifications
Weight: Based on order volume
Detailed data confirmed before shipping

After Sales Service

Pre-service	After Sales Service
Inquiry and Consult Support Sample testing Support Factory Inspection	Installation and Usage Guidance 24 hours online problem solving

Frequently Asked Questions

1. What is the protection rating of this servo motor? The motor features an IP65 protection grade, making it waterproof and suitable for demanding environments.

2. Does the motor come with an encoder? Yes, it is equipped with a 2500PPR encoder for precise feedback and control.

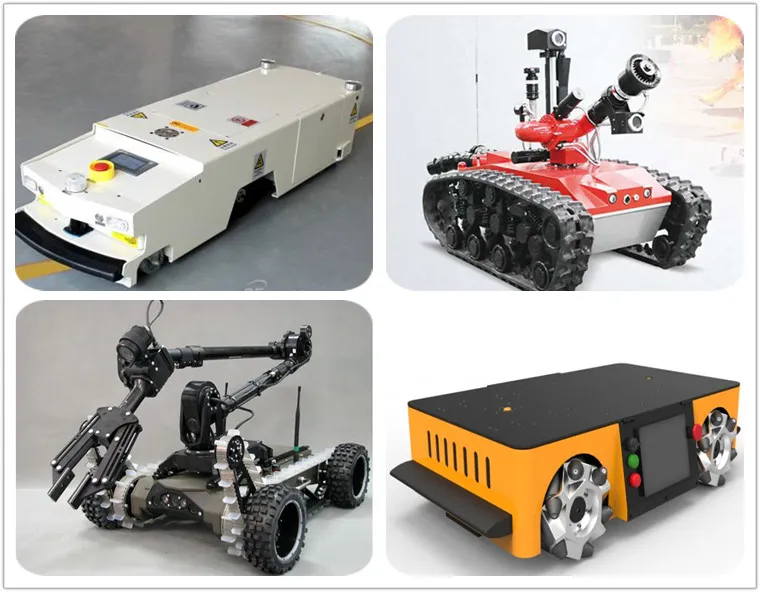

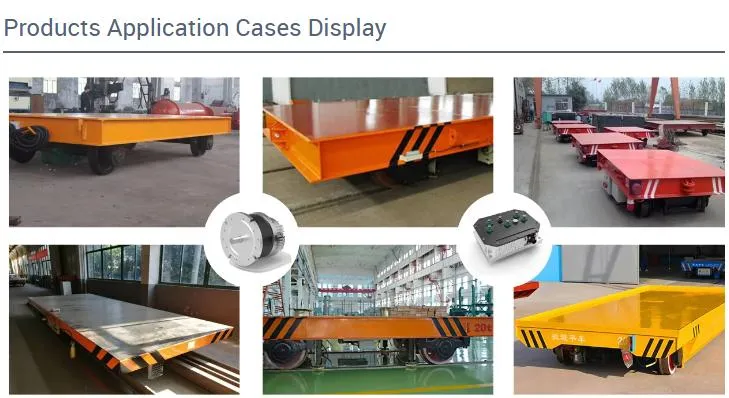

3. What applications is this motor suitable for? It is ideal for AGVs (Automated Guided Vehicles), tracked robots, rail cars, boats, and other high-torque control applications.

4. What is the warranty period? We provide a 1-year warranty for this brushless DC servo motor.

5. Does it include a braking system? Yes, it features a power-loss brake structure for enhanced safety and control during operation.

6. How is the motor's overload capacity? The motor offers a strong overload capacity, capable of reaching up to four times its rated torque for dynamic response.
