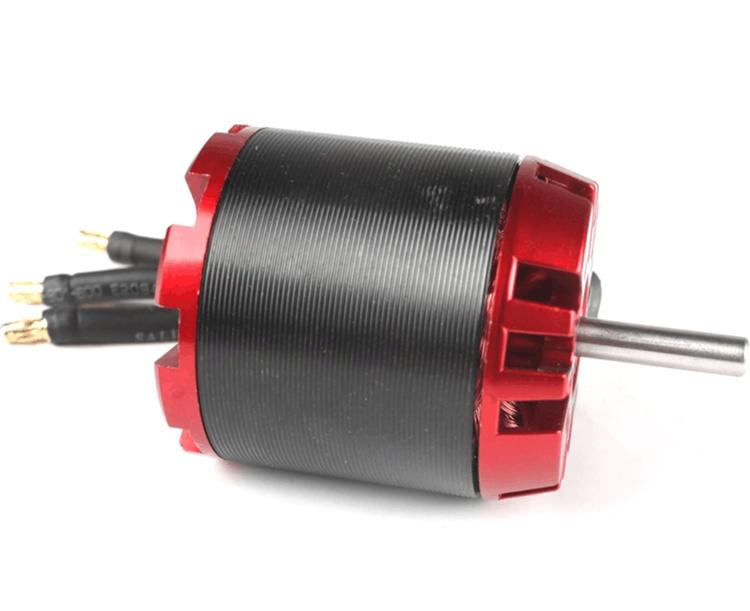

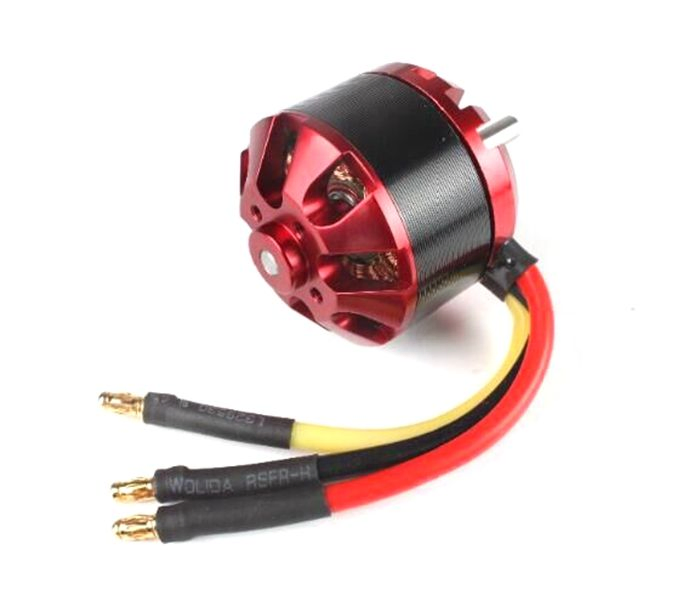

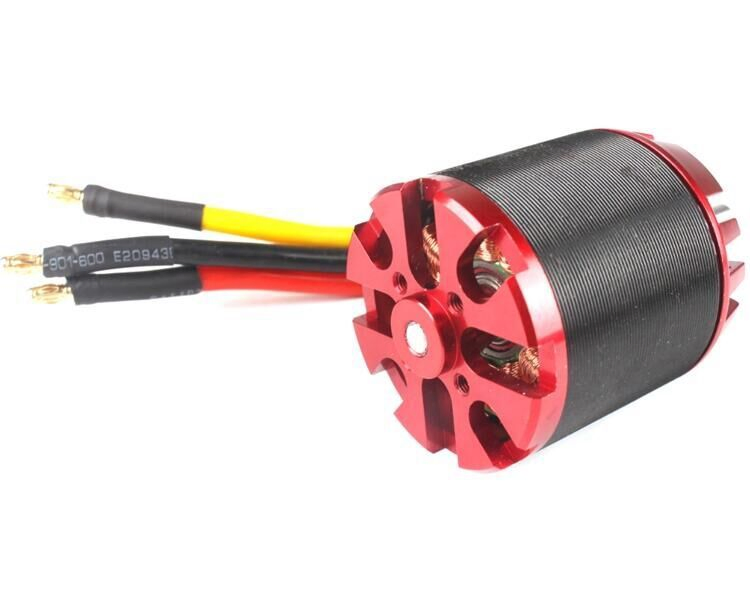

EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel
EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel
EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel
EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel
EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel
1 / 5
EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel
EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel
EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel
EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel
EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel

EV Craft 4250 Low Noise 24V 48V Brushless DC High Torque Outrunner Motor for Mini Drone Racing Drone Aeromodel

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Info.

Model NO.4250
Excitation ModeShunt
FunctionDriving
Casing ProtectionExplosion-Proof Type
Number of Poles40
StructureBrushless
TypeZ4 / Brushless Motor
CertificationCE/RoHS
Rpm12774
Kv650(Customizable)
Efficiency89%
Max. Voltage27V
Max Thrust3700g
Motor Weight230g
Torque0.9n.M
Li - Po2s-6s
Peak Current55A
Power560W
UsageRobot; RC Flying Drone; Racing Drone; Aeromodel
Specification42mm x 50mm
!

Product Description

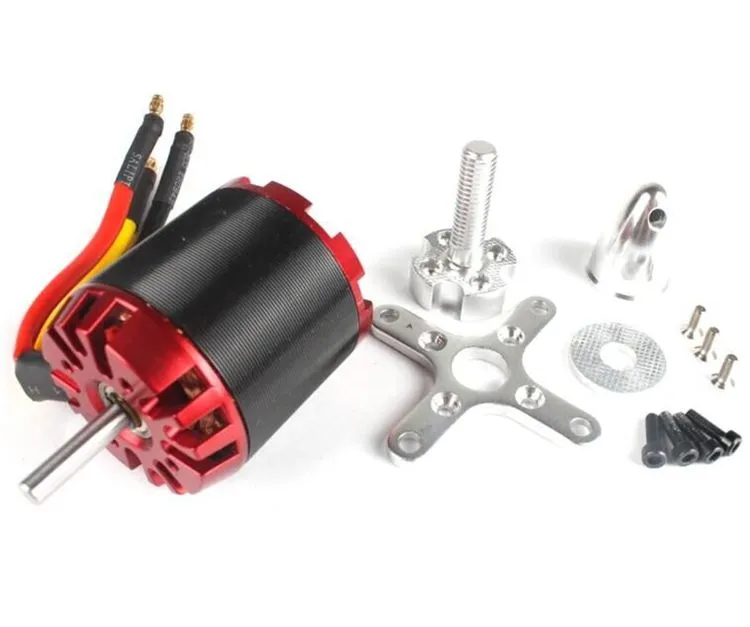

Brushless DC High Torque Outrunner Motor
Tech Specs Item Value
Warranty3 months
UsageAeromodel, RC flying drone, racing drone, robot
ConstructionPermanent Magnet
CommutationBrushless
Protect FeatureWaterproof / Explosion-Proof
Efficiency89%
Dimension42mm x 50mm
KV650(customizable)
SensorSensed or sensorless
Max Torque0.9N.m
Max. RPM12774
Thrust3700g
Li-po4S-6S
Peak Current55A
Continuous Current32A
Idle Current3.5A

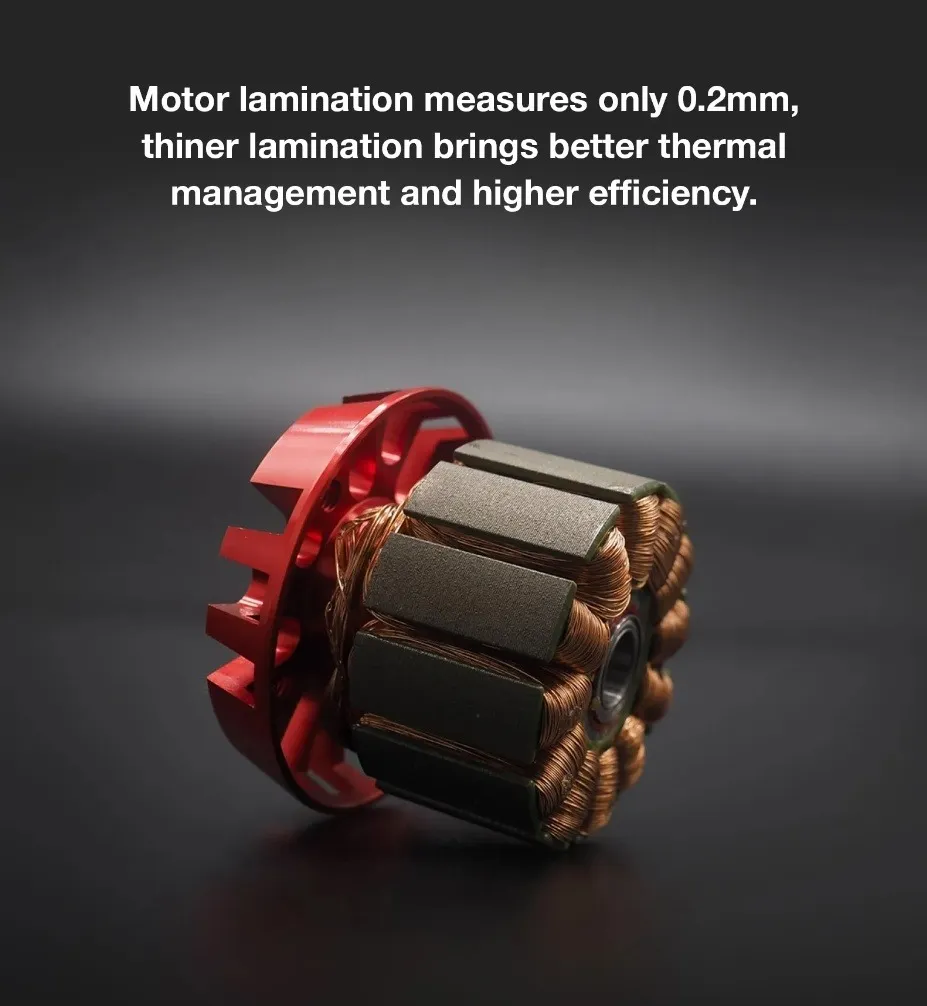

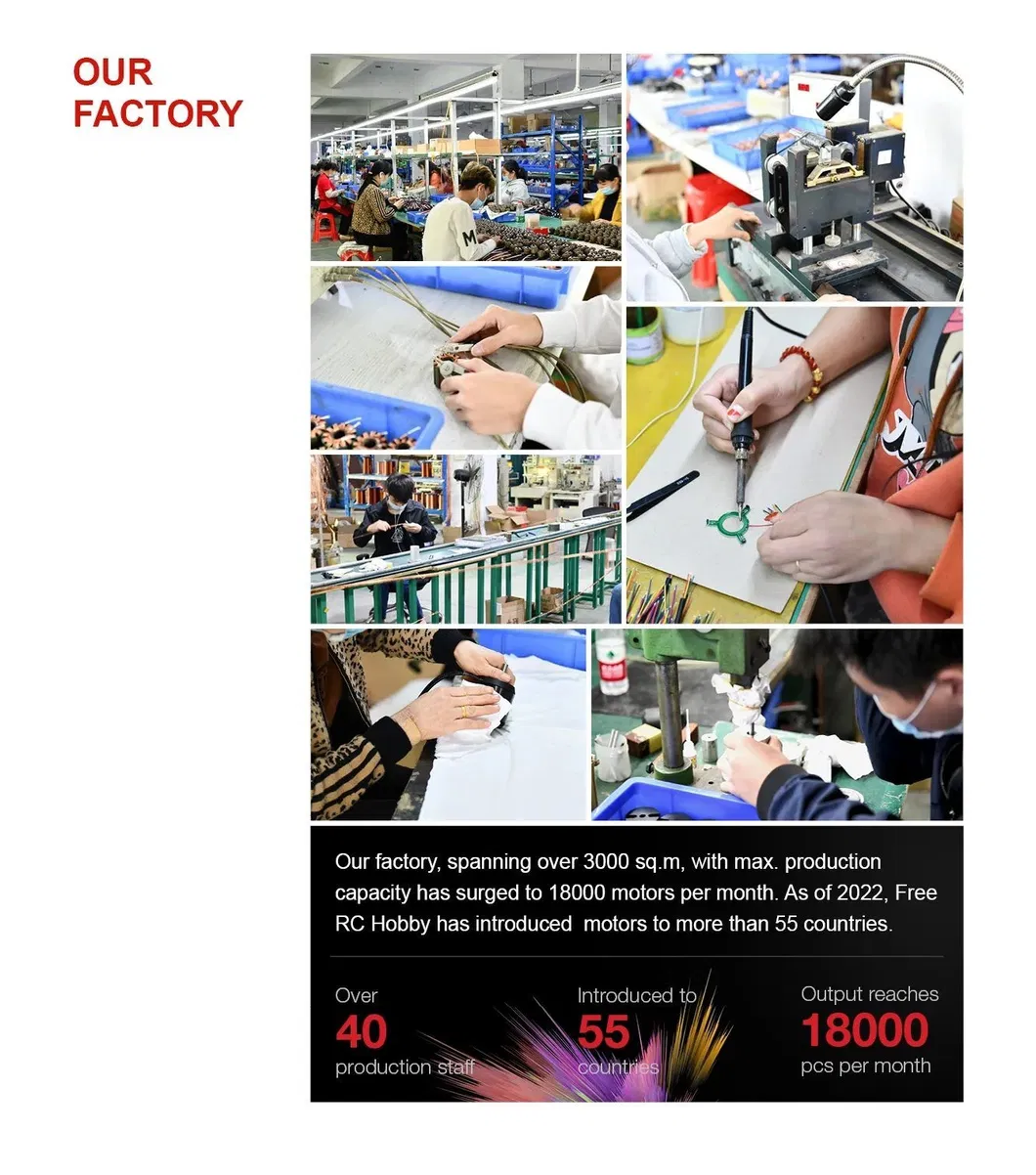

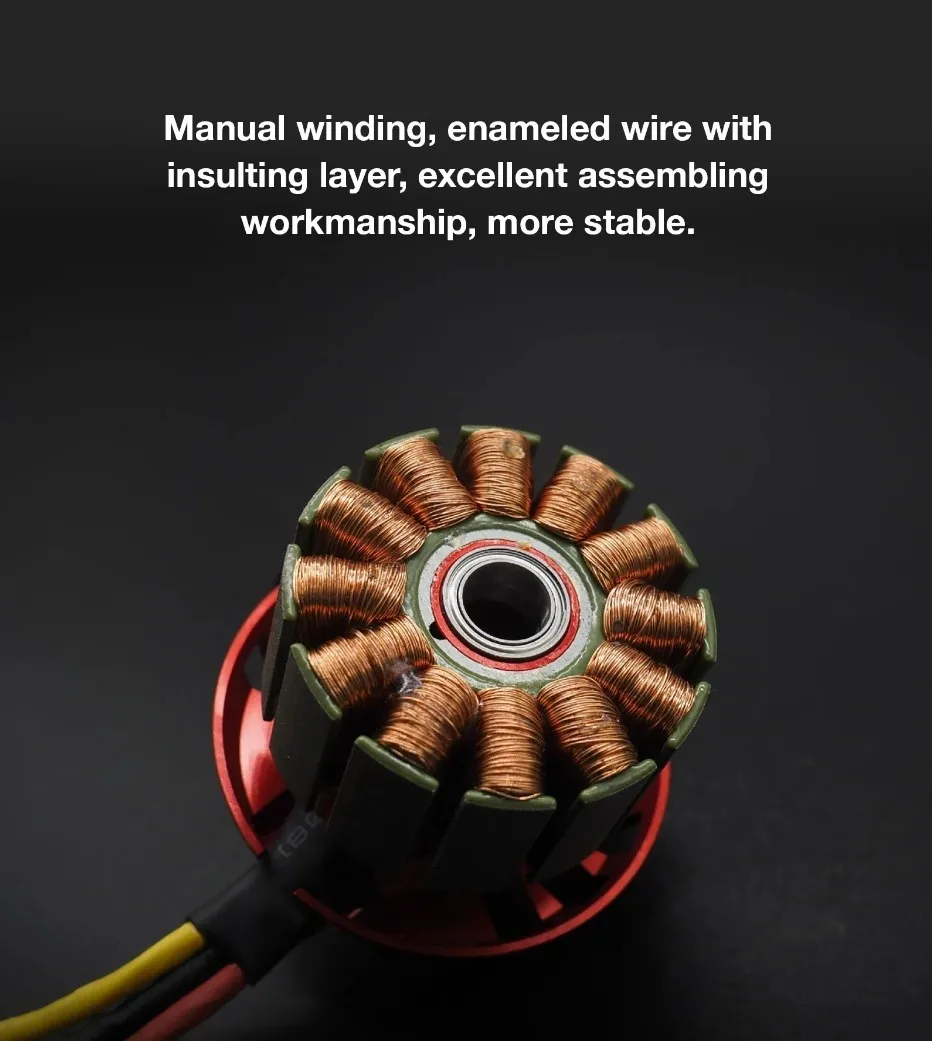

Motor detail 1 Motor detail 2 Motor detail 3 Motor detail 4 Motor detail 5 Motor detail 6 Motor detail 7 Motor detail 8
?

Frequently Asked Questions

1. What is the maximum thrust capability of this 4250 motor? The motor can provide a maximum thrust of up to 3700g, making it ideal for high-performance drone applications.
2. What are the primary applications for this brushless motor? It is specifically designed for Robots, RC Flying Drones, Racing Drones, and various Aeromodel projects requiring high torque and efficiency.
3. Is the KV rating customizable? Yes, while the standard rating is 650KV, it is customizable to meet your specific technical requirements.
4. What type of protection does the motor offer? The motor features an Explosion-Proof type casing and is designed with waterproof characteristics for enhanced durability in demanding environments.
5. What is the recommended battery setup for this motor? This motor is compatible with Li-Po batteries ranging from 2S to 6S, depending on your specific power and thrust needs.
6. What is the power efficiency of the 4250 model? The motor operates with a high efficiency of 89%, ensuring optimal performance and longer operation times for your devices.
