High Torque 12V 24V Mini Lowspeed Brush DC Electric Worm Gear Motor

Customization:	Available
Application:	Universal, Industrial, Household Appliances, Car, Power Tools, DC Worm Gear Motor
Operating Speed:	Low Speed

Basic Information

Model NO.

D45

Excitation Mode

Excited

Function

Driving

Casing Protection

Open Type

Number of Poles

2

Working Principle

Brush

Certification

RoHS

Gears Style

Worm Gears

Material

Metal POM

Motor Dia.

45mm

Voltage

12V 24V

Power

10~50W

Speed

10~500rpm

Torque

0.5~5n.M

Noise

<45dB

Lifetime

2000hours

Product Description

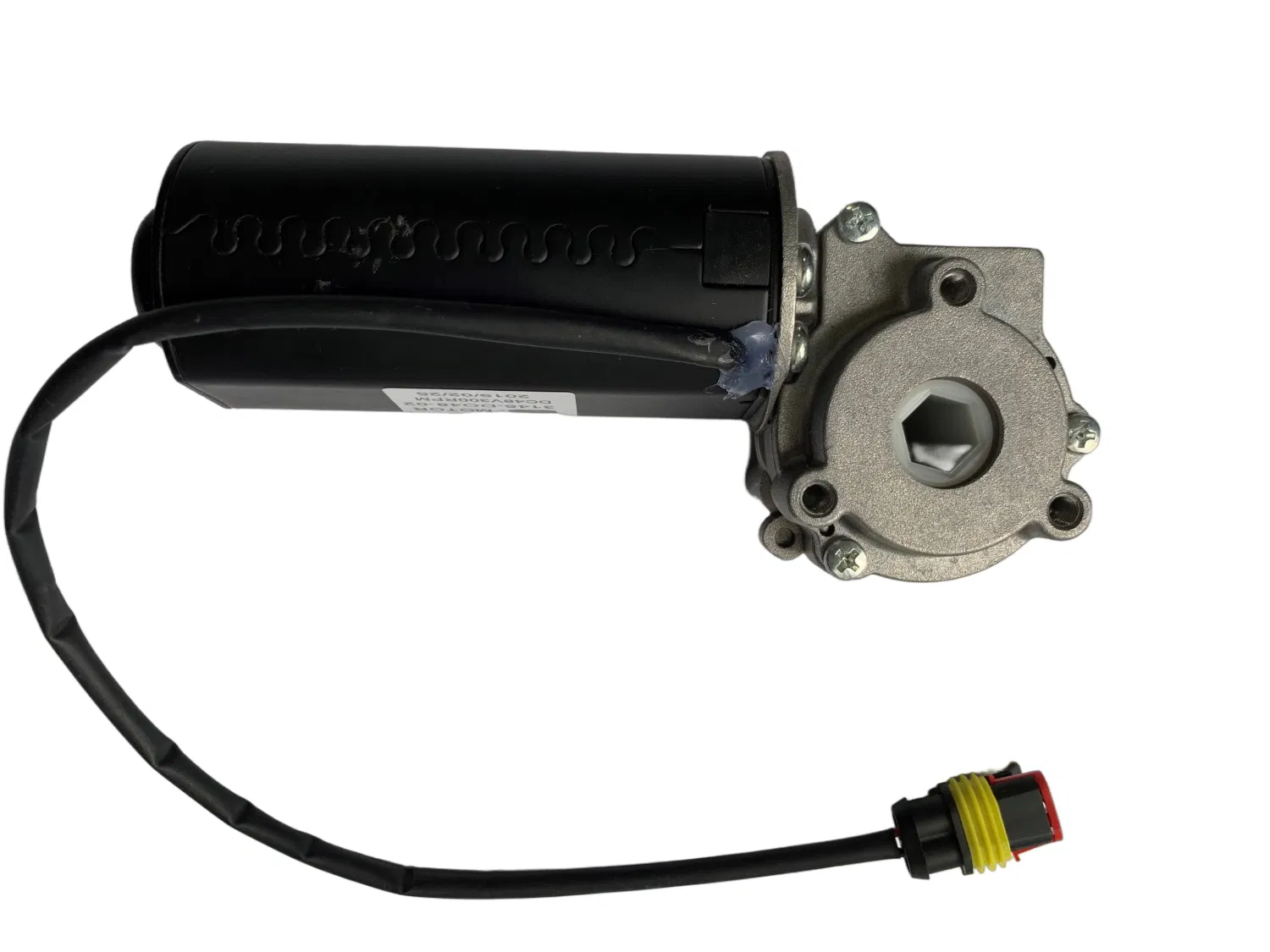

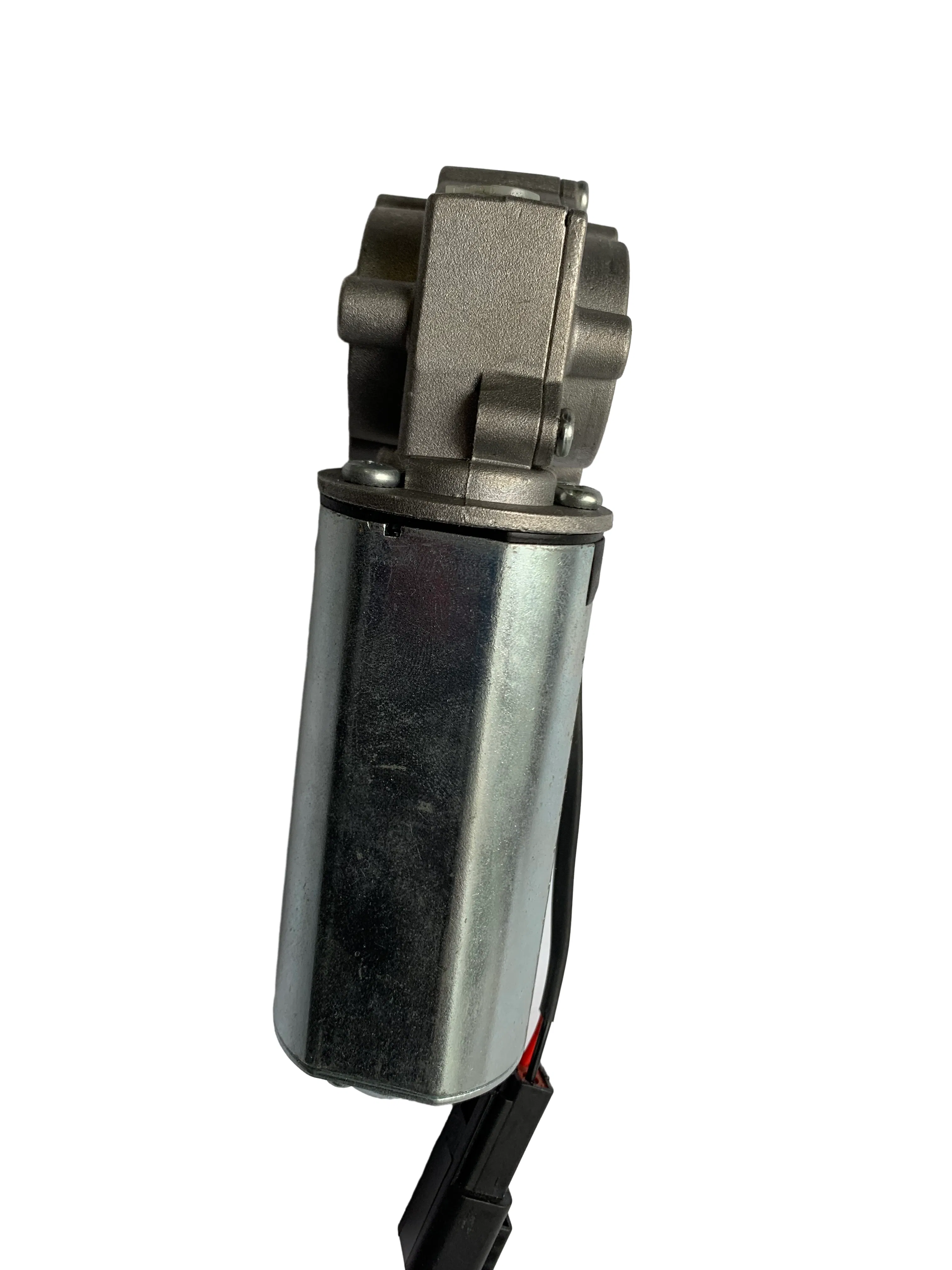

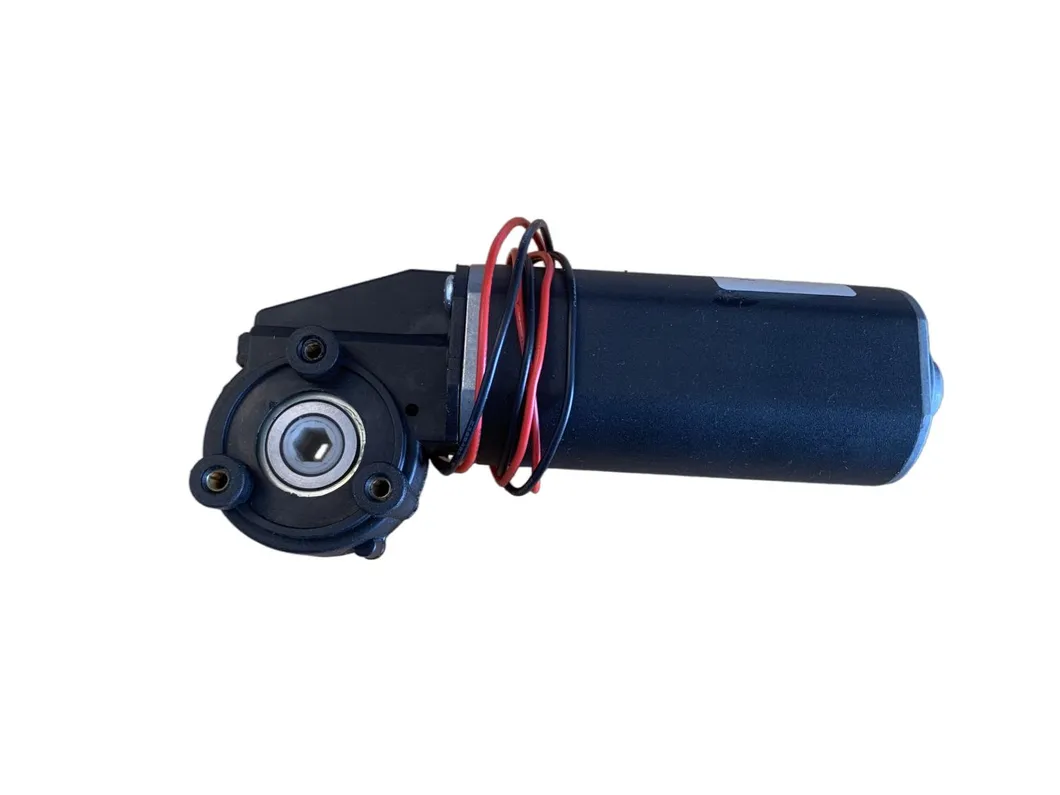

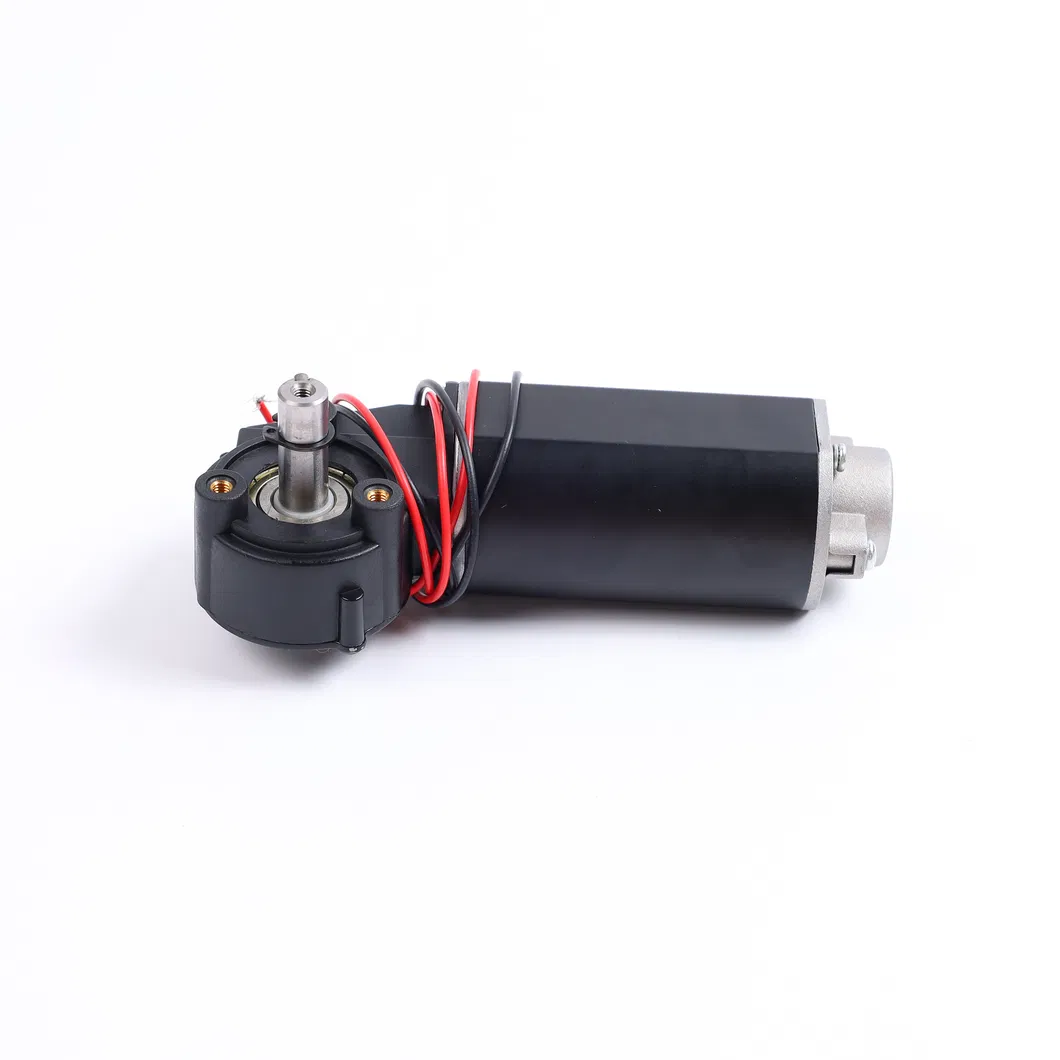

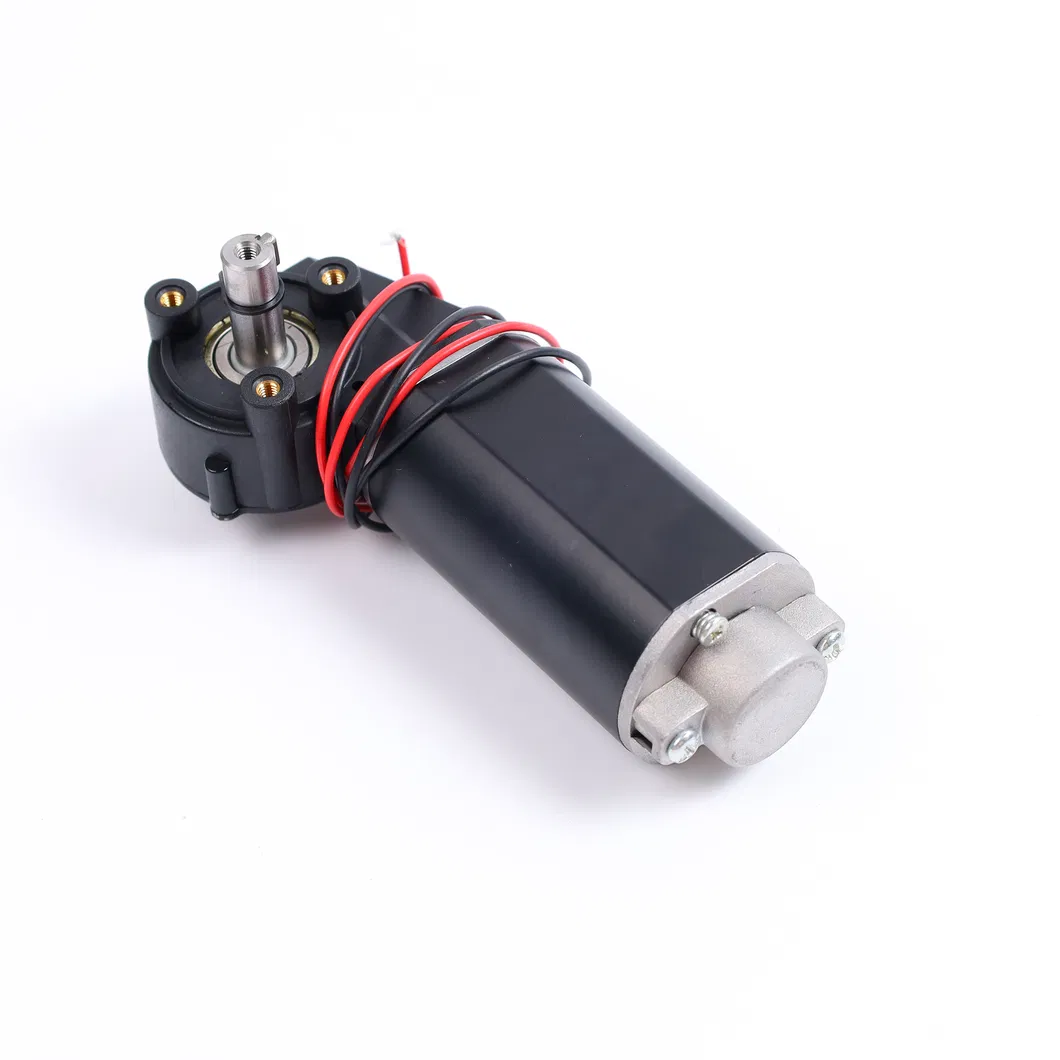

D45 Model Motor

This compact 45mm diameter motor, featuring a worm gear reducer box, is designed for efficiency and durability. Despite its small size and lightweight design, it offers high load torque, minimal noise, and a long lifespan. Perfect for applications like automatic table and chair lifting, as well as automatic curtains.

✨ Key Features:

45mm diameter high-performance motor
Integrated Worm gear reducer box
Superior high load torque capacity
Ultra-low noise operation
Extended industrial service life

Technical Specifications Table

Model	Voltage (VDC)	No load speed (rpm)	Current (mA)	Stall torque (kg.cm)	Gear ratio
D45-40	12V	150	60mA	6.4	40:1
D45-65	12V	90	60mA	10	65:1
D45-150	12V	40	60mA	24	150:1
D45-200	12V	30	60mA	25	200:1
D45-260	12V	23	60mA	25	260:1
D45-340	12V	18	60mA	25	340:1
D45-600	12V	10	60mA	25	600:1
D45-1000	12V	6	60mA	25	1000:1

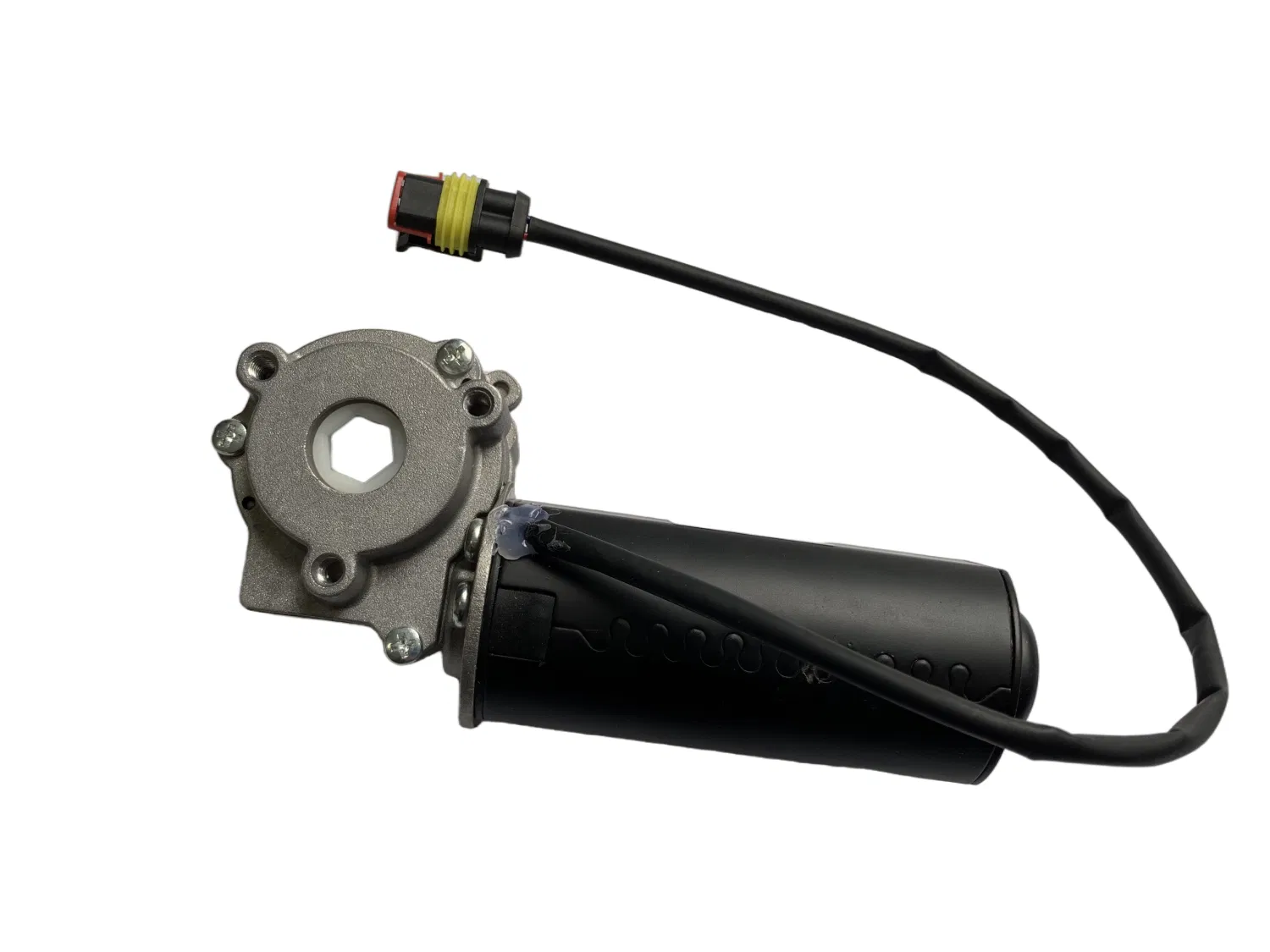

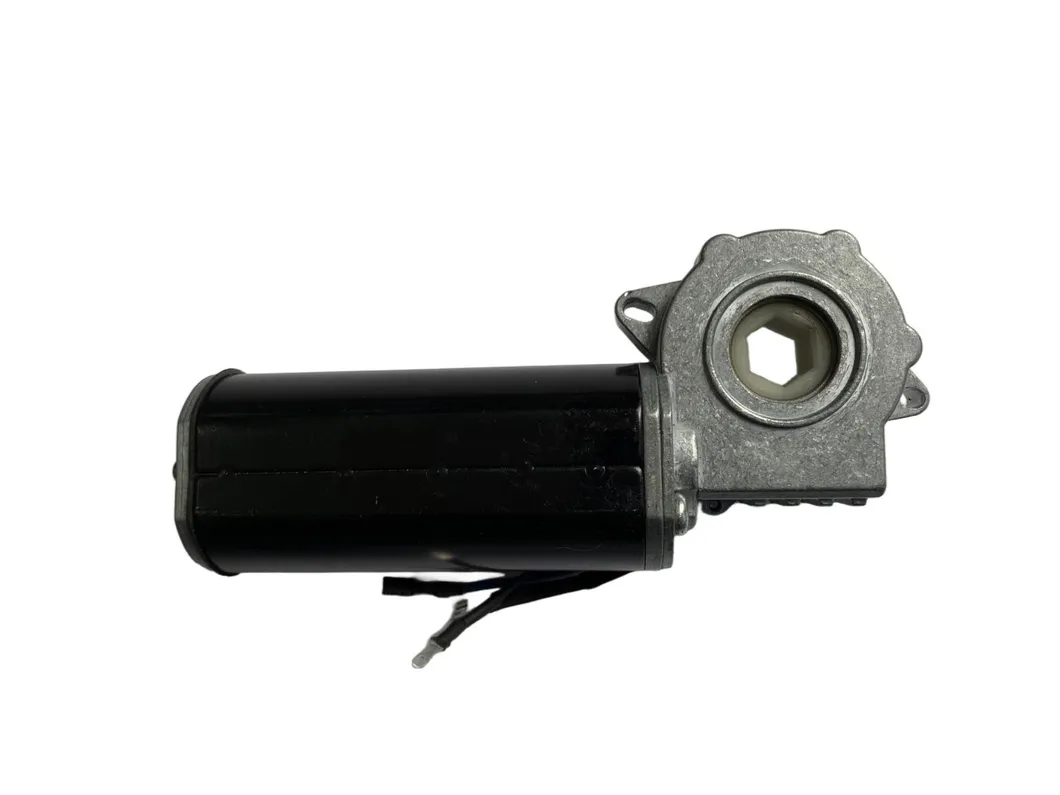

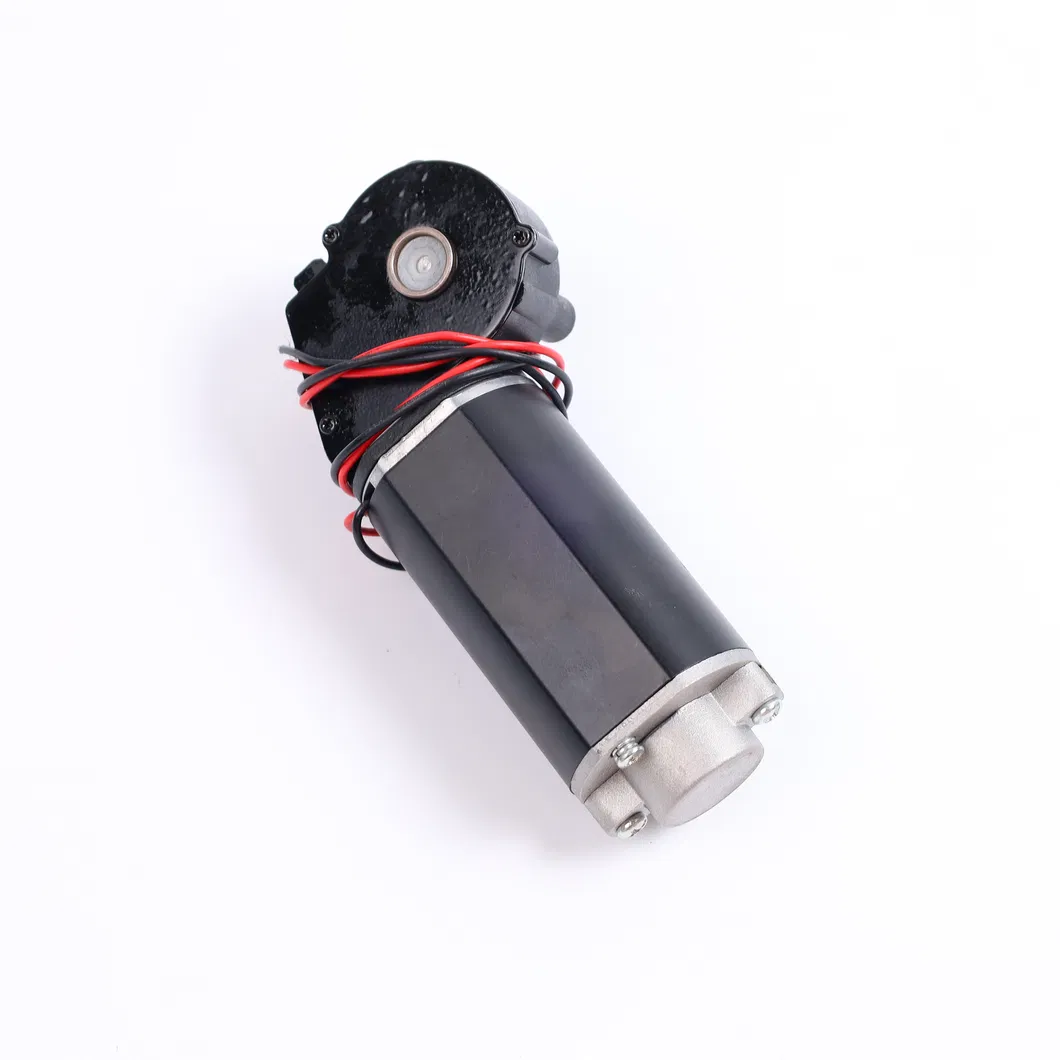

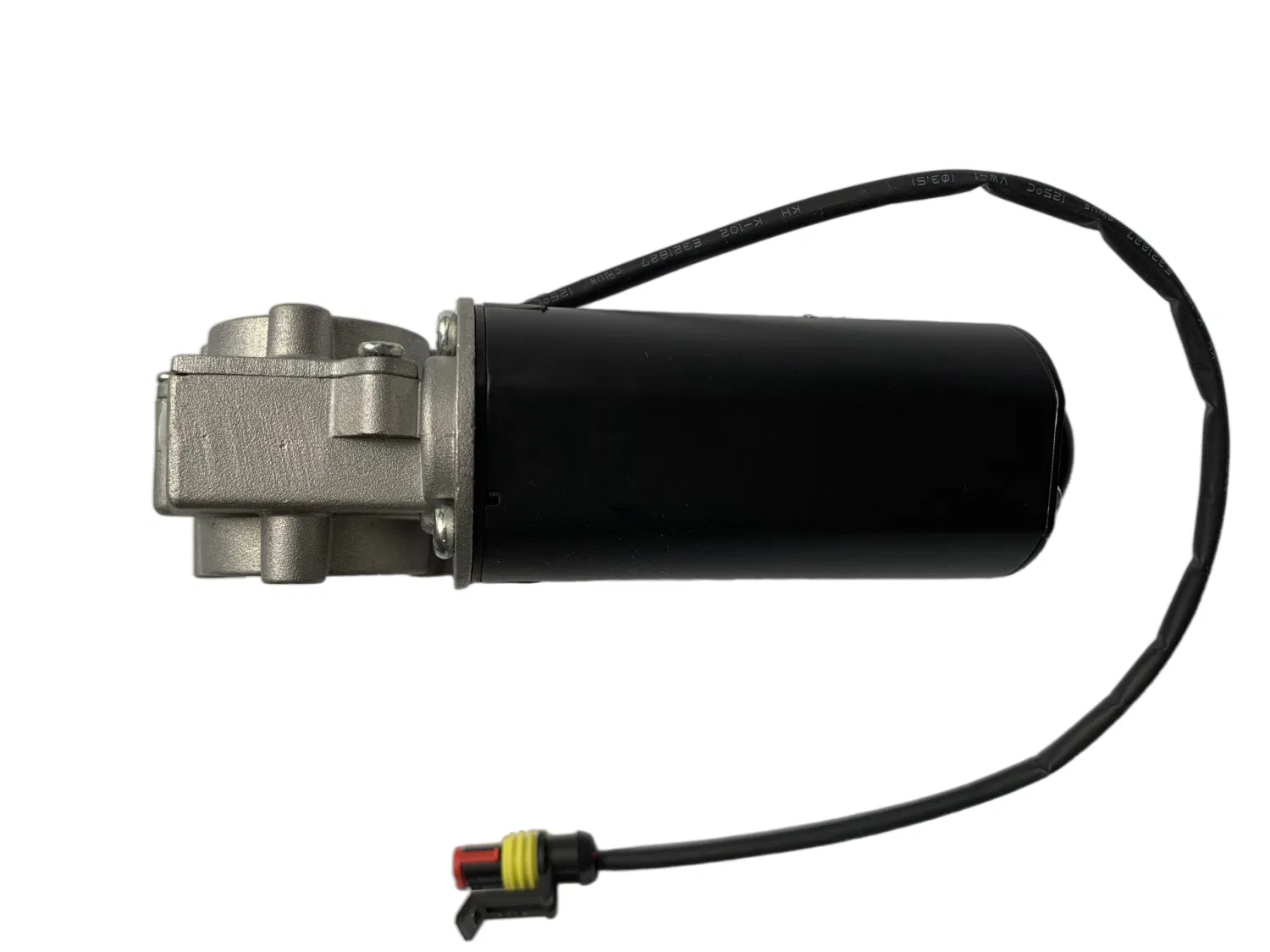

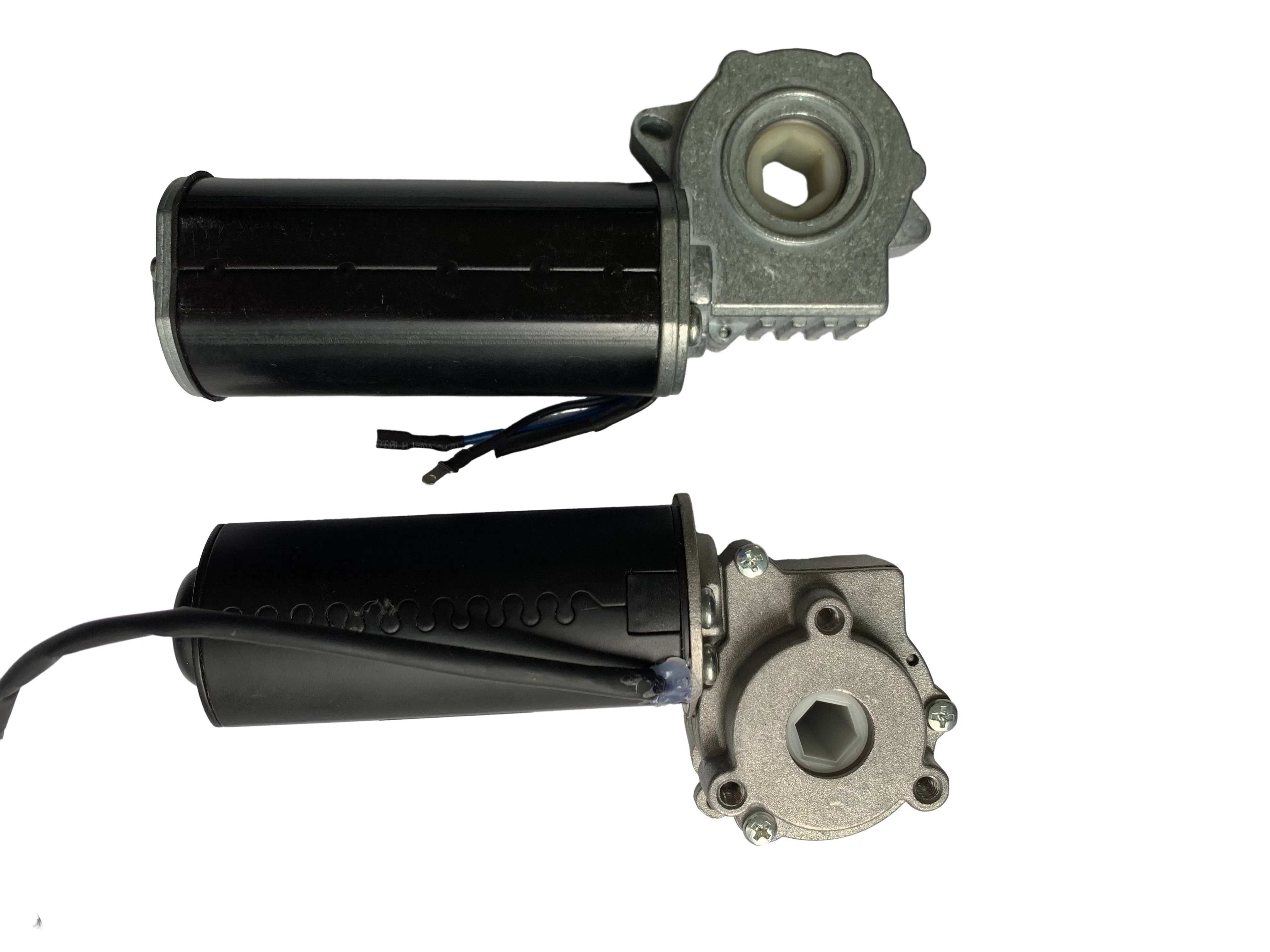

Detailed Photos

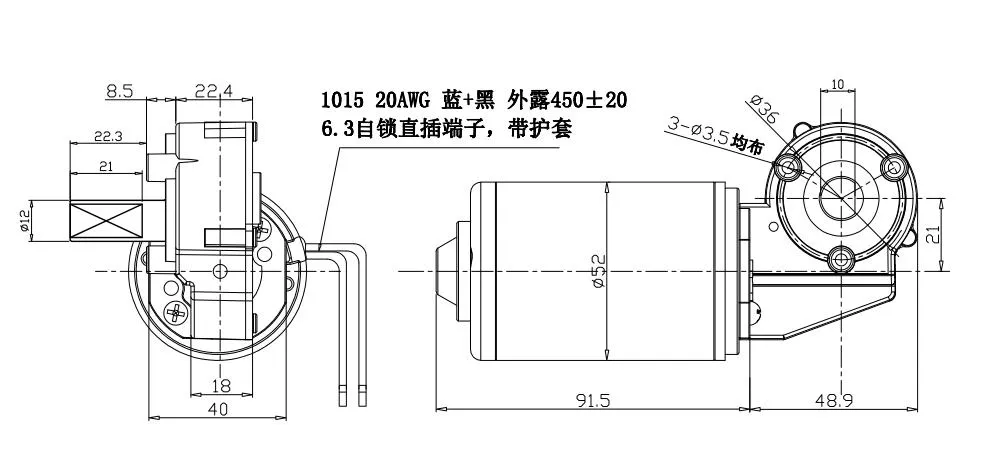

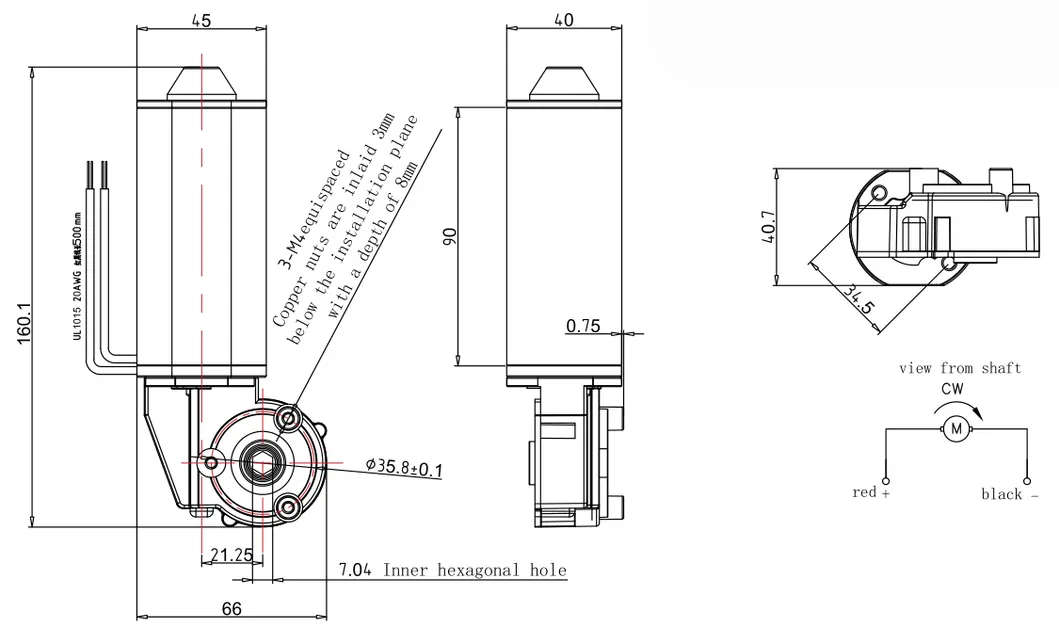

Product Parameters & Technical Diagrams

52mm Worm Gear Motor with Encoder: An efficient BLDC gear motor designed for industrial use, providing quiet, durable, and powerful performance. Features a customizable speed reducer for versatile applications.

D52 Electric Motor Specs

Type	Voltage	Power	No Load Speed	Load Speed	Torque	Ratio
D52R-2440	24V	40W	270±20	200±20	≥1.5 N.M	2:34
D52R-2430	24V	30W	110±10	75±5	≥3.5 N.M	1:45
D52R-2415	24V	15W	55±5	38±5	≥3.0 N.M	1:51

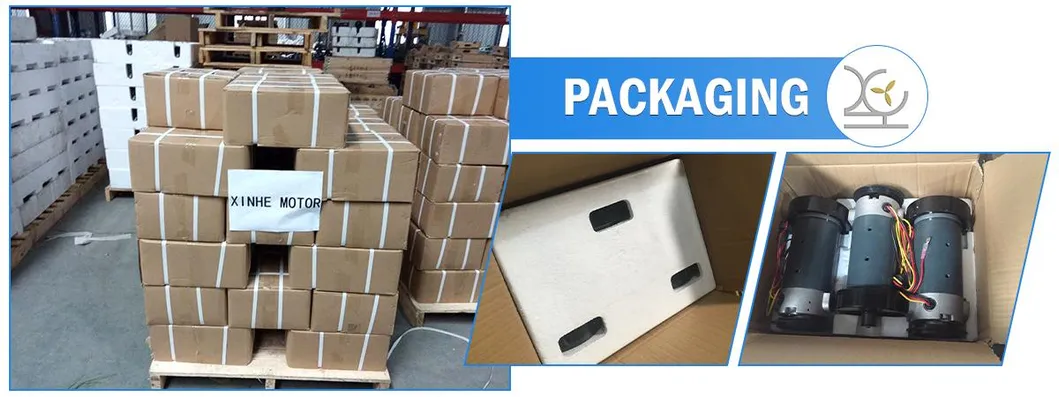

Certifications & Packaging

Installation Instructions

About Our Company

We specialize in AC and DC motors for various applications such as kitchen appliances, air flow products, and more. With 16 years of experience, we provide quality motion solutions tailored to customer needs. Our offerings include superior customer service, high-quality products, innovative designs, and competitive prices. Compliant with EU and American standards, ensuring safety and social responsibility.

Global Presence

Frequently Asked Questions

What are the available payment methods?

We accept TT (Telegraphic Transfer) at sight or trade assurance. Usually, a 30% down payment is required after the contract is valid, with the remaining 70% balance due before shipment.

How long is the product guarantee?

We offer a 12-month guarantee on all our high-quality motors. Our support team typically responds to technical inquiries within 5 hours.

How do you handle replacement parts if the motor breaks?

If a part fails within the warranty period, we will send spare parts free of charge (excluding easy-broken components). For parts outside of warranty or easy-broken parts, we only charge the cost fee.

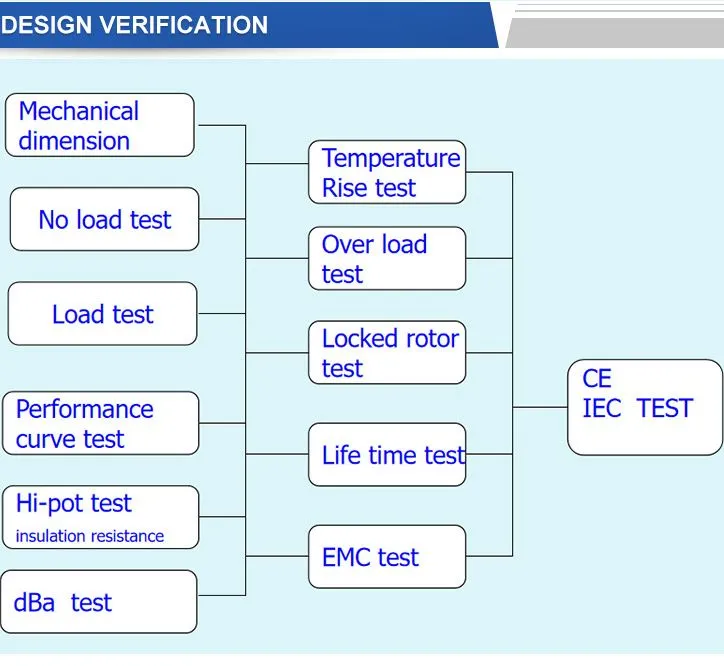

What quality control measures are in place?
