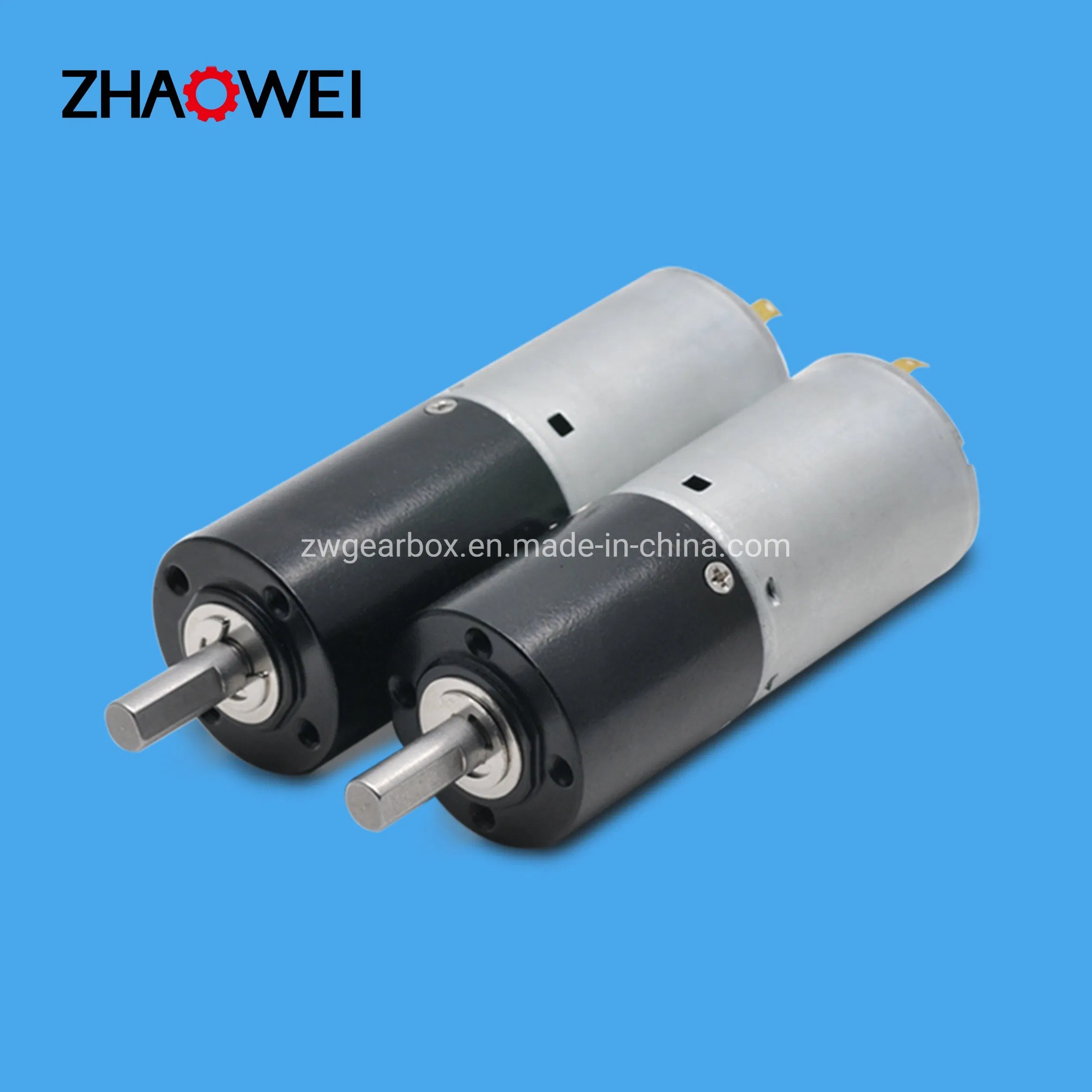

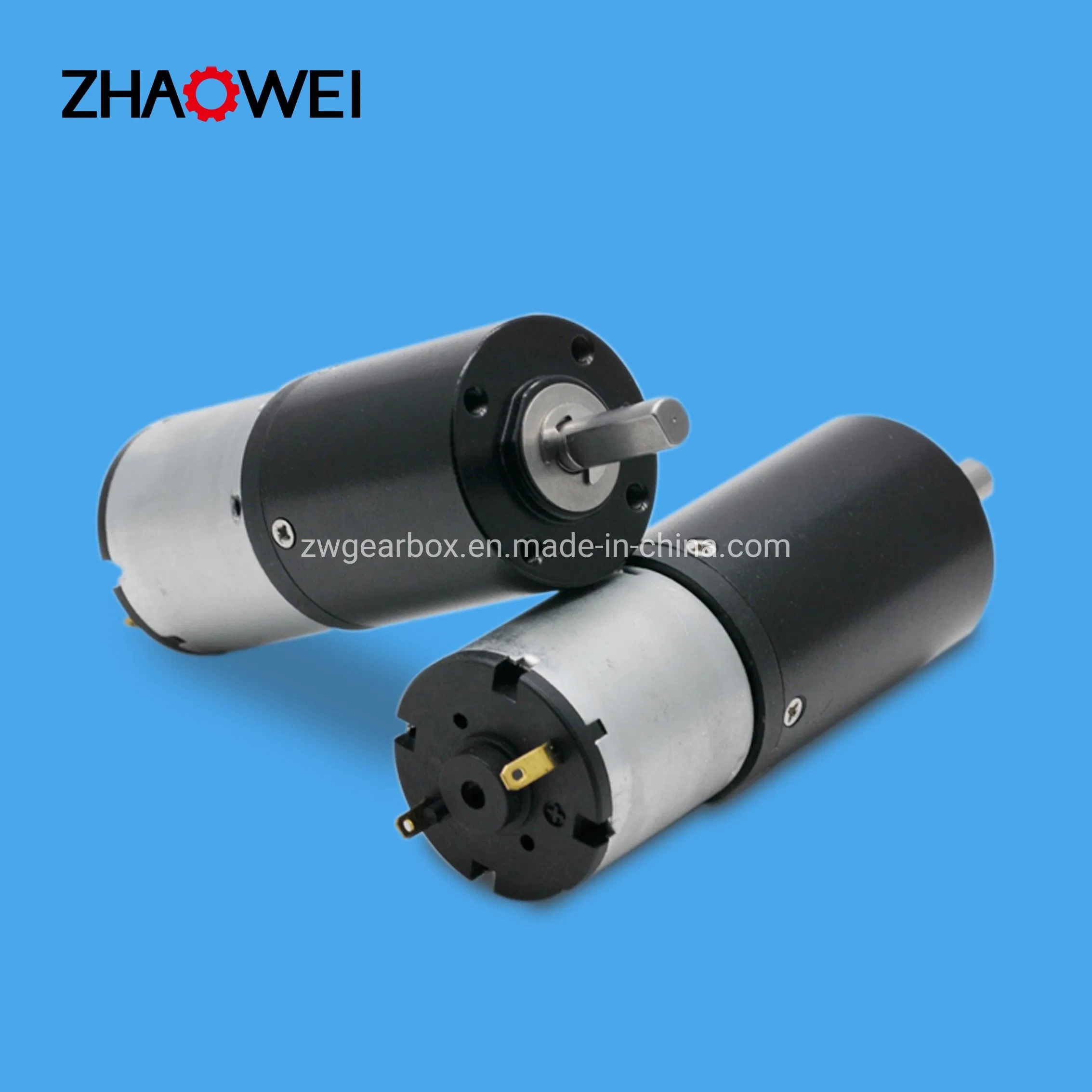

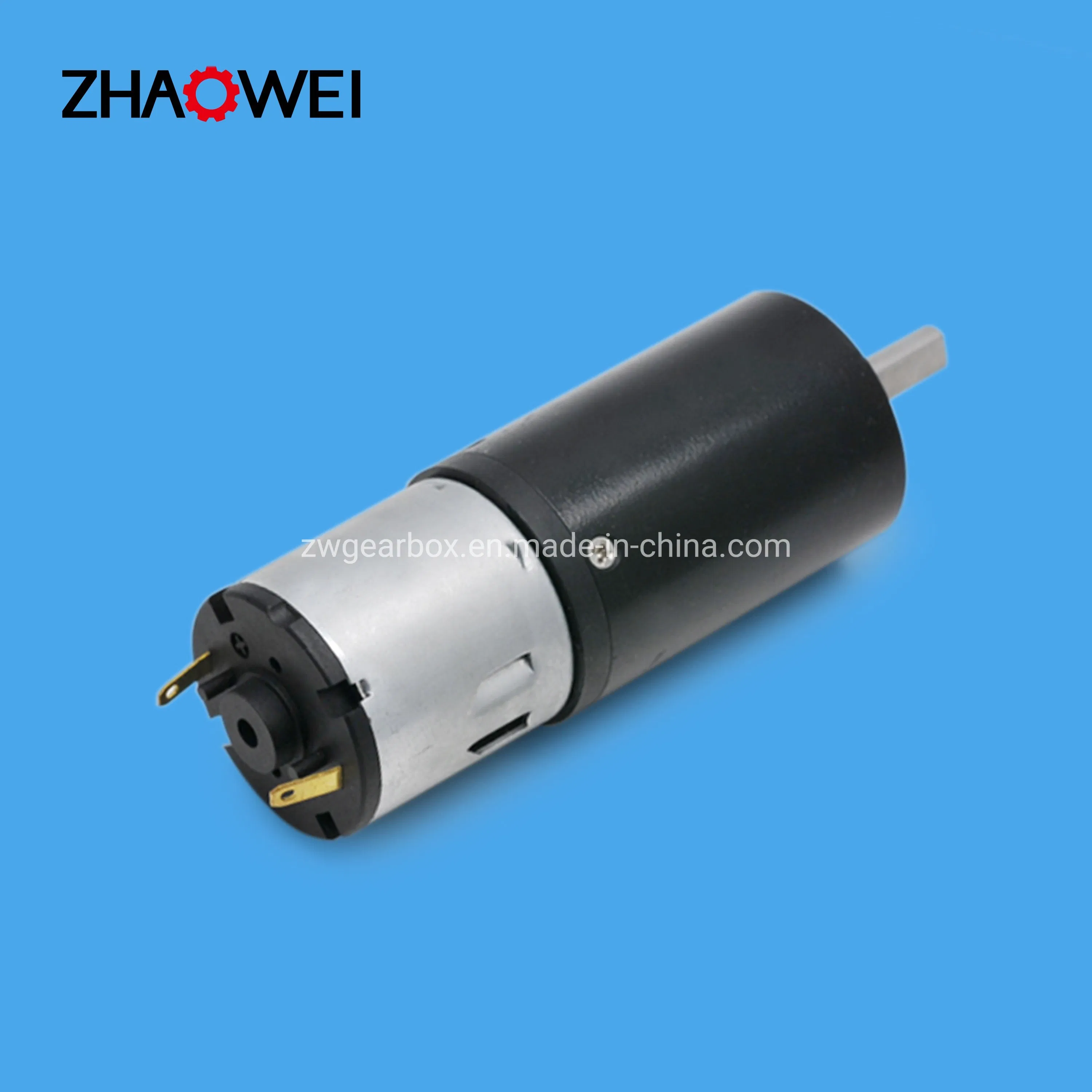

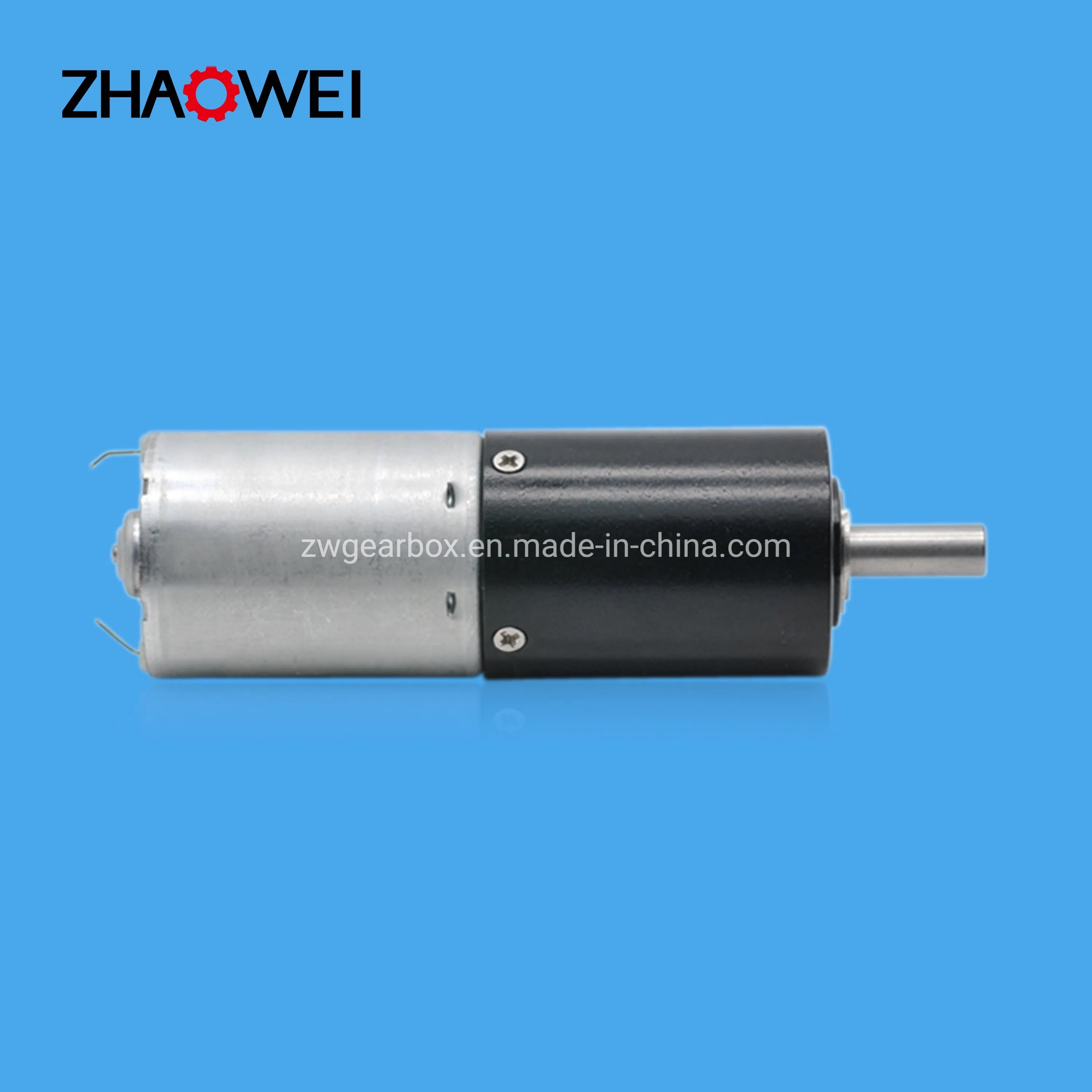

High Precision Plastic Gears for Micro DC Geared Motors
High Precision Plastic Gears for Micro DC Geared Motors
High Precision Plastic Gears for Micro DC Geared Motors
High Precision Plastic Gears for Micro DC Geared Motors
High Precision Plastic Gears for Micro DC Geared Motors
1 / 5
High Precision Plastic Gears for Micro DC Geared Motors
High Precision Plastic Gears for Micro DC Geared Motors
High Precision Plastic Gears for Micro DC Geared Motors
High Precision Plastic Gears for Micro DC Geared Motors
High Precision Plastic Gears for Micro DC Geared Motors

High Precision Plastic Gears for Micro DC Geared Motors

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Product Overview
Model NO.
ZWPD028028-16
Excitation Mode
Permanent Magnet
Function
Control
Casing Protection
Drip-Proof
Number of Poles
4
Structure
Brush
Type
Gearbox Motor
Certification
ISO9001, CCC, RoHS
Rated Voltage
24V
Gearbox Diameter
28mm
Gear Material
Plastic
No Load Speed
455 Rpm
Rated Load Speed
419 Rpm
Ratio
16:1
Product Specifications

High Precision Plastic Gears for Micro DC Geared Motors

  • Rated voltage: 24.0V DC
  • Rotation direction: CW/CCW
  • Reduction ratio: 16/1
  • Operating temperature range: -10 - 50°C
  • Overall length: 67.7mm
  • Rated torque of gearbox: 3,000gf.cm
  • Output power: 0.3-4.4W
  • Gears: High-quality plastic gears
Model Voltage (VDC) No Load Speed (rpm) No Load Current (mA) Rated Speed (rpm) Rated Current (mA) Rated Torque (gf.cm) Gear Ratio
ZWPD028028-16 24.0 455 165 419 715 819 16
ZWPD028028-24 24.0 303 165 279 715 1229 24
ZWPD028028-36 24.0 202 165 186 715 1843 36

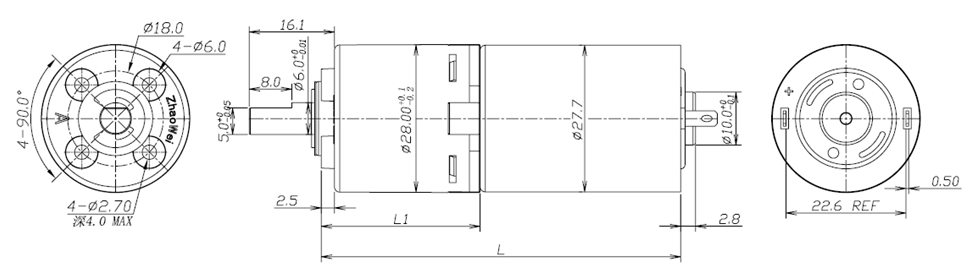

Technical 2D Drawing
Technical Drawing
Product Gallery

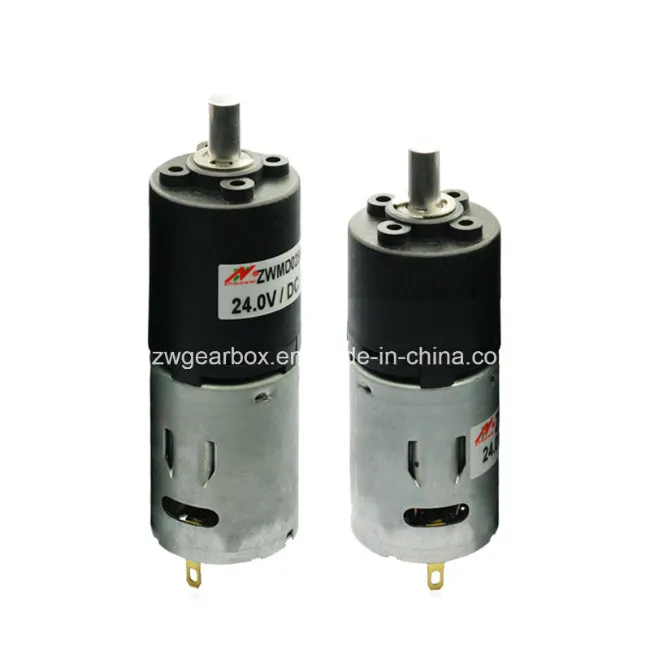

Detailed Photo
Broad Applications
Industry Category Typical Applications
Smart Wearable Watch, VR, AR, XR devices
Household Application Kitchen appliances, vacuum cleaners, window curtains, sweeping robots, smart locks, coffee machines
Automotive Products Car DVD, door lock actuators, rearview mirrors, head light Beam adjusters, EPS, vehicle sunroofs
Medical Equipment Blood pressure meters, medical cleaning pumps, medical beds, surgical staplers, infusion pumps
Consumer Electronics Cameras, mobile phones, camcorders, headphones, UAVs (drones), smart speakers
Manufacturing Excellence

We provide total drive solutions including design, tooling fabrication, components manufacturing, and assembly.

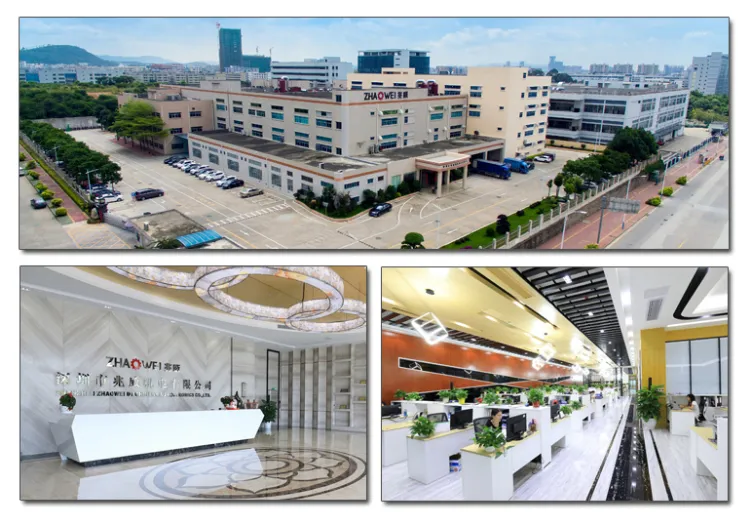

Manufacturing Center

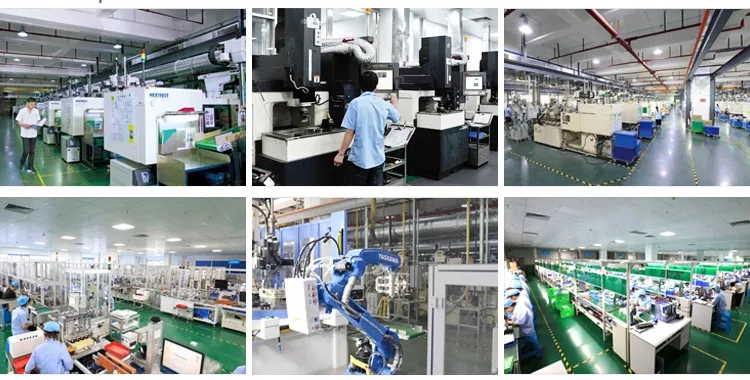

Workshop

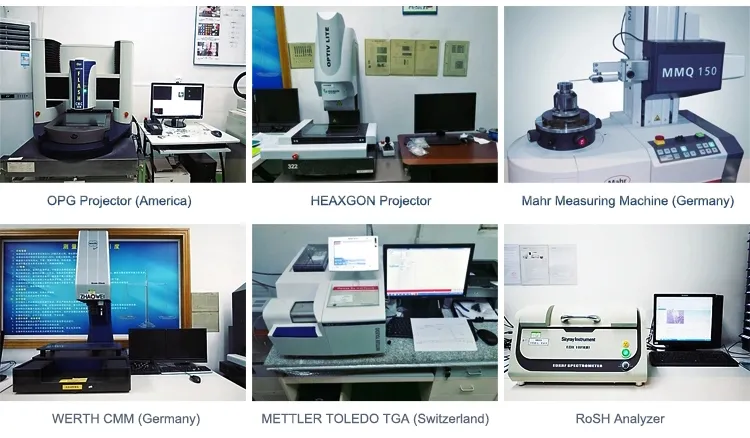

Testing Equipment
Key Advantages:
  • 19+ years experience in motor gearbox manufacturing
  • Comprehensive technical support from R&D to serial production
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Small orders accepted for initial projects
Certifications
ISO Certifications

Our facilities are certified under ISO9001:2015, ISO14001:2004, ISO13485:2016, and IATF16949:2016.

Frequently Asked Questions
Can you make the gearbox with custom specifications?
Yes. We have a dedicated design and development team and an experienced engineering staff to handle custom requirements.
Do you provide samples?
Yes. We can provide samples within 5-15 days depending on the specific gearbox specifications you need.
What is your Minimum Order Quantity (MOQ)?
Our standard MOQ is 2000pcs, but we accept smaller orders for initial business development.
Do you have items in stock?
No, we do not keep items in stock. All products are manufactured based on specific orders.
Do you provide technical support?
Yes. Our company has a full R&D team available to provide technology support for your micro drive solutions.
How do you ship the goods?
We usually ship via international couriers like DHL, UPS, or FEDEX using your provided account.
