ℹ Basic Information
Function
Control, Driving
Casing Protection
Closed Type
Production Capacity
4 Million PCS/Month
⚙ Product Description

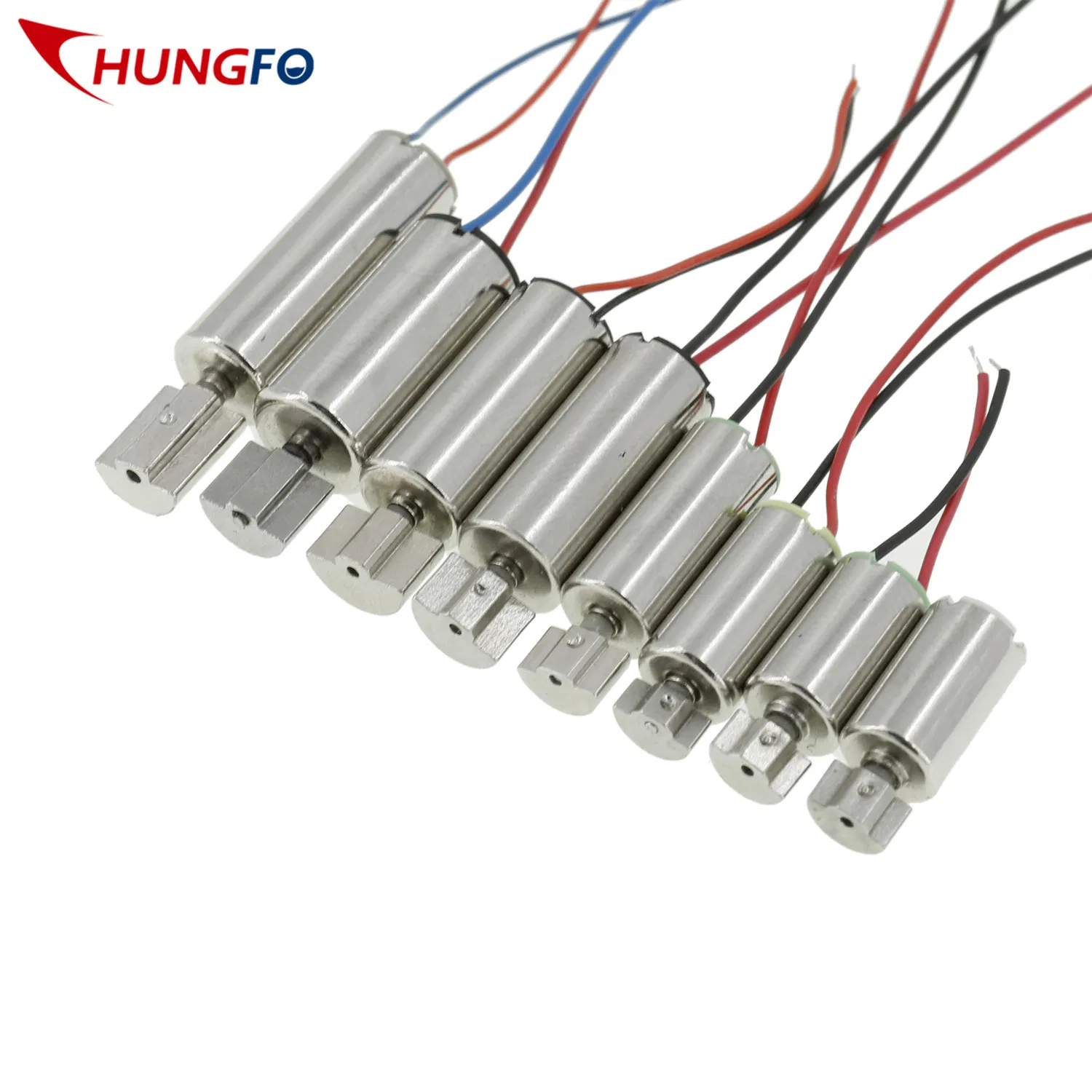

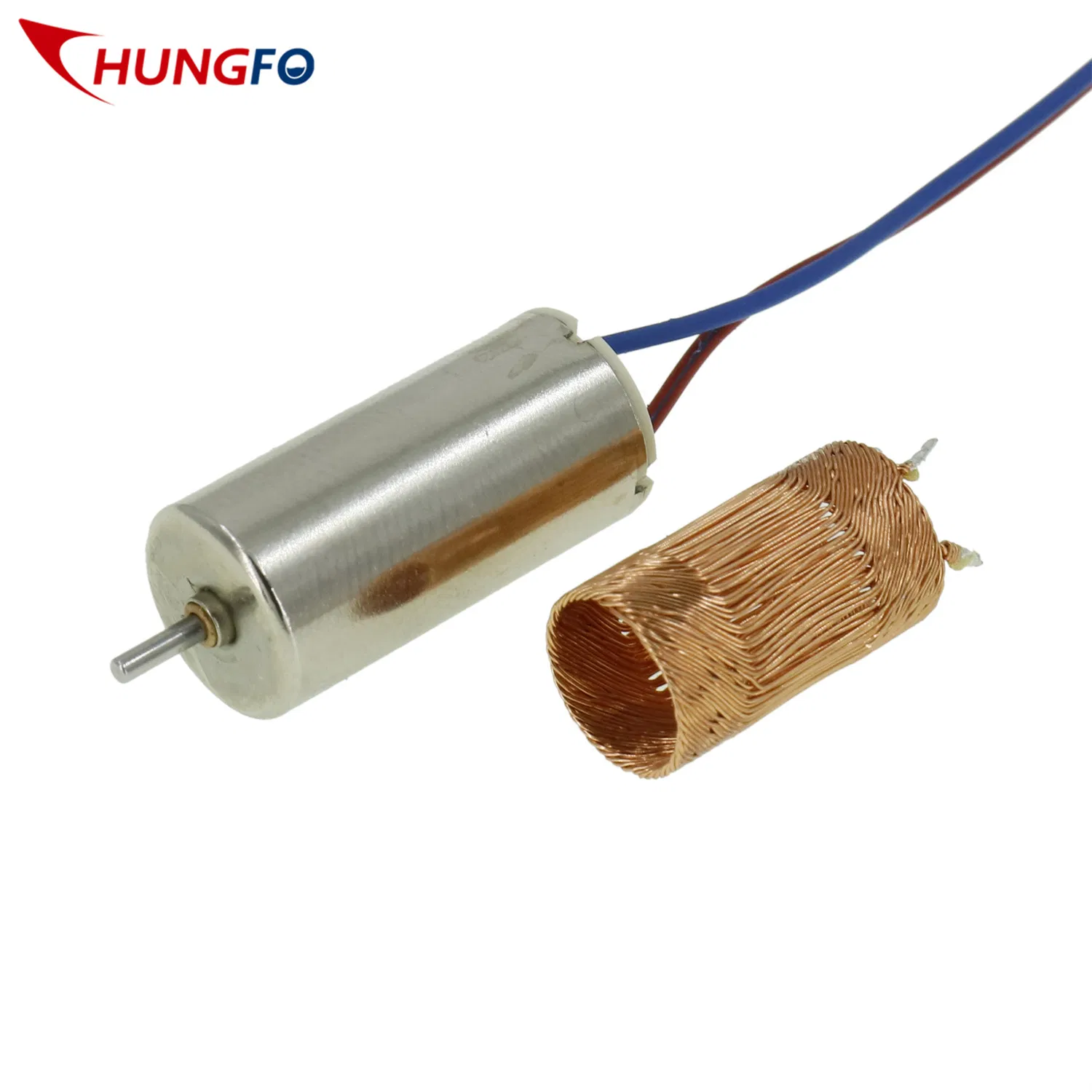

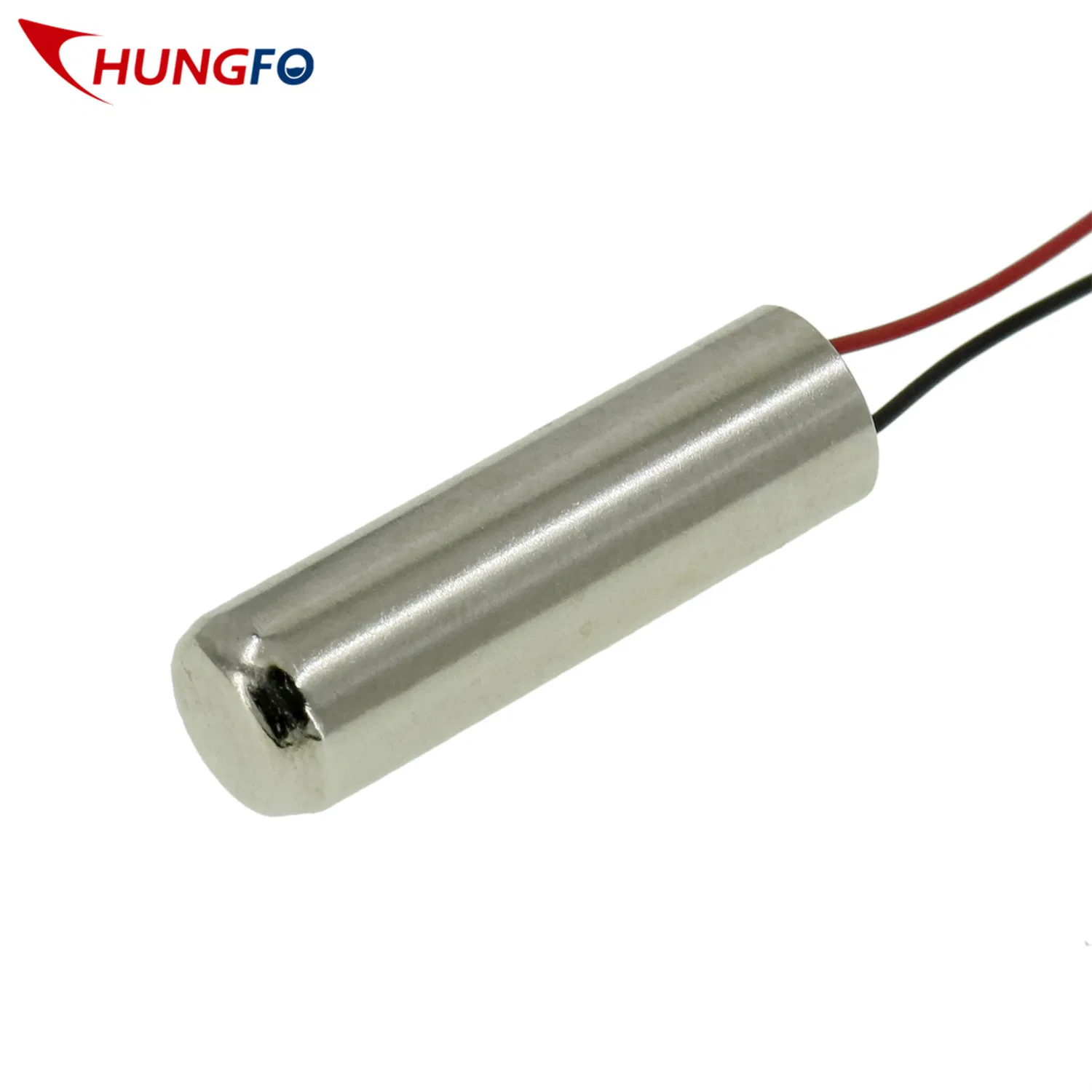

6D Series φ6mm x L14.2 Precious Metal Brushes Coreless Motor
| Motor Parameters |
Model: 6D1NA-082211 |
| Values at nominal voltage |
Unit |
3.7V |
| Free Load |
No load speed |
rpm |
40424 |
| No load current |
mA |
30 |
| At Max. Efficiency |
Max. efficiency |
% |
51.30% |
| Speed |
rpm |
31482 |
| Current |
mA |
104.6 |
| Torque |
g.cm |
0.61 |
| At Max. Output |
Max. output |
W |
0.29 |
| Speed |
rpm |
20212 |
| Current |
mA |
199 |
| Torque |
g.cm |
1.39 |
| At Stall |
Stall current |
A |
0.36 |
| Stall torque |
g.cm |
2.78 |

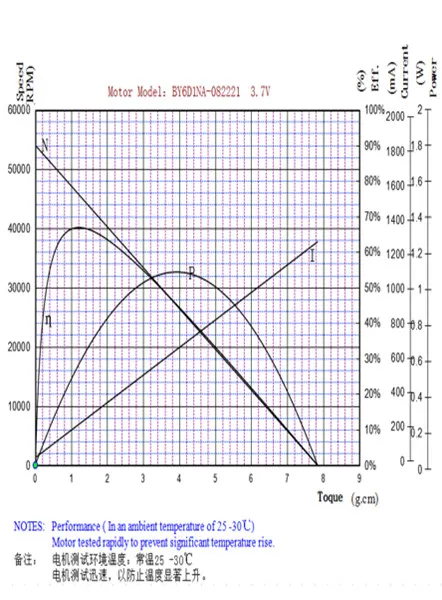

📊 Performance Characteristics
| Thermal & Mechanical Parameters |
| Ambient temperature |
-20~+65 |
ºC |
| Max. permissible winding temperature |
85 |
ºC |
| Max. permissible No-load speed |
59000 |
rpm |
| Max. axial load(dynamic) |
0.15 |
N |
| Weight |
1.8 |
g |
Remarks:
1. Rotation direction, wire specification and performance parameters can be customized according to requirements.
2. Motor can be mounted with various shapes and sizes of eccentric weight to become a vibration motor.
3. Conversion: 1g=0.035oz; 1inch=25.4mm; 1g.cm=0.098mN.m.

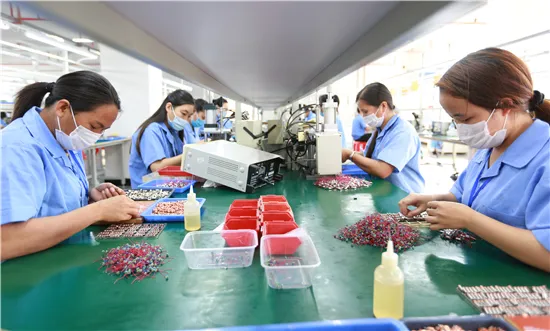

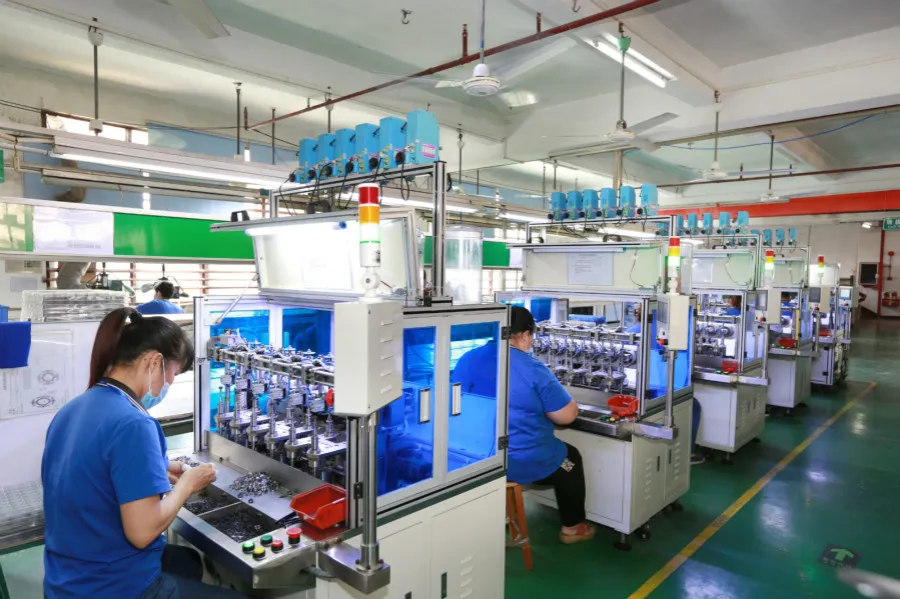

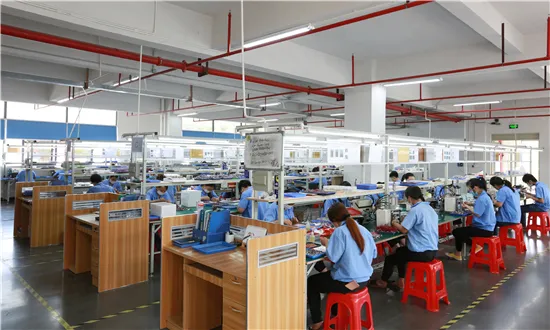

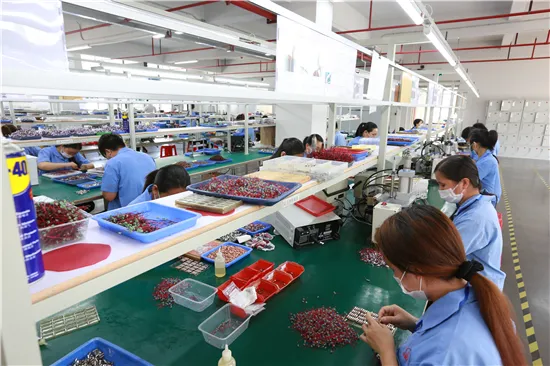

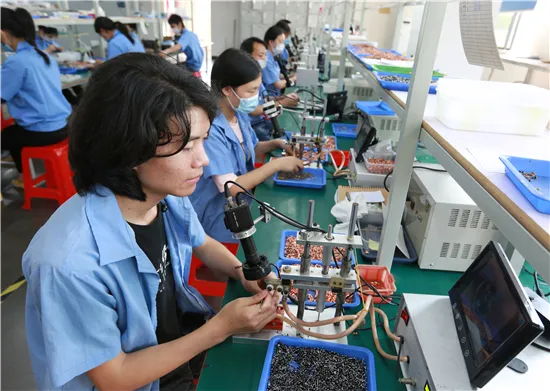

🏭 Factory & Production
📱 Applications
Frequently Asked Questions
What are the main advantages of this 6mm coreless motor?
The 6D series coreless motor offers high precision, compact size (6mm diameter), and high efficiency (up to 51.30%). Its precious metal brush design ensures stable performance for driving and control applications.
Can the motor performance be customized?
Yes, the rotation direction, wire specifications, and performance parameters such as speed and torque can be adjusted to meet specific customer requirements.
What is the typical application for this micro motor?
These motors are widely used in hair dryers, personal care devices, precision medical equipment, and can be converted into vibration motors for mobile devices by adding eccentric weights.
What is the production capacity for this model?
Our facility has a robust production capacity of approximately 4 million pieces per month, ensuring a steady supply for large-scale industrial needs.
What certifications does the product hold?
The production process is certified under ISO9001, ensuring high-quality standards and consistent manufacturing reliability.
What are the environmental operating limits?
The motor is designed to operate within an ambient temperature range of -20ºC to +65ºC, with a maximum permissible winding temperature of 85ºC.
