Basic Information
Sand Core Type
Clay Sand Core
Application
Machinery Parts
Surface Treatment
Spray-Paint
Certification
CE, ISO 9001:2000
Customization
Available on Demand
Product Parameters
| Model |
Slot width (mm) |
Slot length (mm) |
Efficiency (m³/H) |
Motor power (Kw) |
| Y475B-13 | 450 | 1300 | 30 | 2×0.4 |
| Y476B-15 | 600 | 1500 | 40 | 2×0.4 |
| Y476B-20 | 600 | 2000 | 40 | 2×0.4 |
| Y345B-30 | 450 | 3000 | 30 | 2×0.75 |
| Y345B-40 | 450 | 4000 | 30 | 2×0.75 |
| Y346B-25 | 600 | 2500 | 50 | 2×0.75 |
| Y346B-30 | 600 | 3000 | 50 | 2×0.75 |
| Y346B-40 | 600 | 4000 | 50 | 2×1.5 |
| Y346B-50 | 600 | 5000 | 50 | 2×1.5 |
| Y348B-30 | 800 | 3000 | 60 | 2×1.5 |
| Y348B-50 | 800 | 5000 | 80 | 2×2.2 |

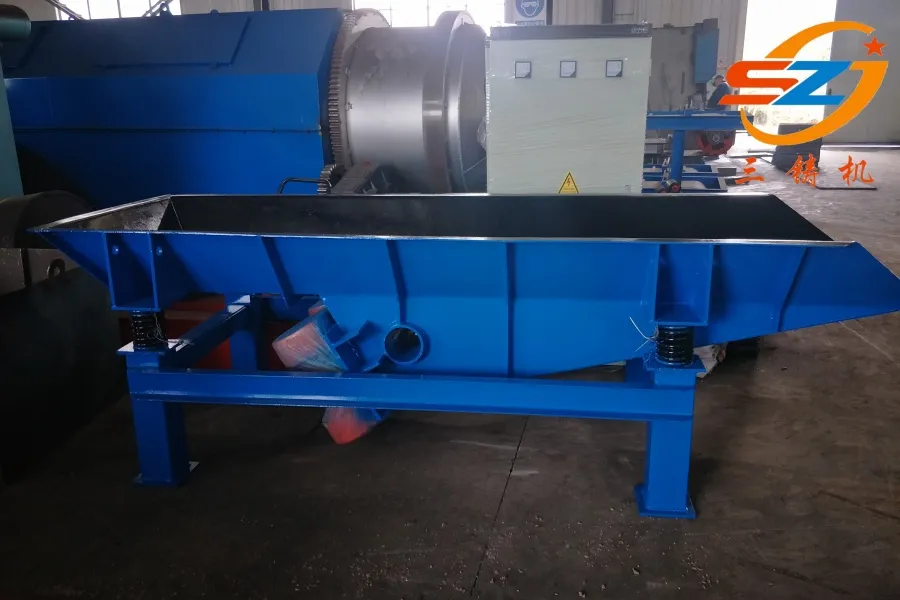

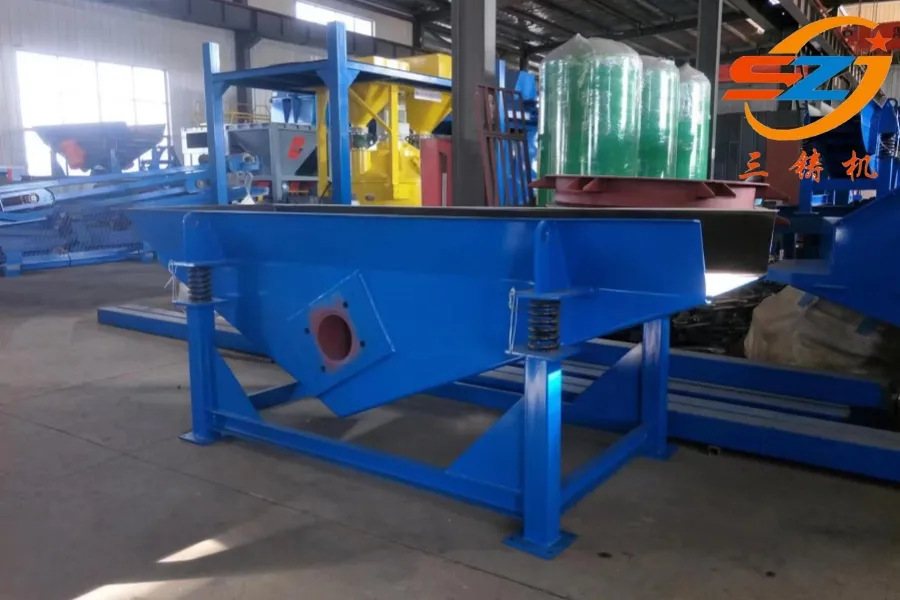

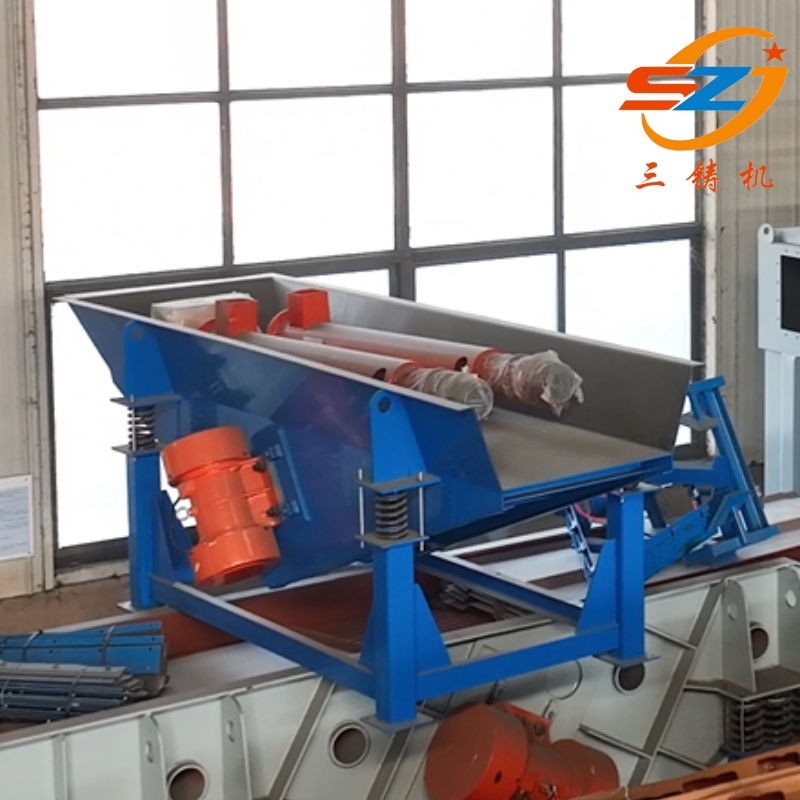

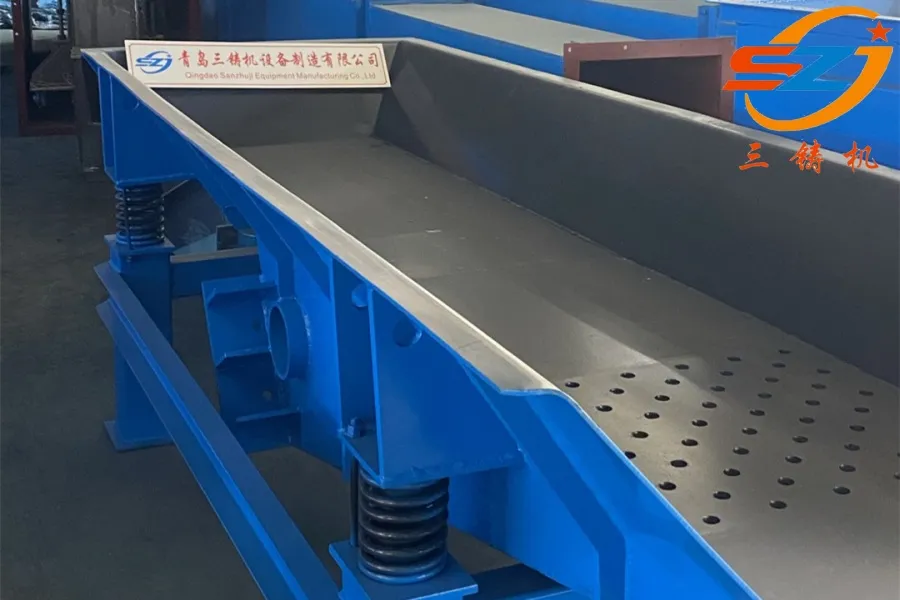

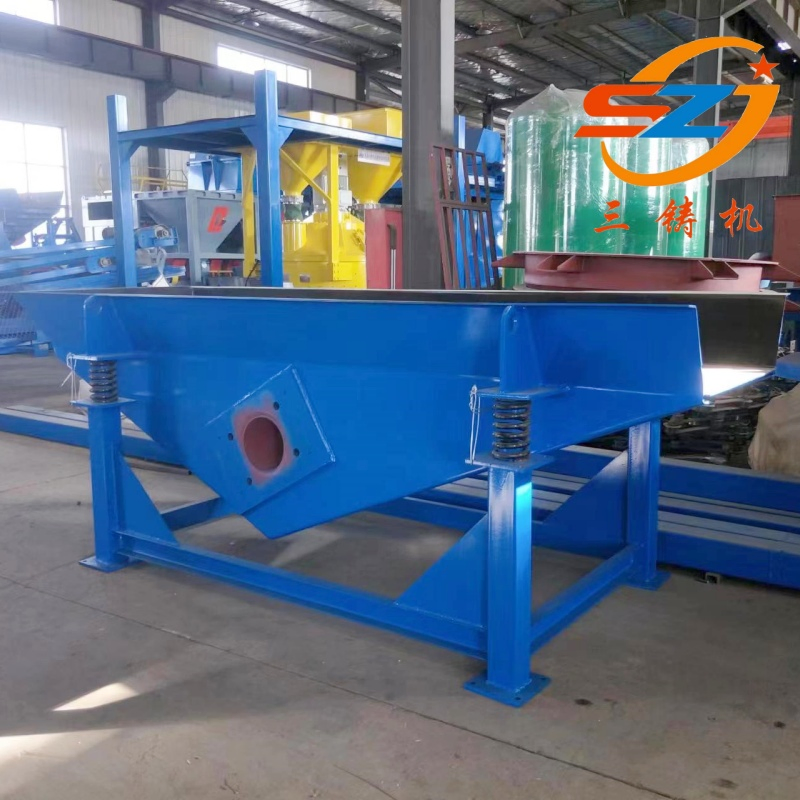

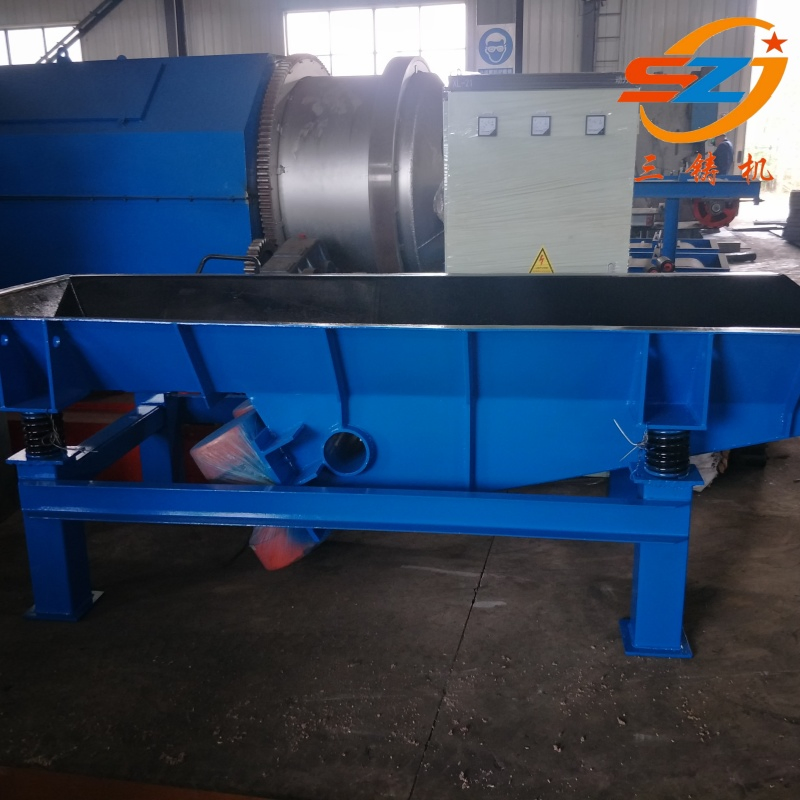

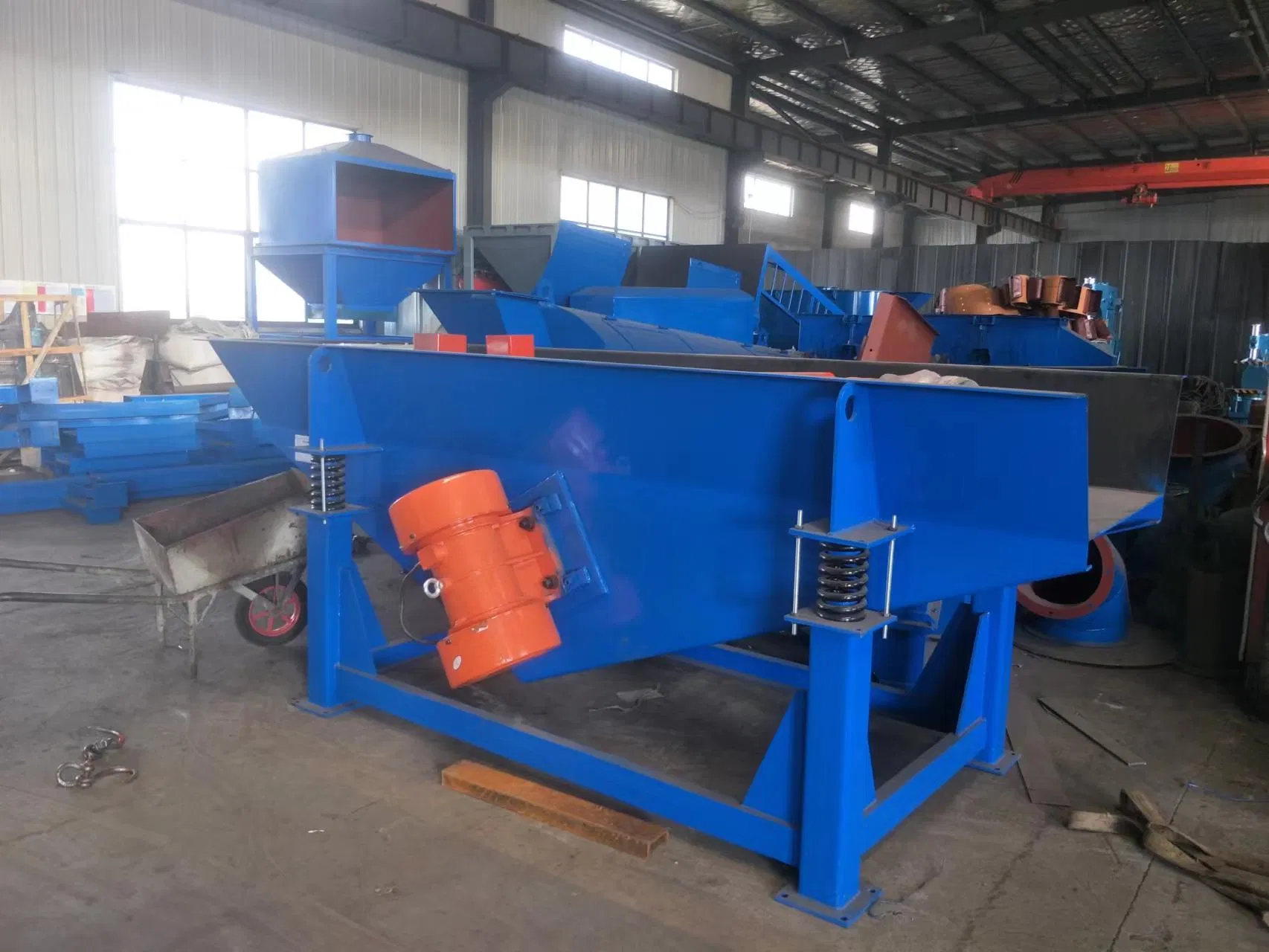

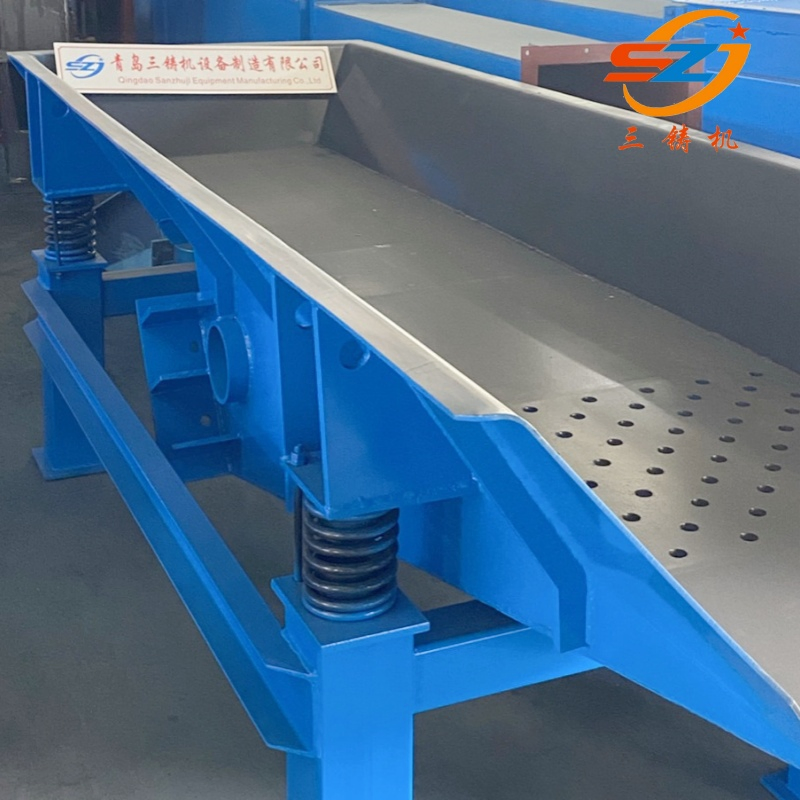

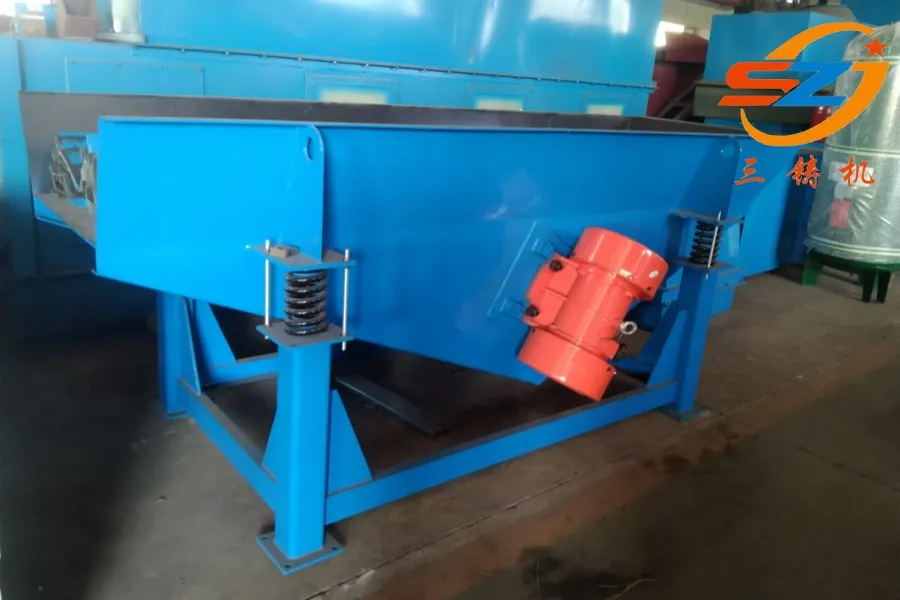

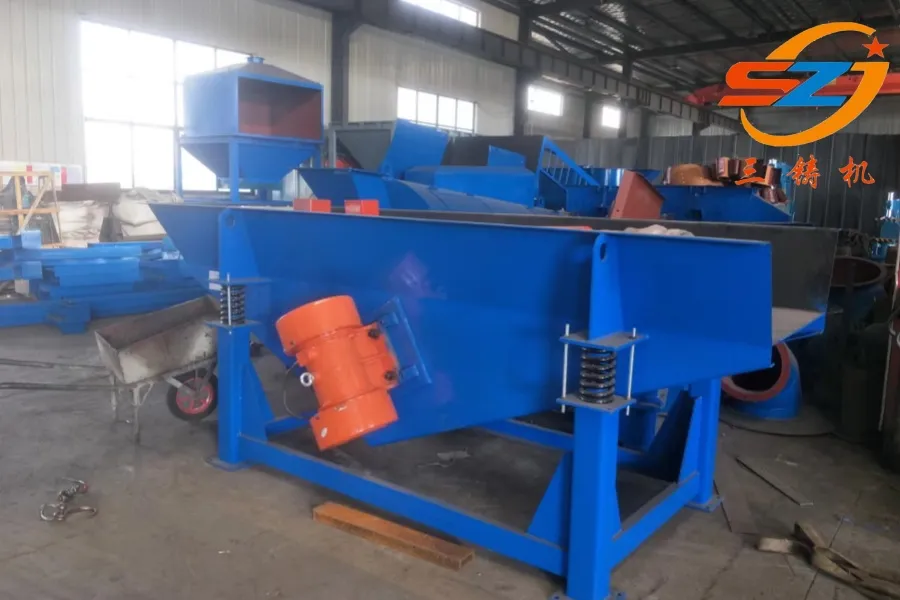

Detailed Photos
Product Description
Our state-of-the-art vibrating conveyor is an essential asset in the casting process, seamlessly handling tasks such as vibration sand transfer, vibration screening, and vibration feeding. This robust equipment is engineered for reliable operation and user-friendly maintenance, ensuring uninterrupted productivity in your foundry operations.
Technical Excellence: Operating at a frequency range of 50-60Hz with an amplitude of 0.5-3mm, our system achieves precision sorting and seamless conveyance.
1. High Temperature Resistance: Constructed with 16Mn steel plate welded troughs (resistant to 400ºC) and fortified with ceramic linings (resistant to 1200ºC), designed for red sand transport.
2. Intelligent Control: Integrated VRV controller adjusts amplitude responding to sand volumes (accuracy ±5%), ensuring flow error <3%.
3. Dynamic Screening: Efficiency exceeding 99.5% for sand ranging from 0.15-1.2mm, replacing traditional belt conveyors and reducing footprint by 40%.
Certifications

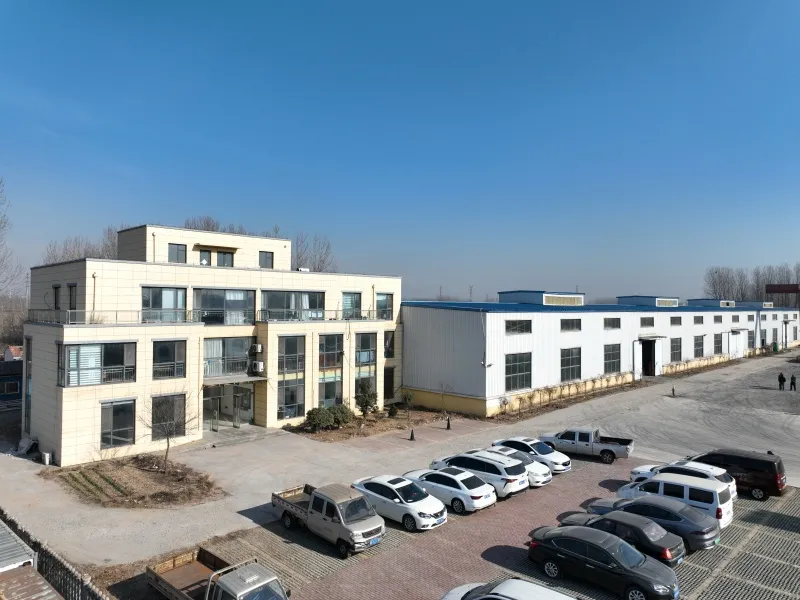

Factory Overview
Frequently Asked Questions
What is the maximum temperature the conveyor can handle?
The standard trough resists up to 400ºC, while the version with ceramic lining can handle extreme temperatures up to 1200ºC.
How efficient is the screening process for foundry sand?
The three-dimensional dynamic screening system achieves an efficiency rate exceeding 99.5% for sand particles between 0.15mm and 1.2mm.
What are the maintenance requirements for the exciter?
Due to advanced carburized gears and grease lubrication, the exciter is engineered for 10,000 hours of maintenance-free operation.
Does the system include magnetic separation?
Yes, it features a NdFeB permanent magnet module with ≥1200Gs induction, removing over 98% of ferromagnetic impurities.
Can the conveyor be customized for specific production lines?
Absolutely. The system supports turnkey solutions and modular adjustments for sand mixing, molding, pouring, and regeneration stages.
