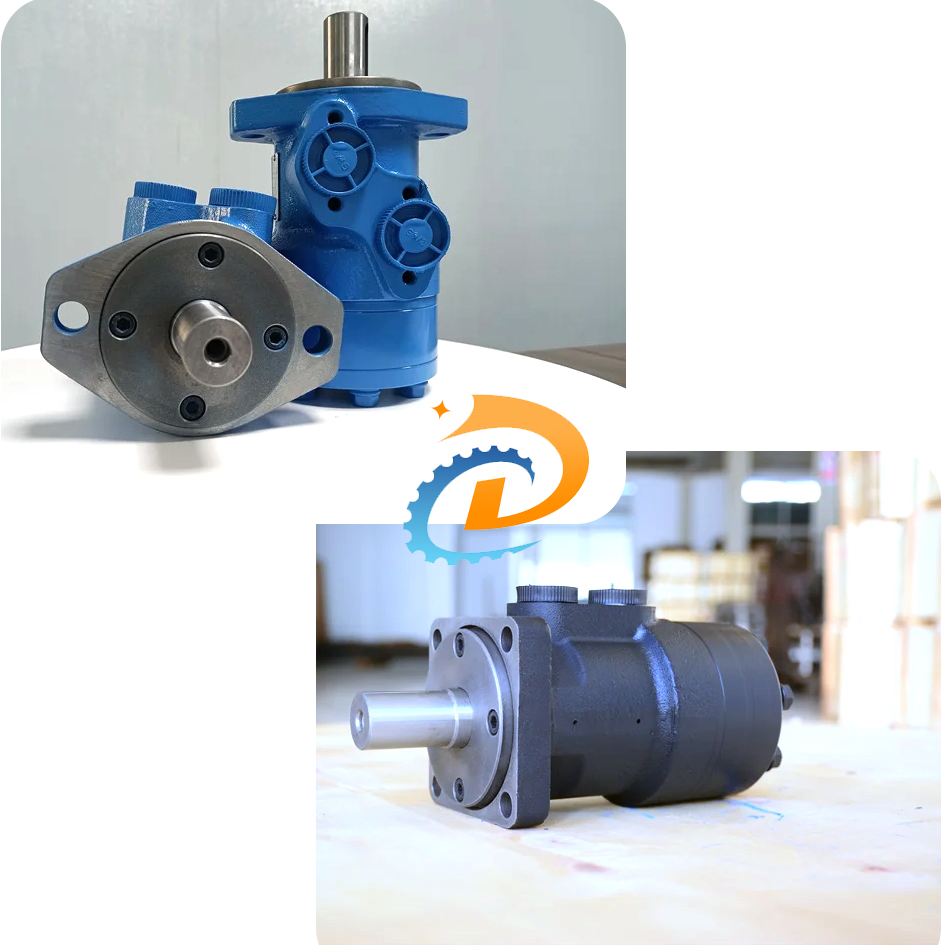

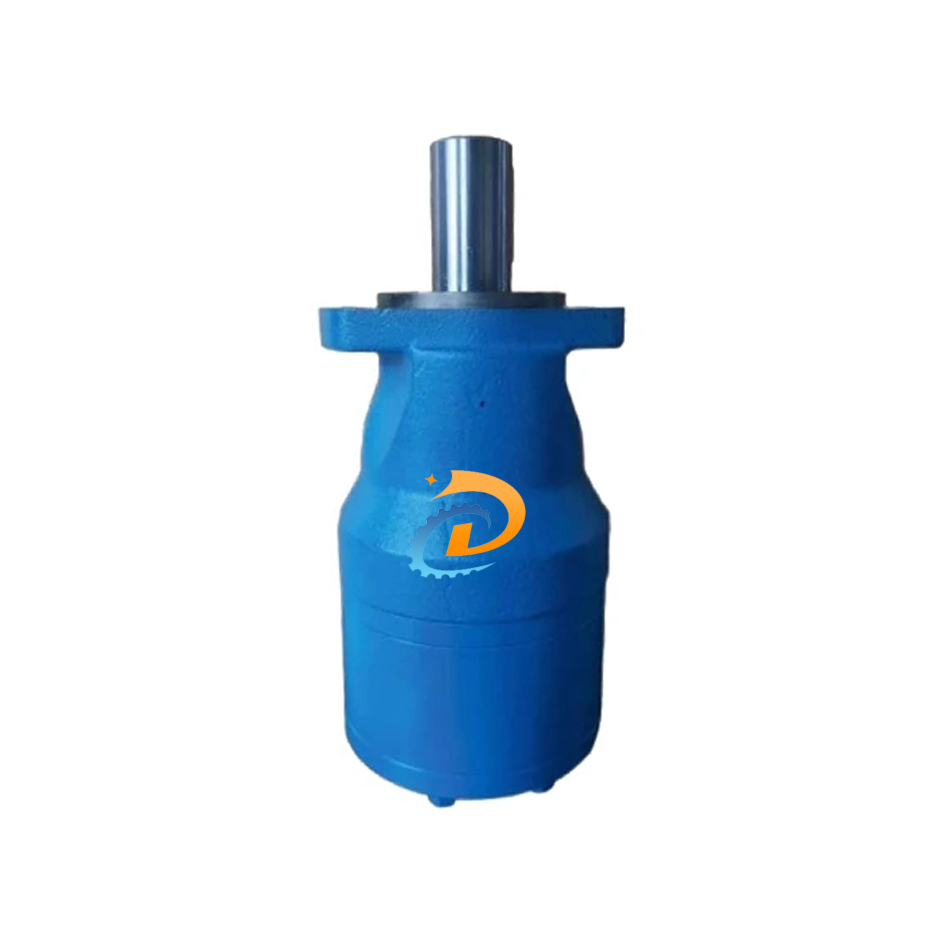

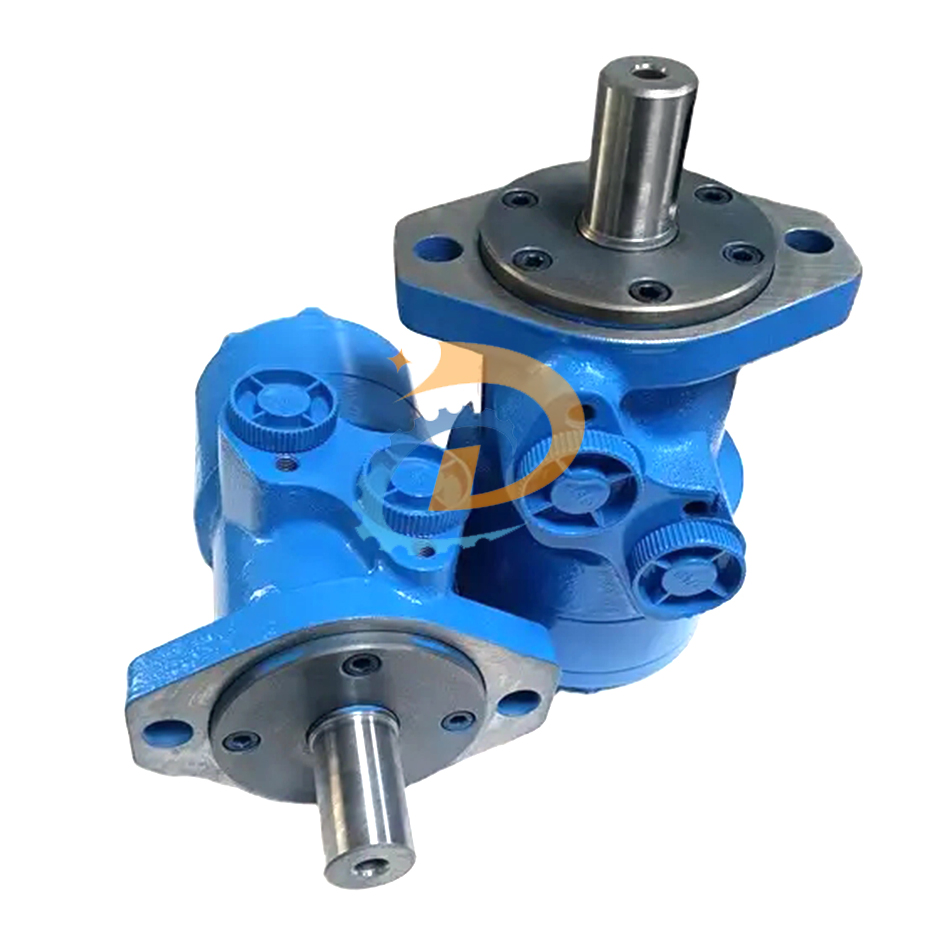

Bm4 Hydraulic Motors/Precio De Motor Hidraulico/ High Torque Mini Hydraulic Motors

📋 Basic Info

Model NO.	BM4
Power Rating	4000W
Casing Protection	Protection Type
Number of Poles	10
Speed	High Speed
Type	Plunger Type
Displacement	50cc/R-400cc/245/310/390/490/625/800
Model	Bm1/Bm2/Bm3/Bm4/Bm5/Bm6/8K
Color	Black, Blue or Customized
Max Temperature	80 Degrees Celsius
Mount Flange	2 Bolts, 4 Bolts, 6 Bolts
Feature	Rotation and Speed Can Be Controlled
Shaft	Spline Shaft /Flat Key Shaft
Material	Cast Iron
Maximum Flow	225
Rated Speed	800 Cc/R
Rated Voltage	220V
Rated Current	75A
Actual Flow	100L/Min
Production Capacity	800,000 pieces/Year

⚙ Product Description

Displacement (cc/r)		245	310	390	490	630	800
Flow (LPM)	Continuous	80	80	80	80	80	80
Flow (LPM)	Intermittent	100	100	100	100	100	100
Speed (RPM)	Continuous	320	250	200	160	125	95
Speed (RPM)	Intermittent	350	280	230	200	160	120
Pressure (Bar)	Continuous	140	140	140	140	125	100
Pressure (Bar)	Intermittent	150	150	150	150	130	120
Torque (Nm)	Continuous	400	500	550	680	780	800
Torque (Nm)	Intermittent	420	520	580	700	800	820
Maximum case pressure -- without case drain ---- 90 Bar

📝 Motor User Guide

01.

Oil temperature: normal working oil temperature of 20°C ~ 60°C, max system operating temperature 90°C (not exceeding 1 hour).

02.

Filter & Cleanliness: 10-30 microns filter accuracy. Recommended magnetic block at tank bottom. Solid pollution level ≤ 19/16.

03.

Oil viscosity: Kinematic viscosity at 40°C should be 42-74MM²/S. Select based on work and ambient temperature.

04.

Connection: Motors can be used in series or parallel. If back pressure > 10MPA at low speed, use the oil drain port directly to the tank.

05.

Output shafts on BMS, BMSY, BMT, BMV, BMK6 series can withstand large shaft and radial loads.

06.

Optimal conditions: Select working range at 1/3-2/3 of the rated working condition.

07.

Longevity: Run at 30% rated pressure for 1 hour when first loading. Ensure motor is full of oil before use.

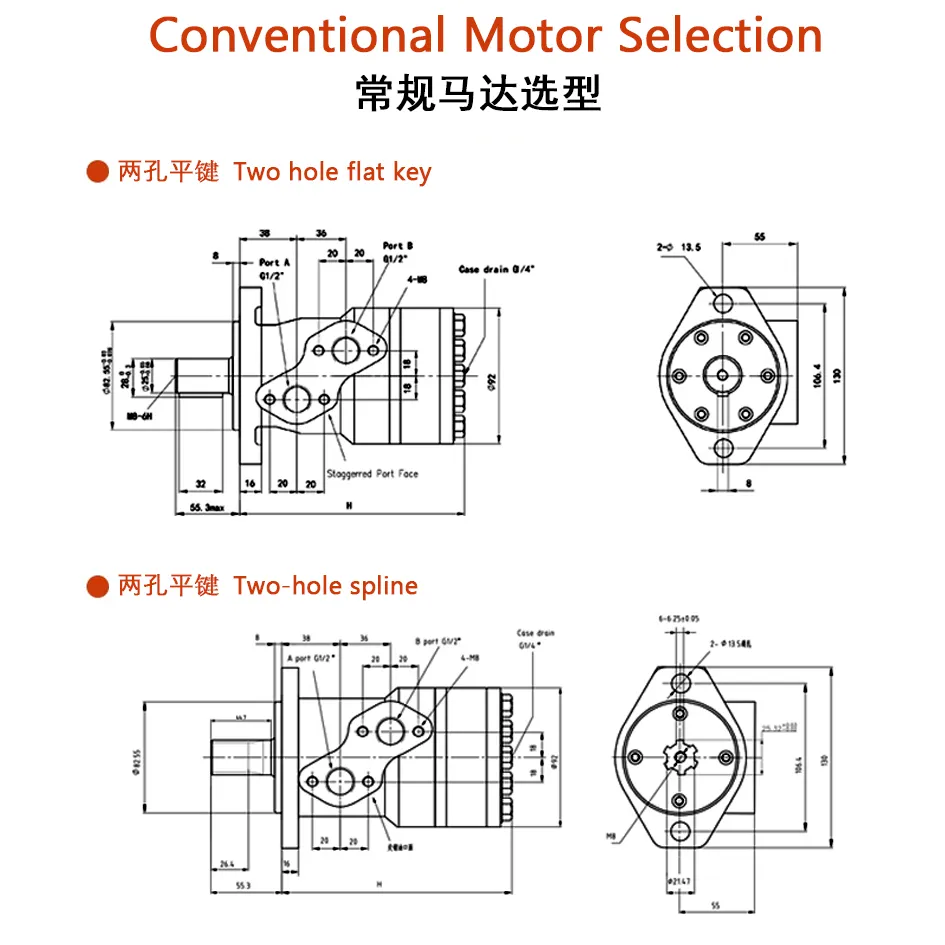

🔧 Installation Instructions

🏭 Professional Capability

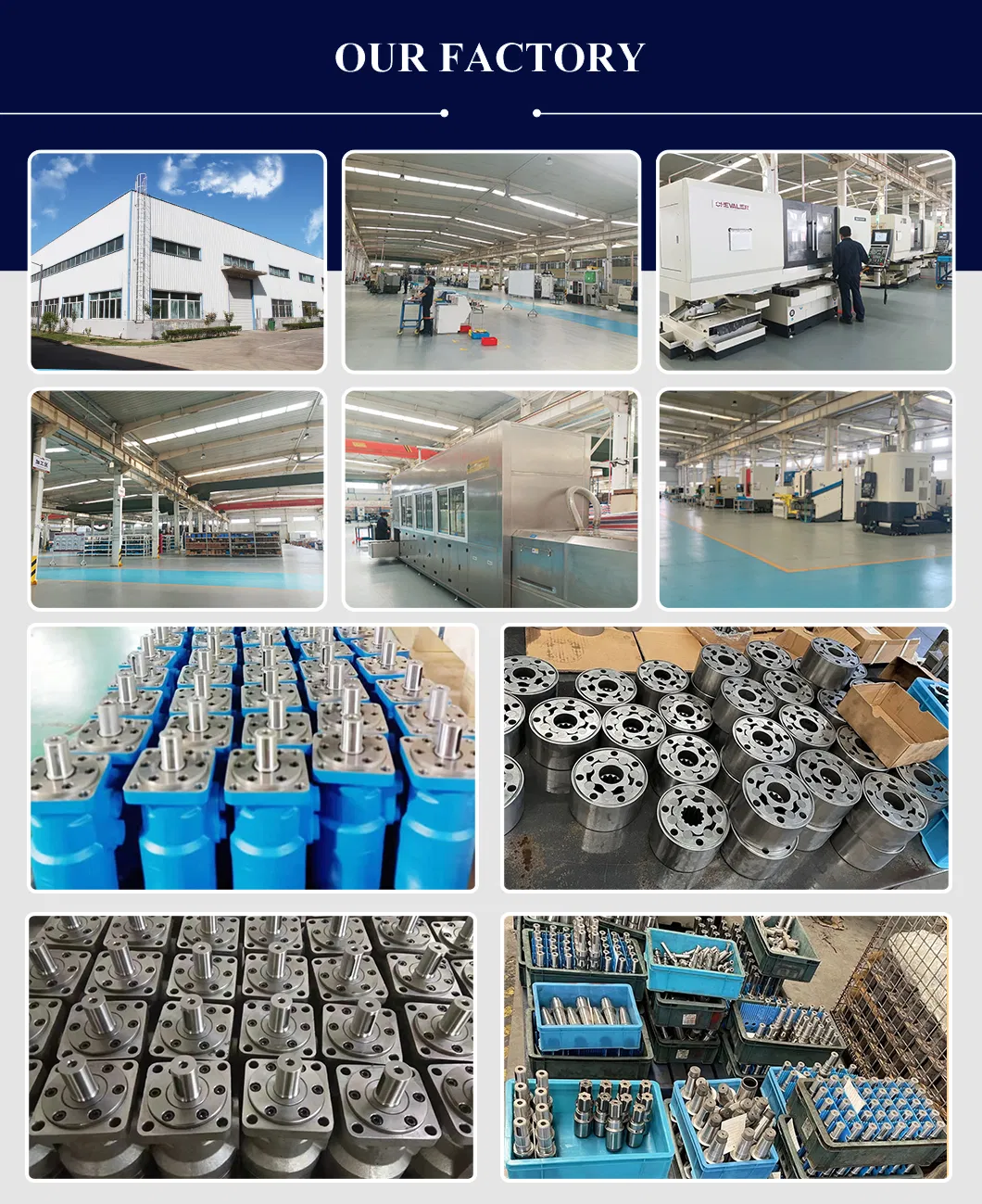

Experienced in orbital hydraulic motor design, process technology, and quality assurance. Committed to world-class hydraulic product manufacturing.

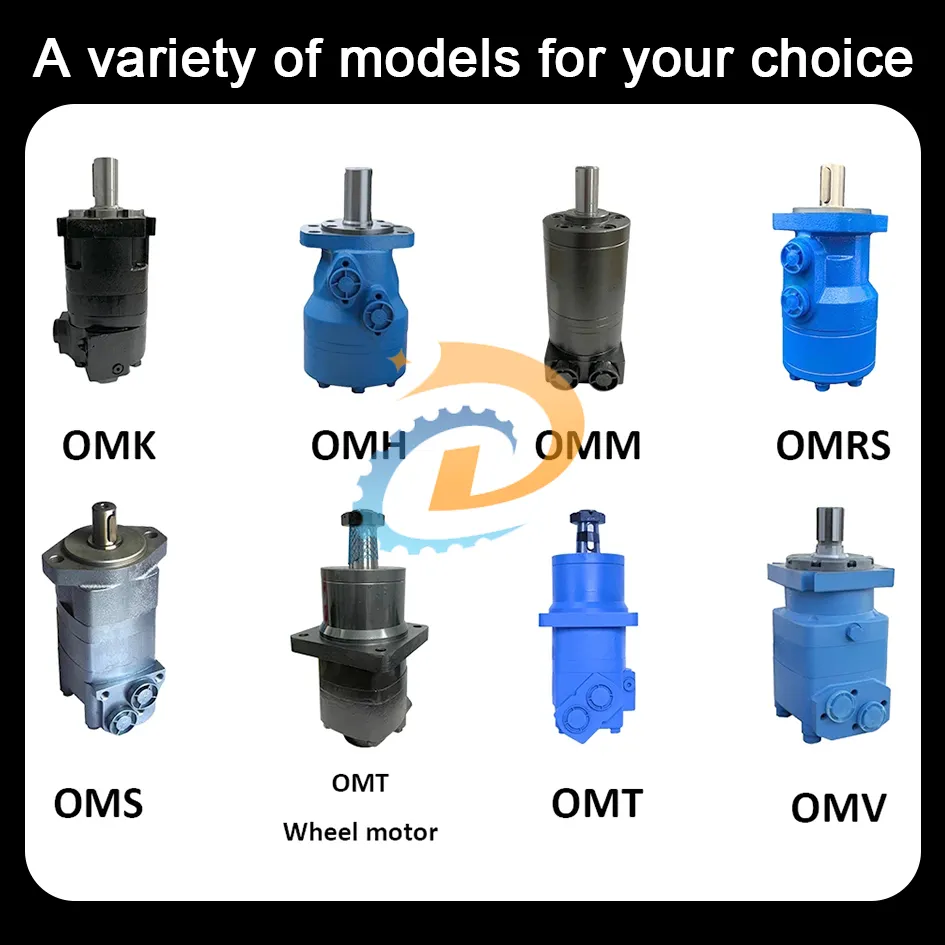

Main Product Series:

BM1 SeriesBM2 SeriesBM3 Series BM4 SeriesBM5 SeriesBM6 Series 8K SeriesBMW SeriesBK Brake Series

Completely Replaceable with:

Dan Foss: OMM/ OMP/ OMR/ OMH/ OMS/ OMT/ OMV series.
Eaton: J (129-), H (101-), S (103-), T (158-), 2000 (104-), 6000 series orbit motors.
White: MP/RS/MR/RG/HB/CE/RE series.
Parker: TE/TG/TF series.
Sam Brevini: BGM/ BG/ BR/ HPR/ HT series.

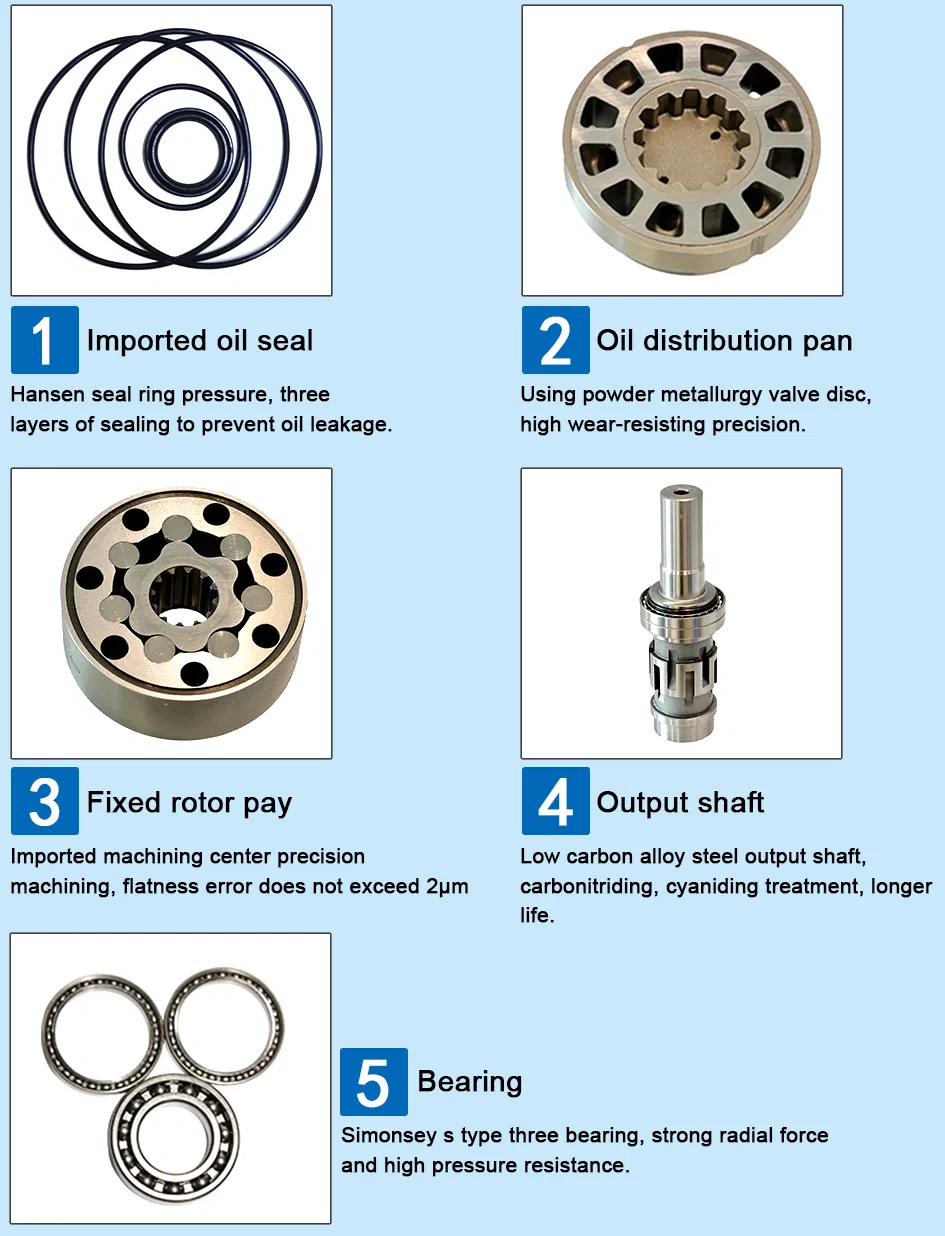

🎊 Our Advantages

📦 Packaging & Shipping

Orbital hydraulic motors are packed by carton and wooden case or according to customer request.

❓ FAQ

Can you provide samples before a large order?

Yes, sample services are available for quality verification.

Can I have my own brand on the products?

Yes, we support branding on products depending on the requirements.

What is the standard delivery time?

In-stock products ship within 3-5 days. For non-stock items, delivery depends on the factory production schedule.

What is the warranty period for your hydraulic motors?

We provide a one-year warranty after the shipment date.

Does your company accept product customization?

Yes, OEM and customization services are accepted based on the order quantity.

How long is your experience in the hydraulic field?

We have over 15 years of professional experience in hydraulic engineering and manufacturing.
