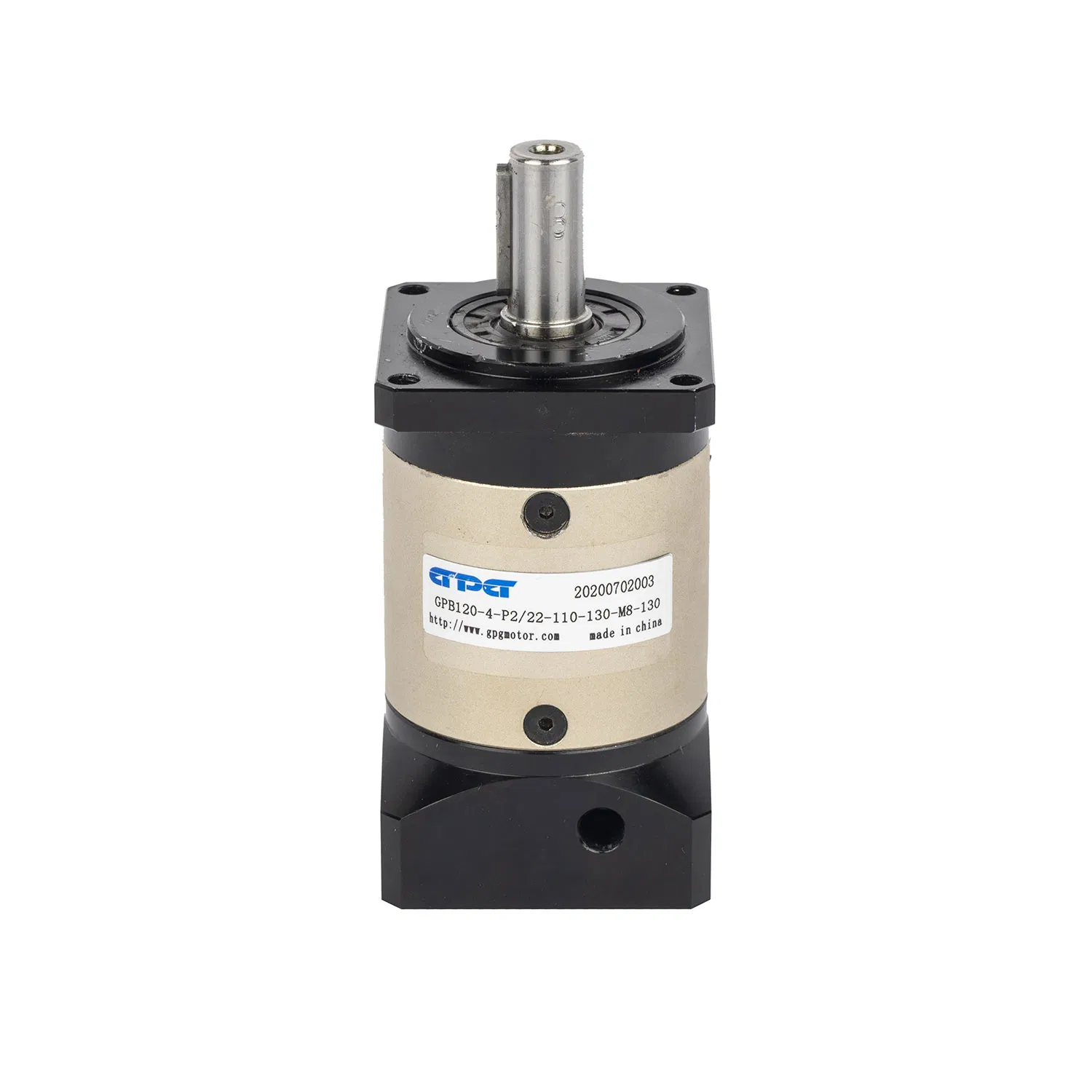

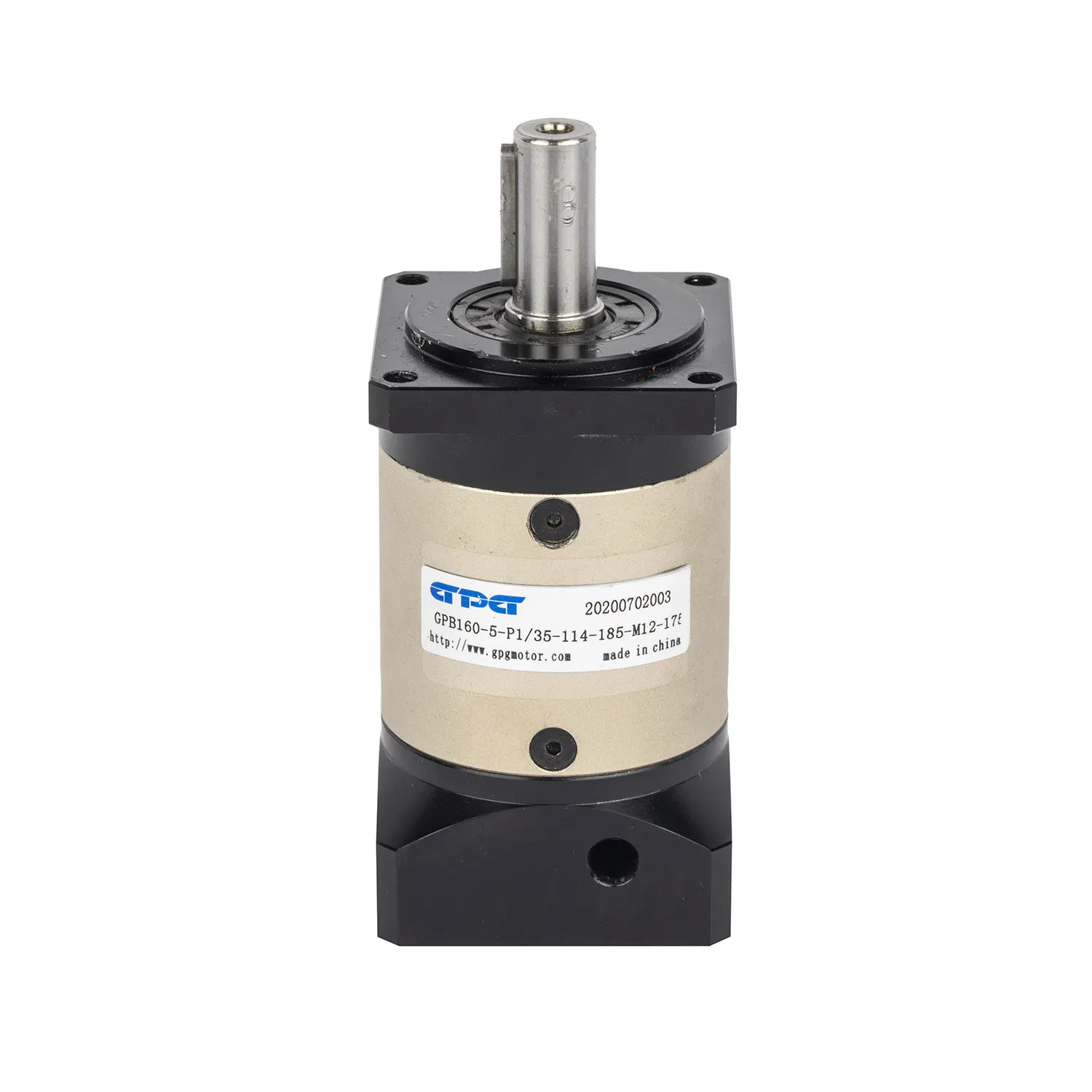

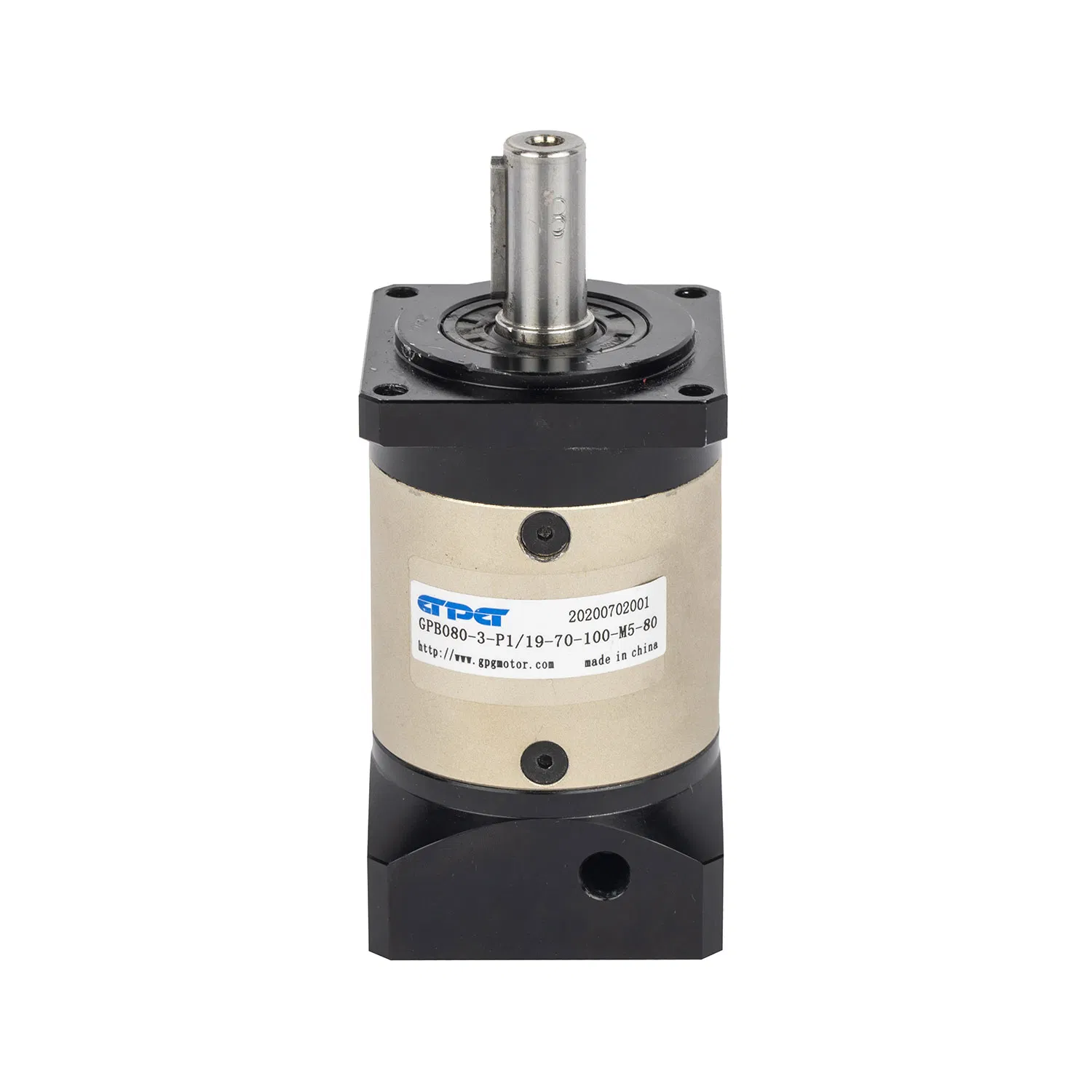

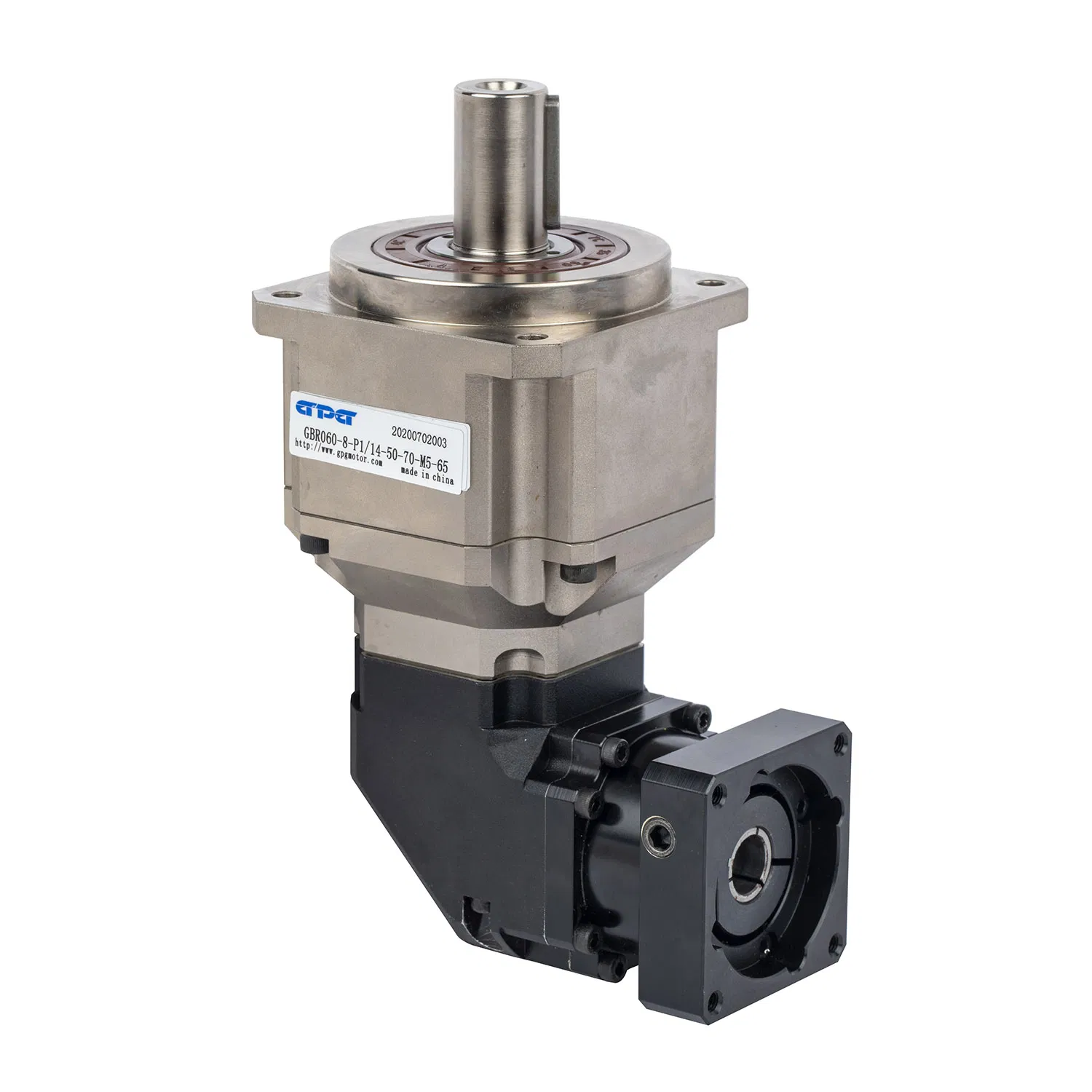

Carton Vertical Type Brushless Motor with Planetary Gearbox Precision for Medical Device
Carton Vertical Type Brushless Motor with Planetary Gearbox Precision for Medical Device
Carton Vertical Type Brushless Motor with Planetary Gearbox Precision for Medical Device
Carton Vertical Type Brushless Motor with Planetary Gearbox Precision for Medical Device
1 / 4
Carton Vertical Type Brushless Motor with Planetary Gearbox Precision for Medical Device
Carton Vertical Type Brushless Motor with Planetary Gearbox Precision for Medical Device
Carton Vertical Type Brushless Motor with Planetary Gearbox Precision for Medical Device
Carton Vertical Type Brushless Motor with Planetary Gearbox Precision for Medical Device

Carton Vertical Type Brushless Motor with Planetary Gearbox Precision for Medical Device

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

LayoutCycloidal
HardnessHardened Tooth Surface
InstallationVertical Type
StepDouble-Step
TypePlanetary Gear Box
Geared MotorGpb090 Planetary Gearbox
Transport PackageCarton
SpecificationGPB090
TrademarkGPG
HS Code85014000
Production Capacity50000pic/Year

Product Description

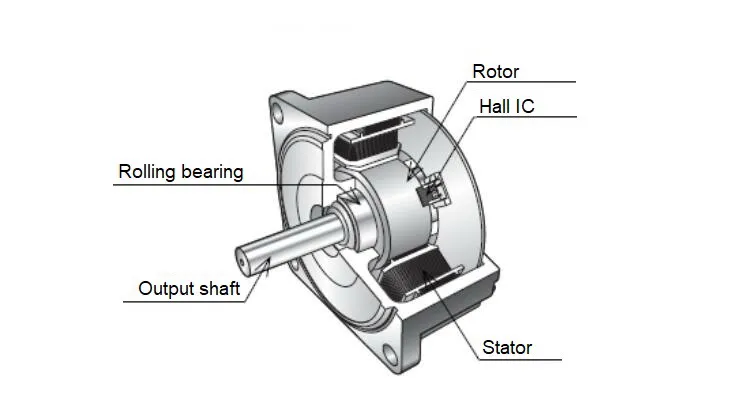

Brushless Motor with Planetary Gearbox

Our high-performance motor solutions include a wide range of industrial gear motors designed for precision and durability. Key product categories include:

Main Categories: Induction Motors, Reversible Motors, DC Brush Gear Motors, DC Brushless Gear Motors, CH/CV Big Gear Motors, Planetary Gear Motors, and Worm Gear Motors.

These products are widely utilized in manufacturing pipelines, transportation, food processing, medical devices, printing, packaging, and various automated machinery applications.

Model Instruction (GB090-10-P2)

Reducer Series Code External Diameter Reduction Ratio Reducer Backlash
GB: High Precision Square Flange Output
GBR: Right Angle Square Flange
GE: Round Flange Output		 042: 42x42mm
060: 60x60mm
090: 90x90mm
115: 115x115mm		 010 means 1:10 Ratio P0: High Precision
P1: Precision
P2: Standard

Main Technical Performance

Item Stage GB060 GB090 GB115 GB142
Backlash (P1) 1-Stage ≤3 arcmin ≤3 arcmin ≤3 arcmin ≤3 arcmin
Backlash (P2) 2-Stage ≤7 arcmin ≤7 arcmin ≤7 arcmin ≤7 arcmin
Rated Input Speed - 5000 rpm 4000 rpm 4000 rpm 3000 rpm
Max Input Speed - 10000 rpm 8000 rpm 8000 rpm 6000 rpm
Noise Level - ≤58 dB ≤60 dB ≤63 dB ≤65 dB

* Noise test standard: Distance 1m, no load, measured with input speed 3000rpm.

Product Gallery & Technical Drawings

DC Brushless Right Angle Catalog
AC Reversible Catalog
AC Drum Motor Catalog
Barrier Turnstiles Catalog
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4

Frequently Asked Questions

Q1: What are the main applications for the GPB090 planetary gearbox?
The GPB090 is ideal for high-precision applications such as medical devices, automated assembly lines, food processing machinery, and CNC equipment requiring stable torque.
Q2: What is the difference between P0, P1, and P2 backlash levels?
These represent precision grades. P0 is High Precision (≤1 arcmin), P1 is Precision (≤3 arcmin), and P2 is Standard Backlash (≤5-7 arcmin). Lower arcmin values mean higher positioning accuracy.
Q3: Does the vertical installation type affect performance?
No, our vertical type planetary gearboxes are specifically designed with optimized lubrication and bearing structures to ensure consistent performance and longevity in vertical orientations.
Q4: Can this motor be used with a brushless DC (BLDC) controller?
Yes, our brushless planetary gear motors are designed to be compatible with standard BLDC controllers for precise speed and torque management.
Q5: What is the benefit of a double-step reduction?
Double-step (or two-stage) reduction allows for higher reduction ratios (up to 1:100) while maintaining a compact form factor and high efficiency compared to single-stage units.
Q6: Are the tooth surfaces hardened?
Yes, all our planetary gearboxes feature hardened tooth surfaces to provide superior wear resistance and extended service life under heavy loads.
