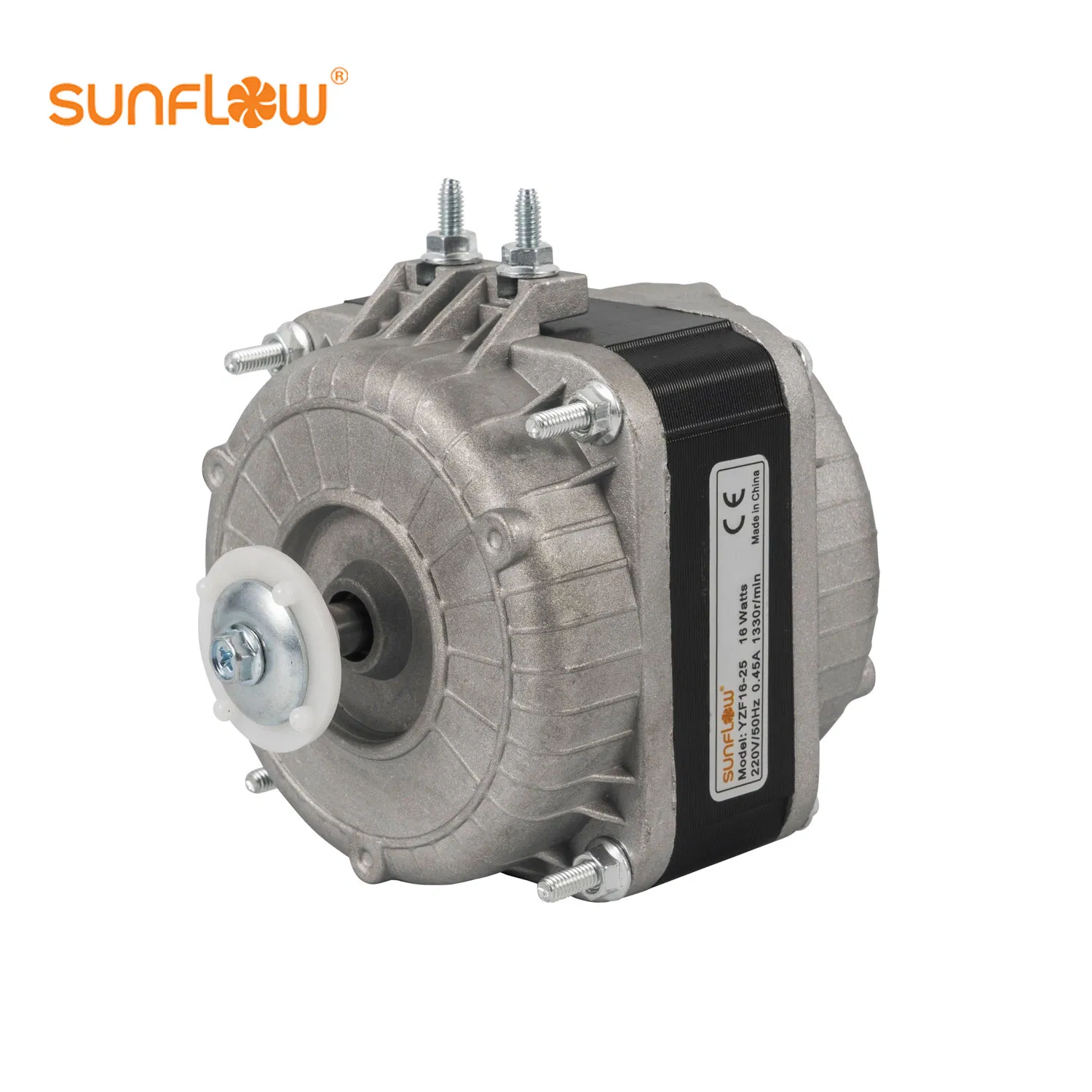

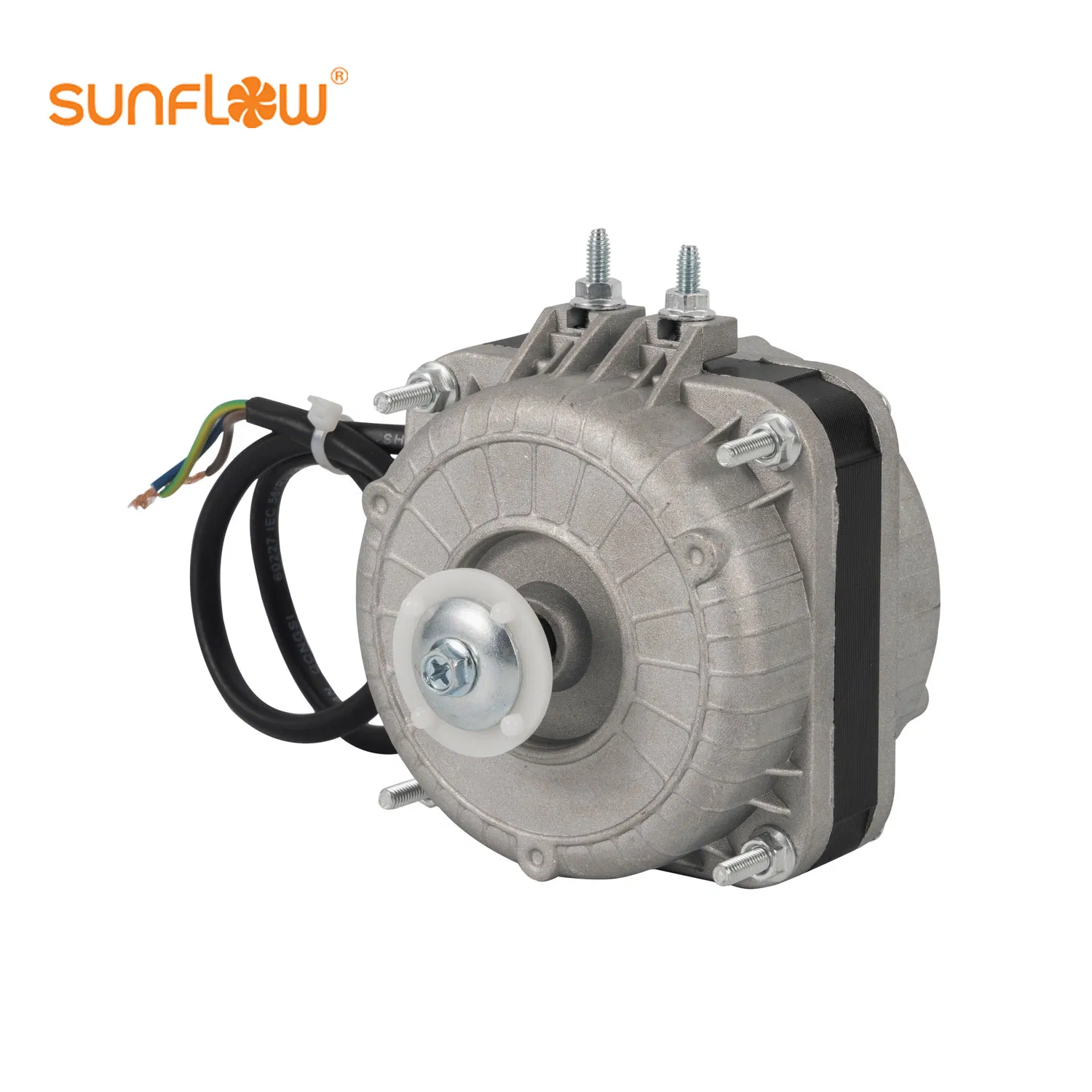

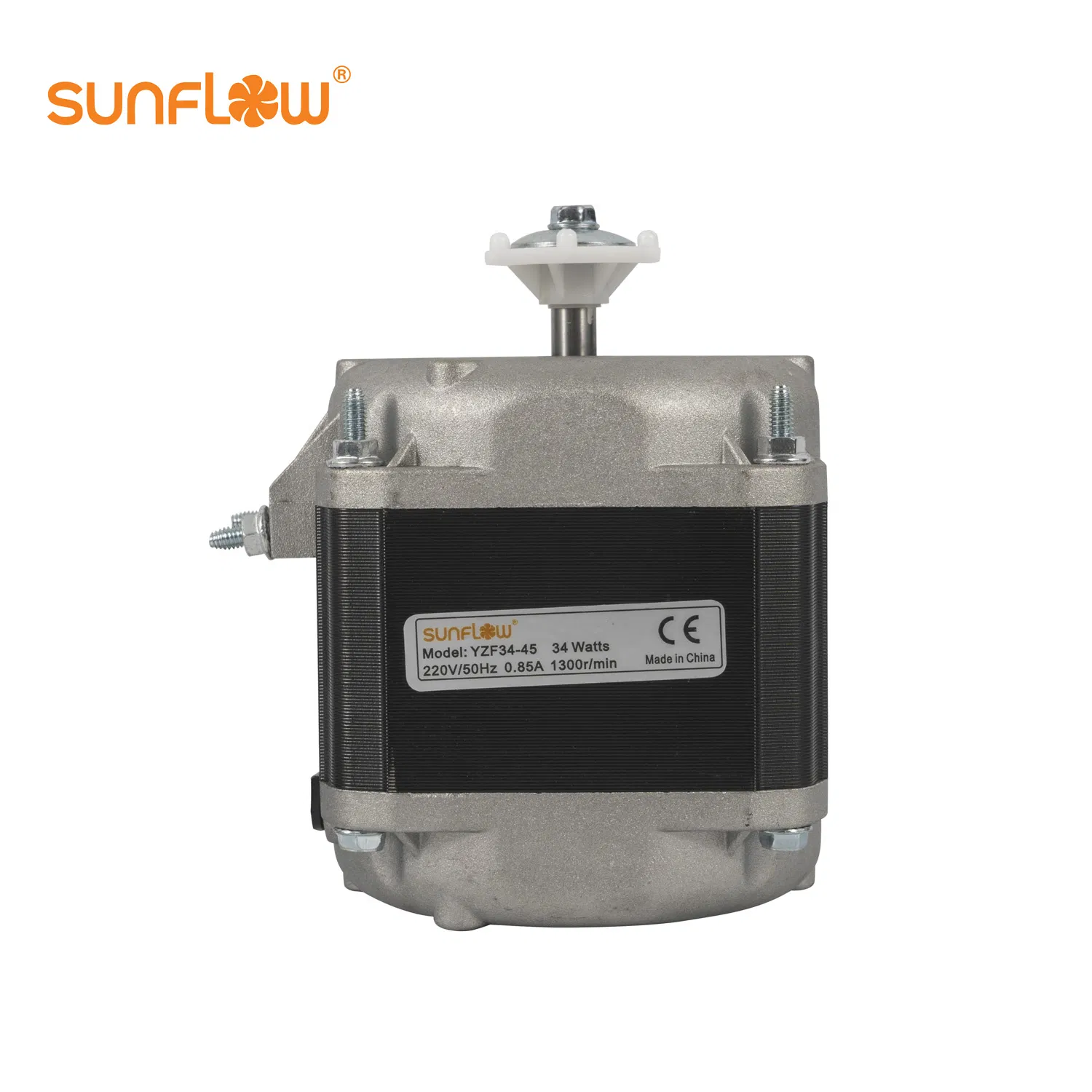

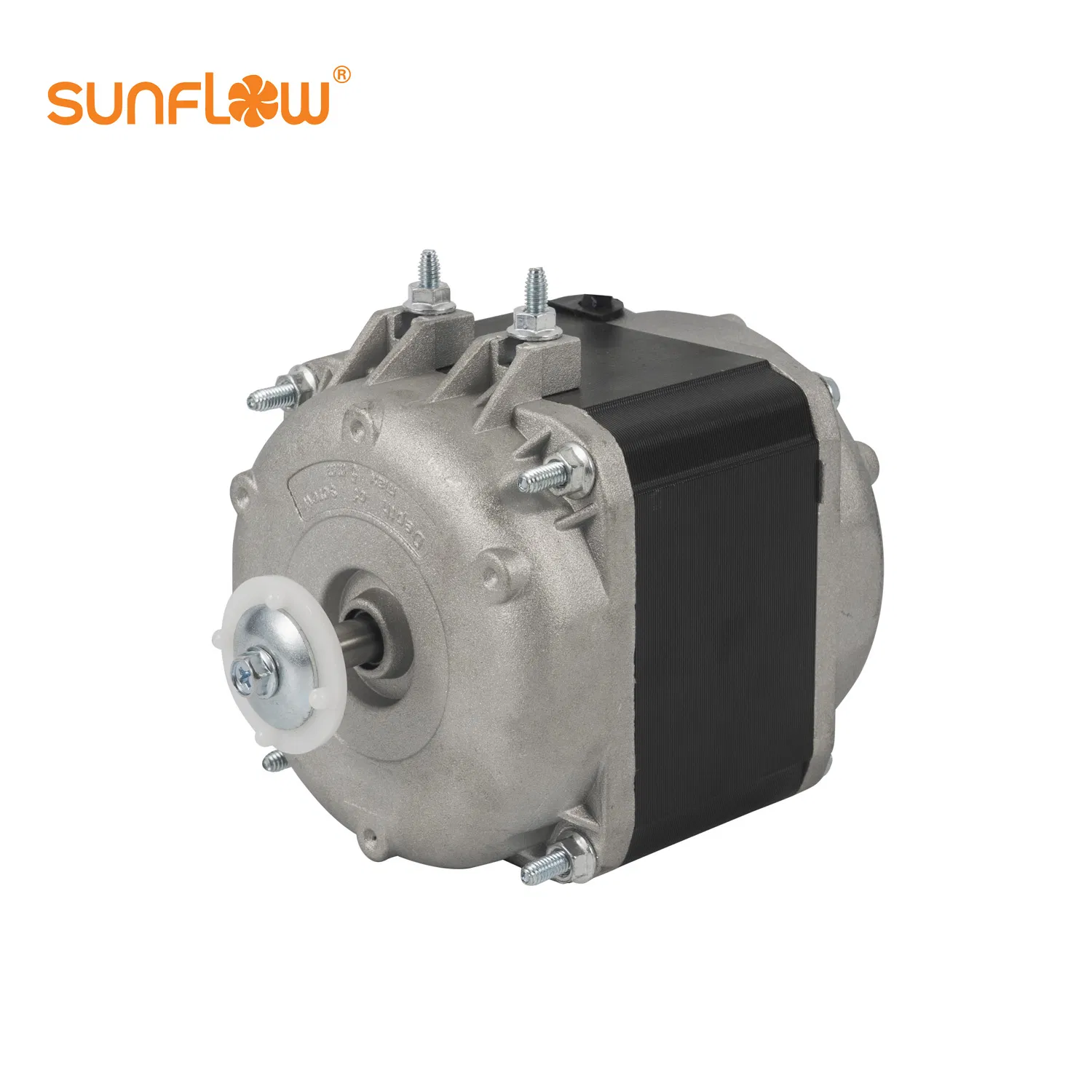

220V Double Screws Delicate Medical Devices Neat Packaging Shaded Pole Motor with Fan Blade and Bracket Freezer Motor Shaded Pole Motor

Still deciding? Get samples of $ !
Order Sample

Product Description

Shaded Pole Motor Banner
Basic Information
Model NO.
YZF34-45-26
Number of Stator
Single-Phase
Function
Driving, Control
Casing Protection
Protection Type
Number of Poles
4
Starting Mode
Direct on-line Starting
Certification
CE
Product Name
Shaded Pole Motors
Voltage
220-240V
Frequency
50/60Hz
Rated Input
110W
Output Power
34W
Rated Current
0.85A
Rated Speed
1300r/Min
Air Volume
1210m³/H
Fan Blade
300mm
Product Description

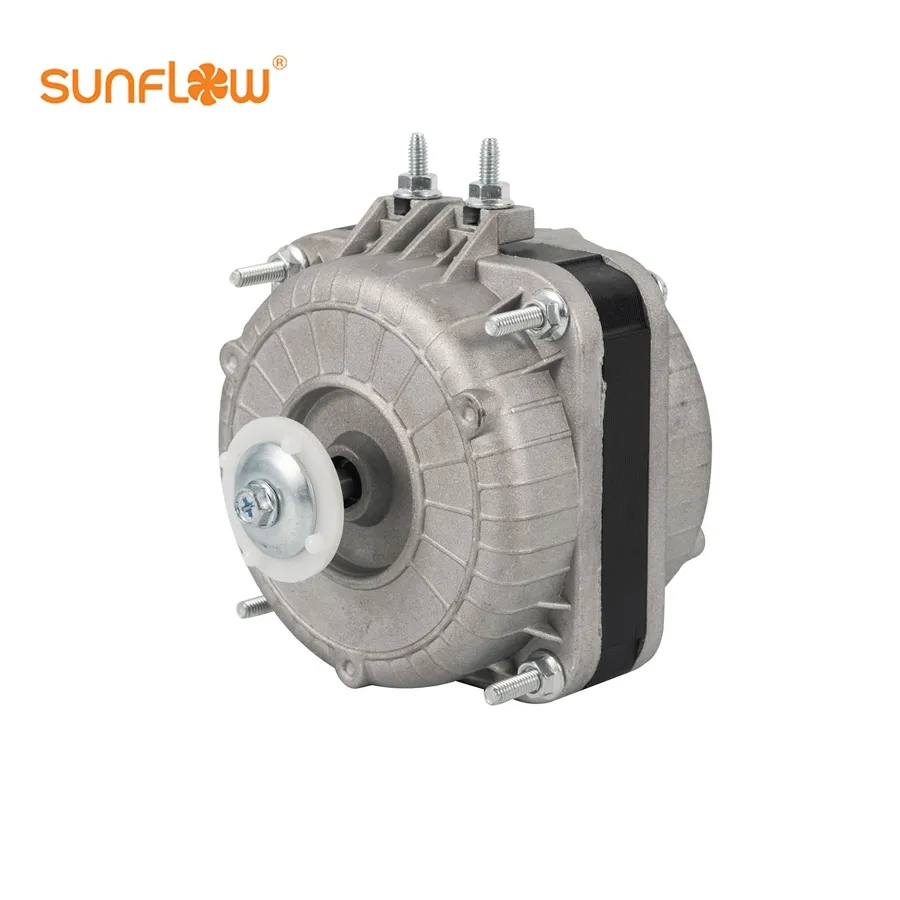

Shaded Pole Motor Detail

The Shaded-Pole Motor is an alternating current (AC) motor that features a simple design and efficient low-speed operation. It uses shaded coils to create a rotating magnetic field, which produces torque without the need for a separate starter.

Commonly used in small appliances, fans, and pumps. Their load starting and quiet operation capabilities make them ideal for home devices such as exhaust fans and small air conditioners where efficiency and reliability are important.

In summary, it excels in residential and industrial environments, ensuring reliable and quiet operation for a wide range of everyday devices.

SIMPLE DESIGN Straightforward construction makes these motors easy to manufacture and maintain, contributing to reliability.
QUIET OPERATION Operates silently, making it ideal for applications where noise is a concern, enhancing user comfort.
COMPACT SIZE Small footprint allows for easy integration into space-constrained appliance designs.
ENERGY EFFICIENT Consumes minimal power, leading to lower energy costs and reduced environmental impact.
Technical Specifications
Model Voltage (V) Freq (Hz) Input (W) Output (W) Current (A) Speed (r/min) Air Vol (m³/h) Fan Blade
YZF2-13-18220-24050/602020.141300205Φ172
YZF5-13-18220-24050/602950.21300455Φ200
YZF10-20-18220-24050/6036100.251300650Φ230
YZF16-25-18220-24050/6060160.451300760Φ254
YZF25-40-18220-24050/6090250.713001030Φ300
YZF34-45-26220-24050/60110340.8513001210Φ300

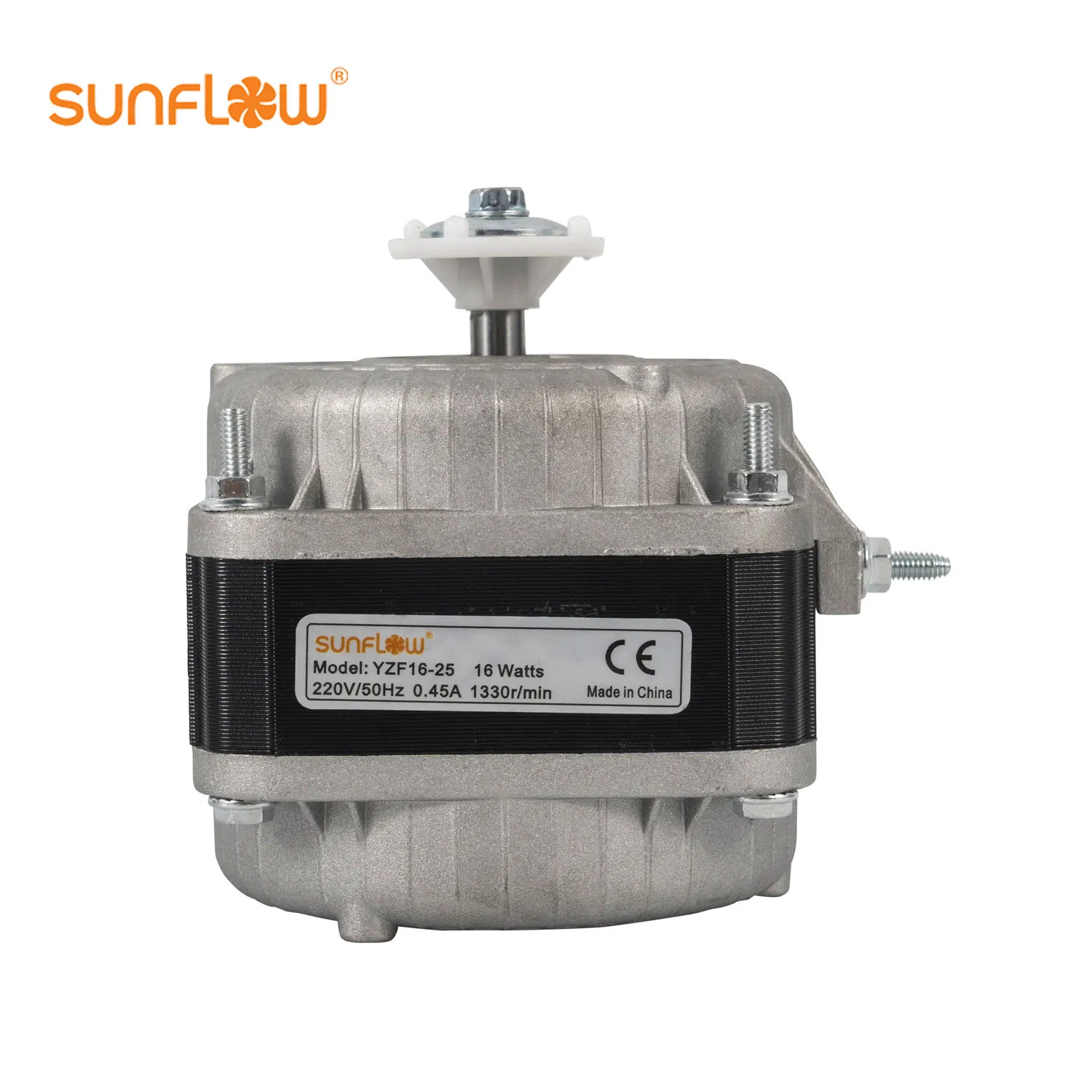

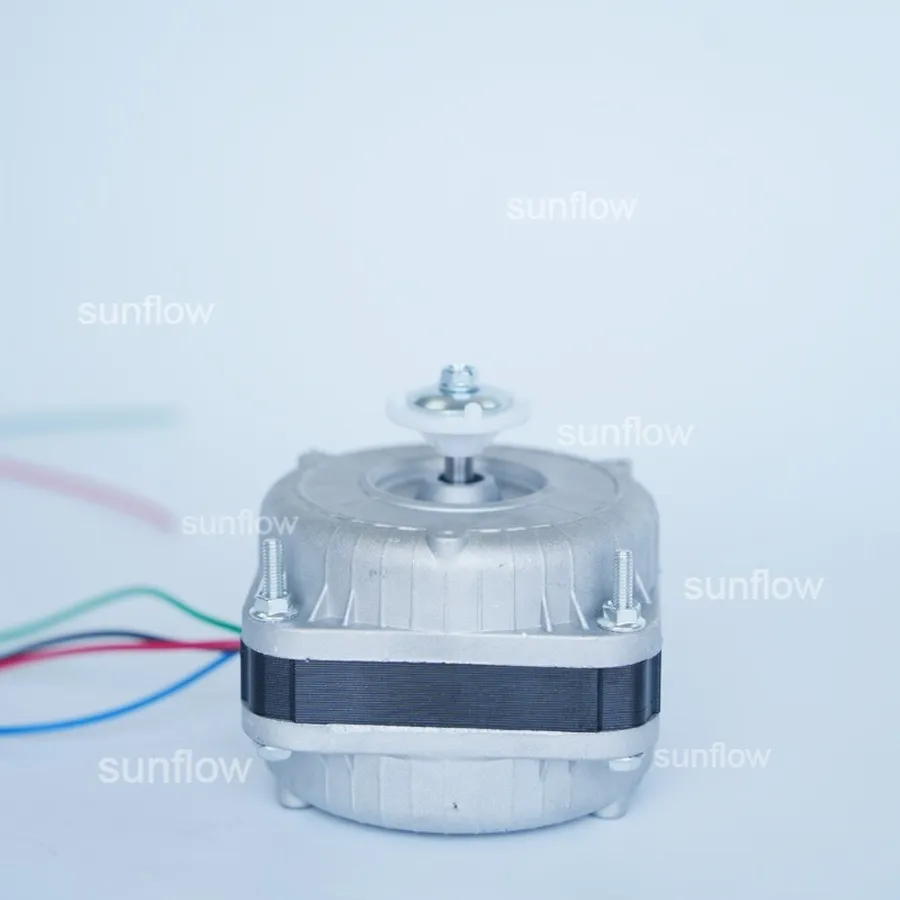

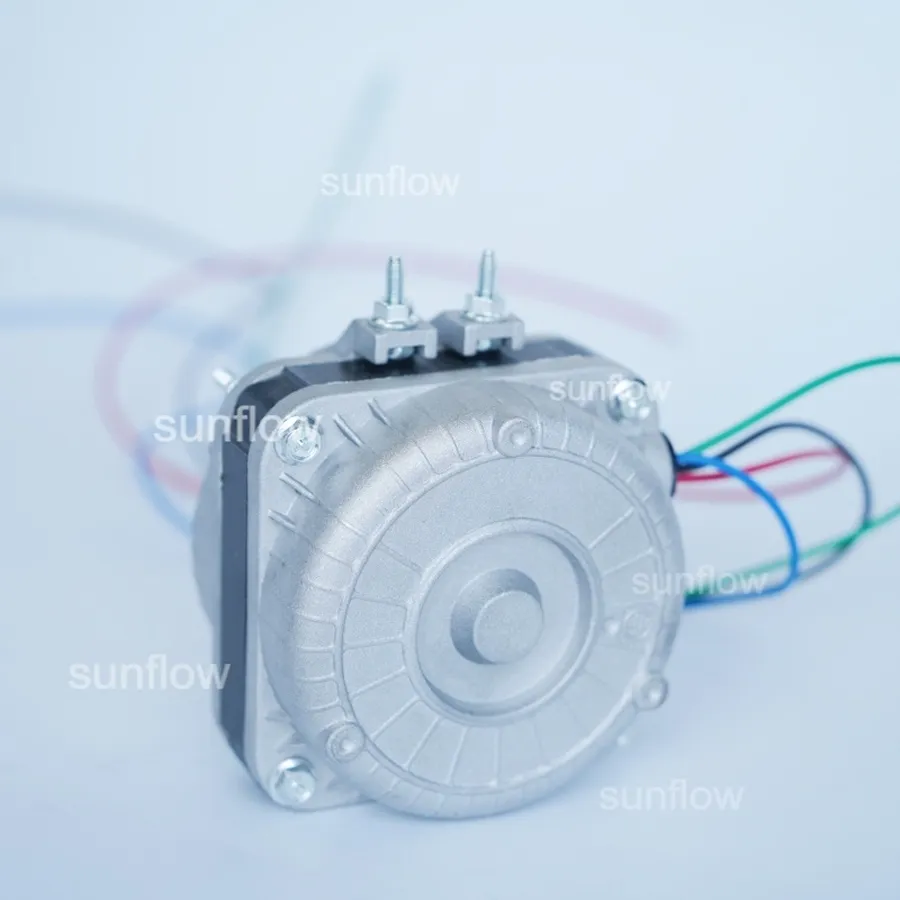

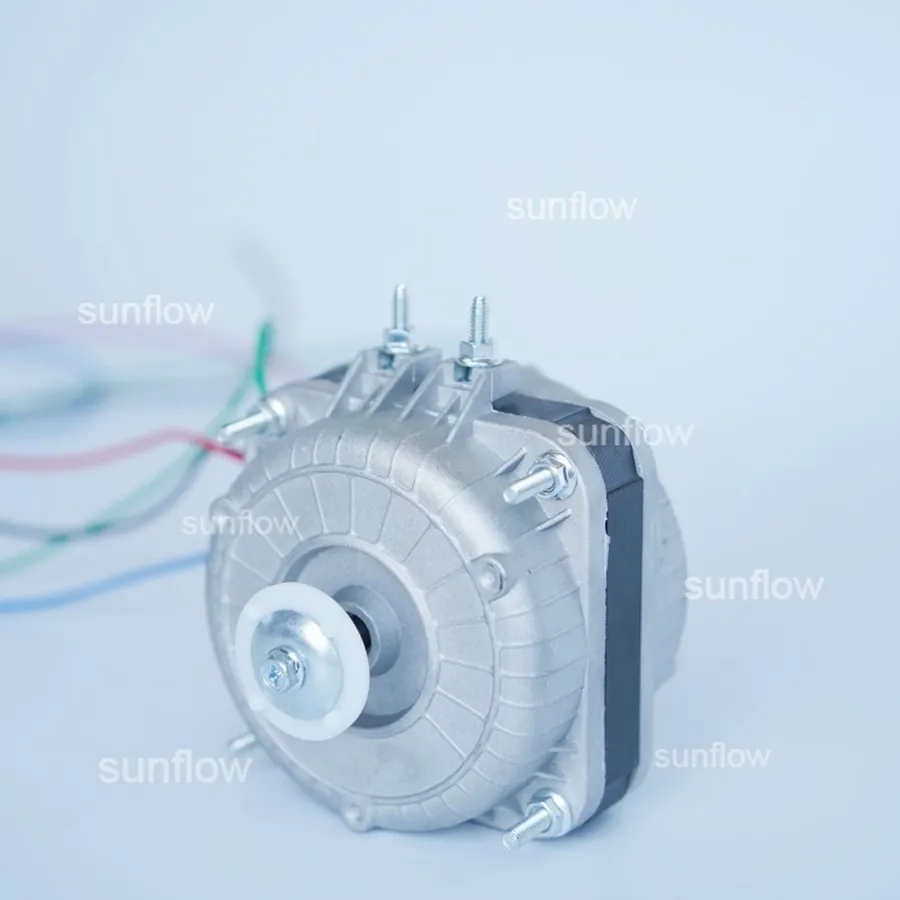

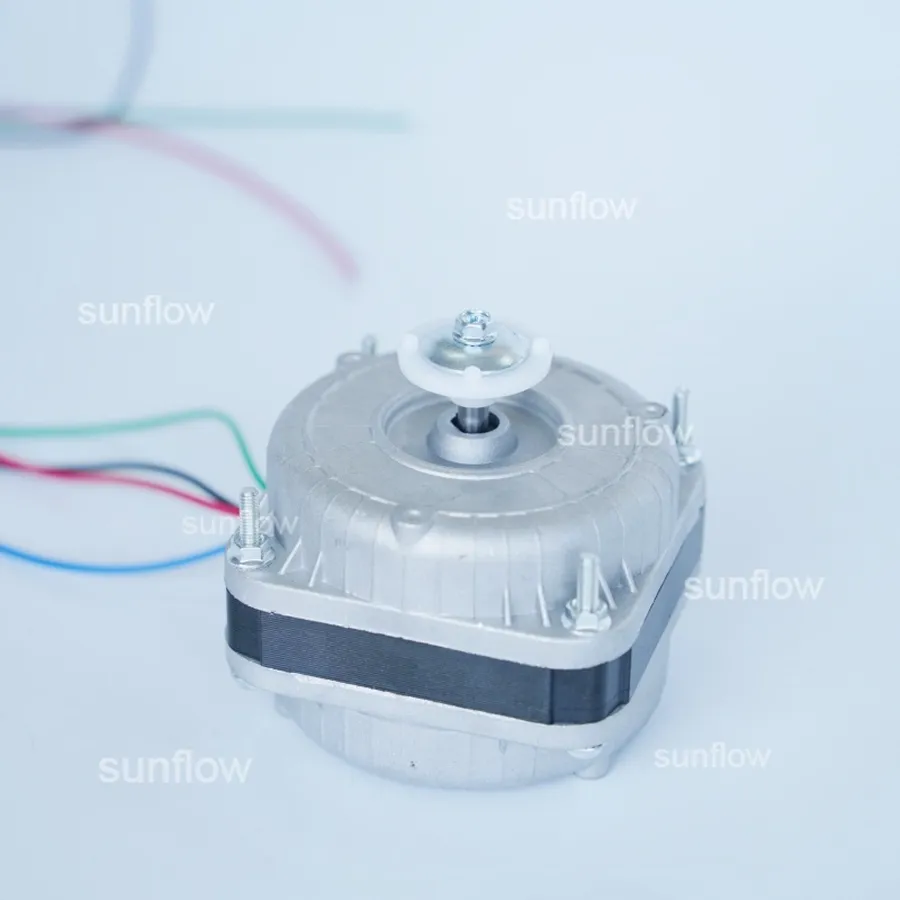

Detailed Photos

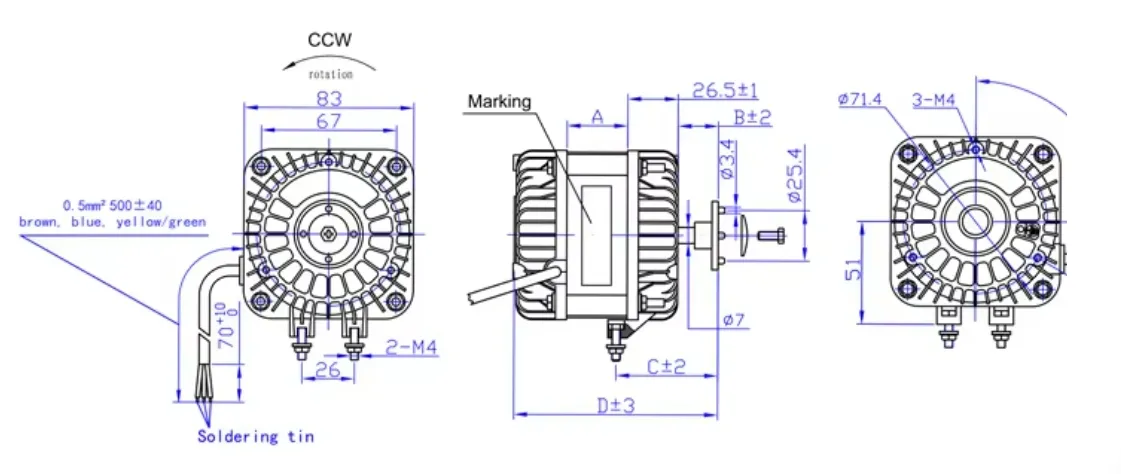

Technical Drawings
Drawing 1 Drawing 2 Drawing 3 Drawing 4
Frequently Asked Questions
Are you a manufacturer or a trader?
We are a professional manufacturer integrating industry and trade, specializing in high-quality shaded pole motors.
Do you support product customization and OEM?
Yes, we support full on-demand customization including LOGO, colors, and specific appearance dimensions.
What are the available payment methods?
We support multiple payment options including T/T, Western Union, PayPal, and Cash. Terms are negotiable based on order volume.
How do you handle shipping and transportation?
We select the most appropriate mode (Sea, Air, or Land) based on the order volume and your specific timeline requirements.
How can I obtain an accurate price quotation?
Please send us your specific technical requirements and product pictures. We will customize a solution and provide a formal quote promptly.
What is the typical lifespan of these shaded pole motors?
With their simple design and high-quality components, these motors are built for long-term durability with minimal maintenance requirements.
