KPM Minimoto
1 / 5

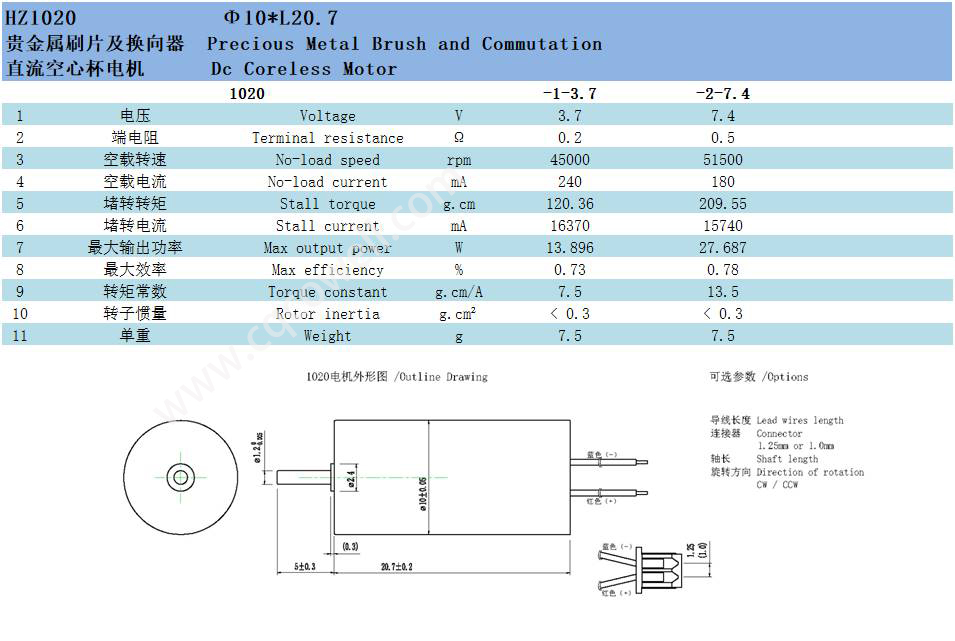

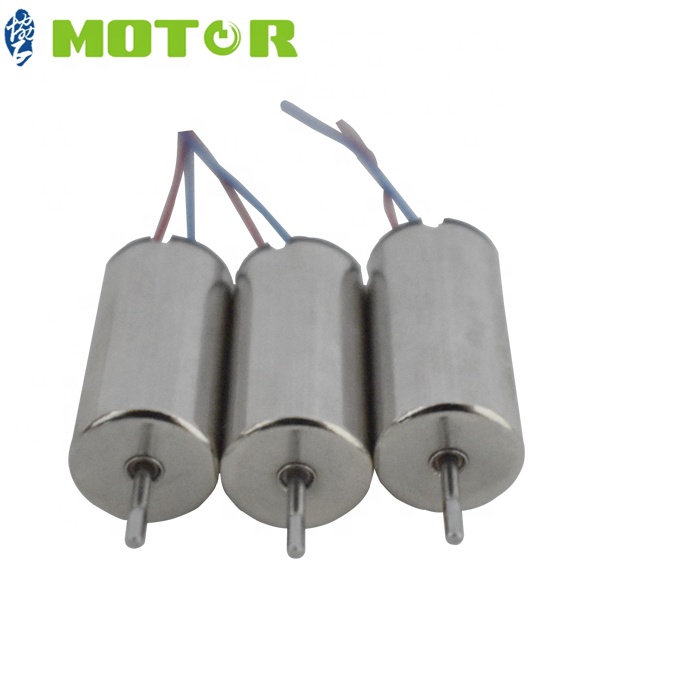

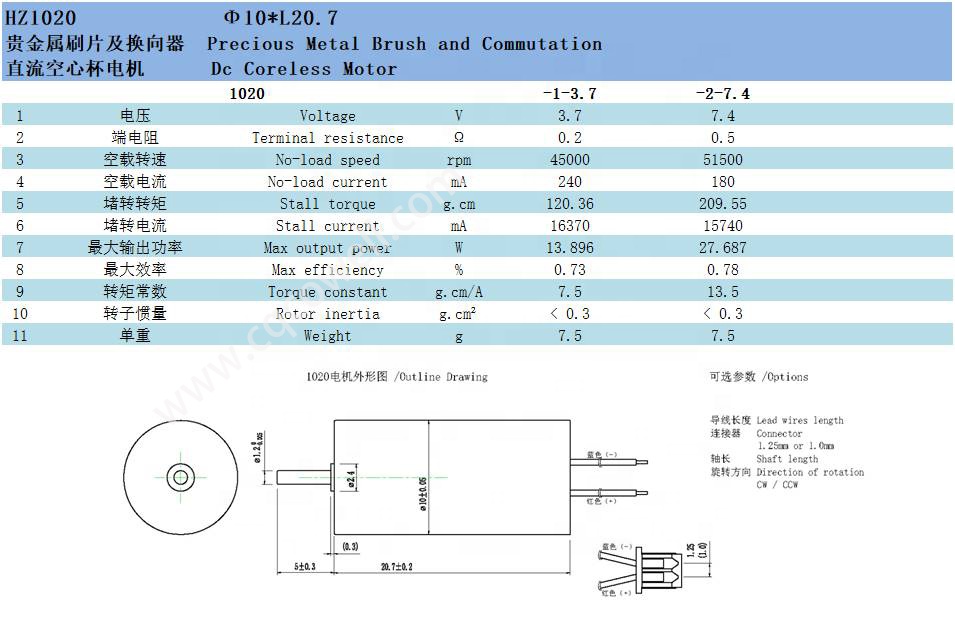

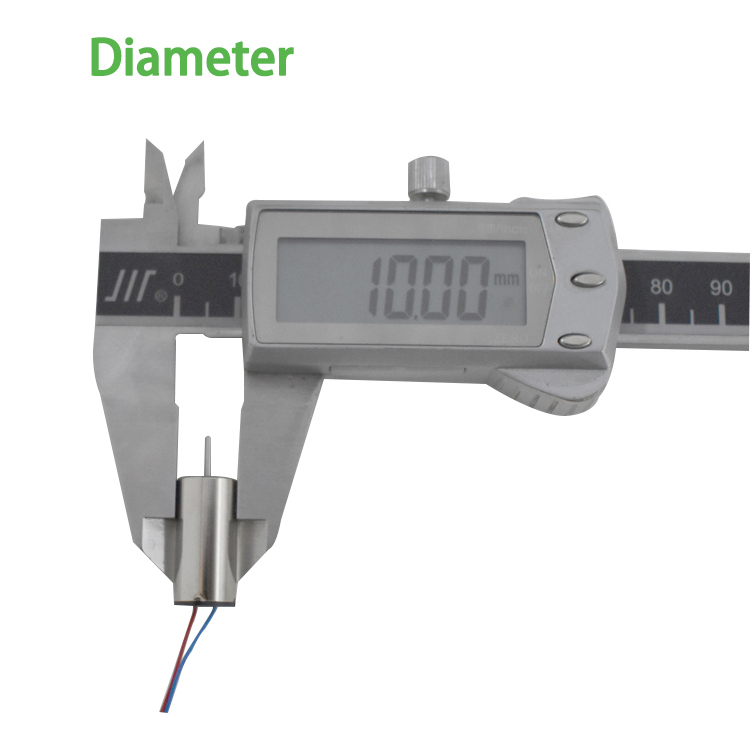

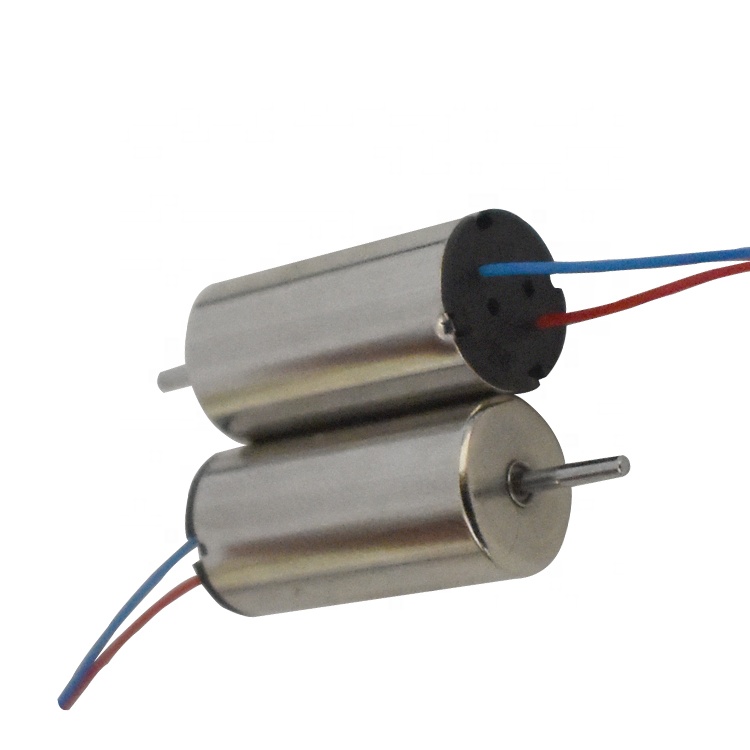

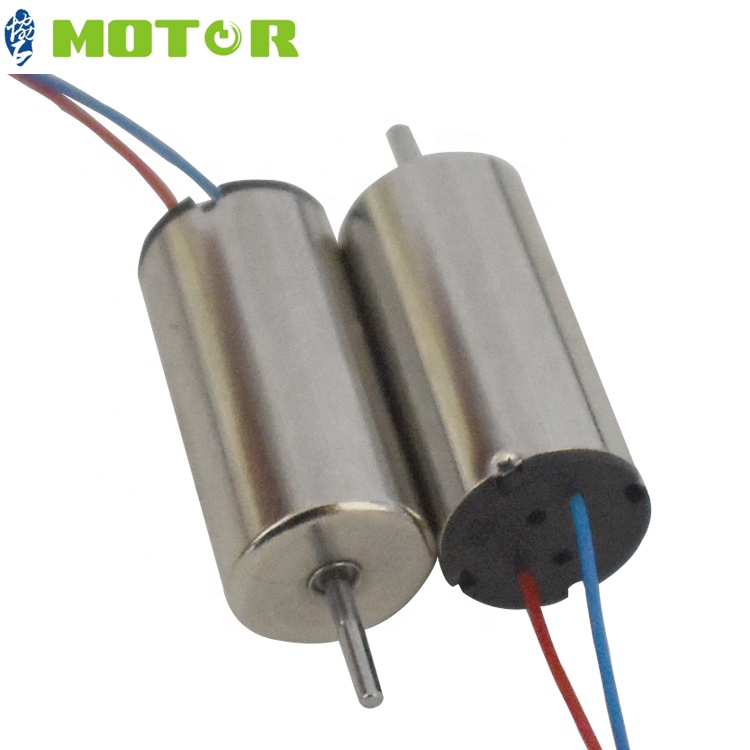

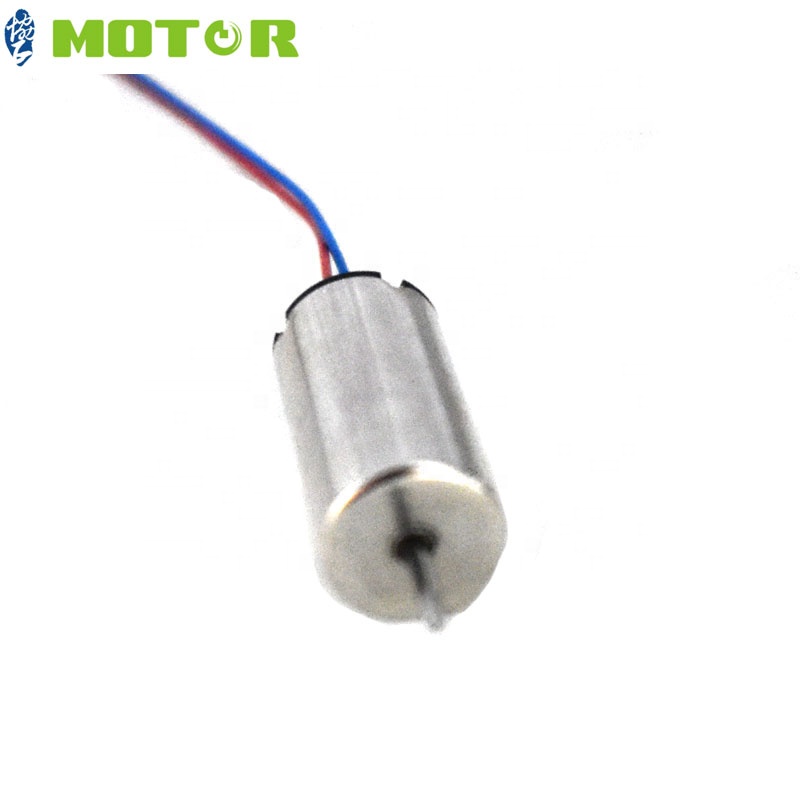

| Product Name | 1020 7.4v 10mm mini DC Drive motor |
|---|---|
| Brand | XZJD |
| Product Type | DC Drive Motor/DC Vibration Motor/DC Gearbox Motor |
| Collocation | Eccentric Weight/Connector/Reduction Gearbox/Other |
| ODM/OEM | Customized service based on your specific parameters. |
1. Low mass inertia
2. Rapid reaction
3. Low starting voltage
4. Smooth speed adjustment
5. High efficiency, long life
6. Compact and light weight
Temperature: -20~+60°C
Humidity: 15~90%RH
Ideal for remote control toys, aircraft, small household appliances, medical equipment, electronic tools, beauty equipment, and more.

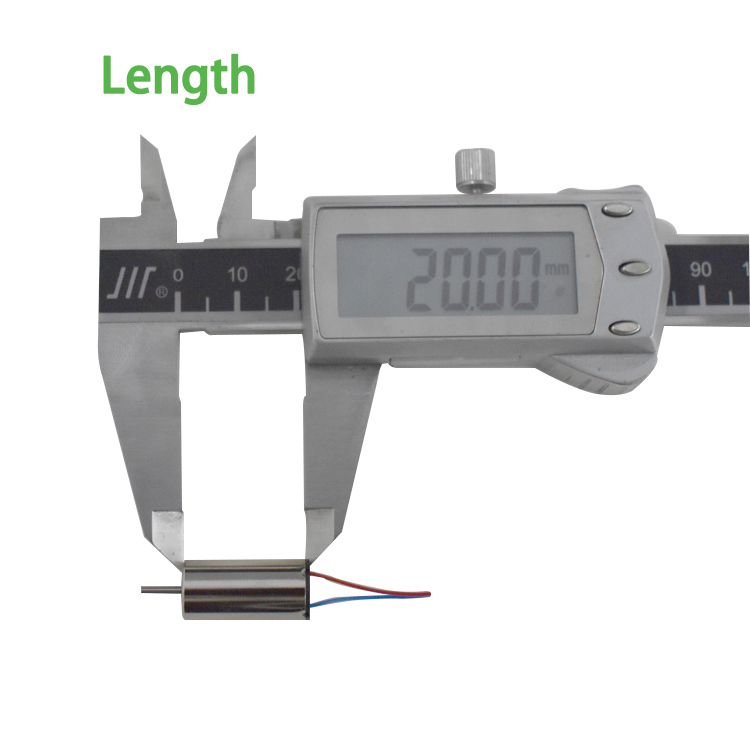

| Series | Length (mm) | Voltage (V) | Speed (rpm) | Customized Service |
|---|---|---|---|---|
| Φ4mm | 7.6/8.1/11.2/12.1 | 1.5V~6.0V | 10000~100000 | All motors can be customized according to requirements. |
| Φ6mm | 9.3/10.3/12.0/14.0/15.2/16.6 | 1.5V~6.0V | 5000~80000 | |
| Φ7mm | 10.5/14.1/16.5/20.0 | 1.5V~12.0V | 5000~80000 | |
| Φ8mm | 12.6/16.7 | 1.5V~12.0V | 5000~60000 | |
| Φ8.5mm | 17.0/20.0/23.0 | 1.5V~12.0V | 5000~60000 | |
| Φ10mm | 13.1/15.0/17.2/20.7/23.0 | 1.5V~24.0V | 3000~50000 | |
| Φ12mm | 15.0/20.7/32.0 | 1.5V~24.0V | 3000~50000 |
| Series | Stages | Ratio | Voltage (V) |
|---|---|---|---|
| Φ6mm | 1~4 | 5~1708 | 1.5V~6.0V |
| Φ8mm | 1~4 | 4~809 | 1.5V~12.0V |
| Φ10mm | 1~4 | 4~809 | 1.5V~24.0V |
| Φ12mm | 1~4 | 4~1296 | 1.5V~24.0V |

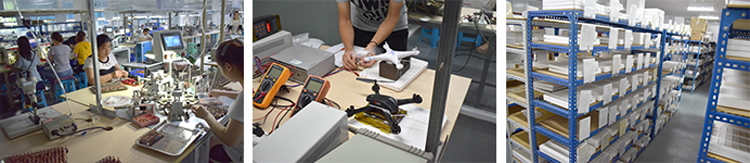

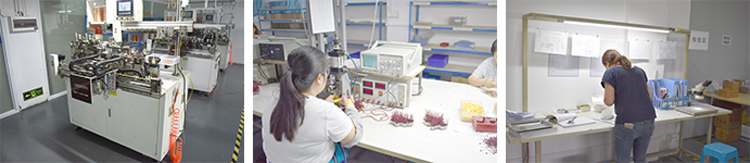

A factory with 11 years' experience in coreless motor production. Equipped with 200 employees and professional technical teams providing one-to-one tracking services.

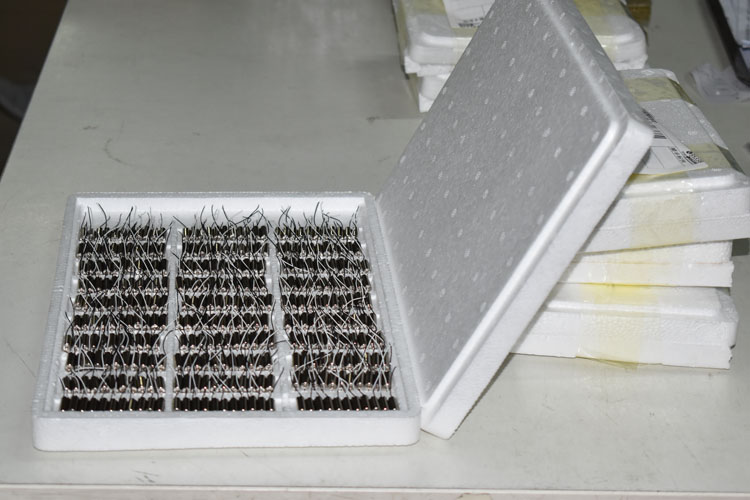

Motors are packed in small foam boxes; ten foam boxes per thick carton for maximum protection.
Standard products: 7-10 days after payment. Custom types: 10+ days depending on quantity.
| Terms | Samples | <$5000 | >$5000 |
|---|---|---|---|
| Payment | Alibaba, Western Union, T/T, etc. | ||
| Shipping | Express (FedEx/UPS/DHL/TNT). 5-6 working days. | Express or Air. Production: 10-20 working days. | Recommended by Sea (Cost-effective) or Air (Fast). |
