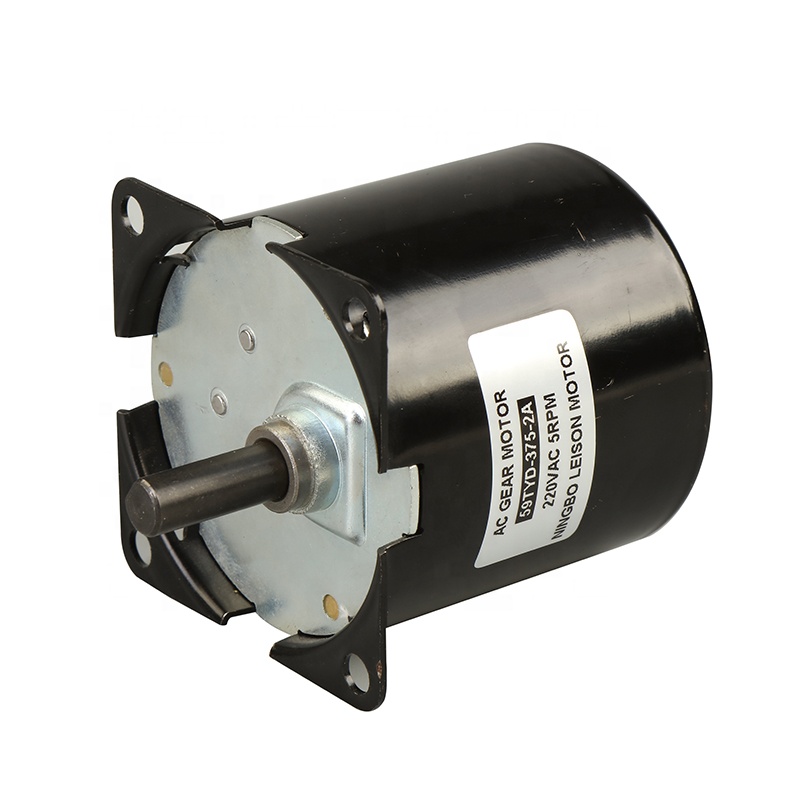

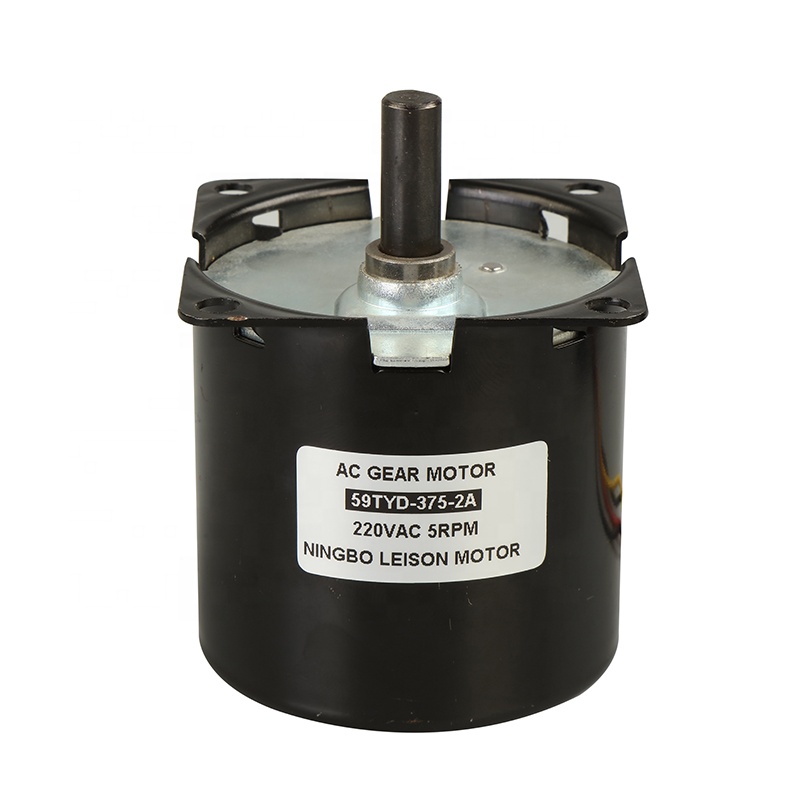

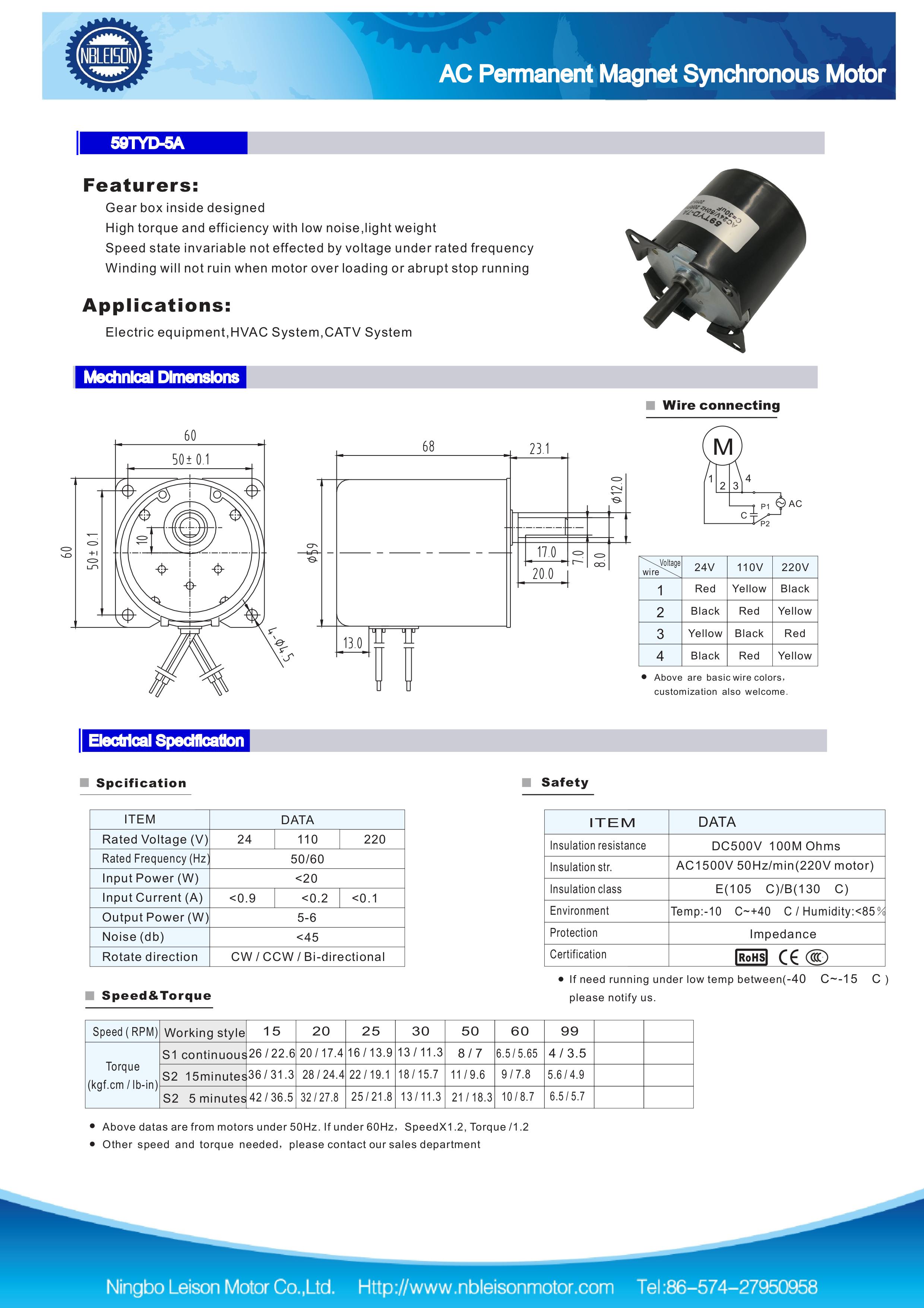

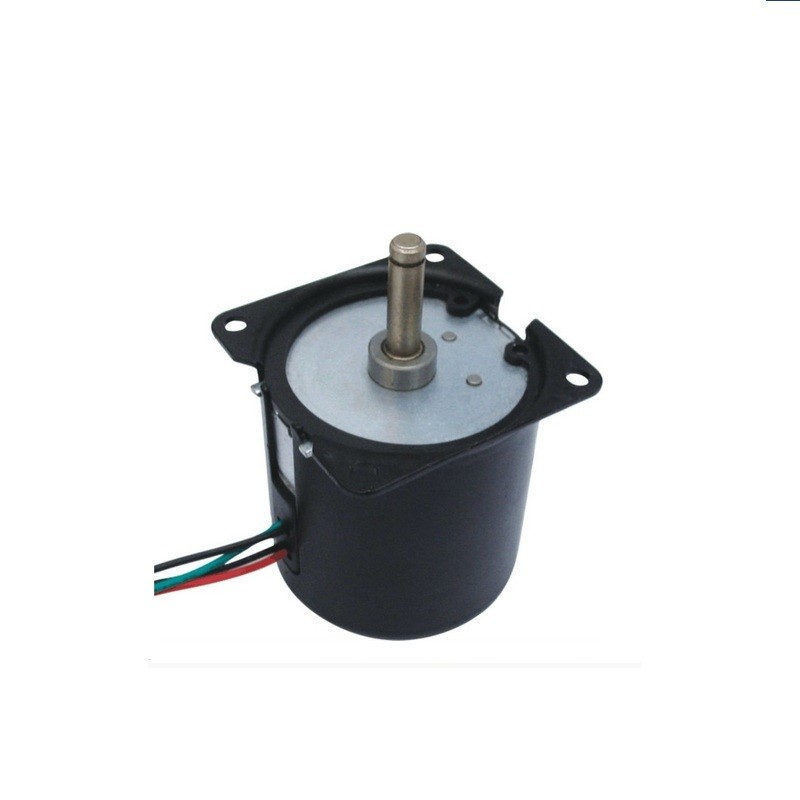

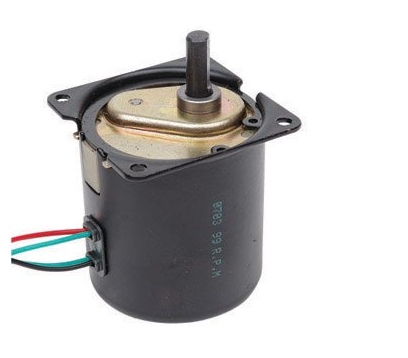

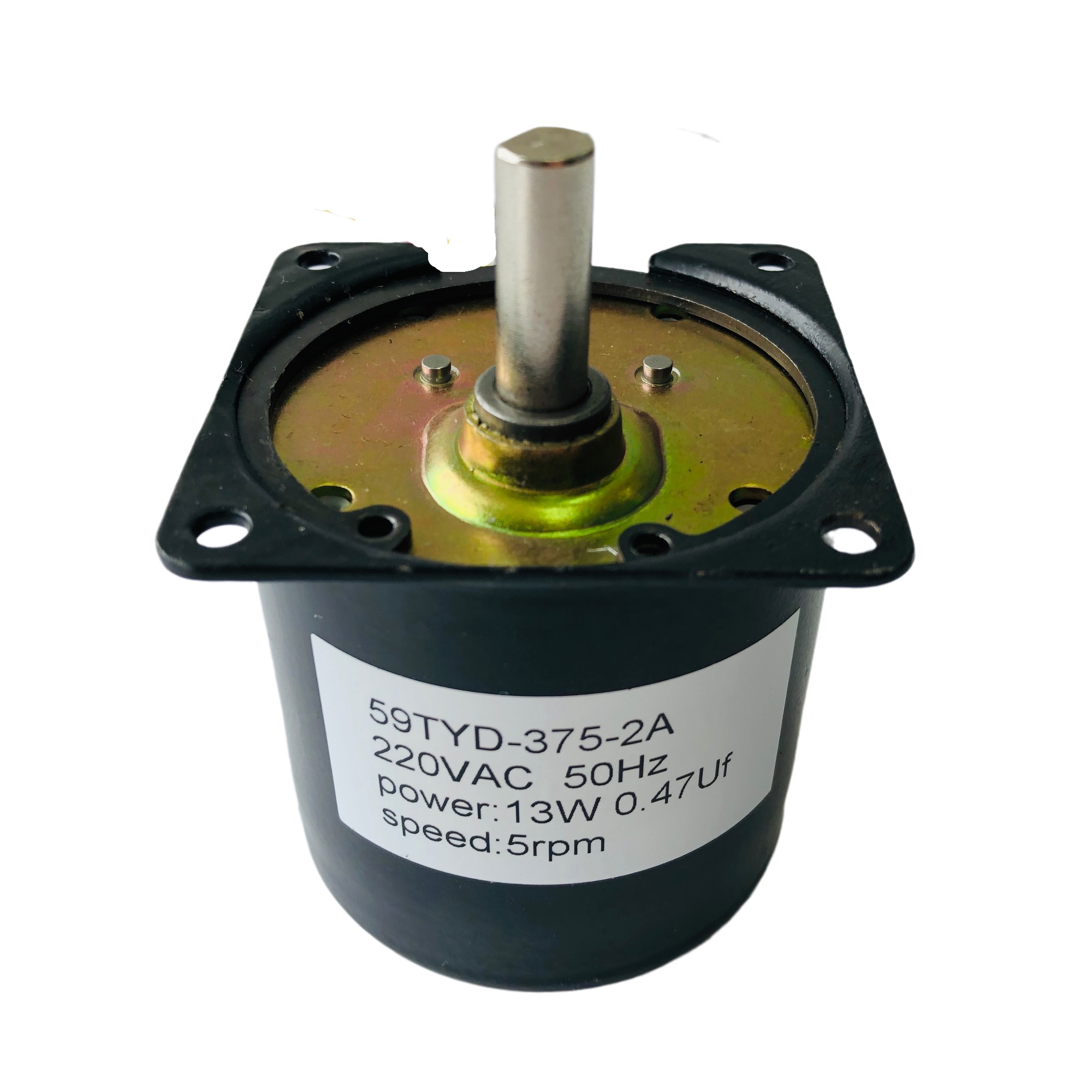

Specifications of 59TYD
- Voltage: AC24V, AC120V, AC220V
- Frequency: 50/60Hz
- Speed: 1-100RPM
- Torque: 0.5-40Kg.cm
- Output Power: 5-6W
- Noise: 40dB
- Motor Size: 59mm dia. * 68mm
- Motor Net Weight: 250-300g (approx)
Note: It's just the typical technical data for your reference. The specification such as voltage, speed, torque, and shaft can be customized.

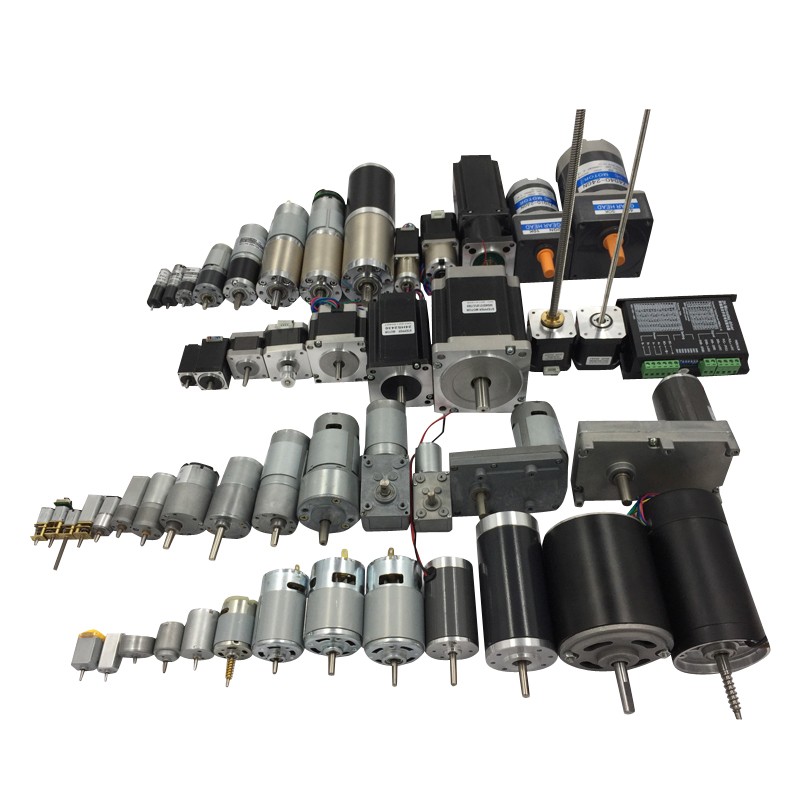

We are a manufacturer and exporter of various motors with over 10 years of experience. Our product ranges include:

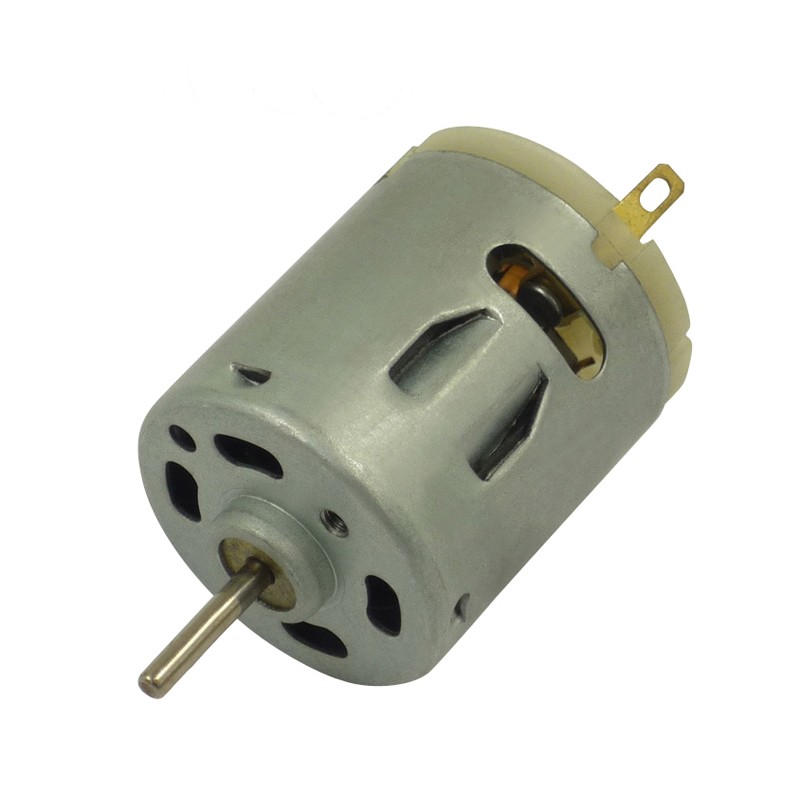

1 DC Brush motor: 6-130mm diameter, 0.01-1000W output power

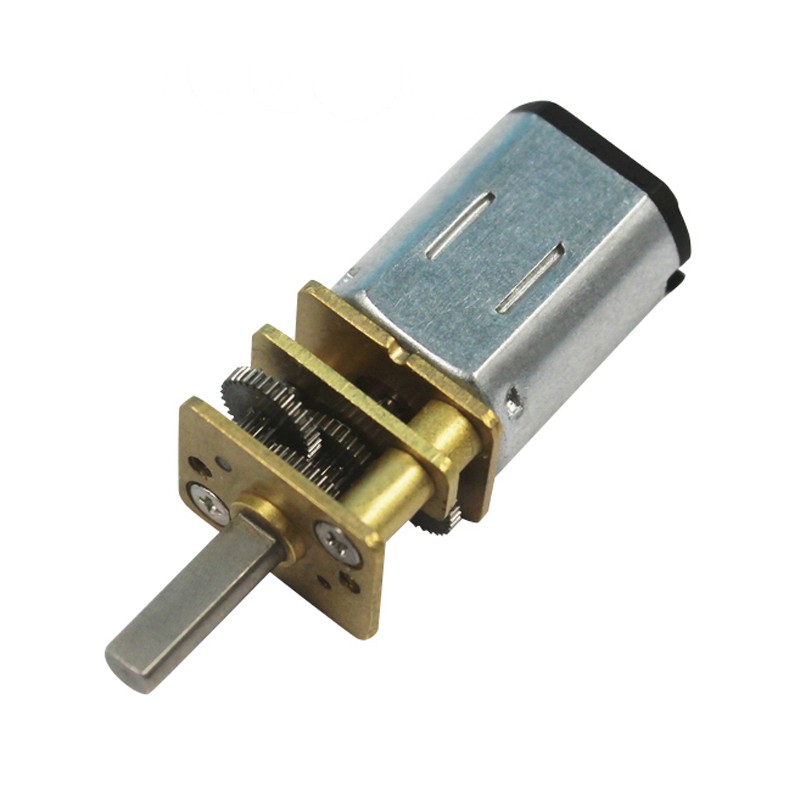

2 DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
3 DC Planetary Gear Motor: 10-82mm diameter, 0.1-100W output power

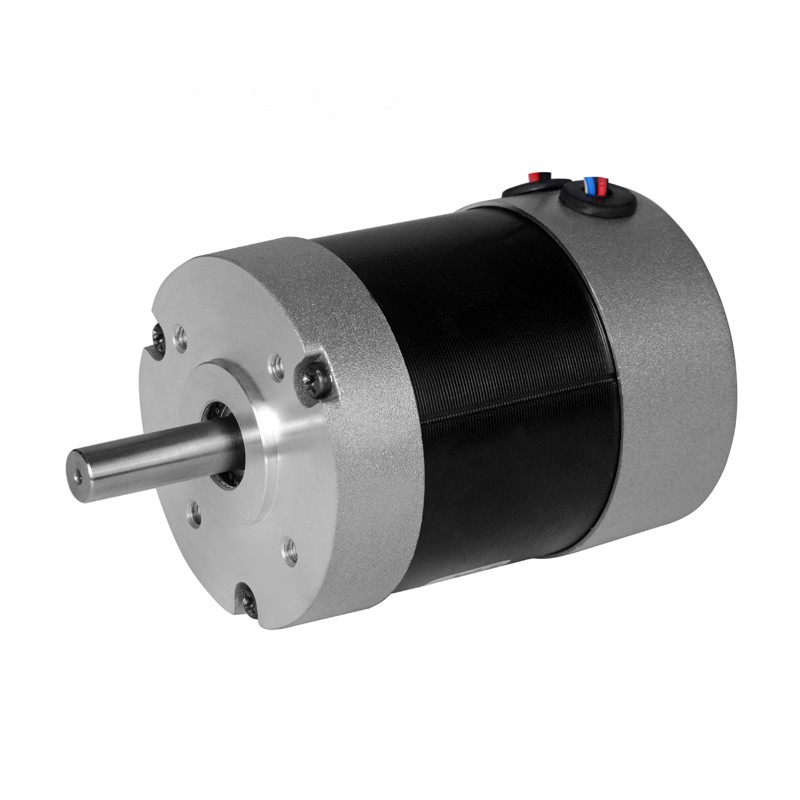

4 Brushless DC Motor: 28-110mm, 5-1500W output power

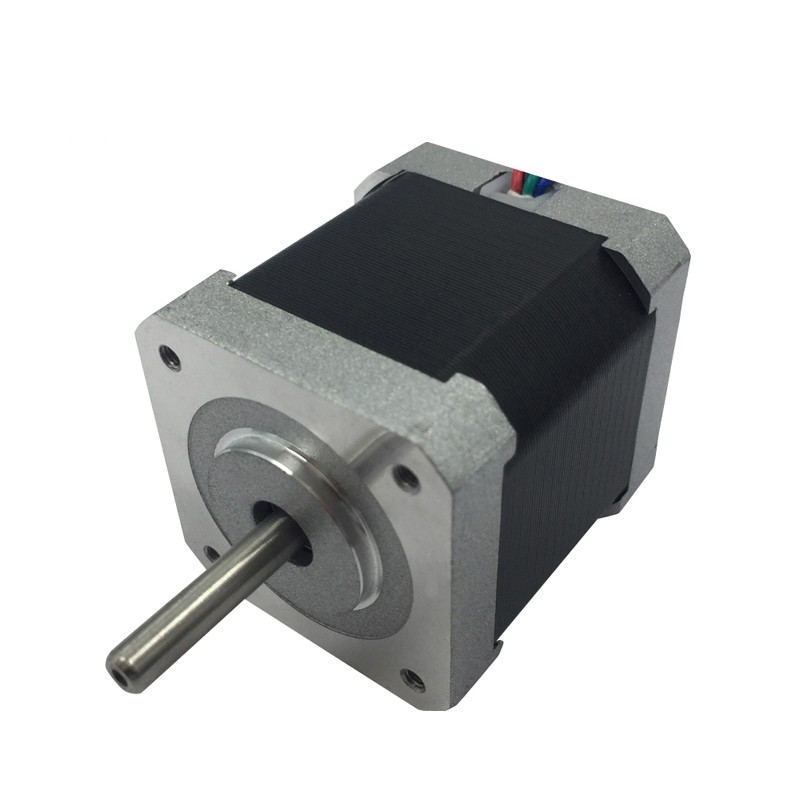

5 Stepper Motor: NEMA 08 to NEMA 43, can with gearbox and lead screw
6 Servo Motor: 42mm to 130mm diameter, 50-4000w

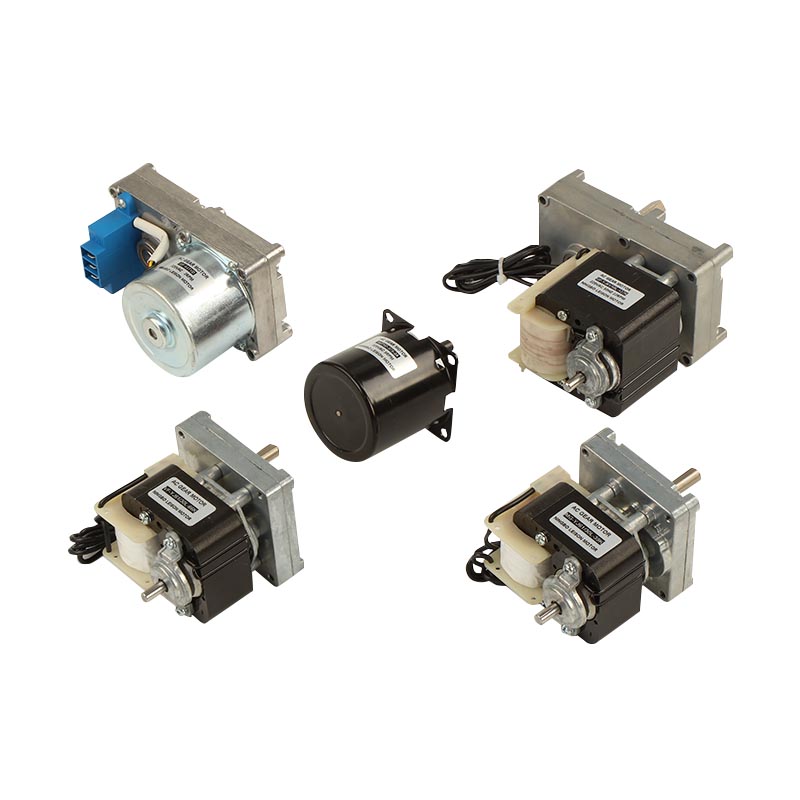

7 AC Gear Motor: 49 to 100mm diameter, 6-140 output power
?
Frequently Asked Questions
What are your main products?
We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors, and AC Motors, etc.
How to select a suitable motor?
If you have motor pictures or drawings, or detailed specs like voltage, speed, torque, motor size, working mode, needed lifetime, and noise level, please let us know. We can recommend a suitable motor based on your request.
Do you have customized service for your standard motors?
Yes, we can customize the voltage, speed, torque, and shaft size/shape. We can also add soldered wires, cables, connectors, capacitors, or EMC components.
How do you make sure of motor quality?

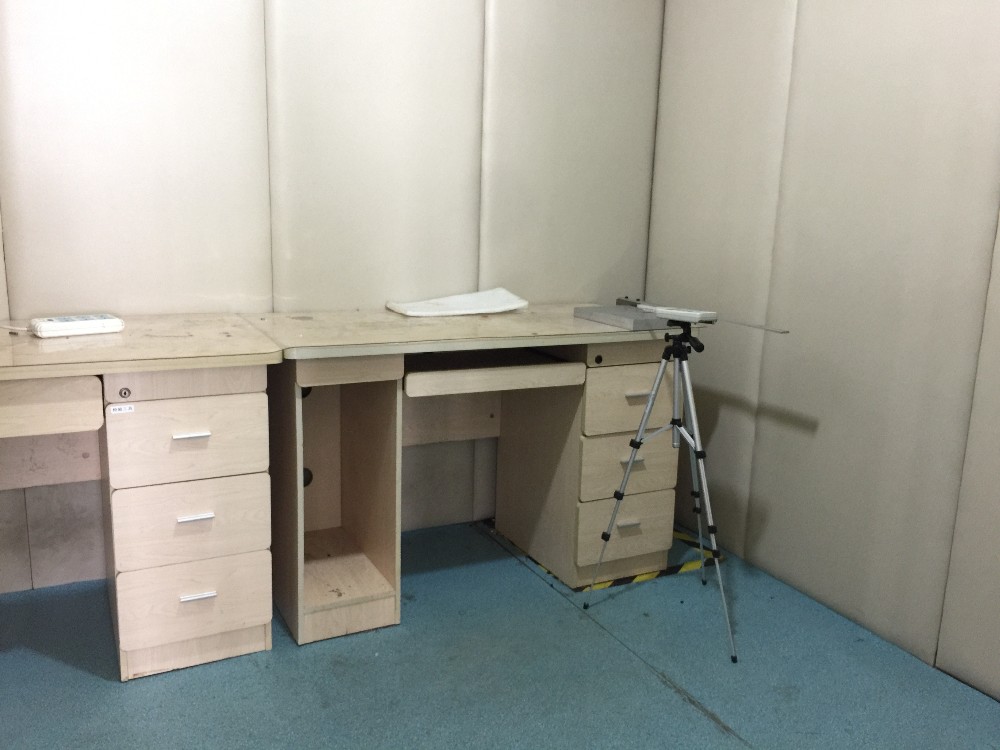

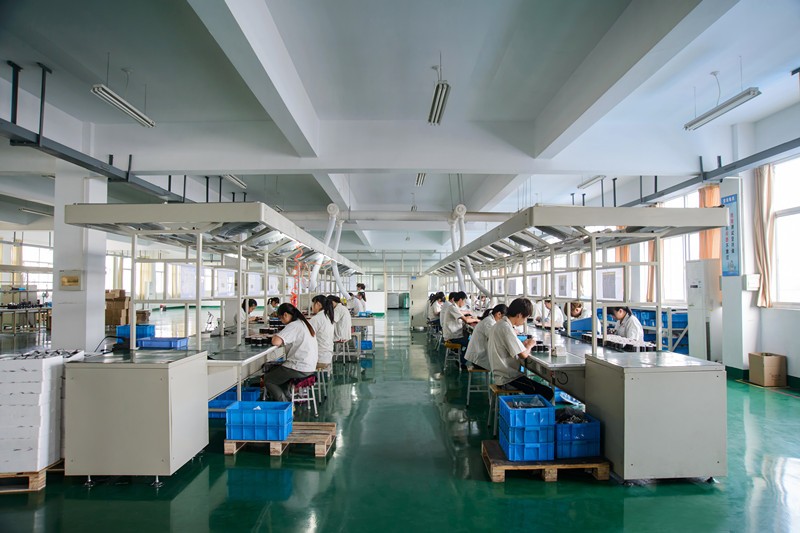

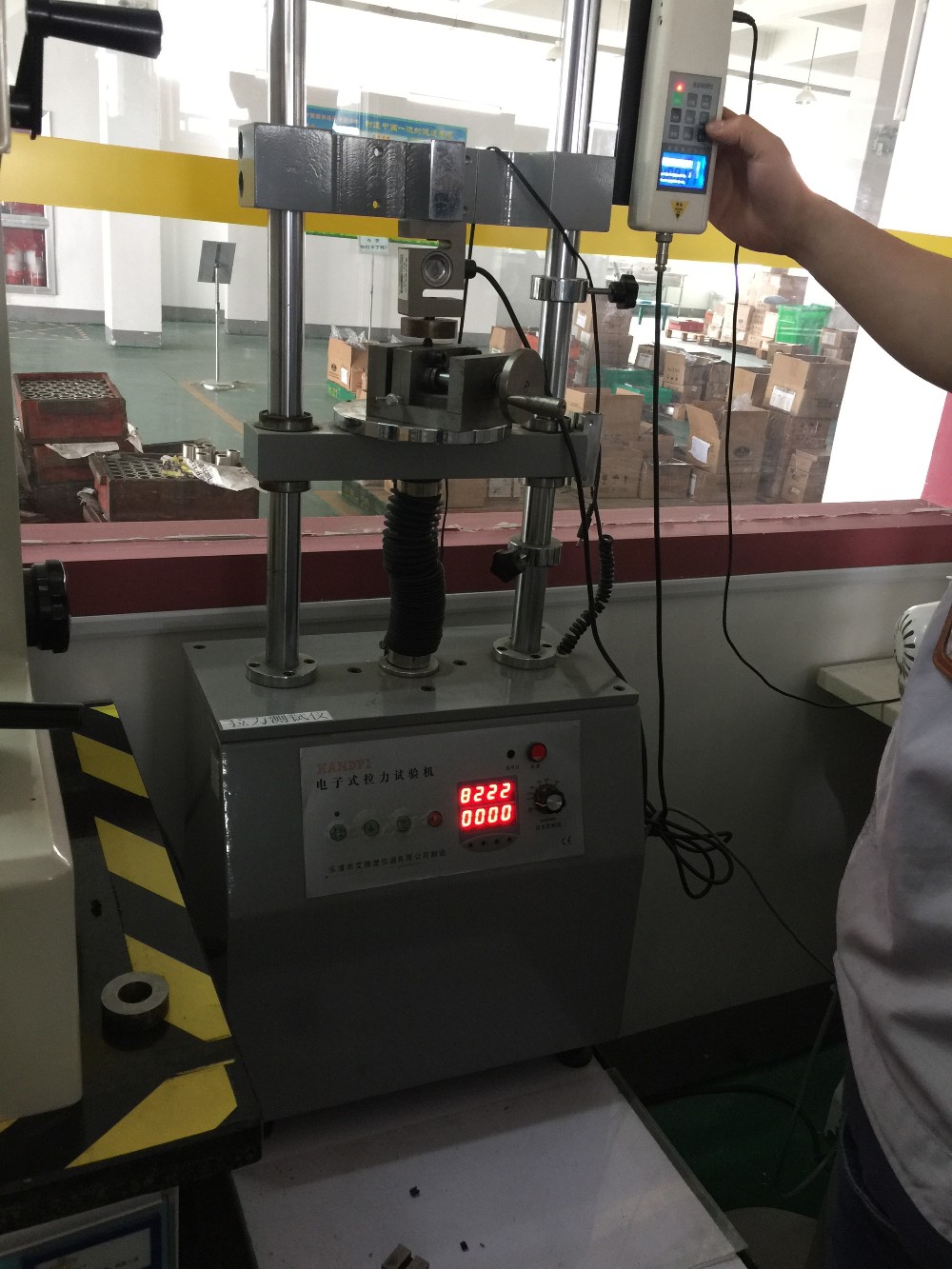

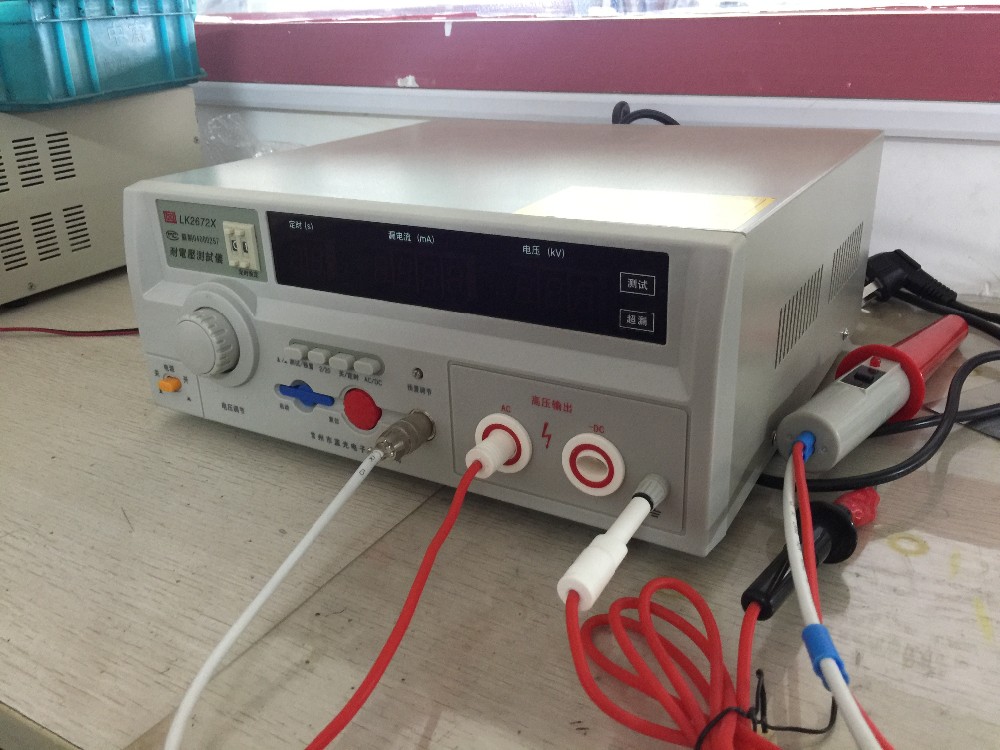

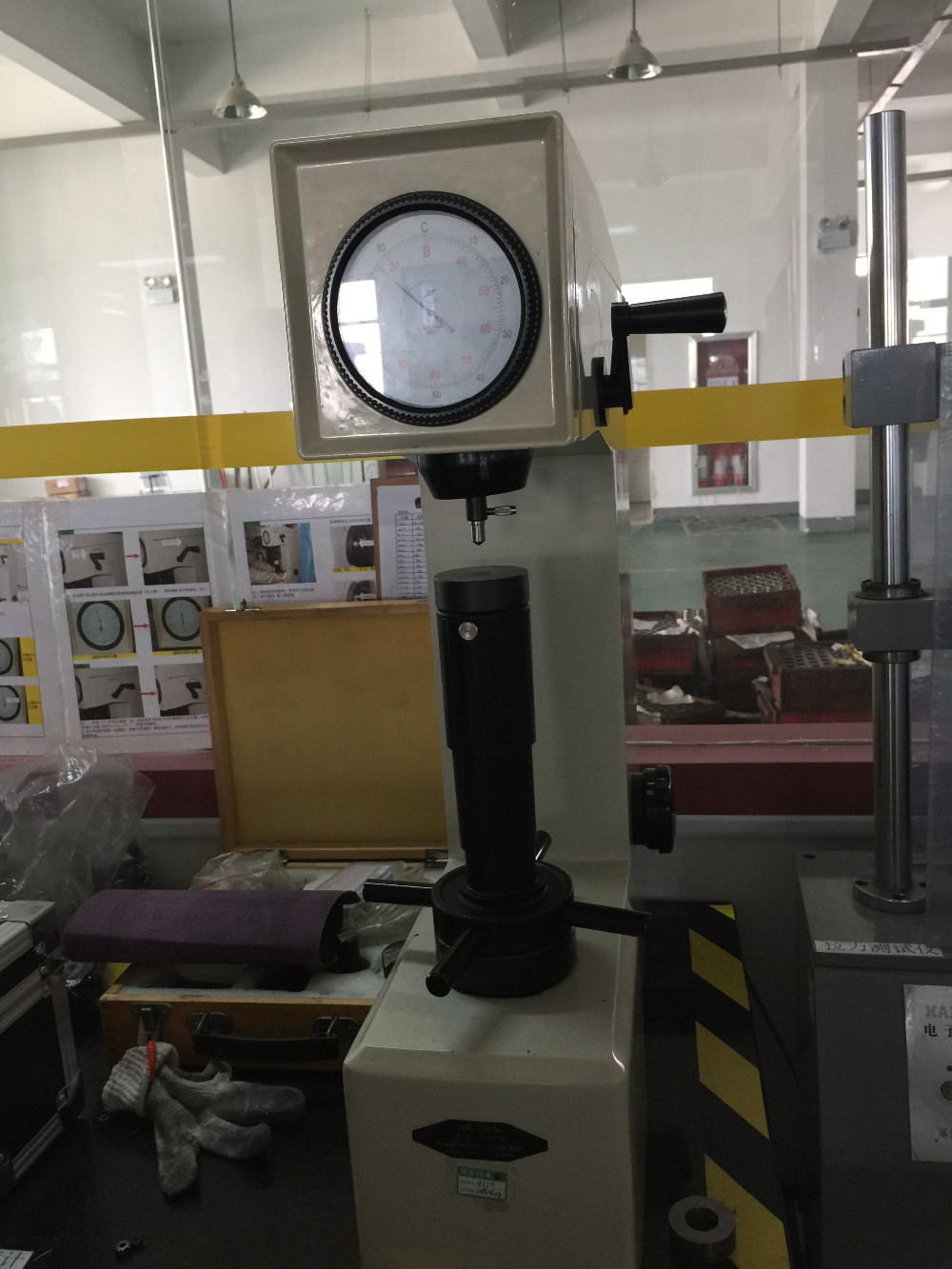

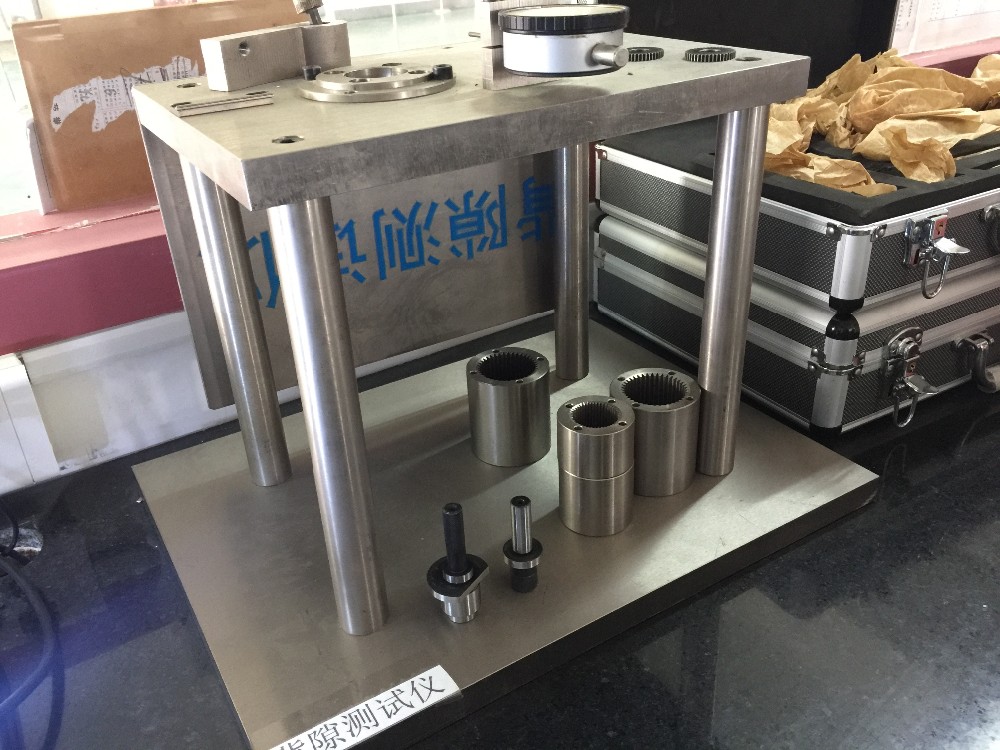

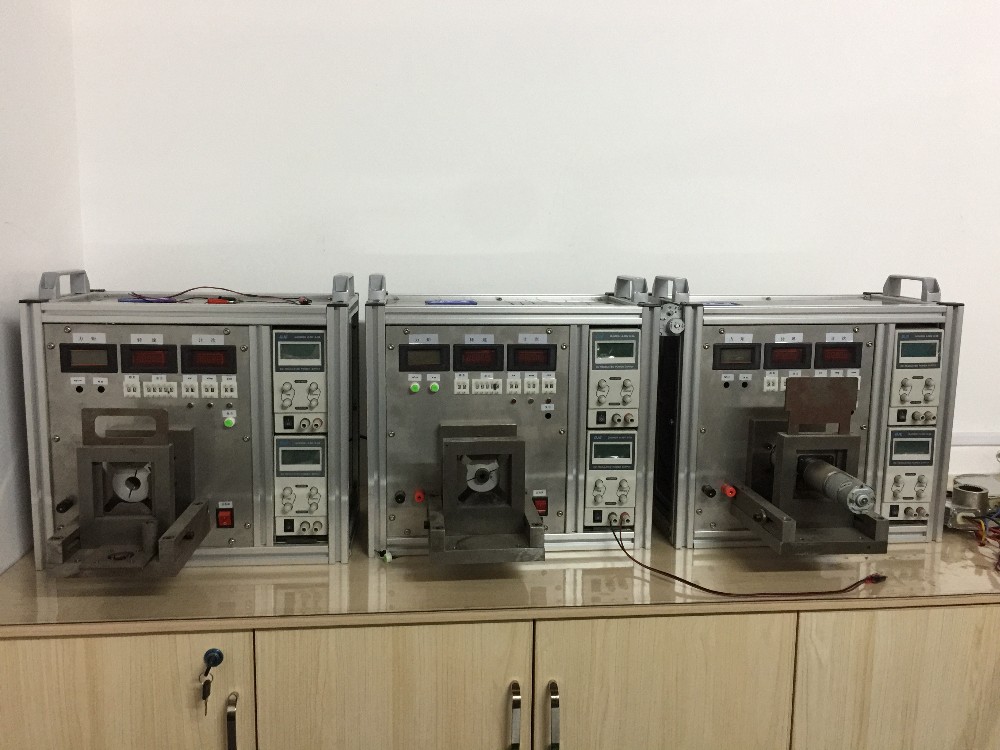

We have strict inspection procedures: for incoming materials, we use signed samples and drawings; during production, we conduct tour inspections and final inspections before shipping.
What's your lead time?
Generally, standard products take 25-30 days, while customized products take a bit longer. We are flexible based on specific orders.

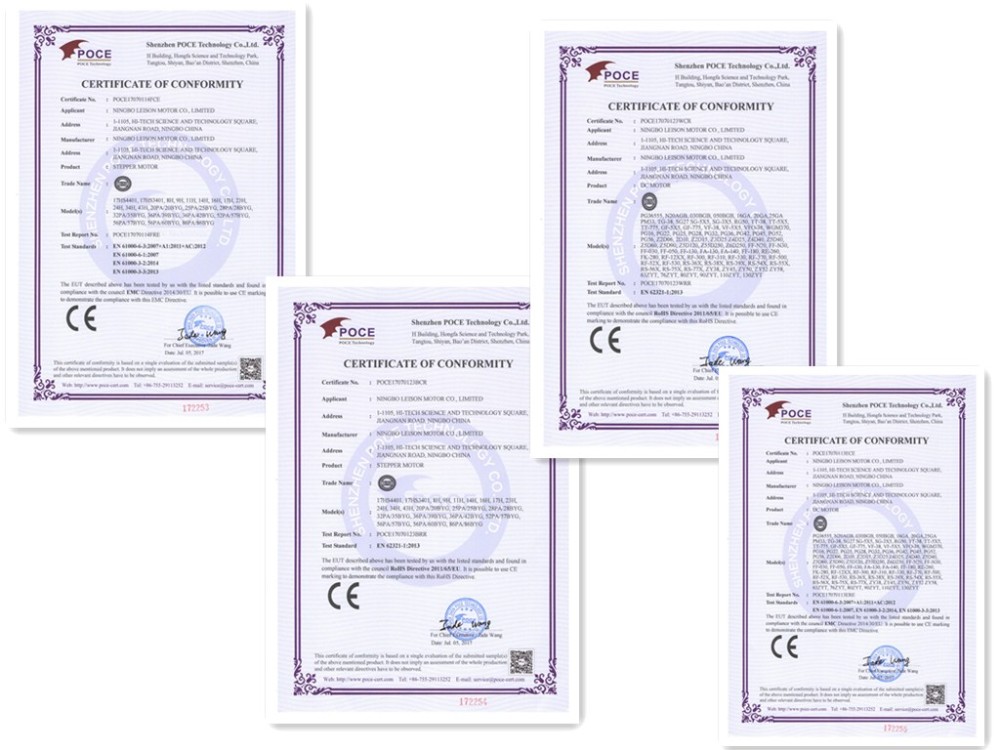

What certifications do you have?
We currently hold CE and RoHS certifications for our motor products.
