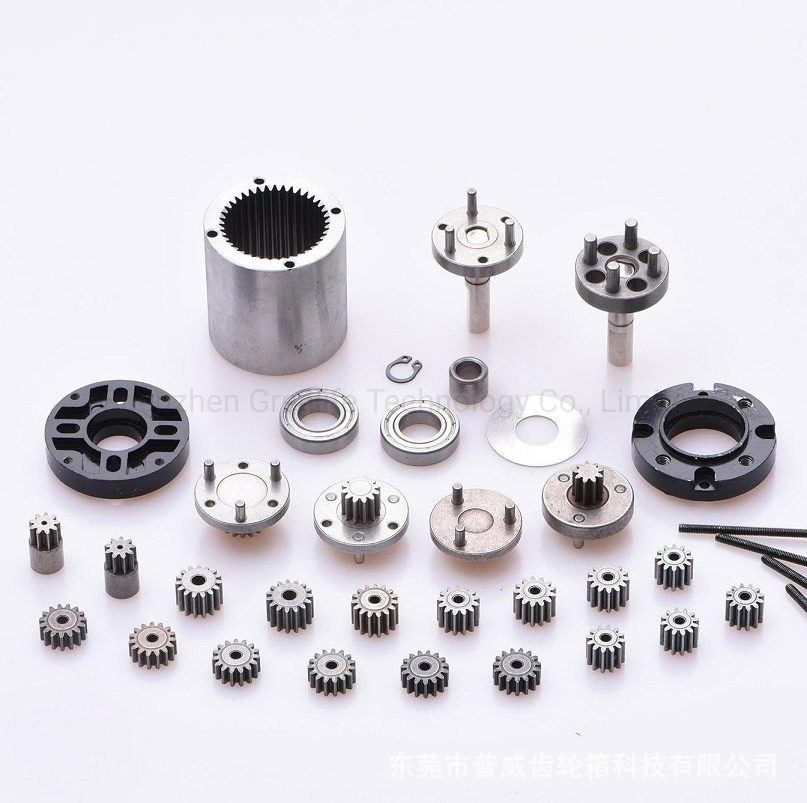

Expertly designed through powder metallurgy processes, our planetary gear sets provide exceptional torque transmission. A planetary gear set consists of three primary components: a sun gear, planet gears, and a ring gear. The sun gear at the center transmits high-speed torque to the planet gears, which revolve around the central axis to deliver a low-speed, high-torque output.
These systems are highly efficient and suitable for continuous, intermittent, and alternating operations. Their optimized helical gearset teeth are developed for demanding applications ranging from machine design to robotics and packaging.
Technical Details

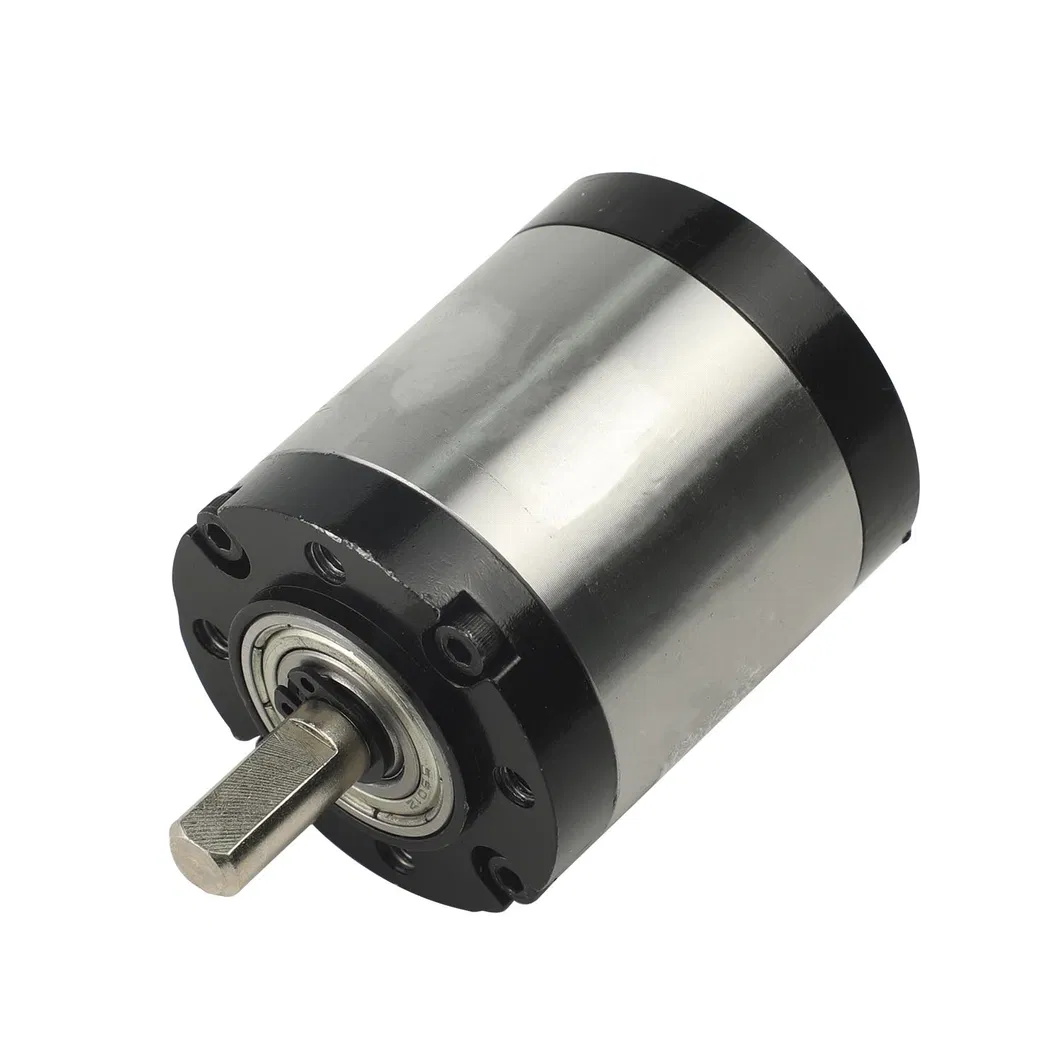

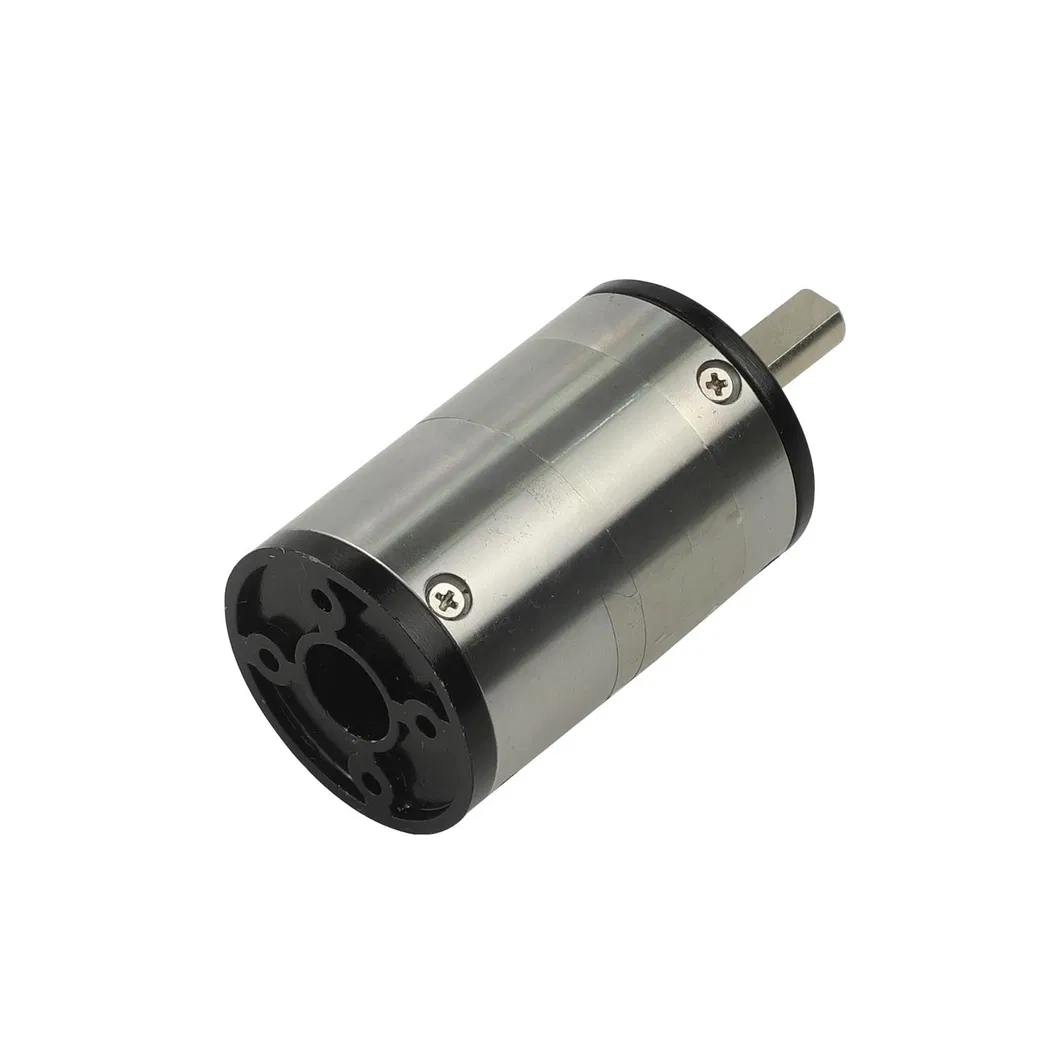

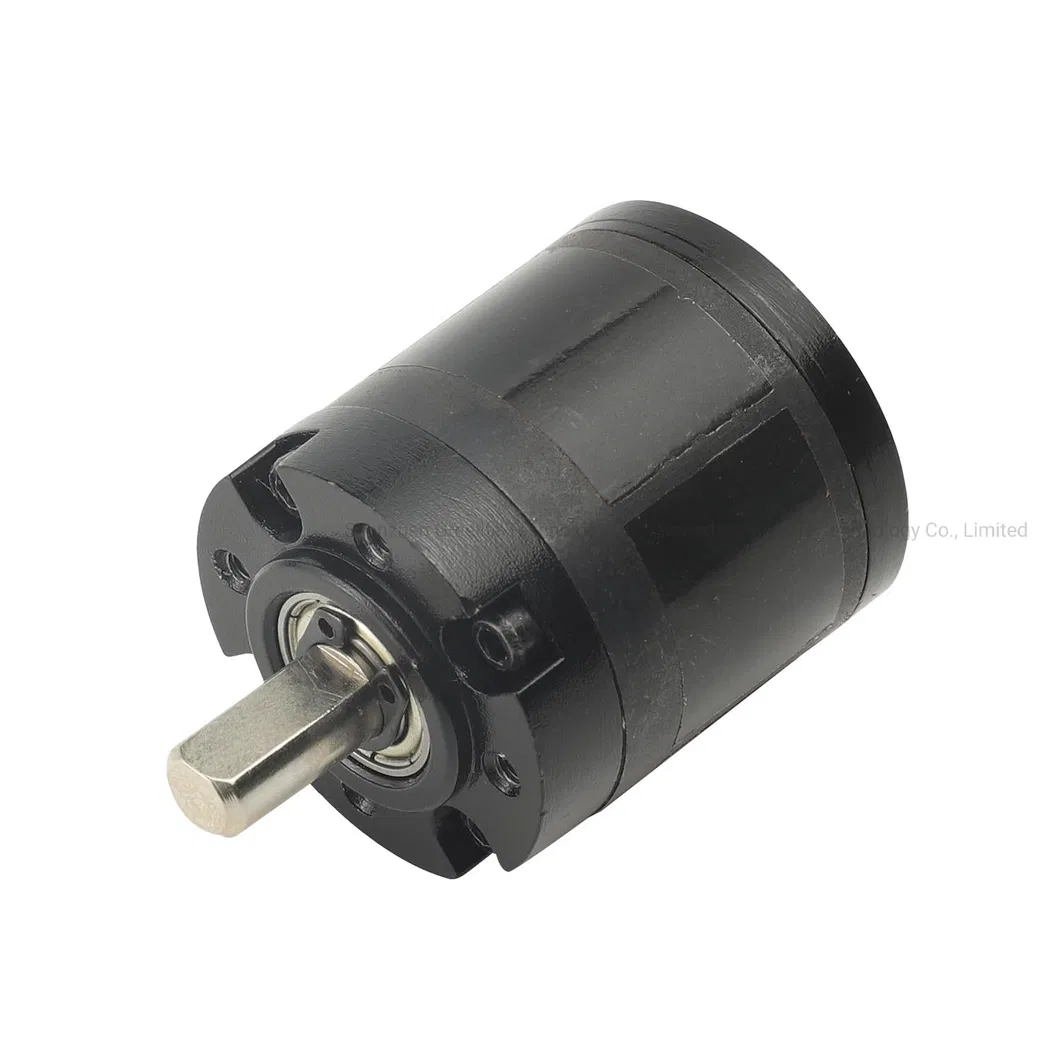

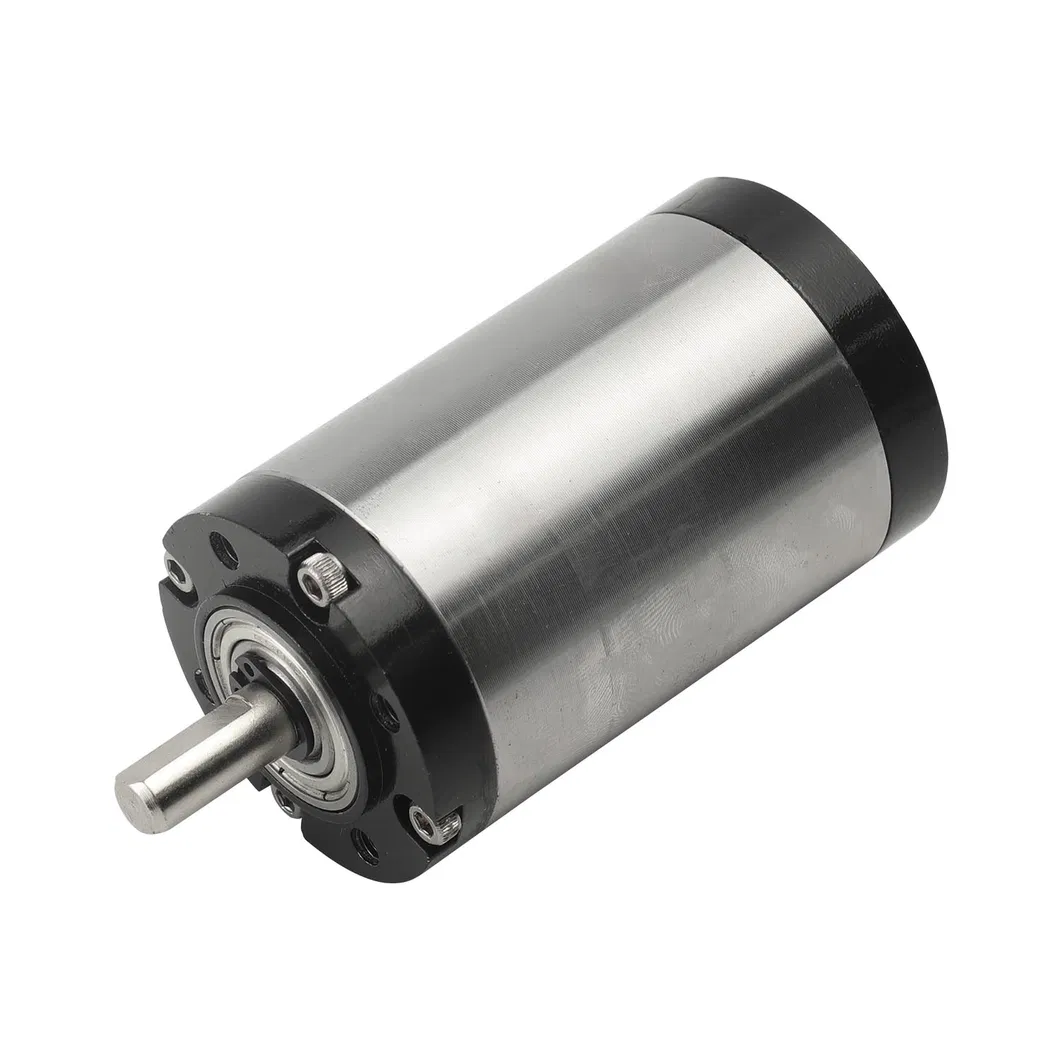

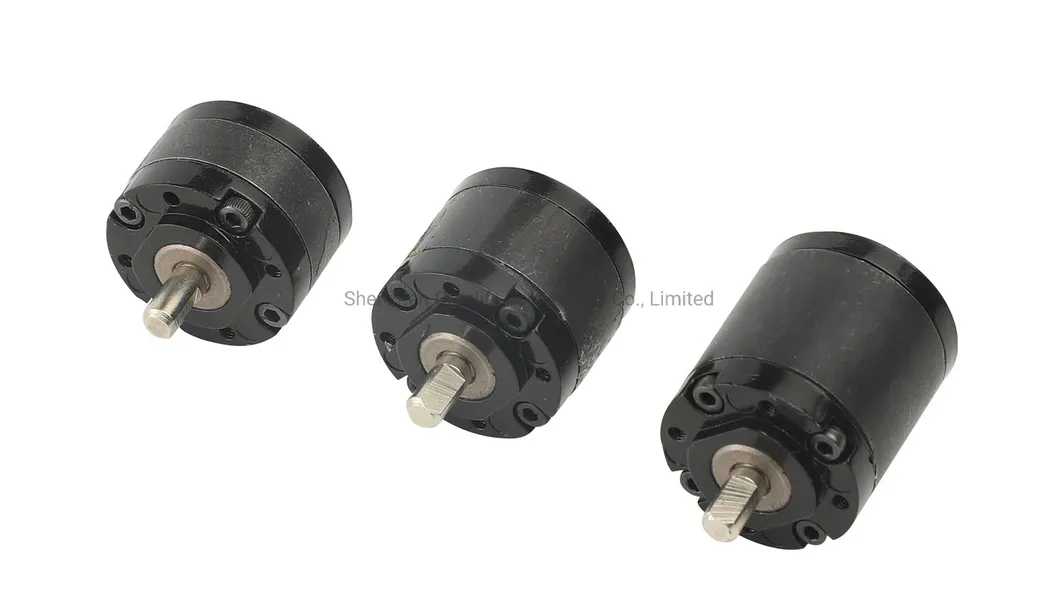

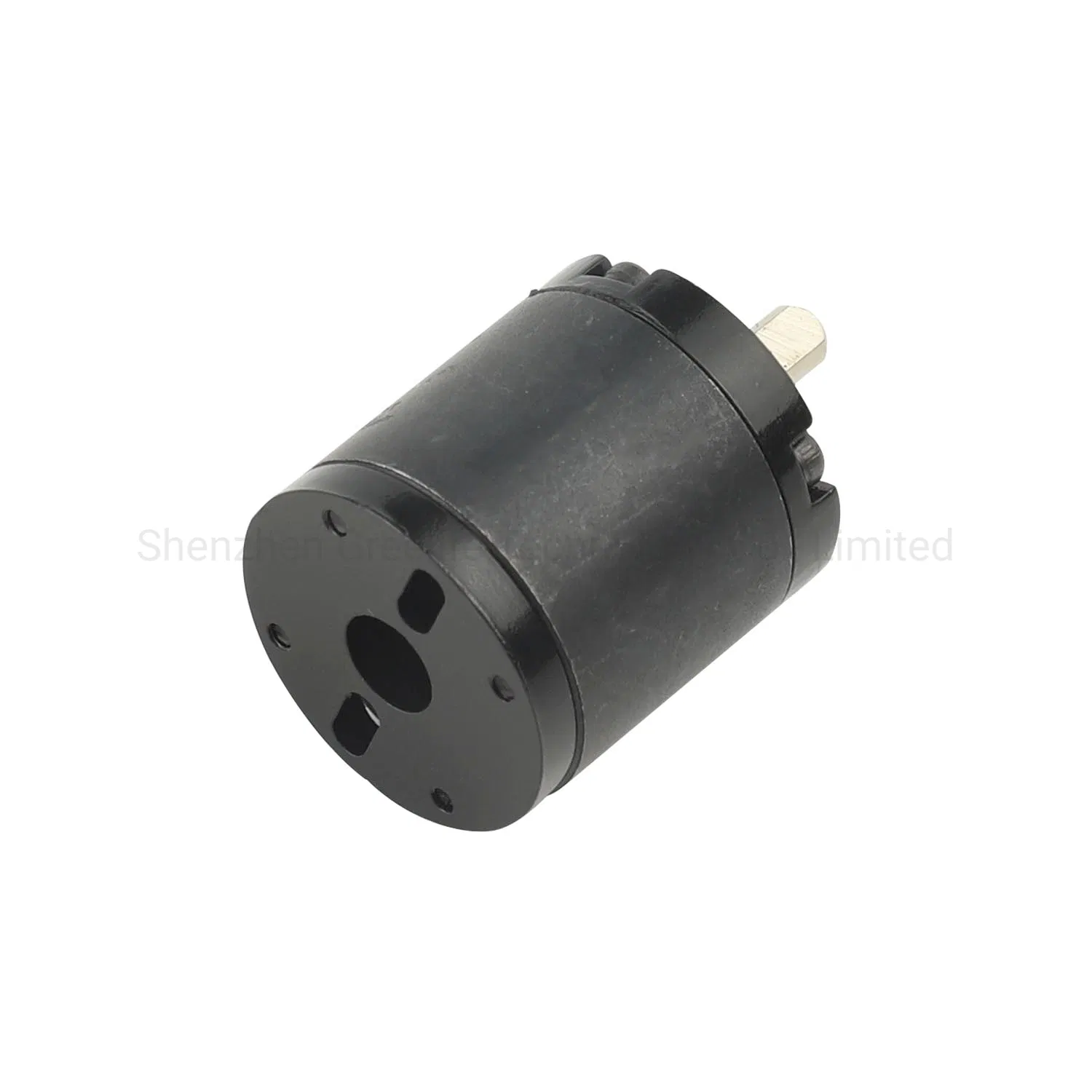

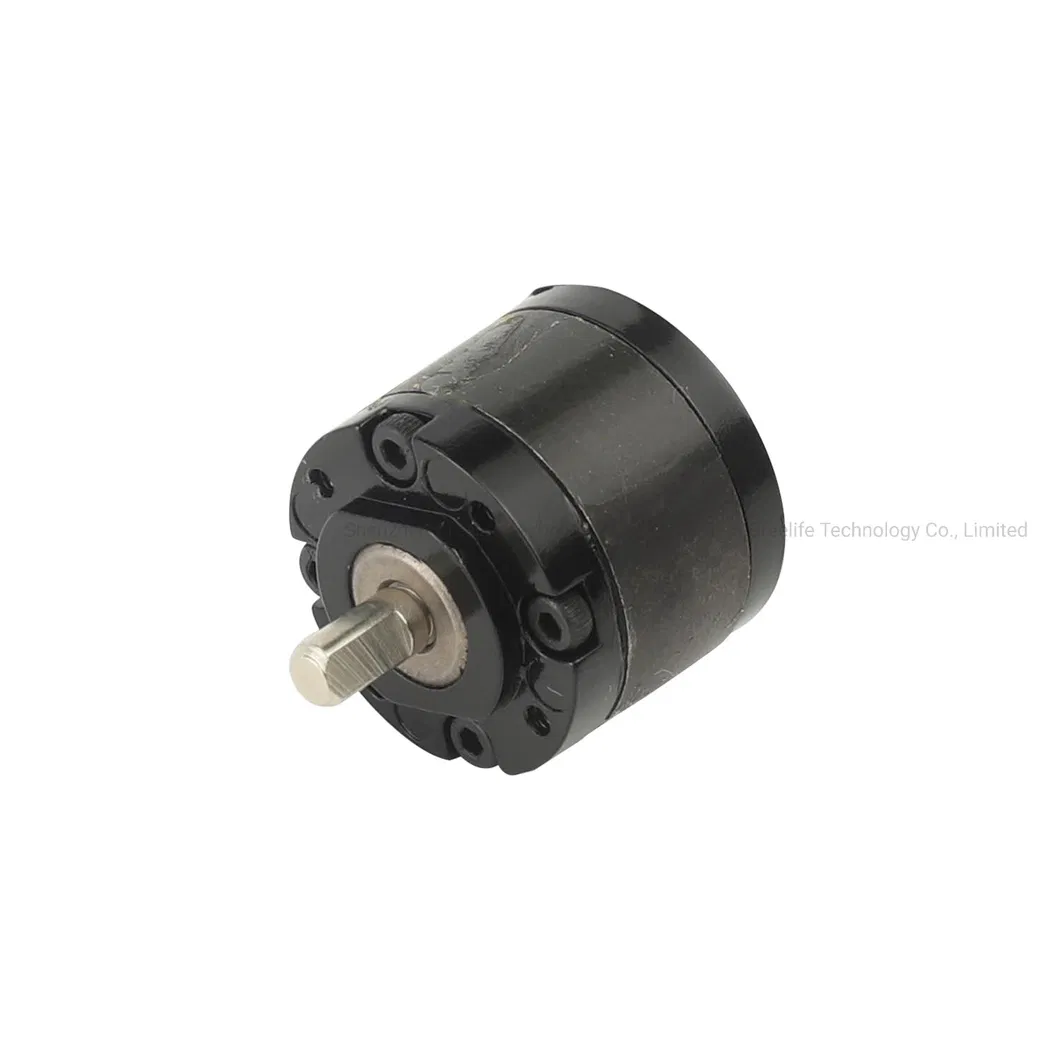

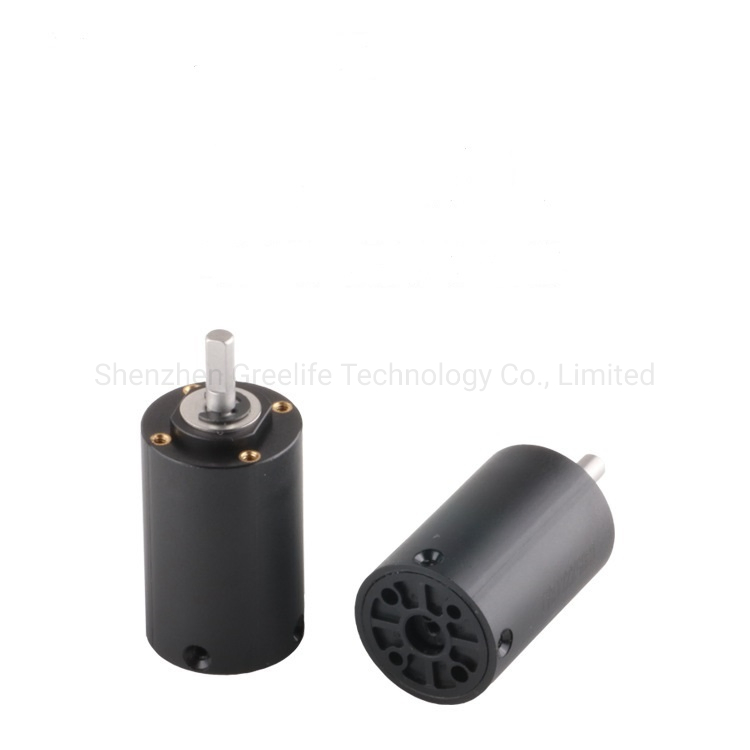

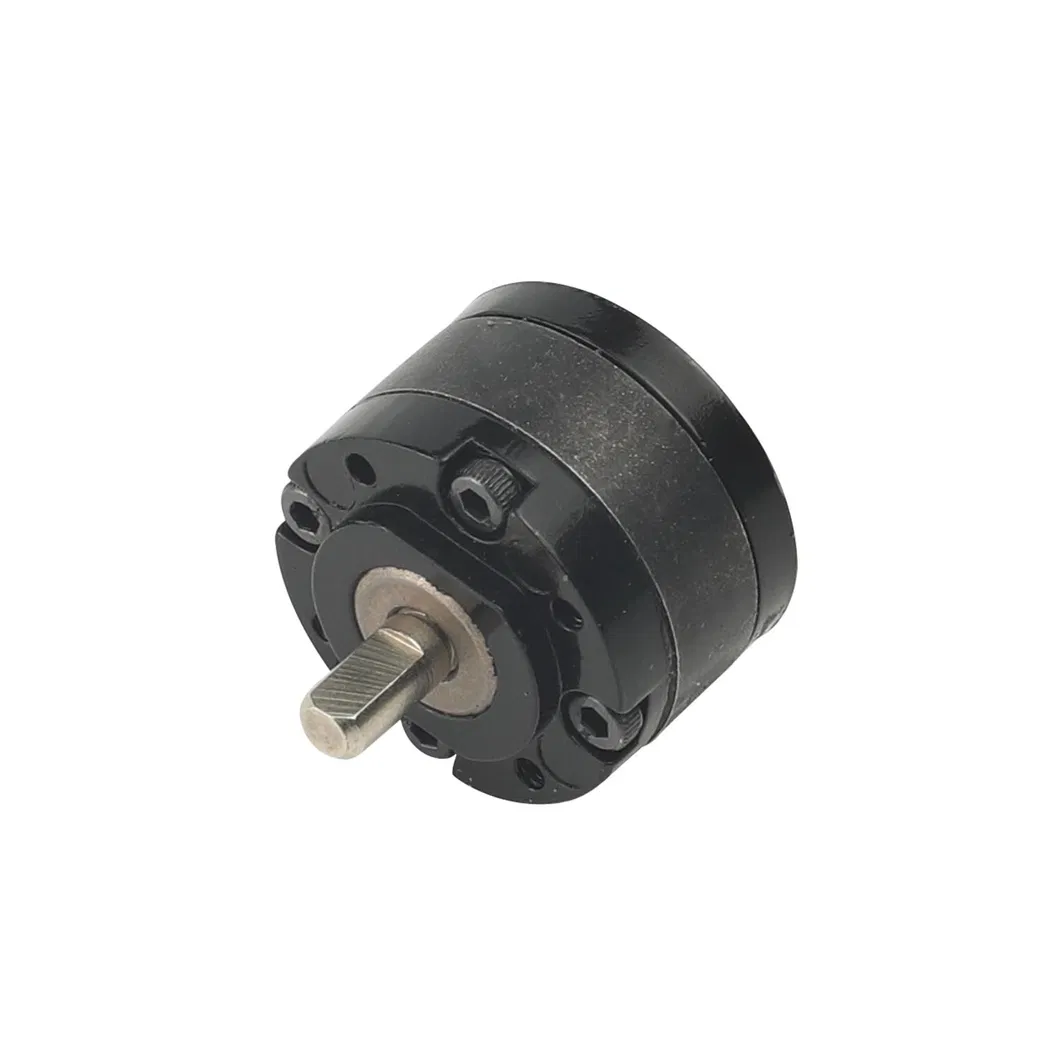

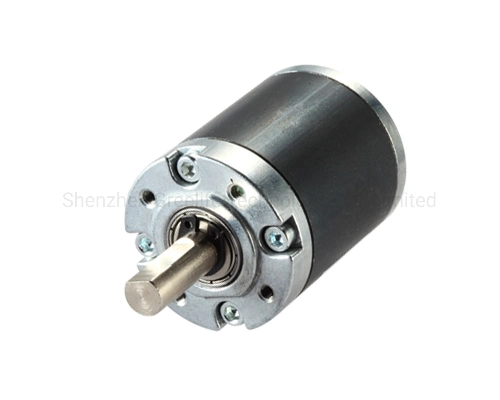

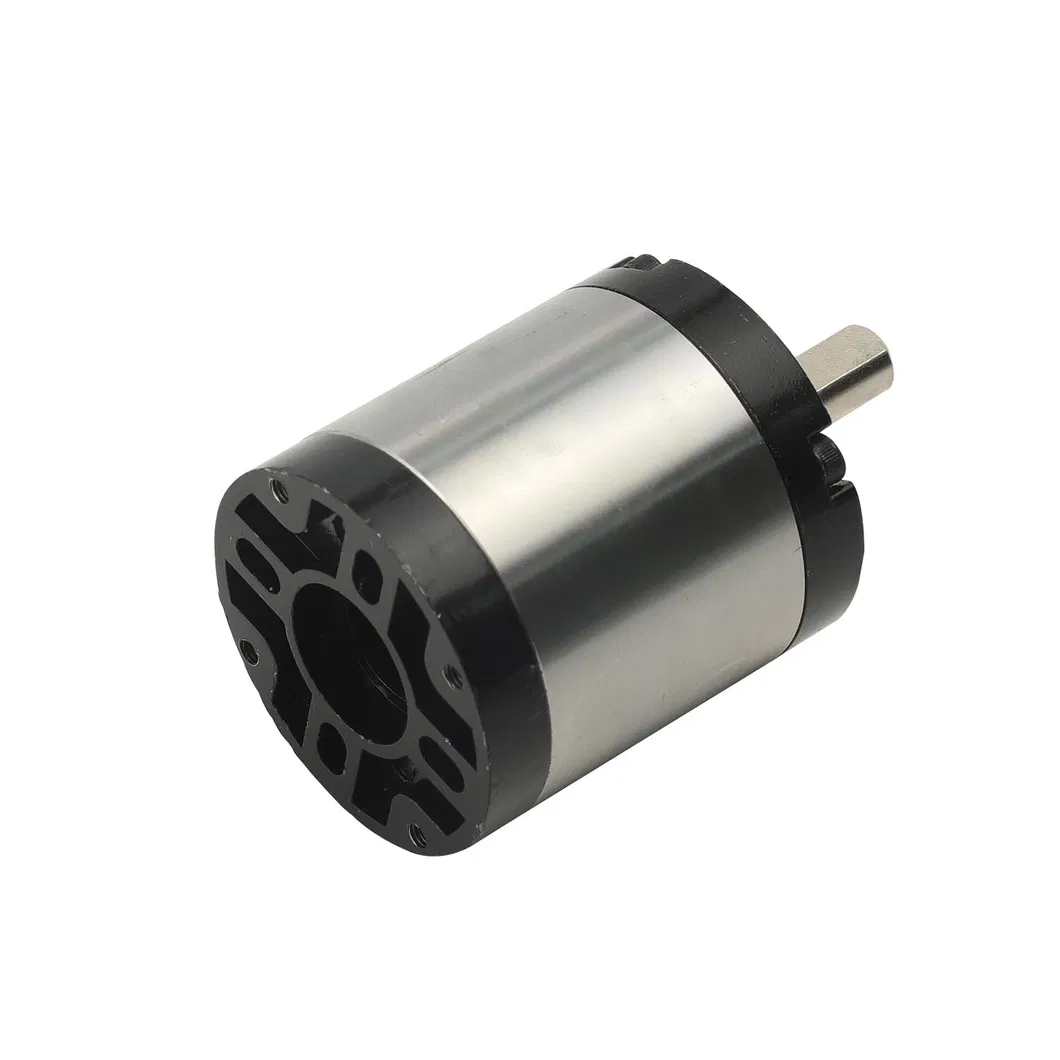

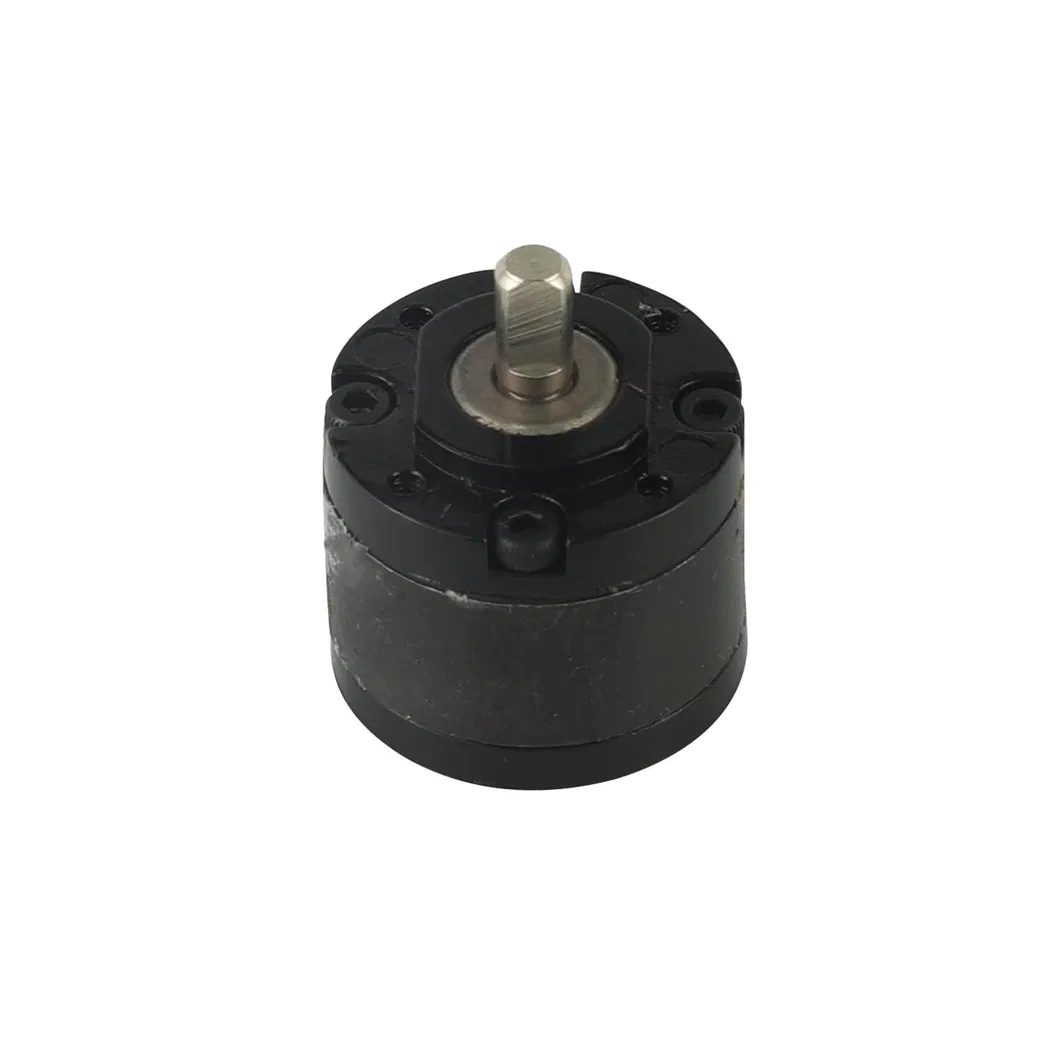

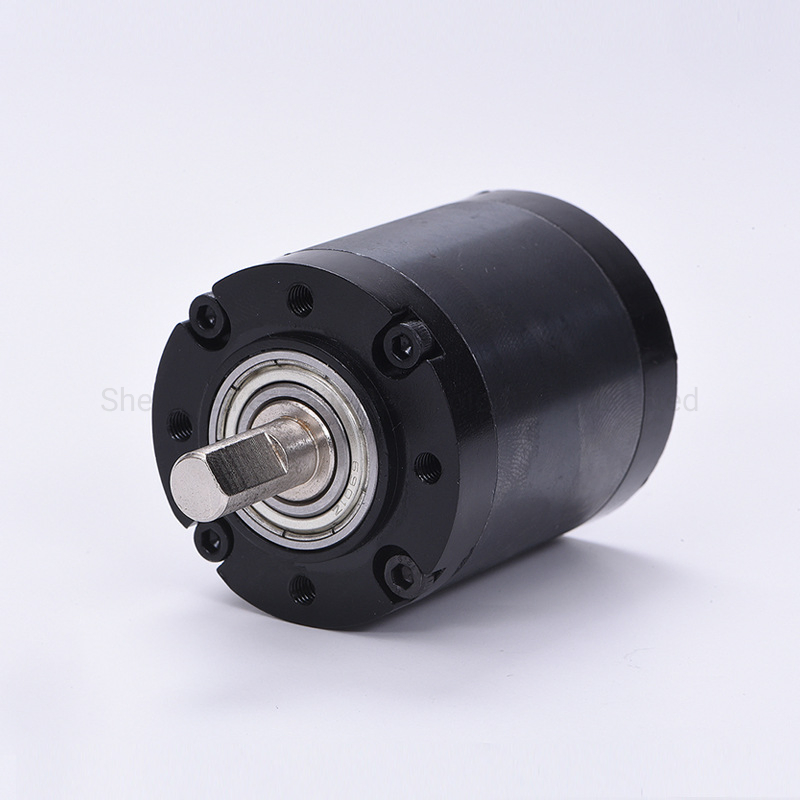

Product Name: 36mm Planetary Gearbox with DC Brushed Motors
Gearbox Type: Planetary | Material: Steel
No-load Speed: 3-1,375 rpm | Rated Load Speed: 3-1,280 rpm
No-load Current: 300-325 mA | Rated Load Current: 1,679-1,684 mA
Gear Ratios: 5:1, 10:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 70:1...100:1 (Optional)
Diameter Range: 6mm to 42mm | Voltage: 12-24V available
Common Applications
Monitors, automatic vending machines, cruise control, door lock actuators, retractable rearview mirrors, meters, optic axis control, printers, conditioning dampers, electric car tailgates, coffee machines, sweeping robots, and more.
Frequently Asked Questions
1. What are the main advantages of using a planetary gearbox?
Planetary gearboxes offer high torque transmission, high efficiency, and compact design. They are ideal for applications requiring high precision and dynamics.
2. Can these gearboxes be customized for specific requirements?
Yes, we support OEM/ODM services, including customized gear ratios, motor integration, and specific material fabrication to meet your machine design needs.
3. What materials are used in the manufacturing process?
We utilize high-quality materials including Stainless Steel, Aluminum, Iron, and Titanium Alloy, processed through advanced powder metallurgy.
4. Is maintenance required for the gear system?
Our gearboxes feature lifetime lubrication, ensuring maintenance-free operation for the duration of the product's lifespan.
5. What voltage ranges are supported for the geared motors?
We offer a wide range of DC brushed motors, with standard options including 3V, 6V, 12V, 24V, and 36V configurations.
6. What mounting positions are possible?
The design is versatile and supports flange, foot, or shaft-mounting in any physical position.
