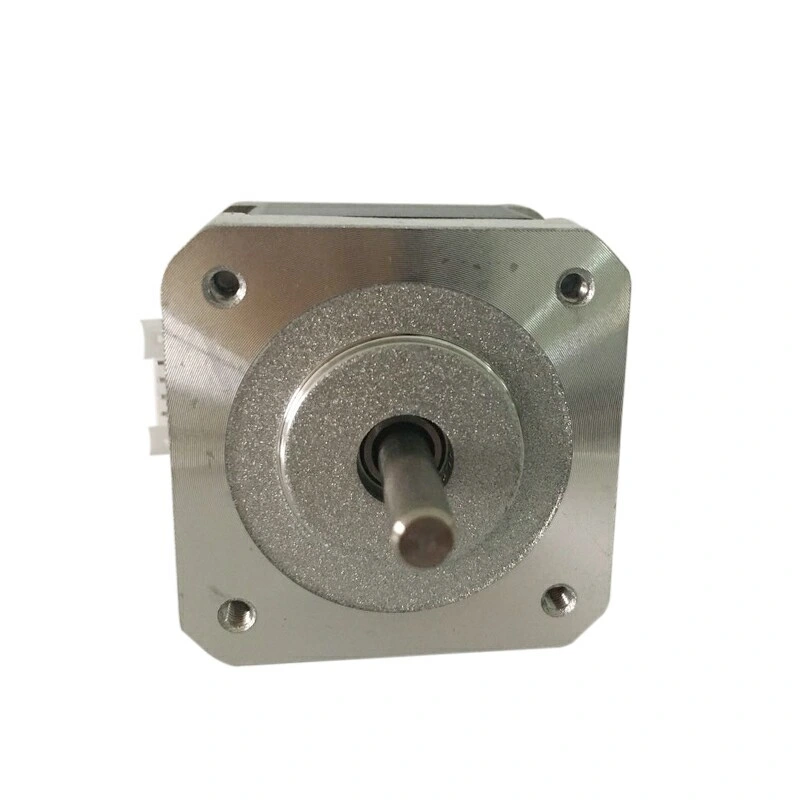

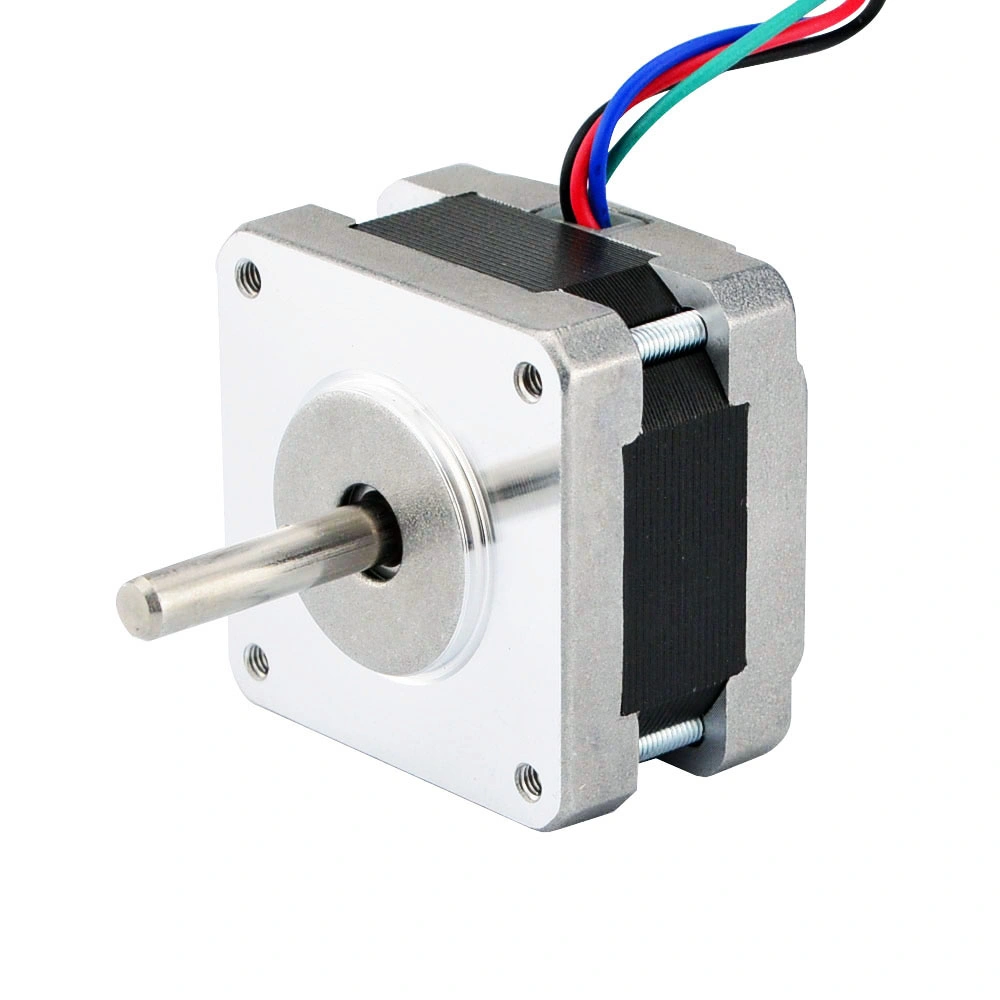

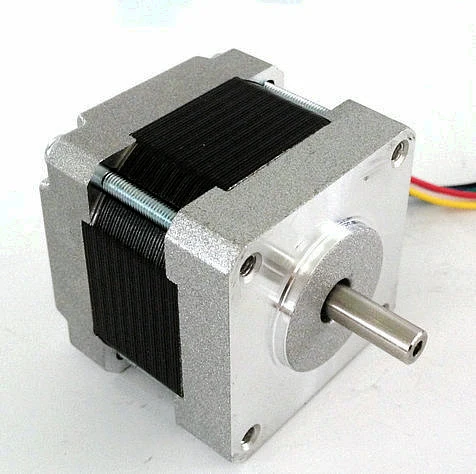

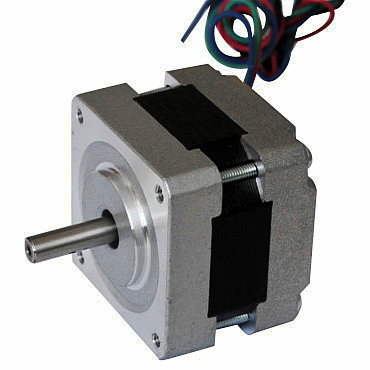

1.8degree 2 Phase 35mm Miniature Stepper Motors 35HY26-0284

1 / 5

1.8degree 2 Phase 35mm Miniature Stepper Motors 35HY26-0284

Customization:	Available
Number of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid

Send Inquiry

Product Description

Basic Specification

Model NO.

35HY26-0284

Type

Electromechanical

Motor Length

26mm

Step Angle

1.8 degree

Current

0.28A

Motor Weight

0.13kg

Package

Export Carton

Certification

CE/ROHS/ISO9001

HS Code

8501109990

Capacity

200,000 PCS/Month

Product Overview

NEMA 14 Hybrid Stepper Motor (35HY26-0284)

High Precision: 1.8 degree step angle with 2-phase hybrid structure.
Compact Design: 35mm square shape with a height of only 26mm.
Optimized Performance: Holding torque of 700 g.cm, suitable for low and high-speed operations.
Durability: Built with 4 lead wires for stable electromechanical connection.

Technical Parameters

Model No.	Step Angle	Motor Length	Current/Phase	Resistance	Inductance	Holding Torque	Leads	Detent Torque	Weight
Model No.	(°)	(mm)	(A)	(Ω)	(mH)	(g.cm)	(No.)	(g.cm)	(Kg)
35HY26-0284	1.8	26	0.28	26	27	700	4	60	0.13
35HY28-0504	1.8	28	0.5	20	18	1000	4	80	0.14
35HY34-1004	1.8	34	1.0	2.7	4.3	1400	4	100	0.18

Applications

These 35mm hybrid stepper motors are extensively used in various industries requiring precise motion control:

Robotics and electronic automatic equipment.
Medical instruments and diagnostic devices.
3D printers and CNC router machines.
Textile machinery and industrial automation.
Lighting, audio equipment, and advertising instruments.

Frequently Asked Questions

Q1: What is the step angle of the 35HY26-0284 stepper motor? A1: The motor features a standard 1.8-degree step angle, providing high resolution for precision tasks.

Q2: Can this motor be used in 3D printers? A2: Yes, the NEMA 14 hybrid stepper motor is ideal for 3D printers and small CNC routers due to its compact size and reliable torque.

Q3: What certifications do these motors comply with? A3: Our motors are fully certified with CE, RoHS, and ISO9001 standards, ensuring global quality compliance.

Q4: How many lead wires are included? A4: This model comes with 4 lead wires, designed for standard 2-phase bipolar configuration.

Q5: What is the maximum holding torque of the 35mm series? A5: Depending on the motor length, the holding torque ranges from 700 g.cm (26mm length) up to 1400 g.cm (34mm length).

Q6: Is it possible to get a custom design version? A6: Yes, we can develop custom design versions to meet specific customer requirements for specialized applications.
