KPM Minimoto
1 / 5

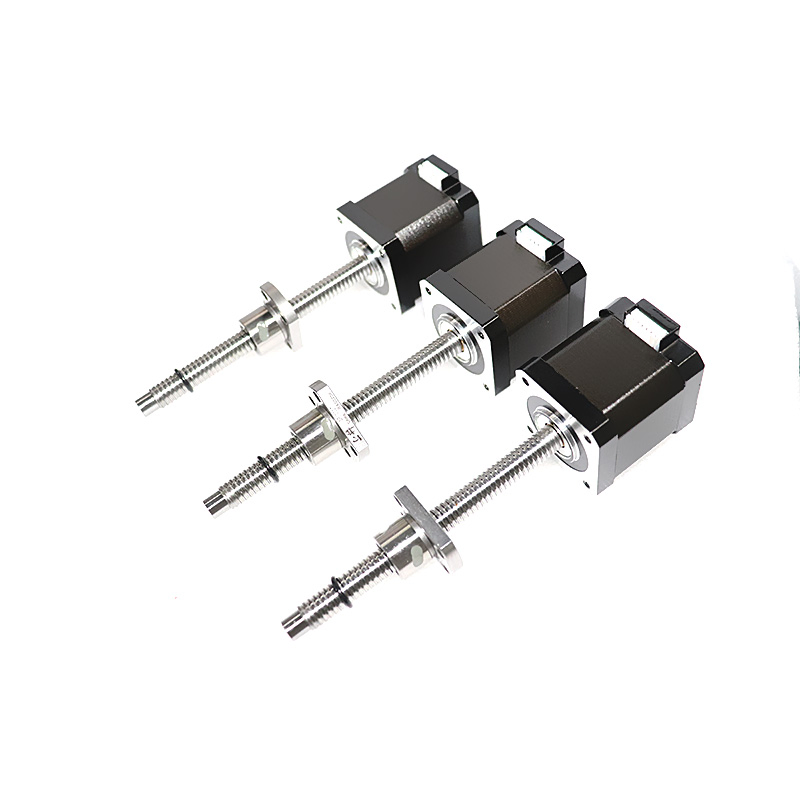

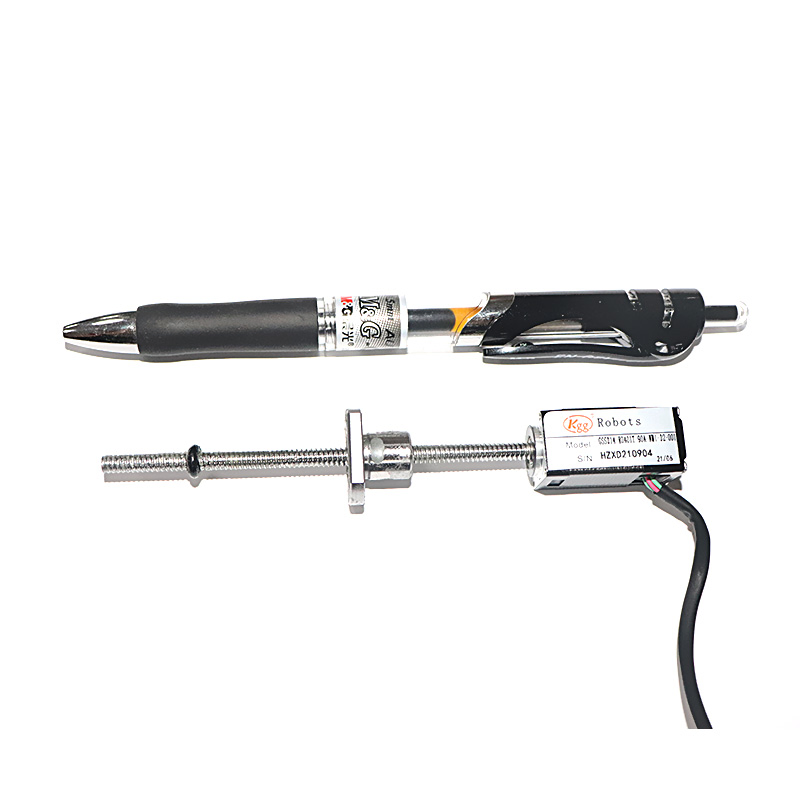

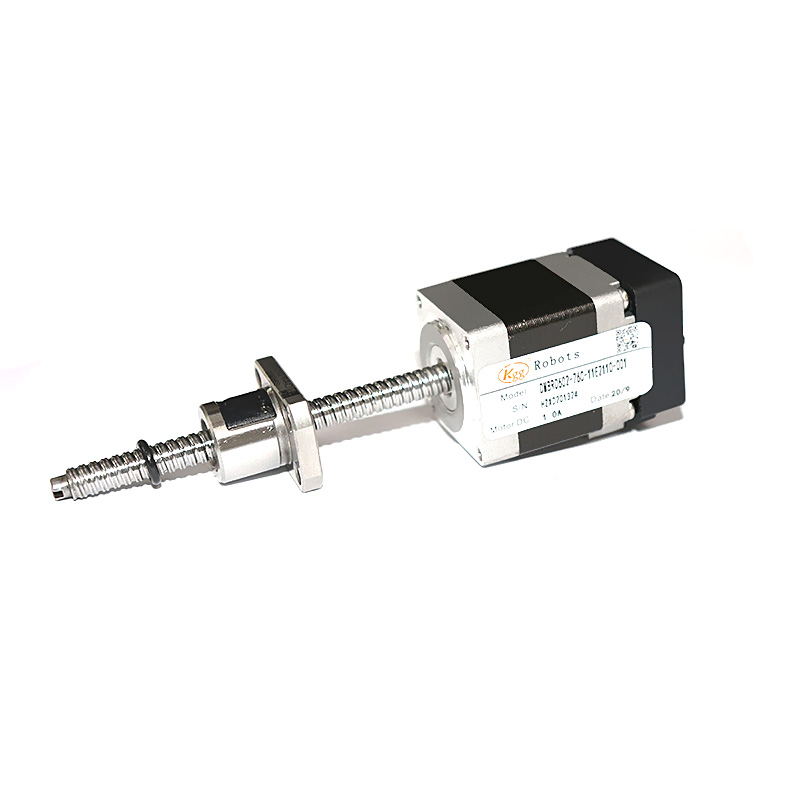

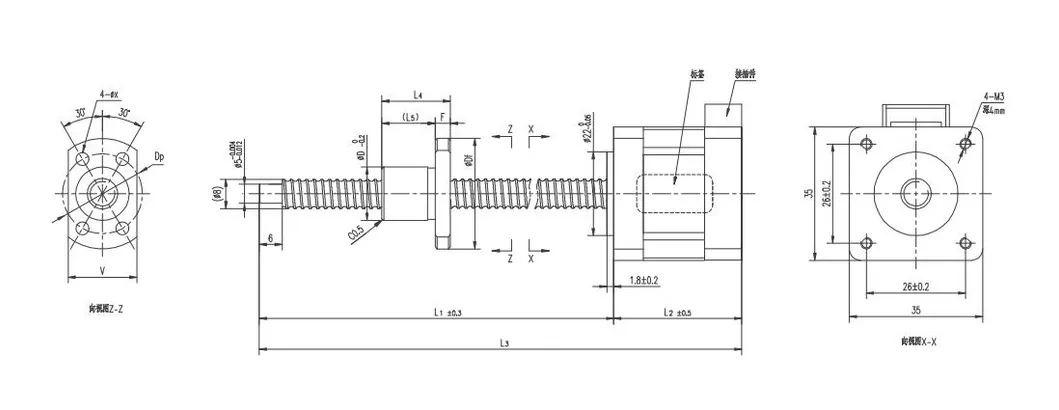

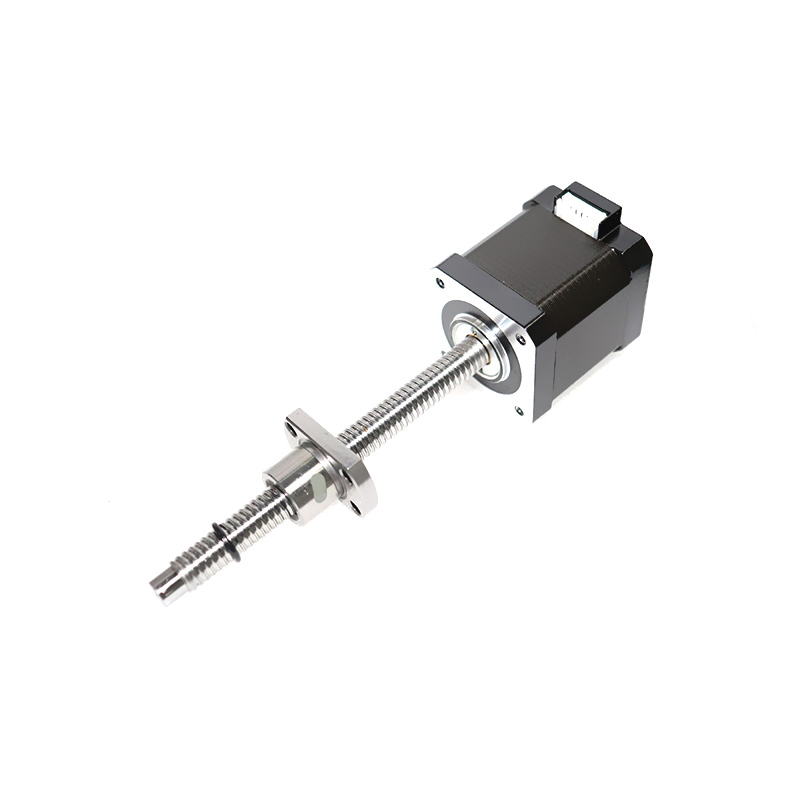

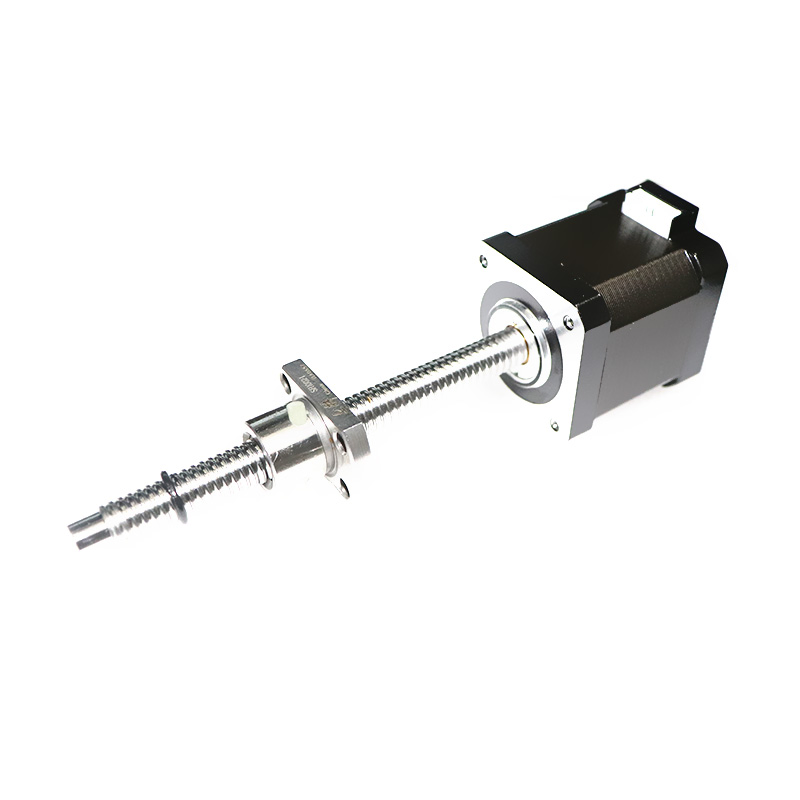

Simple structure where a 2-phase stepping motor is directly installed on the shaft end of the ball screw, using the screw axis as the motor rotation axis.
Integrated motor shaft and ball screw eliminates the need for couplings, significantly saving space in the long side direction.
The integrated structure reduces combined accuracy errors, achieving repeated positioning accuracy of ± 0.001mm with excellent stability.
Provides various shaft end shapes and stroke specifications. Non-standard products can be customized based on requirements.
Medical industry, Lithium battery industry, Solar photovoltaic industry, Semi conductor Industry, General industry machinery, Machine tool, Parking system, High-speed rail and aviation transportation equipment, 3C industry etc.

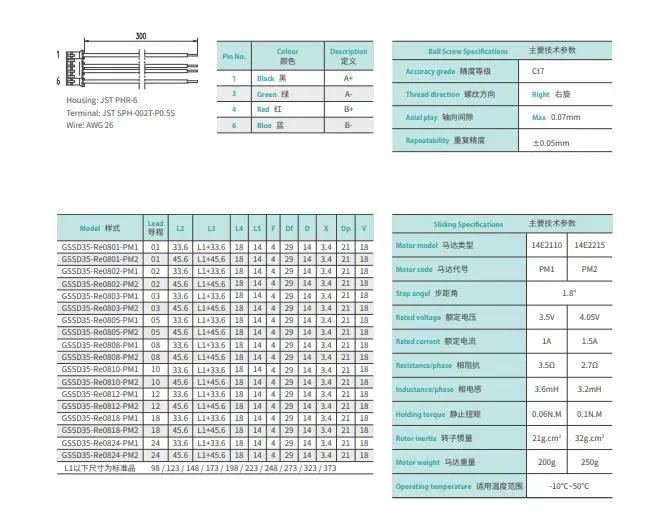

| Frame Size | Model | Rated Voltage (V) | Rated current (A) | lmpedance (Ω) | lnduction (mH) | Static Torque (N.m) |
|---|---|---|---|---|---|---|
| 20 | 8E2004 | 3.52 | 0.4 | 8.8 | 2.8 | 0.003 |
| 28 | 11E2110 | 2.1 | 1 | 2.1 | 1.5 | 0.036 |
| 35 | 14E2110 | 3.5 | 1 | 3.5 | 3.6 | 0.06 |
| 42 | 17E2115 | 2.8 | 1.5 | 1.85 | 2.2 | 0.18 |
| 57 | 23E2110 | 6.4 | 1 | 6.4 | 1.65 | 0.7 |
