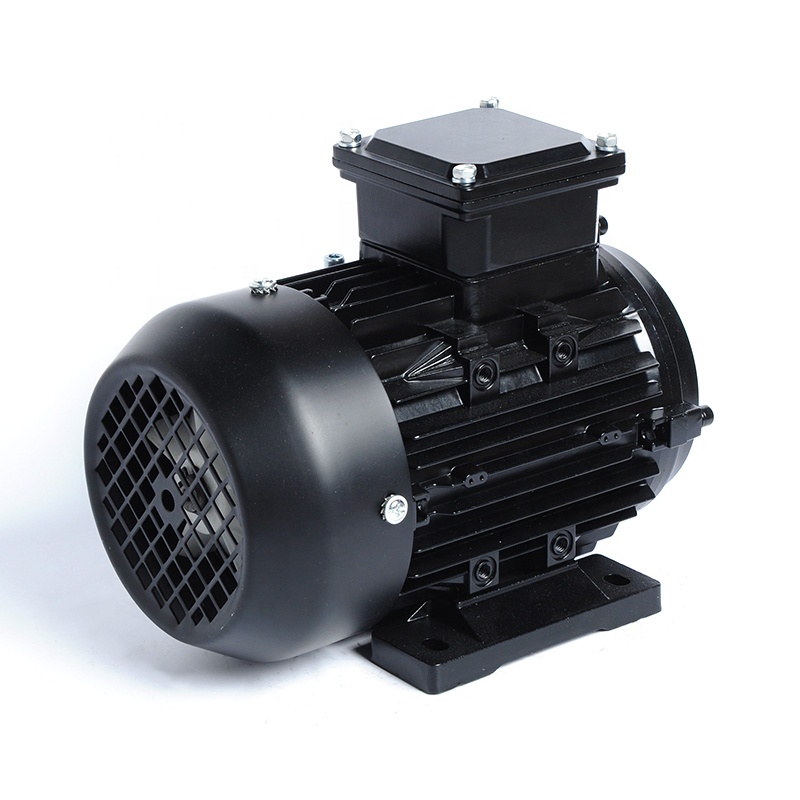

IE1 Series 380V 0.5hp Small Three Phase Ac Electric Asynchronous Induction Motors 370W 2pole

Product Description

Product Description

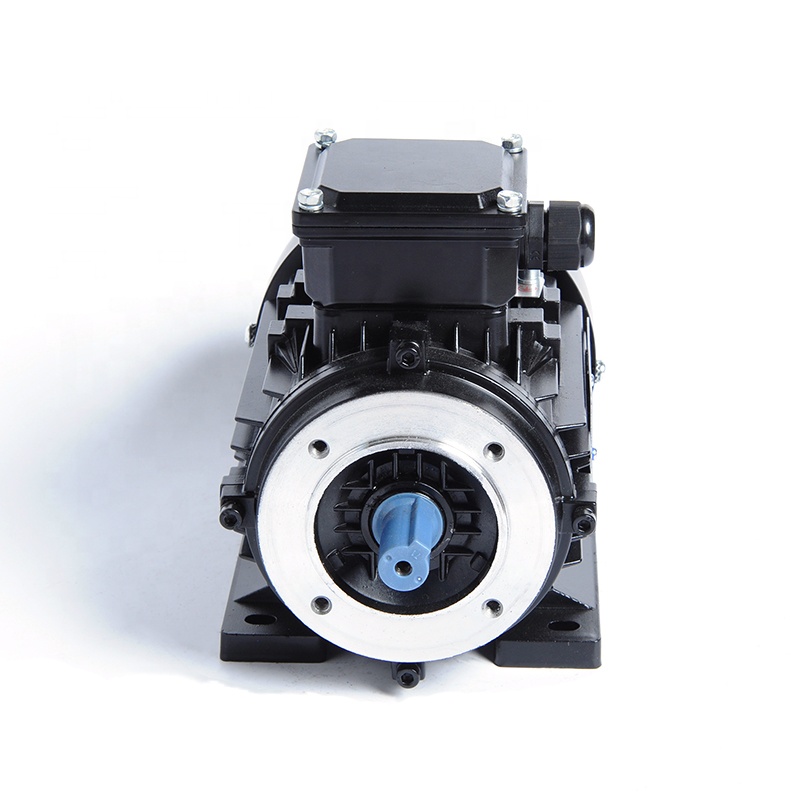

380V 0.5hp Small Three Phase AC Electric Asynchronous Induction Motor 370W 2-Pole

1HMA-IE1 (EFF2) Series Aluminum Housing Three Phase Asynchronous Motor is a general-purpose motor series featuring low voltage upgrades. These motors offer enhanced performance in lightweight all-aluminum frames, meeting domestic and international needs for frame sizes 56 to 160.

Specifications
  • Frame Size: H56-160
  • Efficiency: IE1
  • Poles: 2, 4, 6, 8 poles
  • Rated Power: 0.06KW - 18.5KW
  • Rated Voltage: 220/380V, 380/660V, 230/400V, 400V/690V
  • Frequency: 50HZ, 60HZ
  • Protection Class: IP44, IP54, IP55, IP56
  • Insulation Class: B/F/H
  • Mounting: B3, B5, B14, B35 multi and pad mounting
  • Ambient Temperature: -20 ~ +40 °C
  • Altitude: ≤ 1000 M

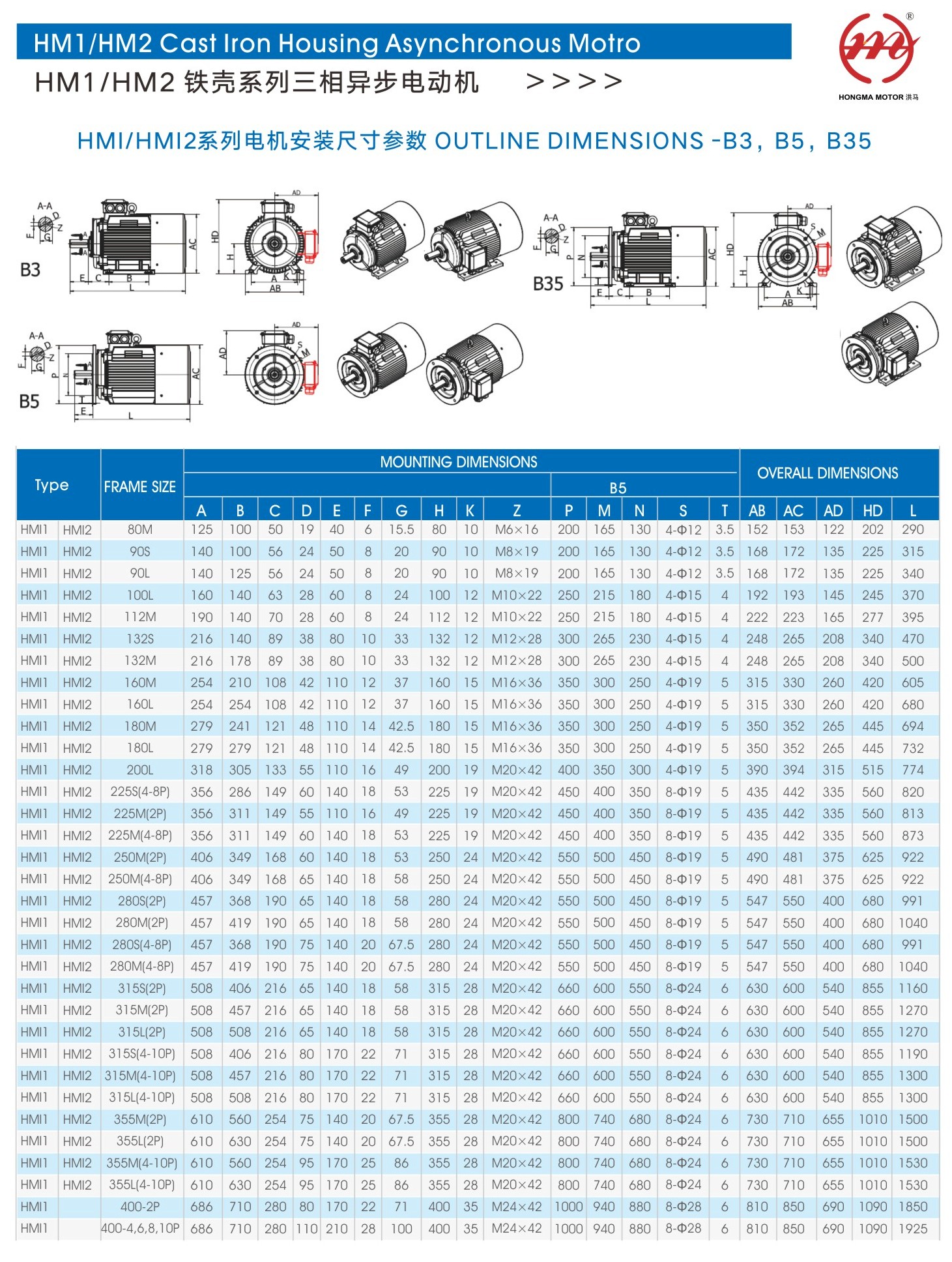

Motor Technical Drawing
Parameter Value
POWER0.37KW
SPEED2756RPM
EFF65.8%
POWER FACTORCOS0.81
TS/TN2.2
IS/IN6.1

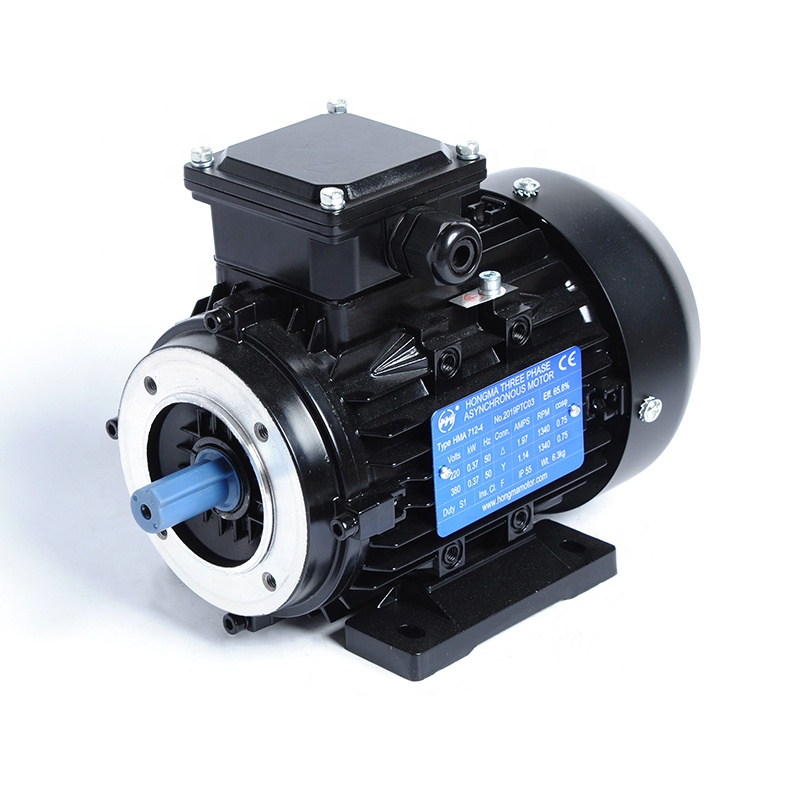

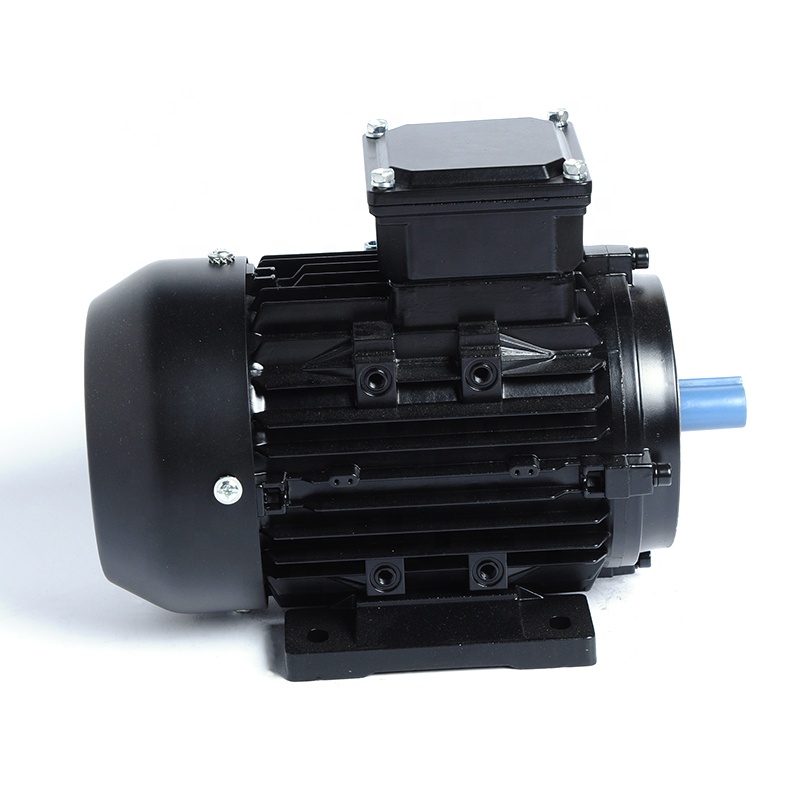

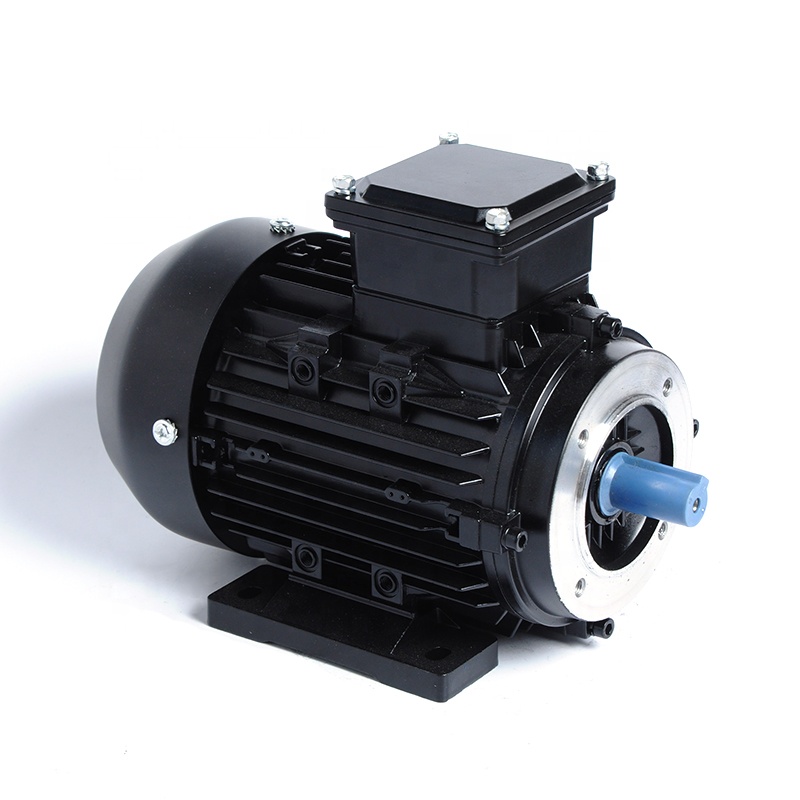

Product View

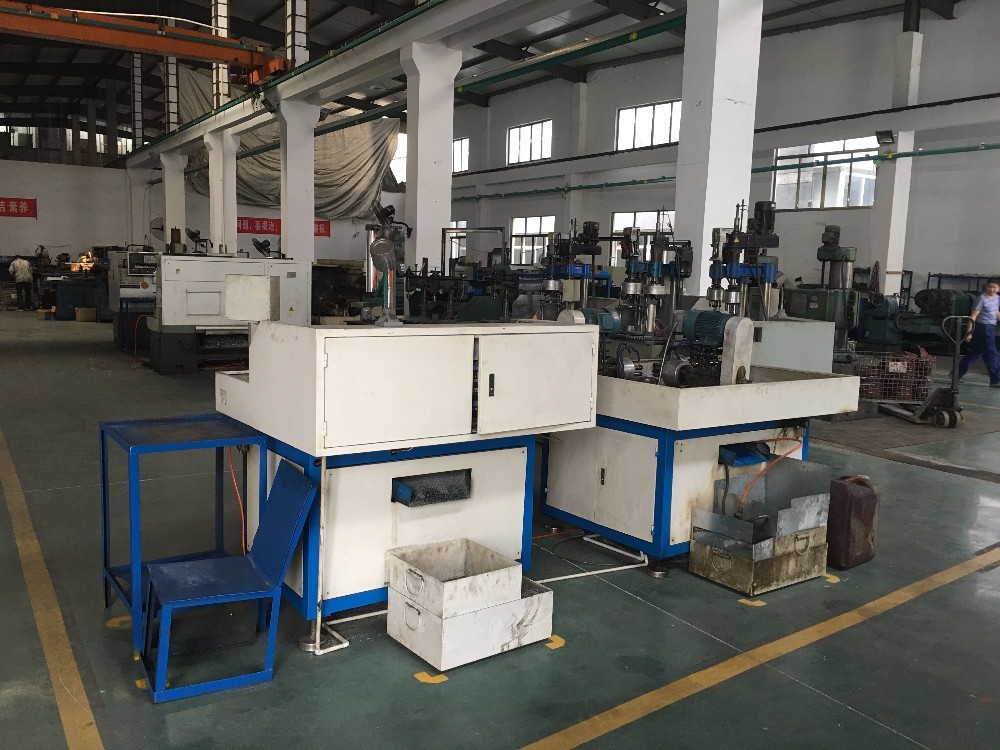

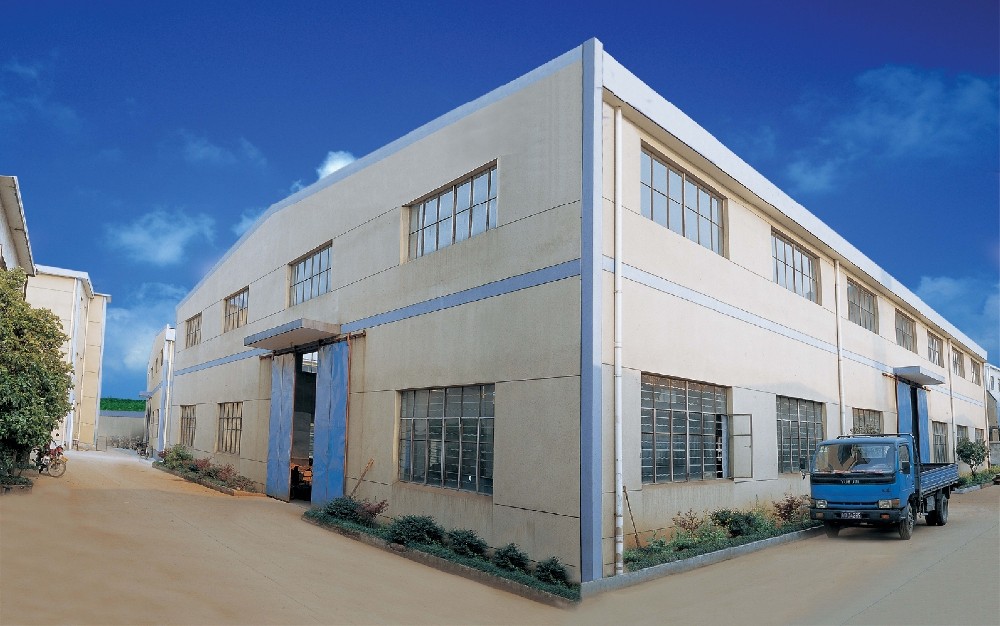

Manufacturing Capabilities

As a specialized manufacturer of small and medium-sized electrical machinery, we utilize advanced technical forces and high-efficiency production facilities. All products conform to IEC standards and have achieved international quality certifications including ISO 9001:2008, CE conformity, and CCC authentication.

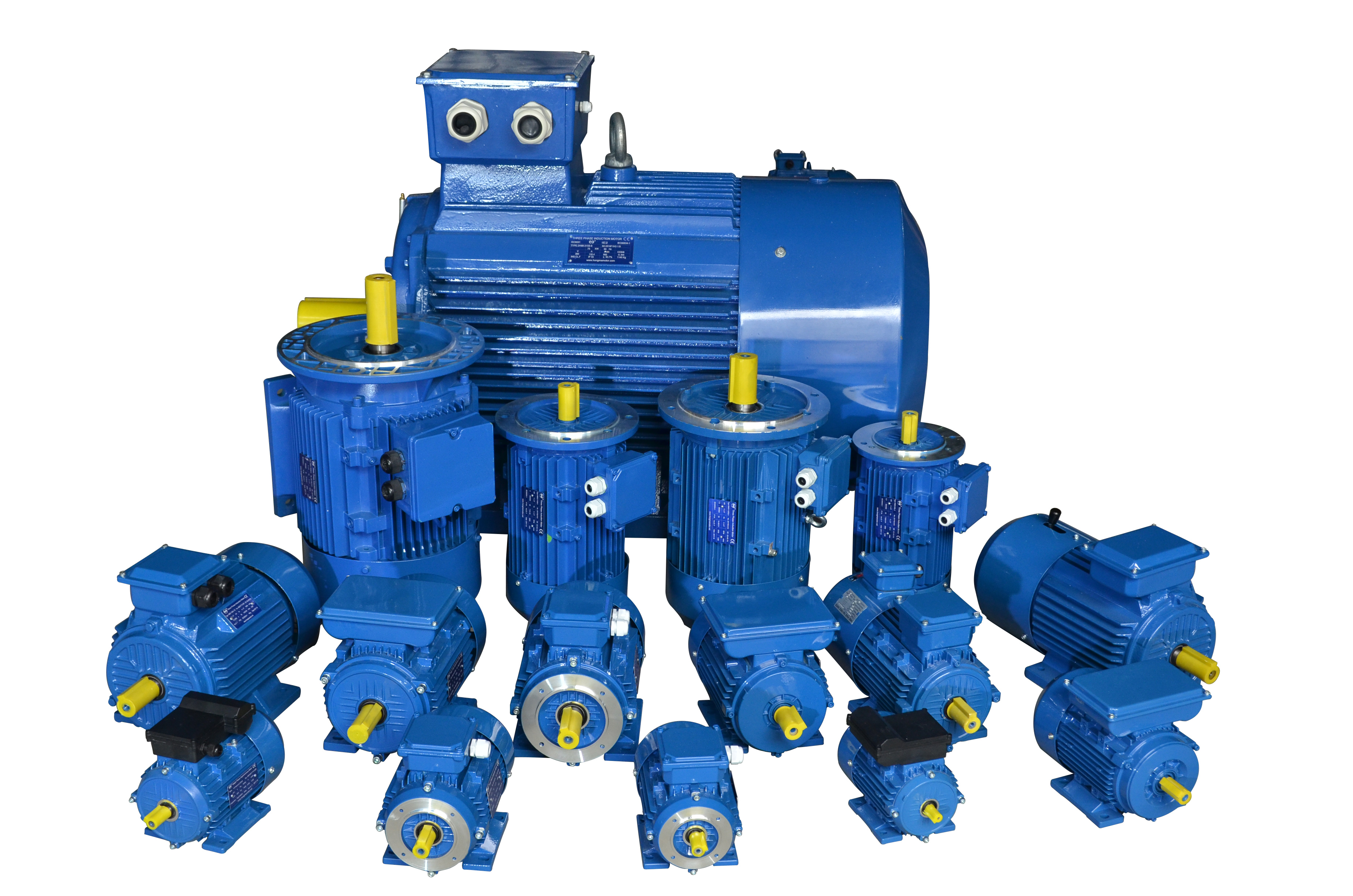

Main Product Range: 1HM/2HM/3HM Series Three Phase Motors, ML/MU/MY/MB Single Phase Motors, HMD Variable Speed Motors, HMEJ Self-Braking Motors, HMVP Integrated Frequency Inverter Motors, ST Series Servo Motors, and specialized Pump/Compressor Motors.

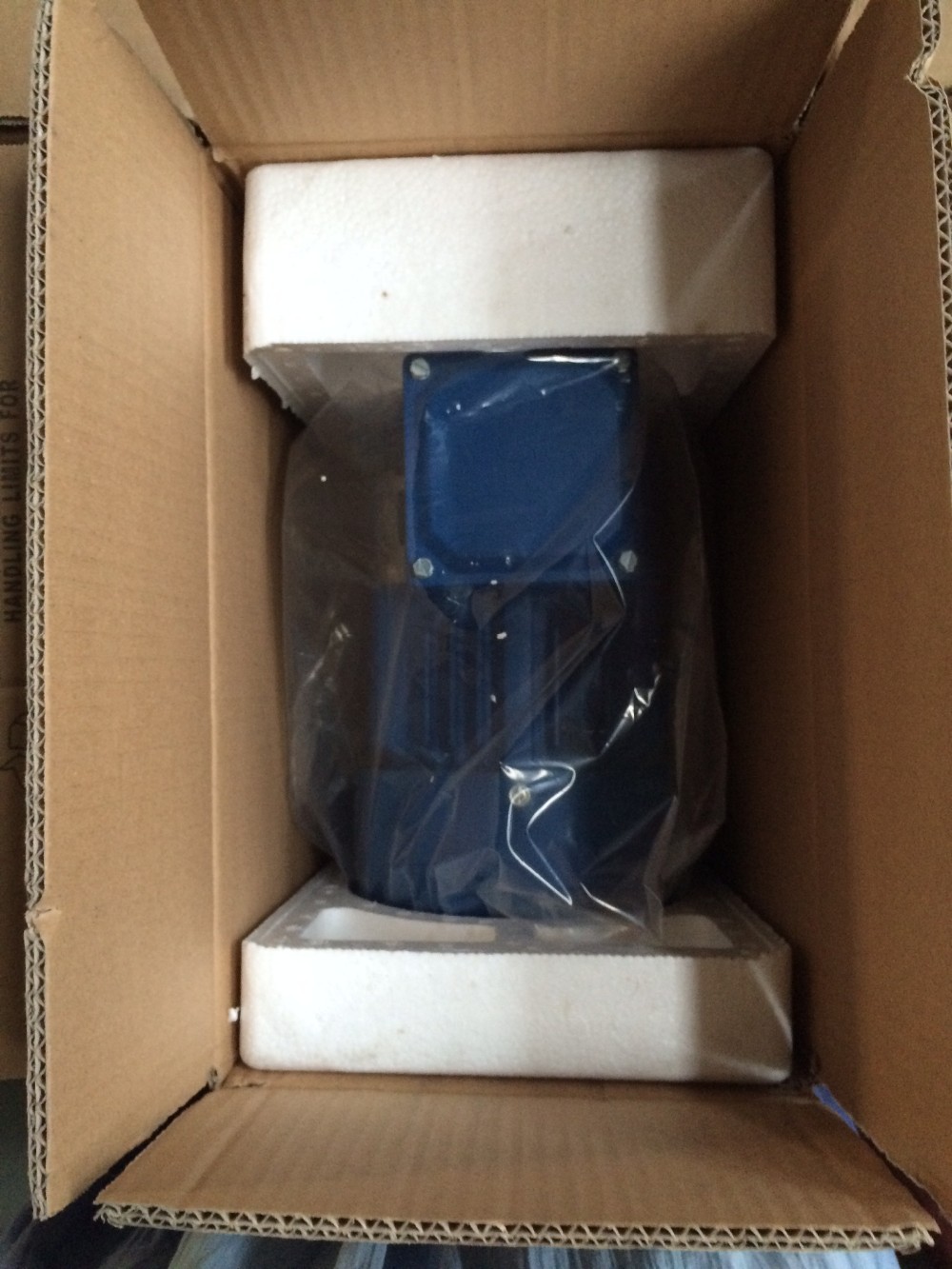

Packing & Delivery

Frame 56 to 132

Packed by carton box, then in wooden pallets.

Bulk Packing

Multiple units secured in wooden pallets.

Frame up to 160

Single set packed per wooden pallet.

Delivery Lead Time

Standard delivery usually takes 10-45 working days.

Certifications
Why Choose Us
  • Strict Quality Control: Dedicated QC department ensures each batch is produced and packed to high standards before shipment.
  • Flexible Payment Terms: We accept T/T, L/C, D/P, and D/A.
  • Trade Assurance: 100% protection for customer rights through Trade Assurance programs.
  • Extensive Experience: Over 25 years of industry experience providing high-quality, cost-effective solutions.
  • Inventory Management: Adequate stock to ensure short delivery periods for standard products.
Recommend Products

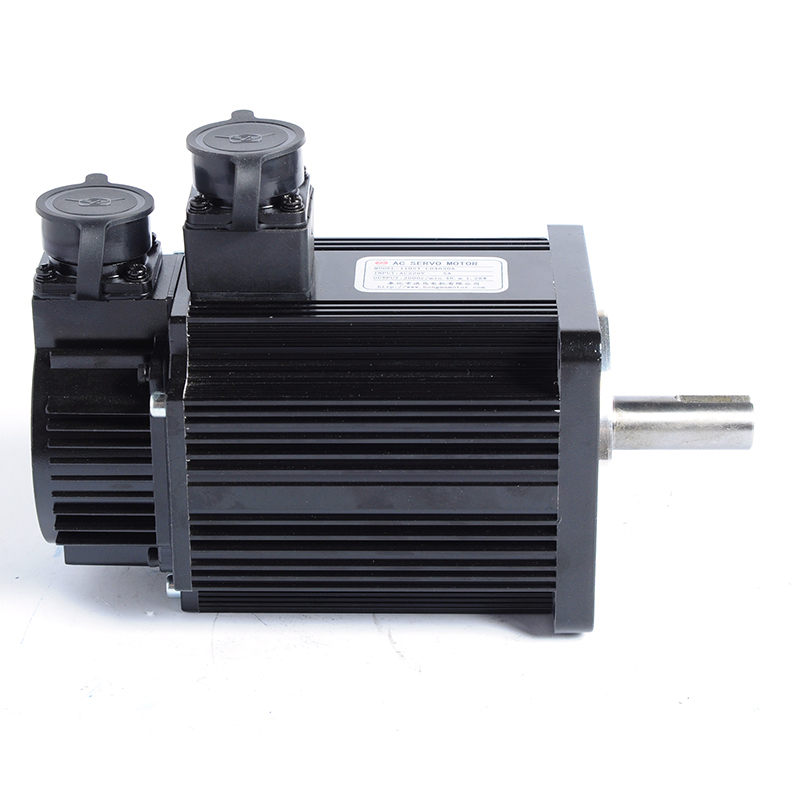

1.2kw AC Servo Motor Kit 110ST-L04030 4N.M

Standard IEC Electric Motor Low Vibration

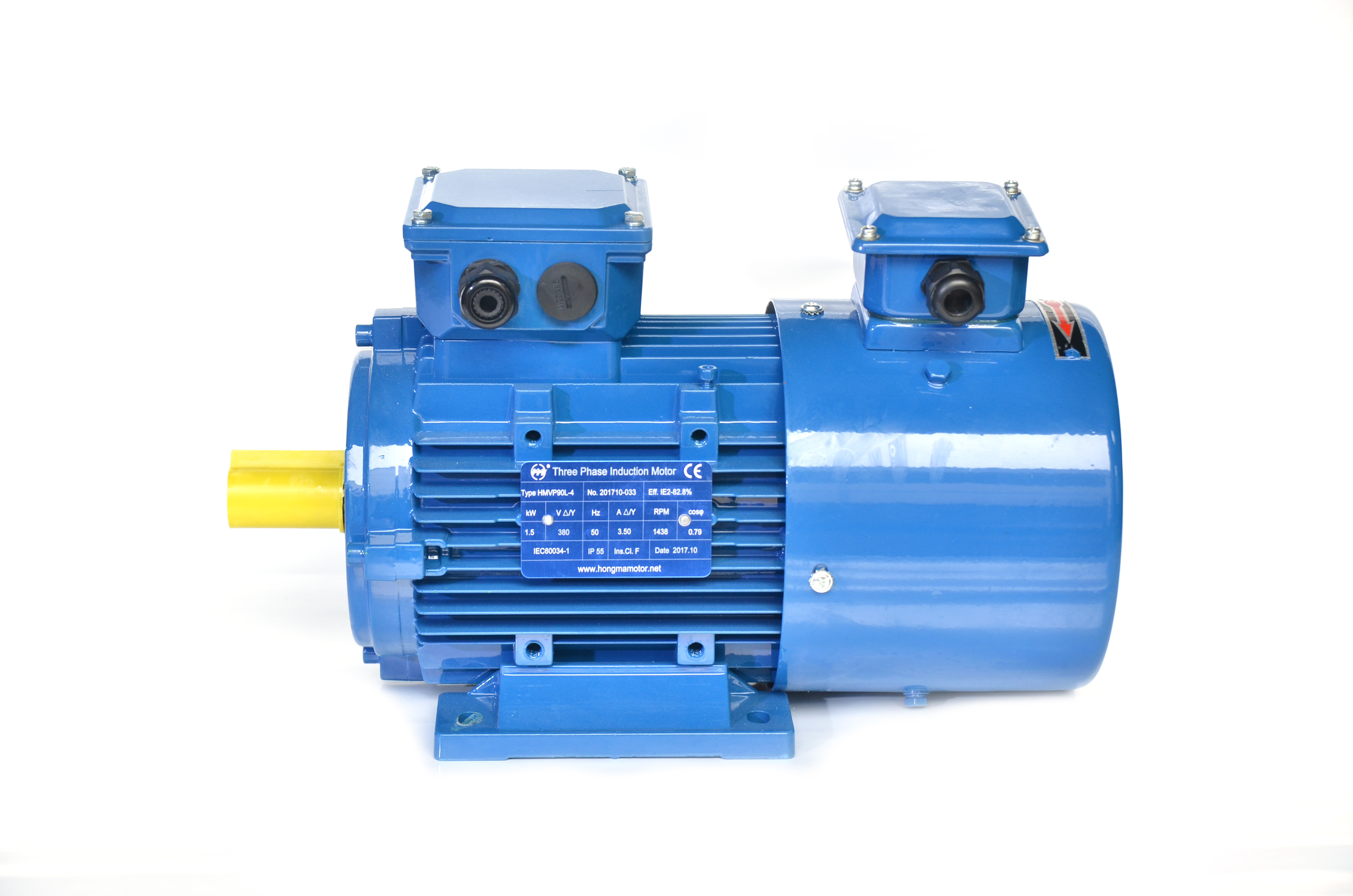

HMVP (YVP) Series Integrated Frequency Inverter Motor

YE3 Series High Efficiency Aluminum Housing AC Motor

Frequently Asked Questions
Do you accept OEM orders for these motors?
Yes, OEM orders for the 380V 0.5hp three-phase induction motors are fully acceptable and customizable to your requirements.
What are the available payment methods?
We accept T/T (30% deposit and 70% before delivery), PayPal, Western Union, and Money Gram.
How long does shipping and delivery take?
Typically, delivery takes 10-45 working days depending on the specific product and order quantity.
What modes of transportation are supported?
We support multiple shipping options including Express (courier), Air freight, and Ocean shipments.
Is every motor tested before it leaves the factory?
Absolutely. We conduct 100% testing on all goods before delivery to ensure optimal performance and safety.
What certifications do your motors carry?
Our products are manufactured in conformity with IEC standards and hold ISO 9001:2008, CE, and China CCC authentication.
