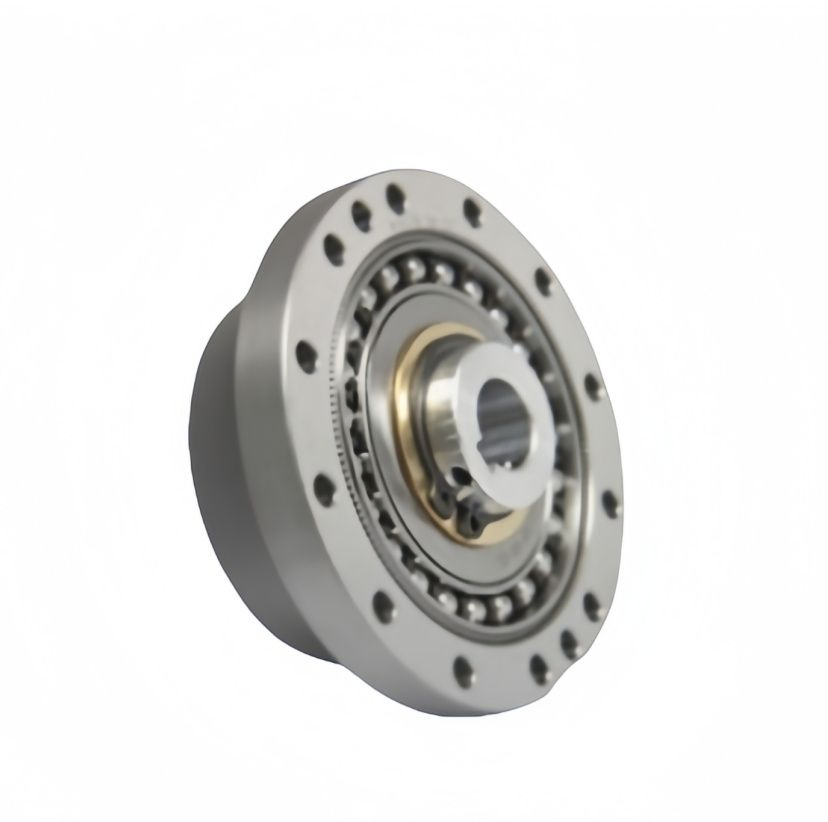

The HMCG-I Series Harmonic Reducer is a high-precision component designed for aerospace, robotics, semiconductors, power inspection, and automation equipment. It represents the pinnacle of modern transmission technology.
Utilizing a transmission mode invented in 1955, the HMCG-I series relies on elastic deformation for movement and power transmission. By replacing traditional rigid components with flexible ones, it achieves enhanced functionality and precision that standard gears cannot match.

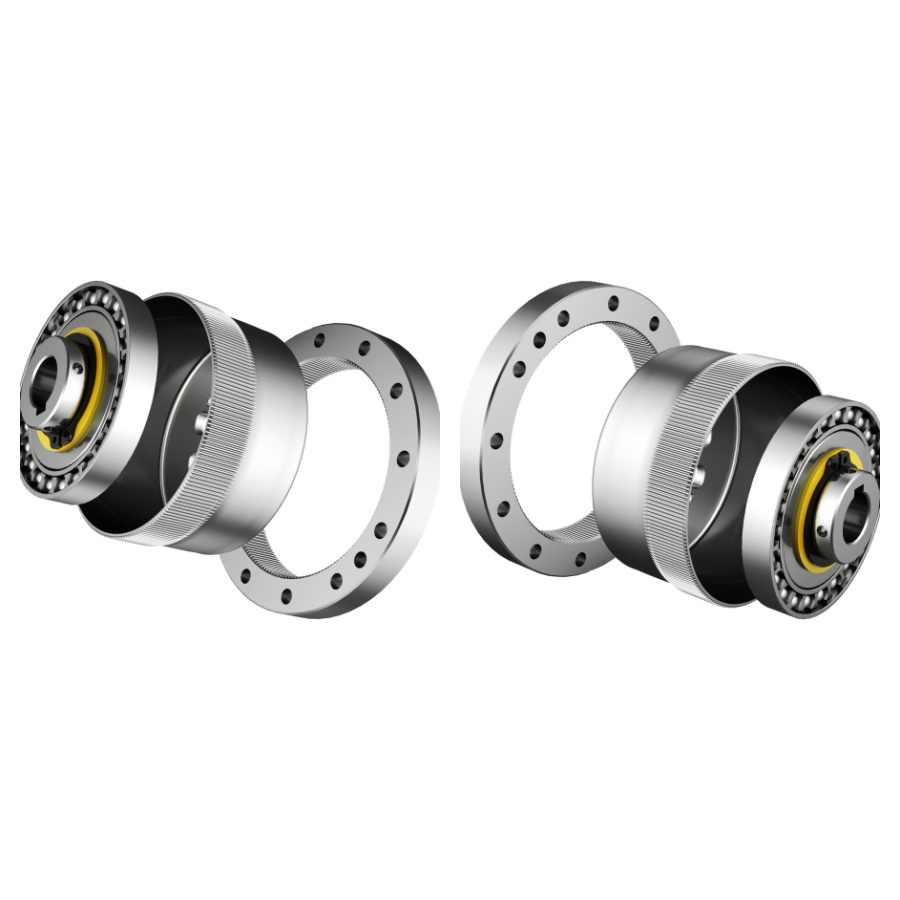

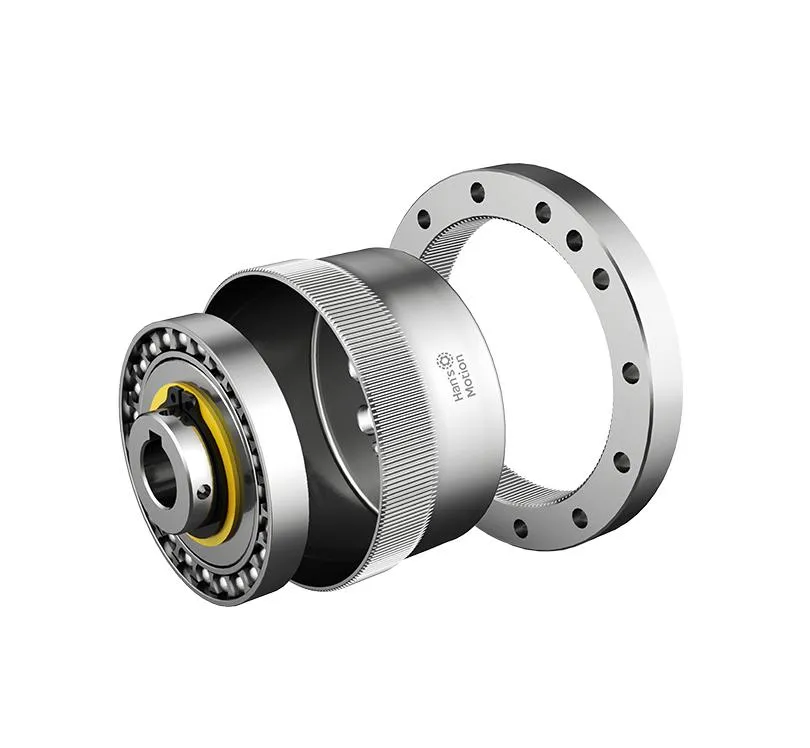

This series operates through the seamless interaction of the flexwheel, rigid wheel, and wave generator. This synergy ensures precise and efficient movement transmission, critical for high-stakes industrial applications.
| Model | Ratio | Rated Torque (Nm) | Peak Torque Start/Stop (Nm) | Max Ave Load Torque (Nm) | Max Input Speed (r/min) | Ave Input Speed (r/min) | Backlash (arc sec) | Accuracy (arc sec) |
|---|---|---|---|---|---|---|---|---|
| 14 | 50/80/100 | 7 - 10 | 23 - 36 | 9 - 14 | 8000 | 3500 | ≤ 10-20 | 90 |
| 17 | 50/80/100 | 21 - 31 | 44 - 70 | 34 - 51 | 7000 | 3500 | ≤ 10-20 | 90 |
| 20 | 50-120 | 33 - 52 | 73 - 113 | 44 - 64 | 6000 | 3500 | ≤ 10-20 | 60 |
| 25 | 50-120 | 51 - 87 | 127 - 217 | 72 - 140 | 5500 | 3500 | ≤ 10-20 | 60 |
| 32 | 50-120 | 99 - 178 | 281 - 459 | 140 - 281 | 4500 | 3500 | ≤ 10-20 | 60 |
| 40 | 50-120 | 178 - 382 | 523 - 802 | 255 - 586 | 4000 | 3000 | ≤ 10 | 60 |
The Industrial Robot Ultra-Thin Series Hmcg Harmonic Precision Reducer provides unmatched performance and reliability. Its advanced gearbox technology guarantees smooth operation for CNC machine tools, joint robots, and medical equipment.
