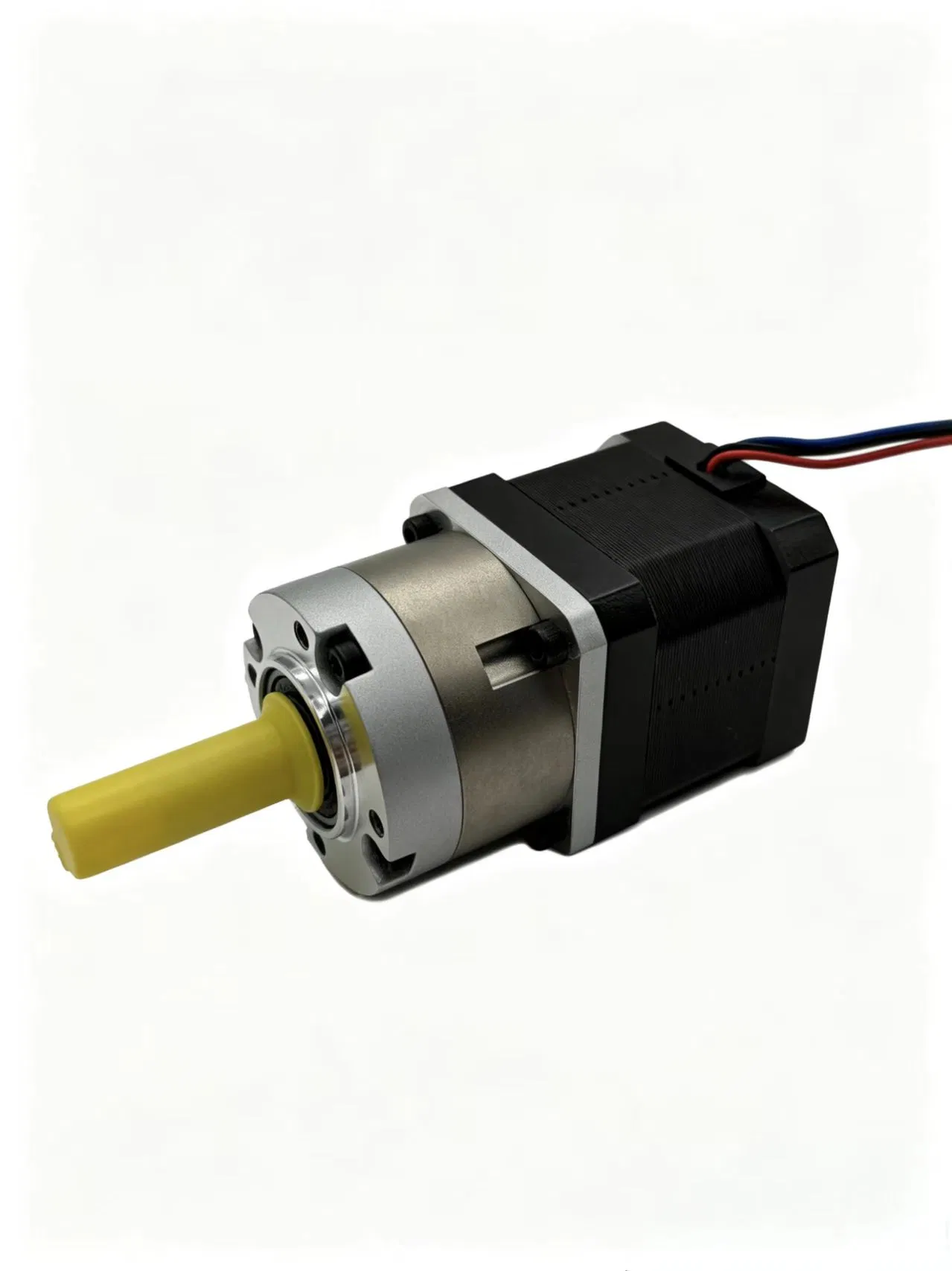

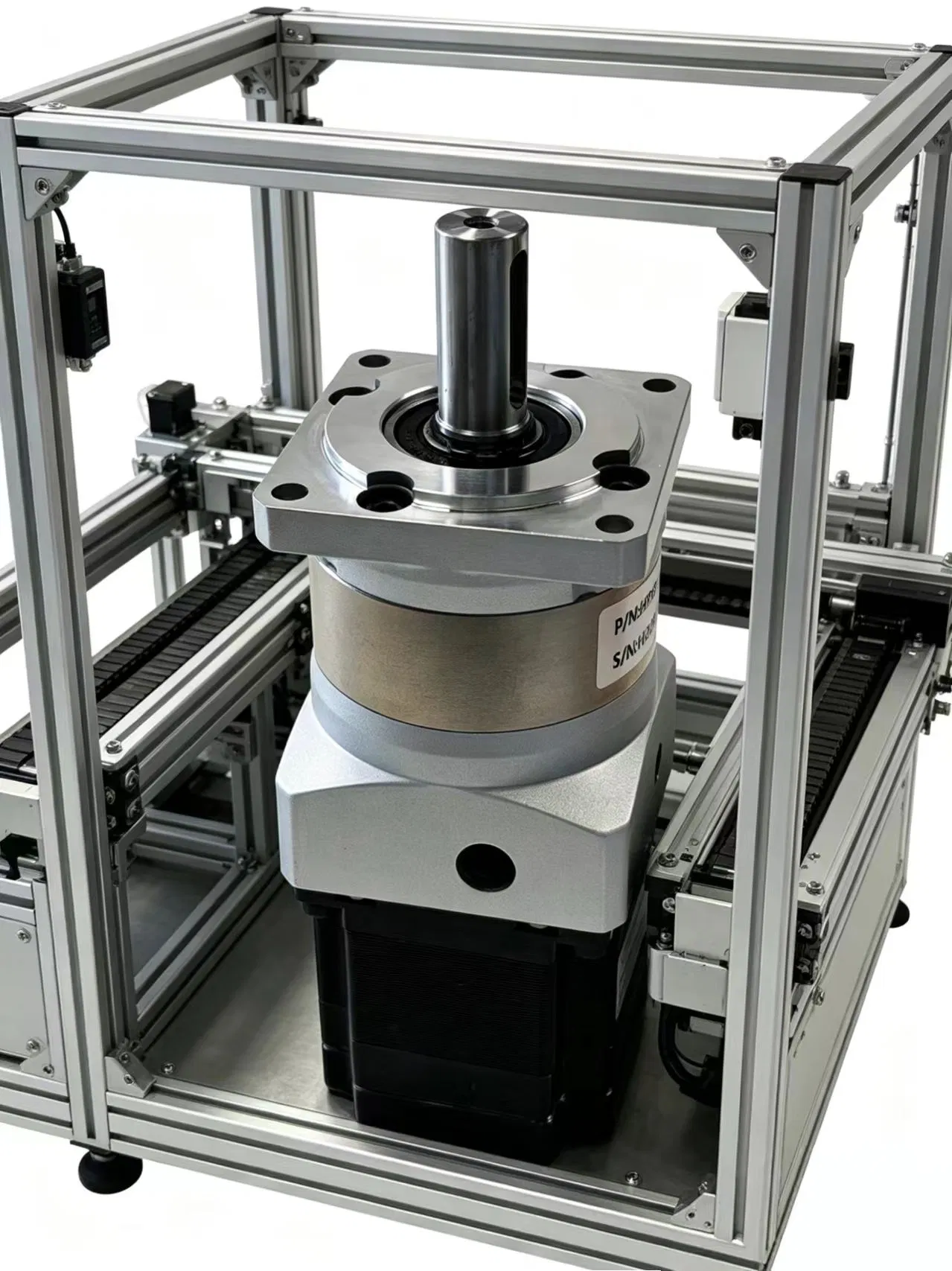

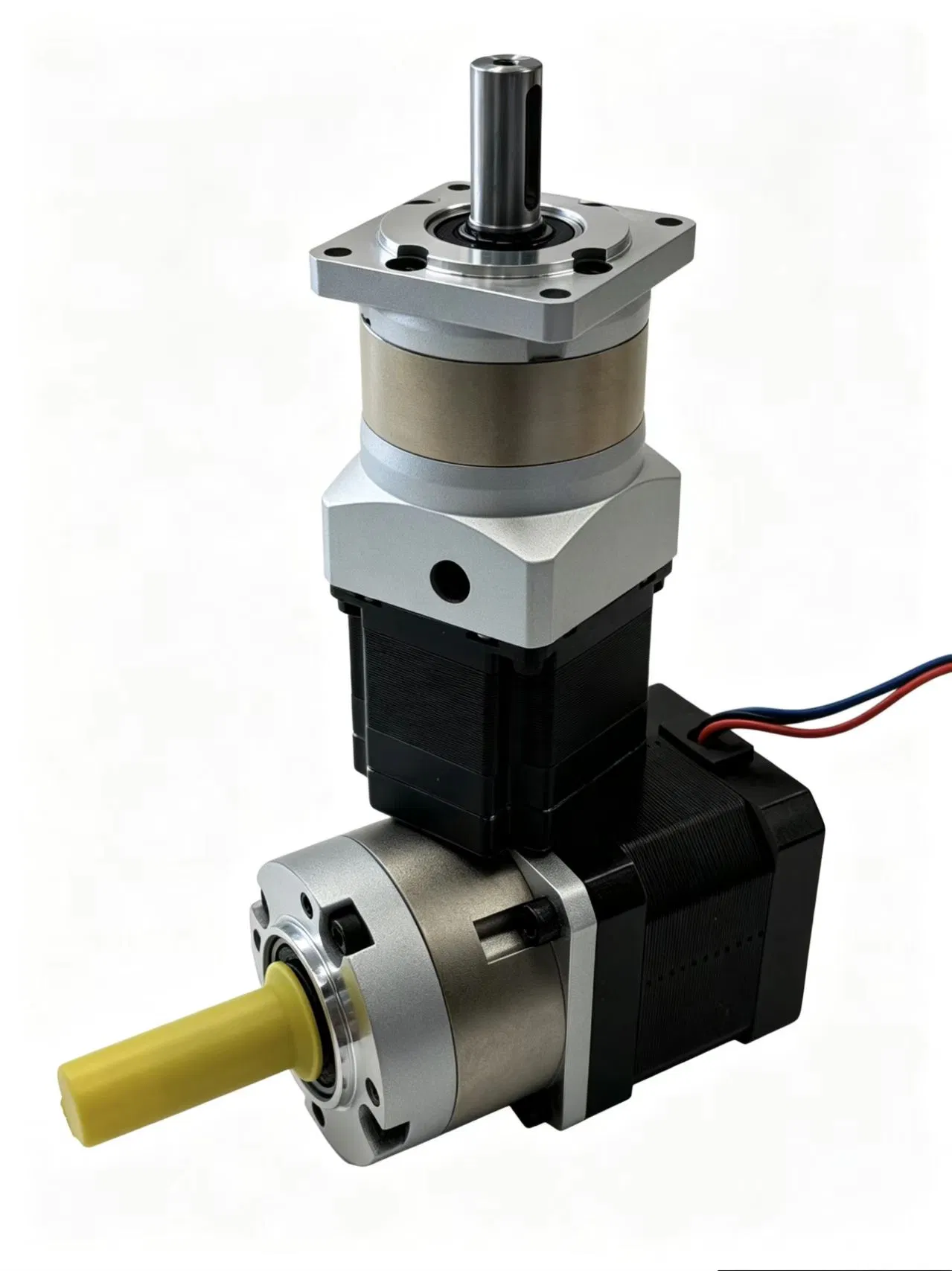

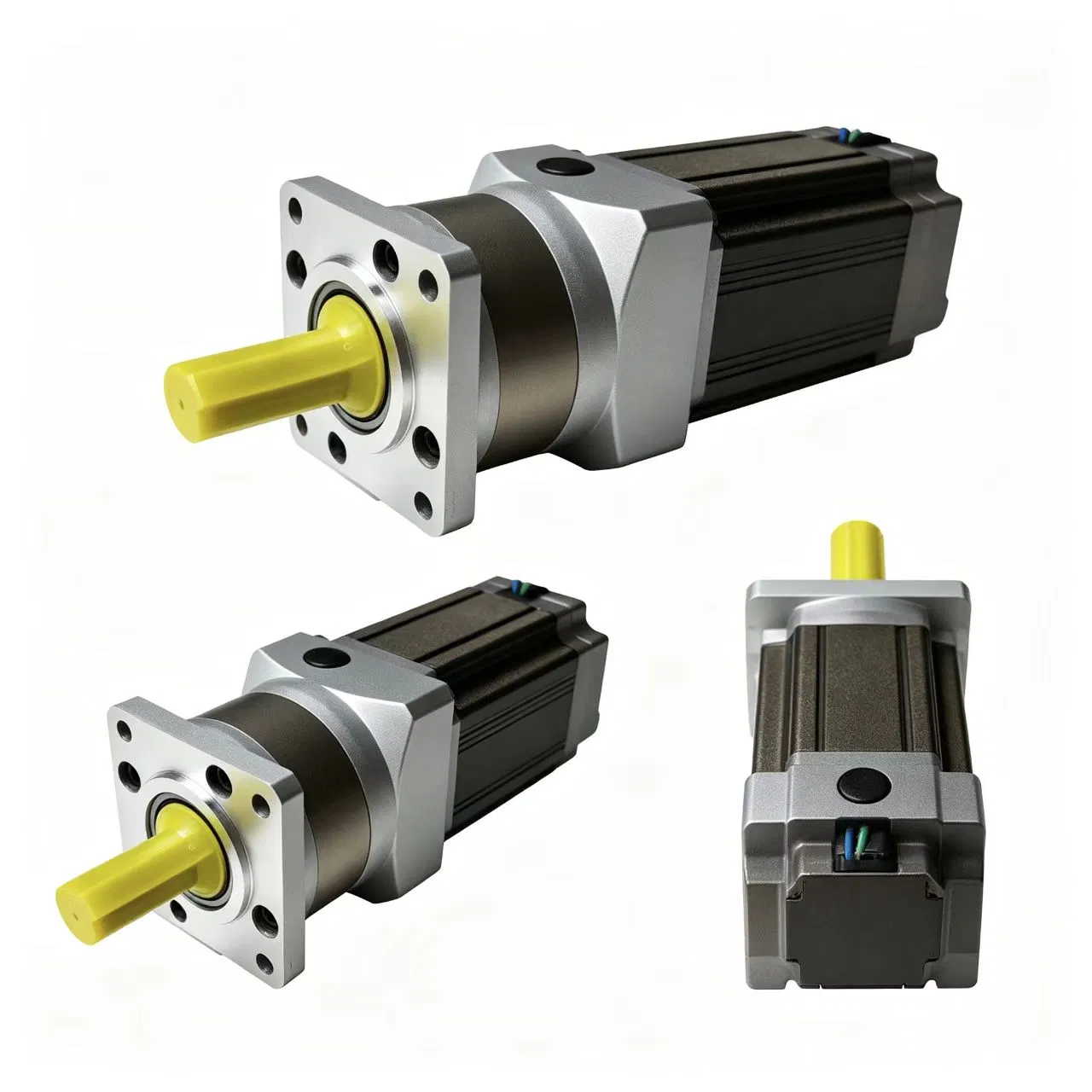

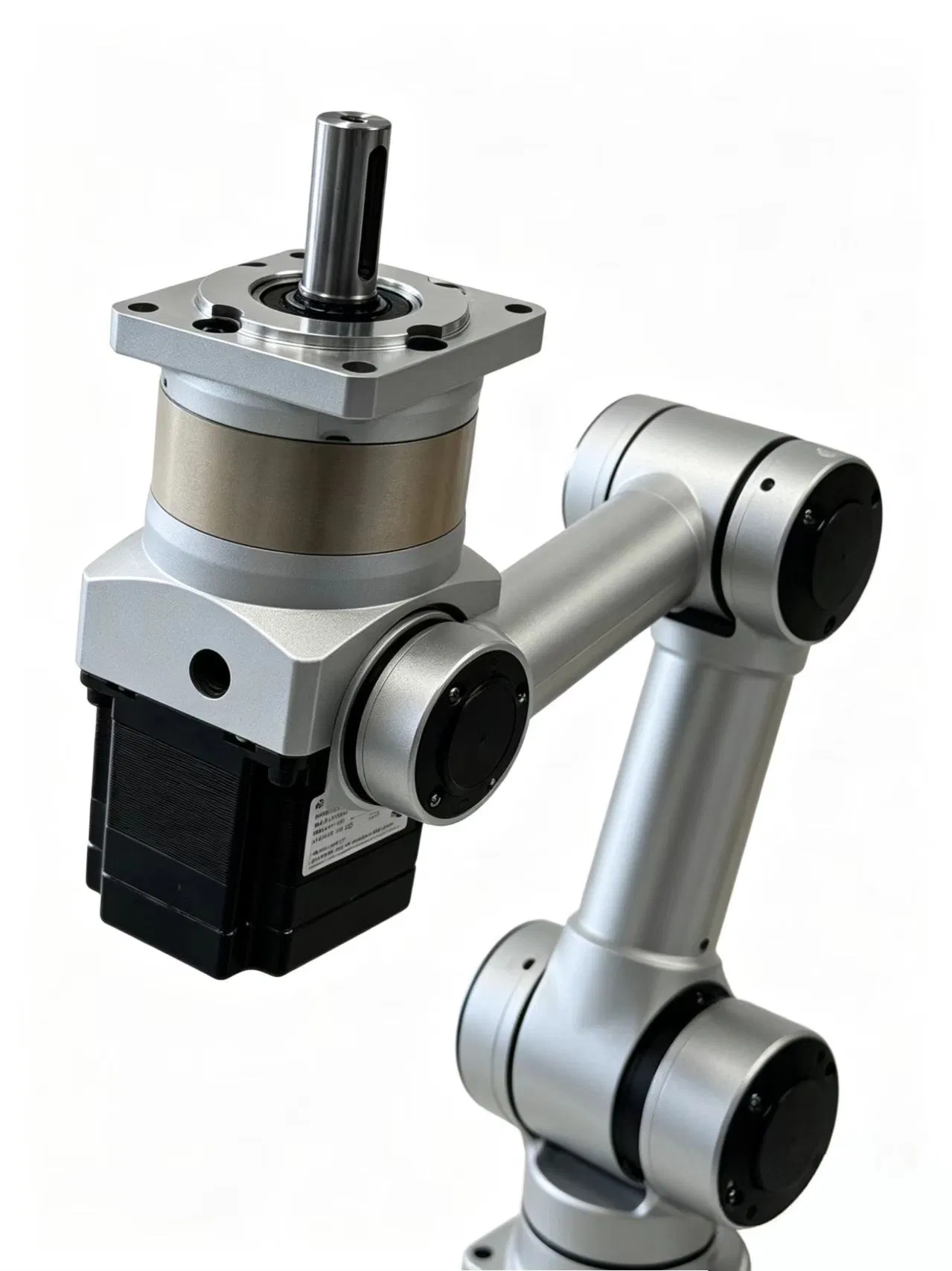

Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device
Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device
Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device
Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device
Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device
1 / 5
Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device
Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device
Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device
Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device
Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device

Delixi 42mm Precision Planetary Reduction Motor High Efficiency 42mm Gearbox Stepper Motor for Medical Device

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🌐 Overview
Model NO.
Gearbox + motor 4204
Reduction Ratio
3-100
Efficiency
96%
Backlash Gap
<=15 Arcmin
Noise
<=55db
Waterproof
IP54
Lifetime
20000 Hours
Ambient Temp
-20℃ to 150℃
Specification
42mm
HS Code
8483402000
📦 Product Description

High-precision gear planetary reducer. Suitable for stepper motors, servo motors, brushless motors, and brushed motors.

Precision Planetary Reducer Overview

A planetary gearbox features the same center of rotation for both input and output. The structure reduces the transmission speed ratio while increasing motor torque proportionally. These are ideal for applications requiring high efficiency and high reduction ratios in small spaces.

⭐ Key Features
  • High efficiency: Single-stage efficiency reaches over 95%
  • High precision: Generally less than 10-15 arc minutes
  • Strong bearing capacity: Radial load capacity up to 20000N
  • Compact structure: Small outer diameter for space-saving
  • Low noise: Operation levels usually below 65dB
  • Long lifespan: Service life up to 20,000 hours

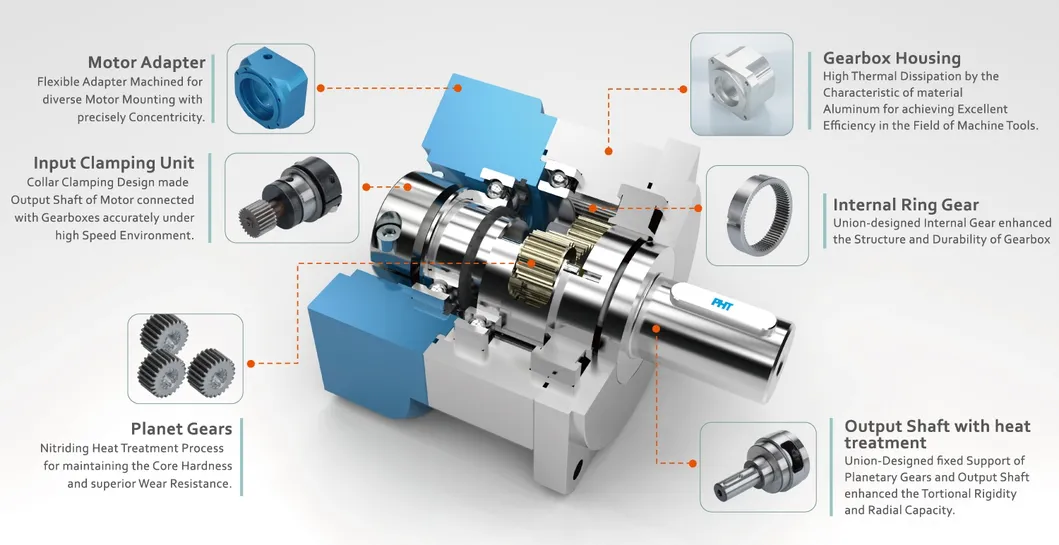

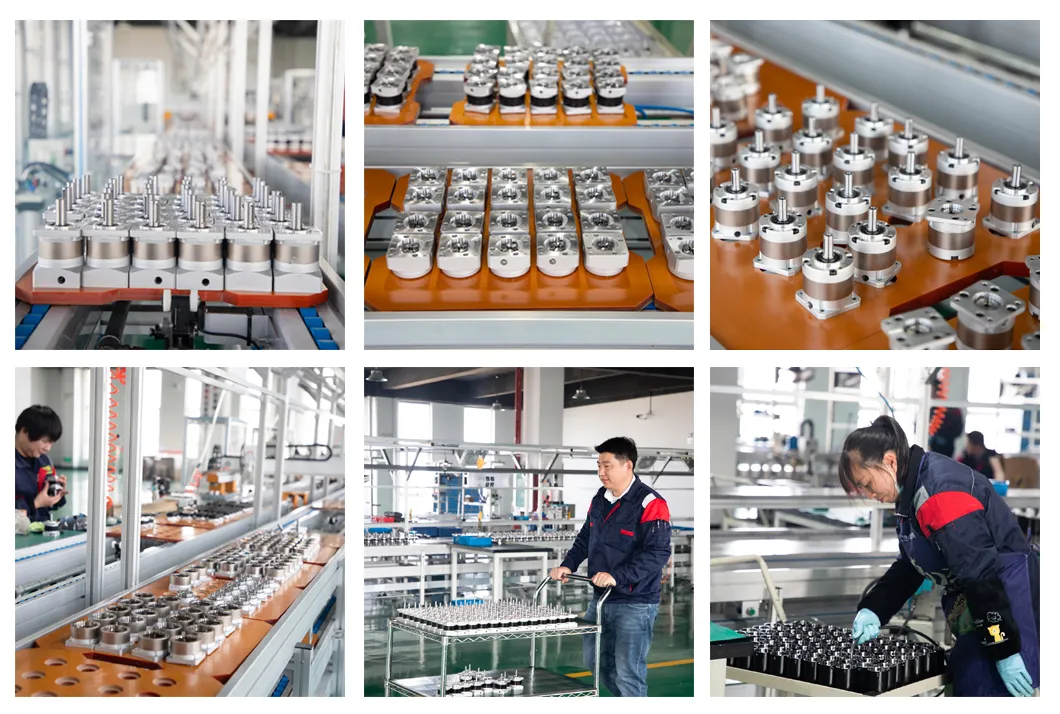

Feature Details Technical Drawing
🚀 Applications

Perfect for increasing torque, reducing speed, accurately positioning and controlling reproducible machinery. Widely used in medical devices and industrial automation.

Application Scenarios
🔍 Detailed Specifications

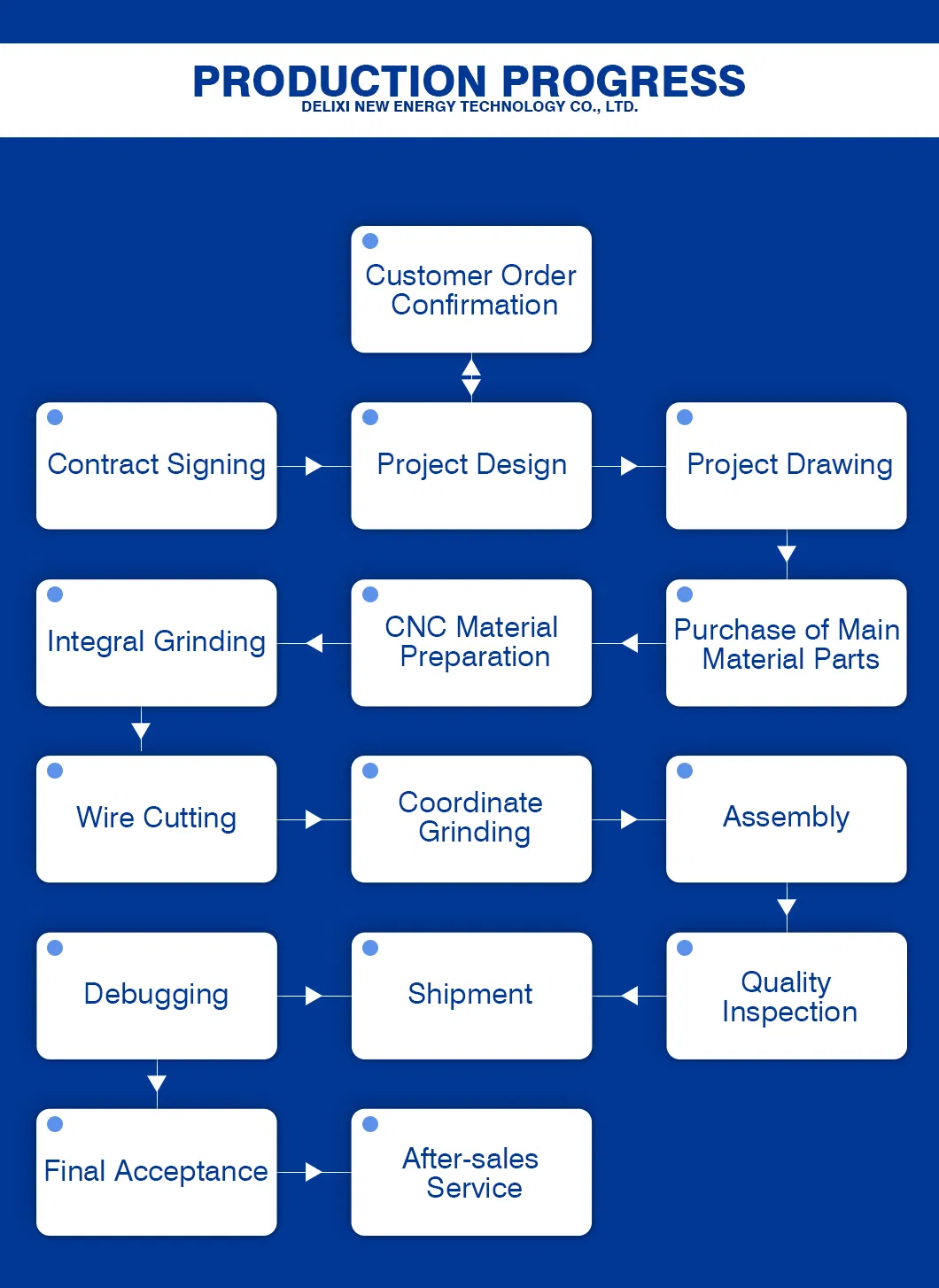

Detail 1 Detail 2 Detail 3
Detail 4 Detail 5 Detail 6

Various models available ranging from 22-130mm reducers and 42-86mm motors. Technical parameters and drawings can be provided upon request.

❓ Frequently Asked Questions
What is the efficiency of this planetary reducer?
The single-stage efficiency of our planetary reducers can reach over 95%, ensuring minimal energy loss during transmission.
What motors are compatible with this gearbox?
Our 42mm series is designed to be highly versatile, compatible with stepper motors, servo motors, brushless motors, and brushed motors.
How long is the expected service life?
Under standard operating conditions, the high-reliability design allows for a service life of up to 20,000 hours.
What is the noise level during operation?
The gearbox is engineered for quiet operation, with noise levels typically maintained below 55dB to 65dB.
What is the precision/backlash gap for this model?
This high-precision model offers a backlash gap of less than or equal to 15 Arcmin, making it ideal for accurate positioning.
Can it withstand extreme temperatures?
Yes, the gearbox is rated for an ambient temperature range of -20℃ to 150℃, suitable for diverse industrial environments.
