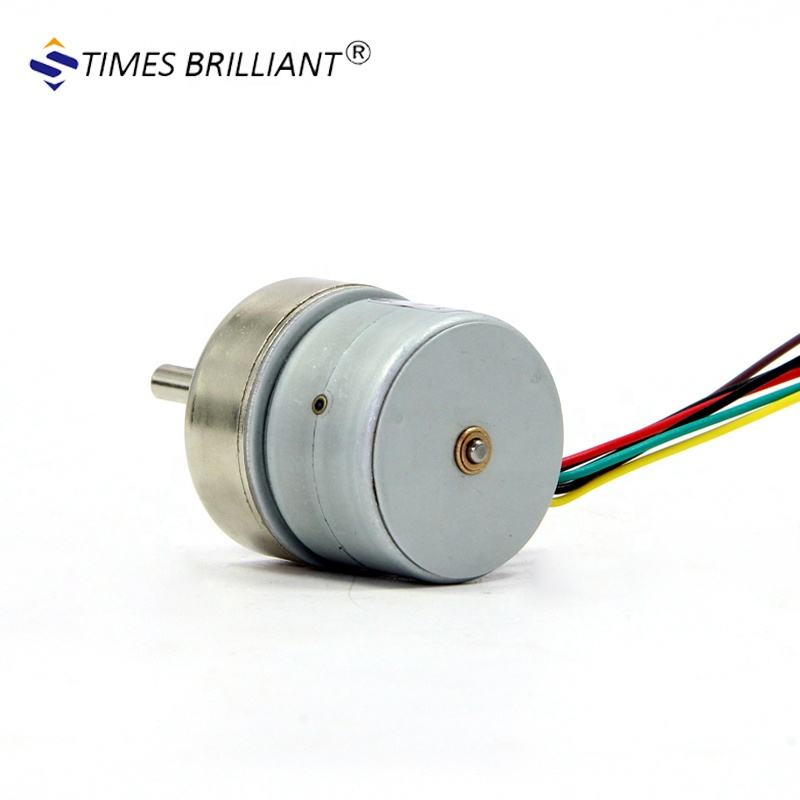

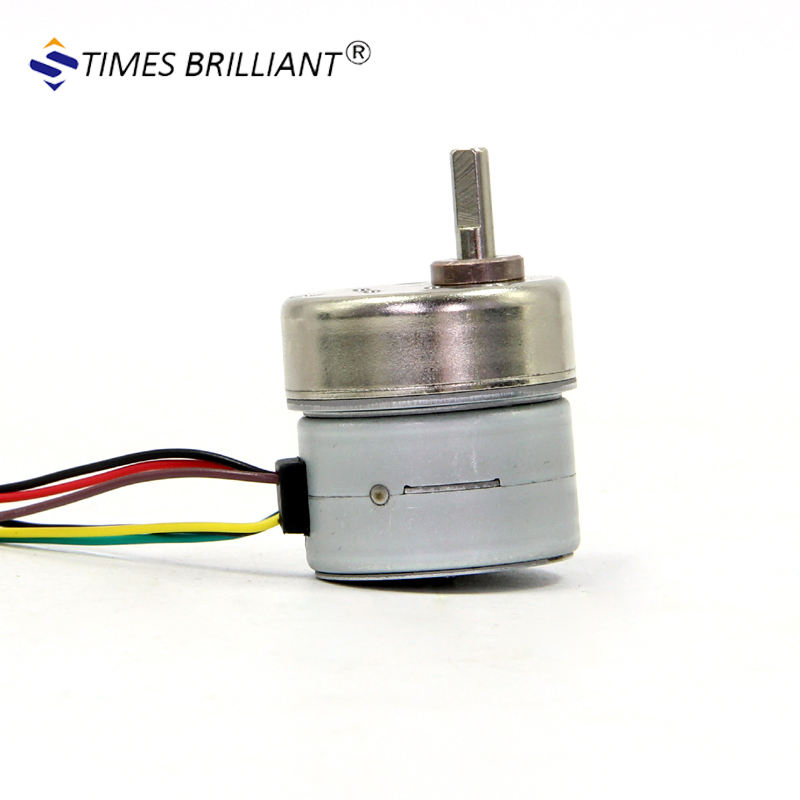

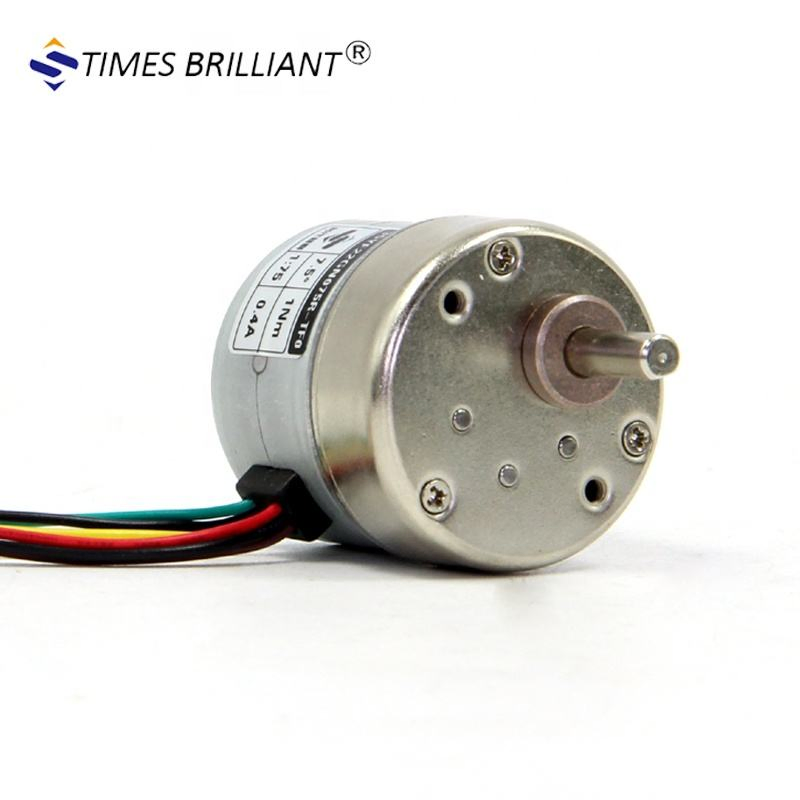

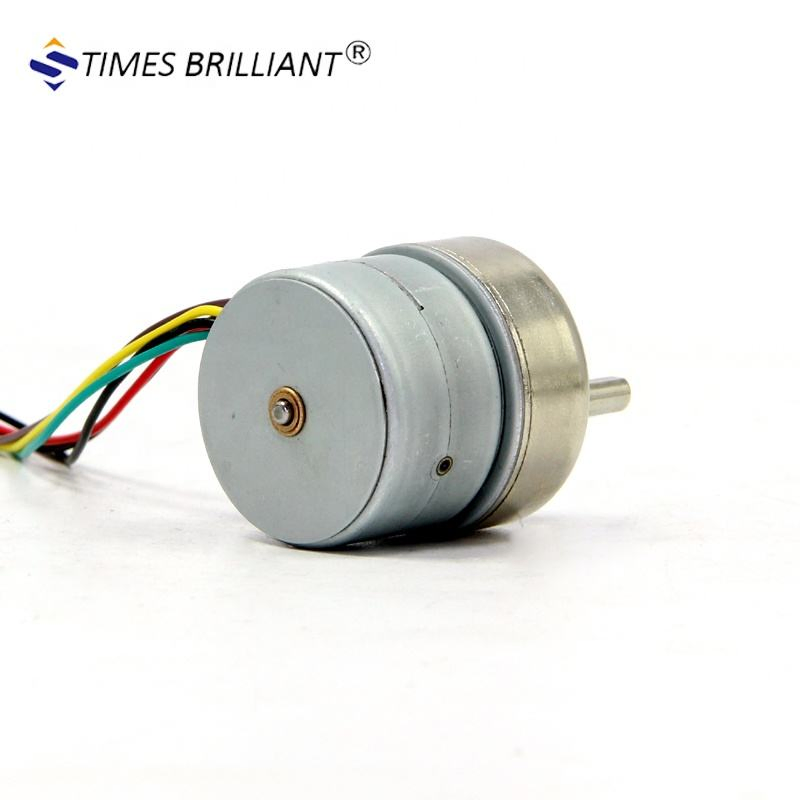

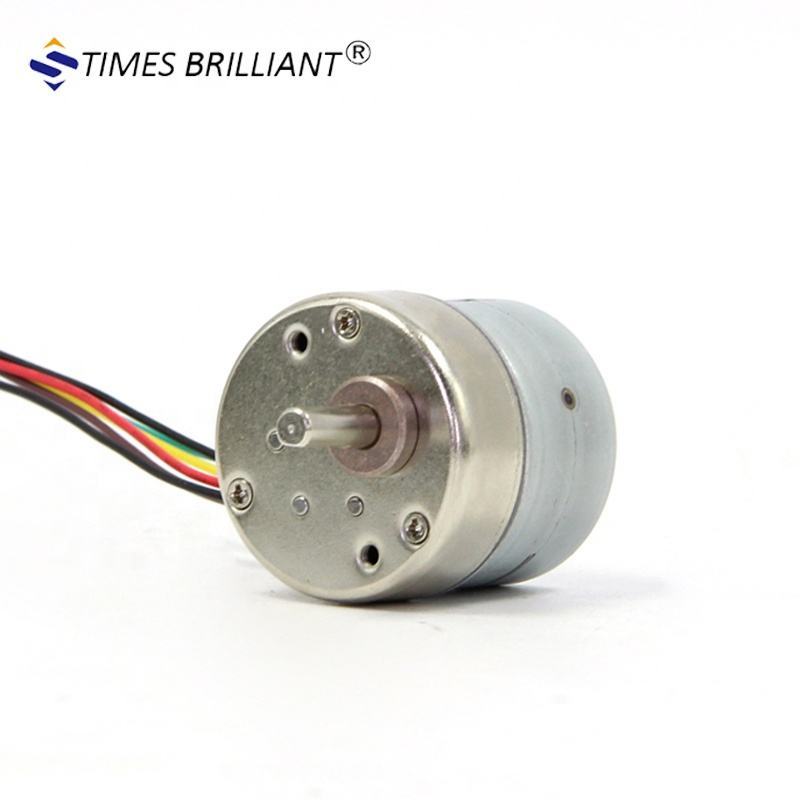

China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device
China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device
China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device
China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device
China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device
1 / 5
China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device
China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device
China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device
China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device
China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device

China Low Cost 0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope or Medical Device

Customization: Available
Application: .
Speed: .
Send Inquiry

Product Description

Technical Specifications

Model NO.
35YF22GN120R-TF0
Type
Hybrid
Torque
160n.Cm
Phase
2/4
Current / Phase
0.4A
Temperature Rise
-25 ℃ to +55 ℃
Motor Width
35mm
Resistance
30Ω±10
Mass
0.15kg
Voltage
12V
Insulation Grade
E Class
Gear Ratio
120

Packaging & Delivery

Package Size
11.00cm * 11.00cm * 11.00cm
Gross Weight
5.000kg
Package Type
Polyfoam, Cardboard Carton

Product Description

China low cost 0.4A 1NM 3rpm mini 12V stepper motor with geared ratio 120 for telescope or Medical device
Stepper Motor Banner

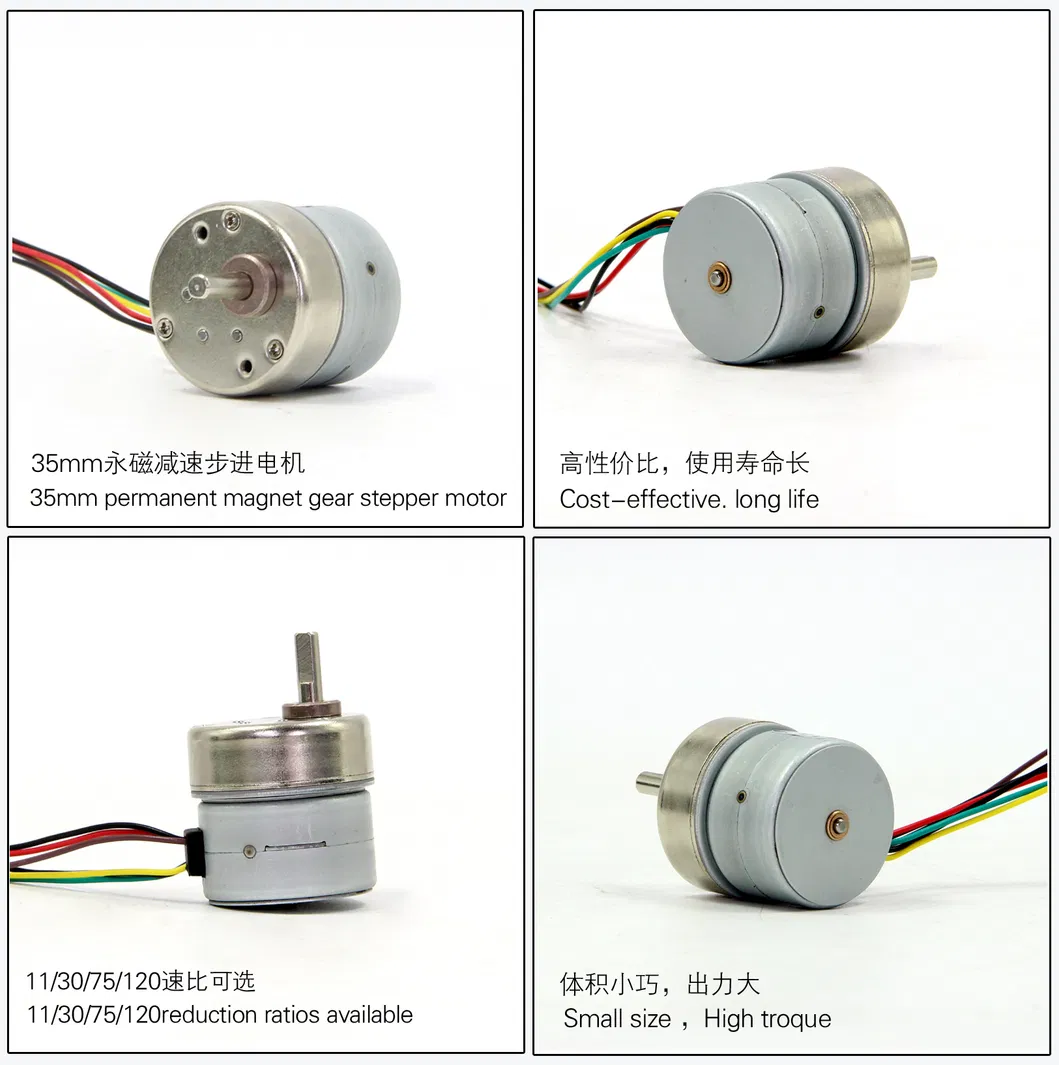

Product Detail

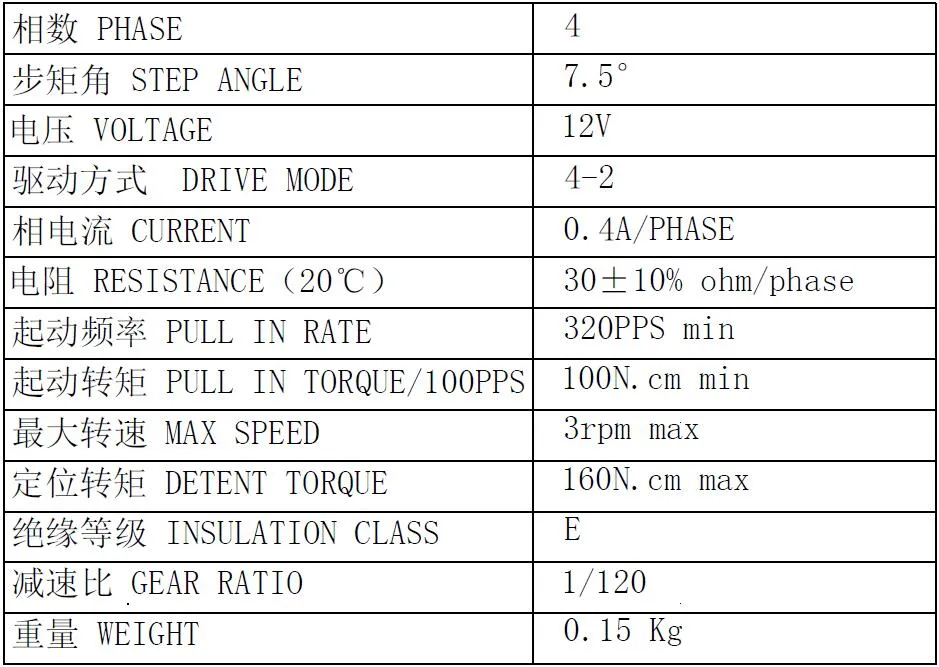

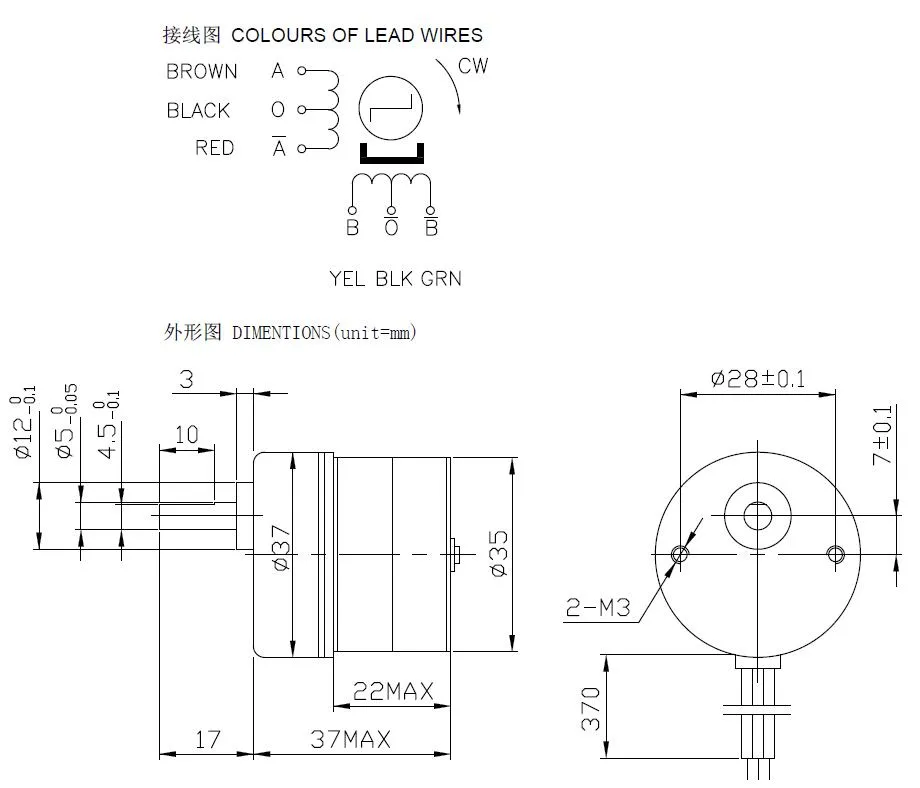

Technical Drawing
Note: The motor contains magnetic components, so magnetic inspection fees may apply during transportation. Large quantities may be exempt from this requirement.
Divider
Feature Header
Performance Chart

Related Products Table

Model Phase Step Angle(°) Torque (Nm) Ratio Current(A) Resistance(Ω)
35YF22GN011R-TF02/47.50.11:110.430
35YF22GN030R-TF02/47.50.31:300.430
35YF22GN075R-TF02/47.50.81:750.430
35YF22GN120R-TF02/47.511:1200.430
42YF22GN010S-TF02/47.50.11:100.430
42YF22GN025S-TF02/47.50.31:250.430
42YF22GN050S-TF02/47.50.61:500.430
42YF22GN120S-TF02/47.511:1200.430

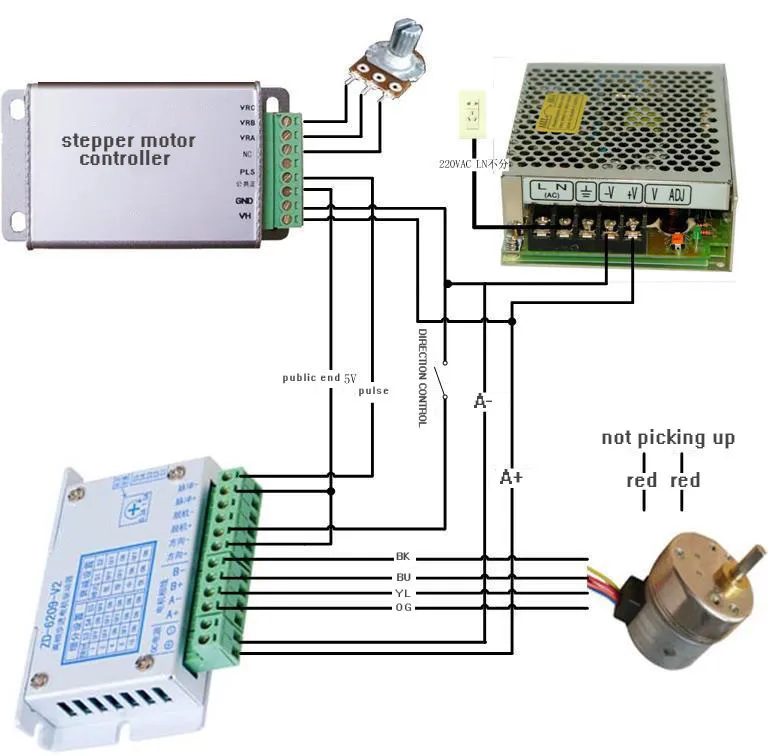

Dimensions

Quality Assurance

Services
Production
Certificates

Frequently Asked Questions

What is the primary application for this 12V stepper motor?
This motor is specifically designed for high-precision applications such as telescopes and medical devices where a geared ratio is required for controlled movement.
What does the 120 geared ratio provide?
The 1:120 ratio increases the torque output to 160n.Cm while allowing for very fine incremental steps, ideal for low-speed, high-precision tasks.
Is this motor compatible with 5V systems?
While this specific model is rated for 12V, the series includes variations that can be adapted for different voltage requirements. Please check the resistance and current specs for compatibility.
What is the operating temperature range?
The motor is designed to operate efficiently within a temperature range of -25 ℃ to +55 ℃.
Why is there a magnetic inspection fee for shipping?
As the motor contains permanent magnets, international air transport regulations require a magnetic inspection to ensure safety during transit.
What is the mass and size of the motor?
The motor has a width of 35mm and a total mass of approximately 0.15kg, making it a compact solution for mini-automation.
