QS MOTOR QS165 High Power 12000W 12KW 72V 60H Encoder PMSM Mid Drive Motor Kit
QS MOTOR QS165 high-performance powertrain featuring the ND72890B BLDC Controller. This professional-grade mid-drive system is designed for high-power electric vehicle applications, offering exceptional efficiency and reliability.

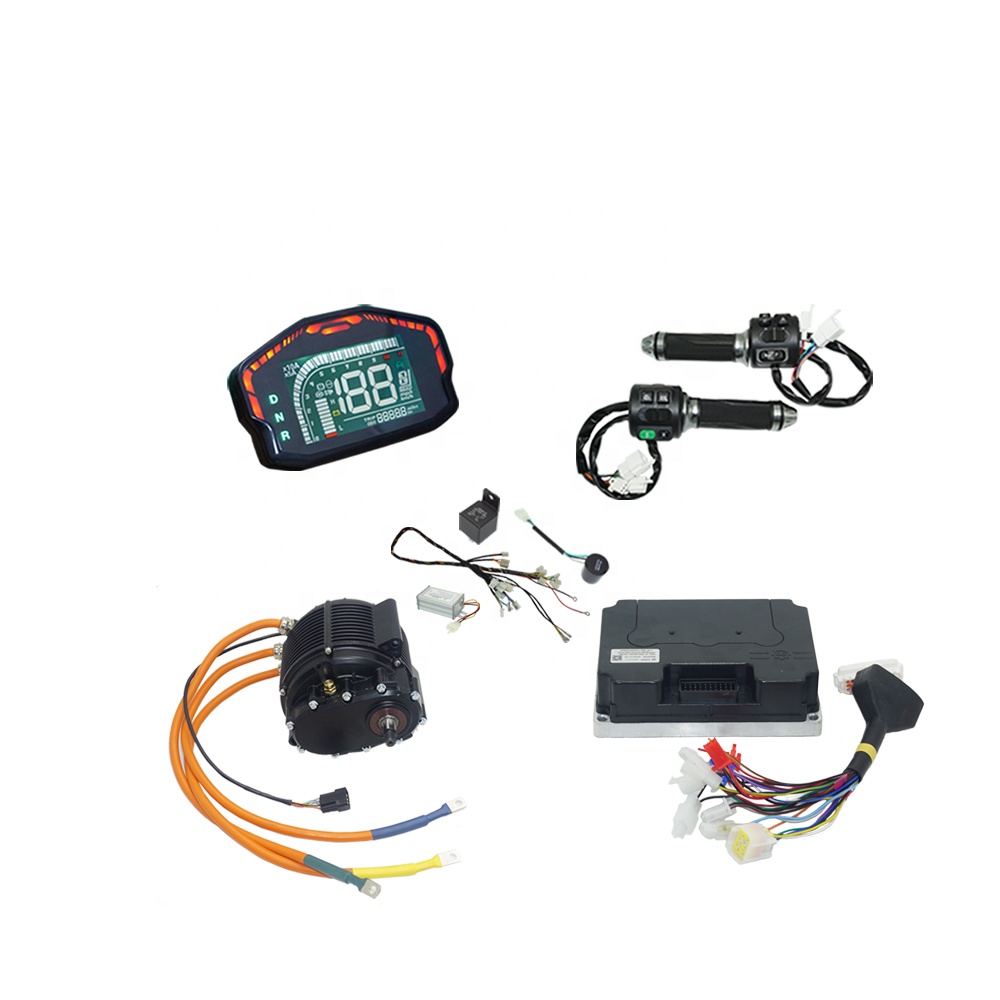

Complete Conversion Kit Components
01

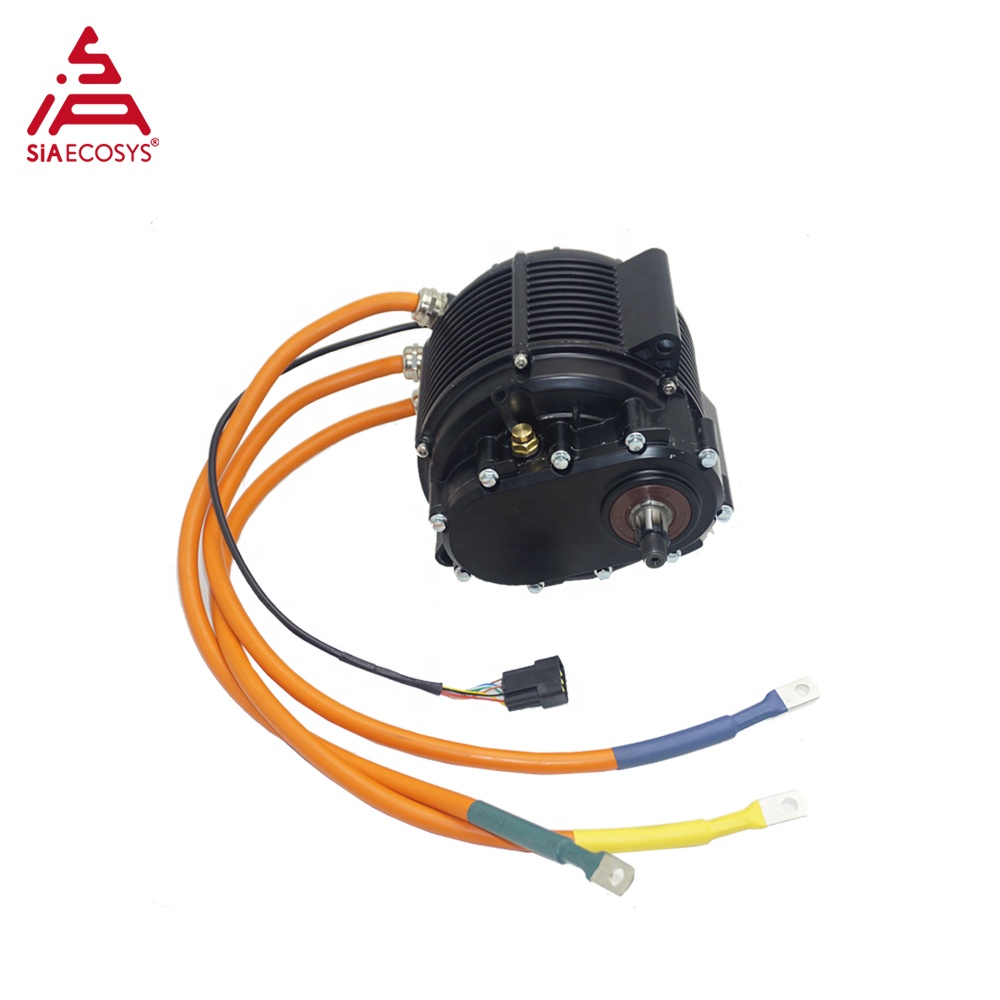

1pcs X QS165 12KW 60H Mid Drive Motor (Encoder Version)
02
1pcs X ND72890B Controller
03
1pcs X Fardriver Bluetooth Adapter
06
1pcs X Wiring Harness with Relay, Flasher, DCDC 72V to 12V 10A converter

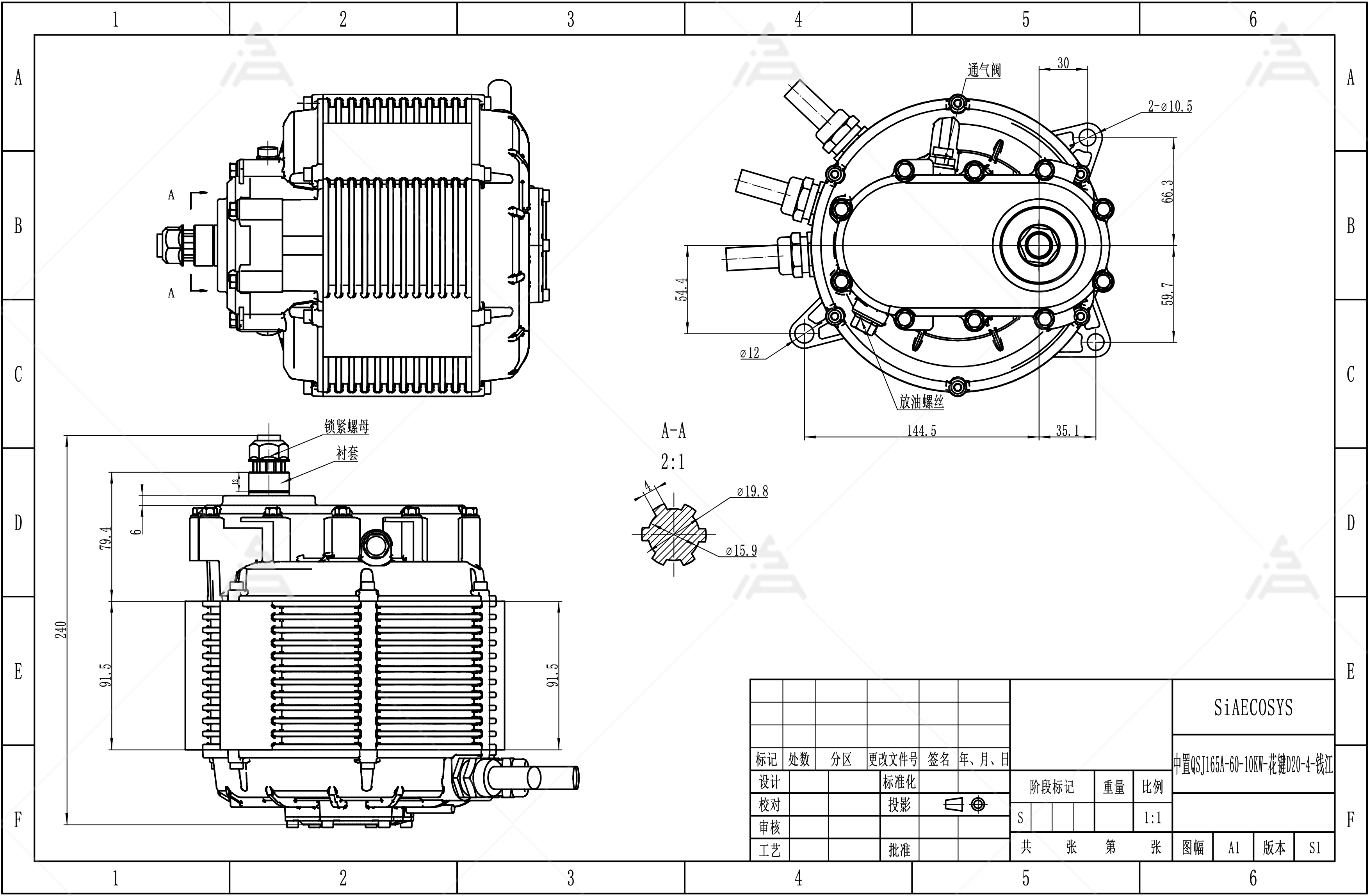

Motor Technical Specifications
| Motor Type | PMSM Inner Rotor Motor |
| Brand | QSMOTOR |
| Magnet Height | 60mm, 5 pole pairs |
| Rated Power | 10000W |
| Rated Voltage | 72V |
| Rated Speed | 2280RPM (Output) |
| Max Speed | 3165RPM (Output) |
| Max Torque | 170N.m (Output) |
| Gear Ratio | 1:2.37 |
| Max Efficiency | 94% |
| Waterproof Grade | IP67 |
| Hall Sensor | Encoder sensor |
| N.W./G.W. | approx 15kgs |

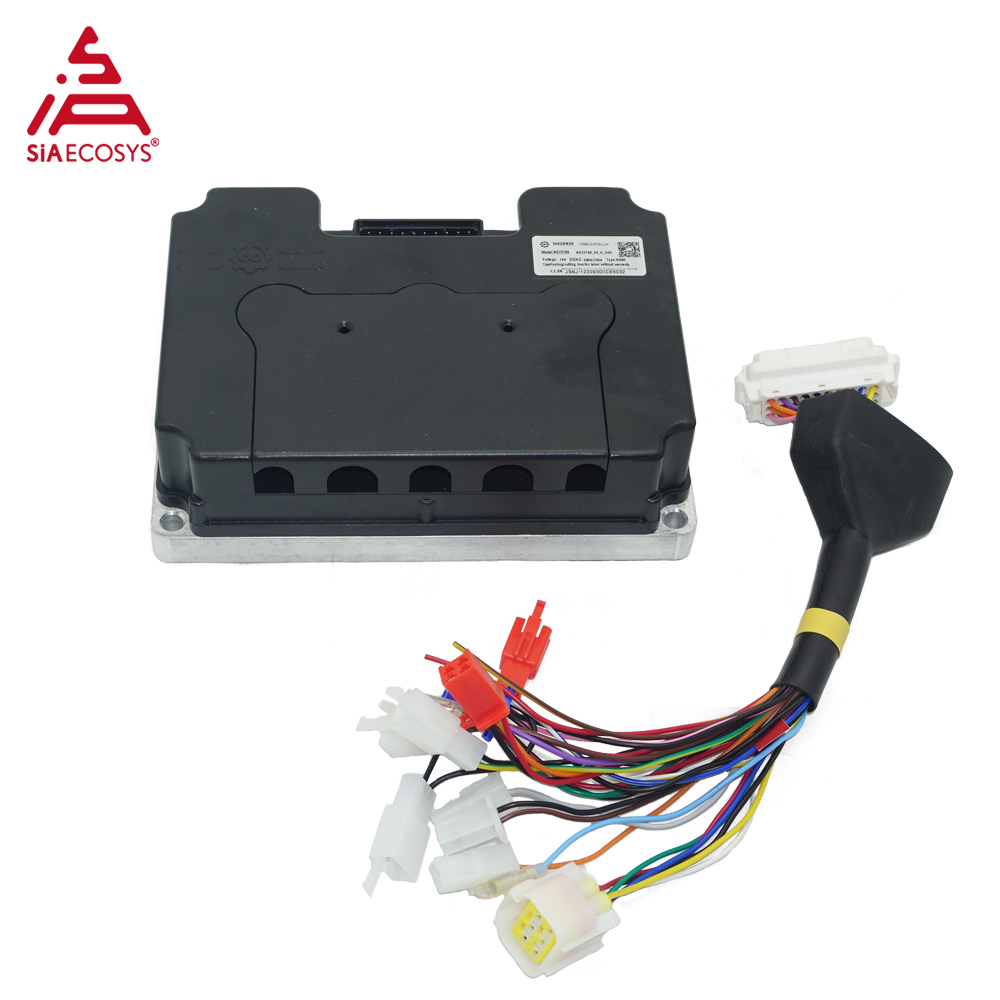

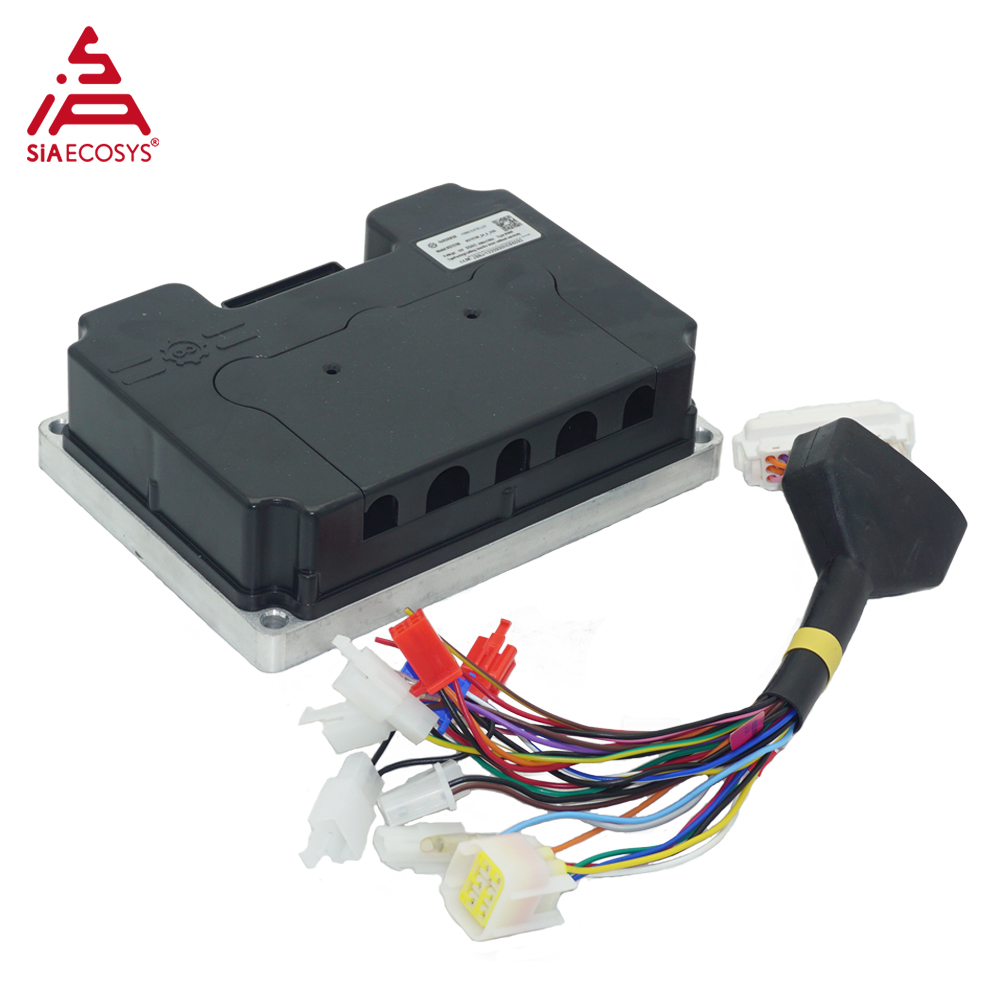

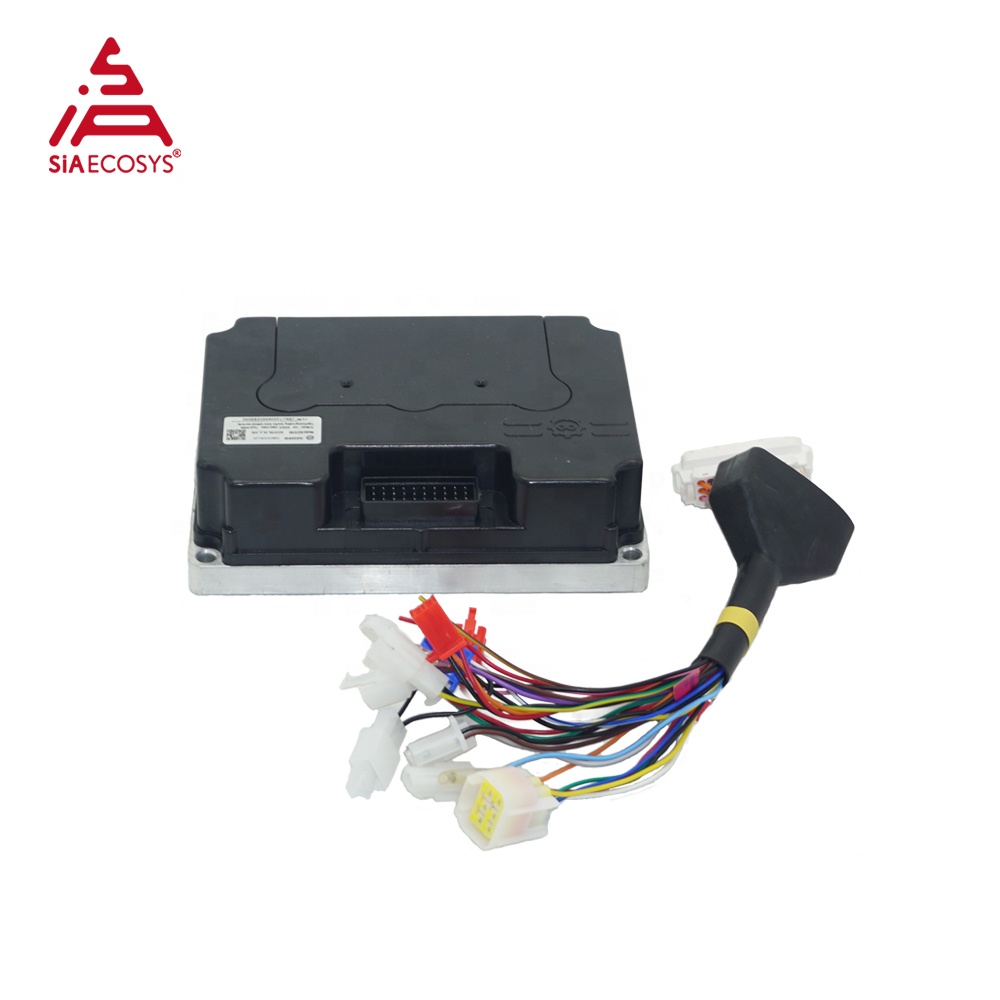

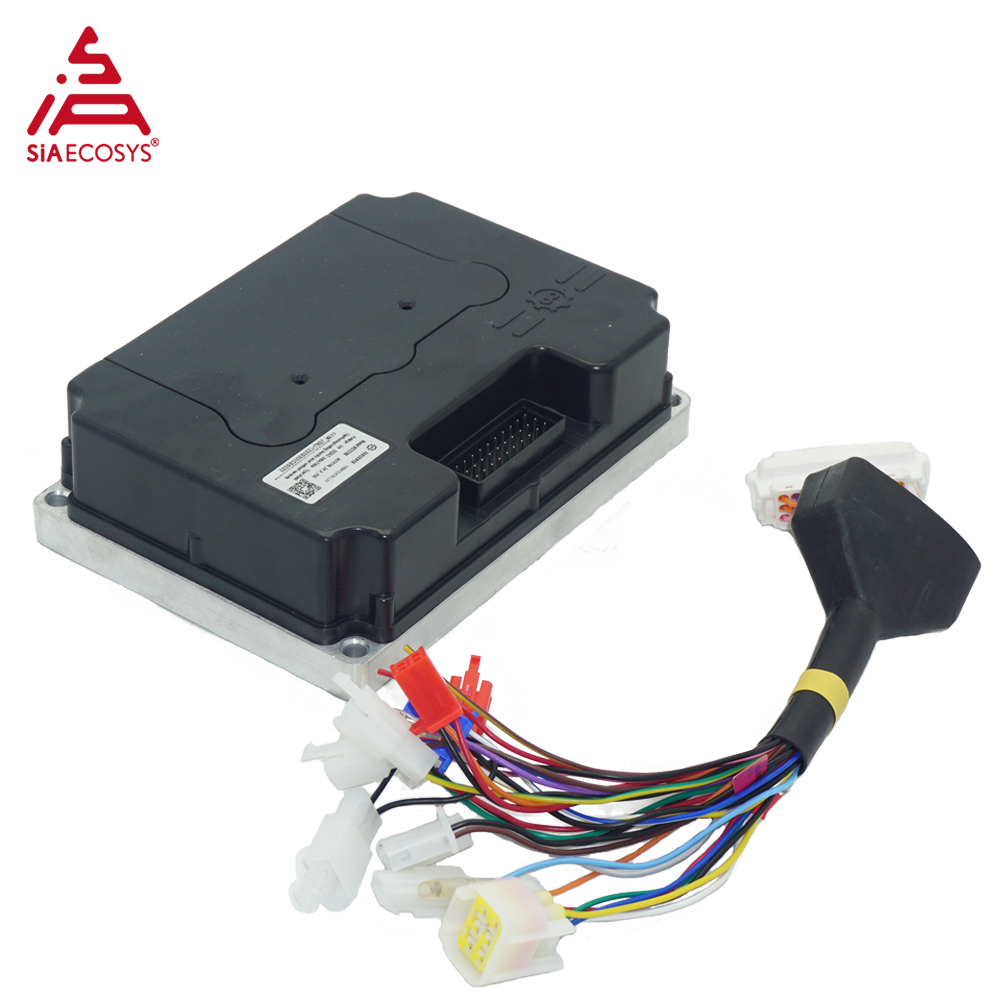

FarDriver ND72890B BLDC Controller
FarDriver controller is a sine wave type brushless DC controller with a sophisticated self-learning function. It is perfectly optimized for QS Motors. The controller utilizes high-performance Moss tubes and a full metal shielding aluminum die heat dissipation structure for superior durability.
| Max DC Current | 450A |
Rated Voltage | 72V |
| Protect Phase Current | 890A |
Waterproof | IP67 |
Key Features of Controller
✓ All raw materials are imported for high stability.
✓ Aluminum substrate scheme for efficient cooling.
✓ Compact size with high efficiency and low temperature rise.
✓ Self-learning function with excellent commonality.
✓ App compatible with Android and IOS for easy tuning.
✓ Flux weakening function supported.

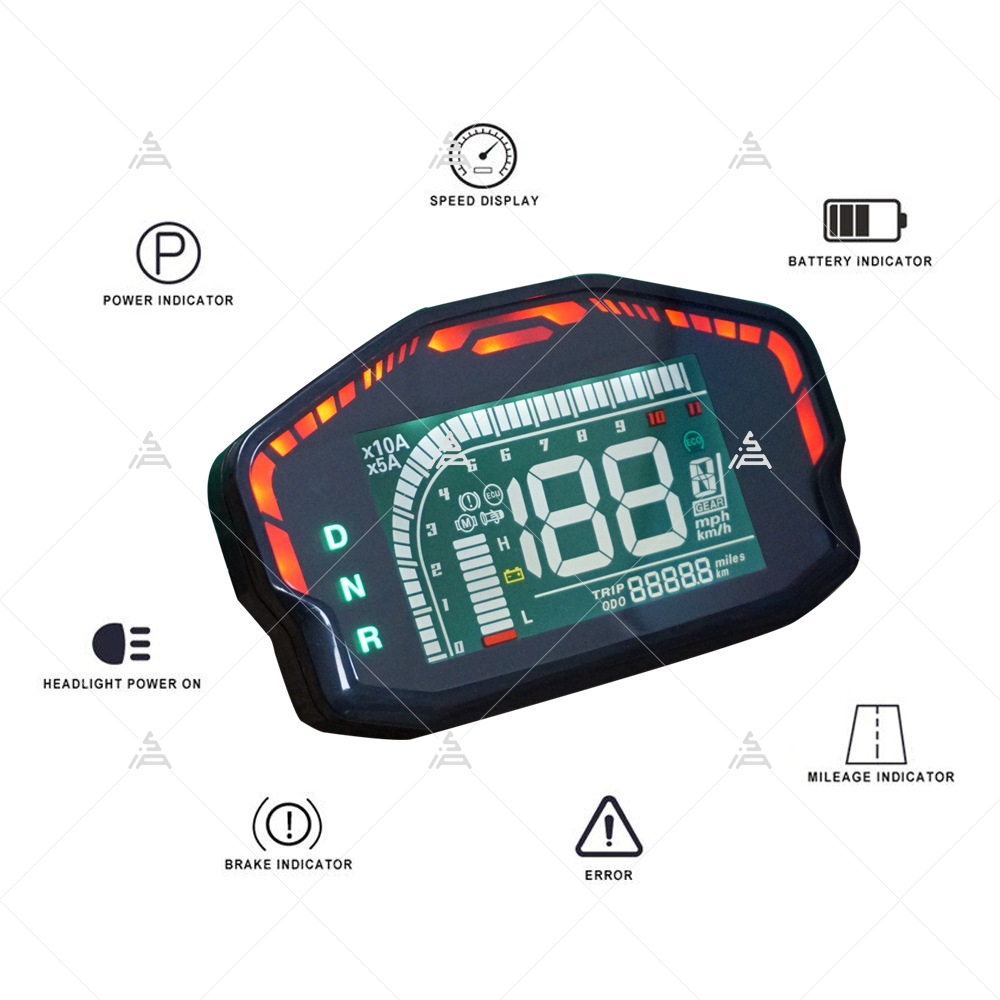

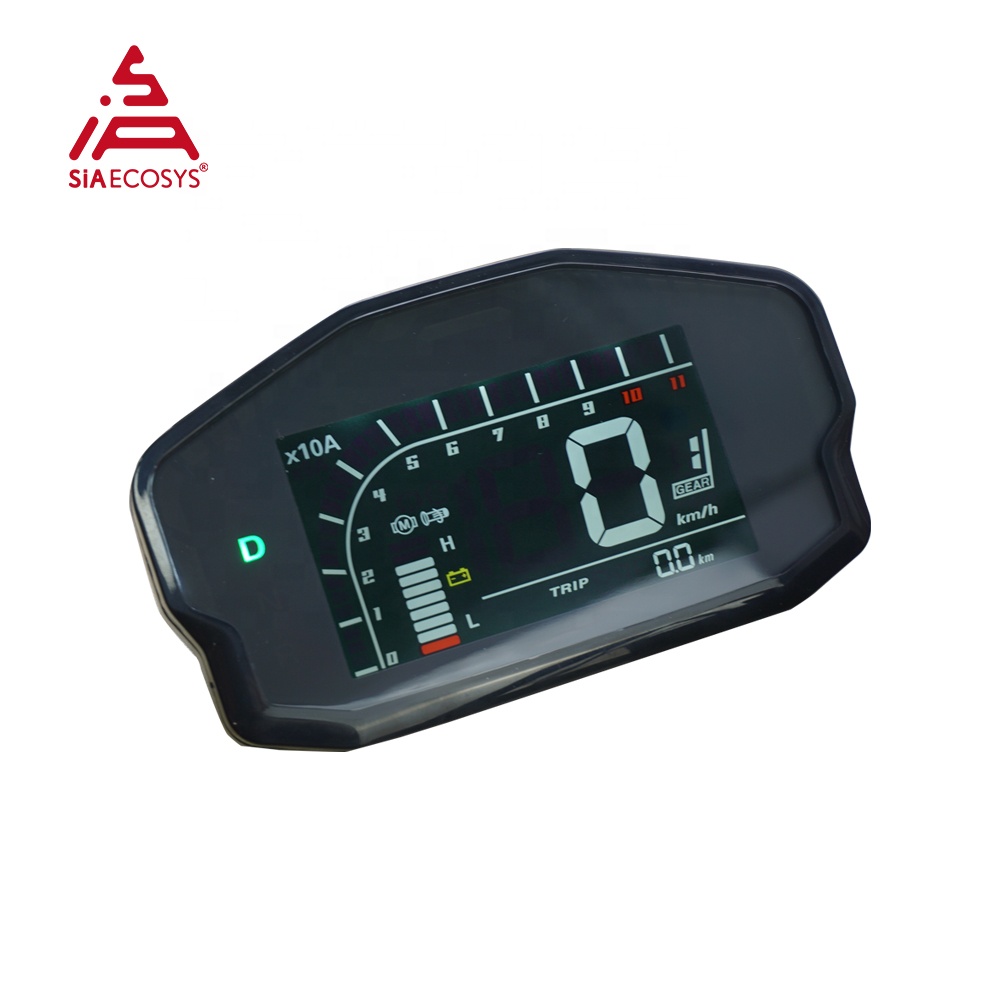

DKD LCD Speedometer & Z6 Throttle

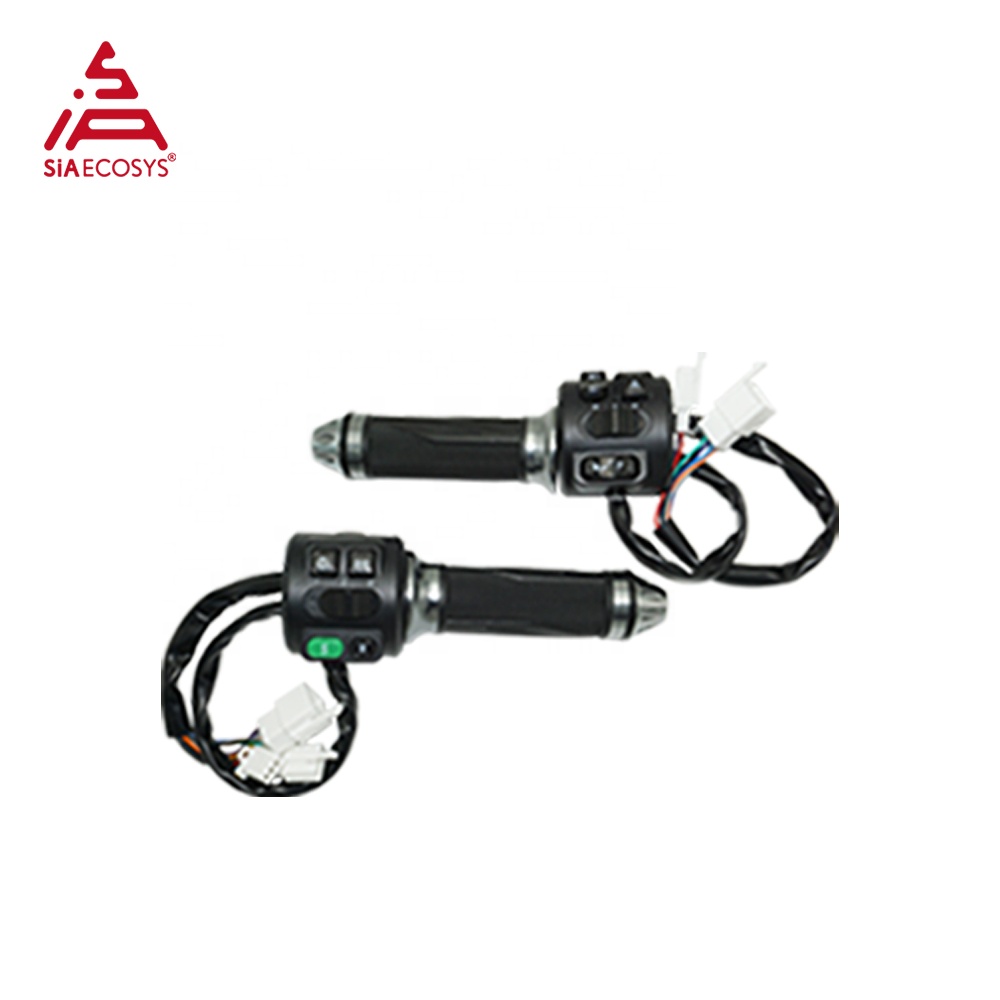

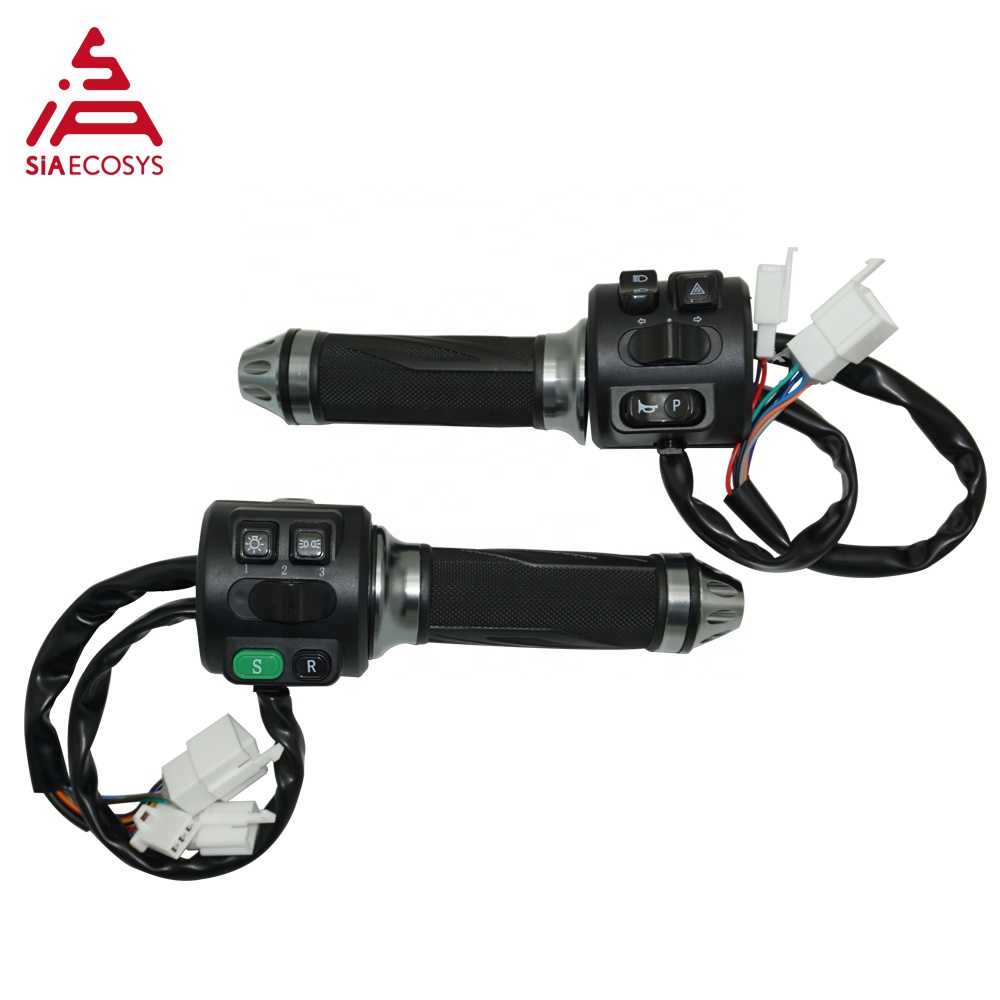

The DKD LCD speedometer is adjustable and supports Line communication as default (CAN-BUS optional). It displays Gear (D N R, P, S) and battery current. The Z6 throttle includes a combination switch for Reverse, Parking, 3-speed sliding gear, and Horn.

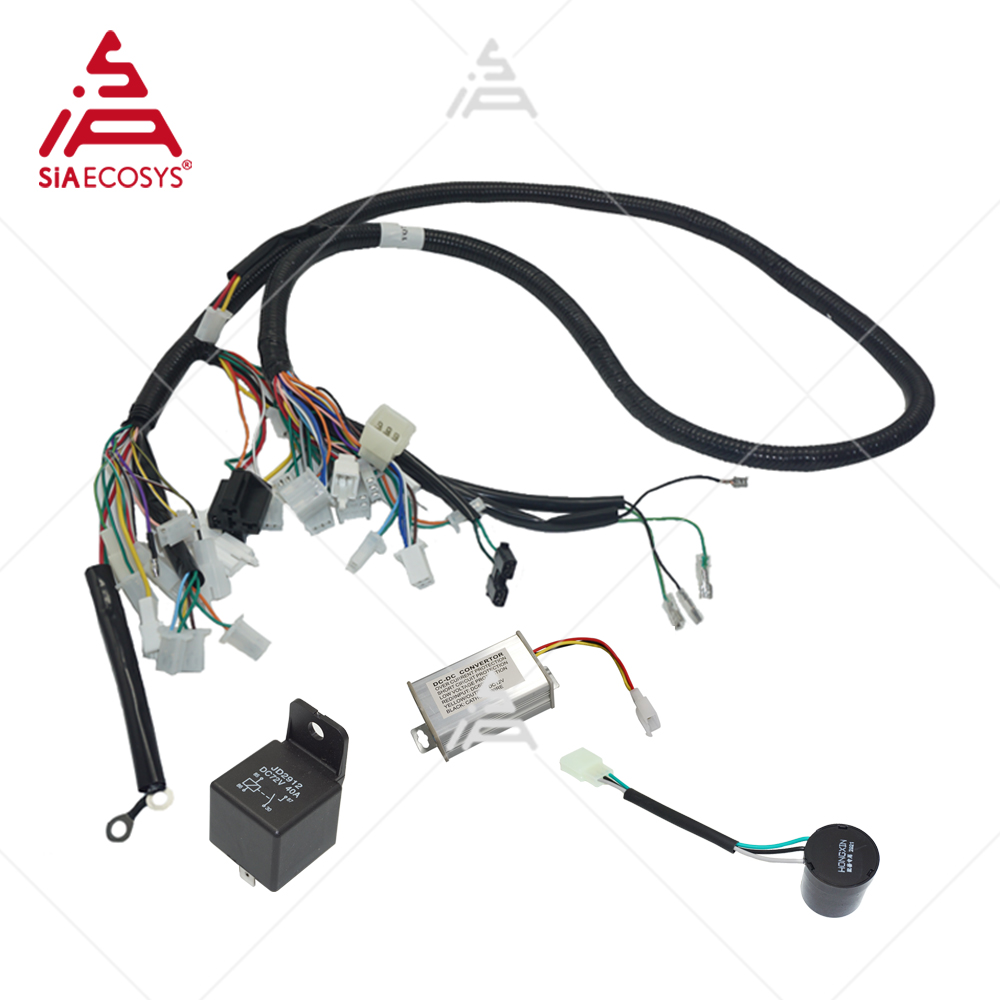

Professional Wiring Harness
Frequently Asked Questions
Q1: What is the rated power and voltage of the QS165 motor?
A: The motor has a rated power of 10,000W (10KW) and operates at a rated voltage of 72V.
Q2: Can the ND72890B controller be tuned via a smartphone?
A: Yes, the controller is compatible with both Android and iOS apps using the included Bluetooth adapter.
Q3: What is the waterproof rating for this motor kit?
A: Both the motor and the controller are designed with an IP67 waterproof grade.
Q4: Does the kit include all necessary wiring for installation?
A: Yes, the package includes a complete wiring harness, relay, flasher, and a 72V to 12V DCDC converter.
Q5: What type of speed sensor does the motor use?
A: This motor is the encoder version, utilizing an encoder sensor for precise motor control.
Q6: What is the maximum torque output of this mid-drive motor?
A: The motor delivers a maximum output torque of 170N.m.
