| Frame Size | 57mm Nema 23 |
|---|---|
| Rated Voltage | 12v 18v 24v 36v 48v ...etc |
| Rated Torque | Up to 120Nm with gearbox |
| Rated Speed | To be customized |
| Rated Power | To be customized |
| Protection Class | Option IP 50 54 56 |
| EMI | EMI suppression available |
| Thermal | Thermal protection available |
| Gearbox | Option with planetary or worm gearbox assembled |
| Brake | Option with electric brake assembled |
| Encoder | Option with Optical or Magnetic encoders |
| Controller | Option with controller integrated |
| Others | Pls Asd |
| Model NO. | Nema 23 geared |
|---|---|
| Stator Number | Two-Phase |
| Excitation Mode | HB-Hybrid |
| Function | Control, Driving |
| Number of Poles | 8 |
| Type | Magnetic-Electric |
| Certification | ISO9001 |
| Brake | Option with Brake |
| Encoder | Option with Encoder |
| Specification | size 57mm nema 23 |
| Origin | China |
| HS Code | 85011099 |
| Capacity | 10000 Per Month |
| Package Size | 10.00cm * 10.00cm * 20.00cm |
|---|---|
| Gross Weight | 3.000kg |
| Transport Pkg | Standard Export Package |

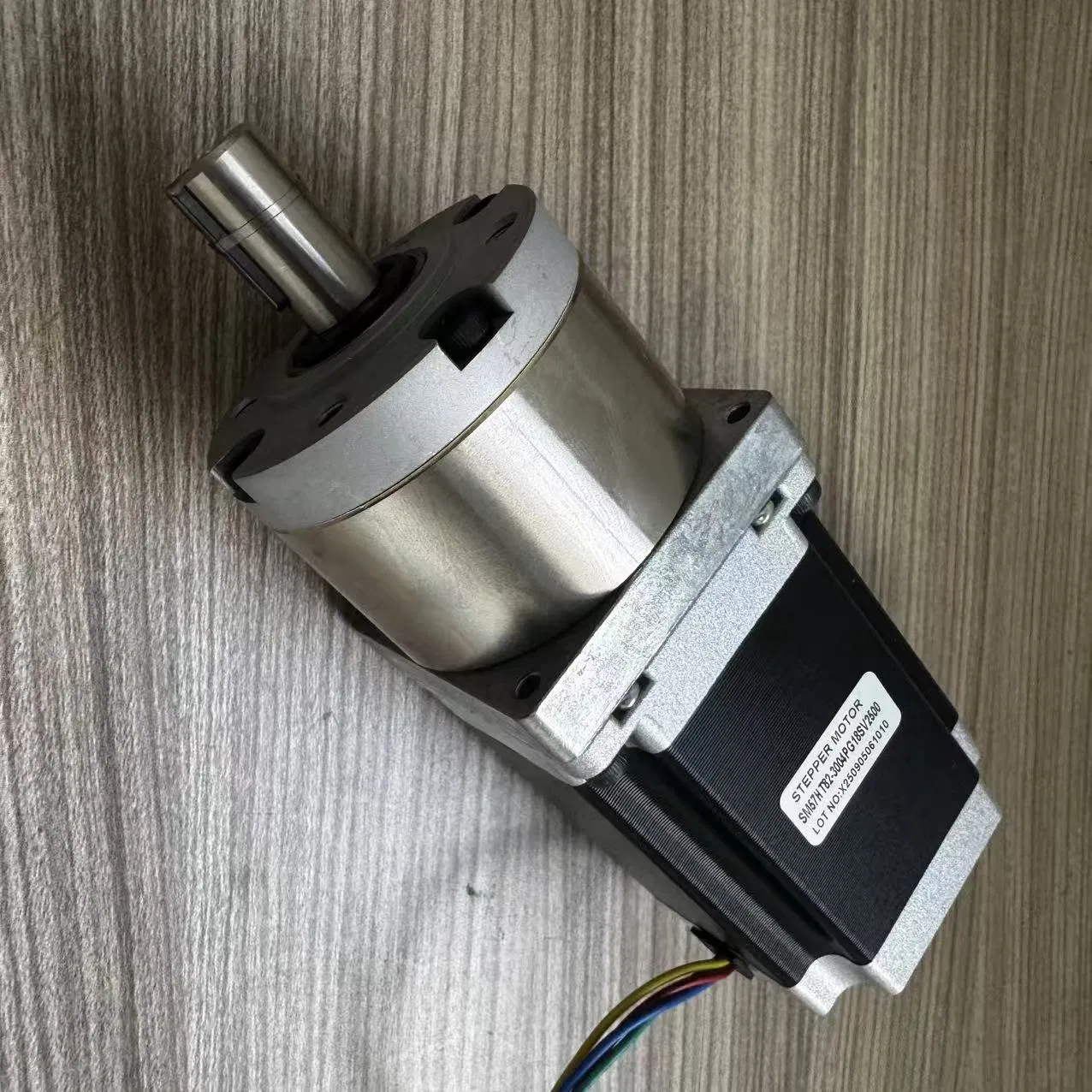

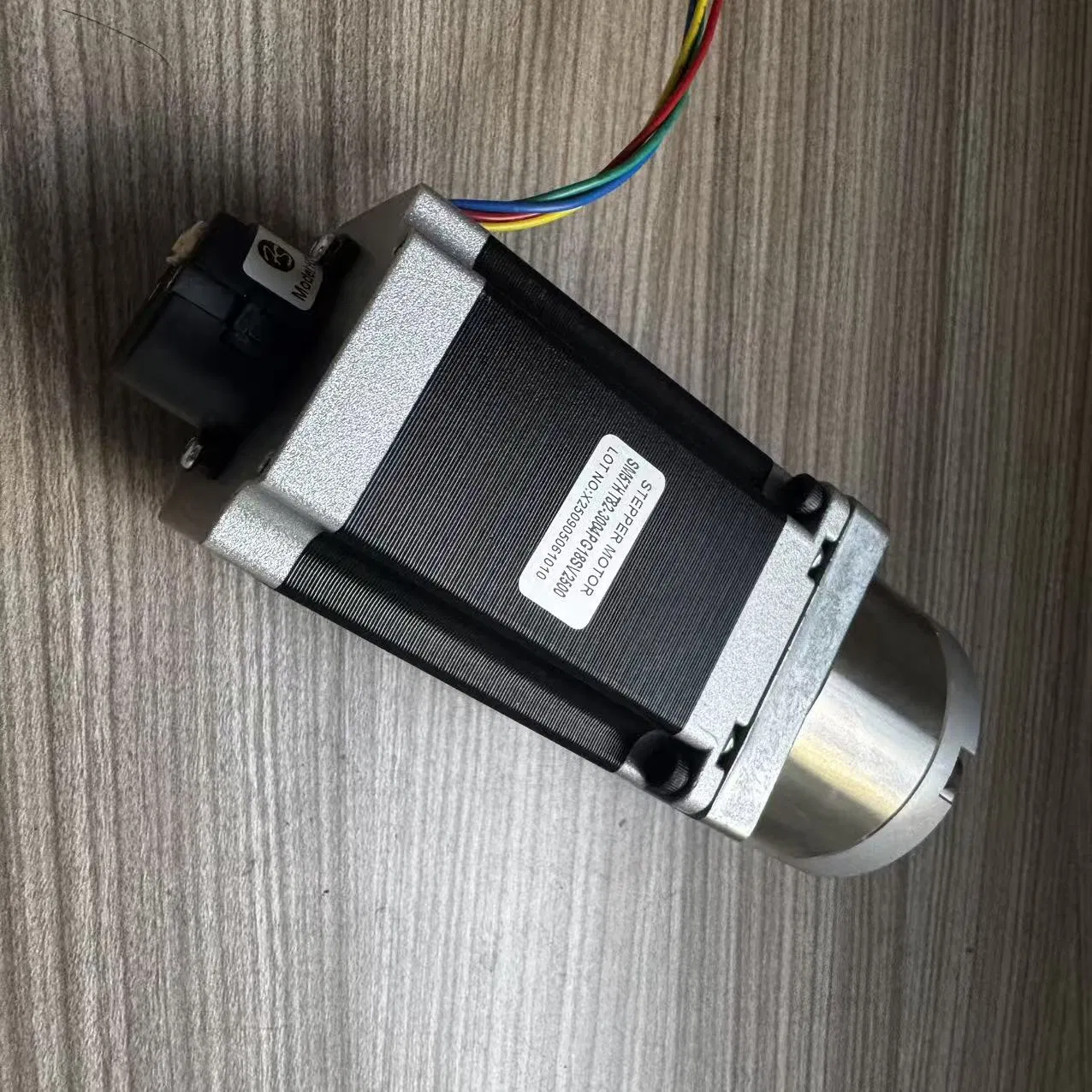

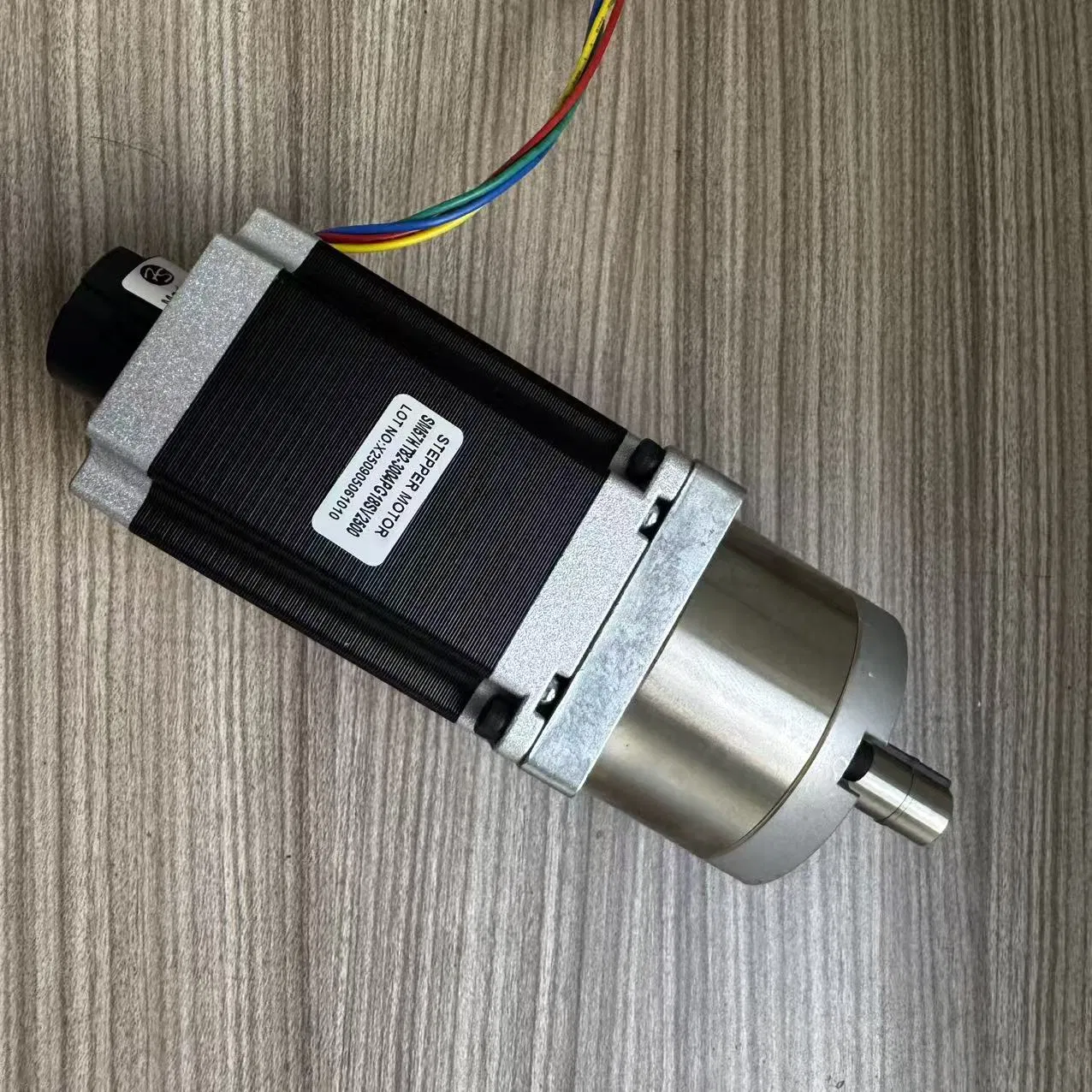

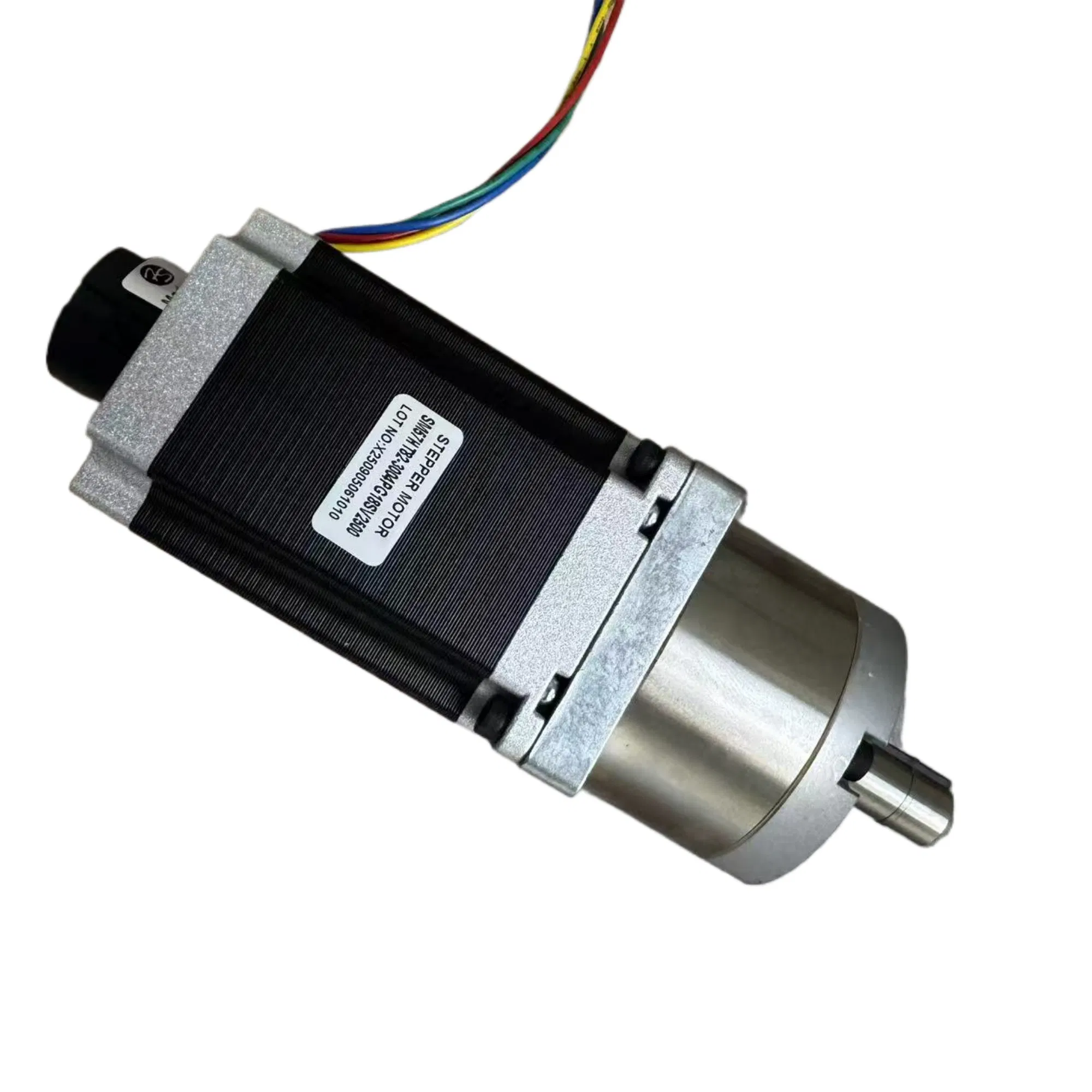

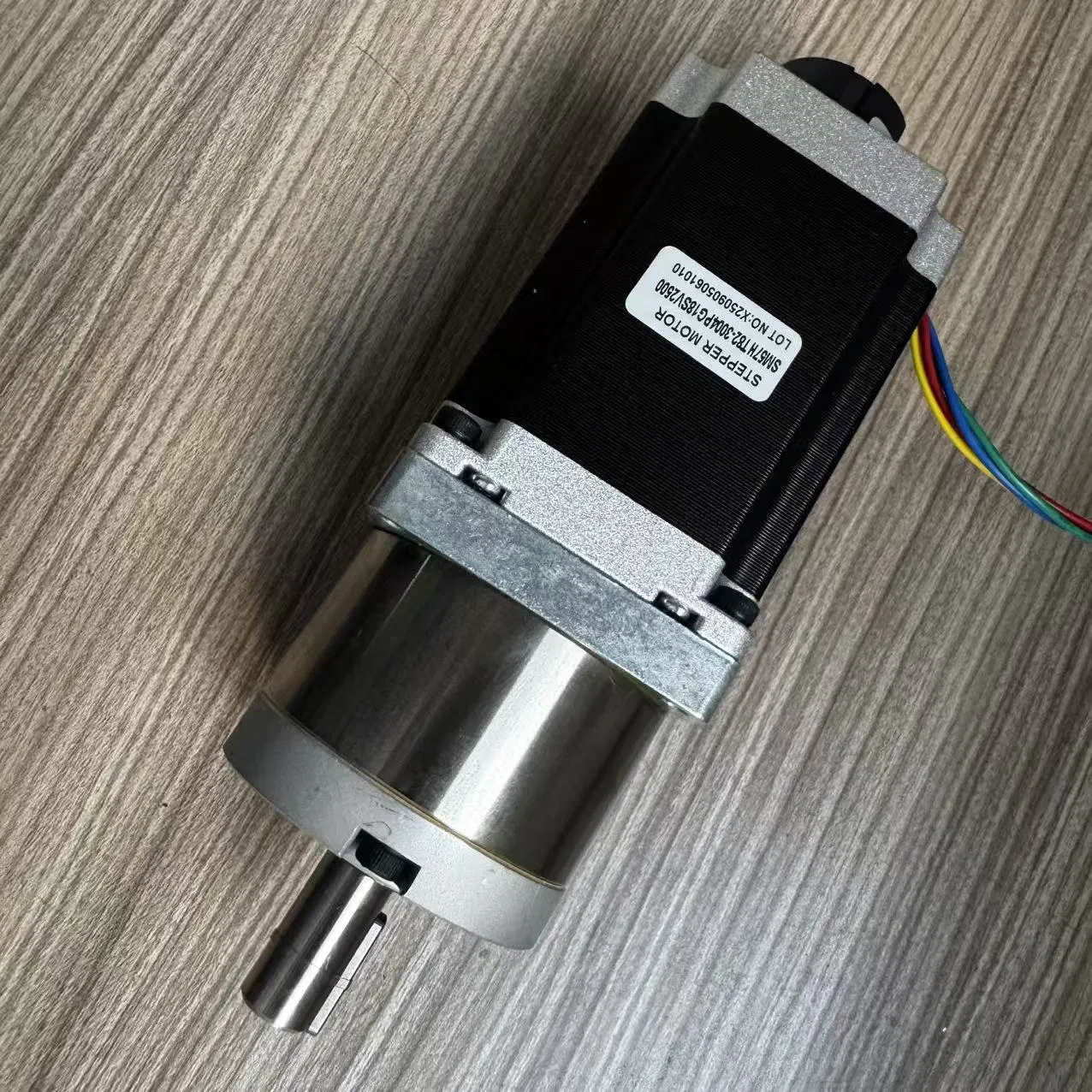

This motor has a frame size of 57mm, commonly classified as a Nema 23 geared stepper motor. The custom voltage, dimension, performance, shaft, and mounting are fully customizable to fit your specific application demands.
Yes. We can integrate several options onto the Nema 23 motor assembly, including planetary or worm gearboxes, optical or magnetic encoders, electric brakes, and integrated controllers.
When assembled with our optional gearbox, this Nema 23 geared stepper motor can output high rated torques up to 120Nm, depending on the configured gear ratio and customization settings.
Yes, we provide option configurations for protection classes including IP50, IP54, and IP56 to ensure reliable operation in various environment conditions.
Each standard export package has a package size of 10.00cm * 10.00cm * 20.00cm and a gross package weight of 3.000kg, ensuring safe transit. We boast a production capacity of 10,000 units per month.
Yes, both thermal protection and electromagnetic interference (EMI) suppression options are fully available to maintain device health and prevent operational interference.
