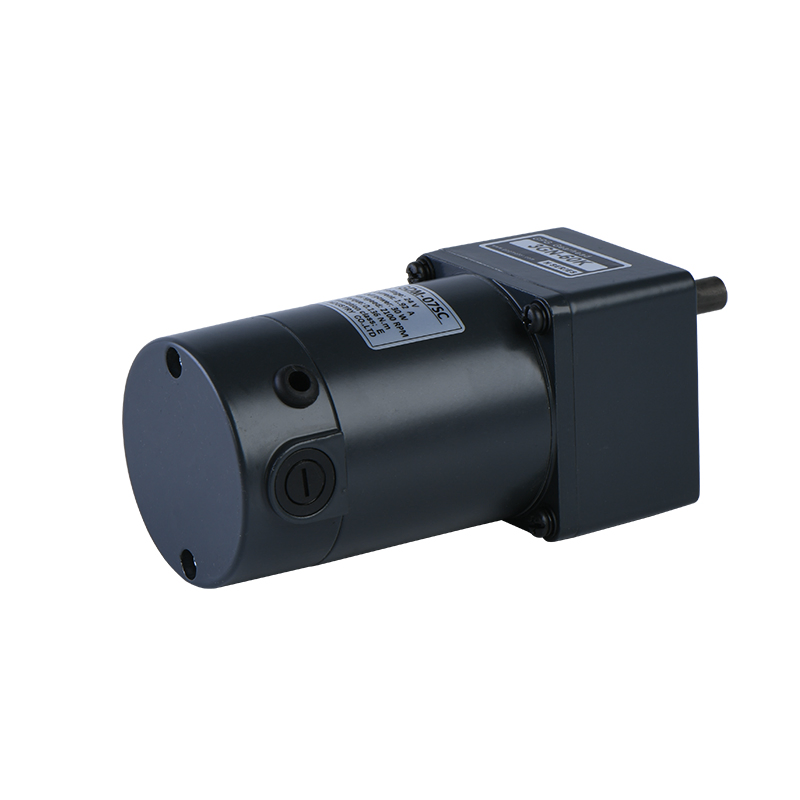

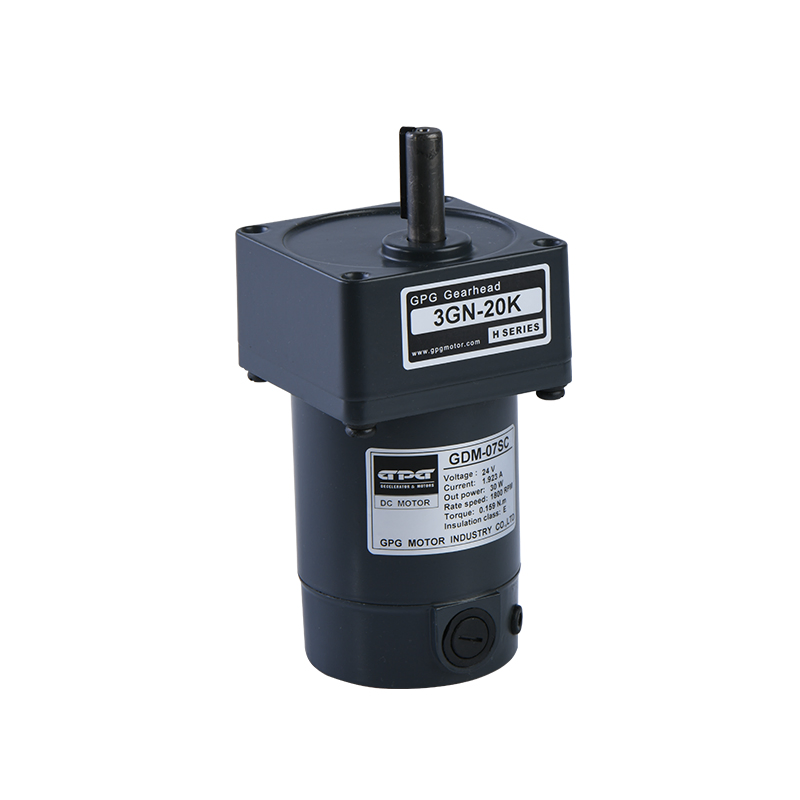

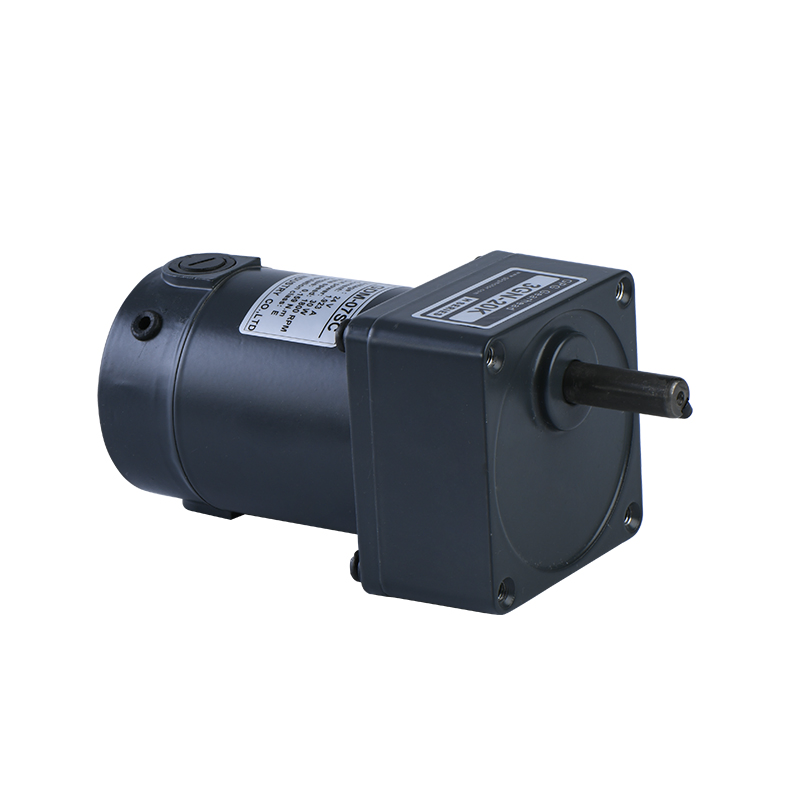

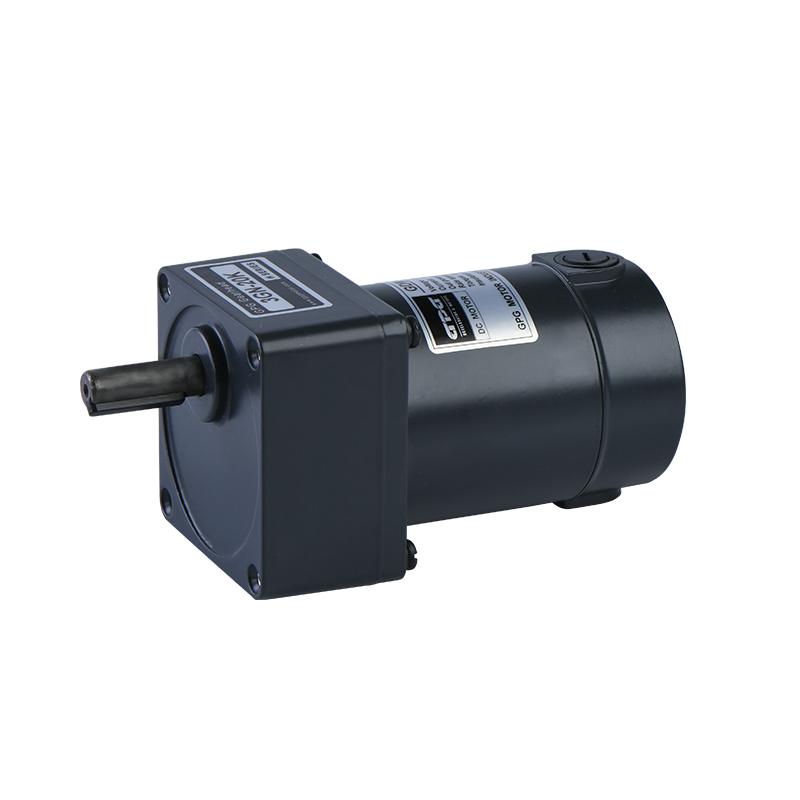

Micro Brushed DC Gear Reduction Electric Motor for Industry Automation 10W 15W 25W 30W 40W 60W 90W 120W 140W 160W 180W 200W 250W 300W

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Excitation Mode
Compound
Function
Control
Casing Protection
Protection Type
Number of Poles
4
Working Principle
Brush
Certification
ISO9001, CCC
Transport Package
Carton
Specification
GDM07-SC/3GN-50K
HS Code
8501510090
Capacity
50000pieces/Month
Product Description
What is a Gear Motor?
A gear motor is a combined electric motor with a gear reducer box. These motors are essential for applications requiring high output torque and low output rotation speeds.

Our gear motors serve as the ideal drive solution for a wide range of industrial automation products, suitable for both industrial and commercial applications. We provide steady quality products and efficient engineering solutions.

Main Product Range: Induction motors, reversible motors, DC brush gear motors, DC brushless gear motors, CH/CV medium gear motors, planetary gear motors, worm gear motors, and right-angle solid/hollow shaft gear motors.

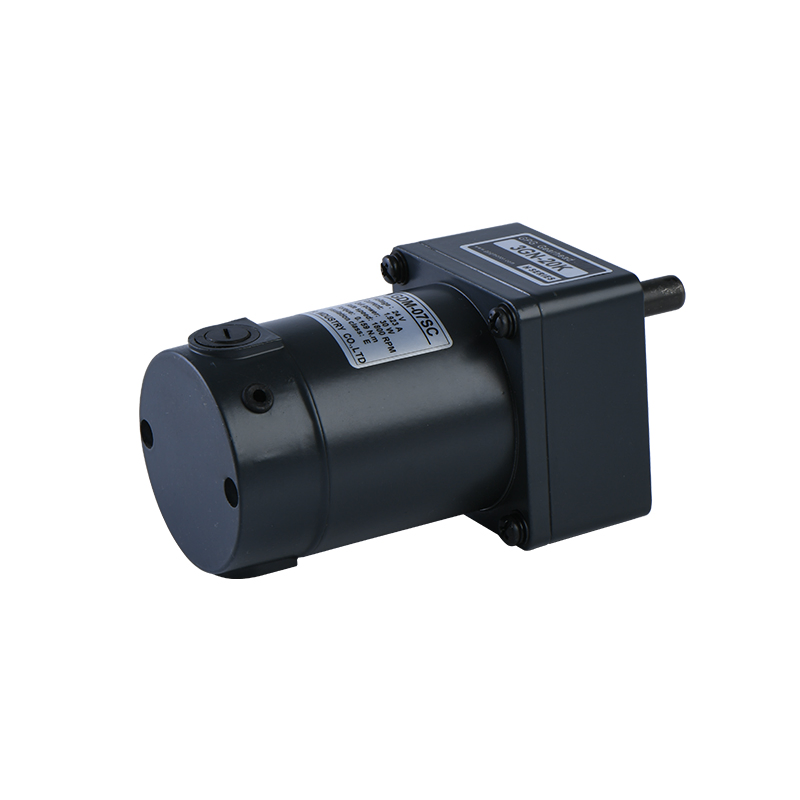

Micro Brushed DC Gear Reduction Motor

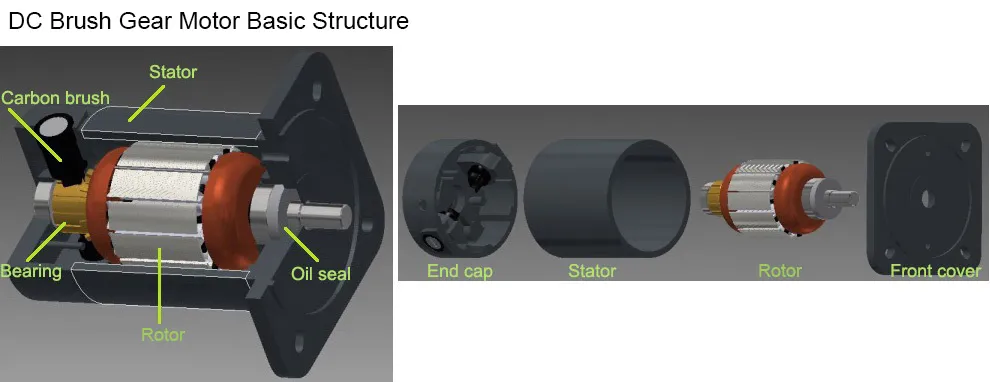

Key Features & Technical Components
  • The stator is constructed from high-quality low carbon steel seamless steel tube and ferrite permanent magnet.
  • The rotor consists of silicon steel sheet, copper coil, commutator, and premium insulating material.
  • Rotor shafts are made of high-performance medium carbon alloy steel processed with special techniques, available in round or gear shaft options.
  • Bearings and oil seals are selected from well-known brands to ensure superior running performance and sealing.
  • Internal wiring utilizes high-temperature resistant and flame-retardant materials.
Model Instruction & Technical Data
Model Gear Head Rated Power (W) Voltage (V) Ampere (A) Speed (r/min) Torque (mN.m) Shell Diameter
GDM07-SC 3GN 30 12 4.6 1500 / 1800 / 2200 190.9 / 159.08 / 130.2 Φ69
24 2.1 1500 / 1800 / 2200 190.9 / 159.08 / 130.2 Φ69
Reduction Ratio L1 (mm) L2 (mm) L3 (mm)
1:3 ~ 1:20 105mm 32mm 137mm
1:25 ~ 1:300 105mm 44mm 149mm
Product Schematics
Motor Dimension Drawing
Motor Technical Specifications
Gearhead Details
Connection Diagram
Frequently Asked Questions
What types of motors are available in your range?
We offer a comprehensive range including AC micro gear motors (6W-250W), AC small gear motors (100W-3700W), brush DC motors (10W-400W), brushless motors (10W-750W), planetary gearboxes, and worm gearboxes.
How do I choose the most suitable gear motor?
Selection is based on your required voltage, speed, torque, and motor size. Providing drawings or detailed specs like working mode, required lifetime, and noise level helps in suggesting the perfect match.
Can specifications be customized?
Yes, we provide customization for voltage, speed, torque, shaft size, and shape. We can also add specific connectors, cables, capacitors, or EMC components as per your request.
What is the typical lead time for orders?
Standard products usually take 10-15 days. Customized products may require a slightly longer period. We maintain flexibility based on specific order requirements.
Is there a Minimum Order Quantity (MOQ)?
For sea delivery, the minimum order is 100 pieces. For express delivery, there is no MOQ limit. All products are manufactured based on specific orders.
How can I obtain a quote or more information?
You can send an inquiry with your detailed requirements, and our team will get back to you as soon as possible with technical support and pricing.
